Old 05-04-2011, 01:34 AM   #41
Elite Member
iTrader: (7)

Join Date: Jul 2009
Location: Gainesville,Fl
Posts: 3,354
Total Cats: 7
Default

I thought I posted here. Using djp0623's hose. Might have to add an inline t-stat this summer.

turotufas is offline   Reply With Quote
Old 05-04-2011, 07:35 AM   #42
Elite Member
iTrader: (18)

Join Date: Dec 2007
Location: oahu
Posts: 1,720
Total Cats: 2
Default

The more I think about it the more I want to switch to the hose (and most likely will). Less failure points. If you still want to go the tubing and elbow route I can send you a length of pipe to make yours with seeing how I still have like 5' of the ****.
astroboy is offline   Reply With Quote
Old 05-04-2011, 07:51 AM   #43
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

What're you guys using on the back of the head?
kotomile is offline   Reply With Quote
Old 05-04-2011, 08:06 AM   #44
Elite Member
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

Kia Sephia t-stat housing from the junkyard.
Doppelgänger is offline   Reply With Quote
Old 05-04-2011, 08:51 AM   #45
Senior Member
iTrader: (10)

Join Date: Aug 2007
Location: Fredericton, NB
Posts: 1,187
Total Cats: 4
Default

I use the front 1.8L housing flipped and a spacer.

The kia housing doesn't allow me to user the stock coolant temp sensor location and I have COPs so there are no coils in the way.
Preluding is online now   Reply With Quote
Old 05-04-2011, 08:52 AM   #46
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

So that's it, just the Kia water neck? No sorcery with the heater hoses, etc?
kotomile is offline   Reply With Quote
Old 05-04-2011, 10:12 AM   #47
Senior Member
iTrader: (10)

Join Date: Apr 2007
Location: Ohio
Posts: 800
Total Cats: 3
Default

Quote:
Originally Posted by astroboy View Post
The more I think about it the more I want to switch to the hose (and most likely will). Less failure points. If you still want to go the tubing and elbow route I can send you a length of pipe to make yours with seeing how I still have like 5' of the ****.
Well, I have the M-Tuned reroute. My problem is that my Ron Davis radiator has a long inlet for the upper hose and I only have about an inch between that and the charge pipe at the throttle body.

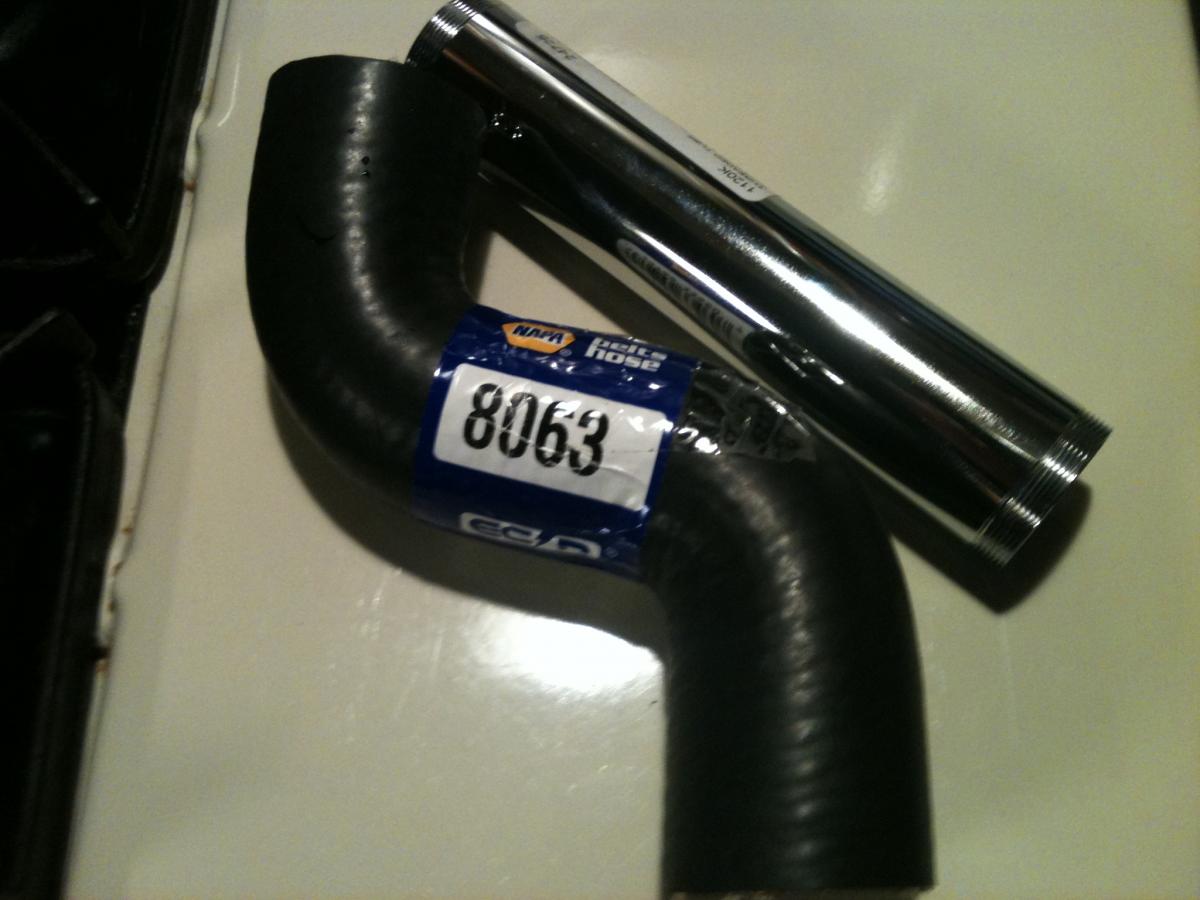

I picked these up last night. The 7" hose with the 2 90* bends perfectly goes around the charge pipe but I have to connect the two hoses. The pipe is a 6" pipe from the plumbing section at Lowe's and is threaded on each end.

The end that will go into the M-Tuned hose should go in far enough that it shouldn't pose a problem with a couple of clamps on it. What I need to figure out how to do is flare or bead the other end (preferably both ends, really) without access to a welder. I'm thinking that the threaded portions might provide enough grip to keep the whole thing from leaking or coming apart, but I'd really like some sort of flare or bead for peace of mind.

Ultimately I may end up buying a Blox or Mishimoto inline coolant temp sender piece to join the hoses.

http://www.advancespeedshop.com/blox...k-p-10645.html

It looks more secure and probably a little nicer. I could even throw a temp sensor in there for the MegaSquirt - though it won't see any cold water ever - or just plug it.
Attached Thumbnails
Needs pics of your Coolant Re-Route Route-radhose-n-pipe.jpg
soloracer is offline   Reply With Quote
Old 05-04-2011, 10:18 AM   #48
Elite Member
iTrader: (18)

Join Date: Dec 2007
Location: oahu
Posts: 1,720
Total Cats: 2
Default

Quote:
Originally Posted by kotomile View Post
So that's it, just the Kia water neck? No sorcery with the heater hoses, etc?
You need to put a 1/2" fitting into the spacer for the heater hose. You also have to cut a lip into the spacer so the tstat has a place to sit.

I used a 1.6 upper water neck for mine. I put a plug in the fitting on the top and cut the fitting down as much as I could to get clearance between the reroute and firewall. I then put the temperature sensor into the spacer and was able to use the setup with standard 1.6 coils mounted onto a 1.8 via the fm adapter.
astroboy is offline   Reply With Quote
Old 05-04-2011, 10:20 AM   #49
Elite Member
iTrader: (33)

RotorNutFD3S's Avatar

Join Date: Jan 2007
Location: Newnan, GA
Posts: 2,539
Total Cats: 29
Default

Quote:
Originally Posted by kotomile View Post
So that's it, just the Kia water neck? No sorcery with the heater hoses, etc?
The Kia waterneck (part # 0K24715172A) and used a fitting in the spacer to retain the heater core hose, the spacer also had a threaded port drilled for the temp sensor.




Last edited by RotorNutFD3S; 05-04-2011 at 10:38 AM.
RotorNutFD3S is offline   Reply With Quote
Old 05-04-2011, 10:28 AM   #50
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default





shuiend is offline   Reply With Quote
Old 05-04-2011, 01:20 PM   #51
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

You have a fan switch with the MS? Newb. And what's the lower barb for?

I also used the 1.6 housing. Milled down and welded the fan switch hole. Roughly ~.3" clearance to the firewall.
curly is offline   Reply With Quote
Old 05-04-2011, 01:24 PM   #52
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,851
Total Cats: 1,788
Default

Quote:
Originally Posted by curly View Post
You have a fan switch with the MS? Newb. And what's the lower barb for?
noob, that's the oem coolant sensor. then a secondary coolant sensor for his gauge.


pretty sure I had him remove the lower barb, he was going to use that for the heater core return. Bu ti had him return back to in front of the water pump.
Braineack is offline   Reply With Quote
Old 05-04-2011, 01:32 PM   #53
Elite Member
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

...or you can put the heater hose/temp. sensor housing on the front of the motor and extend the temp sensor/heater hose to the front and not need the spacer on the back.
Doppelgänger is offline   Reply With Quote
Old 05-04-2011, 01:48 PM   #54
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Quote:
Originally Posted by curly View Post
You have a fan switch with the MS? Newb. And what's the lower barb for?

I also used the 1.6 housing. Milled down and welded the fan switch hole. Roughly ~.3" clearance to the firewall.
I will do some more explaining on this picture. It is a Begi spacer, I have 3 coolant temp sensors in it. One sensor for MS, one sensor for stock coolant temp gauge, one sensor for digital coolant gauge. The lower barb was just put in for test fitting, it is no longer there. The one barb that is left goes to my front lower radiator hose.
shuiend is offline   Reply With Quote
Old 05-04-2011, 01:55 PM   #55
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,851
Total Cats: 1,788
Default

Your MS uses your oem sensor. come on silly.
Braineack is offline   Reply With Quote
Old 05-04-2011, 02:06 PM   #56
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Quote:
Originally Posted by Braineack View Post
Your MS uses your oem sensor. come on silly.
Did I say otherwise? Stock there are 2 coolant temp sensors. I simply added a third one for my digital gauge.
shuiend is offline   Reply With Quote
Old 05-04-2011, 02:09 PM   #57
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,851
Total Cats: 1,788
Default

what?! no way.


look at the pic I took before we put it in. 2 senders. 1 oem, one for gauge.
Braineack is offline   Reply With Quote
Old 05-04-2011, 03:17 PM   #58
Elite Member
iTrader: (18)

Join Date: Dec 2007
Location: oahu
Posts: 1,720
Total Cats: 2
Default

Quote:
Originally Posted by shuiend View Post
Did I say otherwise? Stock there are 2 coolant temp sensors. I simply added a third one for my digital gauge.
Are you referring to the two wire sensor for ms and the one wire sensor for the cluster? If not are you thinking of the sensor that was on the front of the engine? If so that one was originally a fan control that ms doesn't need.
astroboy is offline   Reply With Quote
Old 05-04-2011, 03:29 PM   #59
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Quote:
Originally Posted by astroboy View Post
Are you referring to the two wire sensor for ms and the one wire sensor for the cluster? If not are you thinking of the sensor that was on the front of the engine? If so that one was originally a fan control that ms doesn't need.
I have at the back of my engine 3 coolant temp sensors. 1 is the OEM sensor that is 2 wire and goes to the stock ecu/MS. The second one is a single little prong that goes to the coolant gauge in my gauge cluster, I believe this is actually in my head, not in the space. Then my third sensor goes to my VEI oil/coolant temp gauge.
shuiend is offline   Reply With Quote
Old 05-04-2011, 03:30 PM   #60
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,851
Total Cats: 1,788
Default

he has a 94. there was no front switch. he's talking about the sensor for the gauge cluster...but that's on the head, not the spacer.
Braineack is offline   Reply With Quote
