Default 1.6 exhaust bracket

Anyone happen to have the metal exhaust hanger bracket that bolts to the frame near the shipping eyehooks from the driver's side rear? Not the rubber part, but the metal part the rubber hanger attaches to on the car. Figured I'd ask first before fabbing something up.
brgracer is offline   Reply With Quote
Old 07-01-2008, 02:26 PM   #2
I'm Miserable!
iTrader: (5)

Join Date: Sep 2005
Location: SLC, Utah
Posts: 1,591
Total Cats: 0
Default

you talking about the piece that is welded to the muffler or on the body end?
zoom2zoom is offline   Reply With Quote
Old 07-01-2008, 02:27 PM   #3
Senior Member
Thread Starter
iTrader: (14)

brgracer's Avatar

Join Date: Nov 2004
Location: Ambler, PA
Posts: 1,275
Total Cats: 1
Default

Quote:
Originally Posted by zoom2zoom View Post
you talking about the piece that is welded to the muffler or on the body end?
Body end. Bolts to frame with 2 bolts.
brgracer is offline   Reply With Quote
Old 07-01-2008, 02:41 PM   #4
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

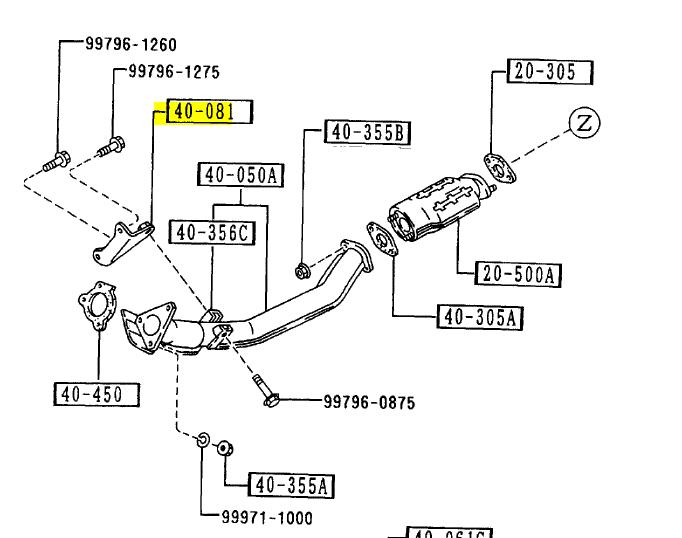

This? Part # B690-40-080A
Attached Thumbnails
1.6 exhaust bracket-m5_exh.jpg
Ben is offline   Reply With Quote
Old 07-01-2008, 02:46 PM   #5
Senior Member
Thread Starter
iTrader: (14)

brgracer's Avatar

Join Date: Nov 2004
Location: Ambler, PA
Posts: 1,275
Total Cats: 1
Default

Quote:
Originally Posted by Ben View Post
This? Part # B690-40-080A
Nope. It's the one that attaches under the rear driver's bumper at the back of the car.
brgracer is offline   Reply With Quote
Old 07-01-2008, 02:51 PM   #6
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

dee dee dee
reading pwnz me

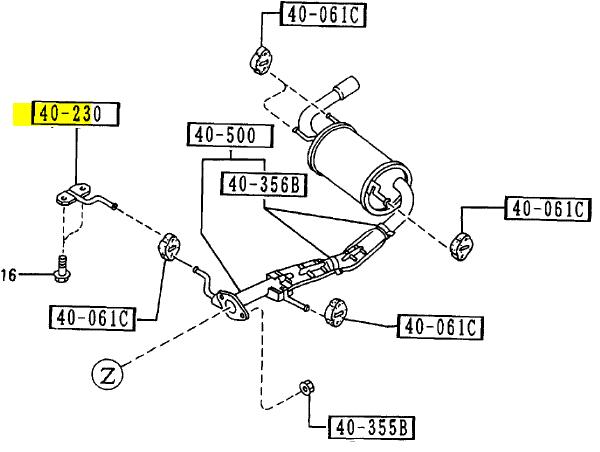

B690-40-690
Attached Thumbnails
1.6 exhaust bracket-m5_exh1.jpg
Ben is offline   Reply With Quote
Old 07-01-2008, 03:15 PM   #7
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

if it is indeed #40-230(that is a horrible description of the location) i have one on the machine that isn't used with my custom exhaust. actually i should have one on the merlot. i'll look tonight.

edit: just checked on the Merlot. not present. I know for a fact it's on the Machine though. I think the nut on the other side broke free so it'll take drilling the bolt. Let me know if you need it.
paul is offline   Reply With Quote
Old 07-01-2008, 03:20 PM   #8
Senior Member
Thread Starter
iTrader: (14)

brgracer's Avatar

Join Date: Nov 2004
Location: Ambler, PA
Posts: 1,275
Total Cats: 1
Default

Dammit, maybe it doesn't exist then. It was a hanger there for my FM duals, but it snapped when I removed my old exhaust, and there is the same hanger on my Enthuza duals so I assumed it was a stock part, but I guess not. Weird.

From your diagram, the way the muffler has two hangers on the passenger side and only one on the driver's side, there is another hanger (on both set of duals) that is even further back on the driver's side.
brgracer is offline   Reply With Quote
Old 07-01-2008, 03:23 PM   #9
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

Yeah Tom, had a feeling you were talking about that. That part came with the FM Duals. Fab something up.
