Default S4 manifold

Looking for a s4 manifold!
Turbonator is offline   Reply With Quote
Old 04-12-2013, 02:40 PM   #2
Junior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2013
Posts: 68
Total Cats: 0
Default

Still looking for s4 manifold!
Turbonator is offline   Reply With Quote
Old 04-12-2013, 03:02 PM   #3
Senior Member

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

sturovo is offline   Reply With Quote
Old 04-12-2013, 03:08 PM   #4
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

Quote:
Originally Posted by sturovo View Post
that is wrong and please don't spread mis-information like that.

they're the same design, because one is a knockoff of the other, but not the same quality or material
18psi is offline   Reply With Quote
Old 04-12-2013, 04:23 PM   #5
Senior Member

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Quote:
Originally Posted by 18psi View Post
that is wrong and please don't spread mis-information like that.

they're the same design, because one is a knockoff of the other, but not the same quality or material
But are they are different? Any definitive proof? I interpreted Corky's post to mean they are the same (as in the same).

Quote:
Originally Posted by Corky Bell View Post
Aricjm15: You are quite correct, the ebay piece and mine are the same. We made a proto, sent it to a maker in China, received a bunch of nice pieces, then found the same thing for sale on ebay. I have to admit, I was warned.
In any case both versions crack in the same way and same time frame when the downpipe is supported correctly.

https://www.miataturbo.net/build-thr...e2/#post992615

All is not lost, Begi has come up with a fix.
sturovo is offline   Reply With Quote
Old 04-12-2013, 04:40 PM   #6
Junior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2013
Posts: 68
Total Cats: 0
Default

I wasn't aware there was a ebay knockoff, are they still for sale..havent seen any. I'm looking for the begi quality one.
Turbonator is offline   Reply With Quote
Old 04-12-2013, 05:03 PM   #7
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

The correct fix would be not using 1/32" wall tubing.
triple88a is offline   Reply With Quote
Old 04-12-2013, 09:28 PM   #8
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

look same =/= same

But yes, they look exactly the same. Just use different metal
18psi is offline   Reply With Quote
Old 04-13-2013, 04:50 PM   #9
Senior Member

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

Interesting idea 18psi. So which different metal would that be? Any specifics?

http://www.bellengineering.net/produ...products_id=40
sturovo is offline   Reply With Quote
Old 04-13-2013, 08:21 PM   #10
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

the thickness of it. both use ss
18psi is offline   Reply With Quote
Old 04-14-2013, 02:54 AM   #11
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Theres different SS ratings too. I didnt know they use similar ****, i always thought they made their own in house. Hmm.
triple88a is offline   Reply With Quote
Old 04-14-2013, 11:06 AM   #12
Senior Member

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

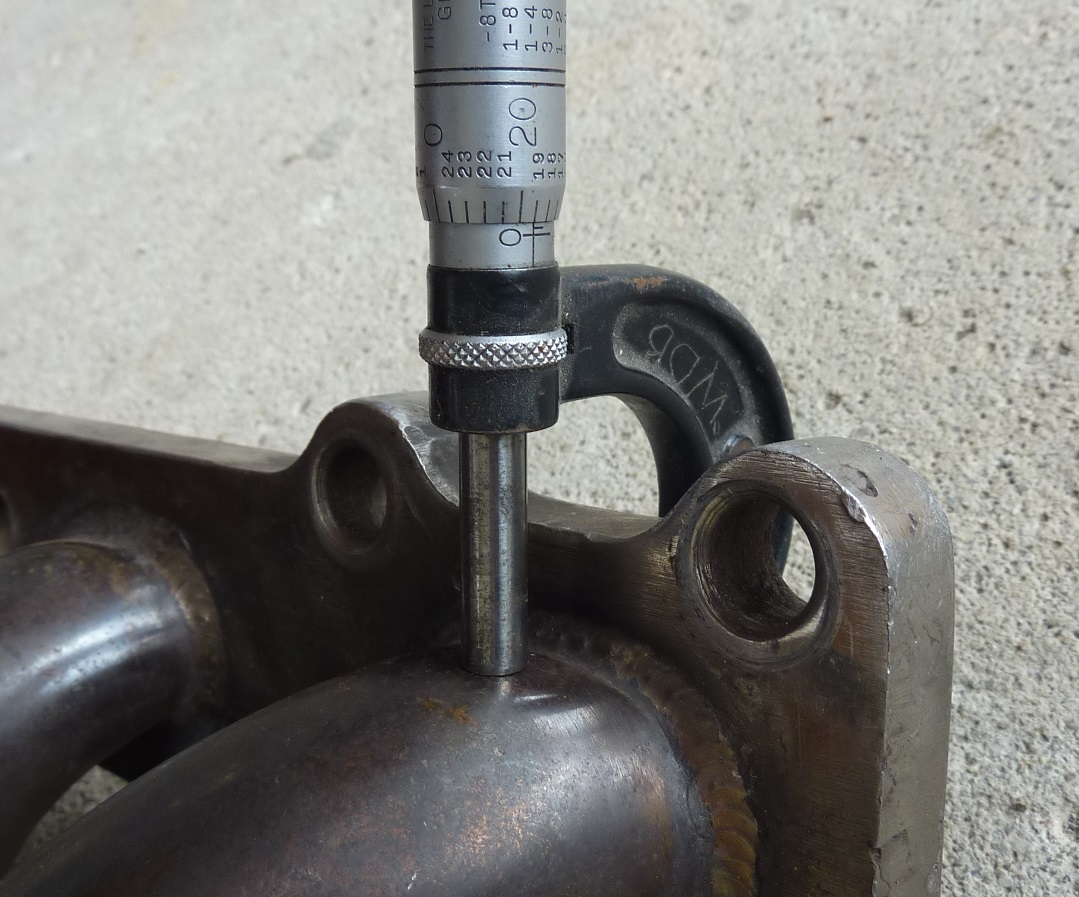

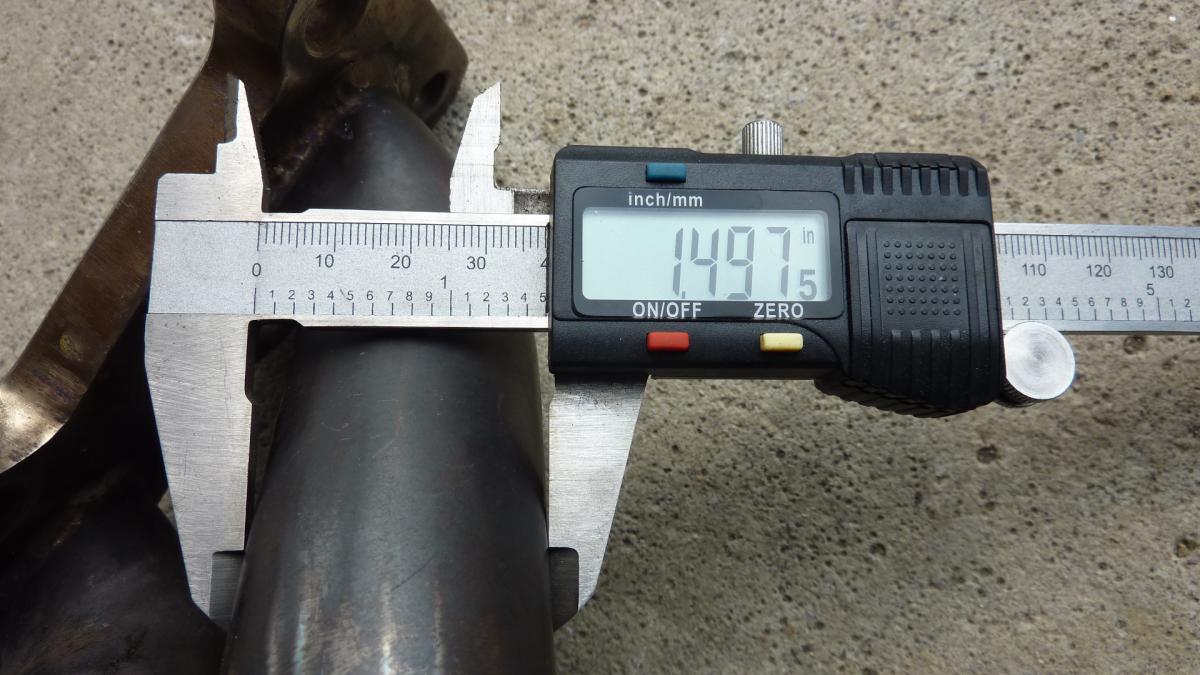

I measured an ebay s4. It looks like it they use 38mm x 1mm tubing.
I wonder how this compares to the original part?
Attached Thumbnails
S4 manifold-p1030371.jpg   S4 manifold-p1030369.jpg
sturovo is offline   Reply With Quote
Old 04-15-2013, 05:48 PM   #13
Senior Member

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

MX-5 Miata Forum - View Single Post - Turbo- Cast manifold VS Welded Stainless

Quote:
Please don't take this as I am dissing the S4 manifold. I'm not. It has it's place and purpose. But, I am honest and up front about how much or if it will crack. If you do not support a SS manifold, the failure rate is 100%. If you over support a SS manifold, the failure rate is 100%. If you support it just enough, like we do, the failure rate is about 40%. Hence, the extended warranty on it.
Stephanie
OP, irregardless of where you get the thin wall S4 from 40% fail even when supported correctly according to the manufacturer.
sturovo is offline   Reply With Quote
Old 04-15-2013, 06:00 PM   #14
Junior Member
Thread Starter
iTrader: (2)

Join Date: Mar 2013
Posts: 68
Total Cats: 0
Default

Well only reason I want s4 is because I alrdy have the downpipe. I have no problem going with a cast manifold, I just wanted something to bolt up to the stock exhaust.
Turbonator is offline   Reply With Quote
Old 04-15-2013, 06:28 PM   #15
Senior Member
iTrader: (2)

Join Date: Sep 2009
Location: Edmonton, AB, Canada
Posts: 1,177
Total Cats: 27
Default

Quote:
Originally Posted by sturovo View Post
But are they are different? Any definitive proof? I interpreted Corky's post to mean they are the same (as in the same).



In any case both versions crack in the same way and same time frame when the downpipe is supported correctly.

https://www.miataturbo.net/build-thr...e2/#post992615

All is not lost, Begi has come up with a fix.
This fix, do they perform this for a minimal fee? A part that is designed with a 60-100% structural failure in mind should have an "extended warranty"
Landrew is offline   Reply With Quote
Old 04-15-2013, 06:30 PM   #16
Senior Member

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

The new S4 should last for ever as it uses shed 40 mild steel but costs $$$ BEGi S4 Miata Exhaust Manifold 1990-2005 BEGi
A used thin wall s4 will probably not last. There are no readily available s4 replacement manifolds afik. I made my own for that reason. https://www.miataturbo.net/diy-turbo...e3/#post995562
I think your best option in this case is 1994 1995 1996 1997 Mazda Miata Turbo Manifold MX 5 1 8 | eBay[/URL]
The most important thing with the s4 is using a brace something like this one.
Miata Turbo S4 Manifold Support Brace BEGi
With luck it will last for a few years.
