I'll try to get a picture soon of that side, engine is currently out, but it doesn't show all of he cluster thats back there.
Thanks! OK Curly, I balled just about as hard as I could for an hour...and I'm glad I did. Thanks for pointing out how messy it was. When you are in the middle of the project you sometimes don't notice all the little things you could have done to make everything flow better.

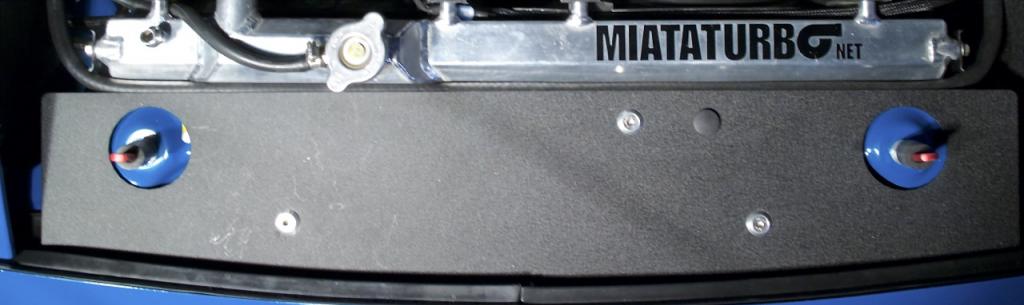

I routed the EBC hose under the radiator cover if you can spot it. Perfect place to hide it in my opinion, plus it helps seal the air better too!

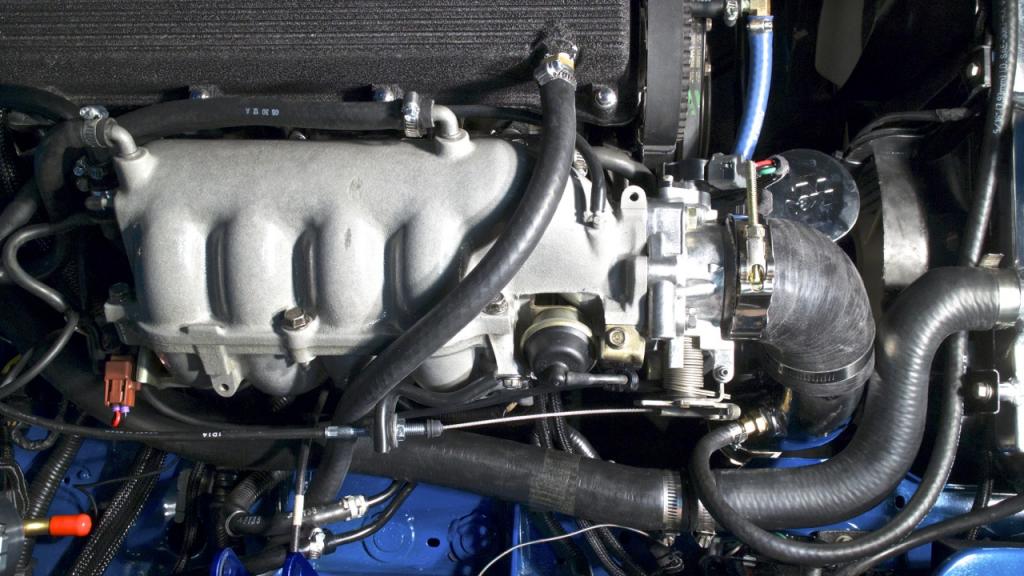

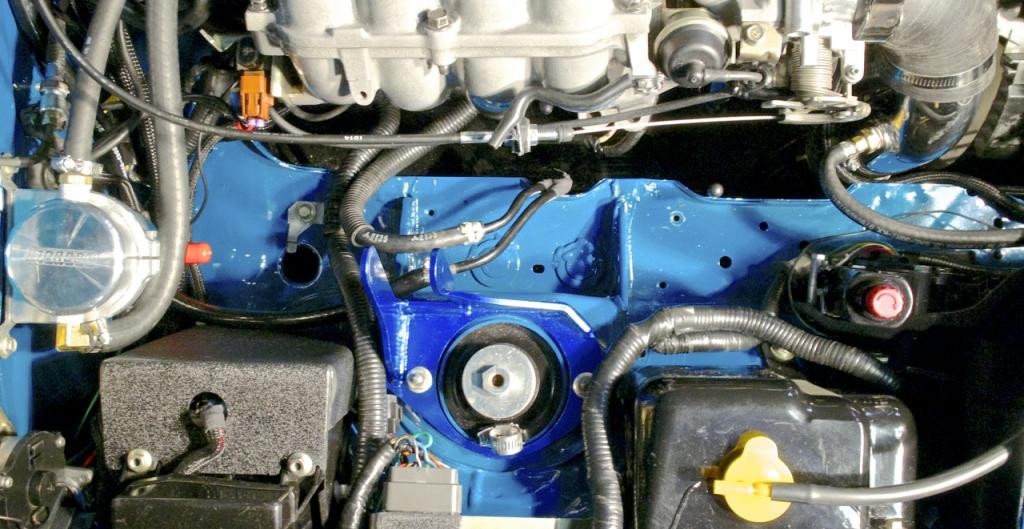

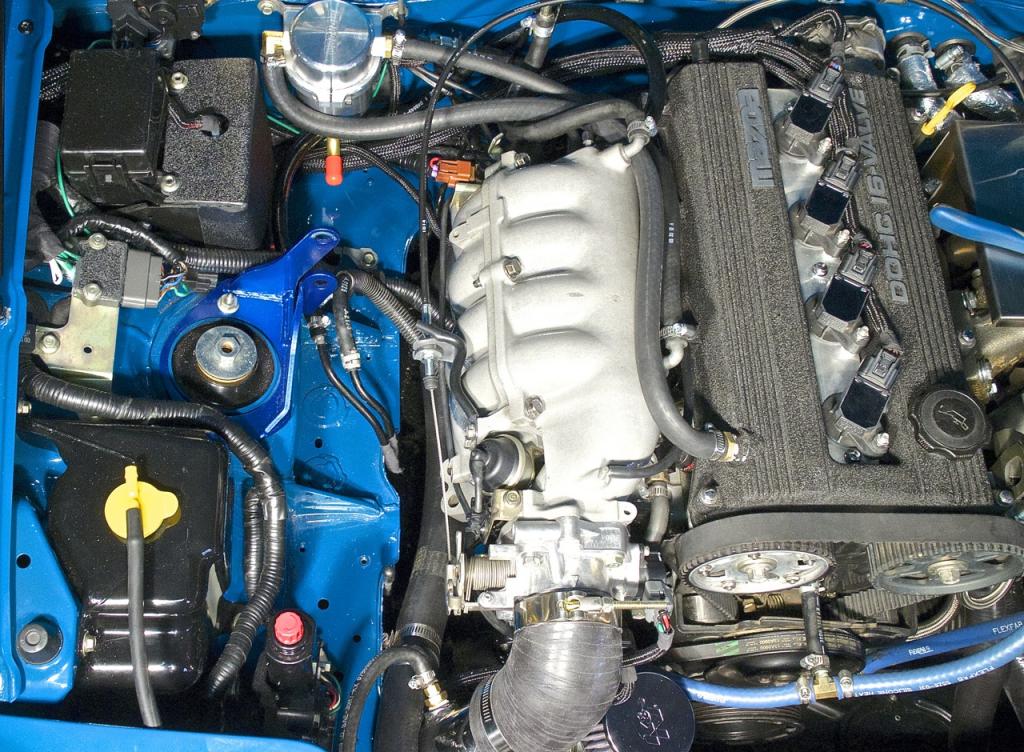

Routed the catch can hoses around the back of the IM and removed all the vacuum hoses and rerouted them in the cluster **** region so they all meshed together well. Also moved a ton of the wiring around and was able to get a lot of it out of sight out of mind. Slightly bent the feed/return fuel hard lines.

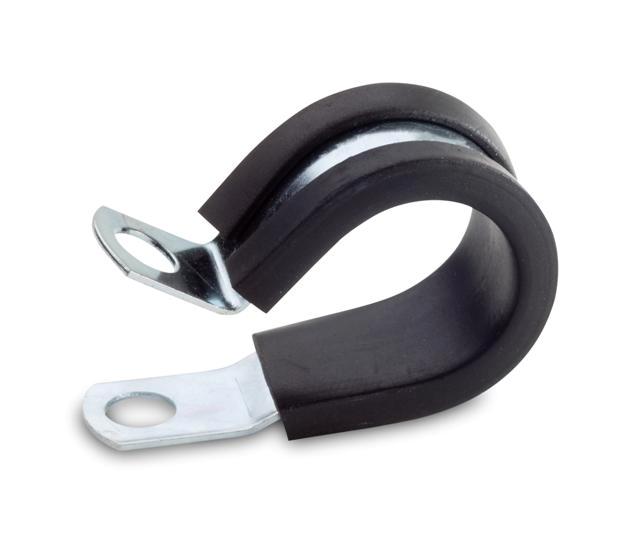

I'll worry about tying down the coolant line when I can think of a good solution. For now it is time to get some coolant in the lines, hook up the battery and see if I can get my laptop to communicate with MS.
How is that a big point of failure? Its not like the coolant is under a tremendous amount of pressure, and unless you are a ***** and can't tighten hose clamps I don't see it as a huge issue. But the whole picture is small after the amount of sleep I'm negating.
OK Jeff makes his first appearance...Cranked the engine for a little while till I saw oil pressure.
gauges light up, tach lights up, lights flip up and down(one at a time though...hmmm) Lights stay on(think I know the problem), windshield wipers dont work(not a big deal) but everything else looks golden.
Do I start the engine for real now? I'm a little scared to reconnect the injectors and COP.
OK found the issue...sort of. The starter sucked most of the juice from the battery so it has starting clicking.
Found the red white wire had a butt splice I didn't see come loose so I resoldered it. Cranked the engine and the led's on the board came on while I was cranking the engine. But the battery died right after that. Can you only access MS while the engine is running? Other than while turning the motor over, the LEDs wouldn't stay lit.
Thank god it wasn't my fault! Just hopefully, it will start once I get a charge on it.
