Old 10-03-2014, 05:23 PM   #581
Junior Member
iTrader: (2)

Join Date: Apr 2010
Location: albion, mi
Posts: 279
Total Cats: 16
Default

Awesome!
glade is offline   Reply With Quote
Old 10-03-2014, 05:41 PM   #582
Senior Member
iTrader: (1)

Join Date: Jun 2006
Location: Sweden
Posts: 1,367
Total Cats: 56
Default

Quote:
Originally Posted by lightyear View Post
... as I am doing a run of carbon fibre stuff. Like 10 hardtops, trunks, EVO roof, etc. get some cash flowing in.
Just for reference, how much cash, for a HT, shipped to the Melbourne Harbor (crated)?
NiklasFalk is offline   Reply With Quote
Old 10-03-2014, 08:45 PM   #583
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 2,885
Total Cats: -11
Default

Seat making (avec le foam) is epic!

Props
Efini~FC3S is offline   Reply With Quote
Old 10-03-2014, 10:00 PM   #584
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,823
Total Cats: 2,121
Default

this thread just keeps getting better

OP is a BOSS. Period. End of story
18psi is offline   Reply With Quote
Old 10-04-2014, 02:37 AM   #585
Junior Member
Thread Starter

Join Date: Aug 2009
Location: melbourne aus
Posts: 425
Total Cats: 36
Default

Quote:
Originally Posted by NiklasFalk View Post
Just for reference, how much cash, for a HT, shipped to the Melbourne Harbor (crated)?
About $100. Just pay for the packaging. I could drop it off.
lightyear is offline   Reply With Quote
Old 10-04-2014, 02:40 AM   #586
Junior Member
Thread Starter

Join Date: Aug 2009
Location: melbourne aus
Posts: 425
Total Cats: 36
Default

The seat is ready for lay up now. All filled and sanded. This is a pic of the initial shape profiled out. Looks much better now. Holes are drilled for mounting too. At this stage it weighed about 1.9 kg's. I had a quick check before it's the carbon fibre goes on. And it weighs about 2.5kg now. So finished it will be about 5.0kg.. Could make it lighter if I did it from a mould, but then you need to mount it with heavier brackets. This is the same shape as the inside of the car, so just bolts thru. I am sitting as far back and low as possible. Also as close to the centre as possible.


gifs upload
lightyear is offline   Reply With Quote
Old 10-04-2014, 05:07 AM   #587
Senior Member
iTrader: (1)

Join Date: Jun 2006
Location: Sweden
Posts: 1,367
Total Cats: 56
Default

Quote:
Originally Posted by lightyear View Post
About $100. Just pay for the packaging. I could drop it off.
I should have typed including packaging/drop off, i.e. whats the price for a HT?
NiklasFalk is offline   Reply With Quote
Old 10-04-2014, 07:06 AM   #588
Junior Member
Thread Starter

Join Date: Aug 2009
Location: melbourne aus
Posts: 425
Total Cats: 36
Default

Hardtop is $1580 au.
lightyear is offline   Reply With Quote
Old 10-04-2014, 08:05 AM   #589
Senior Member
iTrader: (1)

Join Date: Jun 2006
Location: Sweden
Posts: 1,367
Total Cats: 56
Default

Quote:
Originally Posted by lightyear View Post
Hardtop is $1580 au.
That's very decent (if not cheap) for a high quality product.

Damn that my cage will never be able to take one (goes too far back), but there might be others interested in my part of the woods.
NiklasFalk is offline   Reply With Quote
Old 10-14-2014, 05:20 PM   #590
Junior Member
Thread Starter

Join Date: Aug 2009
Location: melbourne aus
Posts: 425
Total Cats: 36
Default

I have started making carbon fibre parts again.

Here is a trunk and hardtop.








image hosting over 5mb
lightyear is offline   Reply With Quote
Old 10-14-2014, 05:28 PM   #591
Junior Member
Thread Starter

Join Date: Aug 2009
Location: melbourne aus
Posts: 425
Total Cats: 36
Default

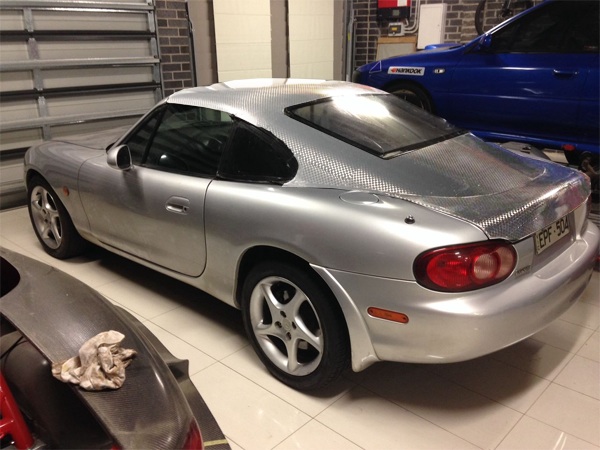

I sat the fastback on a loaner NB. And a friend photoshopped it silver.


photo host
Attached Thumbnails
Carbon fibre time attack twins-image.jpg
lightyear is offline   Reply With Quote
Old 10-16-2014, 10:02 PM   #592
Senior Member

Join Date: Oct 2011
Location: The Race Track & St Pete FL
Posts: 574
Total Cats: 49
Default

How much for the trunk? I don't need it functional.
1993ka24det is offline   Reply With Quote
Old 10-27-2014, 12:39 AM   #593
Junior Member
Thread Starter

Join Date: Aug 2009
Location: melbourne aus
Posts: 425
Total Cats: 36
Default

Trunk is $500 au with 2 coats of clear to protect it. Shipping would be cheapish you would think. It's not an overly large part. You could get a quote by measuring your trunk and my post code is 3204. Can drop it off to a depot. I have a spare trunk already made. Melbourne Australia.
lightyear is offline   Reply With Quote
Old 10-27-2014, 09:18 AM   #594
Supporting Vendor
iTrader: (1)

OGRacing's Avatar

Join Date: May 2014
Posts: 1,627
Total Cats: 66
Default

this is too cool
OGRacing is offline   Reply With Quote
Old 10-28-2014, 06:00 PM   #595
Newb

Join Date: Sep 2014
Location: Tualatin
Posts: 33
Total Cats: 0
Default

David -
you make this stuff look so easy, too easy! I've tried vacuum forming carbon fiber in the past with terrible results...

Have you thought about a group USA purchase?

I have done import/export to/from Australia in the past, getting a 20' shipping container or LCL (Less than Container Load) is relatively simple, and with the number of pieces that could be put into a container would not be exorbitant for the shipping per unit (i.e. under $4000 for Melbourne to Los Angeles or Spokane for the whole container)

Something to think about, perhaps?

--Miq
bigllama is offline   Reply With Quote
Old 10-29-2014, 05:28 AM   #596
Junior Member
Thread Starter

Join Date: Aug 2009
Location: melbourne aus
Posts: 425
Total Cats: 36
Default

Maybe next year when the fastback is ready I could do a group buy. Might even fly over as well. I could fit a shitload into a 20' container. Probably the part load is best. Must be cheaper sending containers back, since most would go back empty? Especially to China.

I have NB doors ~2.0kg's, hood ~3.0kg's, hardtop ~2.5kg's bare, or ~6kg's assembled with rubbers, window, etc. Fastback around the same weight. Trunk ~1.5kg's
lightyear is offline   Reply With Quote
Old 10-29-2014, 01:36 PM   #597
Junior Member
iTrader: (1)

Join Date: Sep 2013
Posts: 186
Total Cats: 10
Default

Are you clear coating any CF? Or is your resin UV resistant?

Also it appears you are doing everything with a single-sided mold, are you not using a double sided mold for bracing? Are the parts stiff enough?... Just adding more layers?

I've been dabbling in VIM for awhile... Haven't made anything for Miata yet though, only some RX-7 stuff.

I was thinking about making something for Miata but might not need to anymore...
carbon is offline   Reply With Quote
Old 10-29-2014, 02:42 PM   #598
Junior Member
Thread Starter

Join Date: Aug 2009
Location: melbourne aus
Posts: 425
Total Cats: 36
Default

I do clear coat parts for a bit extra. The carbon fibre will dull after time without it.
I use the front section of the hardtops inner frame. And use rivnuts to mount the hardtop brackets.
On the trunk I use a core cell frame with one layer of c.f over it.
Most parts are an inner layer of c.f, and an outer layer of c.f with a Soric core. I do laminate extra layers where needed. Like the rear section of the hardtop. As the polycarbonate rear window has to be bent to fit. So is acting like a spring.
The hood has the Oem rear frame section, so it can be bolted on like Oem, with the rest of the frame a custom made core cell frame.
lightyear is offline   Reply With Quote
Old 10-29-2014, 02:45 PM   #599
Junior Member
Thread Starter

Join Date: Aug 2009
Location: melbourne aus
Posts: 425
Total Cats: 36
Default

lightyear is offline   Reply With Quote
Old 10-29-2014, 07:26 PM   #600
Junior Member
iTrader: (1)

Join Date: Sep 2013
Posts: 186
Total Cats: 10
Default

Ok cool.

I assumed you were using an infusion/foam core instead of a 2 piece mold, but had to ask anyway.

Do you always work in those cute pink boots?
carbon is offline   Reply With Quote
