Old 03-06-2013, 11:42 PM   #241
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,038
Total Cats: 809
Default

Run a comp and a mazdaspeed maybe?

Doing the engine build yourself, or farming it out? I have an urge to build, I have the tools, I don't have the experience :(
EO2K is offline   Reply With Quote
Old 03-06-2013, 11:46 PM   #242
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,027
Total Cats: 535
Default

I ended up getting the mazda comp mounts back when i was looking. I think the cheapest i found them was either from 949 or Rspeed. They were all the same price though +-5 bucks so i just went with the links recommended. From memory the MSM mounts were 80 something and the comp 90 something. I got mine from Rspeed.
Hmm on sale now. When i got mine they were 90 something.
http://www.rspeed.net/R_Speed_Compet...nab-77038a.htm
triple88a is offline   Reply With Quote
Old 03-06-2013, 11:59 PM   #243
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,038
Total Cats: 809
Default

Are the IL Motorsport/RSpeed ones just reboxed comps?

I know CorkSport has these guys: Miata Performance Parts | Mazdaspeed Motor Mounts

I bought a set from them thinking they were the actual MazdaSpeed ones, but it turns out they are rebagged Competition mounts. I got a hold of a single factory bagged Comp through a Mazda dealer and they are exactly the same. Not sure what I'm going to do with 3 engine mounts now
EO2K is offline   Reply With Quote
Old 03-07-2013, 03:47 AM   #244
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,027
Total Cats: 535
Default

No clue, there is a difference though MSMs are 35% and comps are 40%. Not worth the headache in my opinion.
triple88a is offline   Reply With Quote
Old 03-07-2013, 08:34 AM   #245
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,899
Total Cats: 1,469
Default

I want a vvt motor... :(
Braineack is offline   Reply With Quote
Old 03-07-2013, 09:32 AM   #246
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,801
Total Cats: 2,116
Default

Quote:
Originally Posted by EO2K View Post
Run a comp and a mazdaspeed maybe?

Doing the engine build yourself, or farming it out? I have an urge to build, I have the tools, I don't have the experience :(
Picking up mint MSM mounts from Bryan.

Farming it out? Dude, I'm offended. Of course I'm building it myself. Just like the last one, and the handful of other ones I've done for local guys.

Quote:
Originally Posted by triple88a View Post
I ended up getting the mazda comp mounts back when i was looking. I think the cheapest i found them was either from 949 or Rspeed. They were all the same price though +-5 bucks so i just went with the links recommended. From memory the MSM mounts were 80 something and the comp 90 something. I got mine from Rspeed.
Hmm on sale now. When i got mine they were 90 something.
R Speed: Mazda Miata MX-5 Mazda Speed Competition Motor Mounts 40% Stiffer
I actually stumbled onto your thread when looking around. It was helpful. Thanks
Quote:
Originally Posted by triple88a View Post
No clue, there is a difference though MSMs are 35% and comps are 40%. Not worth the headache in my opinion.
Hmm, well 5% is really not much difference at all. This being a street car though, I want maximum smoothness, so I'm going with the least stiff.

I'd get stock replacements but something tells me I want at least a little stiffer for those money shifts I'll have to do at the track LOL


Quote:
Originally Posted by Braineack View Post
I want a vvt motor... :(
I haz.

Send funds and I send you teh VEE VEE ****
18psi is offline   Reply With Quote
Old 03-07-2013, 12:21 PM   #247
Junior Member
iTrader: (3)

Join Date: Apr 2012
Location: Houston, TX
Posts: 426
Total Cats: 37
Default

Quote:
Originally Posted by EO2K View Post
Not sure what I'm going to do with 3 engine mounts now
Put a second motor in the car?
czubaka is offline   Reply With Quote
Old 03-07-2013, 12:42 PM   #248
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,038
Total Cats: 809
Default

Quote:
Originally Posted by czubaka View Post
Put a second motor in the car?
2 engine AWD? **** dude, I can't get anything to work on my car as it is
EO2K is offline   Reply With Quote
Old 03-07-2013, 08:41 PM   #249
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,801
Total Cats: 2,116
Default

Moar progress:

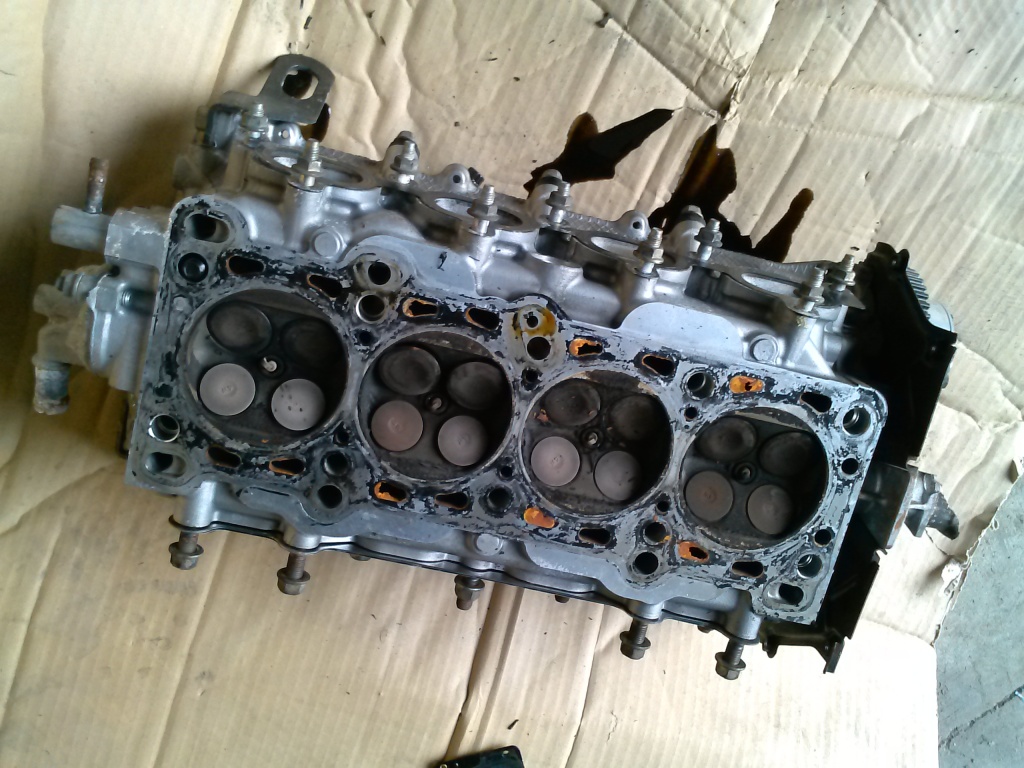

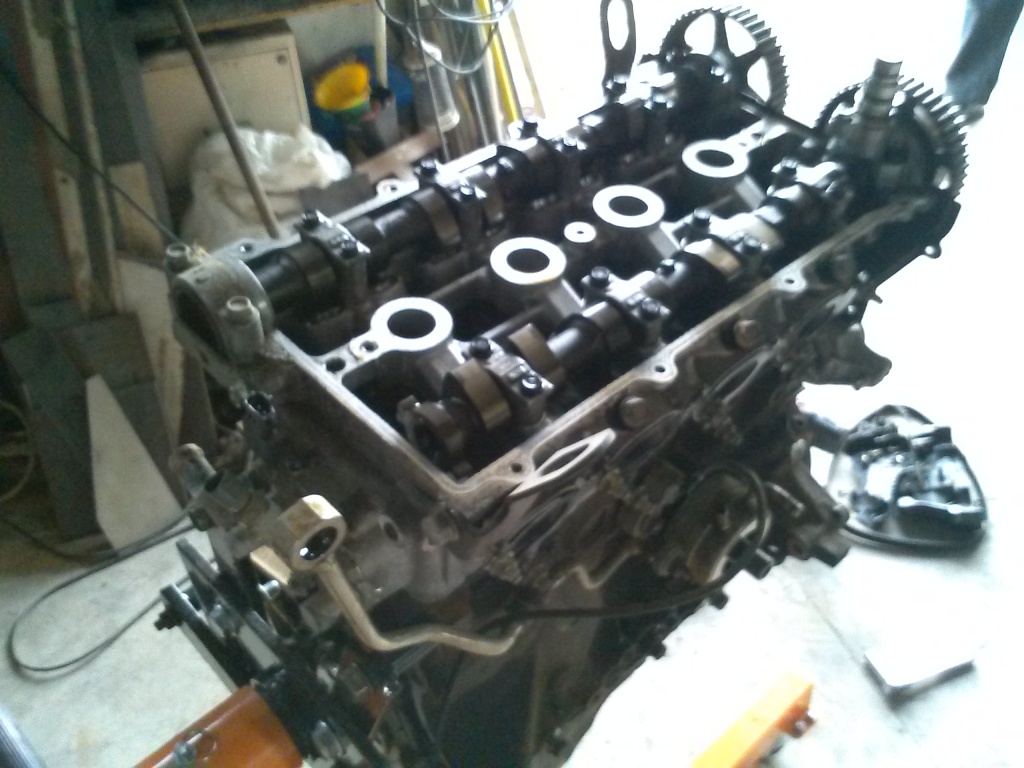

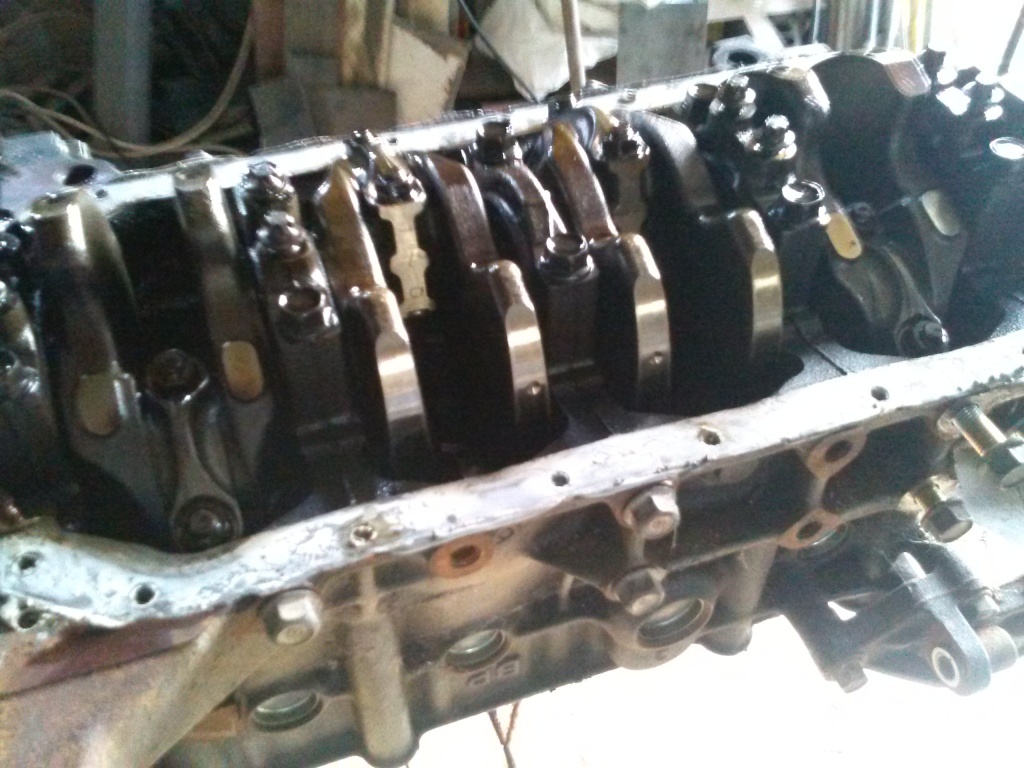

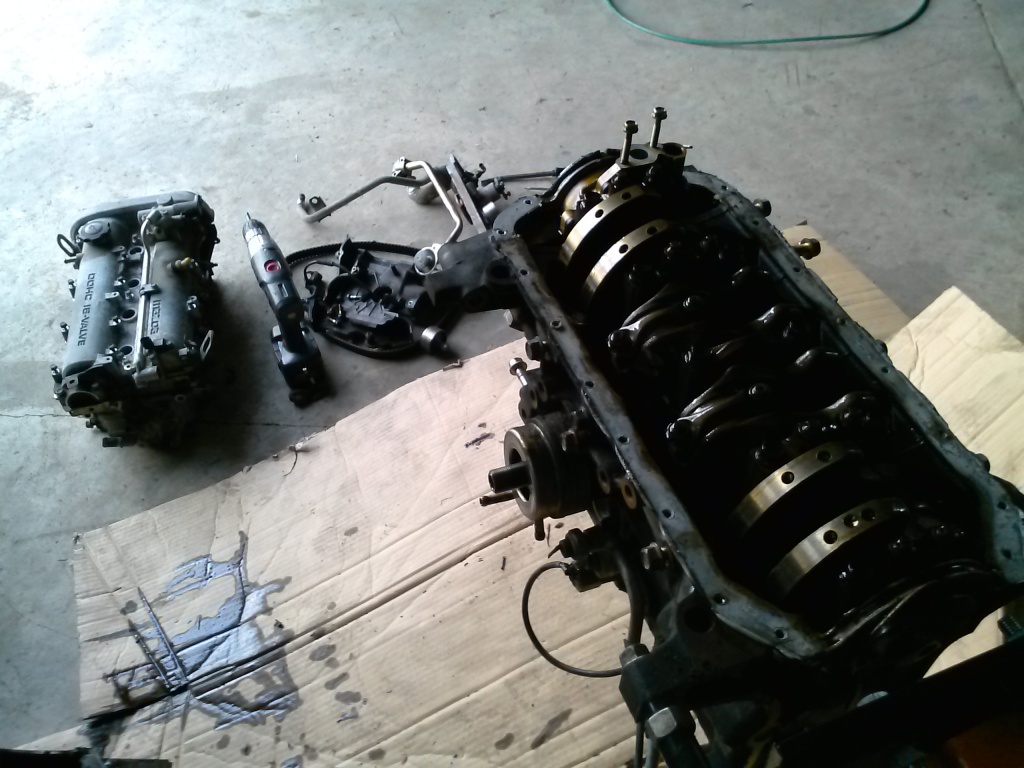

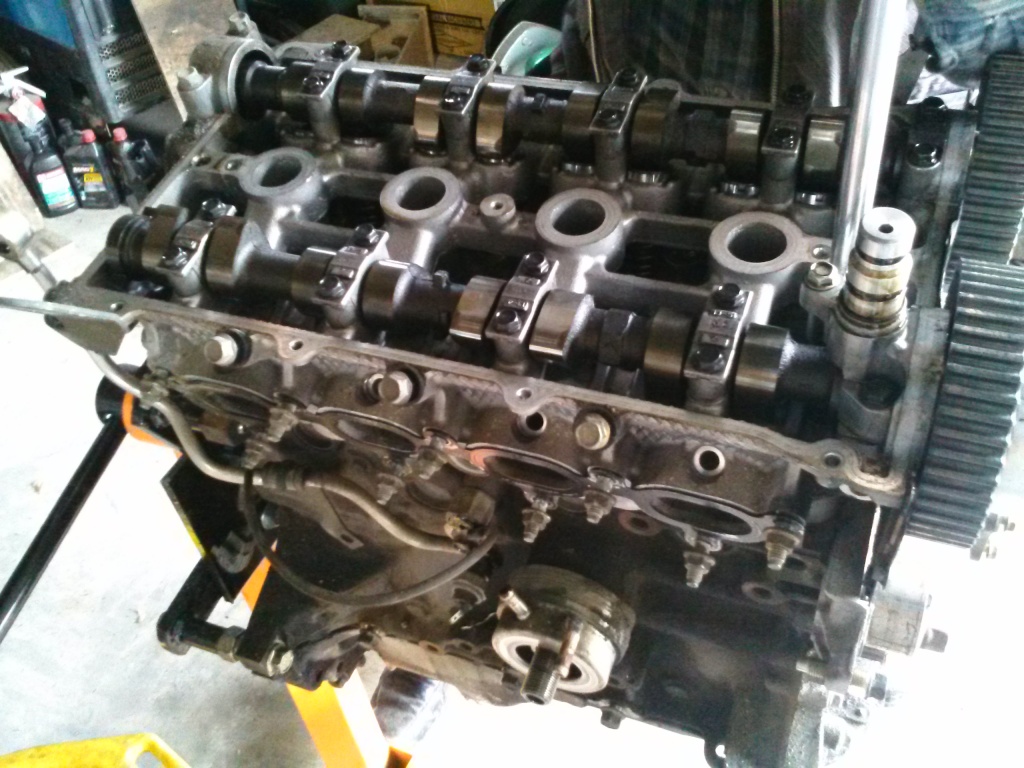

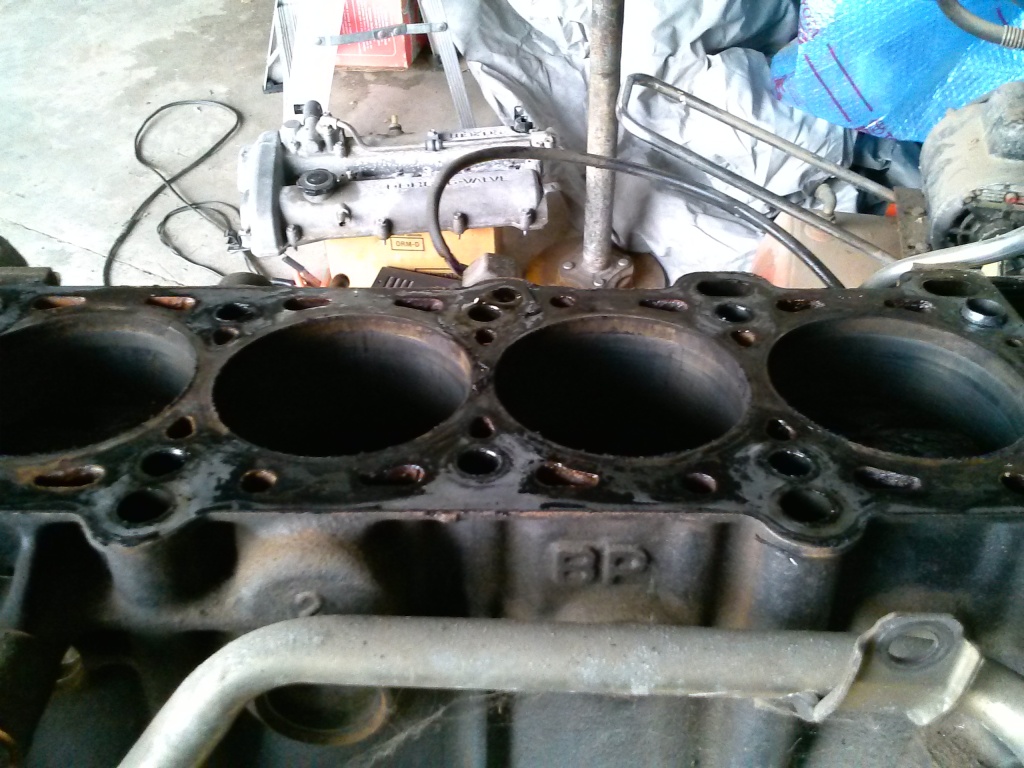

Engine looks to still be in great shape: cross hatching still perfect. head looks super clean. Valves look fine too. It had a bad headgasket, so will probably have to resurface the head just in case.

So far so good.
Attached Thumbnails
H3AVY to H3AVYER to...H3AV1EST P1G-cam00087.jpg   H3AVY to H3AVYER to...H3AV1EST P1G-cam00088.jpg   H3AVY to H3AVYER to...H3AV1EST P1G-cam00089.jpg   H3AVY to H3AVYER to...H3AV1EST P1G-cam00090.jpg   H3AVY to H3AVYER to...H3AV1EST P1G-cam00091.jpg

H3AVY to H3AVYER to...H3AV1EST P1G-cam00092.jpg
18psi is offline   Reply With Quote
Old 03-10-2013, 07:50 PM   #250
Elite Member
iTrader: (4)

Pen2_the_penguin's Avatar

Join Date: Dec 2009
Location: Reno, NV
Posts: 3,690
Total Cats: 96
Default

that head looks like it is having some cholesterol issues.
Pen2_the_penguin is offline   Reply With Quote
Old 03-14-2013, 10:53 PM   #251
Senior Member
iTrader: (2)

Join Date: Sep 2009
Location: Edmonton, AB, Canada
Posts: 1,168
Total Cats: 27
Default

I'm at about the same stage and have stalled. I have 2 VVT heads and need to decide which one to DIY rebuild/assemble. Then I need my block bored/honed by a reputable shop. Both things worry me a bit.

Ill be watching this and starting back up another build thread myself.
Landrew is offline   Reply With Quote
Old 03-14-2013, 11:10 PM   #252
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,801
Total Cats: 2,116
Default

Cool beans. The going is slow cause I'm super busy. But its going. I removed/cleaned and will be tapping the pan (welding it like it should be done properly) this week. Also will start on the block.

After that comes the head.
18psi is offline   Reply With Quote
Old 03-15-2013, 12:22 PM   #253
Senior Member
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

What turbo are you running in there again? You got rid of the 2876R, right?
bcrx7 is offline   Reply With Quote
Old 03-15-2013, 12:34 PM   #254
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,801
Total Cats: 2,116
Default

Quote:
Originally Posted by bcrx7 View Post
What turbo are you running in there again? You got rid of the 2876R, right?
Correct. Since I have a long-tube T3 manifold, EWG, downpipe, and hotside (all part of the ETD setup) I decided the 76R would be a little too laggy for my new plans for this car. I decided to try the "smallest turbo to achieve power goals" approach.

I am using a GT2860RS, but with the T3 hotside.

I don't think anyone has done this before (at least not on here).
The goal is to get a ton of torque under curve, yet maintain maximum flow up top. With the built engine and e85 I should be able to push this thing to the limits if I want, and HOPEFULLY, hit 350WHP with a ton of torque everywhere.

That's the (optimistic) goal as of right now anyway. I am not trying to break any records or impress anyone, this is more just the direction I decided to move towards with this car. I will honestly be happy with anything over 300
18psi is offline   Reply With Quote
Old 03-15-2013, 12:41 PM   #255
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 2,885
Total Cats: -11
Default

If I had admin powers I would totally change the thread title to something like:

"GT2860RS T3 Hotside Record Attempt"

and then hope you post some illegible dyno runs.

That would be mildly entertaining...
Efini~FC3S is offline   Reply With Quote
Old 03-15-2013, 12:45 PM   #256
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,801
Total Cats: 2,116
Default




Done

18psi is offline   Reply With Quote
Old 03-15-2013, 02:03 PM   #257
Senior Member

Join Date: Apr 2011
Location: Martin, Slovakia
Posts: 513
Total Cats: 71
Default

LOL
sturovo is offline   Reply With Quote
Old 03-15-2013, 05:39 PM   #258
Senior Member
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

I do see a need to change the subject!
bcrx7 is offline   Reply With Quote
Old 03-15-2013, 08:23 PM   #259
Junior Member

Join Date: Dec 2006
Location: Vancouver, BC
Posts: 131
Total Cats: 6
Default

Quote:
Originally Posted by 18psi View Post
...
I am using a GT2860RS, but with the T3 hotside.

I don't think anyone has done this before (at least not on here).
...

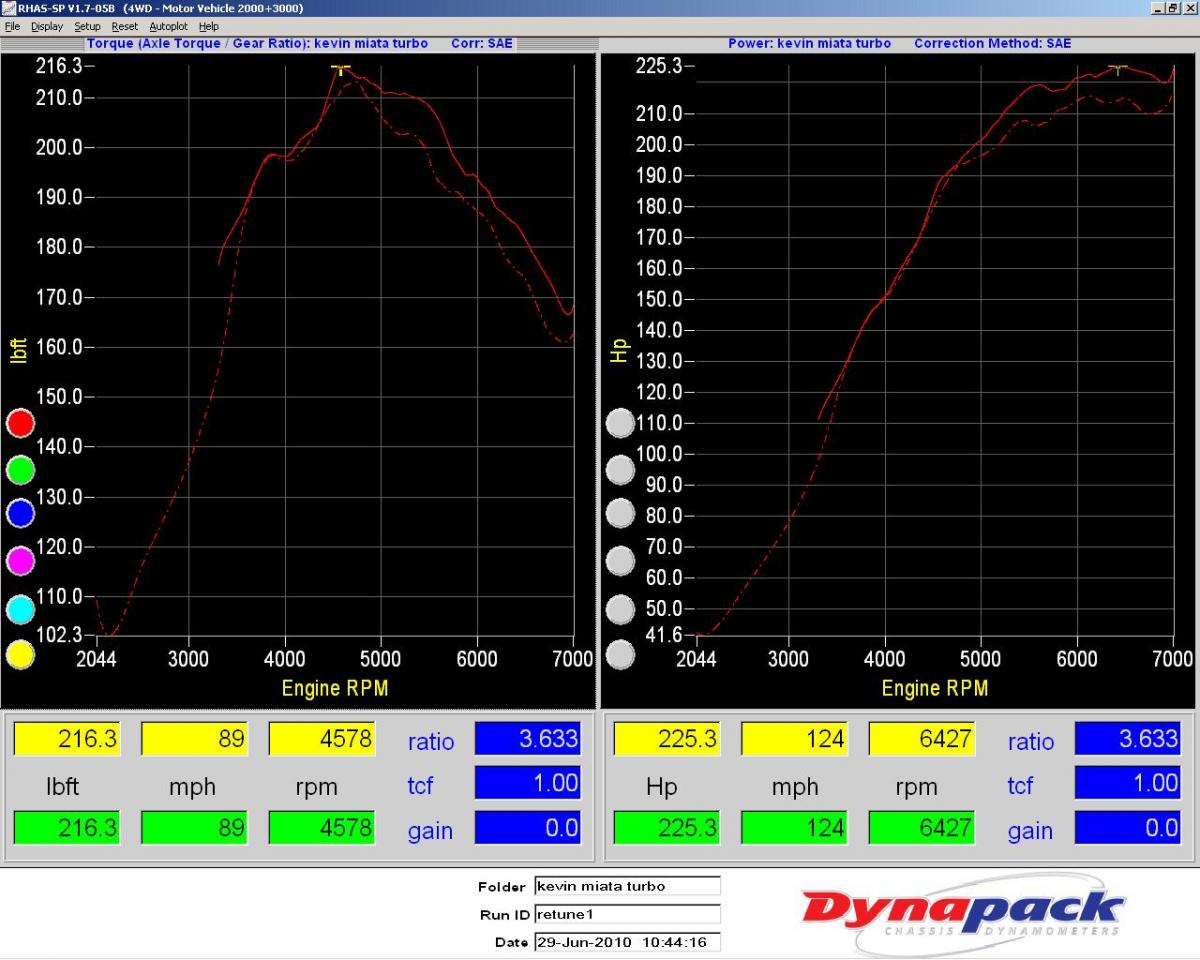

ETD long tube 2860RS 48AR (T3) 13psi on a stock MSM engine w/3" exhaust:



I've since changed to the setup in my sig.
Attached Thumbnails
H3AVY to H3AVYER to...H3AV1EST P1G-vanmsm-2055-albums-dyno-365-picture-etd-long-tube-2860rs-48ar-13psi-hp-tq-miata-1766.jpg
VanMSM is offline   Reply With Quote
Old 03-15-2013, 08:42 PM   #260
Murderator
Thread Starter
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,801
Total Cats: 2,116
Default

Quote:
Originally Posted by VanMSM View Post
ETD long tube 2860RS 48AR (T3) 13psi on a stock MSM engine w/3" exhaust:

I've since changed to the setup in my sig.
OH SNAP!!
Actually now that I think about it, I think I saw your dyno plot while googling around for 2860rs setups. Didn't really know much more about it aside from the plot and the fact that it was 2860rs.

Nice man.

Though I'm sure that setup was nowhere near peak efficiency at 13psi and on pump gas and on stock block, and without vvt.

How did you like it?

How do you like your current setup?
How do the two compare and is there any input or advice you can give me? Anything to watch out for?

Lay it on me if you have some time
18psi is offline   Reply With Quote
