Old 06-26-2015, 04:01 PM   #181
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,306
Total Cats: 73
Default

Quote:
Originally Posted by aidandj View Post
<p>You've seen how crushed my engine is.</p><p>Does that VVT have a 6 speed on it? That would be awesome.</p>
Automatic car with the sport package. lol
Schuyler is offline   Reply With Quote
Old 06-26-2015, 04:25 PM   #182
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,306
Total Cats: 73
Default

I probably won't pull the motor until Sunday. Is there anything I can inspect in the mean time? Drain the oil and look for metal particulates? Pull the valve cover and look for the same?
Schuyler is offline   Reply With Quote
Old 06-26-2015, 08:49 PM   #183
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,306
Total Cats: 73
Default

Against my better judgement, I gave the car her last turn of the key for a while so that I could document the noise.

So, get your tissues ready:

Schuyler is offline   Reply With Quote
Old 06-26-2015, 09:01 PM   #184
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,237
Total Cats: 978
Default

<p>That's just lifter tick! :(</p><p>Sad day.</p>
aidandj is offline   Reply With Quote
Old 06-26-2015, 09:05 PM   #185
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,306
Total Cats: 73
Default

I'm really not thinking rod bearing anymore. Maybe bent rod? I'll compression test it tomorrow after I go get the new motor.
Schuyler is offline   Reply With Quote
Old 06-26-2015, 09:16 PM   #186
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,306
Total Cats: 73
Default

Just pulled the plugs and one had some oil on it.

When turning it over while the plugs are out in flood clear, I don't hear any abnormal noises.
Schuyler is offline   Reply With Quote
Old 06-26-2015, 10:11 PM   #187
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,024
Total Cats: 129
Default

Pull the valve cover, see if you spit a shim out. Also spin the motor over and watch, see if any of the valves are not fully closing like they should.

Kinda sounds like you bent a valve. Does is run fine other than the noise? If so, not a valve.
patsmx5 is offline   Reply With Quote
Old 06-26-2015, 10:23 PM   #188
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,306
Total Cats: 73
Default

Quote:
Originally Posted by patsmx5 View Post
Pull the valve cover, see if you spit a shim out. Also spin the motor over and watch, see if any of the valves are not fully closing like they should.

Kinda sounds like you bent a valve. Does is run fine other than the noise? If so, not a valve.
Didn't get on the gas any the 1mi i drove it, but it seemed to drive normally.

EDIT: plugs

Attached Thumbnails
ITT we discuss why not to turbo your daily bent rod-u9iyrt0.jpg
Schuyler is offline   Reply With Quote
Old 06-26-2015, 10:28 PM   #189
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,024
Total Cats: 129
Default

Your plugs look fine.

Do a comp test first, see what that shows.

Then go make a better video. Long vid, startup, idle, rev, drive it, boost it.

Cold startup vs hot startup would help a lot to diagnose this.
patsmx5 is offline   Reply With Quote
Old 06-26-2015, 10:28 PM   #190
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,024
Total Cats: 129
Default

If you happen to spit a shim, it would run fine, just make bad noises. Comp test wouldn't really show this either. Pull the valve cover and start looking.
patsmx5 is offline   Reply With Quote
Old 06-26-2015, 10:33 PM   #191
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,306
Total Cats: 73
Default

Quote:
Originally Posted by patsmx5 View Post
If you happen to spit a shim, it would run fine, just make bad noises. Comp test wouldn't really show this either. Pull the valve cover and start looking.
Quote:
Originally Posted by patsmx5 View Post
Your plugs look fine.

Do a comp test first, see what that shows.

Then go make a better video. Long vid, startup, idle, rev, drive it, boost it.

Cold startup vs hot startup would help a lot to diagnose this.
I'm still going to go pull the motor in the junk yard first thing tomorrow, as I can always sell it and profit. After I get back and eat lunch I'll do a compression test, then pull the valve cover and investigate.
Schuyler is offline   Reply With Quote
Old 06-26-2015, 10:45 PM   #192
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,024
Total Cats: 129
Default

Quote:
Originally Posted by Schuyler View Post
I'm still going to go pull the motor in the junk yard first thing tomorrow, as I can always sell it and profit. After I get back and eat lunch I'll do a compression test, then pull the valve cover and investigate.
If you pull that motor and then find you spit a shim on the current motor, will you hook give me a good deal on the VVT head?
patsmx5 is offline   Reply With Quote
Old 06-26-2015, 10:46 PM   #193
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,306
Total Cats: 73
Default

Quote:
Originally Posted by patsmx5 View Post
If you pull that motor and then find you spit a shim on the current motor, will you hook give me a good deal on the VVT head?
I'm embarrassed to say I don't know where these shims reside to begin with.
Schuyler is offline   Reply With Quote
Old 06-26-2015, 10:52 PM   #194
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,024
Total Cats: 129
Default

Basically when you pull the valve cover, you'll see the cams and cam lobes. The cams spin, and the lobes will rotate until they push on the "shim". The shim pushes on the lifter. The lifter pushes on the top of the valve. This is how the cams actuate the valves. If it spits a shim, the shim will basically fall out, and the cam lobe would now be hitting the lifter instead of the shim, and the shim would be laying inside the head somewhere. This would normally only happen during extreme valve float, usually caused by an overrev.

This is unlikely, but possible. Worth checking before pulling the engine.
patsmx5 is offline   Reply With Quote
Old 06-27-2015, 02:15 PM   #195
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,306
Total Cats: 73
Default

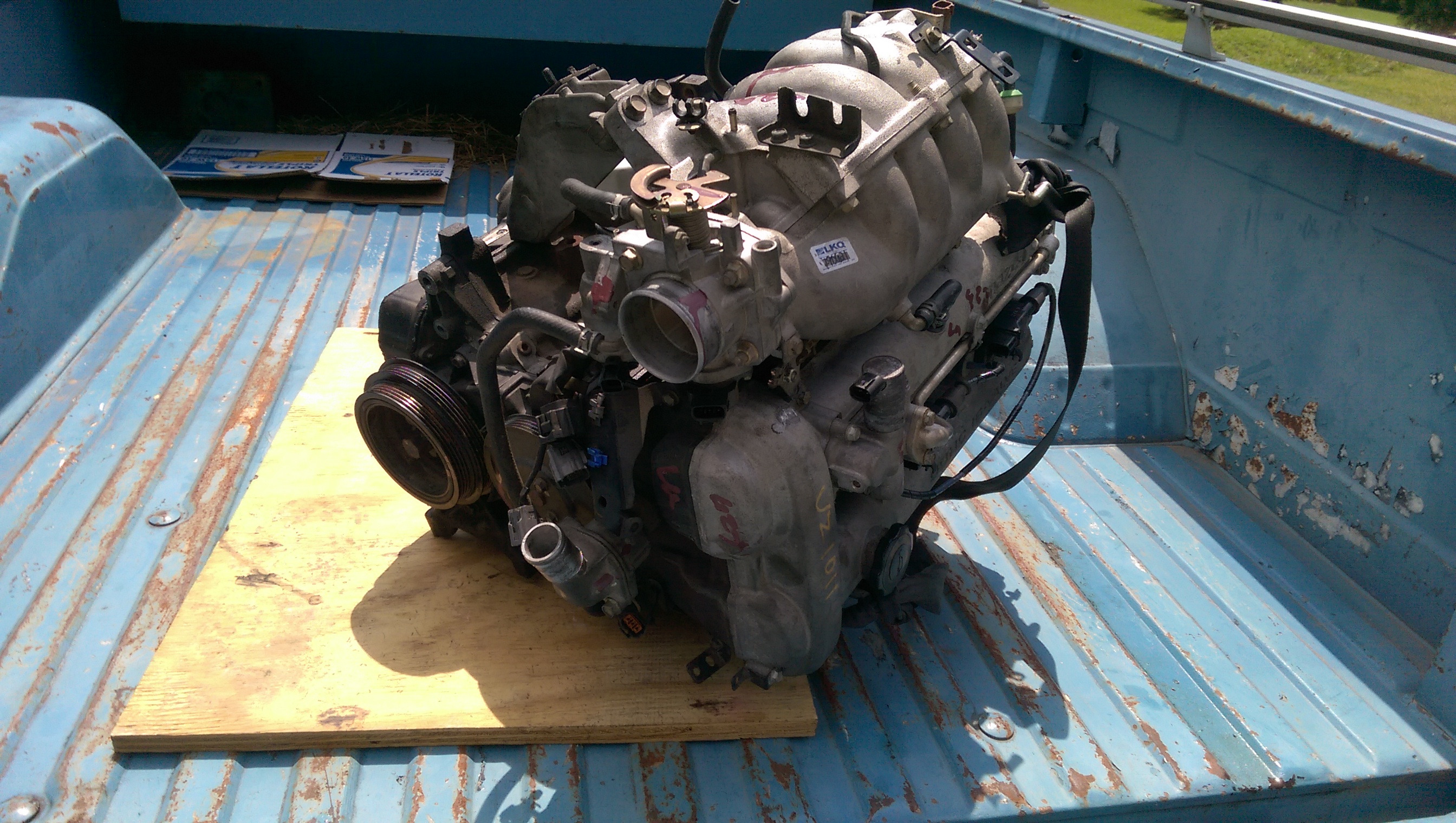

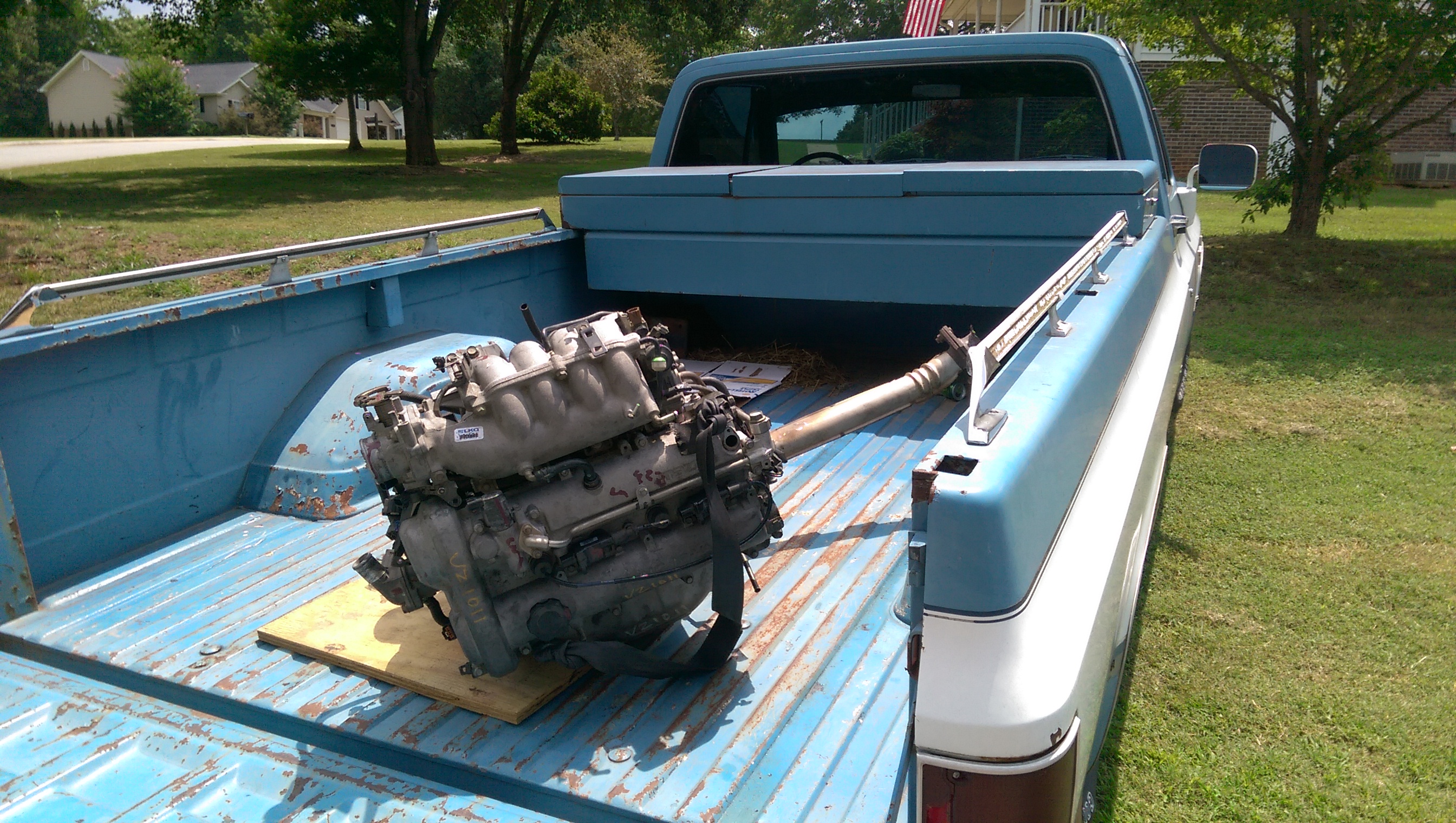

Took 95 minutes to pull lol. Exhaust manifold and intake manifold will be for sale, and I'll decide about the head later.

Speaking of which: Opinions. Should I wire my MS3X for VVT, or swap my 99 head over? I took the three plugs for the VVT.



Attached Thumbnails
ITT we discuss why not to turbo your daily bent rod-jorrzk7.jpg   ITT we discuss why not to turbo your daily bent rod-a7o9srg.jpg
Schuyler is offline   Reply With Quote
Old 06-27-2015, 02:16 PM   #196
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,237
Total Cats: 978
Default

VVT! Do it.
aidandj is offline   Reply With Quote
Old 06-27-2015, 04:13 PM   #197
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,306
Total Cats: 73
Default

So compression numbers 17 days ago, Cylinders 1-4
180,170,175,175

Today:
158,151,60,125

The cylinder would keep climbing if you held it for like 15-20 seconds, I stopped around 80 or 90. I put 60 though, because things really creeped after that.
Schuyler is offline   Reply With Quote
Old 06-27-2015, 04:20 PM   #198
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,024
Total Cats: 129
Default

Hmm... Pull the valve cover, if you don't see anything pull the head or motor.
patsmx5 is offline   Reply With Quote
Old 06-27-2015, 04:33 PM   #199
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,306
Total Cats: 73
Default

Quote:
Originally Posted by patsmx5 View Post
Hmm... Pull the valve cover, if you don't see anything pull the head or motor.
Started to and it started raining. Once it stops I'll head back out. I need to buy some rubbermade bins and stuff to put all this in so they don't get **** all in them.
Schuyler is offline   Reply With Quote
Old 06-27-2015, 07:35 PM   #200
Senior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,306
Total Cats: 73
Default

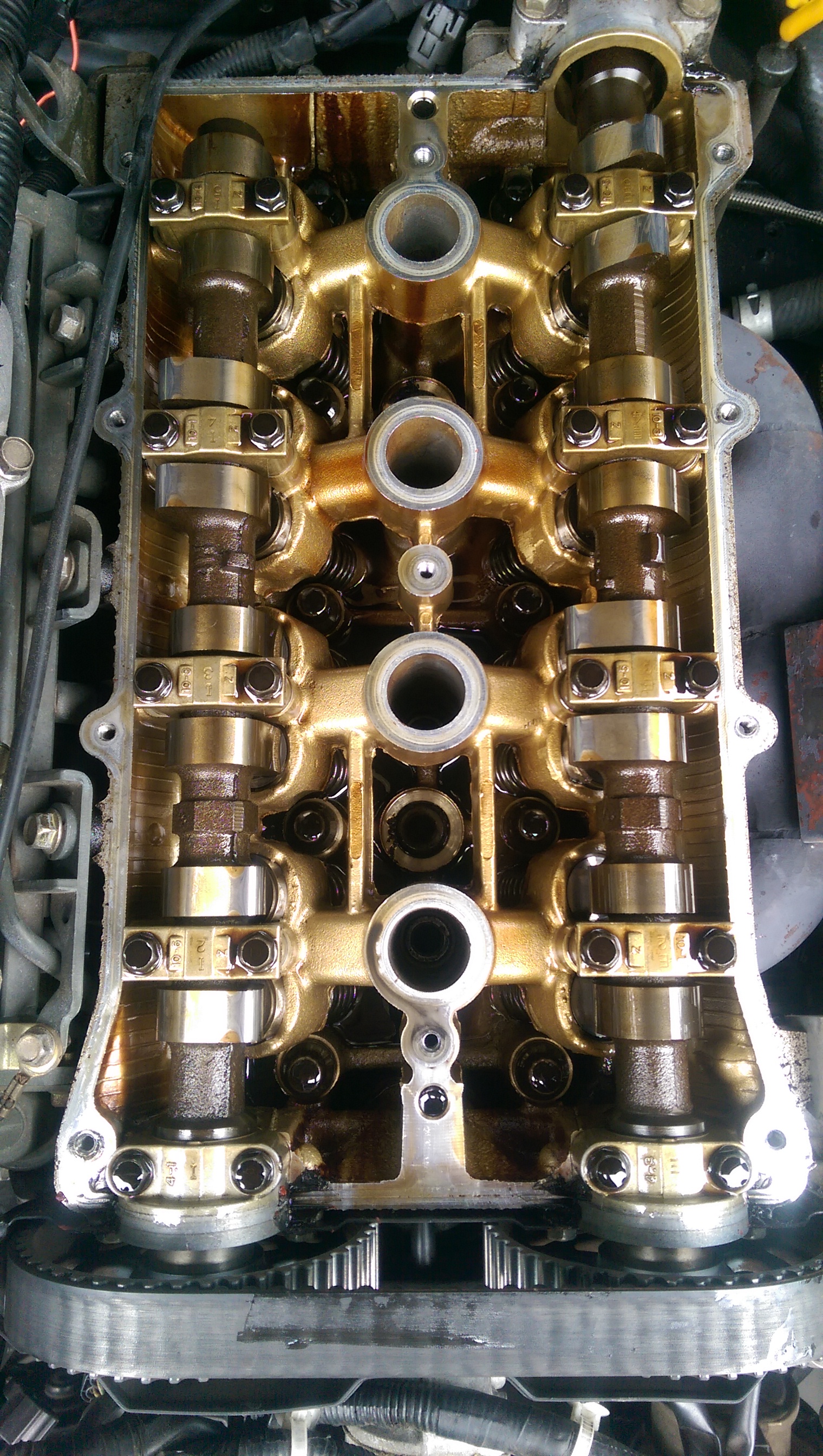

Everything looked okay to me.

Attached Thumbnails
ITT we discuss why not to turbo your daily bent rod-zigv1dr.jpg
Schuyler is offline   Reply With Quote
