Old 08-11-2015, 04:59 PM   #2041
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,795
Total Cats: 931
Default

<p>Standard fuel line adapters. I think we got them at NAPA? Baxter before that? He was using rubber hose.</p>
aidandj is offline   Reply With Quote
Old 08-11-2015, 05:17 PM   #2042
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,734
Total Cats: 746
Default

Yeah but that's no fun, I can get all that stuff locally. If I don't order it online I won't have an excuse for continued delays

My hangup is that I'm worried about pushing like 80~90psi through the stock style push-on fittings (because 1:1FPR) and having one blow off at the pump somewhere on the high pressure feed side. I may do AN on the feed side and push-on for the return, but we'll see.

Last edited by EO2K; 08-11-2015 at 06:00 PM. Reason: To clarify? I guess?
EO2K is offline   Reply With Quote
Old 08-11-2015, 05:37 PM   #2043
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,795
Total Cats: 931
Default

<p>I just searched around and can't find anything about pressure ratings. You're return line should not be under pressure though.</p><p>If anything, be worried about the fuel line to rail connection. Don't you have a dual feed rail?</p>
aidandj is offline   Reply With Quote
Old 08-11-2015, 05:58 PM   #2044
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,734
Total Cats: 746
Default

Quote:
Originally Posted by aidandj View Post
You're return line should not be under pressure though.</p>
Right, that's why I said push-on would probably be fine.
Quote:
Originally Posted by aidandj View Post
<p>If anything, be worried about the fuel line to rail connection.
Right, that's why I was talking about making -6 lines for the pressure side.
Quote:
Originally Posted by aidandj View Post
Don't you have a dual feed rail?</p>
Yes, but I don't HAVE TO use it in that configuration.

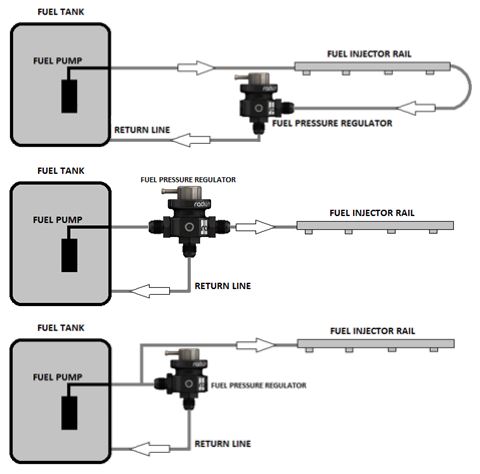

As you can see, lots of ways to plumb one of these things.
Attached Thumbnails
Rebuild all the salvage Miatas! ASS!-iiwz0om.jpg
EO2K is offline   Reply With Quote
Old 08-11-2015, 06:04 PM   #2045
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,795
Total Cats: 931
Default

<p>answered in your thread.</p><p>Ed if you want baller an at some point then do this.</p><p>Feed line -&gt;<br />http://www.jegs.com/i/Russell/799/640860/10002/-1 -&gt;<br />an line -&gt;<br />http://www.jegs.com/i/Russell/799/640860/10002/-1 -&gt;<br />fuel rail -&gt;<br />
Amazon.com: Turbosmart TS-0402-1002 Fuel Rail Adapter for Toyota/Subaru: Automotive Amazon.com: Turbosmart TS-0402-1002 Fuel Rail Adapter for Toyota/Subaru: Automotive
-&gt;<br />an line -&gt;<br />afpr -&gt;<br />rubber line -&gt;<br />return line.</p>
aidandj is offline   Reply With Quote
Old 08-11-2015, 06:10 PM   #2046
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,734
Total Cats: 746
Default

Ed's more baller than the rest of us, he's getting **** done rather than just talking about it.
EO2K is offline   Reply With Quote
Old 08-11-2015, 06:11 PM   #2047
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,795
Total Cats: 931
Default

<p>Thats why he shouldn't do it. I know you will though.&nbsp;</p>
aidandj is offline   Reply With Quote
Old 08-12-2015, 09:31 PM   #2048
I take big bites
Thread Starter
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 5,985
Total Cats: 409
Default

<p>I'm going to pretend that last bit of the conversation never happened. My fuel system will be very good.</p><p>Now, I posted a video of the S2k's new exhaust sound. <img alt="" src="images/smilies/birthday[1].gif" title="Party Kitty" /></p><p>&nbsp;</p><p>
</p><p>&nbsp;</p>
turbofan is offline   Reply With Quote
Old 08-12-2015, 11:32 PM   #2049
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 8,734
Total Cats: 746
Default

Quote:
Originally Posted by turbofan View Post
Now, I posted a video of the S2k
EO2K is offline   Reply With Quote
Old 08-12-2015, 11:54 PM   #2050
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,795
Total Cats: 931
Default

Thread title change please.
aidandj is offline   Reply With Quote
Old 08-13-2015, 12:05 AM   #2051
I take big bites
Thread Starter
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 5,985
Total Cats: 409
Default

Okwitcherbellyachin.
<br />
<br />Engine install pics coming Monday night.
turbofan is offline   Reply With Quote
Old 08-15-2015, 01:53 AM   #2052
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,795
Total Cats: 931
Default

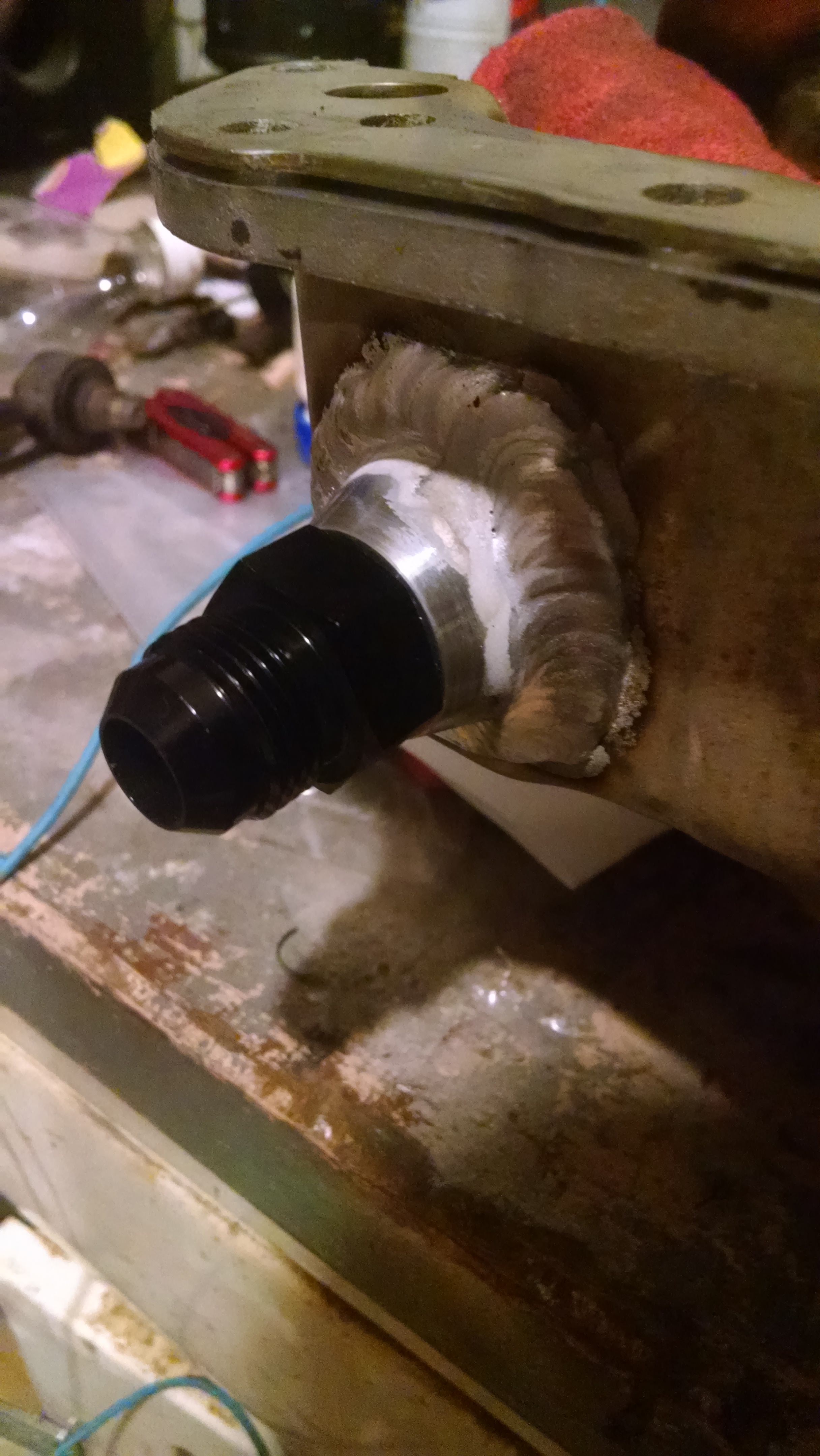

Mucho sexy
<br />
<br />
Attached Thumbnails
Rebuild all the salvage Miatas! ASS!-4fuutli.jpg
aidandj is offline   Reply With Quote
Old 08-15-2015, 02:54 AM   #2053
I take big bites
Thread Starter
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 5,985
Total Cats: 409
Default

Helluva weld.
<br />
<br />Here's hoping the dimensions don't cause steering column issues. Sticks out a long way it looks like. Will figure it out. Looks great though!!
turbofan is offline   Reply With Quote
Old 08-15-2015, 02:58 AM   #2054
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,795
Total Cats: 931
Default

It shouldn't be an issue I hope. The pan was pretty contaminated so there is quite a bit of filler lol. It looks like it should hold real well.
aidandj is offline   Reply With Quote
Old 08-16-2015, 04:15 PM   #2055
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,808
Total Cats: 554
Default

When archeologists excavate your car in 3000 years, that weld will be the best preserved part -- maybe the only thing left. Haha.

Done with the new welder I assume?
hornetball is offline   Reply With Quote
Old 08-16-2015, 05:20 PM   #2056
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,795
Total Cats: 931
Default

<p>I wish, Yank did that, he works at PRE.</p>
aidandj is offline   Reply With Quote
Old 08-17-2015, 12:48 PM   #2057
I take big bites
Thread Starter
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 5,985
Total Cats: 409
Default

Yesterday was my birthday, went karting and then for a drive. Short video of one of my favorite roads (in Canada)
<br />
<br />https://youtu.be/3z6g5MI467Y
<br />
<br />Horrible video mount. Need to do something about that.
<br />
<br />Curly will be here in an hour or so to start installing engine in Miata. Woooooo
turbofan is offline   Reply With Quote
Old 08-17-2015, 12:49 PM   #2058
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,795
Total Cats: 931
Default

<p></span></p>
aidandj is offline   Reply With Quote
Old 08-18-2015, 12:09 AM   #2059
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 14,795
Total Cats: 931
Default

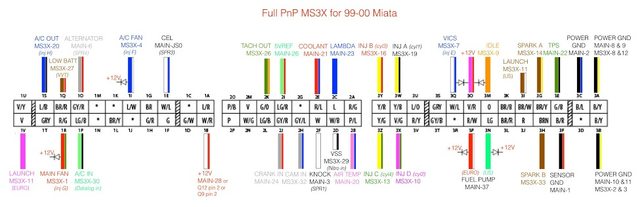

<p>Can I get someone to look over my pinout for Ed's megasquirt.</p><p>99-00 harness with an extra VVT wire hanging out.</p><p>Based of franks pinout:</p><p><br /></p><p>Braineack? Schuyler</p>
Attached Thumbnails
Rebuild all the salvage Miatas! ASS!-hlzgcvgl.jpg
aidandj is offline   Reply With Quote
Old 08-18-2015, 01:21 AM   #2060
Senior Member
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,294
Total Cats: 72
Default

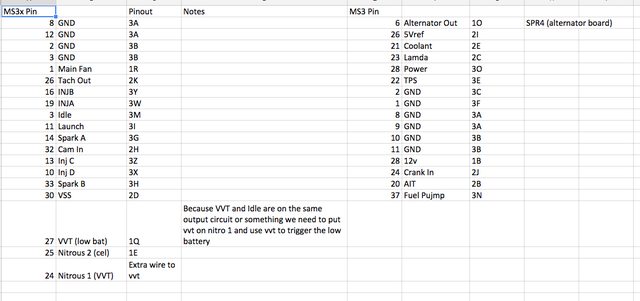

<p>I'm moving and can't really compare at the moment. Here is my pinout (might be missing a few minor sensors etc. I've added, but it should be close)</p><p>&nbsp;</p><p>Also attached the base tune you texted me about.<br />EDIT: Ugh, can IB please get with this decade and replace xls attachments with xlsx?</p><p>https://www.dropbox.com/s/w2uh1wbhnf...nout.xlsx?dl=0</p>
Attached Files
File Type: msq 99-00 MS3X RX8.msq (190.4 KB, 22 views)
