Old 10-10-2014, 02:11 PM   #241
Moderator
iTrader: (9)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, FL
Posts: 13,696
Total Cats: 1,052
Default

Does Abe know you have an MSM? They do have different A/C compressors than a regular NB. I don't know what difference that makes but I thought I would mention it.
sixshooter is offline   Reply With Quote
Old 10-10-2014, 02:13 PM   #242
Moderator
iTrader: (9)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, FL
Posts: 13,696
Total Cats: 1,052
Default

Quote:
Originally Posted by Efini~FC3S View Post
I would recommend at least XR3s for the fronts on rivals, if not XR2s.
Of course I was running on stock 1.8 brakes, not huge BBK, so YMMV...
Yeah, Ryan was having to take it easy on the brake application to keep from locking them up, he said at the track. The 11.75 rotors are muy grande compared to the 10 inch stock ones.
sixshooter is offline   Reply With Quote
Old 10-10-2014, 02:16 PM   #243
Elite Member
Thread Starter
iTrader: (8)

Ryan_G's Avatar

Join Date: Jan 2012
Location: Tampa, Florida
Posts: 2,272
Total Cats: 122
Default

Quote:
Originally Posted by sixshooter View Post
Does Abe know you have an MSM? They do have different A/C compressors than a regular NB. I don't know what difference that makes but I thought I would mention it.
This I did not know. I will look into it.

As for using a more aggressive pad than the xr4, I can lock up the fronts on the rivals on demand with these brakes so I think they are probably okay for now. The rivals I am using are near the end of their life so if new tires prove to have substantially more grip I will consider changing brake compounds.
Ryan_G is online now   Reply With Quote
Old 10-10-2014, 02:26 PM   #244
Senior Member

Join Date: Mar 2011
Location: South Chicago
Posts: 688
Total Cats: 26
Default

To do that brake upgrade, do you loose abs?
Mazduh is offline   Reply With Quote
Old 10-10-2014, 02:26 PM   #245
Elite Member
Thread Starter
iTrader: (8)

Ryan_G's Avatar

Join Date: Jan 2012
Location: Tampa, Florida
Posts: 2,272
Total Cats: 122
Default

From what I can find, the MSM compressor is significantly smaller and should actually allow for additional clearance.
Ryan_G is online now   Reply With Quote
Old 10-10-2014, 02:27 PM   #246
Elite Member
Thread Starter
iTrader: (8)

Ryan_G's Avatar

Join Date: Jan 2012
Location: Tampa, Florida
Posts: 2,272
Total Cats: 122
Default

Quote:
Originally Posted by Mazduh View Post
To do that brake upgrade, do you loose abs?
No I did not lose ABS. It actually engaged a fair amount during the rain sessions at sebring when the rivals were skating on the water.

When I lock up the tires while braking it isn't for very long before the abs engages but it ia definitely noticeable. I would rather not rely on the abs when I am braking because it can be really hard on hot rotors.
Ryan_G is online now   Reply With Quote
Old 10-10-2014, 04:34 PM   #247
Moderator
iTrader: (9)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, FL
Posts: 13,696
Total Cats: 1,052
Default

The pics from Sebring are up. I'm contemplating buying. There are some pretty good ones of you on your knees in the garage area earning tire money, lol.
sixshooter is offline   Reply With Quote
Old 10-10-2014, 05:26 PM   #248
Senior Member
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

Quote:
Originally Posted by Ryan_G View Post

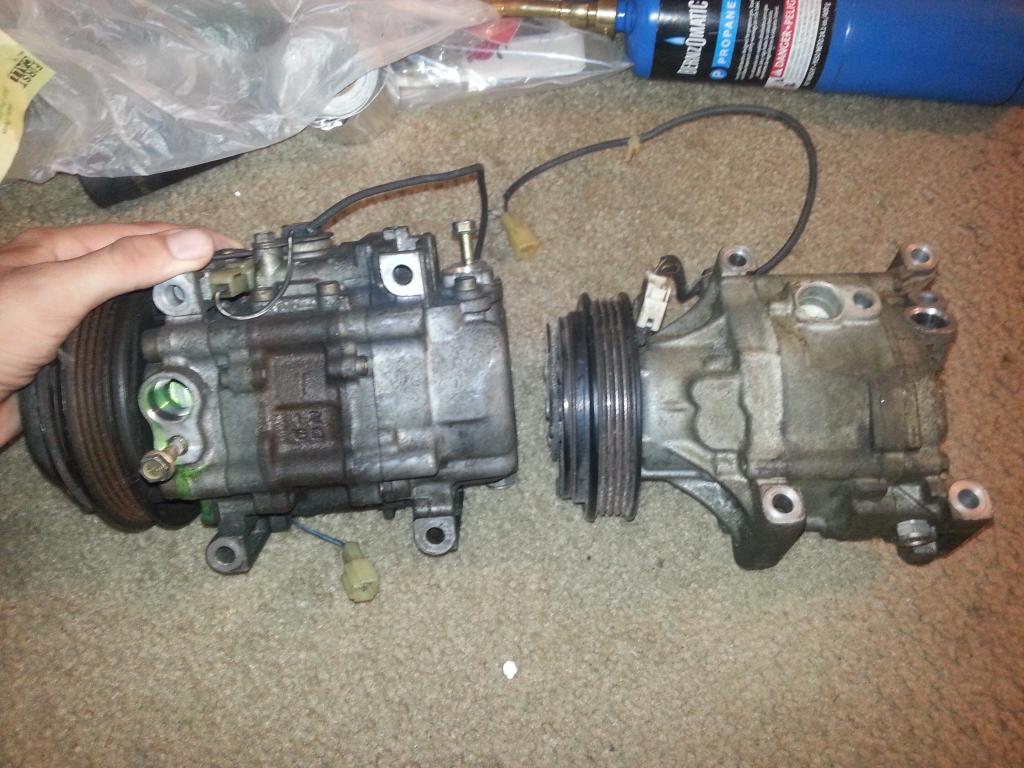

From what I can find, the MSM compressor is significantly smaller and should actually allow for additional clearance.
It's a lot smaller and lighter. Shouldn't be an issue. Lines are routed differently though.
Attached Thumbnails
Ryan's build thread - Clean and Mean-c360_2014-09-01-12-35-37-275_zpsjzkelzrl.jpg
Impuls is offline   Reply With Quote
Old 11-03-2014, 08:03 AM   #249
Elite Member
Thread Starter
iTrader: (8)

Ryan_G's Avatar

Join Date: Jan 2012
Location: Tampa, Florida
Posts: 2,272
Total Cats: 122
Default

Daytona was awesome! All the way up to the very last lap of the very last session when my motor blew up! I'm pretty sure I shifted into the wrong gear and either threw a rod or lost a valve which then reaked havoc. I had missed a downshift earlier as well so I am sure the rods were already not happy.

Luckily I had a friend who lives fairly close to me who had offered to trailer my car home and let me drive his 5.0 mustang back. We droppee the car at Miata2fast's shop and I'll be starting on the engine swap a little earlier than I planned.

Daytona is an incredibly fast track and heavily favors hp over handling. It was still very fun to hit 140mph in the miata on the back straight. Great course, would go again.

Last edited by sixshooter; 11-03-2014 at 08:37 AM.
Ryan_G is online now   Reply With Quote
Old 11-03-2014, 08:42 AM   #250
Moderator
iTrader: (9)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, FL
Posts: 13,696
Total Cats: 1,052
Default

I'm really curious where the oil came from that was all around the engine bay. At least you didn't do it first session Saturday.
sixshooter is offline   Reply With Quote
Old 11-03-2014, 08:44 AM   #251
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,691
Total Cats: 84
Default

I am going to have a look later on today to see if I can find the offending hole.
miata2fast is offline   Reply With Quote
Old 11-07-2014, 04:52 PM   #252
Elite Member
Thread Starter
iTrader: (8)

Ryan_G's Avatar

Join Date: Jan 2012
Location: Tampa, Florida
Posts: 2,272
Total Cats: 122
Default

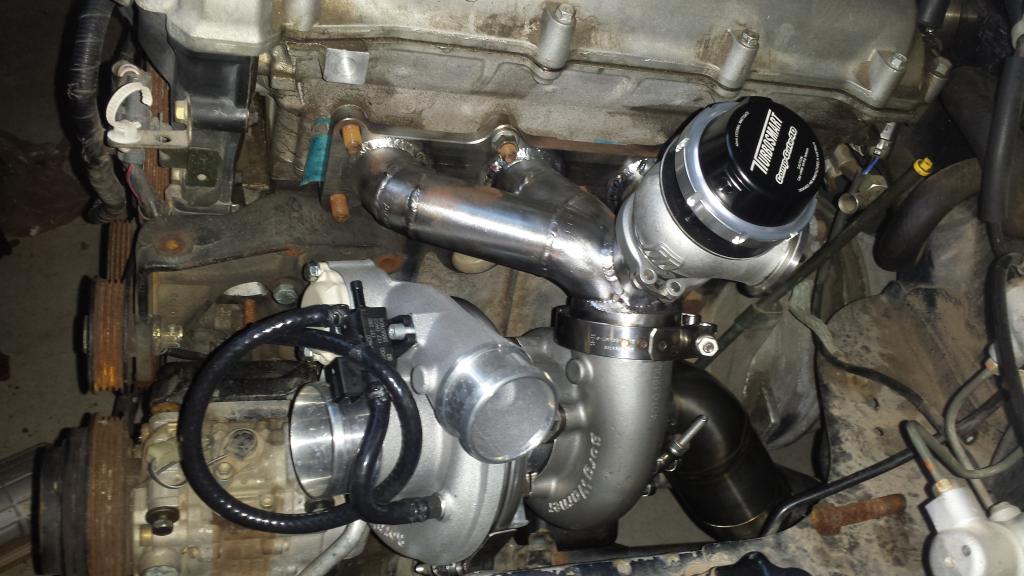

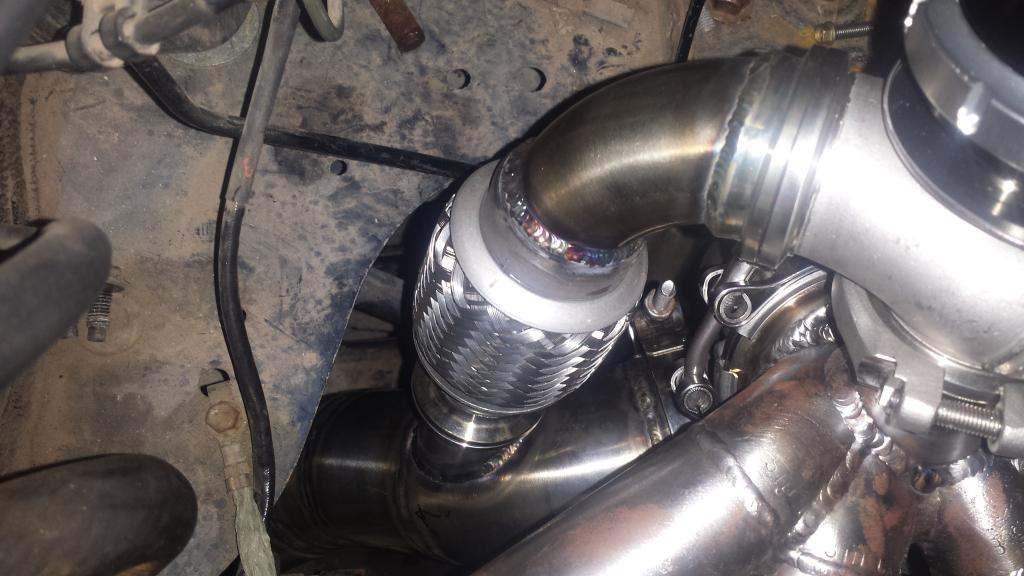

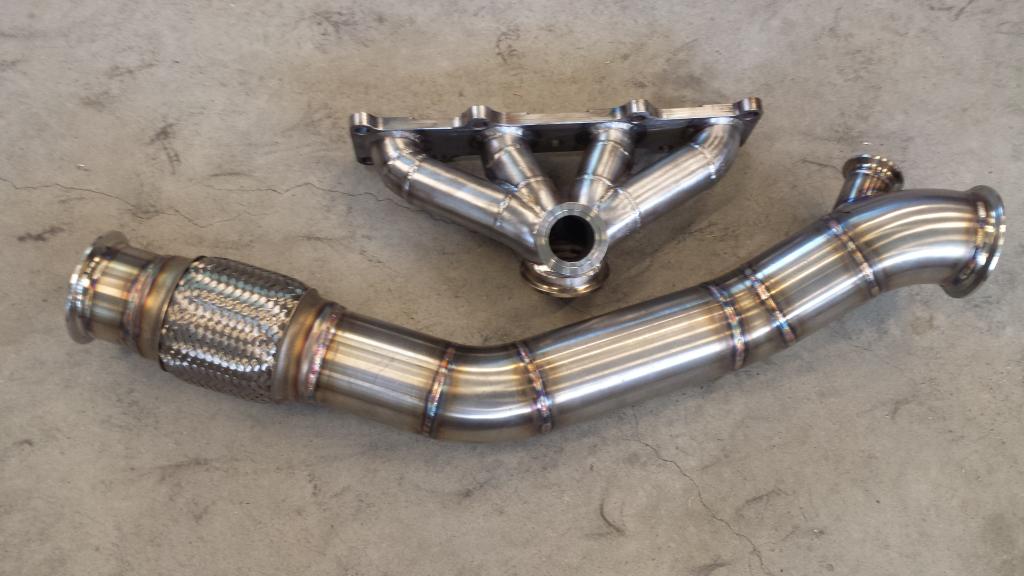

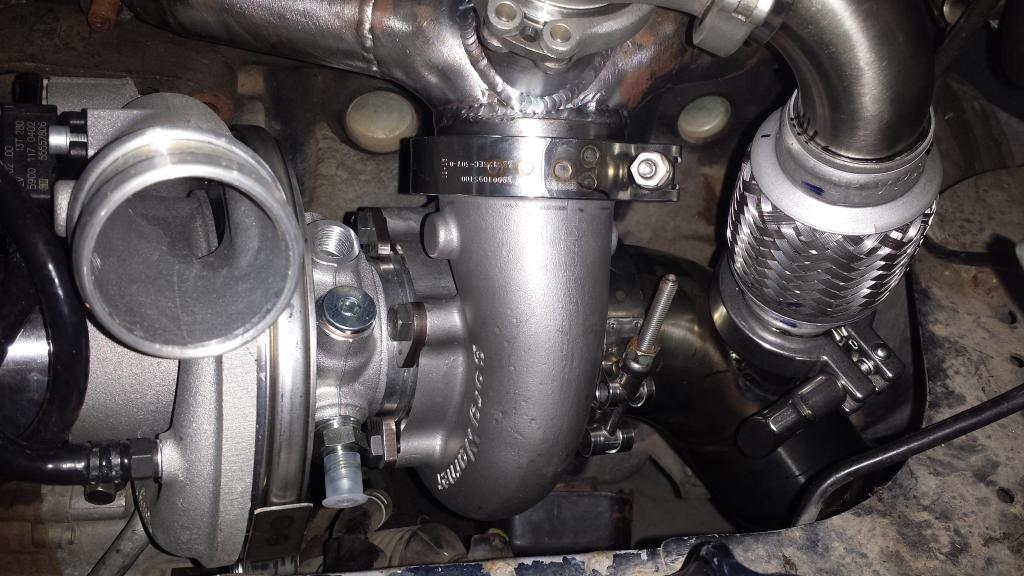

Some ARTech **** for you all. Dat straight DP. Dat Flow. Parts are out to swain for coating.








Should be pulling the blown motor this weekend. I will post pictures of the carnage.
Attached Thumbnails
Ryan's build thread - Clean and Mean-20141022_075305_zpsrxdy55jj.jpg   Ryan's build thread - Clean and Mean-20141024_000242_zpsrik5abws.jpg   Ryan's build thread - Clean and Mean-20141027_230034_zpsd6mezika.jpg   Ryan's build thread - Clean and Mean-20141101_123611_zpszloc4syu.jpg
Ryan_G is online now   Reply With Quote
Old 11-07-2014, 04:56 PM   #253
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,340
Total Cats: 184
Default

It clears the A/C, what about the P/S pump?
Reverant is offline   Reply With Quote
Old 11-07-2014, 06:14 PM   #254
Junior Member

Join Date: Dec 2009
Location: Brisbane, AUSTRALIA
Posts: 378
Total Cats: 30
Default

Quote:
Originally Posted by Reverant View Post
It clears the A/C, what about the P/S pump?
P/S has been deleted which allows the turbo to be mounted further forward to allow room for the EWG plumbing back to the downpipe.
- no way is there enough room in our engine bay for P/S and an EWG with an EFR without cutting the shelf.

Will the turbo need any additional bracing or should the EWG and associated plumbing provide enough since there are 2 mount points to the manifold?
ie. the turbo is not hanging off one manifold mount point AND supporting the downpipe.

Last edited by Lokiel; 11-07-2014 at 06:39 PM.
Lokiel is offline   Reply With Quote
Old 11-07-2014, 06:35 PM   #255
Elite Member
Thread Starter
iTrader: (8)

Ryan_G's Avatar

Join Date: Jan 2012
Location: Tampa, Florida
Posts: 2,272
Total Cats: 122
Default

Quote:
Originally Posted by Lokiel View Post
P/S has been deleted which allows the turbo to be mounted further forward to allow room for the EWG plumbing back to the downpipe.
- no way is there enough room in our engine bay for P/S and an EWG with an EFR without cutting the shelf.
I actually don't think space would be an issue or at least it wasn't for me. It was designed this way at my request as I preferred a low mount setup for better flow characteristics and heat management concerns. I was removing p/s anyway so it was not a concern. It only needed to clear the AC.
Ryan_G is online now   Reply With Quote
Old 11-09-2014, 08:57 PM   #256
Moderator
iTrader: (9)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, FL
Posts: 13,696
Total Cats: 1,052
Default

This is what RyanG's Miata looks like from behind. Well, at least when it is running.


Miata enters at :50.
sixshooter is offline   Reply With Quote
Old 11-17-2014, 01:49 PM   #257
Moderator
iTrader: (9)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, FL
Posts: 13,696
Total Cats: 1,052
Default

Hurry up and fix yore ****!

Attached Thumbnails
Ryan's build thread - Clean and Mean-flyer_street%2520heat%25202013%2520december%252028.jpg
sixshooter is offline   Reply With Quote
Old 11-17-2014, 02:07 PM   #258
Elite Member
Thread Starter
iTrader: (8)

Ryan_G's Avatar

Join Date: Jan 2012
Location: Tampa, Florida
Posts: 2,272
Total Cats: 122
Default

So I can break it again at the strip.
Ryan_G is online now   Reply With Quote
Old 11-17-2014, 04:21 PM   #259
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,691
Total Cats: 84
Default

A few broken axles never hurt anybody.




Wait a minute. You have a Mazdaspeed. No excuses!
miata2fast is offline   Reply With Quote
Old 11-17-2014, 04:54 PM   #260
Moderator
iTrader: (9)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, FL
Posts: 13,696
Total Cats: 1,052
Default

Why do I take a car to any track? To find any weakness and make it stronger. Your old motor had a weakness and you rooted it out. Good job.
sixshooter is offline   Reply With Quote
