Old 01-08-2015, 08:47 PM   #301
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,825
Total Cats: 2,121
Default

been there done that, raged just like you.

I was able to get them out eventually though by applying constant pressure on the torx/wrench while tapping it with a hammer.

I'm sure the shop will get them out easy with a chisel, my dad's done that before took all of 5 min
18psi is offline   Reply With Quote
Old 01-08-2015, 08:48 PM   #302
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 8,817
Total Cats: 92
Default

Mine came right out.
Leafy is offline   Reply With Quote
Old 01-08-2015, 09:21 PM   #303
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,816
Total Cats: 479
Default

I had to use an easy-out on Oregonmon's VVT gear, they're loctited in there pretty well. Scared the **** out of me, but they all came out no problem. The torx hole makes lining up the drill pretty easy.

Also about the MSM mixing manifold: as an fyi to anyone else, you can NOT flip it without extensive modification, it'll hit the alternator belt. The modification involves cutting the heater core hard line section off, and welding it closed.
curly is offline   Reply With Quote
Old 01-11-2015, 04:27 PM   #304
Moderator
iTrader: (10)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, FL
Posts: 14,092
Total Cats: 1,168
Default

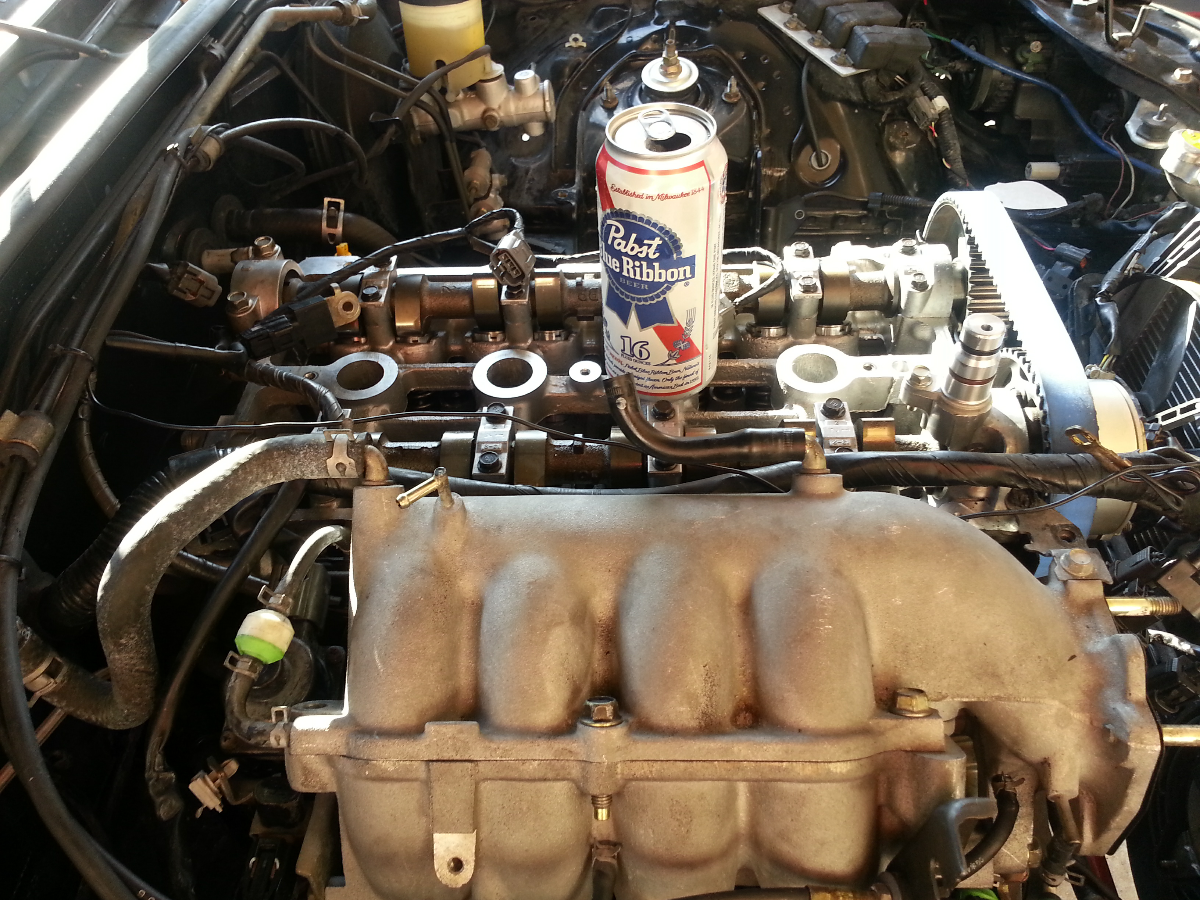

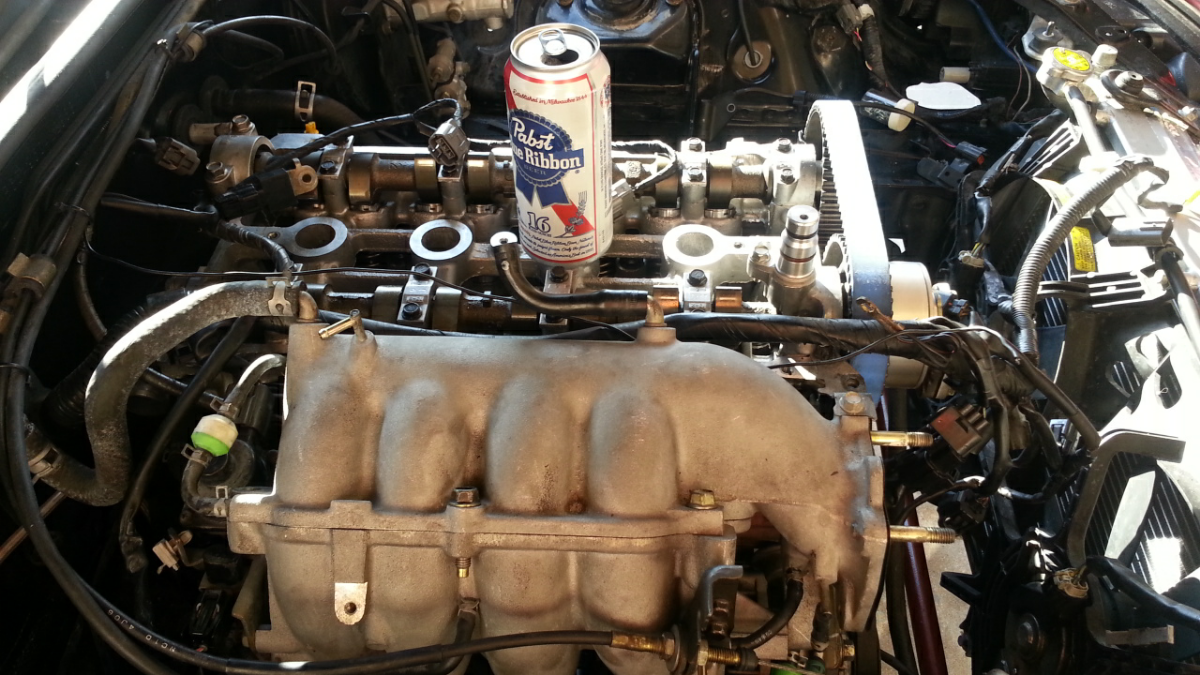

Progress.


Ryan's build thread - Clean and Mean-forumrunner_20150111_162308.png
Attached Thumbnails
Ryan's build thread - Clean and Mean-forumrunner_20150111_162139.png   Ryan's build thread - Clean and Mean-130858d1421011492-ryans-build-thread-clean-mean-forumrunner_20150111_162308.png

Last edited by sixshooter; 01-11-2015 at 08:48 PM.
sixshooter is online now   Reply With Quote
Old 01-11-2015, 10:00 PM   #305
Elite Member
Thread Starter
iTrader: (8)

Ryan_G's Avatar

Join Date: Jan 2012
Location: Tampa, Florida
Posts: 2,365
Total Cats: 127
Default

I was able to take the vvt cam gear to an engine shop close to my house on Friday. It took him all of 5 minutes to remove the 3 screws with an impact driver....and he didn't charge me anything. I think I found my local trustworthy mechanic if I am out of my element on something. Conclusion: I need an impact driver.

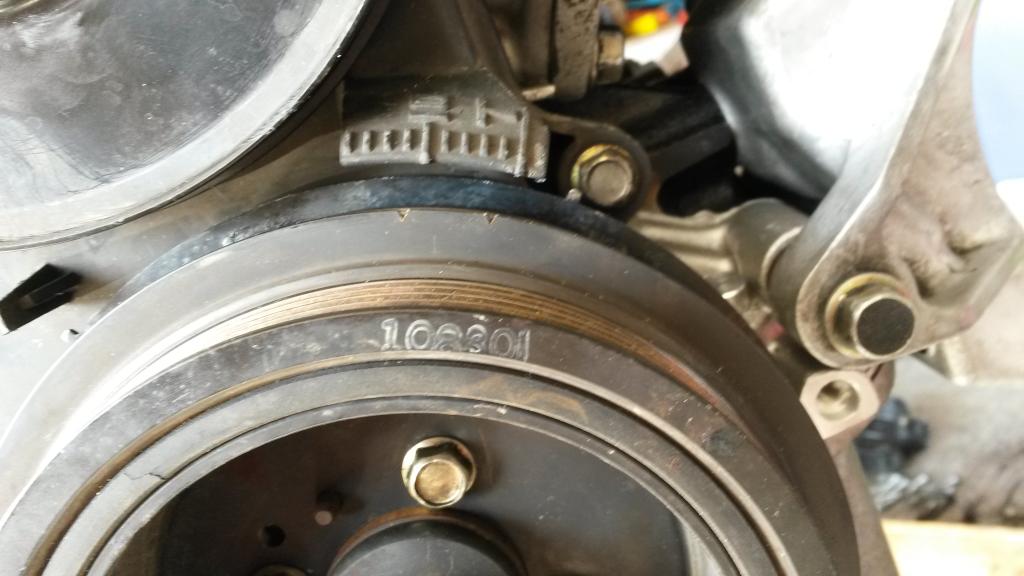

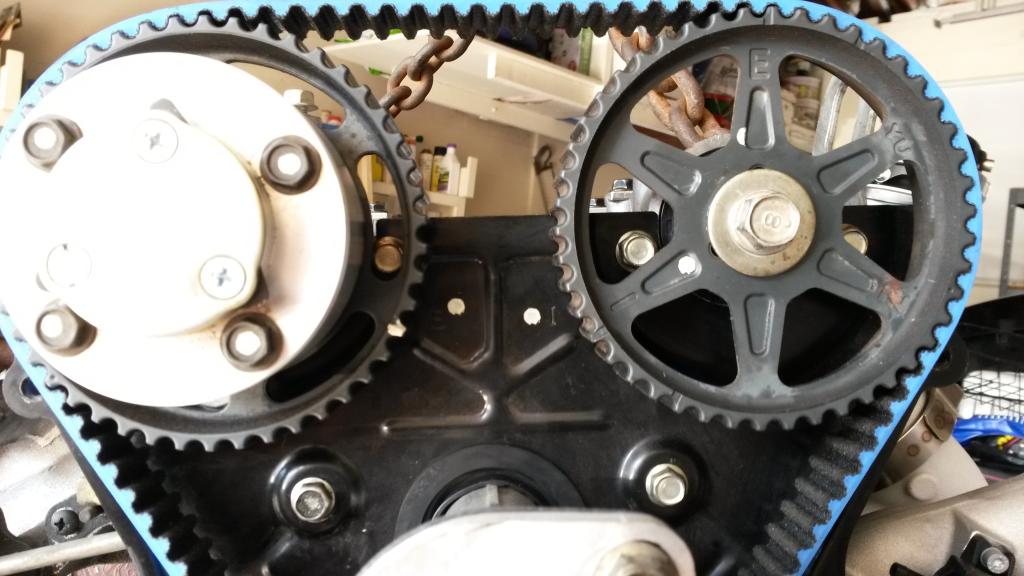

Timing set, easy peasy.





I now know why people like to pull the tranny with the engine. Realigning it was a bit of a bitch but I got it in.



Then the motor mount on the passenger side would not align.



I just needed to remove two of the bolts on the block so that I could swing it into place and then bolt it back to the engine. Sixshooter decided to drop by and help me start bolting things back on. We noticed I forgot to attach the vvt oil hardline to the block. This became quite the challenge to put in place with the engine in and the intake manifold installed. Sixshooter so graciously took on this bitch of a project which seemed rather frustrating. Great success!

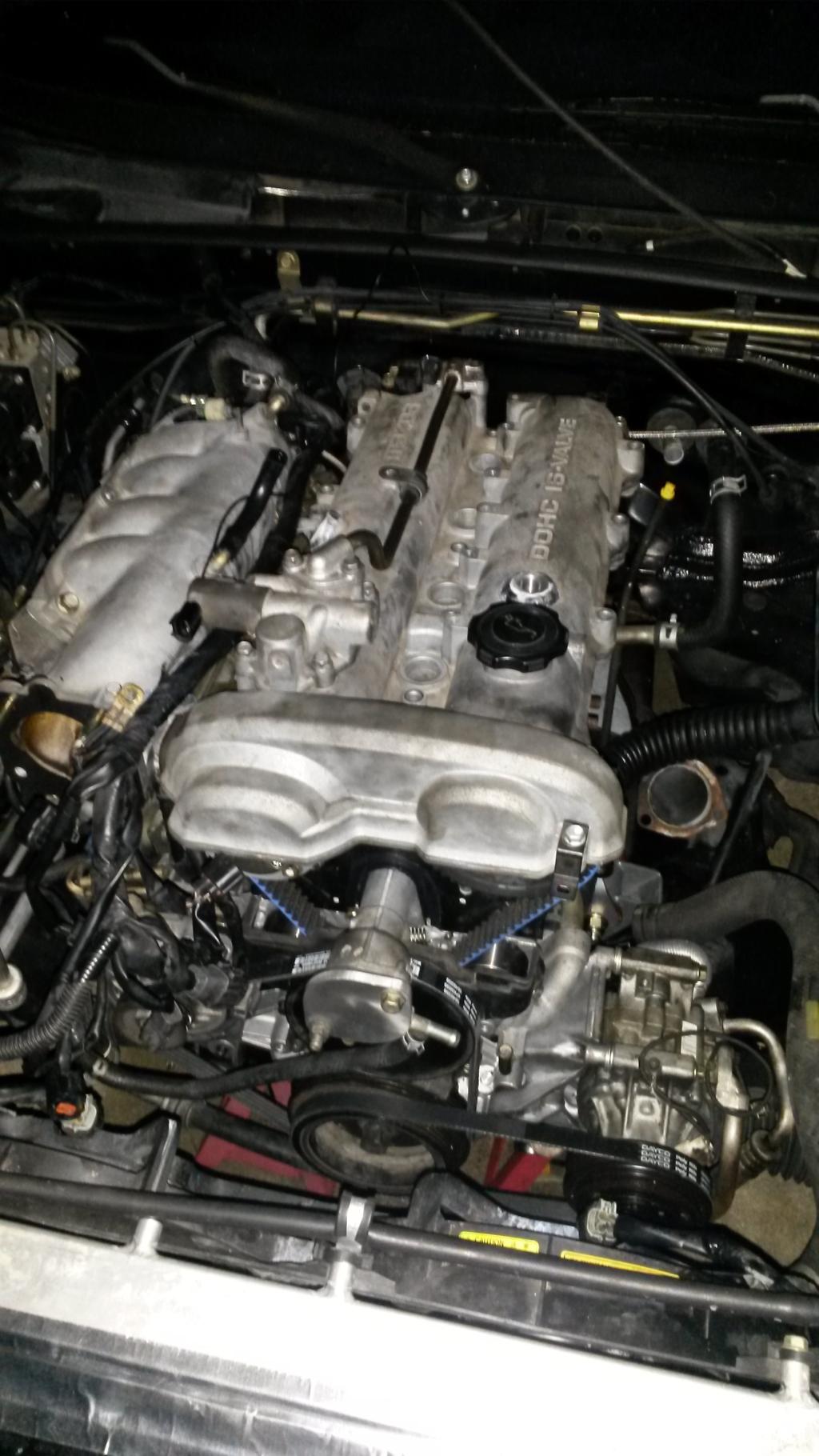

There is a lot of little stuff left. The only big parts left are bolting up the hotside, getting the vband flange welded onto my old exhaust to mate with the downpipe, and routing the intercooler piping. I am hoping to start the car next weekend and get the exhaust welded early the following week so the car is full streetable.
Attached Thumbnails
Ryan's build thread - Clean and Mean-20150110_125215_zpsvaelsfaw.jpg   Ryan's build thread - Clean and Mean-20150110_125224_zpsgylg4qlx.jpg
Ryan_G is online now   Reply With Quote
Old 01-18-2015, 11:01 PM   #306
Elite Member
Thread Starter
iTrader: (8)

Ryan_G's Avatar

Join Date: Jan 2012
Location: Tampa, Florida
Posts: 2,365
Total Cats: 127
Default

There was more progress this weekend but not as much as I would have liked. I spent both Saturday and Sunday morning looking at tow vehicles. Good news is that I found one! It is an 03' Toyota Sequoia.



The rest of my time was spent test fitting everything on the car to make sure no further modifications would be necessary. I also painted the valve cover.

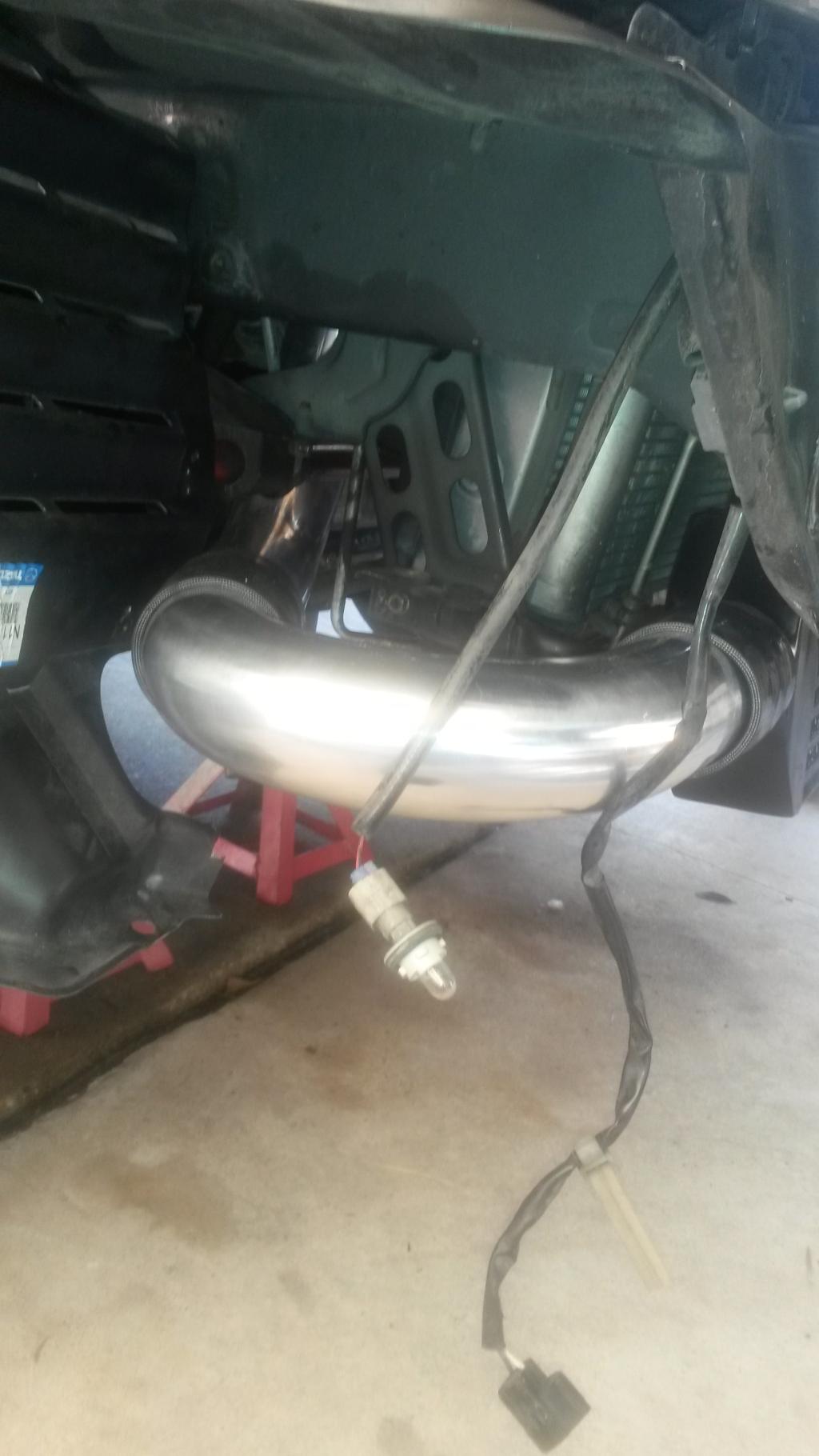

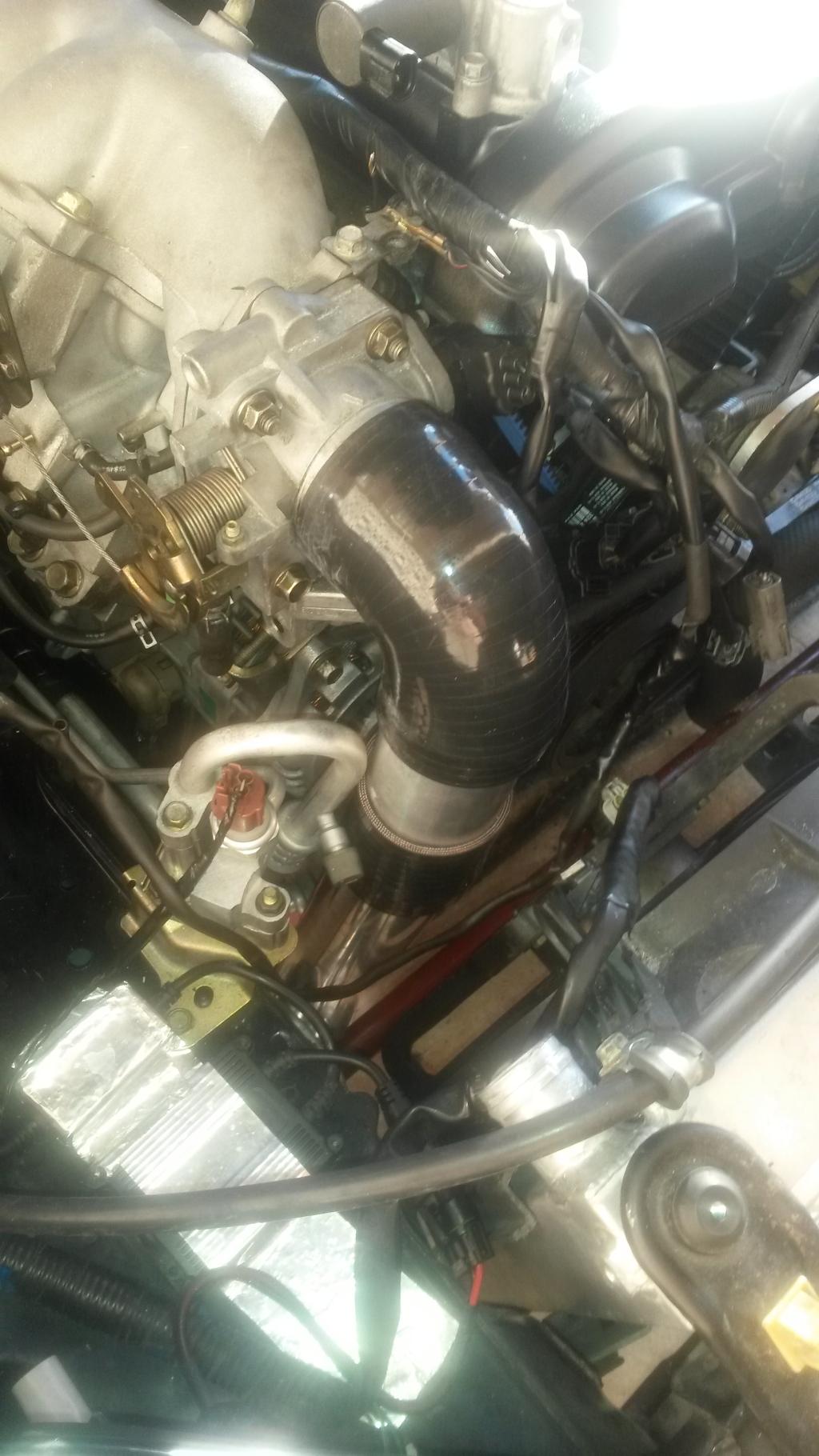

Completed the coldside intercooler piping as well.

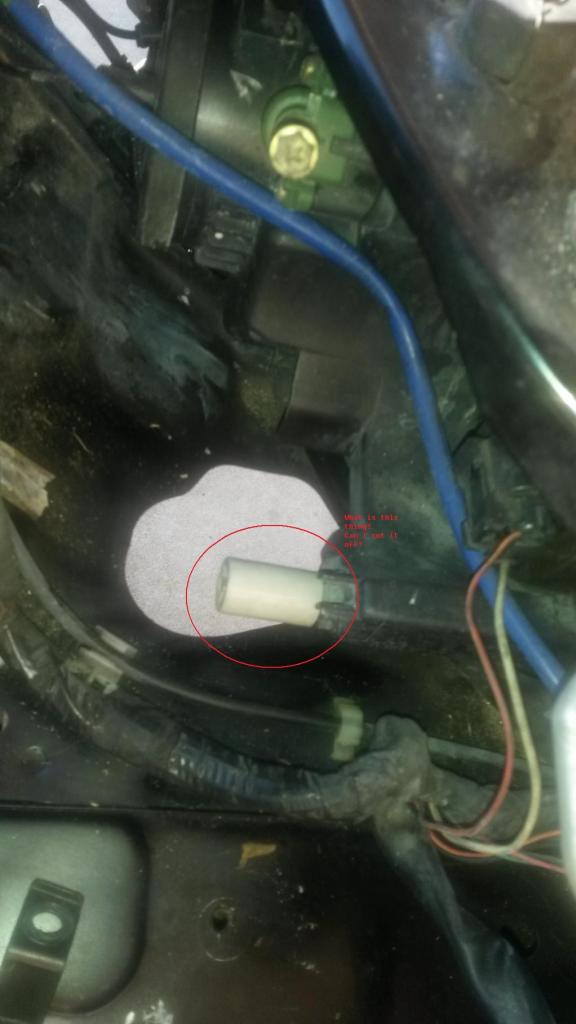

I would have completed the hot side piping as well but I am going to need to either modify the headlight housing or widen the hole behind it. I am not actually sure what the piece I need to remove from the housing does. It is pictured below:



Can I cut that piece off without consequence or should I just make the hole bigger?

I am also having trouble getting my reroute radiator hose to fit over the kia thermostat outlet. The fitting seems to be very close to the outlet on the back of the head that routes to the factory oil cooler? Has anyone else had this problem? It is very frustrating because that whole assembly is a bitch to get to back there.
Attached Thumbnails
Ryan's build thread - Clean and Mean-00k0k_jbffwwnrgeq_600x450_zps6107f995.jpg   Ryan's build thread - Clean and Mean-20150118_162914_zpsd8614fdd.jpg
Ryan_G is online now   Reply With Quote
Old 01-18-2015, 11:43 PM   #307
Junior Member

Join Date: Dec 2009
Location: Brisbane, AUSTRALIA
Posts: 402
Total Cats: 35
Default

I'm guessing that white thing is a supporting/stabilising shaft that your headlight assembly slides into, in which case, DON'T remove it!
Lokiel is offline   Reply With Quote
Old 01-19-2015, 10:41 AM   #308
Elite Member
iTrader: (6)

TorqueZombie's Avatar

Join Date: May 2011
Location: Lebanon, TN
Posts: 1,650
Total Cats: 62
Default

I thought the white thing was a vent for the head light.
TorqueZombie is offline   Reply With Quote
Old 01-19-2015, 11:03 AM   #309
Elite Member
Thread Starter
iTrader: (8)

Ryan_G's Avatar

Join Date: Jan 2012
Location: Tampa, Florida
Posts: 2,365
Total Cats: 127
Default

Quote:
Originally Posted by TorqueZombie View Post
I thought the white thing was a vent for the head light.
This was Sixshooter's guess as well. I did not want to assume.
Ryan_G is online now   Reply With Quote
Old 01-19-2015, 12:59 PM   #310
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,832
Total Cats: 98
Default

Blinker oil drain plug.
miata2fast is offline   Reply With Quote
Old 01-19-2015, 06:49 PM   #311
Moderator
iTrader: (10)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, FL
Posts: 14,092
Total Cats: 1,168
Default

Cut it off. If you find out later you need it, use glue.

What are you going to do with all that built motor/tube mani/big exhaust/EFR power you didn't have before? Can you handle it?
sixshooter is online now   Reply With Quote
Old 01-19-2015, 07:30 PM   #312
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,825
Total Cats: 2,121
Default

just wanted to point out that you are literally carrying out everything I would ever do to a miata engine:

VVT - check
built bottom end - check
baller hotside parts - check
EFR - check

Now start participating in the transmission upgrades thread cause even the 6sp won't last long on your car now
18psi is offline   Reply With Quote
Old 01-19-2015, 09:55 PM   #313
Elite Member
Thread Starter
iTrader: (8)

Ryan_G's Avatar

Join Date: Jan 2012
Location: Tampa, Florida
Posts: 2,365
Total Cats: 127
Default

Quote:
Originally Posted by 18psi View Post
Now start participating in the transmission upgrades thread cause even the 6sp won't last long on your car now
Already working on something
Ryan_G is online now   Reply With Quote
Old 01-19-2015, 11:19 PM   #314
SadFab Sales Lady
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 15,899
Total Cats: 1,093
Default

Quote:
Originally Posted by Ryan_G View Post
Already working on something
Oooh, do tell?
aidandj is offline   Reply With Quote
Old 01-20-2015, 07:24 AM   #315
Moderator
iTrader: (10)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, FL
Posts: 14,092
Total Cats: 1,168
Default

Quote:
Originally Posted by aidandj View Post
Oooh, do tell?
He's got plenty of disposable income right now for cool stuff. Good job, low overhead, no wife, no kids, no mortgage, no car payment. And he's currently between girlfriends. Seriously, he's probably snuggled up between two girlfriends right now.
sixshooter is online now   Reply With Quote
Old 01-20-2015, 08:26 AM   #316
Elite Member
Thread Starter
iTrader: (8)

Ryan_G's Avatar

Join Date: Jan 2012
Location: Tampa, Florida
Posts: 2,365
Total Cats: 127
Default

Quote:
Originally Posted by aidandj View Post

Oooh, do tell?
All in good time...
Ryan_G is online now   Reply With Quote
Old 01-20-2015, 09:48 AM   #317
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,825
Total Cats: 2,121
Default

sounds like soviet a couple years ago

and that resulted in a bunch of WIN

18psi is offline   Reply With Quote
Old 01-27-2015, 08:47 PM   #318
Elite Member
Thread Starter
iTrader: (8)

Ryan_G's Avatar

Join Date: Jan 2012
Location: Tampa, Florida
Posts: 2,365
Total Cats: 127
Default

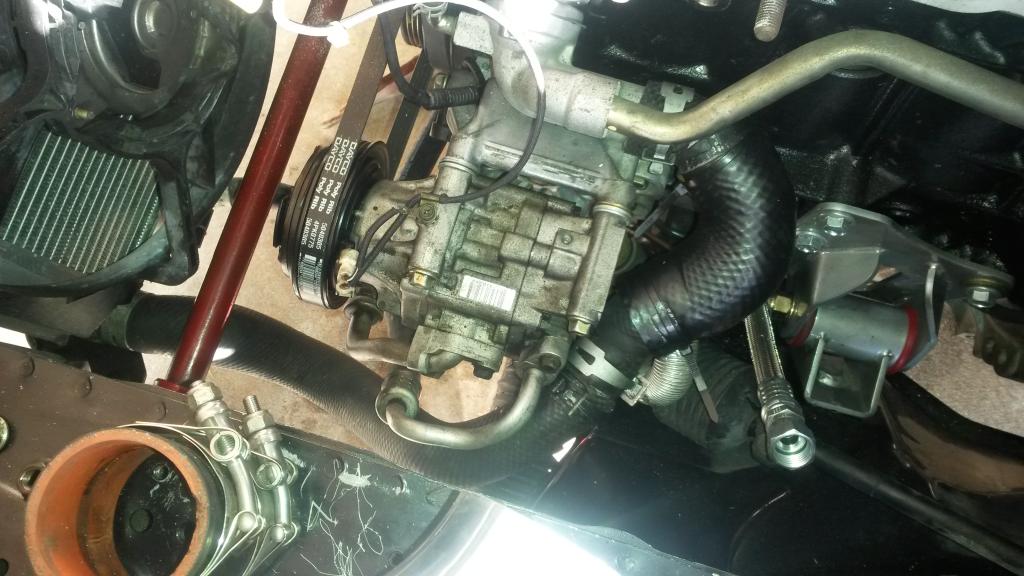

This last weekend I figured out my lower radiator hose path.

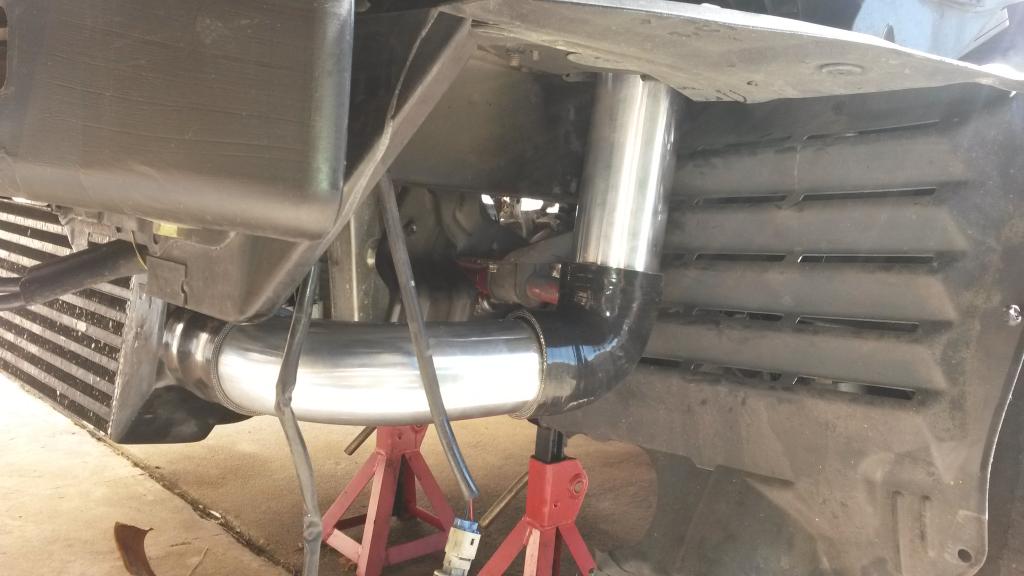

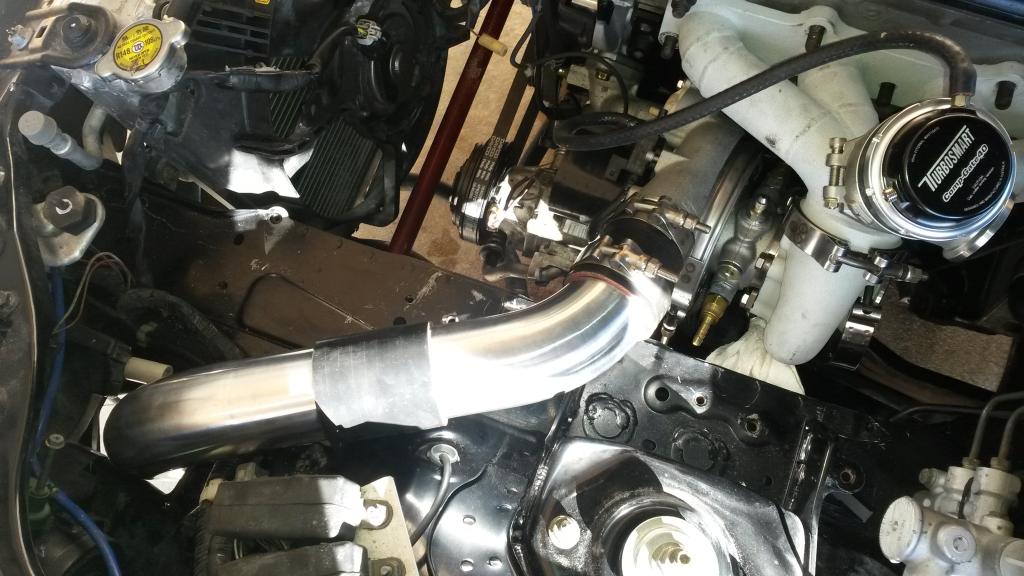

Then I moved on to my hot side intercooler piping. Started by opening up the hole behind the headlight.



Then I was able to cut and route the piping.

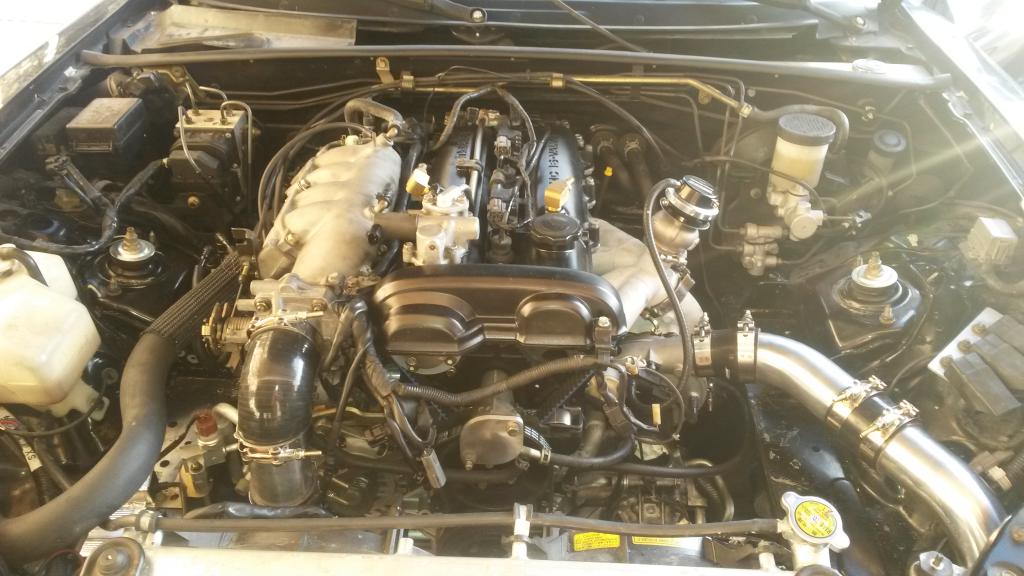

There were some other little things accomplished but this is how it sat on Sunday evening.



All that is really left is the reroute hose, mounting the catch can, exhaust, and air filter. I am really hoping one more weekend is all I need.
Attached Thumbnails
Ryan's build thread - Clean and Mean-20150125_160021_zps2yzpfwrd.jpg   Ryan's build thread - Clean and Mean-20150125_144646_zps9szdoj9e.jpg   Ryan's build thread - Clean and Mean-20150125_144657_zps07st8pif.jpg   Ryan's build thread - Clean and Mean-20150125_172352_zpsbymy37ia.jpg
Ryan_G is online now   Reply With Quote
Old 01-29-2015, 07:35 PM   #319
Newb

Join Date: Jan 2015
Location: Alabama
Posts: 43
Total Cats: 1
Default

Seriously nice MSM. I just wish mine had the good seats.
Tanro is offline   Reply With Quote
Old 02-07-2015, 10:27 AM   #320
Junior Member
iTrader: (1)

Join Date: Feb 2013
Location: Windsor, Ontario
Posts: 403
Total Cats: 64
Default

Updates?? Hadn't realized you were going with a 7163 as well until someone mentioned it in my build thread. Going to be watching how things go together closely now! Excited to see another 7163 build going on at the same time.
BoostedSmurf is offline   Reply With Quote
