Old 11-08-2011, 10:54 AM   #21
Elite Member
iTrader: (2)

Faeflora's Avatar

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,763
Total Cats: 115
Default

Quote:
Originally Posted by richyvrlimited View Post
Only Mr Sawzall himself could fit an IAT sensor and it not be in the airstream.

I mean apart from leaving it lying in the engine bay somewhere how would it be possible!

FWIW from talking to a respected n/a engine builder, the air heats up tremendously as it slams into the back of closed valves and has to suddenly change direction.

BUT I don't personally see how a plenum mounted IAT can improve anything, it's not like our engines die left right and centre due to improperly mounted intake sensors ;)
Yes just put it in the intake pipe.

The default BEGI AIT mounting method is to put the sensor in a brass cylinder, where the bulb is not in the airstream.
Faeflora is offline   Reply With Quote
Old 11-08-2011, 11:27 AM   #22
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,657
Total Cats: 42
Default

Quote:
Originally Posted by Faeflora View Post
Yes just put it in the intake pipe.

The default BEGI AIT mounting method is to put the sensor in a brass cylinder, where the bulb is not in the airstream.
Really? that's bonkers...

I'll admit in my 1st iteration of my supercharger setup I screwed my IAT sensor into a Dummy Throttle body.

As the threads were different, it only went partway in, that ****** heatsoaked like a bitch and never actually reported true air temp. Only the temp of the alui casting. It lasted a day in that setup.
richyvrlimited is offline   Reply With Quote
Old 11-08-2011, 11:53 AM   #23
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

Nice looking build.

And yes, moving IAT sensor to a colder location helps.
gospeed81 is offline   Reply With Quote
Old 11-08-2011, 11:57 AM   #24
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,107
Total Cats: 1,400
Default

Quote:
Originally Posted by Faeflora View Post
The default BEGI AIT mounting method is to put the sensor in a brass cylinder, where the bulb is not in the airstream.
The sender sticks out beyond the bung...


the real problem is, if the bung is between the TB and IACV port, it's not getting airflow. but even at idle, it's really not flowing enough to really register correct temps, and the pipes themselves are heatsoaked from being in the bay, being behind the radiator.
Braineack is offline   Reply With Quote
Old 11-08-2011, 12:57 PM   #25
Elite Member
iTrader: (2)

Faeflora's Avatar

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,763
Total Cats: 115
Default

Quote:
Originally Posted by Braineack View Post
The sender sticks out beyond the bung...


the real problem is, if the bung is between the TB and IACV port, it's not getting airflow. but even at idle, it's really not flowing enough to really register correct temps, and the pipes themselves are heatsoaked from being in the bay, being behind the radiator.
? For my BEGI mount, the bulb was inside the damn brass pipe :( which was mounted to my IC-TB pipe

I think you are talking about the NA intake mani and I don't know anything about that.
Faeflora is offline   Reply With Quote
Old 11-09-2011, 12:35 AM   #26
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,505
Total Cats: 248
Default

I'm installing everything on friday night after work. Initially I'll run whatever stock wastegate will do (6-7psi?). Then once EBC is working (or, possibly MBC if I can't figure it out) it's whatever that poor turbo can do. Air filter arrived. It's supposed to be an Amsoil filter but it's branded Injen. Dunno. It's 3" inlet and I was able to tighten it on my 2.75" BEGI inlet pipe. Life's good.

Only thing I'm missing is an M10x1.5 to -3AN fitting for oil feed, but it should arrive on Thursday. If not, I have a long-*** oil feed line/fittings to go from the oil sender.

ok so here are some pictures!

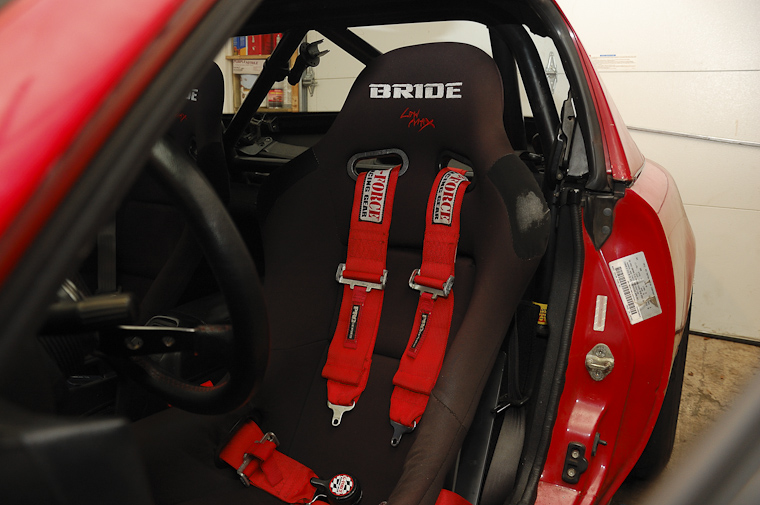

Harness. The seats are fake Bride seats with about 10k miles. Rollbar is a *deep breath* Hard Dog M1 Hard Top Hardcore double diagonal.

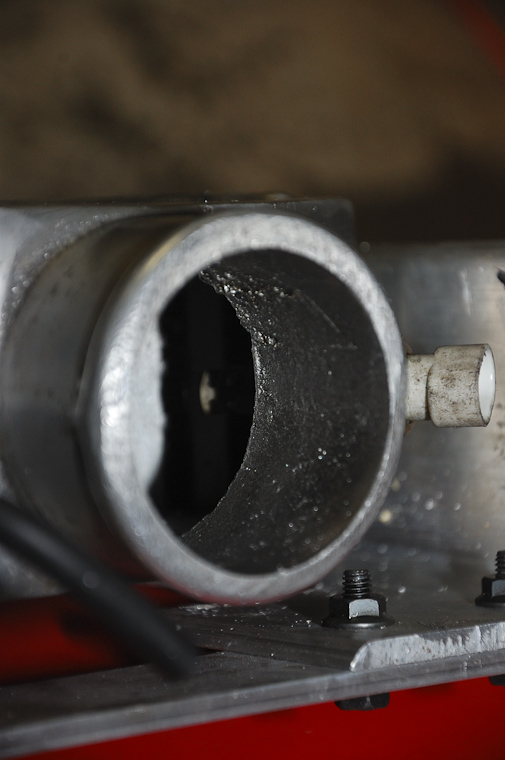

Bought an 9/16 drill bit (****'s expensive) and tapped the IC. Temperature sensor not quite super directly in air stream but me no care.

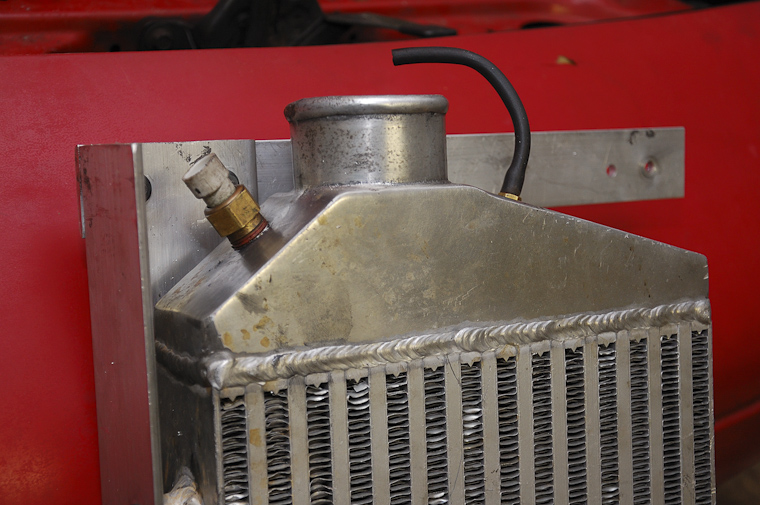

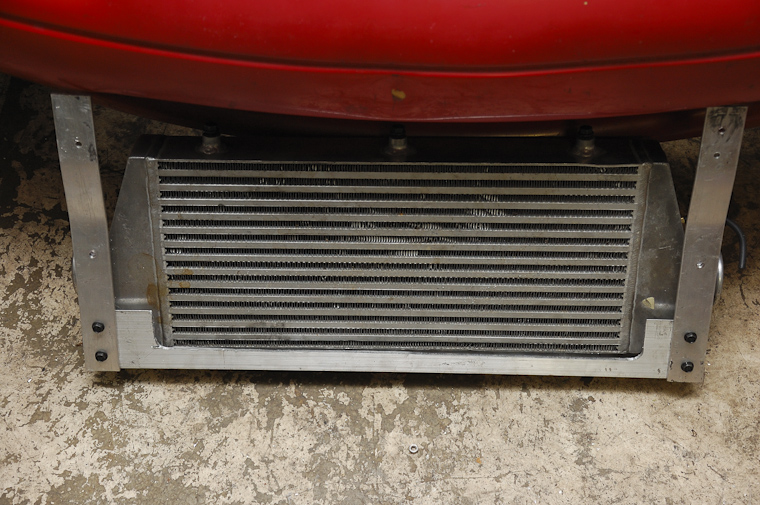

Trimmed IC bracket. I didn't clean it up because **** it. Will make it look nice later.

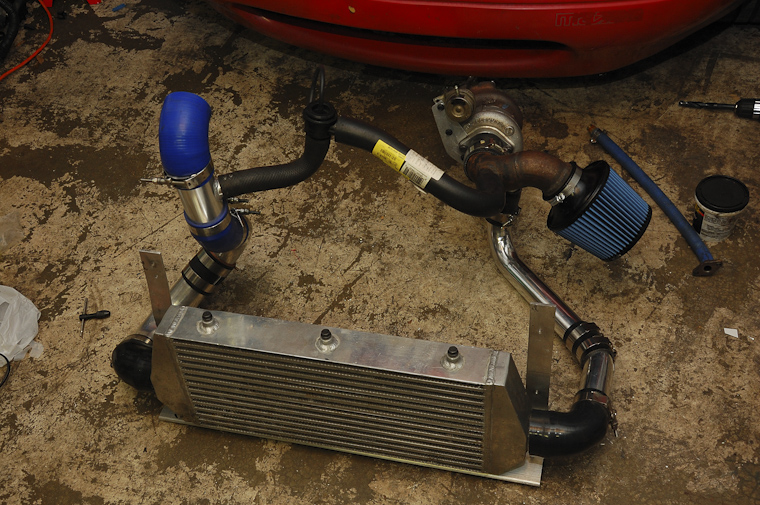

Complete intercooler piping with my ghetto radiator hoses. Cold-side to BOV is actually an old miata radiator hose (forget which one). I think it'll be ok for 3 weeks. I'll probably need to trim it because I never test-fitted it.

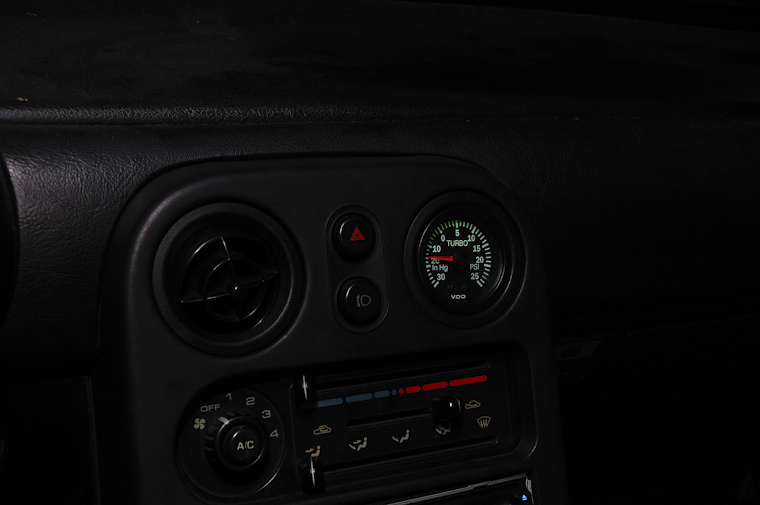

Boost gauge. Cheapest Vacuum/Boost gauge that looked decent. Lighting maches miata gauges pretty nicely. Had to order a $2.50 barbed fitting from McMaster to make it work.
It's a VDO 150-121 and the fitting is McMaster part 44555K123
Attached Thumbnails
In Soviet Russia car build YOU!-dsc_7904.jpg   In Soviet Russia car build YOU!-dsc_7905.jpg   In Soviet Russia car build YOU!-dsc_7907.jpg   In Soviet Russia car build YOU!-dsc_7908.jpg   In Soviet Russia car build YOU!-dsc_7910.jpg

In Soviet Russia car build YOU!-dsc_7919.jpg
soviet is offline   Reply With Quote
Old 11-10-2011, 11:12 PM   #27
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,505
Total Cats: 248
Default

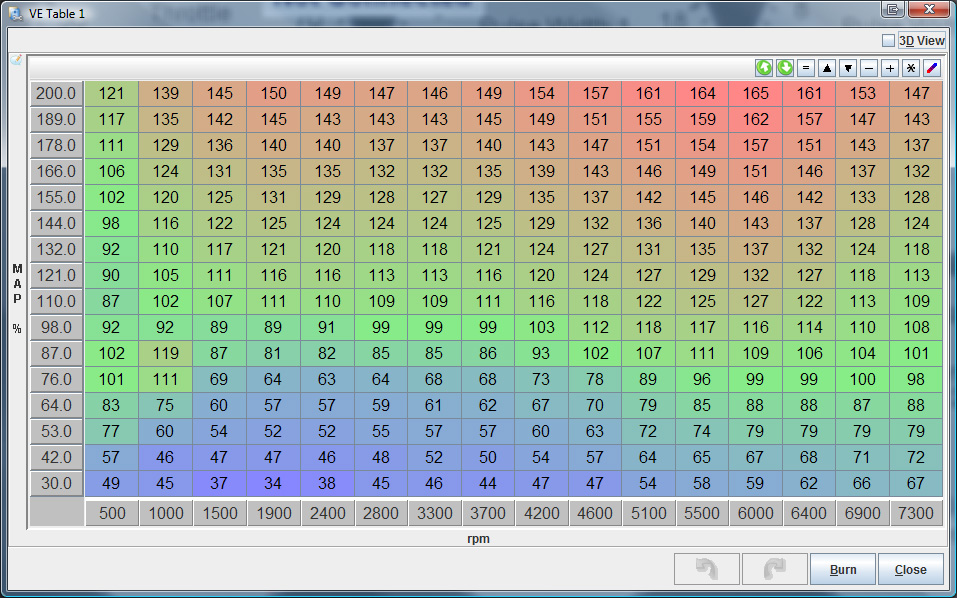

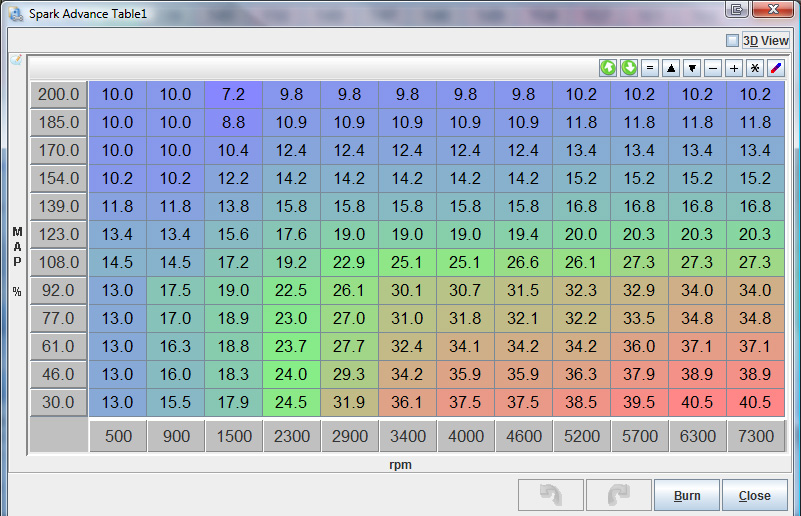

Today I rescaled all my maps up to 200kpa. Please let me know if anything is wrong with them.






Timing > 100kpa is from DIYPNP base map
Fuel > 100kpa is also from DIYPNP base map but scaled to match my N/A map

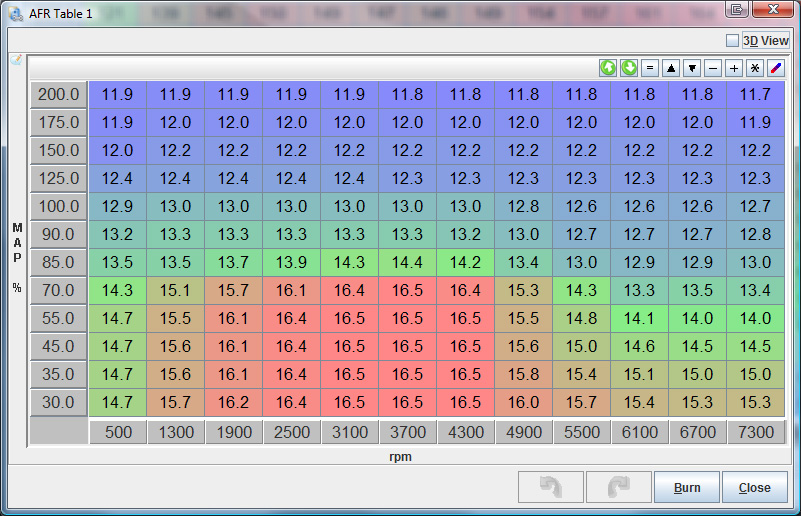

AFR > 100kpa is from a map thirdgen posted in Good AFR target table?. I'll adjust it anyways so it doesn't matter as much.

Turbo goes on tomorrow! Wish me luck!!
Attached Thumbnails
In Soviet Russia car build YOU!-ign_map.jpg   In Soviet Russia car build YOU!-ve_map.jpg   In Soviet Russia car build YOU!-afr_map.jpg
soviet is offline   Reply With Quote
Old 11-10-2011, 11:46 PM   #28
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,505
Total Cats: 248
Default

Also if anyone is interested, I wrote a small tool to rescale maps. Basically you export your old map, then change axes to whatever new values you want. Then run the tool and it produces a new map using the old values but new axes. Uses billinear interpolation so beats doing it by hand!!

Currently it's limited to maps of same size (e.g. from 12x12 to 12x12) but it's easy to change, if anyone wants. So map size can be changed, e.g. going from 12x12 maps to 16x16 maps when upgrading to MS3.


The tool - http://s95367906.onlinehome.us/photo...MapRescale.exe

Example

Source NA map, autotuned.


Desired Axes. I zero-ed out all the data for demonstration purposes. Only axes matter here


Running the tool

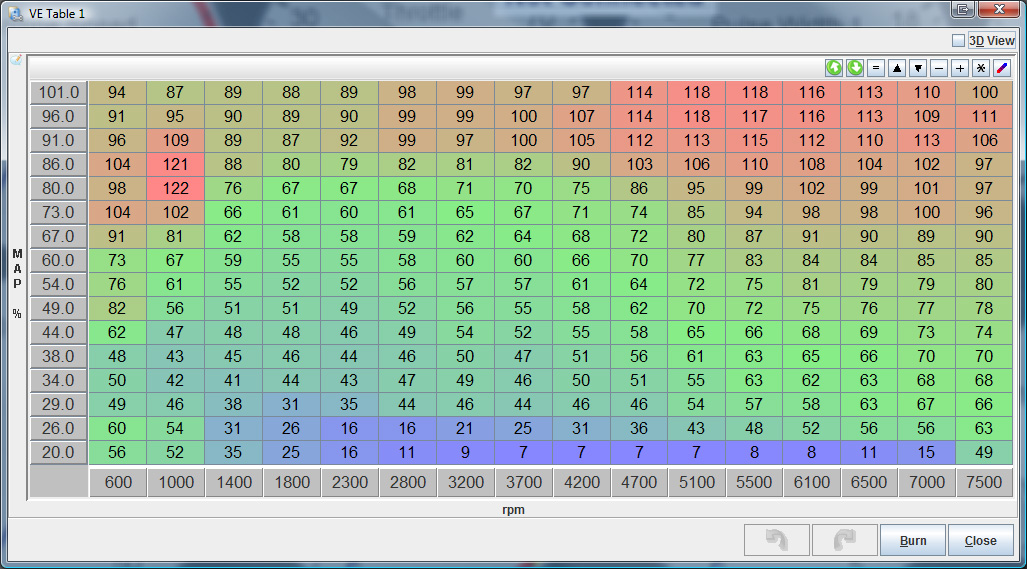

Resulting map
Attached Thumbnails
In Soviet Russia car build YOU!-ve_values.jpg

Last edited by soviet; 11-11-2011 at 03:42 AM.
soviet is offline   Reply With Quote
Old 11-11-2011, 03:21 AM   #29
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,473
Total Cats: 79
Default

Nice idea - I missed a tool like this up to now. Can't download it though - say's it's not found.
Zaphod is offline   Reply With Quote
Old 11-11-2011, 03:43 AM   #30
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,505
Total Cats: 248
Default

Ooops... URL updated!
soviet is offline   Reply With Quote
Old 11-14-2011, 12:26 AM   #31
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,505
Total Cats: 248
Default

Well, car is turboed I put on about 150 street miles on it this weekend and nothing fell off. Although, the cat now hits the transmission tunnel and makes epic noises. I'll fix it tomorrow. Also ordered a 2.5" straight pipe because I want to shoot fireballs.

Wastegate is spot-on 7psi which arrives before 3k. I'm happy. Pictures tomorrow! Fuel map is also extremely rich but doesn't bog - which is perfect for VE Analyze. Picked up an ACT 6-puck from Faeflora which I might install this week. MBC should have arrived, if not, it'll be here tomorrow. So 12 psi here I come
soviet is offline   Reply With Quote
Old 11-14-2011, 04:01 AM   #32
Elite Member
iTrader: (2)

Faeflora's Avatar

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,763
Total Cats: 115
Default

Watch your AFRs when you hit bigger boost! May run out of fuel! When you do fuel pump change fuel filter too. It is probably full of rocks.
Faeflora is offline   Reply With Quote
Old 11-14-2011, 07:07 PM   #33
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,505
Total Cats: 248
Default

This is a 4th gear pull about 10 minutes after I finished putting the turbo on. So nevermind AFRs that drop to below what my sensor can read (i.e. less than 10:1).


7psi @ 2700 rpm and 31F intake temps. I'm not sure why boost drops to 6psi after (MBC will fix that maybe?) but it goes back up to 7psi after 5k rpm.
soviet is offline   Reply With Quote
Old 11-21-2011, 05:19 AM   #34
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,505
Total Cats: 248
Default

Car's done for the year, and the chassis is done forever. It had a happy life but right now it's parked & done. It will be reborn on a new chassis in spring

Today was the last autocross of the season. I was supposed to attend but overslept by only 5 hours. I showed up anyways and had a buddy drive my car (first time ever after turbo). It was set to 11-10psi and it came at about 3k rpm.

Here's a vid of the first run:

My RS3s are down to cords and have no grip. Brakes are **** because apparently I didn't break them in perfect. Rear shocks will also need to be replace as they are shot (under w warranty though).

I'm happy
soviet is offline   Reply With Quote
Old 11-21-2011, 09:15 AM   #35
aug
Junior Member
iTrader: (7)

Join Date: Jan 2010
Location: Long Island, NY
Posts: 349
Total Cats: 0
Default

lmao
aug is offline   Reply With Quote
Old 11-21-2011, 09:24 AM   #36
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,107
Total Cats: 1,400
Default

Is that a snow plow or a miata? because that thing plows.
Braineack is offline   Reply With Quote
Old 11-21-2011, 03:34 PM   #37
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,505
Total Cats: 248
Default

So when you lock the front wheels, the car will plow. Who would have thought

I'm getting a proportioning valve and my buddy now wants to get a turbo.
soviet is offline   Reply With Quote
Old 11-21-2011, 04:05 PM   #38
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,107
Total Cats: 1,400
Default

it plowed the whole run
Braineack is offline   Reply With Quote
Old 01-22-2012, 03:17 PM   #39
Elite Member
Thread Starter
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,505
Total Cats: 248
Default

Reviving this thread for upcoming glory.
Next week I'm moving into my new house which has a garage. So that means I get to work on my car(s)!

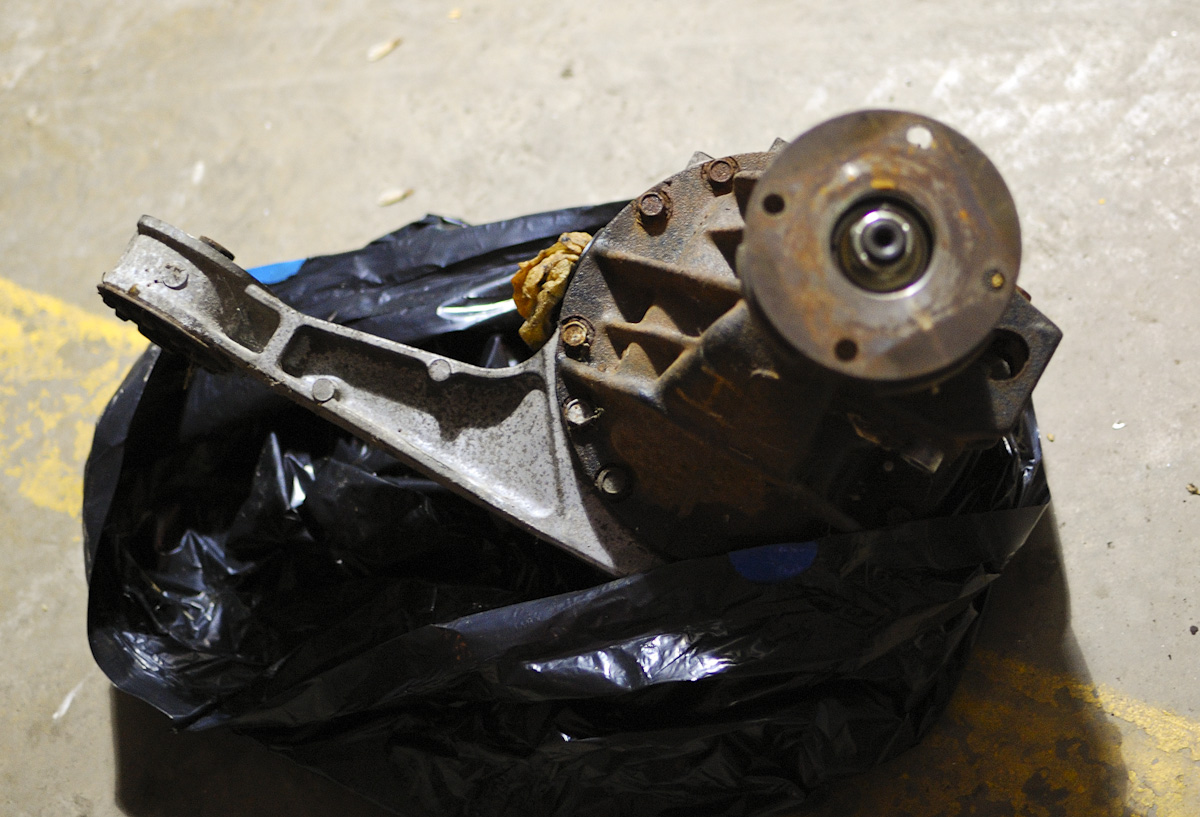

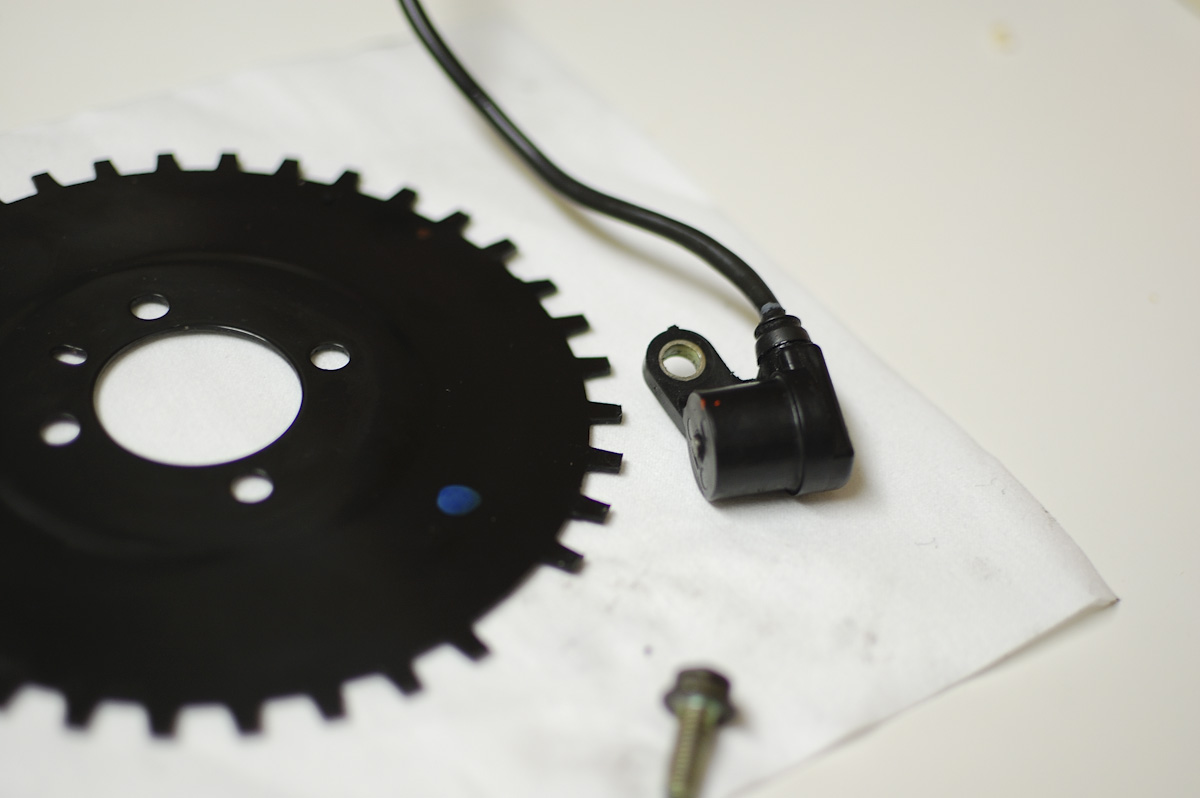

Last week went to a junk yard in search of a Torsen. Didn't find one, but got myself a timing wheel off a 1.6 Protege (was 99 I think) and a crank position sensor. I plan on building and running MS3 with this cam + modified CAS. The timing wheel and crank sensor should both bolt on. Should be glorious.

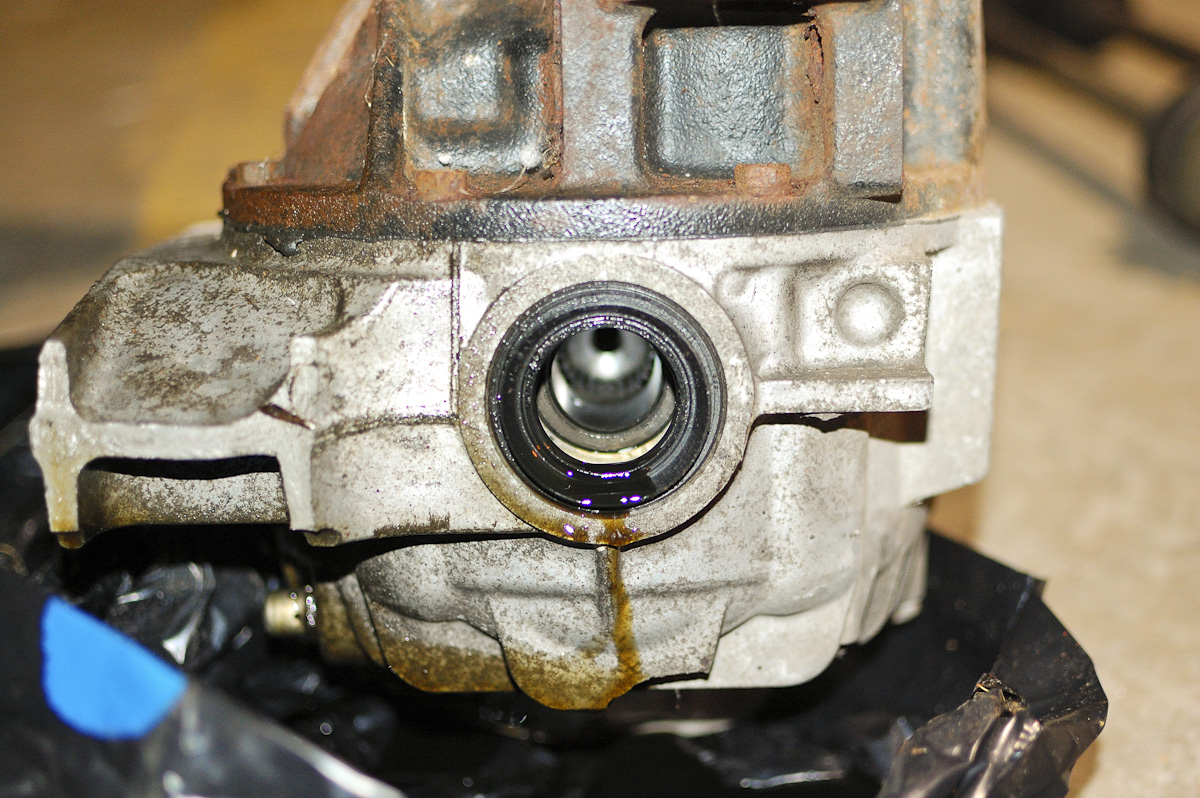

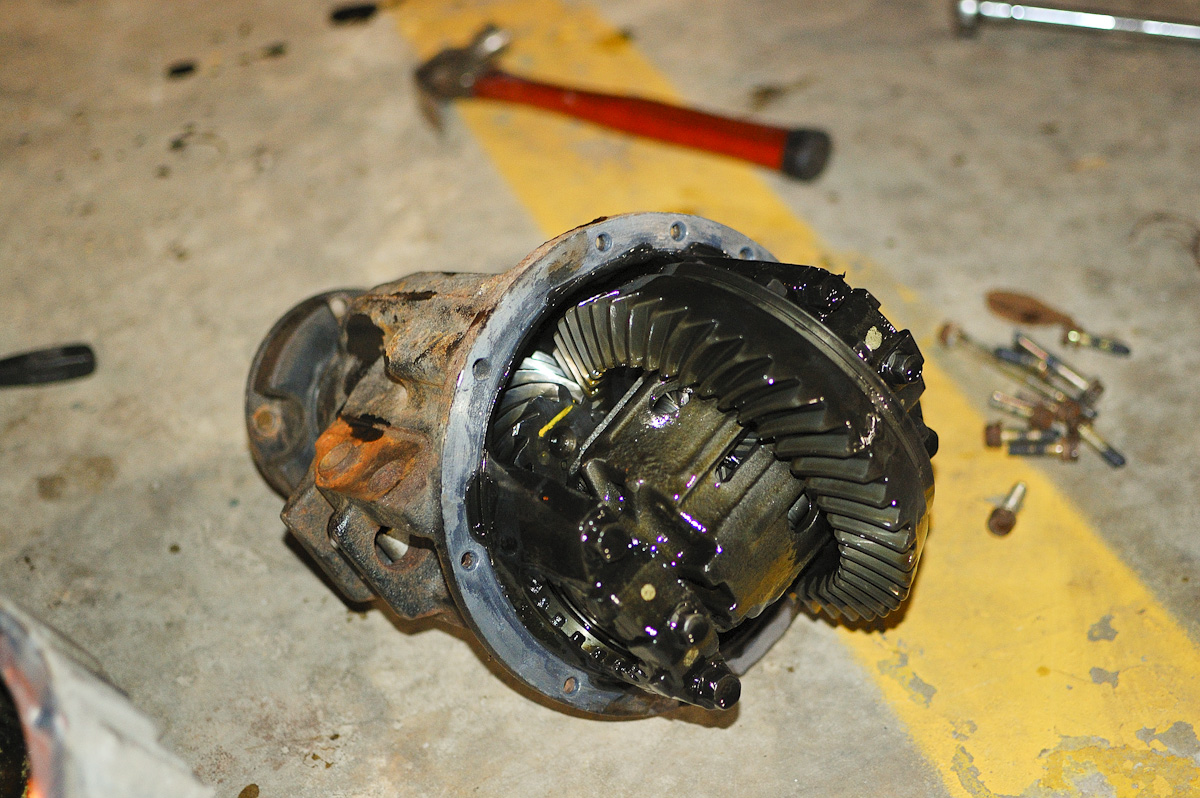

Then, it turned out a buddy of mine had a 4.3 Torsen lying around with a broken housing. I picked it up for some alcohol and money. I figure 4.3 + 5 speed will be sexy. When I get a 6-speed I'll change the diff (or at least the r&p).


Attached Thumbnails
In Soviet Russia car build YOU!-dsc_9119.jpg   In Soviet Russia car build YOU!-dsc_9122.jpg   In Soviet Russia car build YOU!-dsc_9123.jpg   In Soviet Russia car build YOU!-dsc_9129.jpg
soviet is offline   Reply With Quote
Old 01-22-2012, 03:31 PM   #40
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,150
Total Cats: 1,989
Default

that's a fantastic deal on the torsen.
not sure how easily that wheel/sensor will adapt (at least not a plug in and go afair imo) but running a timing wheel setup
vs just cas will be a good improvement
18psi is offline   Reply With Quote
