Old 08-19-2012, 09:24 PM   #401
Elite Member
iTrader: (12)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,662
Total Cats: 227
Default

Holy **** this is beyond sick.

Edit: in for WOT pulls. How much tuning have you done on it?
Fireindc is offline   Reply With Quote
Old 08-19-2012, 10:04 PM   #402
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,555
Total Cats: 11
Default

Awesome

MINI S and a scubbie? Your car collection looks very similar to mine. lol

We have a 03 MINI S and a 02 WRX now a 07 Legacy GT (as of yesterday)
240_to_miata is offline   Reply With Quote
Old 08-20-2012, 04:32 PM   #403
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,177
Total Cats: 198
Default

Quote:
Originally Posted by Fireindc View Post
Holy **** this is beyond sick.

Edit: in for WOT pulls. How much tuning have you done on it?
Besides taking out a little fuel in the idle zones, zero tuning has been done. It's quite lazy and slow at WOT. There's like zero torque. But I didn't have my laptop on or AEM serial gauge in so I have no idea what the fueling is like besides at idle. All I did was drive around the block like that, actually twice Wickedcrazy vibrations seem to be less when the car is on the ground.

I badly need an alignment.

Oh yeah, about that vibration, If I keep my hand on the intake manifold and rev it up, it's smooth as butter. I think the combo just shakes the interior resonance whatever. I may try a factory mustang/soft trans mount. That's tied directly into the FM Subframe rails directly under the seats.

Quote:
Originally Posted by 240_to_miata View Post
Awesome

MINI S and a scubbie? Your car collection looks very similar to mine. lol

We have a 03 MINI S and a 02 WRX now a 07 Legacy GT (as of yesterday)
Nice! Yeah 03 MCS is the wife's, and that's my daily driver 05 OBXT, basically the same drivetrain as your 07 LGT.
TurboTim is offline   Reply With Quote
Old 08-20-2012, 04:56 PM   #404
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,177
Total Cats: 198
Default

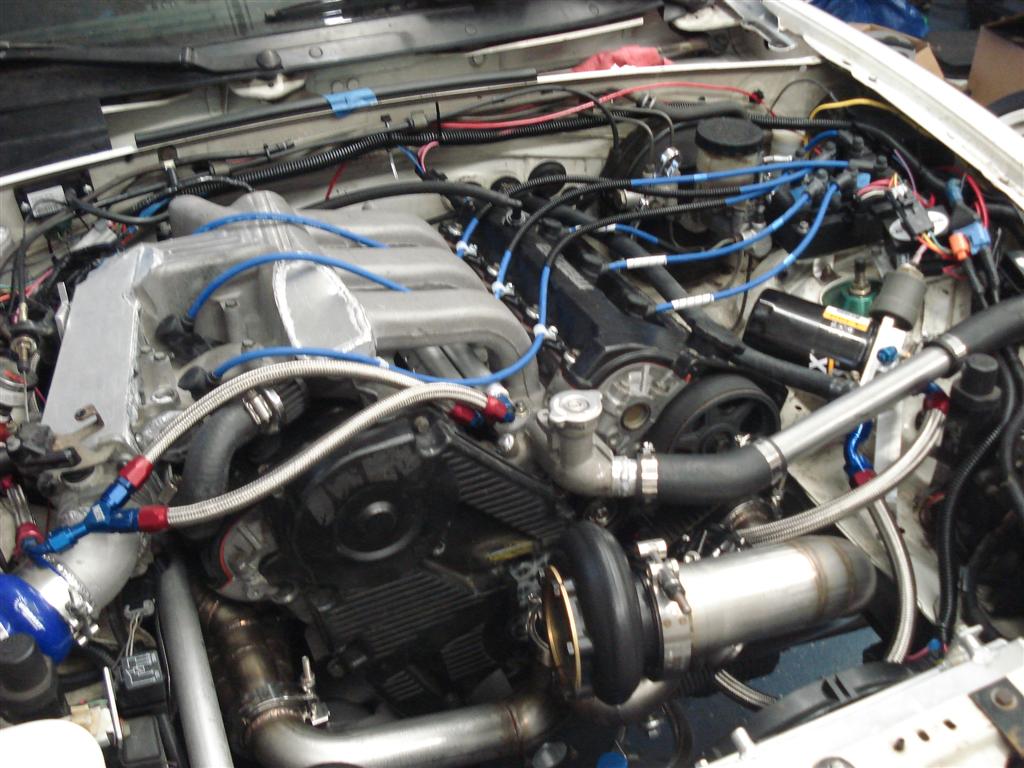

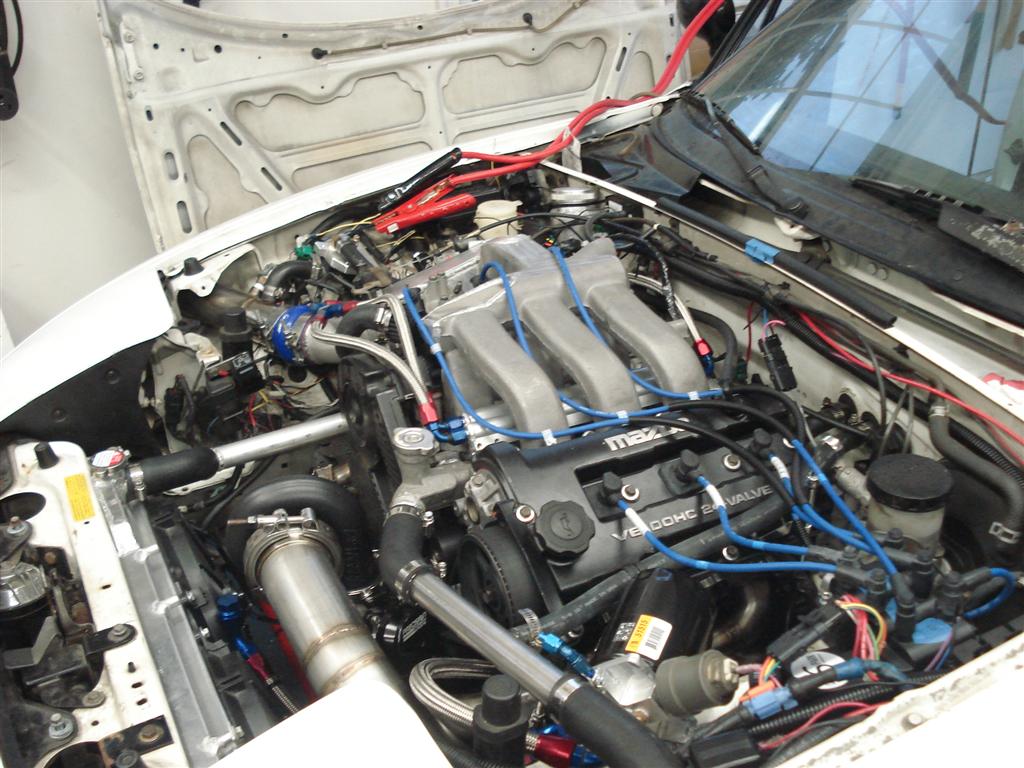

Here's how my engine bay is at the moment. I will install the turbo once the engine is broken in and I have a good tune in the boost-less part of the map.



I have the right side cam cover on because the timing marker is part of the cover.

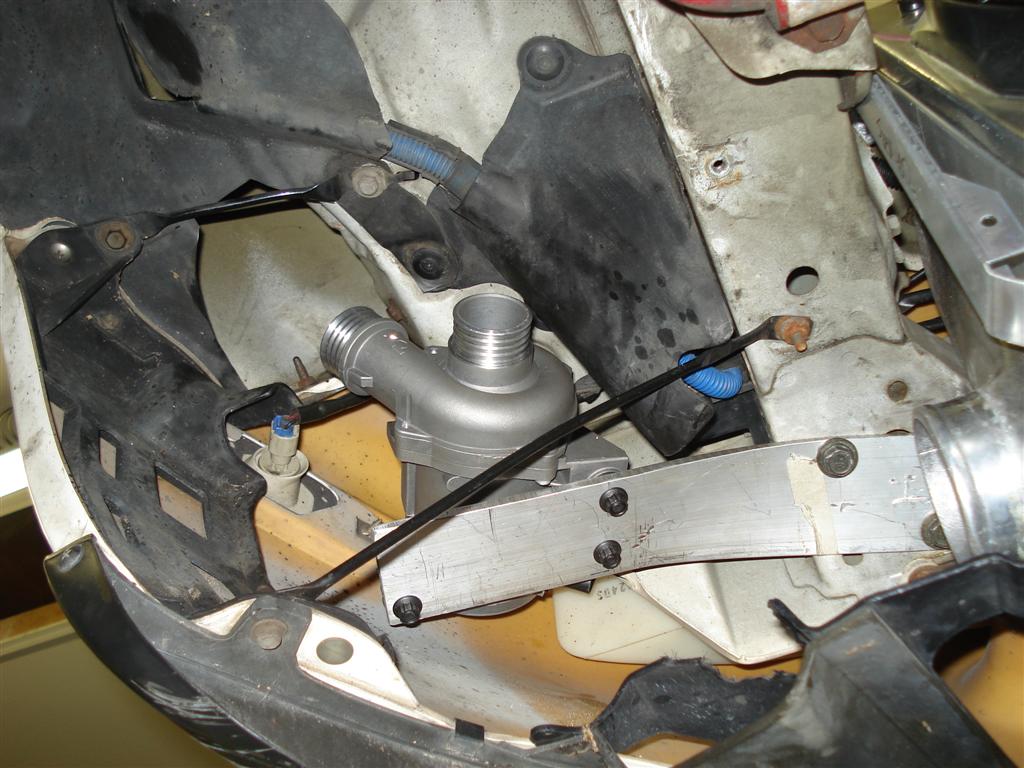

BMW/Pierburg waterpump mounted. The hoses are routed where my old intercooler pipe once was.

Attached Thumbnails
ABSURDflow Turbo KLDE Mazda V6 Thread-engine1.jpg   ABSURDflow Turbo KLDE Mazda V6 Thread-engine2.jpg   ABSURDflow Turbo KLDE Mazda V6 Thread-waterpumpinstalled.jpg
TurboTim is offline   Reply With Quote
Old 08-25-2012, 10:54 PM   #405
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,177
Total Cats: 198
Default

Moar pics!

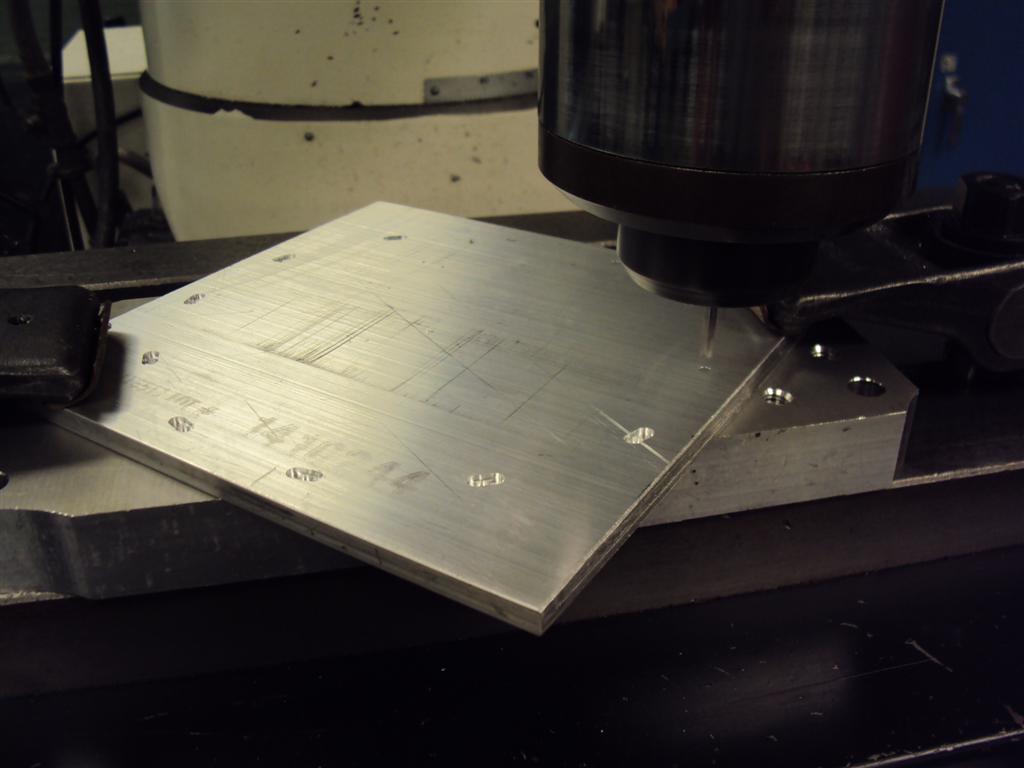

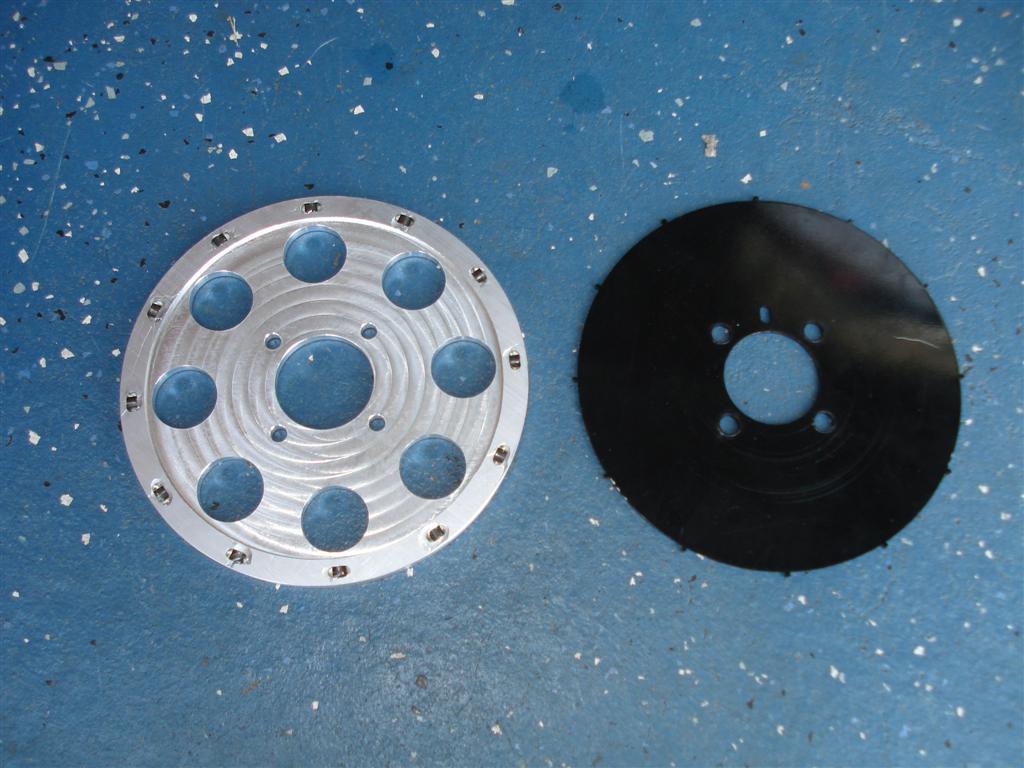

DIYAutotune's hall sensor was losing sync with trackspeed's crank trigger wheel once things got warm. I tested the sensor/wheel combo to work until ~.025" air gap, but I had to crank it down to ~.007 once warm to regain sync. This made me scared. So yesterday I made me a new cranktrigger wheel with some magnets. When testing, I could get something like .325" air gap with the magnets but I eyeballed it to around .125". All I did so far is start it up and it works, have to see if it's the sensor going wonky at temp that even the magnet can't fix.

Pics!






Attached Thumbnails
ABSURDflow Turbo KLDE Mazda V6 Thread-crankwheel2.jpg   ABSURDflow Turbo KLDE Mazda V6 Thread-crankwheel5.jpg   ABSURDflow Turbo KLDE Mazda V6 Thread-crankwheel6.jpg
TurboTim is offline   Reply With Quote
Old 08-25-2012, 11:46 PM   #406
Senior Member
iTrader: (10)

Join Date: Jul 2009
Location: Oakdale, CA
Posts: 1,332
Total Cats: 55
Default

That is so awesome. I wish I could make cool stuff like that.
RyanRaduechel is offline   Reply With Quote
Old 08-25-2012, 11:53 PM   #407
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,157
Total Cats: 1,990
Default

that timing wheel is impressive to say the least
18psi is offline   Reply With Quote
Old 08-26-2012, 07:58 PM   #408
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,654
Total Cats: 209
Default

Whats even more awesome is that he made something on a Mill that I would normally make almost entirely on a lathe, then have to put in the mill to drill holes in it.
Full_Tilt_Boogie is offline   Reply With Quote
Old 10-06-2012, 12:12 PM   #409
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,177
Total Cats: 198
Default

Quote:
Originally Posted by 18psi View Post
that timing wheel is impressive to say the least

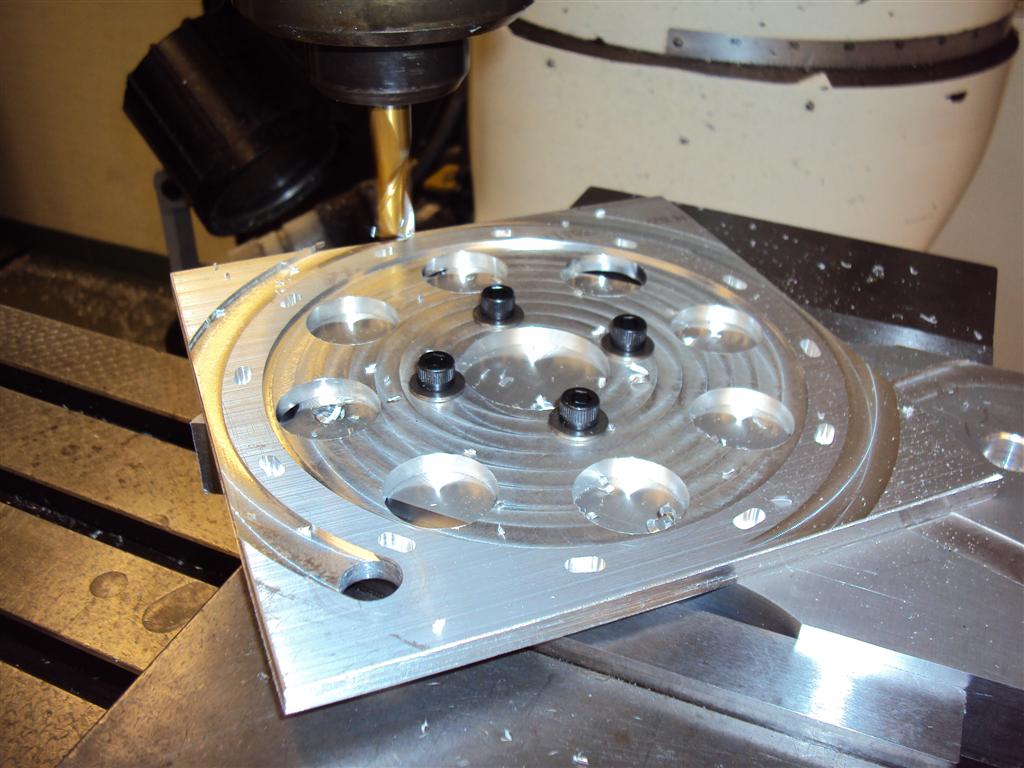

Thank you. The center was milled out in a spiral so it looks trippy when the engine is running.

Quote:
Originally Posted by Full_Tilt_Boogie View Post
Whats even more awesome is that he made something on a Mill that I would normally make almost entirely on a lathe, then have to put in the mill to drill holes in it.
haha yeah I hear that. But I needed the slots to be concentric to the inner pilot diameter as best as I could do them, so that means those two had to be done at the same time. I ended up doing everything except the OD with it just clamped there.

Update time. I just recently put on enough break-in miles to feel comfortable driving my miata on the highway and hold a constant rpm for a while. I found at highway speeds I had a wicked violent vibration that was vehicle speed dependent and much higher frequency than a typical out of balance tire. After triple checking pinion angles, clearances, redoing a few mounts, etc, I finally had the balance checked on the 'balanced' driveshaft. It took only a small weight on the diff end, about the size of a quarter, but that $50 FINALLY fixed my major vibration issue. I'll put some more miles on her now and tune the cruise zones. The .63 5th gear takes some getting used to but should give me sweet fuel economy...cause that's what I was going for with this swap.

I'll install the turbo and build the intercooler & EWG Dump pipe when I next have time. I'd rather do it all at once instead of a little at a time; it will take longer til I have a free day but at least I will be able to drive the car until then.

Oh, and I have to get the alignment redone too. The guys said they couldn't get any lower than 4.5deg caster but I looked under and the front's rearmost adjustment cams are centered. Fail.
TurboTim is offline   Reply With Quote
Old 10-07-2012, 03:52 AM   #410
Junior Member

Join Date: Jul 2011
Posts: 59
Total Cats: -4
Default

This is awesome.
mikeboldt is offline   Reply With Quote
Old 10-07-2012, 12:04 PM   #411
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,177
Total Cats: 198
Default

"nice build" guy?
TurboTim is offline   Reply With Quote
Old 10-08-2012, 02:53 AM   #412
Senior Member
iTrader: (10)

Join Date: Jul 2009
Location: Oakdale, CA
Posts: 1,332
Total Cats: 55
Default

Hey Tim, do you think that water pump bracket will last very long? It looks to be a big cantilever. It looks to be some pretty heavy gauge aluminum, maybe 1/4", but seems like road vibrations, pump vibrations will make short work of that. Unless it is bracketed, or its just temporary and I am talking out of my ***. Still a badass build.
RyanRaduechel is offline   Reply With Quote
Old 10-08-2012, 08:55 AM   #413
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,177
Total Cats: 198
Default

Yeah I was concerned about that while building it so I originally planned to make a vertical support on the outside edge, and I can still do so, but it is 3" wide 1/4" thick aluminum. T6 so it was a **** to twist and bend so I decided it was strong enough to survive the limited miles this car has in its future. Like you said, it's only subject to road vibration.
TurboTim is offline   Reply With Quote
Old 10-08-2012, 12:30 PM   #414
Newb

Join Date: Mar 2011
Posts: 26
Total Cats: 3
Default

Quote:
Originally Posted by TurboTim View Post
Oh, and I have to get the alignment redone too. The guys said they couldn't get any lower than 4.5deg caster but I looked under and the front's rearmost adjustment cams are centered. Fail.
This is why i do my own alignments, but if that's the worst of your problems you're doing a superb job with all this custom work. Keep up the great work, and keep us updated!
ls1mx5 is offline   Reply With Quote
Old 10-08-2012, 04:57 PM   #415
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

I can't wait to hear this thing tuned @ WOT...
elesjuan is offline   Reply With Quote
Old 10-09-2012, 12:36 PM   #416
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 5,988
Total Cats: 409
Default

Just read the whole thread [over the last two days]. Awesome build, and great work! Excited to hear it roar under boost.
turbofan is online now   Reply With Quote
Old 10-10-2012, 01:13 AM   #417
Senior Member
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

Great work man! Looking forward to seeing it boosted!
bcrx7 is offline   Reply With Quote
Old 10-10-2012, 02:29 AM   #418
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 28,967
Total Cats: 327
Default

Quote:
Originally Posted by TurboTim View Post
The .63 5th gear takes some getting used to but should give me sweet fuel economy...cause that's what I was going for with this swap.
Turbo V6 Miata?

Yes, to hypermile.
hustler is offline   Reply With Quote
Old 10-10-2012, 09:01 AM   #419
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,177
Total Cats: 198
Default

I'm looking forward to seeing it boosted too. The weather has sucked this week, hopefully tomorrow I can drive it to work. I will try to maybe get the turbo on this weekend. Yeah right...

It has plenty of torque to accelerate appropriately from 40mph/1400rpm in fifth which is great, that's cruising speed around the back/farm roads around me. Hopefully the compressor won't surge though. But it is a HUGE drop from 4th haha. The other shifts feel like they used to cause those ratios are similar to the factory 5 speed.
75mph in 5th is ~2650rpm. And the exhaust is so much quieter than the 4cyl oddly enough. When I would be in between turbo builds and driving around with the factory header on the BP, I would have to stuff a baffle into the tail pipe wrapped in steel wool. With the V6 it's...quiet. Same exhaust.
TurboTim is offline   Reply With Quote
Old 10-10-2012, 09:49 AM   #420
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 33,157
Total Cats: 1,990
Default

IIRC that slug you'll be putting on is not small by any means. I don't think it will create enough pressure or flow at 1400 to surge. But I know nothing of these KL's so I'm talkin outa my *** lol
18psi is offline   Reply With Quote
