Old 02-18-2010, 12:52 PM   #241
Junior Member
iTrader: (2)

Join Date: Oct 2007
Location: Lisle, IL
Posts: 296
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
With that said, I elaborate on my simplification:

Longer runners will increase torque in lower RPMs because they have a lower resonant frequency. Coupled with the fact that the length and combination of typically smaller OEM diameters help increase the air velocity.

Shorter runners will increase torque in higher RPMs because they have a higher resonant frequency. Further exaggerated by the shorter length and combination of typically larger diameters promote higher air flow rates, however hinder low-end performance due to this same fact.

It's all a compromise.
Totally agree, I wasn't trying to start a pissing match. I wonder if a slightly larger plenum and slightly longer runners might helped with the resonance buzz on your Frankenintake.
sn95 is offline   Reply With Quote
Old 02-18-2010, 12:58 PM   #242
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

Quote:
Originally Posted by sn95 View Post

The lump of torque in a specific spot is probably only achievable if you simultaneously tuned intake runner, cam and exhaust header length to that spot.
This serves to further illustrate why you do not want to make your runners too short.

Our motors (cam profiles, heads, and intake manifold) were tuned for mid-rpm torque. It gets very complex, and we are only changing one of those variables. We can not expect to run completely in the opposite direction and expect it to work well.

I would consider any runner length <8" worthless on a motor with a stock head. If you have a '99 head, +1 valves, solid lifters, Integral cams, port and polish, and plan on making nothing but gobs of high rpm power you may consider going shorther than this.

Remember that the OEM manifolds are 13-16" runners, and generally produce good torque between 3500-5500rpm. We are simply trying to augment the torque curve above this, or massage that power up the range a little bit. We can not completely change these characteristics without tuning every variable just right.


EDIT: I'm agreeing her, just felt like making a point.
gospeed81 is offline   Reply With Quote
Old 02-18-2010, 12:58 PM   #243
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,397
Total Cats: 1,426
Default

my plenum was 4" x 13 x 4" = 163 CI = 2.6L = 165% larger than displacement and had 6" runners.



Now, just look at JayL's last dyno. Nothing but gains above 5.5K, he has like 4" runners.






The idea of this Honda IM is a compromise between an extreme top end IM and the **** stocker while maintaining the integrity of the mt.net community's inherent need to be as cheap as possible.
Braineack is online now   Reply With Quote
Old 02-18-2010, 12:59 PM   #244
Senior Member
iTrader: (12)

absRTP's Avatar

Join Date: Sep 2009
Location: Montreal, Canada
Posts: 582
Total Cats: 0
Default

is there anybody of you that might have theory on intake manifold?

I would like to learn more about these

thx
absRTP is offline   Reply With Quote
Old 02-18-2010, 01:32 PM   #245
Junior Member
iTrader: (2)

Join Date: Oct 2007
Location: Lisle, IL
Posts: 296
Total Cats: 0
Default Still not convinced on short runners

I'm still leery of going too short on intake runners unless you are running an all-out drag car that can effectively launch and hook at over 5,000 RPM and never go below 5K until you shut-down past the traps. If you are driving mostly on the street, the combo that yields highest avg tq/avg hp from 3,000-7,000RPM is going to be hard to beat. If you are road racing on a high speed circuit, highest avg tq/avg hp from 4,000-7,500RPM. I think people spend way too much time trying to get the highest peak tq/hp numbers without considering how much time the engine operates outside of that peak.
sn95 is offline   Reply With Quote
Old 02-18-2010, 01:37 PM   #246
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,397
Total Cats: 1,426
Default

preaching to the choir.
Braineack is online now   Reply With Quote
Old 02-18-2010, 02:05 PM   #247
Elite Member

Join Date: Dec 2008
Location: Colorado
Posts: 1,669
Total Cats: 36
Default

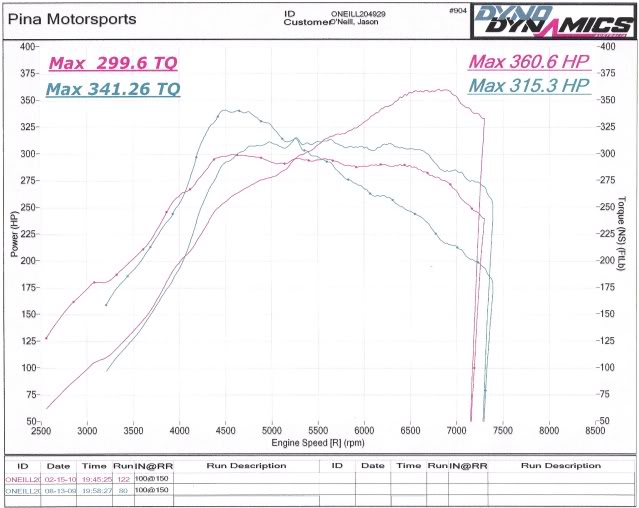

^The really interesting thing to me in that last dyno though is that the high flow intake (that one would assume is more a dyno queen with the short runners) actually made a lower peak TQ number, yet a much better TQ band. Not a doubt in the world that it would demolish the stocker in any form of racing save for tractor pulling or racing with a CVT transmission.

Cant read too much into it as thats abviously not the setup that everyne is running, but the point that yu can make is that OEMs are most certanly NOT above going for a peak number for marketing. Honestly within the bounds of driveability my bet is that OEMs will be MORE prone to a peak number than the average enthusiast these days.
Sparetire is offline   Reply With Quote
Old 02-18-2010, 04:02 PM   #248
Junior Member
iTrader: (2)

Join Date: Oct 2007
Location: Lisle, IL
Posts: 296
Total Cats: 0
Default

Quote:
Originally Posted by Sparetire View Post
^The really interesting thing to me in that last dyno though is that the high flow intake (that one would assume is more a dyno queen with the short runners) actually made a lower peak TQ number, yet a much better TQ band. Not a doubt in the world that it would demolish the stocker in any form of racing save for tractor pulling or racing with a CVT transmission.

Cant read too much into it as thats abviously not the setup that everyne is running, but the point that yu can make is that OEMs are most certanly NOT above going for a peak number for marketing. Honestly within the bounds of driveability my bet is that OEMs will be MORE prone to a peak number than the average enthusiast these days.
Yeah, the problematic part is that there is no comparison between a high flow intake with 10" runners vs. the high flow intake with short runners. I'd bet that an intake with 10" runners which flows the same CFM as the short runner intake will make lower peak torque and have a lower/better tq band than the short runner equivalent.
sn95 is offline   Reply With Quote
Old 02-18-2010, 04:28 PM   #249
Elite Member

Join Date: Jul 2005
Posts: 6,348
Total Cats: 69
Default

JasonC SBB is offline   Reply With Quote
Old 02-18-2010, 05:17 PM   #250
Junior Member
iTrader: (2)

Join Date: Oct 2007
Location: Lisle, IL
Posts: 296
Total Cats: 0
Default

+1 on the Phillip Smith books. His "The Design and Tuning of Competition Engines" is a good prequel to "Scientific Design of Exhaust & Intake Sytems".

The Desktop Dyno books are pretty basic and somewhat limited as reference works as is the current Dynosim manual. You really need to to step up to the Dynomation5 manual (http://www.motionsoftware.com/downlo...sersManual.pdf ) to get into full wave action modeling.
sn95 is offline   Reply With Quote
Old 02-18-2010, 05:40 PM   #251
Elite Member
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

Quote:
Originally Posted by Sparetire View Post
(that one would assume is more a dyno queen with the short runners).
Actually it's a street driven 11 second car. (hit 10 seconds yet?!?) Good guy, great build. Dyno queen is not a phrase I would ever use in regards to JayL's car. He drags. He's not looking for low end power. Purpose built is the term I would use.
cueball1 is offline   Reply With Quote
Old 02-18-2010, 09:04 PM   #252
Elite Member

Join Date: Dec 2008
Location: Colorado
Posts: 1,669
Total Cats: 36
Default

^Bingo. But the manifold looks like it would be a dyno queen focused rig, and it really isnt, which is cool.

SN95 makes a good point though that we dont have a plot from a long runner version of the same unit. It could well be even better in terms of overall TQ band.

I have some reading to do.
Sparetire is offline   Reply With Quote
Old 02-22-2010, 04:56 PM   #254
Junior Member
iTrader: (2)

Join Date: Jul 2009
Location: langley BC
Posts: 134
Total Cats: 0
Default

Quote:
Originally Posted by Full_Tilt_Boogie View Post
Im not sure who did this but Ive had these pics on my computer for a while now. Im pretty sure the manifold was for a GSR (B18C1), and that a BP flange mated to it pretty easily.







hey dose anyone have a shot of this manifold on the motor? and if possable some measurements of it?
sasquatch is offline   Reply With Quote
Old 02-22-2010, 04:59 PM   #255
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,654
Total Cats: 209
Default

I forget who was the one that did that. Possibly 'eliminator'?
Anyone remember?
Full_Tilt_Boogie is offline   Reply With Quote
Old 02-22-2010, 06:08 PM   #256
Elite Member
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

Read the 1st page again. The Honda boards don't like the VictorX but do like the PerformerX. VictorX sucks for performance under 8000 rpms. PerformerX is the Edelbrock that would work better for our cars powerband.
cueball1 is offline   Reply With Quote
Old 02-22-2010, 09:15 PM   #257
Newb

Join Date: Jul 2009
Location: Mesa, Az
Posts: 27
Total Cats: 3
Default

I have a shot of one of those on a motor.
Ric @ Racing mazda done the one I used to have

paulgt2164 is offline   Reply With Quote
Old 02-22-2010, 09:26 PM   #258
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,206
Total Cats: 206
Default

When it's all done and installed, it looks a lot like the BEGI cast intake, and we know that works.
TurboTim is offline   Reply With Quote
Old 02-22-2010, 09:35 PM   #259
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,654
Total Cats: 209
Default

Quote:
Originally Posted by TurboTim View Post
When it's all done and installed, it looks a lot like the BEGI cast intake, and we know that works.
Full_Tilt_Boogie is offline   Reply With Quote
Old 02-22-2010, 10:08 PM   #260
Elite Member
iTrader: (2)

Faeflora's Avatar

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,763
Total Cats: 115
Default

So why is BEGI working on a new design then?
Faeflora is offline   Reply With Quote
