Quote:
Originally Posted by Leafy View Post
I guess its almost the same material costs if you're not buying the CX-Racing crappy bends and are getting like vibrant quality or better aluminum bends. The only real downside I've found with the twain CX-Racing bends is that occasionally you'll just hit a really thin spot and end up with 1/4" hole before you can get off the pedal.
I've used CX stuff before with the thin wall on the ouside of the bend.

Once you do a lot of aluminum you get used to playing with the feed speed while you go around and see it widening out.

Its the nature of the beast for mandrel bent elbows vs extruded elbows.



HellaFab Turbo GXP intercooler kit by HellaFab, on Flickr
shlammed is offline   Reply With Quote
Old 09-19-2013, 11:47 AM   #562
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 3,990
Total Cats: 234
Default

I can not for the love of god get my machine to weld aluminum well.

I'm honestly almost starting to think it's a machine issue too.
Erat is offline   Reply With Quote
Old 09-19-2013, 12:04 PM   #563
Elite Member
iTrader: (4)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,649
Total Cats: 62
Default

Biggest thing is making sure that your tungsten is 100% clean.

Everything else is pie.


The weld above-virtually no prep. Cut the pipe with band saw, sand edge of cut with belt sander, weld.

Dont use a grinder wheel on aluminum... pounds air into the metal and it comes out when you weld.

If you dip the tungsten, you HAVE to clean it and the tube or whatever your welding with a brush.


I have tried a multitude of tungsten and the green tungsten and red tungsten would work fine for a second and then randomly just go black and really **** the weld up. go get some purple e3's if you havent already and you will be good to go.
shlammed is offline   Reply With Quote
Old 09-19-2013, 12:43 PM   #564
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 3,990
Total Cats: 234
Default

Machine settings? I think we're using the same one, or one that's close.
Erat is offline   Reply With Quote
Old 09-19-2013, 01:15 PM   #565
Elite Member
iTrader: (4)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,649
Total Cats: 62
Default

120a, 120hz, ac balance around 10 o'clock (cant remember off hand what the number is in that area)
No preflow (but 1s would be better) and as much post as I need to get the tungsten cooled before it shuts off... usually about 10s.

Using 1/16" purple e3 tungsten, but a 3/32 would hold up a little better I think. If i mash the pedal and hold it, the tungsten begins to melt... but you dont need that much amperage on this 0.065" wall aluminum for more than a few seconds to get going.
shlammed is offline   Reply With Quote
Old 09-19-2013, 01:57 PM   #566
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 3,990
Total Cats: 234
Default

I'll try it.

Thank you sir.
Erat is offline   Reply With Quote
Old 09-19-2013, 03:07 PM   #567
G2B
Newb

Join Date: May 2008
Location: Greater Seattle Area
Posts: 27
Total Cats: 0
Default A Couple old shots

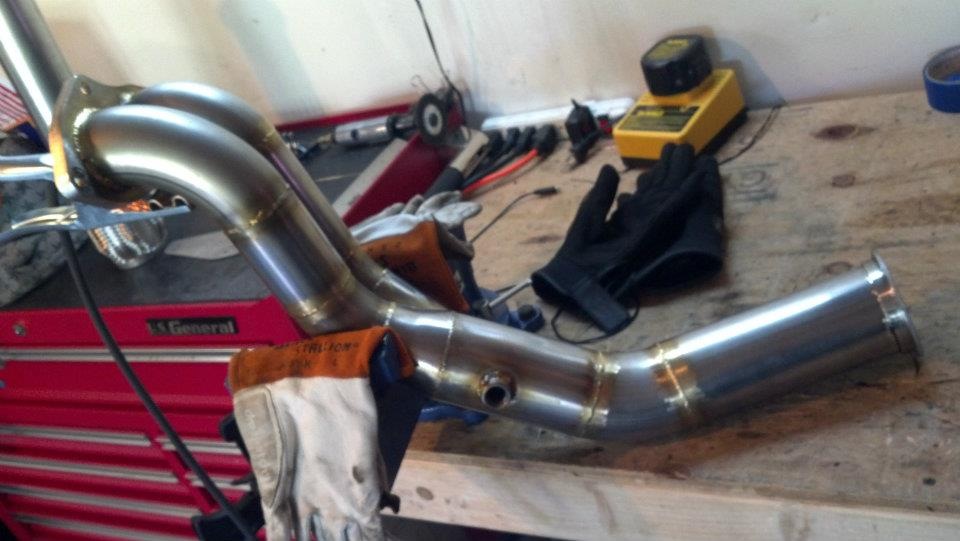

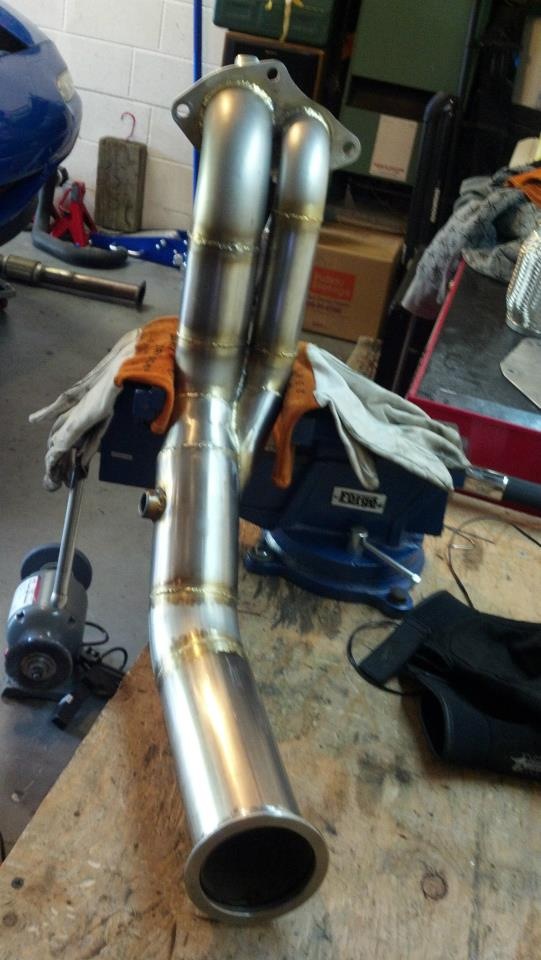

First downpipe off of my 1.6L 16G setup.
Attached Thumbnails
The custom fabrication thread! (Post pics of stuff you have made)-img_2077.jpg   The custom fabrication thread! (Post pics of stuff you have made)-img_2078.jpg
G2B is offline   Reply With Quote
Old 09-20-2013, 12:43 AM   #568
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,537
Total Cats: 18
Default

Some weldz. This is removing a neck down on a HKS exhaust for an EVO.





Dann
nitrodann is offline   Reply With Quote
Old 09-26-2013, 10:20 PM   #569
Junior Member
Thread Starter

Join Date: Jun 2010
Posts: 176
Total Cats: -4
Default

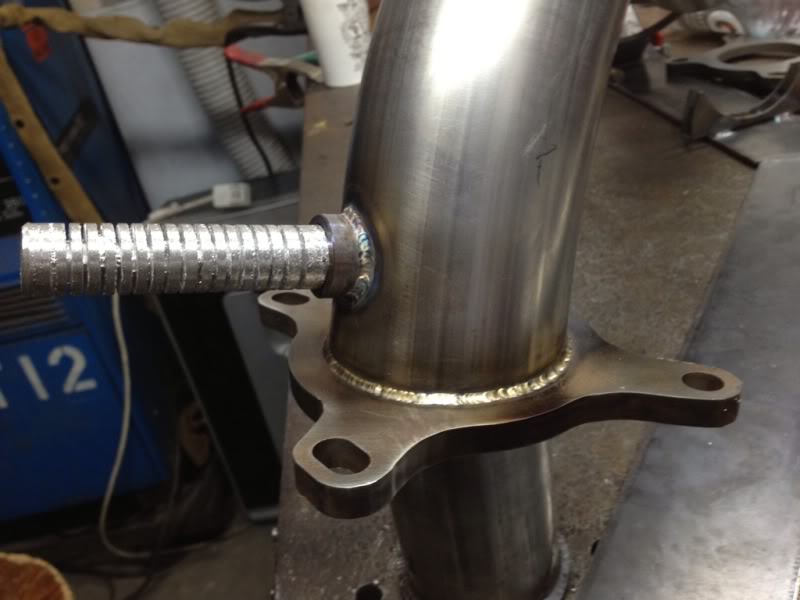

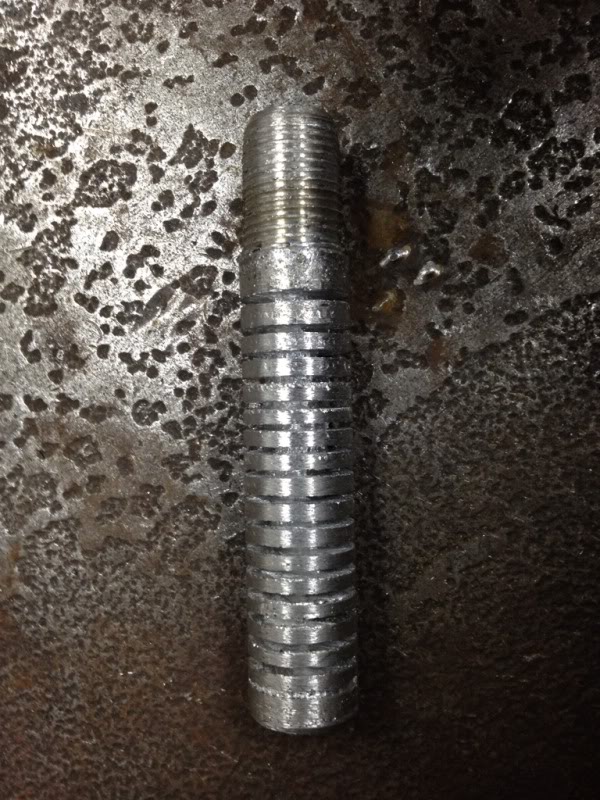

Here's something I made to speed things up, and increase quality, since I weld dozens of these ******* every week. Previously I would go about a 1/6th of the way around, and then I would let the glowing orange bung cool down with the 15 second post flow. At best, I would get a purple color, hardly any blue, never any gold or silver. I've used aluminum to suck the heat out of many header flanges I've welded, so I made this device. U cut the "fins" carefully by hand on the vertical bandsaw, obviously to add surface area. It works so ******* well, I could do the whole sensor in 1 pass in theory (I'm only capable of doing half at once right now), and it never glows any more than any other regular weld when I'm finished.


Boost_addict is offline   Reply With Quote
Old 10-02-2013, 01:37 PM   #570
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,537
Total Cats: 18
Default

Here is a small selection, but its 3:30am so gnight.













Dann
nitrodann is offline   Reply With Quote
Old 10-02-2013, 02:46 PM   #571
Junior Member

Join Date: Jan 2013
Posts: 59
Total Cats: 8
Default

Quote:
Originally Posted by nitrodann View Post
Did you mirror this photo, or is everything backwards because the picture was taken upside-down?
krazykarl is offline   Reply With Quote
Old 10-02-2013, 02:47 PM   #572
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 8,813
Total Cats: 92
Default

Quote:
Originally Posted by krazykarl View Post
Did you mirror this photo, or is everything backwards because the picture was taken upside-down?
I think thats an RB engine in not a miata.
Leafy is offline   Reply With Quote
Old 10-02-2013, 02:59 PM   #573
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,869
Total Cats: 45
Default

You're both geniuses. That's a 2JZ in a Supra.
vehicular is offline   Reply With Quote
Old 10-02-2013, 02:59 PM   #574
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 8,813
Total Cats: 92
Default

2JZ no ****.
Leafy is offline   Reply With Quote
Old 10-02-2013, 03:02 PM   #575
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,657
Total Cats: 210
Default

Does it make 900hp and run 13s?
Full_Tilt_Boogie is offline   Reply With Quote
Old 10-02-2013, 03:13 PM   #576
Junior Member

Join Date: Mar 2012
Posts: 297
Total Cats: 18
Default

Quote:
Originally Posted by Full_Tilt_Boogie View Post
Does it make 900hp and run 13s?
You know it's a ten second car, right?

M.Adamovits is offline   Reply With Quote
Old 10-02-2013, 03:18 PM   #577
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 8,813
Total Cats: 92
Default

Maybe if you tow it, or push it.
Leafy is offline   Reply With Quote
Old 10-02-2013, 03:25 PM   #578
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,657
Total Cats: 210
Default

Quote:
Originally Posted by Leafy View Post
Maybe if you tow it, or push it.
with rockets.
Full_Tilt_Boogie is offline   Reply With Quote
Old 10-02-2013, 08:52 PM   #579
Junior Member
Thread Starter

Join Date: Jun 2010
Posts: 176
Total Cats: -4
Default

Lol you guys.

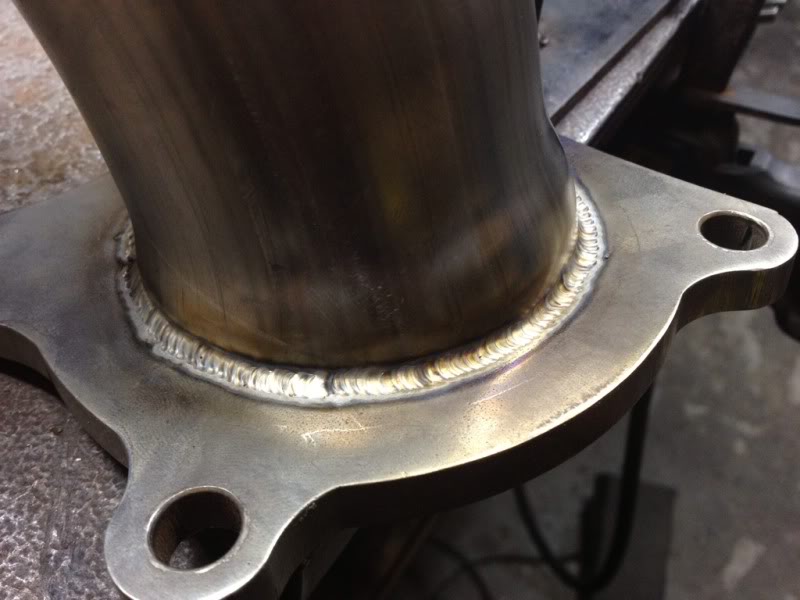

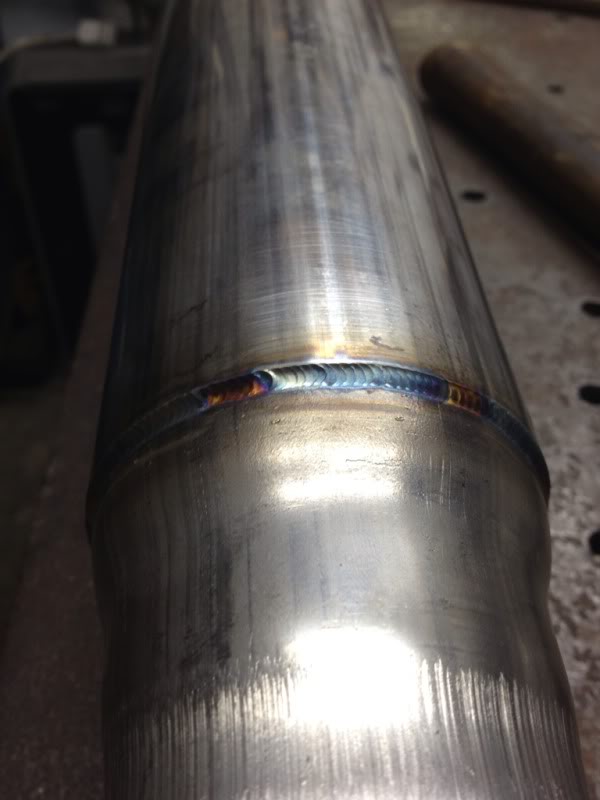

Here's a few welds from my daily routine.

304 ss tube to cold rolled steel flange. Note the nearly perfect silver color (though I like blue personally)



Yeah blue, much prettier.

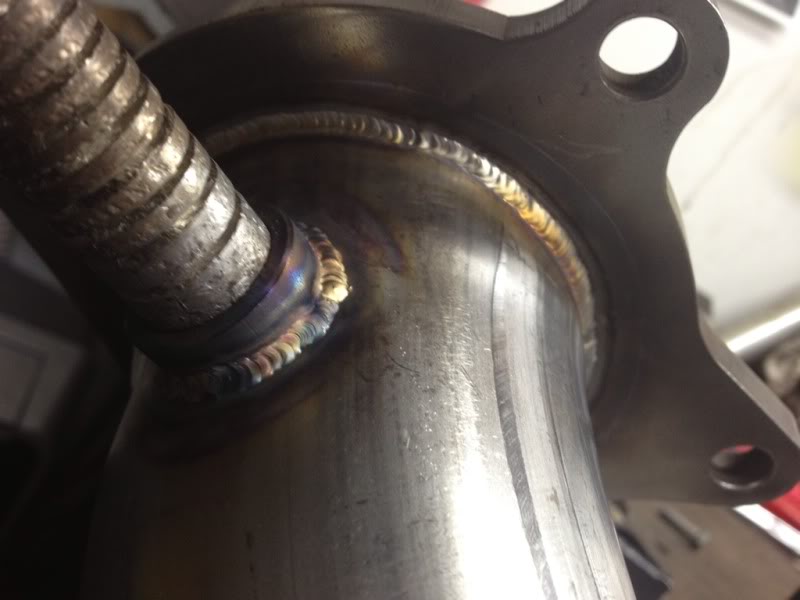

And you all remember my o2 heat sink? Well it's working great
