Old 10-25-2013, 06:10 PM   #601
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Portland, OR
Posts: 6,120
Total Cats: 426
Default

just wow. Beautiful work. Props.
turbofan is offline   Reply With Quote
Old 10-25-2013, 09:01 PM   #602
Senior Member
iTrader: (3)

Join Date: Dec 2007
Location: Brownsburg,IN
Posts: 731
Total Cats: 53
Default

Here is a home made efr going on my project car, a 99 w PS and AC slow progress one hour here and there kind of pace


HHammerly is offline   Reply With Quote
Old 10-26-2013, 10:45 PM   #603
Junior Member
iTrader: (1)

Join Date: Jan 2011
Posts: 369
Total Cats: -2
Default

That looks great. I'm thinking something similar. How are you going to route the intercooler? Looks tight.
3rdCarMX5 is offline   Reply With Quote
Old 10-26-2013, 11:35 PM   #604
Senior Member
iTrader: (3)

Join Date: Dec 2007
Location: Brownsburg,IN
Posts: 731
Total Cats: 53
Default

Don't shoot me but i am going water to air IC, a similar setup that i used on my M45 1.6 w AC and PS if it can keep intake charge cool on that 1.6 @ 8k it will do just fine on this much more efficient turbo setup.
I moved tha AC condencer 2" fwd and installed the oem radiator w u channel caps in its place for cooling the water and going w a koyo and sumitomo fans.






HHammerly is offline   Reply With Quote
Old 10-27-2013, 08:36 PM   #605
Junior Member
iTrader: (1)

Join Date: Jan 2011
Posts: 369
Total Cats: -2
Default

Use what you already have, I understand. You can always change later. Do you happen to have a jig for the manifold? Didn't you have a cad file with the flange?
3rdCarMX5 is offline   Reply With Quote
Old 10-27-2013, 10:31 PM   #606
Senior Member
iTrader: (3)

Join Date: Dec 2007
Location: Brownsburg,IN
Posts: 731
Total Cats: 53
Default

I made a crude fixture with a head and turbo flange that positions each at the correct location relative to each other and then bolted the actual manifold flanges to it and build it from there, i would use 1-1/4 sch 40 but weld fittings insread of the 1-1/2 i used if i was to do it again, it will make the manifold more compact for a better fit and keep higher exhaust velocity most likley improoving spool; i am considering buildimg another one just for those reasons.
HHammerly is offline   Reply With Quote
Old 10-27-2013, 10:33 PM   #607
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 8,820
Total Cats: 92
Default

Quote:
Originally Posted by HHammerly View Post
I made a crude fixture with a head and turbo flange that positions each at the correct location relative to each other and then bolted the actual manifold flanges to it and build it from there, i would use 1-1/4 sch 40 but weld fittings insread of the 1-1/2 i used if i was to do it again, it will make the manifold more compact for a better fit and keep higher exhaust velocity most likley improoving spool; i am considering buildimg another one just for those reasons.
Sounds exactly like what I did, except I did use 1.25 sch40 steam pipe. I also used solid works to print out 1:1 scale side views of each bend so that I could match them up perfectly when cutting.
Leafy is offline   Reply With Quote
Old 10-28-2013, 01:16 PM   #608
Senior Member
iTrader: (3)

Join Date: Dec 2007
Location: Brownsburg,IN
Posts: 731
Total Cats: 53
Default

I don't have SW and have been asking my boss to let me purchase a seat, for the time being i purchased Inventor LT suite on my own so i can draw parts and get by for the time being, one great trick i started using is a line laser from a small bench top drill that i use for marking the parts before cutting them, that saved a lot of fitting and sanding.
HHammerly is offline   Reply With Quote
Old 11-06-2013, 08:37 AM   #609
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,537
Total Cats: 18
Default

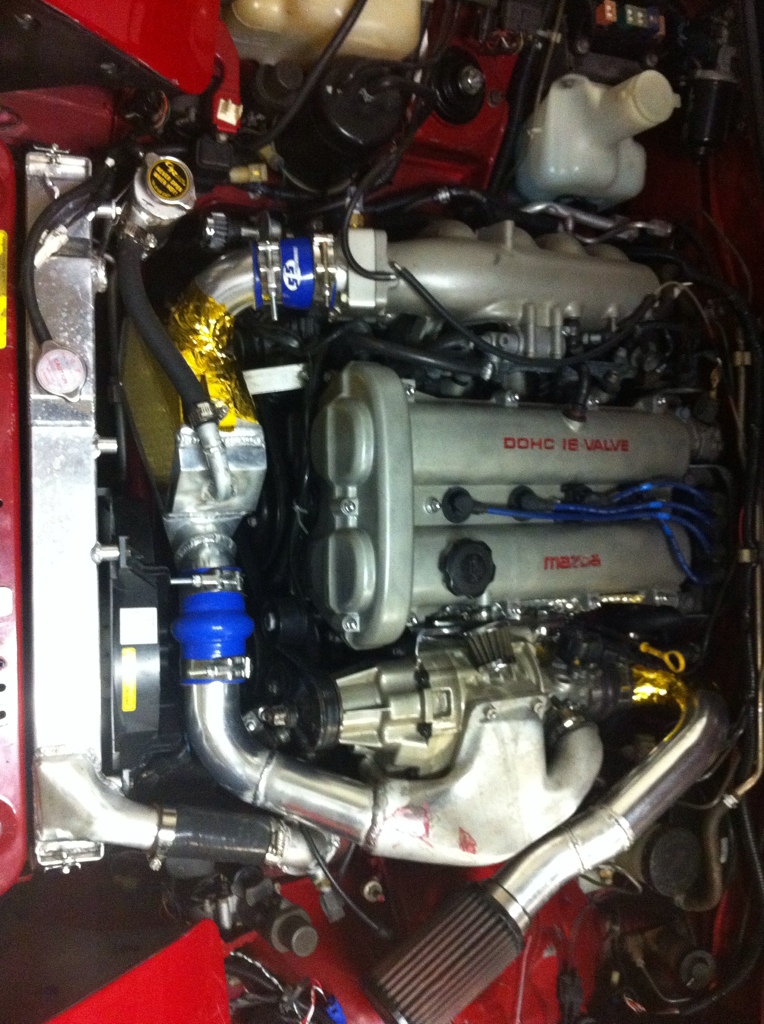

Adding to the twincharged post.



Dann
nitrodann is offline   Reply With Quote
Old 11-09-2013, 09:47 PM   #610
Elite Member
iTrader: (4)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,653
Total Cats: 61
Default

Start of a top mount BP turbo manifold for a CRAZY NB.




4-1 TiAL Vband Collector by HellaFab, on Flickr
shlammed is online now   Reply With Quote
Old 12-17-2013, 08:16 PM   #611
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 3,993
Total Cats: 235
Default

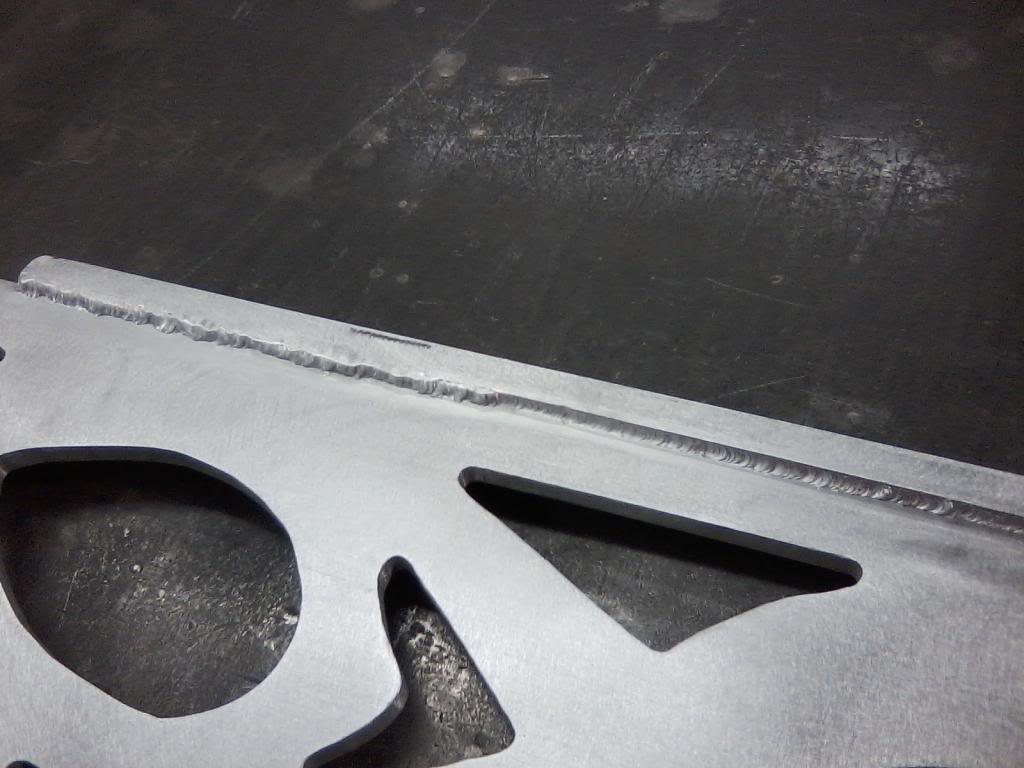

This is the result of working in a shop where you're not the only welder.



I didn't have enough time to finish the other night, i come in today to find it "finished".
I think it's pretty clear where i left off.
Erat is offline   Reply With Quote
Old 12-17-2013, 09:32 PM   #612
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 8,820
Total Cats: 92
Default

Quote:
Originally Posted by Erat View Post
This is the result of working in a shop where you're not the only welder.



I didn't have enough time to finish the other night, i come in today to find it "finished".
I think it's pretty clear where i left off.
At least the other guy choose to use the tig rather than a poorly setup spool gun.
Leafy is offline   Reply With Quote
Old 12-18-2013, 03:59 AM   #613
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 3,993
Total Cats: 235
Default

Implying I used a spool gun?
Erat is offline   Reply With Quote
Old 12-18-2013, 07:14 AM   #614
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 8,820
Total Cats: 92
Default

Quote:
Originally Posted by Erat View Post
Implying I used a spool gun?
I was making the ol' swicharoo joke.
Leafy is offline   Reply With Quote
Old 12-18-2013, 07:18 AM   #615
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 3,993
Total Cats: 235
Default

Quote:
Originally Posted by Leafy View Post
I was making the ol' swicharoo joke.
I've used a spool gun once. It worked but it was kind of annoying to use.
Erat is offline   Reply With Quote
Old 12-19-2013, 09:53 PM   #616
Junior Member

Join Date: Dec 2012
Location: Charlotte, NC
Posts: 231
Total Cats: 14
Default

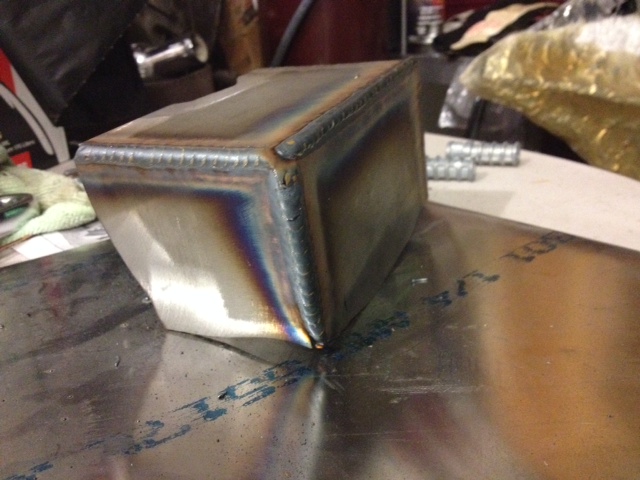

Nothing exciting, just welded up a rocker box for my roll cage down bars to tie into instead of floor plates. POS Matco MIG welder and .030" wire.

(Note: Looks like SS plate, but is just cold rolled strip)

Supe is offline   Reply With Quote
Old 12-20-2013, 06:27 AM   #617
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,537
Total Cats: 18
Default







Dann
nitrodann is offline   Reply With Quote
Old 12-20-2013, 08:32 AM   #618
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 41
Default

That' looks really tidy Dan, very nice work.

Looks like you could almost get the OEM heatshield over the top for an ultra stealth install.
richyvrlimited is offline   Reply With Quote
Old 12-20-2013, 09:05 AM   #619
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,537
Total Cats: 18
Default

Thanks, thats the idea, we will see how we go

Dann
nitrodann is offline   Reply With Quote
Old 12-20-2013, 09:27 AM   #620
Elite Member
iTrader: (4)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,653
Total Cats: 61
Default

or a heatsheild from a Nissan sr20 manifold would likely fit even better, being that the manifolds are that general shape.
shlammed is online now   Reply With Quote
