Old 12-26-2012, 11:26 PM   #101
Senior Member
iTrader: (8)

Join Date: May 2011
Location: Granbury, Tx
Posts: 815
Total Cats: 14
Default

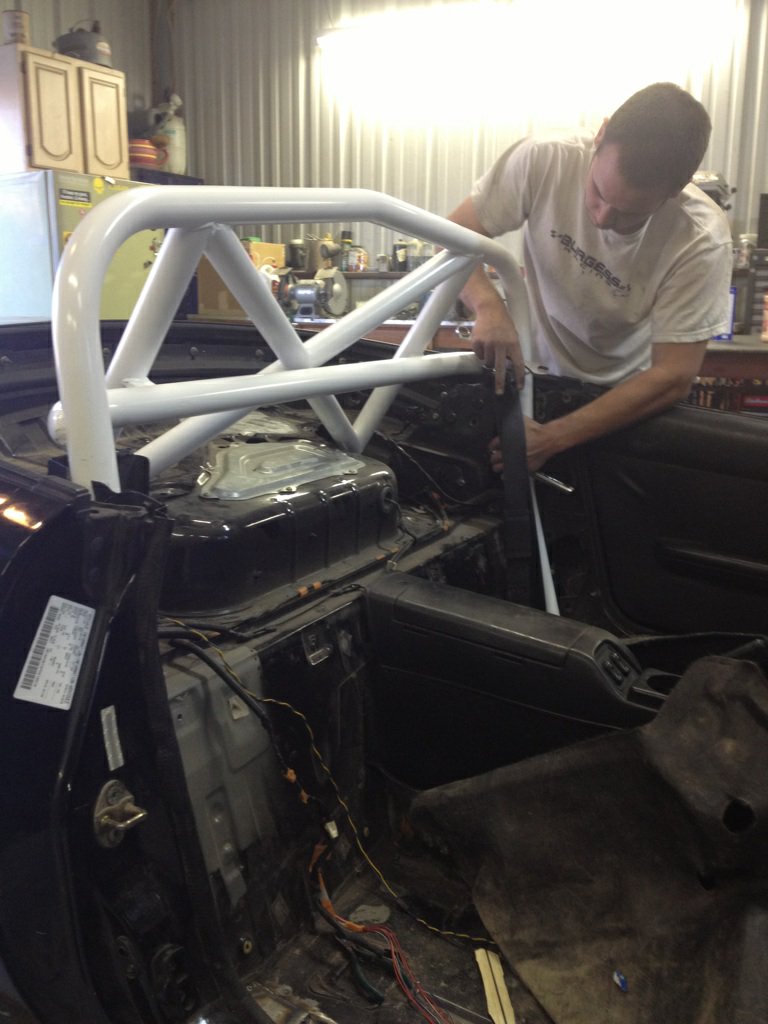

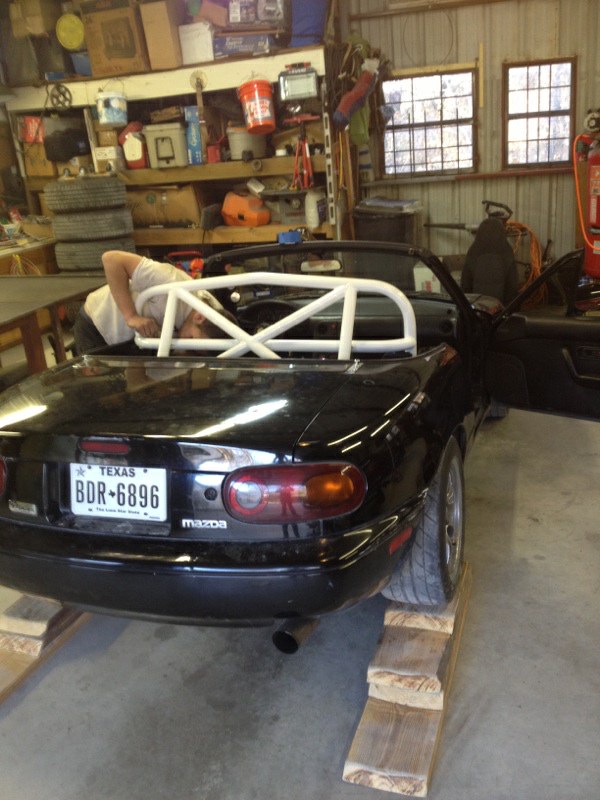

My garage built rollbar


Attached Thumbnails
The custom fabrication thread! (Post pics of stuff you have made)-img_6248_zpsc61828c4.jpg   The custom fabrication thread! (Post pics of stuff you have made)-img_7890_zps79c7de0d.jpg
FowlerMotorsports is offline   Reply With Quote
Old 12-27-2012, 01:45 AM   #102
Elite Member
iTrader: (4)

Pen2_the_penguin's Avatar

Join Date: Dec 2009
Location: Reno, NV
Posts: 3,690
Total Cats: 96
Default

Quote:
Originally Posted by FowlerMotorsports View Post
My garage built rollbar


that is a sweet roll bar dude!
Pen2_the_penguin is offline   Reply With Quote
Old 12-27-2012, 07:22 AM   #103
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 12,677
Total Cats: 830
Default

Quote:
Originally Posted by FowlerMotorsports View Post
My garage built rollbar


That looks pretty nice. Do you have the tool at home to bend the piping? If so what one do you have and where did you get it?
shuiend is offline   Reply With Quote
Old 12-27-2012, 07:54 AM   #104
Senior Member
iTrader: (8)

Join Date: May 2011
Location: Granbury, Tx
Posts: 815
Total Cats: 14
Default

Thanks! My buddy has the bender which he bought from trick tools. I forgot the model # but they have a few listed there.
FowlerMotorsports is offline   Reply With Quote
Old 12-29-2012, 12:02 PM   #105
Senior Member
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,073
Total Cats: 44
Default

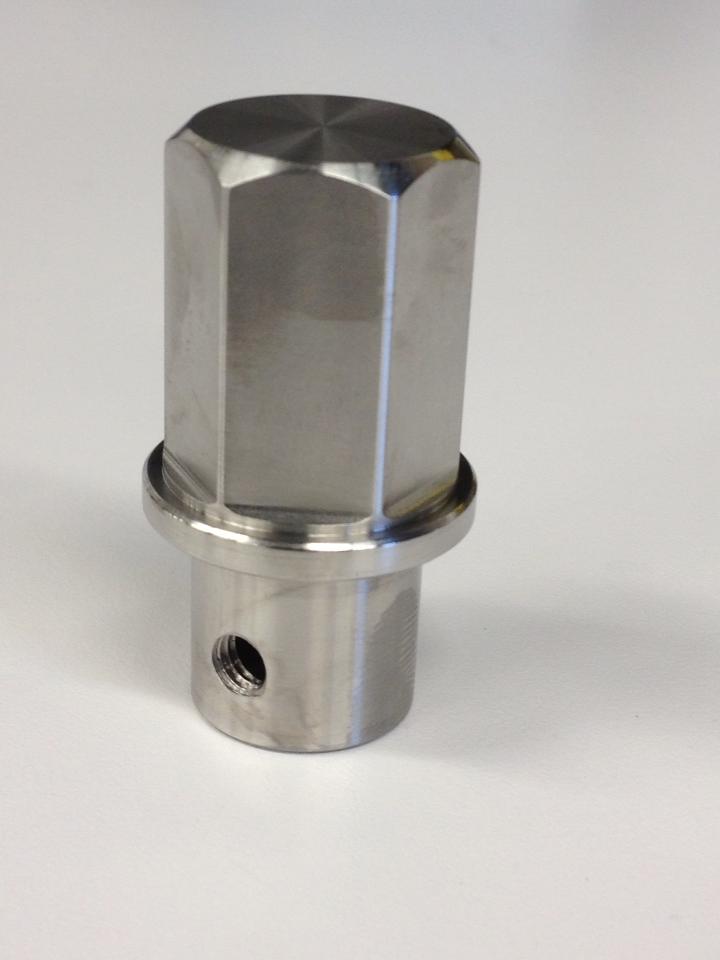

i made this up this morning, for my car trailer, replaces the handle on the tongue jack
Attached Thumbnails
The custom fabrication thread! (Post pics of stuff you have made)-163317_4659720488706_156788860_n.jpg
ctdrftna is offline   Reply With Quote
Old 12-29-2012, 12:09 PM   #106
Junior Member

Join Date: Dec 2012
Location: Charlotte, NC
Posts: 231
Total Cats: 14
Default

Pretty slick! Using a drill or impact to raise/lower?
Supe is offline   Reply With Quote
Old 12-29-2012, 12:46 PM   #107
Senior Member
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,073
Total Cats: 44
Default

im putting a box on the tongue to hold chain binders,ratchet straps,tools ect, and the handle would hit the box, so i made the hex the same as the lugs and ill just use a ratchet with extension to clear the box to raise and lower.
ctdrftna is offline   Reply With Quote
Old 12-29-2012, 02:59 PM   #108
Junior Member

Join Date: Dec 2012
Location: Charlotte, NC
Posts: 231
Total Cats: 14
Default

Never would have thought of that. Glad you said something though, because after thinking about it, I'd never clear the handle if I put a winch box on my 16' open, which I've been considering.
Supe is offline   Reply With Quote
Old 12-29-2012, 09:24 PM   #109
Boost Czar

iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 70,888
Total Cats: 1,469
Default

Quote:
Originally Posted by rleete View Post
You're not an engineer, are you?
Don't hate
Braineack is offline   Reply With Quote
Old 12-30-2012, 09:50 PM   #110
Newb

Join Date: Apr 2010
Location: BC, Canada
Posts: 33
Total Cats: -1
Default

Here are a couple of pictures from my current project (an atom-esque locost).

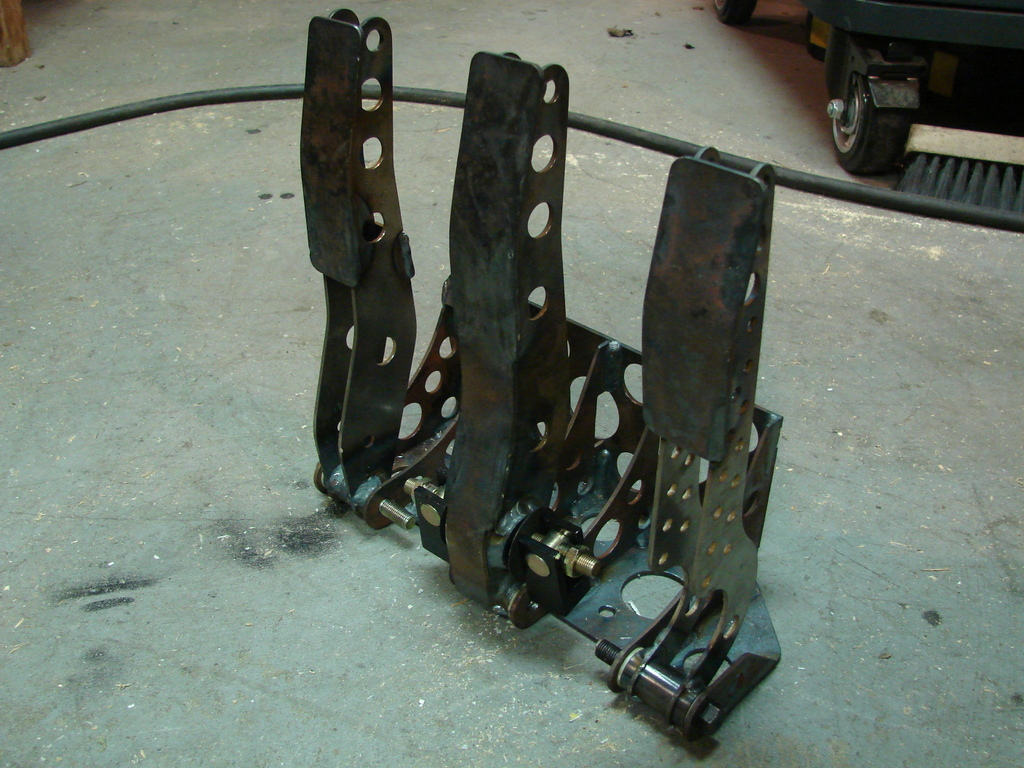

Floor mounted pedal assembly:

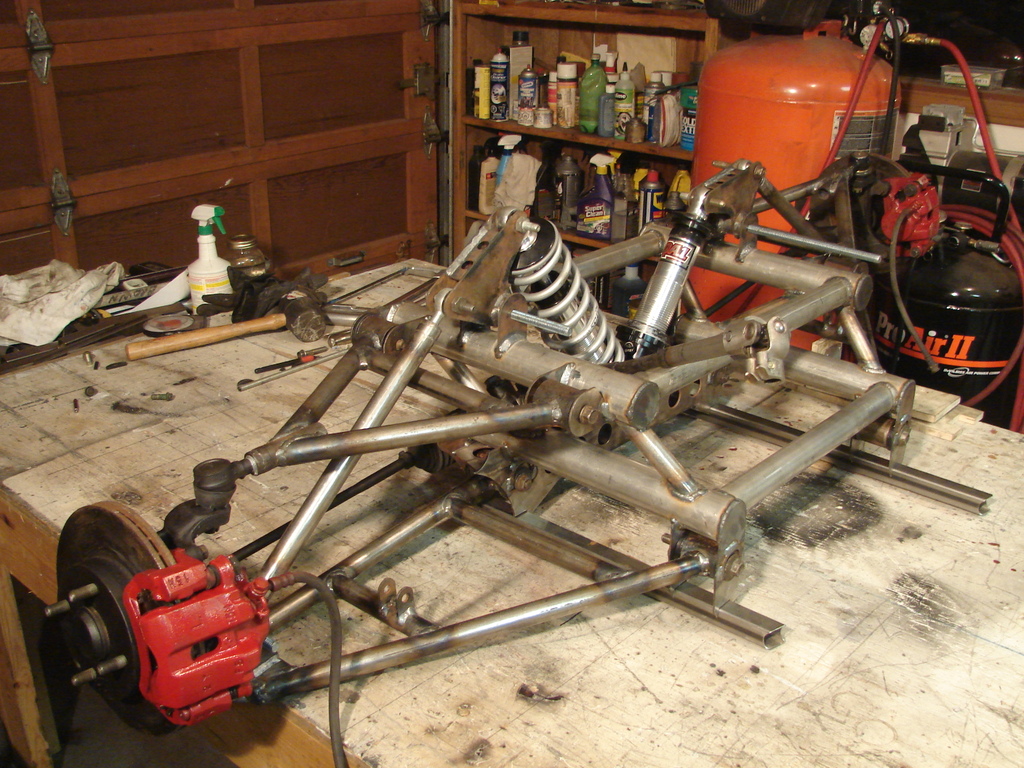

Front subframe with the suspension assembled to check clearances:

Attached Thumbnails
The custom fabrication thread! (Post pics of stuff you have made)-dsc00932eo.jpg   The custom fabrication thread! (Post pics of stuff you have made)-dsc01086ml.jpg   The custom fabrication thread! (Post pics of stuff you have made)-dsc01089h.jpg
zbrown is offline   Reply With Quote
Old 12-31-2012, 04:40 AM   #111
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 41
Default

Pushrod setup, NICE!
richyvrlimited is offline   Reply With Quote
Old 01-01-2013, 10:48 AM   #112
Senior Member

Join Date: Oct 2011
Location: The Race Track & St Pete FL
Posts: 574
Total Cats: 49
Default

Quote:
Originally Posted by zbrown View Post
Here are a couple of pictures from my current project (an atom-esque locost).

Floor mounted pedal assembly:



Front subframe with the suspension assembled to check clearances:

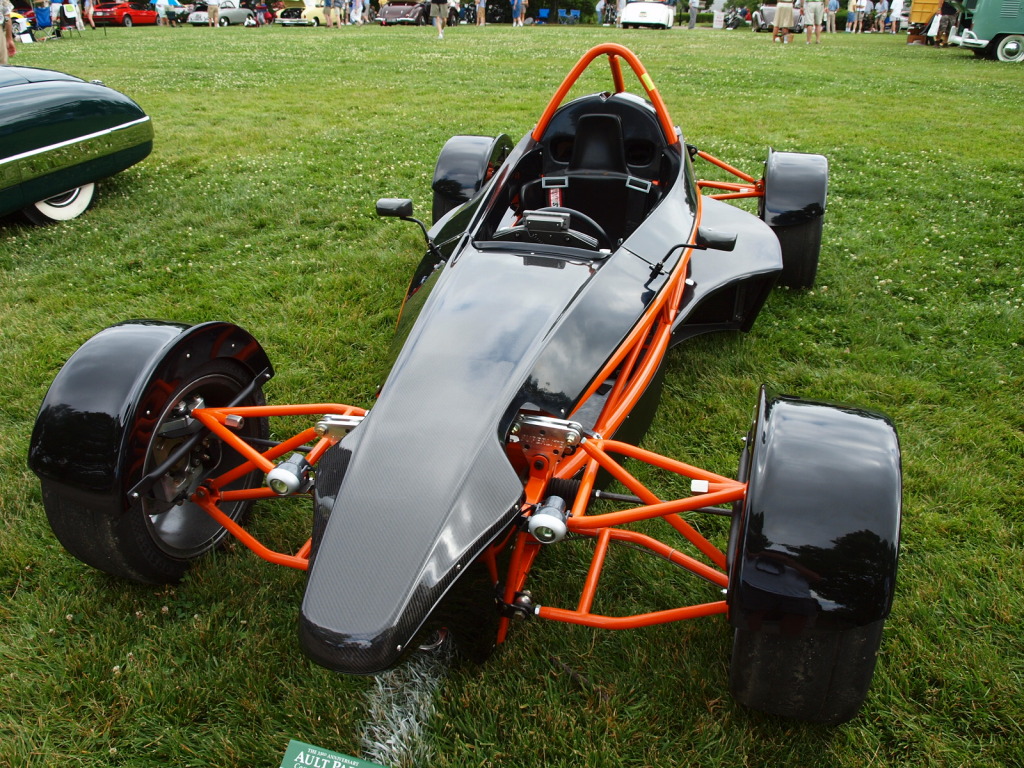

I was thinking of building something similar, but to copy this

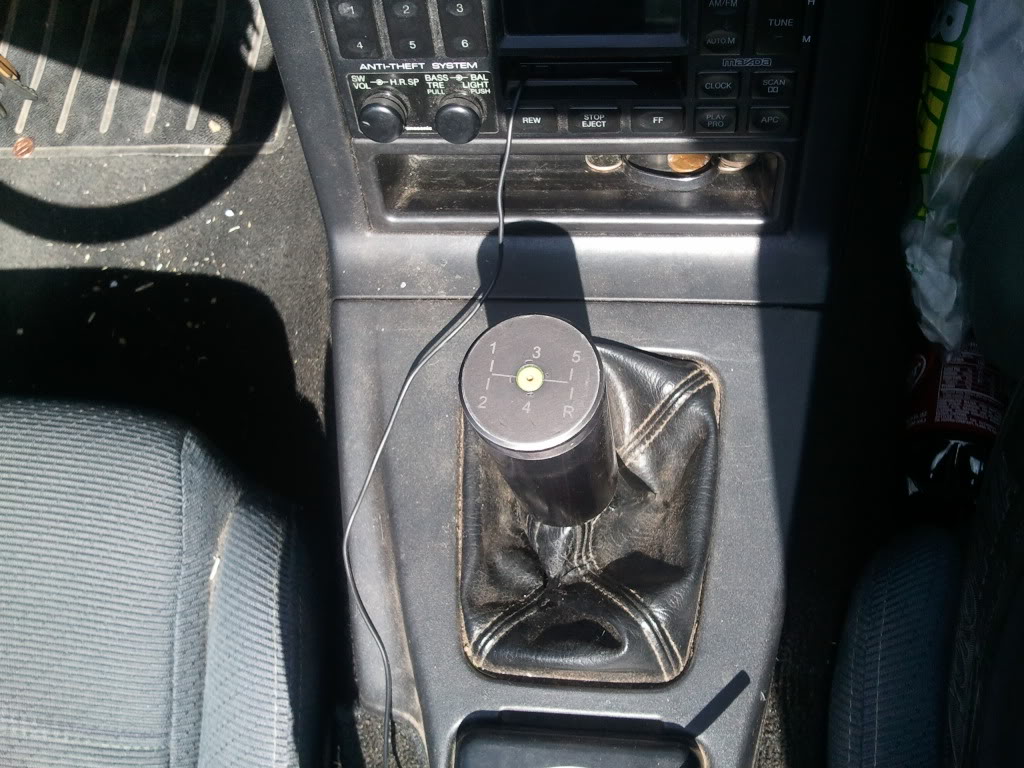

And here is what I made out of a 30mm shell with laser etched. I'm thinking of making one more with deeper laser cuts
1993ka24det is offline   Reply With Quote
Old 01-01-2013, 11:29 AM   #113
Junior Member
Thread Starter

Join Date: Jun 2010
Posts: 176
Total Cats: -4
Default

Quote:
Originally Posted by zbrown View Post
Here are a couple of pictures from my current project (an atom-esque locost).



Front subframe with the suspension assembled to check clearances:

What hub carriers are those? I'm about to construct a double wishbone setup as well, and those look perfect!
Boost_addict is offline   Reply With Quote
Old 01-01-2013, 11:56 AM   #114
Newb

Join Date: Apr 2010
Location: BC, Canada
Posts: 33
Total Cats: -1
Default

Quote:
Originally Posted by Boost_addict View Post
What hub carriers are those? I'm about to construct a double wishbone setup as well, and those look perfect!

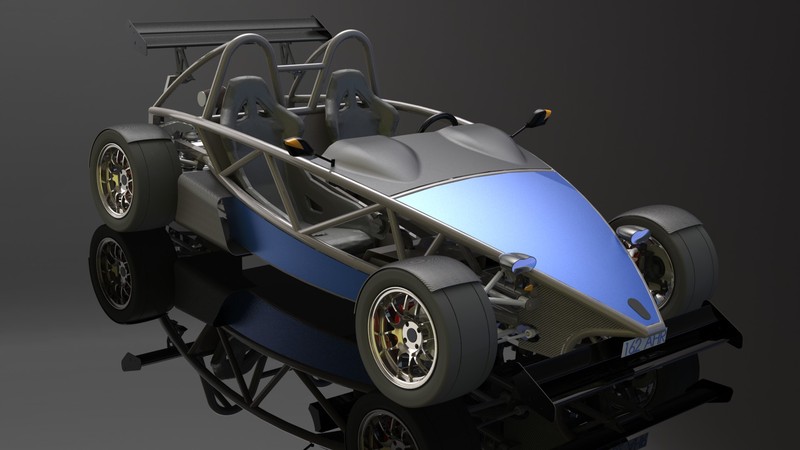

They're Miata spindles and brakes of course . The lower ball joints, poly bushinngs, and tie rod ends are Miata as well. While the upper ball joints are tie rod ends from a 75 Mazda B1600 (MOOG ES2074R) and the steering rack is an 84 Corvette rack that has been narrowed by ~6". If you are solid modeling everything the models for all these parts can be downloaded for free from http://locostcadfiles.wikispaces.com/ in either STEP or SolidWorks 2010 format. This is my end goal:

Attached Thumbnails
The custom fabrication thread! (Post pics of stuff you have made)-march25frontrenderfullb.jpg
zbrown is offline   Reply With Quote
Old 01-01-2013, 04:12 PM   #115
Newb

Join Date: Oct 2012
Posts: 1
Total Cats: 0
Default

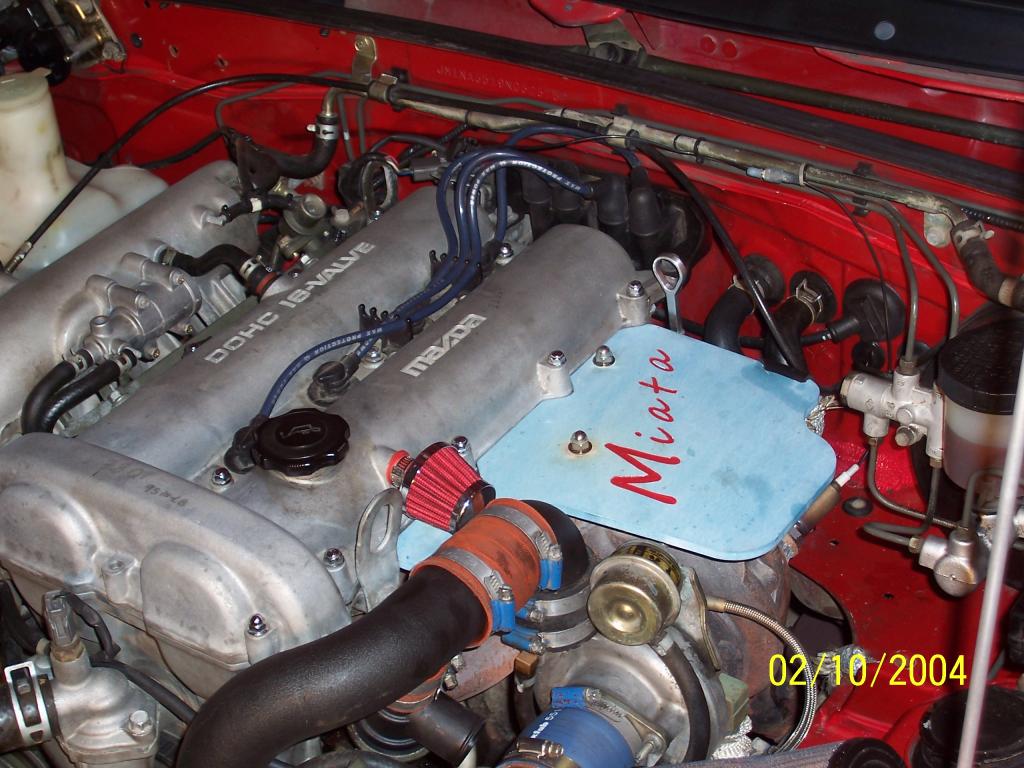

Here is my first post and my first Miata. The heat shield was broken so i made a new one. The dip stick broke when getting the old shield off.Made a new dip handle[IMG][/IMG]
Attached Thumbnails
The custom fabrication thread! (Post pics of stuff you have made)-heatshield001_zps5827cb2c.jpg
motophile is offline   Reply With Quote
Old 01-02-2013, 03:45 PM   #116
Junior Member
iTrader: (1)

Join Date: Feb 2010
Location: Montreal, Canada
Posts: 52
Total Cats: 0
Default

All kinds of good stuff in this forum!

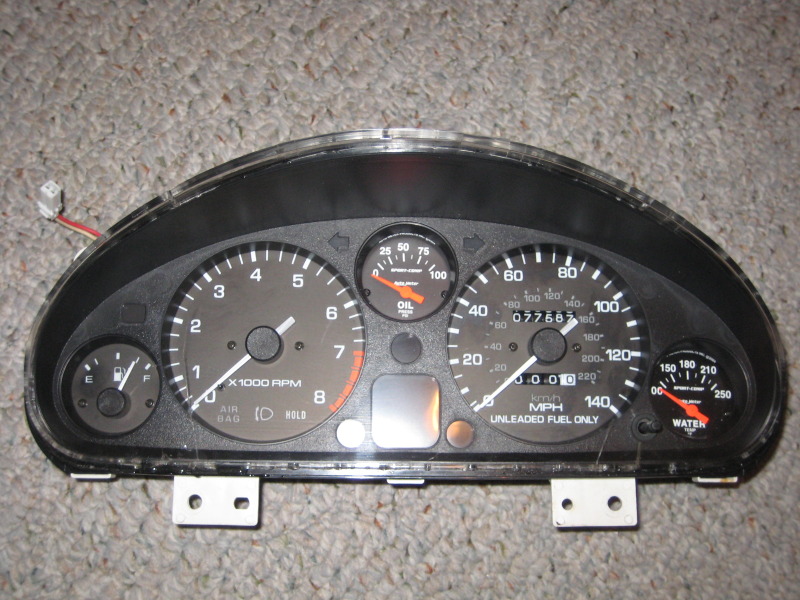

I upgraded my oil pressure and water temp gauges:

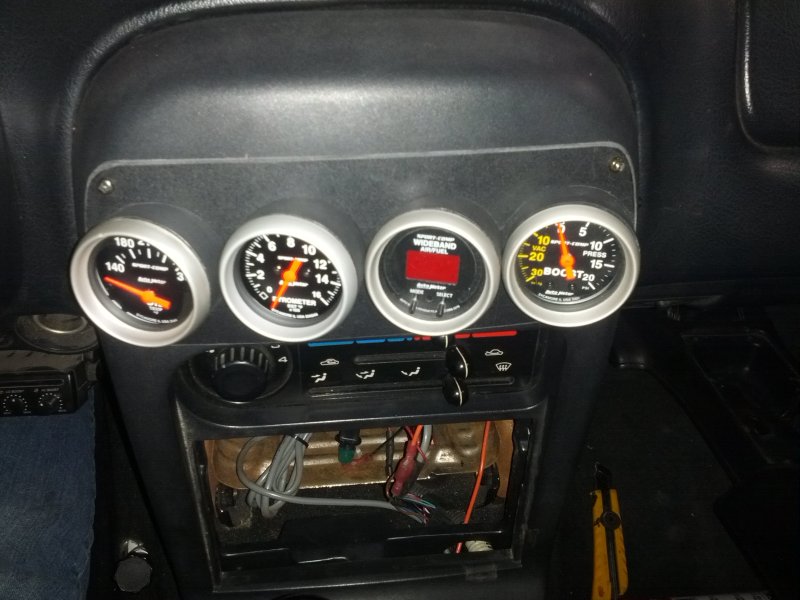

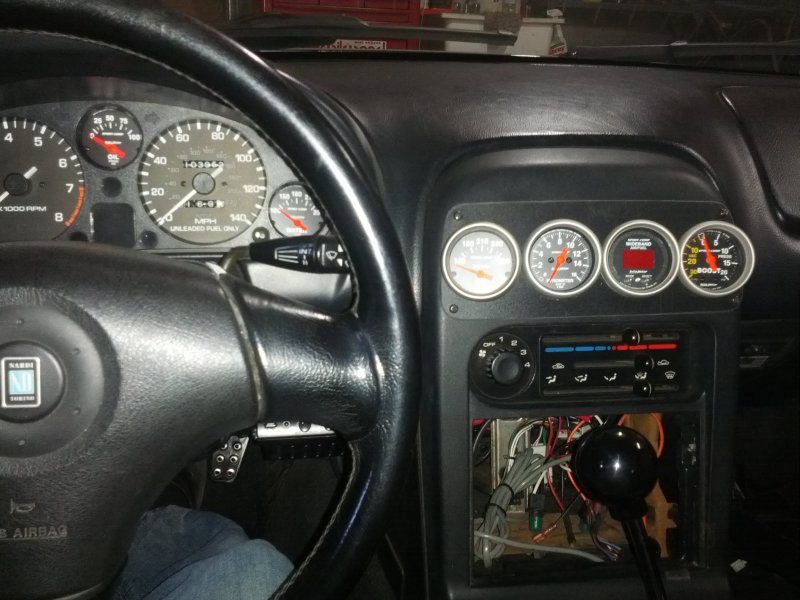

Then added 4 more gauges across the top of the tombstone:

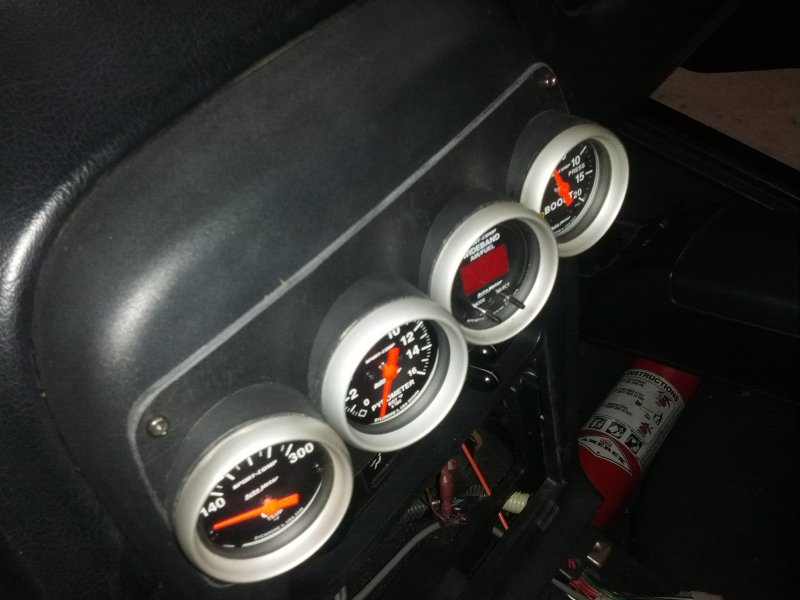

Very tight fit:

Attached Thumbnails
The custom fabrication thread! (Post pics of stuff you have made)-sxnivc.jpg   The custom fabrication thread! (Post pics of stuff you have made)-2m7tfmt.jpg   The custom fabrication thread! (Post pics of stuff you have made)-vzih44.jpg   The custom fabrication thread! (Post pics of stuff you have made)-23hub21.jpg
Adamsm is offline   Reply With Quote
Old 01-02-2013, 04:06 PM   #117
A living god
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 5,967
Total Cats: 231
Default

I love those gauges in the dash cluster. I should probably do those as well.
viperormiata is offline   Reply With Quote
Old 02-01-2013, 07:59 PM   #118
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 3,990
Total Cats: 234
Default

I've got a question, and i suppose this is the most appropriate thread to post it in.

I'm working at a machine shop as a welder fabricator. Basically, i need to get some measuring tools. Caliper, scales, micrometer, machinist tools, ect. I could ask the guys in the shop, but they're all old school and order out of a catalog.

Anyone have any other retailers they've trusted in the past.

First thing that comes to mind is Metal working products from MSC Industrial Supply
Erat is online now   Reply With Quote
Old 02-01-2013, 08:15 PM   #119
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,316
Total Cats: 375
Default

Go to the places that hobby machinsts use. Shars.com, Little machine shop, etc.

I bought everything used on Craigslist. Much better prices.
rleete is offline   Reply With Quote
Old 02-01-2013, 08:59 PM   #120
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 3,990
Total Cats: 234
Default

I've saw some stuff on craigslist, but i question it's accuracy, as most of it is pretty old.

I'll check out those sites, thanks.
Erat is online now   Reply With Quote
