my tube front drifter - Page 40 - Miata Turbo Forum -Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



General Miata Chat A place to talk about anything Miata

Reply



LinkBack Thread Tools
Old 04-09-2013, 10:29 AM   #781
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,072
Total Cats: 44
Default

Quote:
Originally Posted by Braineack View Post
is that diff welded?
Yep
ctdrftna is offline   Reply With Quote
Old 04-19-2013, 06:03 PM   #782
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,072
Total Cats: 44
Default

Quick update, rear end is back in the car, gotta sort out my axles and add fluid (redline heavy shockproof gear oil)

im again changing my handbrake master cylinder to increase line pressure. so ill need to fight to bleed the system again.

my doors are fully gutted, so im painting the insides and riging up a cable to open them.

and the big news is i have an appointment back at Synapse Motorsport to get re-tuned at the end of May. Soon to be ordered is a AEM tru-boost, My goals are to max out either the turbo or fuel system to see what this motor has. And tweak the cam gears and boost control to pick up some better torque and response.
ctdrftna is offline   Reply With Quote
Old 04-19-2013, 11:33 PM   #783
Junior Member

Join Date: Mar 2012
Posts: 297
Total Cats: 18
Default

What kind of final numbers do you think you'll get?
M.Adamovits is offline   Reply With Quote
Old 04-20-2013, 07:46 AM   #784
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,072
Total Cats: 44
Default

Well last time I made 418whp and 287 ftlbs . That was at 18psi on spring (no boost control) running C12 race gas.

This time I am doing a street tune on 93 pump gas. I would like to run min boost but with ebc, so around 18-20 psi and I'm hoping for 400whp and with some cam tweaking maybe 300 ftlbs.

For my race tune I plan to crank this motor up . C16 race gas running 26-27 psi if my GT3071R will push that. Hoping for somewhere around 460-470 whp and 330 ftlbs reving to 8200-8500
ctdrftna is offline   Reply With Quote
Old 04-21-2013, 03:44 PM   #785
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,072
Total Cats: 44
Default

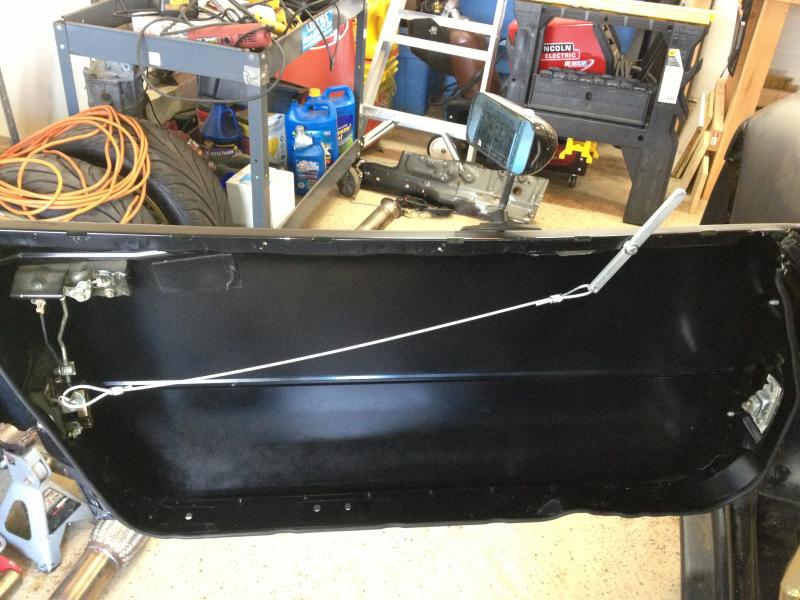

some pics from today, doors are finished

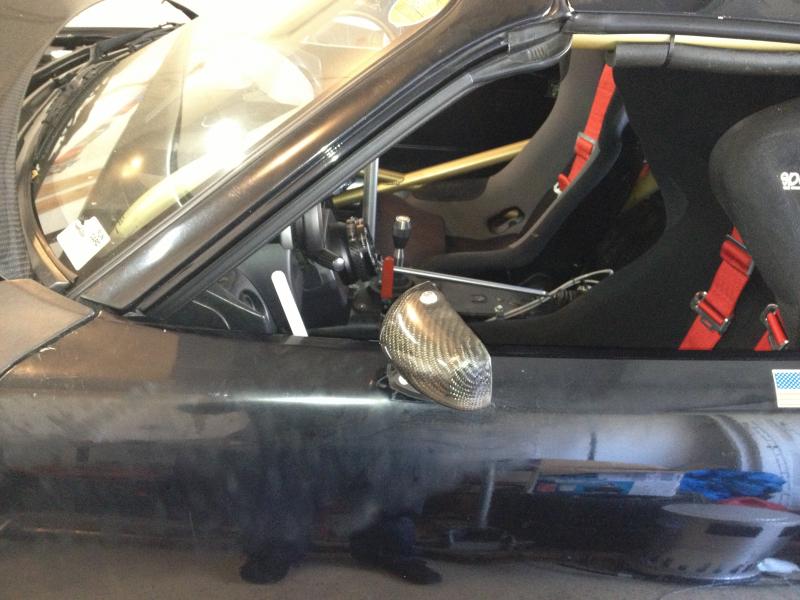

from the outside

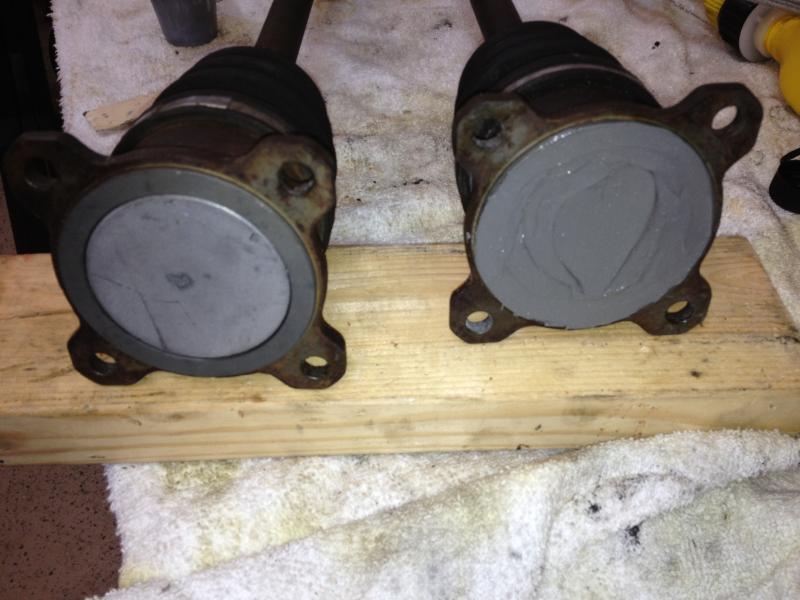

so anyone who read my axle problem thread, this is what i was talking about. The cover plate on the back was spewing grease from the seam. So my fix was some 3M scotchweld. Shouldnt leak anymore

Attached Thumbnails
my tube front drifter-img_0231_zps732b08f0.jpg   my tube front drifter-img_0232_zpsc13b93ad.jpg   my tube front drifter-img_0233_zps66774602.jpg
ctdrftna is offline   Reply With Quote
Old 05-05-2013, 05:51 PM   #786
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,072
Total Cats: 44
Default

well everything is back running and driving, its doing pretty good. I like the new gearing and the shifter is awsome. I cant wait to get back to the dyno and rework the power band and get this thing really ripping. For anyone who thinks that welded diffs are un-streetable, your wrong. There is resistance trying to back out of parking stalls and making U-turns. but for normal driving conditions its totally fine.

just curious, what are peoples opinions of diffrent dyno's and their readings? I have only tuned on a dynopack.
ctdrftna is offline   Reply With Quote
Old 05-05-2013, 09:32 PM   #787
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,555
Total Cats: 11
Default

I need a ride on the street in this. I drive down your road daily to go work on my miata at the storage unit.

I have run on mustang & dyno dynamics. Both with results within 5-10% of each other.... and that is decent considering there was some small tuning changes between the two runs.
240_to_miata is offline   Reply With Quote
Old 05-05-2013, 09:44 PM   #788
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,072
Total Cats: 44
Default

once i get it tuned again i will give you a ride, its scary to sit in the passenger seat though
ctdrftna is offline   Reply With Quote
Old 05-06-2013, 06:29 PM   #789
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,696
Total Cats: 85
Default

I have had a welded diff in my car for quite some time now. I do not find it objectionable at all. I am suspicious that it is real hard on axles.
miata2fast is offline   Reply With Quote
Old 05-20-2013, 02:07 AM   #790
Junior Member

Join Date: Sep 2012
Posts: 73
Total Cats: 0
Default

Read through the whole thing and I am curious when you made your Tstat housing what thermostat did you use, Is it a Miata one or from something else?
pitobread is offline   Reply With Quote
Old 05-20-2013, 05:26 PM   #791
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,072
Total Cats: 44
Default

its a miata t-stat
ctdrftna is offline   Reply With Quote
Old 07-02-2013, 12:20 AM   #792
Junior Member
iTrader: (1)

Join Date: Feb 2012
Posts: 199
Total Cats: 0
Default

Sucks you're selling the car... Just read the entire build from page 1. Awesome ****.

Did u ever brace your exhaust manifold?
etikoner is offline   Reply With Quote
Old 08-27-2013, 09:52 PM   #793
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,072
Total Cats: 44
Default

Tube Front Drifter PART OUT!!!!

LET THE PART OUT BEGIN
ctdrftna is offline   Reply With Quote
Old 07-17-2016, 02:03 PM   #794
Newb

Join Date: Jun 2016
Location: Port Orchard, WA
Posts: 17
Total Cats: -3
Default

Quote:
Originally Posted by m2cupcar View Post
Rally (and by rally I mean the guys that are blazing through every kind of terrain imaginable and defying physics at speeds most will never see on pavement) drivers are the gods of all motor racing IMO. And yes, that includes F1 drivers.

I believe somebody here said it - Drifting is a lot like figure skating (not that it's a bad thing) it's scored mostly on style. I don't think I'd bring the 'fear' factor into it.
doing it in "mexico" adds a pretty good fear factor to it
mx5.chris is offline   Reply With Quote
