Default my tube front drifter

hes my miata project
to clear up any normal questions,
car was crashed in front by me, this is my soultion
i didnt want to junk a chassis that i just put a cage in

built to formula d specs
running a bp1.8l/99 head
power goal is 400hp

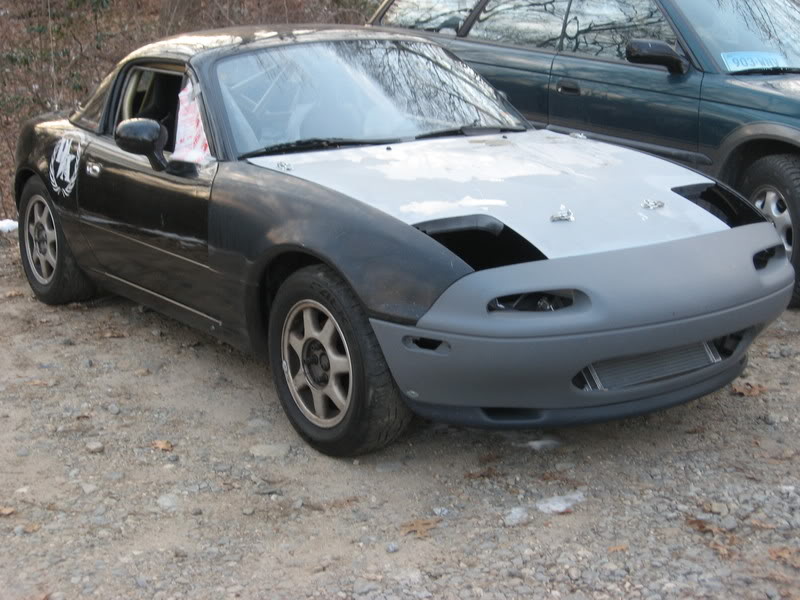

Name:  IMG_0256.jpg
Views: 91
Size:  90.3 KB
Name:  IMG_0261.jpg
Views: 254
Size:  123.0 KB
Name:  IMG_0263.jpg
Views: 88
Size:  79.8 KB

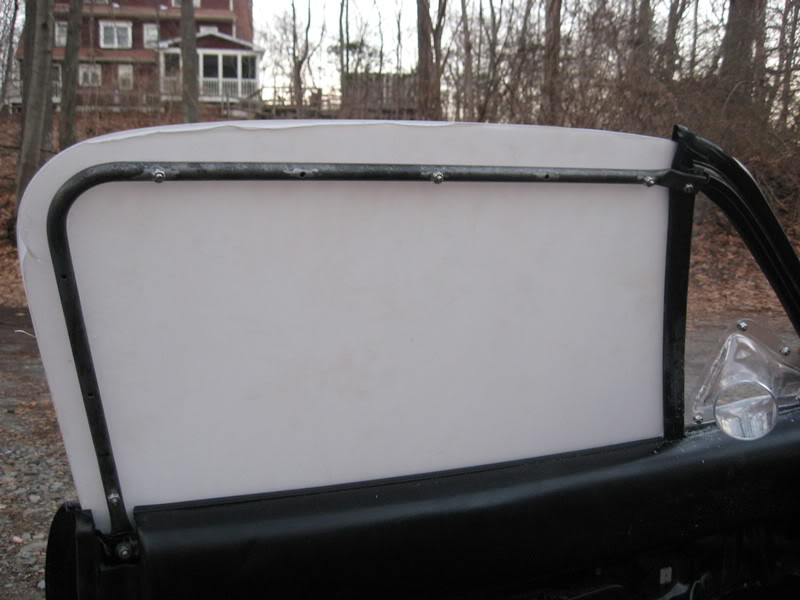

Name:  IMG_0269.jpg
Views: 86
Size:  58.0 KB
Name:  IMG_0267.jpg
Views: 284

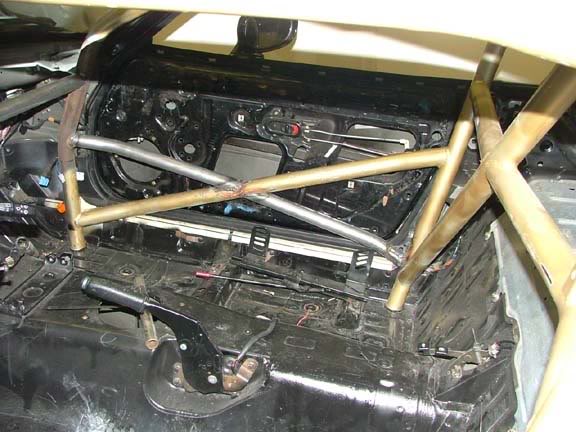

Size:  112.3 KBName:  mazda003.jpg
Views: 91
Size:  55.9 KB

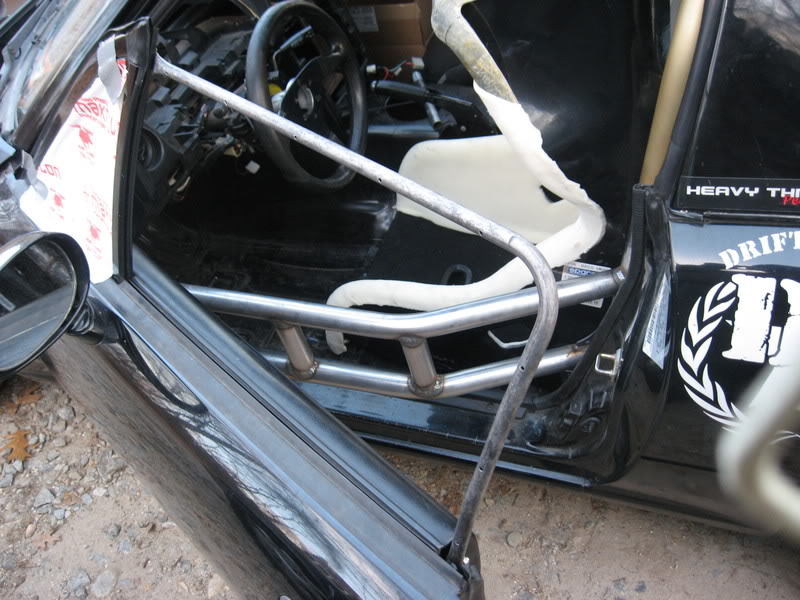

Name:  IMG_0260.jpg
Views: 107
Size:  101.1 KB

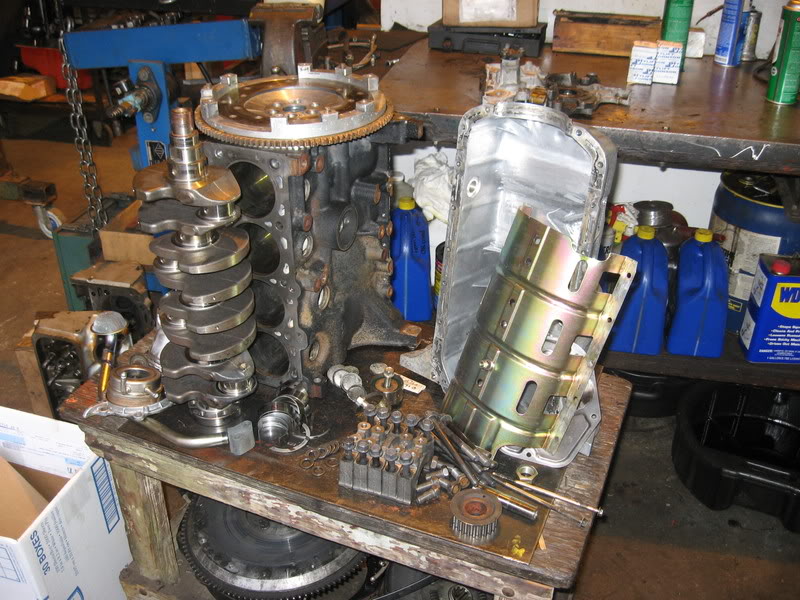

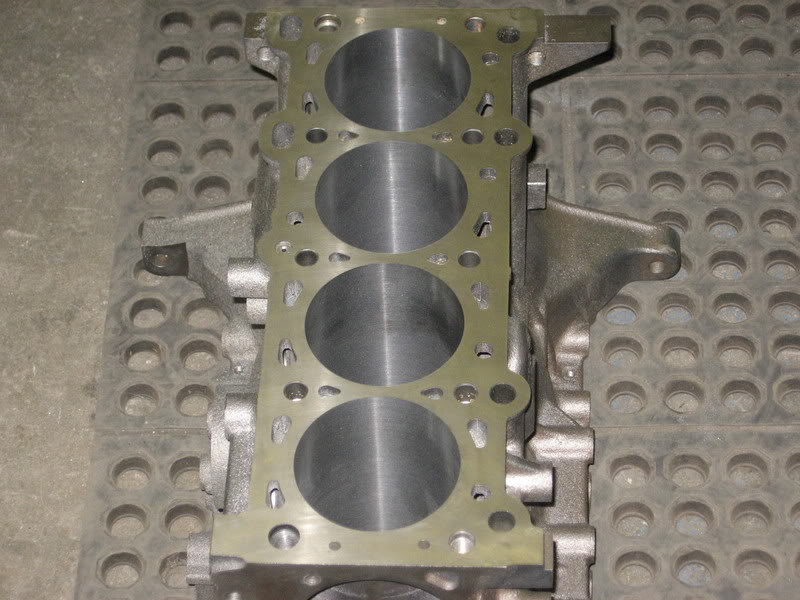

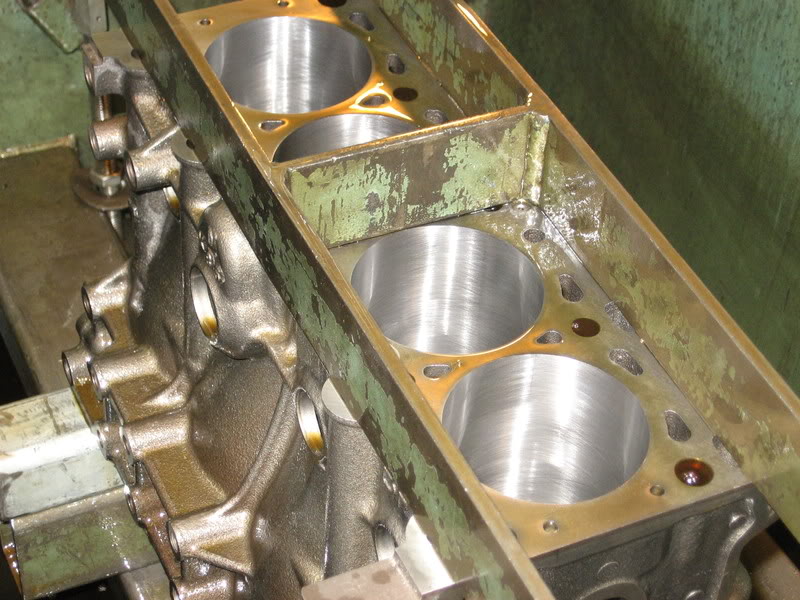

i do all the engine machining myself

Name:  IMG_0253.jpg
Views: 91
Size:  125.0 KB
Name:  IMG_0280.jpg
Views: 87
Size:  87.2 KB
Name:  IMG_0282.jpg
Views: 87
Size:  107.7 KB

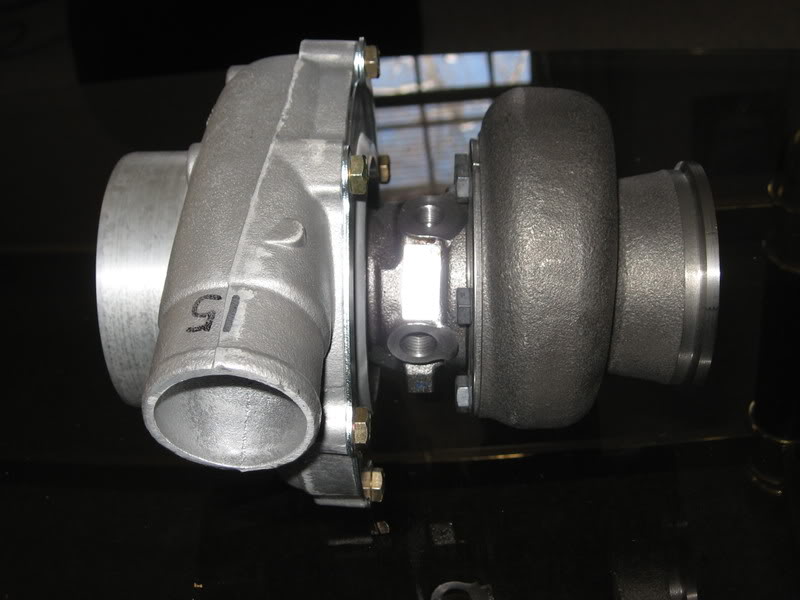

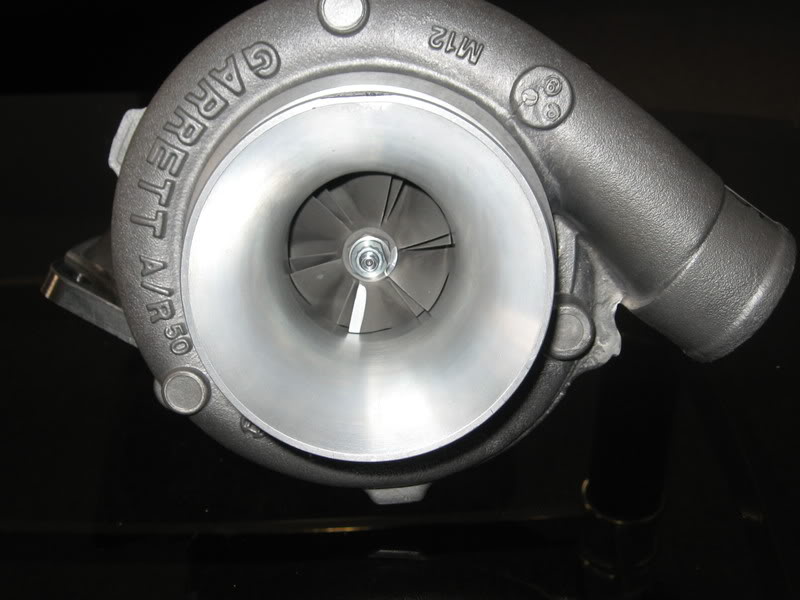

gt3071rName:  IMG_0301.jpg
Views: 87
Size:  57.6 KB
Name:  IMG_0302.jpg
Views: 87
Size:  57.2 KB

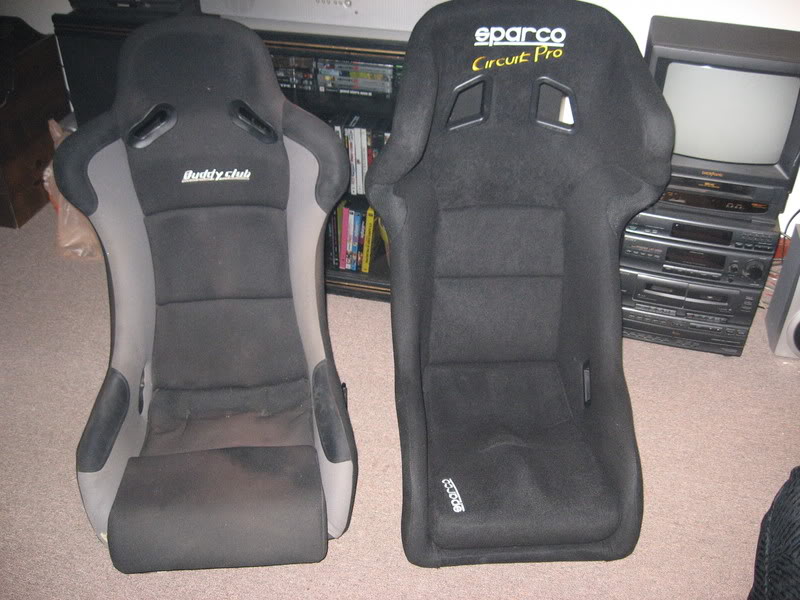

seats
Name:  IMG_0225.jpg
Views: 87
Size:  83.8 KB
ctdrftna is offline   Reply With Quote
Old 03-04-2008, 08:01 PM   #2
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Lexington, SC
Posts: 2,084
Total Cats: 0
Default

will those seats even fit?
mazda/nissan is offline   Reply With Quote
Old 03-04-2008, 08:04 PM   #3
Senior Member

Join Date: Jun 2006
Location: Orlando FL - UCF
Posts: 688
Total Cats: 1
Default

Looks sick man.
coastertrav is offline   Reply With Quote
Old 03-04-2008, 08:36 PM   #4
Elite Member
iTrader: (3)

Join Date: Dec 2004
Location: Houston
Posts: 2,903
Total Cats: 4
Default

car nice
dRfTa gaydm
Pitlab77 is offline   Reply With Quote
Old 03-04-2008, 08:51 PM   #5
Elite Member
iTrader: (24)

Join Date: Jun 2007
Location: Sherman Oaks, CA
Posts: 4,475
Total Cats: 3
Default

not too much?
UrbanSoot is offline   Reply With Quote
Old 03-04-2008, 09:04 PM   #6
Elite Member
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

thats sick, doing the machieneing yourself too! kudos!!!
cardriverx is offline   Reply With Quote
Old 03-04-2008, 09:22 PM   #7
Senior Member
iTrader: (4)

Join Date: Aug 2007
Location: Guam (U.S Terr.)
Posts: 786
Total Cats: -2
Default

thats pretty crazy, question:will your intercooler get cooled being high up like that
mike_671 is offline   Reply With Quote
Old 03-04-2008, 09:34 PM   #8
Elite Member
iTrader: (5)

Join Date: Oct 2007
Location: Canton, Ga
Posts: 1,687
Total Cats: 15
Default

looking sweet. I like the tube front..
Stealth97 is offline   Reply With Quote
Old 03-04-2008, 09:55 PM   #9
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,094
Total Cats: 48
Default

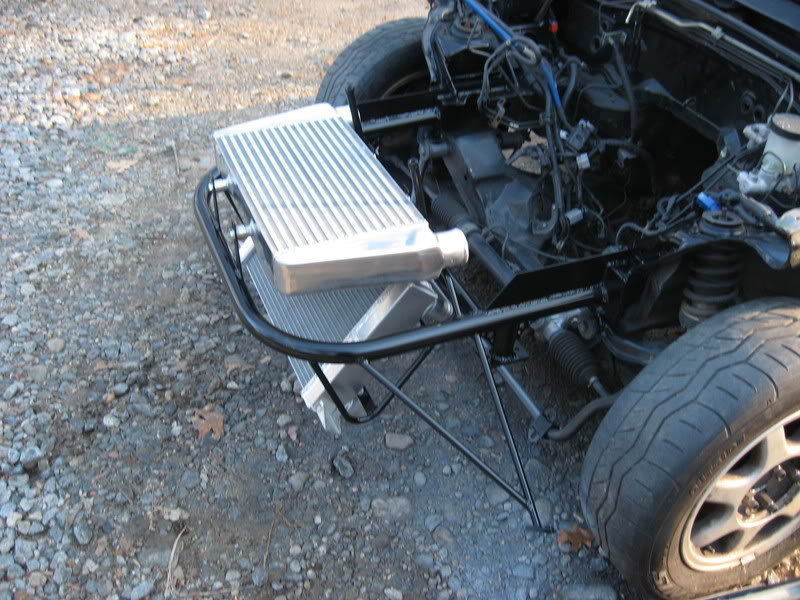

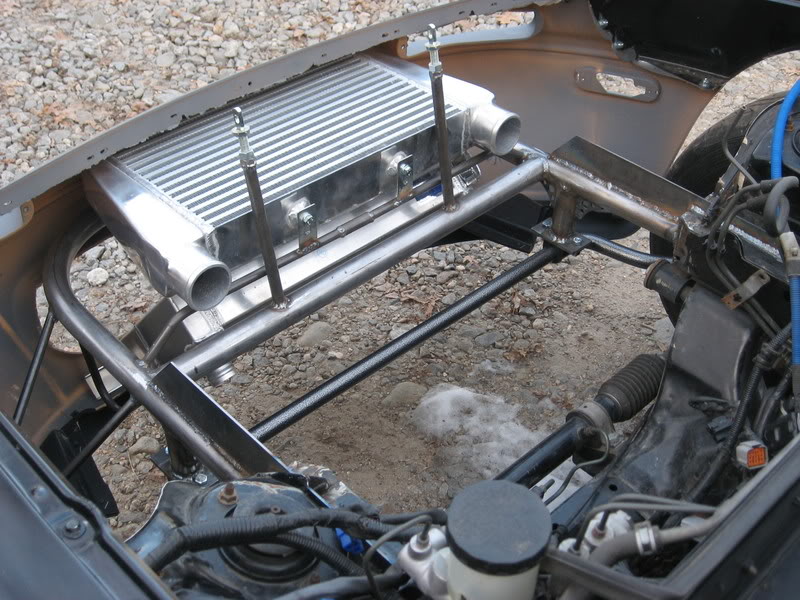

this thing still has alot of work to go, for the intercooler, it is v mounted so that the rad isnt blocked and it getts more air when the car is sideways, i still need to make the ducting for it, yes the seats, fit just barely they are on custom seat mounts weled to the floor
ctdrftna is offline   Reply With Quote
Old 03-04-2008, 10:04 PM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,469
Total Cats: 1,698
Default

going to cut the hood and make that intercooler functional?
Braineack is offline   Reply With Quote
Old 03-04-2008, 10:05 PM   #11
Junior Member
iTrader: (4)

Join Date: Oct 2007
Location: santa cruz
Posts: 246
Total Cats: 0
Default

Why would airflow to the ic be a concern whilst your car is sidewayz? At that point you're pretty much crashing anyway, right?
chucker is offline   Reply With Quote
Old 03-04-2008, 10:07 PM   #12
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,002
Total Cats: 174
Default

You sure you need 400hp? How much does a Miata need at fighting weight (that car I would guess maybe 1800lbs) to be competitive? What about gearing and what tranny/dif are you using? Custom gearset? I understand you need to keep'em spinning at 100+mph, but how much do you need? 400hp and BP don't mix for long. What kind of budget are you working with and what's the setup on the motor for that power? Maybe build a motor capable of 400hp, then only boost to 300hp so the motor will last forever (or as long as drifting is popular... another week or two).
samnavy is offline   Reply With Quote
Old 03-04-2008, 10:20 PM   #13
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Lexington, SC
Posts: 2,084
Total Cats: 0
Default

Quote:
Originally Posted by ctdrftna View Post
it getts more air when the car is sideways
i doubt it woudl get more air sideways because the air will be pounding the side of your car, if you replaced your passenger door with an intercooler THAT would be more efficient
mazda/nissan is offline   Reply With Quote
Old 03-04-2008, 10:26 PM   #14
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,094
Total Cats: 48
Default

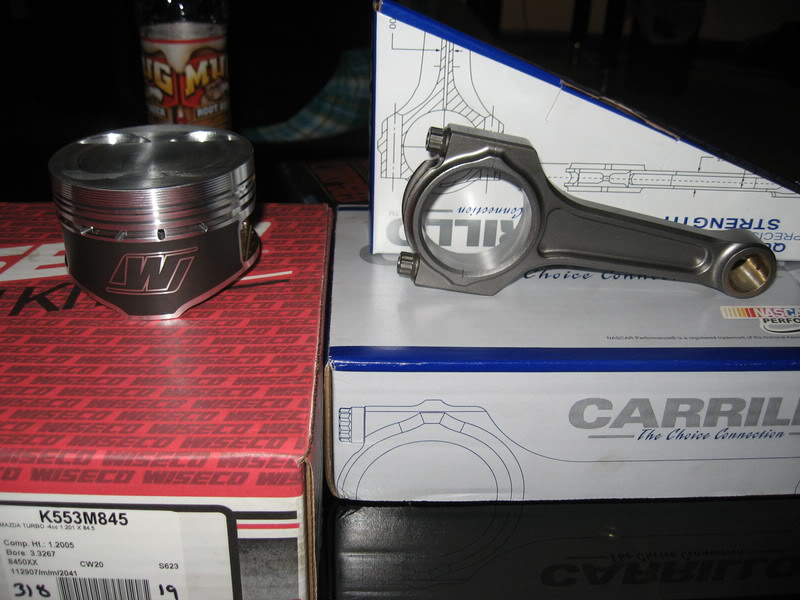

yes im gonna cut the hood, belive me everything ive done is for a purpose, im not cutting corners, i dont have any sponsors or anything, this is on my own personal budget, every dime i make after bills goes to the car. i work 2 jobs, my part time one is at a performance engine shop, so i get to do all the motor work my self, as for drive train, its a 94, so im gonna use the 1.8l diff with kazz lsd, i have a 02 6spd and a fidanza 8lb flywheel and act 6 puck unsprung clutch w extream pp, motor is fully built, carrillo rods,weisco pistons, balanced, 99 head race ported, plans for valave train are 1mm over valves,springs,retainers,inner shim kit, integral or fuji racing cams, around 274 duration. custom sheet metal intake mani, on the way is a boostlogic manifold(its back ordered, ill have it hopefuly in under a month) with tial 38mm gate

also i have fm sway bars,safe racer links, stance al+ coilovers, im waiting on the secret element inner tie rods for more angle and im making custom spherical bearing outter tierods,

as for power to weight, ever look at rhys millens solstic, i bet thats around 2500 or less lbs, and he pushes more that 500 hp, big smoke and power to hold it sideways down straights, and the power to scrub speed by spinning the tires faster. i can always back it down!

Name:  IMG_0255.jpg
Views: 87
Size:  78.6 KB
ctdrftna is offline   Reply With Quote
Old 03-04-2008, 11:01 PM   #15
Newb

Join Date: Mar 2008
Location: Rockville, Maryland.
Posts: 25
Total Cats: 0
Default

very nice! keep us updated!
LMTD is offline   Reply With Quote
Old 03-04-2008, 11:10 PM   #16
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,002
Total Cats: 174
Default

^Hey NOOB, whaddya mean "keep US updated". Go to the meet-n-greet forum and start a thread about yourself. Then you can be one of "us".


AS for the car... WOW!!! That's what I call a setup! That might be one of the most bad-*** Miata's around.
samnavy is offline   Reply With Quote
Old 03-04-2008, 11:35 PM   #17
Newb

Join Date: Mar 2008
Location: Rockville, Maryland.
Posts: 25
Total Cats: 0
Default

Quote:
Originally Posted by samnavy View Post
^Hey NOOB, whaddya mean "keep US updated". Go to the meet-n-greet forum and start a thread about yourself. Then you can be one of "us".


AS for the car... WOW!!! That's what I call a setup! That might be one of the most bad-*** Miata's around.
Lol... sorry. I was was just trying to get me 10 posts so that I can start wasting my money in the classifieds section . This seemed like the perfect oportunity, since I actually enjoy clean, real CUSTOM work.
Here is a little info on who I am. Aprreciate any help on my issue .

https://www.miataturbo.net/forum/showthread.php?t=17894
LMTD is offline   Reply With Quote
Old 03-05-2008, 01:25 AM   #18
Elite Member
iTrader: (24)

Join Date: Jun 2007
Location: Sherman Oaks, CA
Posts: 4,475
Total Cats: 3
Default

build me an engine
UrbanSoot is offline   Reply With Quote
Old 03-05-2008, 01:26 AM   #19
Elite Member
iTrader: (24)

Join Date: Jun 2007
Location: Sherman Oaks, CA
Posts: 4,475
Total Cats: 3
Default

Quote:
Originally Posted by LMTD View Post
I was was just trying to get me 10 posts so that I can start wasting my money in the classifieds section
how about this... i sell you my entire turbo kit with all the **** for $2500?
UrbanSoot is offline   Reply With Quote
Old 03-05-2008, 06:36 AM   #20
Senior Member
iTrader: (4)

Join Date: Aug 2007
Location: Guam (U.S Terr.)
Posts: 786
Total Cats: -2
Default

Quote:
Originally Posted by samnavy View Post
^Hey NOOB, whaddya mean "keep US updated". Go to the meet-n-greet forum and start a thread about yourself. Then you can be one of "us".


AS for the car... WOW!!! That's what I call a setup! That might be one of the most bad-*** Miata's around.


LMAO thats **** made me crack up lol..i guess im in a laughing mood
mike_671 is offline   Reply With Quote
