Default Wire from NB harness not soldered to board.

On my adaptronic harness included with the ECU, the middle connector, with the white wires has a wire not soldered to the circuit board. When looking top down its the third wire on the top row from left to right in the number 2 box. its just hanging there with an empty hole.

Is everyones like this? Considering this is supposed to be a parallel harness I would assume this is not correct. Though I'm just comparing to all the parallel harnesses that I used to make for megasquirts so I could be mistaken.

I'll try to take a quick crappy picture.
Attached Thumbnails

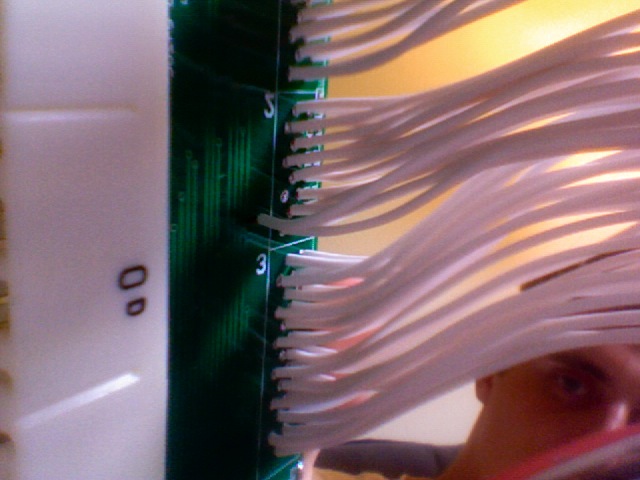

Wire from NB harness not soldered to board.-adapharness.jpg
cjernigan is offline   Reply With Quote
Old 04-28-2009, 02:26 PM   #2
Elite Member
iTrader: (9)

Join Date: Jun 2008
Location: Houston, TX
Posts: 1,583
Total Cats: 8
Default

I'll put you on the list. It looks like it was a bad solder joint. First I've seen of that. I can get someone here to repair it for you, or I can get you a fresh harness either way I'll get you taken care of.
TravisR is offline   Reply With Quote
Old 04-28-2009, 02:31 PM   #3
Elite Member
Thread Starter
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

There is no evidence of any attempt to solder it from what i can tell on top, the wire itself has no solder on it. I can't see through the glue.
From what I can tell this is the pin for the knock input. I need the car running today to put it in storage so I'm going to throw things together today and once I have it in storage I can do whatever but it has to get to its final destination today or tomorrow.
I don't mind fixing it, I just don't have a glue gun to recoat the backside. Maybe a harness swap would be the better option. Up to you, the knock sensor circuit won't keep me from getting things going.
cjernigan is offline   Reply With Quote
Old 04-28-2009, 02:40 PM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

I see your evil eyes mr jerigan!!!!
Braineack is offline   Reply With Quote
Old 04-28-2009, 06:09 PM   #5
Elite Member
iTrader: (9)

Join Date: Jun 2008
Location: Houston, TX
Posts: 1,583
Total Cats: 8
Default

Quote:
Originally Posted by cjernigan View Post
There is no evidence of any attempt to solder it from what i can tell on top, the wire itself has no solder on it. I can't see through the glue.
From what I can tell this is the pin for the knock input. I need the car running today to put it in storage so I'm going to throw things together today and once I have it in storage I can do whatever but it has to get to its final destination today or tomorrow.
I don't mind fixing it, I just don't have a glue gun to recoat the backside. Maybe a harness swap would be the better option. Up to you, the knock sensor circuit won't keep me from getting things going.
I guess they just missed it. Rob will get back with me tonight about what would be best. I've got another order coming in so maybe he could slip it in the box.

Travis
TravisR is offline   Reply With Quote
Old 03-16-2010, 02:16 AM   #6
Elite Member
Thread Starter
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

I ended up soldering this wire back into the board. Piece of cake.
cjernigan is offline   Reply With Quote
Old 03-16-2010, 02:33 AM   #7
Senior Member

Join Date: Dec 2004
Location: Brisbane, Australia
Posts: 1,272
Total Cats: 32
Default

This happened on my mate's MSM Adaptronic harness too. His had actually bridged two sensor wires together so check them all carefully!
timk is offline   Reply With Quote
Old 03-16-2010, 02:41 AM   #8
Elite Member
Thread Starter
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Nice. I found many poorly filled holes that I resoldered to make sure there were no issues. Two other obviously cold joints that I touched up as well. It should all be good now though.
cjernigan is offline   Reply With Quote
Old 03-16-2010, 02:41 AM   #9
Elite Member
Thread Starter
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

What injectors are you running saboteur?
cjernigan is offline   Reply With Quote
Old 03-16-2010, 06:00 AM   #10
Senior Member

Join Date: Dec 2004
Location: Brisbane, Australia
Posts: 1,272
Total Cats: 32
Default

I'm using the 460cc RX-7 ones.
timk is offline   Reply With Quote
Old 03-16-2010, 10:52 AM   #11
Senior Member
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

Did you have wires like this? Seems like they gauge they used does not even fit the holes.

dgmorr is offline   Reply With Quote
Old 03-16-2010, 01:02 PM   #12
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,037
Total Cats: 406
Default

I think it's time to raise the cost by adding wire-to-board connetors so you dont have breaking wires.
