Old 11-03-2008, 05:13 PM   #101
Elite Member
Thread Starter
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

You might want to check out Magnus Motorsports. They make some awesome stuff, but nothing for our application. If I was designing a manifold, it's a place I would go to get a few ideas that are proven using software and then confirmed on the dyno.
JayL is offline   Reply With Quote
Old 11-03-2008, 05:21 PM   #102
Junior Member
iTrader: (4)

Join Date: Oct 2007
Location: santa cruz
Posts: 246
Total Cats: 0
Default

Quote:
Originally Posted by eunos1800 View Post
What software is that please?
SolidWorks
chucker is offline   Reply With Quote
Old 11-03-2008, 05:34 PM   #103
Junior Member

Join Date: Nov 2005
Location: Athens
Posts: 197
Total Cats: 0
Default

Thanks
eunos1800 is offline   Reply With Quote
Old 11-03-2008, 08:37 PM   #104
Senior Member
iTrader: (1)

Join Date: Oct 2008
Location: Trailer County
Posts: 530
Total Cats: -9
Default

Very interesting...
mazpr is offline   Reply With Quote
Old 11-03-2008, 10:54 PM   #105
Former Vendor

Join Date: Jun 2006
Location: Bell Tuning & Performance
Posts: 1,338
Total Cats: -78
Default

I will post photos of the 3rd design tomorrow. Pretty cool! Nothing anyone has done before (here at least).
Stephanie
Stephanie Turner is offline   Reply With Quote
Old 11-03-2008, 11:15 PM   #106
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Is that CFD app part of Solidworks now, or an add-on?
ZX-Tex is offline   Reply With Quote
Old 11-04-2008, 08:41 AM   #107
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,458
Total Cats: 244
Default

add on
TurboTim is offline   Reply With Quote
Old 11-04-2008, 10:03 AM   #108
Elite Member
iTrader: (2)

Newbsauce's Avatar

Join Date: Jul 2006
Location: NoVA
Posts: 2,304
Total Cats: 2
Default

Quote:
Originally Posted by Stephanie Turner View Post
I will post photos of the 3rd design tomorrow. Pretty cool! Nothing anyone has done before (here at least).
Stephanie
In for design pics!
Newbsauce is offline   Reply With Quote
Old 11-04-2008, 10:30 AM   #109
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,510
Total Cats: 1,710
Default

Quote:
Originally Posted by Stephanie Turner View Post
I will post photos of the 3rd design tomorrow. Pretty cool! Nothing anyone has done before (here at least).
Stephanie
and mine?
Braineack is online now   Reply With Quote
Old 11-04-2008, 11:56 AM   #110
Junior Member
iTrader: (1)

Join Date: Aug 2006
Location: Dallas, TX
Posts: 220
Total Cats: 1
Default

Quote:
Originally Posted by Braineack View Post
seems like a taper will really help, i threw this together in about 10 minutes.




i need to redo it the more a real scale plenum, then i compare the pressure drop and flow through each.

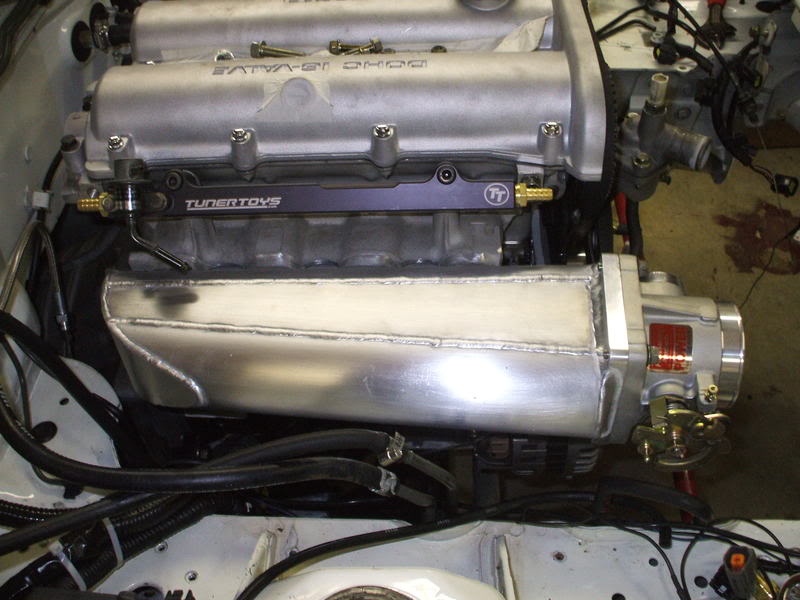

Looks a lot like BracedEunos' manifold with longer runners.

https://www.miataturbo.net/forum/t27570/

Name:  DSCF3222.jpg
Views: 3
Size:  69.2 KB
modernbeat is offline   Reply With Quote
Old 11-04-2008, 11:57 AM   #111
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,510
Total Cats: 1,710
Default

that's what i was trying to model it after.
Braineack is online now   Reply With Quote
Old 11-04-2008, 12:11 PM   #112
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,458
Total Cats: 244
Default

I do not currently have a CFD add in for solidworks. Does anyone know what happens if, instead of protruding stacks into the plentium, you just have a nice radius'ed flush mounted primaries?
TurboTim is offline   Reply With Quote
Old 11-04-2008, 12:13 PM   #113
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

What about a center inlet instead of end inlet? Put a 90 ontop of the plenum and put the TB facing forward?

My logic says that might even out the flow across the board..
elesjuan is offline   Reply With Quote
Old 11-04-2008, 12:28 PM   #114
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

Quote:
Originally Posted by TurboTim View Post
I do not currently have a CFD add in for solidworks. Does anyone know what happens if, instead of protruding stacks into the plentium, you just have a nice radius'ed flush mounted primaries?
My guess is that it will flow better.
neogenesis2004 is offline   Reply With Quote
Old 11-04-2008, 01:31 PM   #115
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,510
Total Cats: 1,710
Default

Quote:
Quote:
Originally Posted by Justin Olson
I agree that ideally it would be nice to have the stacks raised from the floor to get them out of the boundary layer.
I would be more concerned with the boundary layer separating in the diffuser section.

From what I had come across in my thermal/fluids coursework, everything to me suggested that flush velocity stacks would be the best way to go (from a flow standpoint). Since everybody had always been using raised stacks, I spent a bit of time doing some research and picking the brains of people who knew their stuff (other thermodynamic engineers with more experience). The only thing I really found suggesting a raised velocity stack was when the stack inlet radius was toroidal (meaning, not a constant radius). For a constant radius inlet, the stack was suggested to be flush against the floor. This was in an old ASME publication that a friend dug up for me. I've seen this topic touched on in fluids textbooks in the head/minor loss sections and usually it's just a chart showing flow loss 'K' coefficients for different entrances... and I've come across some text books that lead me to different conclusions about reentrant inlets.

On another note, what sort of flow conditions are you using for Cosmos?
in regards to this manifold design:

Braineack is online now   Reply With Quote
Old 11-04-2008, 01:36 PM   #116
Elite Member
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

Quote:
Originally Posted by elesjuan View Post
What about a center inlet instead of end inlet? Put a 90 ontop of the plenum and put the TB facing forward?

My logic says that might even out the flow across the board..
I've seen one like that on a hotside supercharged Miata made for that exact reason.
Bryce is offline   Reply With Quote
Old 11-04-2008, 04:59 PM   #117
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

Well several intake manifolds come to mind directly, while others are setup differently..

My 2.3 Turbo manifold was a 2 part unit where the Plenum and the Runners were separated in two different castings. Common practice was to enlarge the lower manifold significantly and open up the upper plenum / rotate for ease of front mount location.




Old school SBC Carb manifolds and even early injection manifolds had a central inlet with a single or multiple planes.

Late model 5.0 Fords had a central inlet with a large plenum and long runners, along with the later model 4.6 liters.
elesjuan is offline   Reply With Quote
Old 11-04-2008, 05:06 PM   #118
Former Vendor

Join Date: Jun 2006
Location: Bell Tuning & Performance
Posts: 1,338
Total Cats: -78
Default

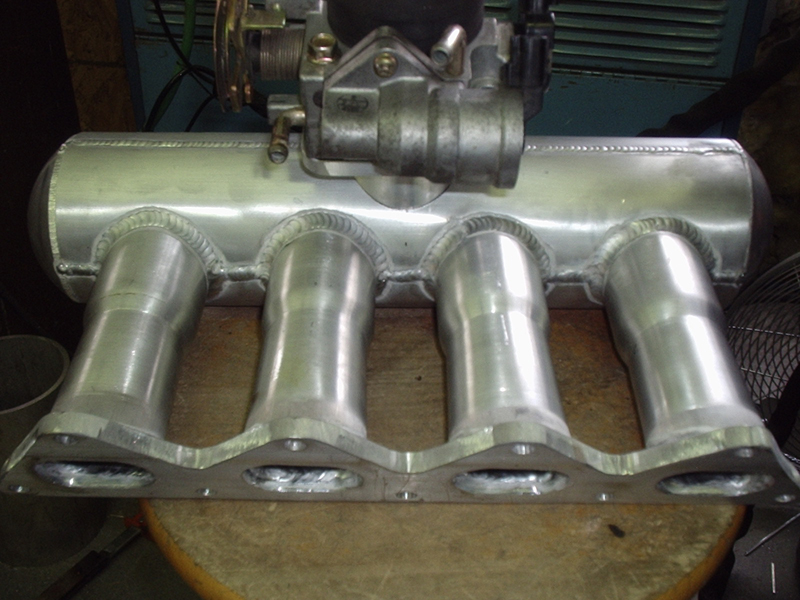

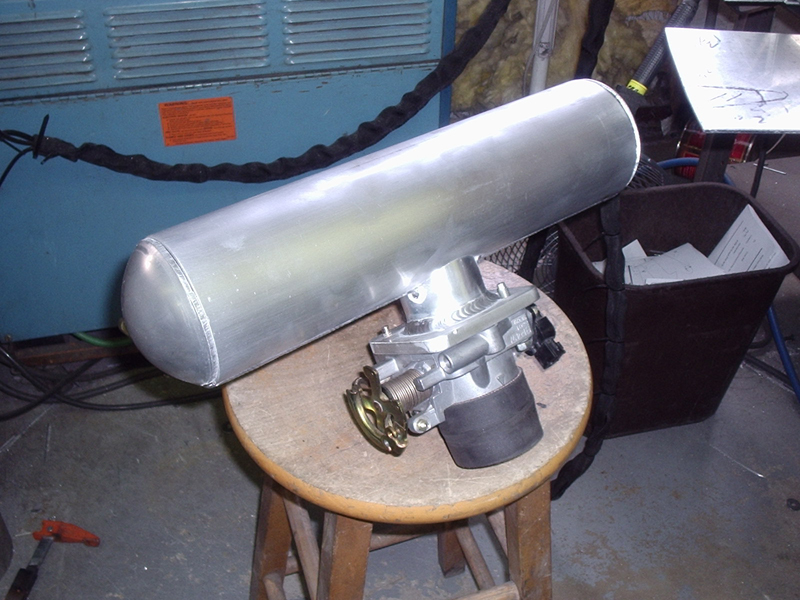

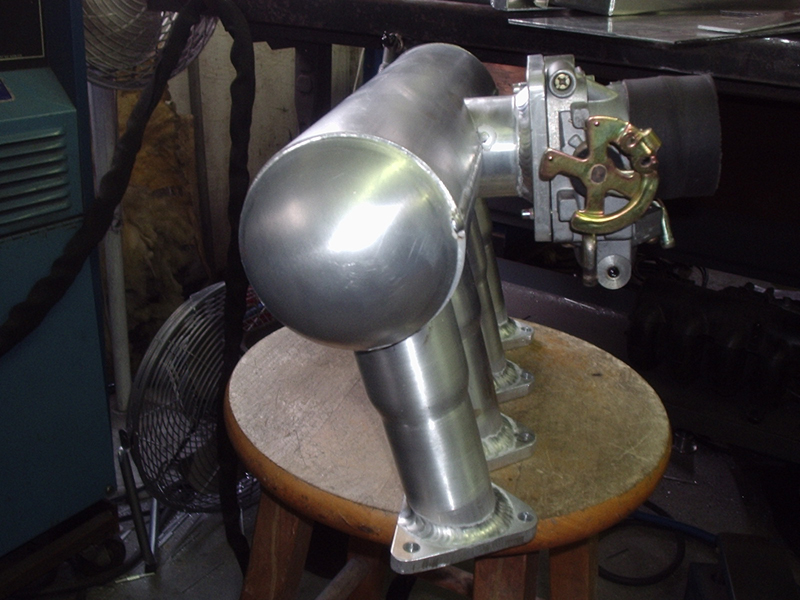

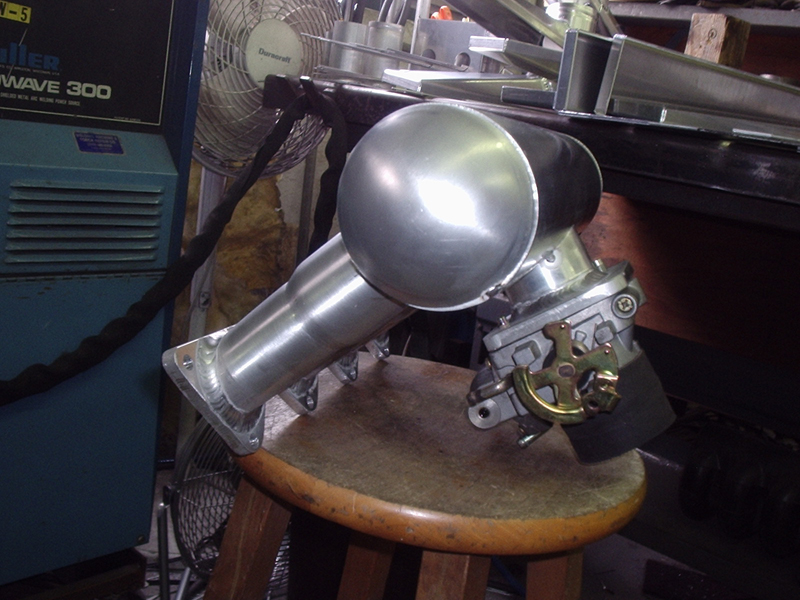

Here is the 3rd design:
Attached Thumbnails
Begi Intake Manifold-p9304633.jpg   Begi Intake Manifold-p9304634.jpg   Begi Intake Manifold-p9304635.jpg   Begi Intake Manifold-p9304636.jpg
Stephanie Turner is offline   Reply With Quote
Old 11-04-2008, 05:18 PM   #119
Elite Member
iTrader: (1)

Join Date: Jun 2007
Location: VA, Germany, Afghanistan
Posts: 2,967
Total Cats: 3
Default

Looks interesting. If that is the model you guys go with...will the throttle linkage all bolt up somehow or will it use a new cable?
KPLAFIN is offline   Reply With Quote
Old 11-04-2008, 05:19 PM   #120
Senior Member

Join Date: Nov 2005
Location: Baltimore Maryland
Posts: 991
Total Cats: 8
Default

interesting....
airbrush1 is offline   Reply With Quote
