"After failed abortion, deezums sees the 1.8 light" Build

Build Threads Building a motor? Post the progress here.

"After failed abortion, deezums sees the 1.8 light" Build


Old 04-19-2018, 08:28 PM
  #681
Elite Member
iTrader: (1)

Join Date: Apr 2014
Location: SF Bay Area, CA
Posts: 2,412
Total Cats: 257
Default

Pay no attention to ride the ****, no one else does.
sonofthehill is offline
Old 04-19-2018, 08:39 PM
  #682
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 18,471
Total Cats: 1,622
Default

Hint: global ignore.
aidandj is offline
Old 04-23-2018, 01:35 PM
  #683
Junior Member

Join Date: Mar 2015
Location: Columbus Indiana
Posts: 161
Total Cats: 69
Default

Originally Posted by deezums View Post
Guess I have time to figure out a miata bike rack now...
Just go trailer hitch and hitch mount platform bike rack. Just watch out though, will sit pretty low. I see used hitches on the local facebook group for $50-75 periodically. If I wasn't so lazy, this is what I would do.
cal_len1 is offline
Old 04-25-2018, 02:12 PM
  #684
Sadfab Union President
Thread Starter
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,693
Total Cats: 109
Default

My fork isn't a plus sized fork, there's not a lot to choose from in the 571mm ATC range. It still fits 2.8" tires, but not anything more. I left the steerer long because I want to get more dollars when I sell the fork later, I assure you my head is hard enough for many knocks!

I'm still a cheap bastard and I refuse to spend sixty ******* eight dollars for a RTC module. I also don't want (can't if I tried!) write new megasquirt firmware around a cheap ($3) RTC module. So I did some searching, the firmware is written around a MCP79410. Diligent makes these things called Pmods, and they have one called a RTCC Pmod based around the MCP79410! You can get them for $8.99, plus $9.99 shipping...



https://store.digilentinc.com/pmod-r...lock-calendar/

I don't have a coin cell yet, but it's setting time in tunerstudio and counting from there! Without a module installed it just sets to noon and resets every 60 seconds, so I guess that's good!

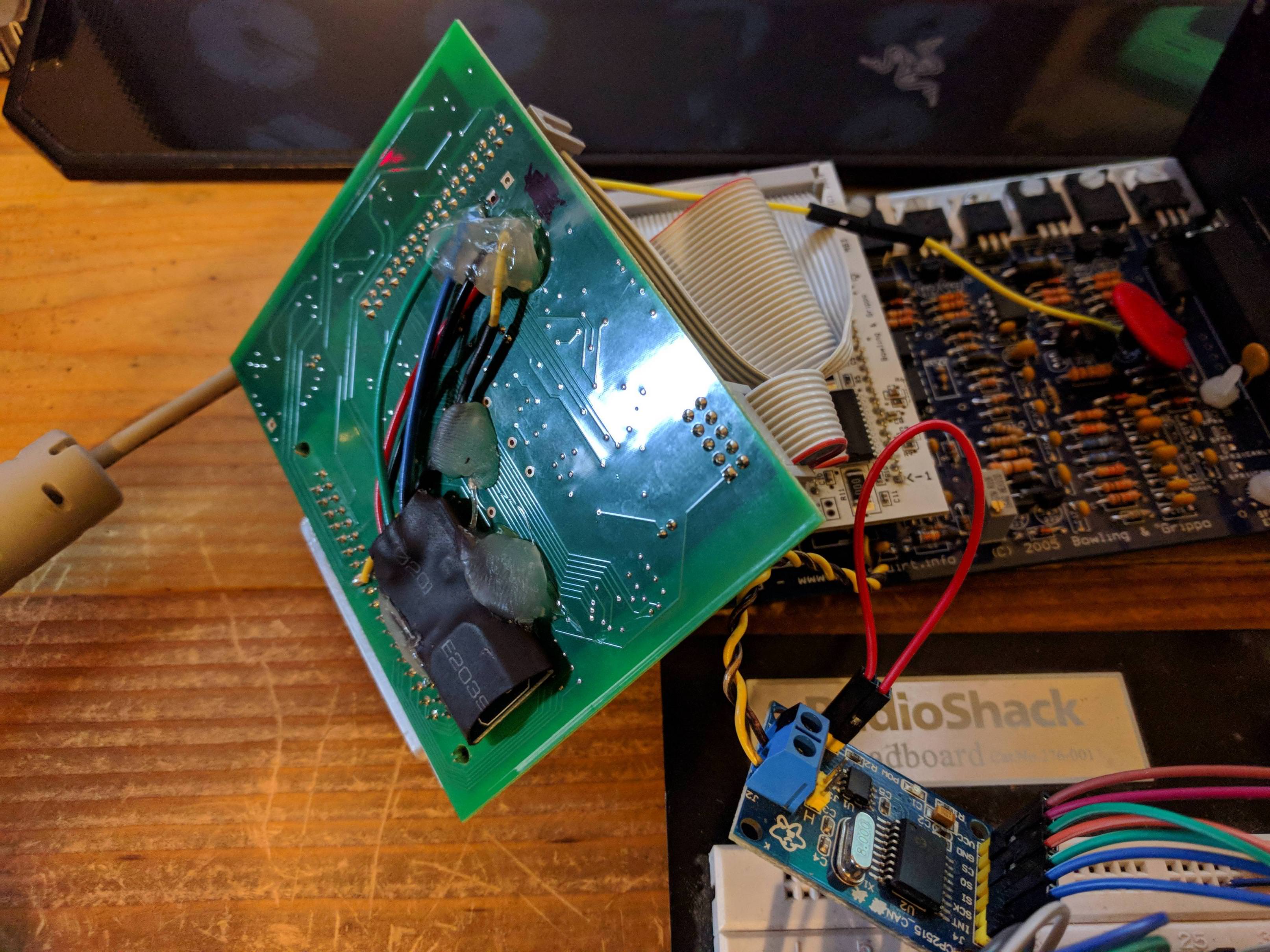

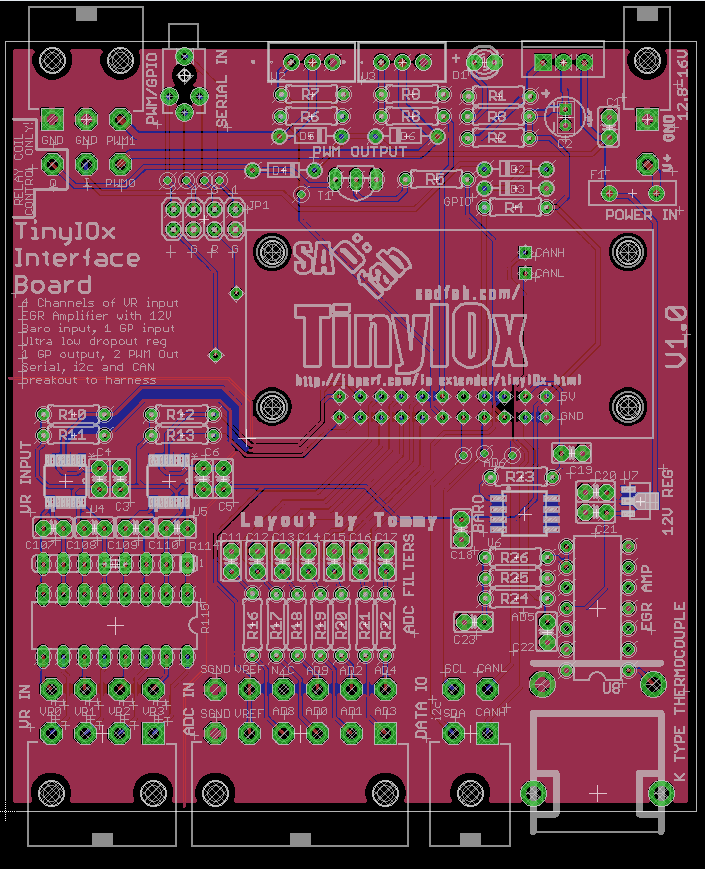

I also smashed my head against datasheets till **** bled and I finally understand configuring registers on SPI chips. I managed to get CAN realtime broadcasting working!! I could have used a teensy and saved a lot of time, but I need high speed 5V outputs for what I'm after so I'm staying with arduino. Now I just need to format everything like I like it and make some kind of display. I also taught myself eagle cad somewhere along the way, so I'll be having all sorts of fun with that one. I made this "interface" board for my tinyiox that should be here soon, it will hopefully fit in a cheap aluminum extruded case I'm getting from China.



I'd really like to make a bike rack that holds the thing up over the trunk, kinda like this guy has here. With a hardtop it gets a little trickier, but if you pull the chrome caps off the rear latches you get access to both bolt holes on each side and have room to run a stable across the trunk runner for the front fork. I'm hoping to use something off the tow hooks to grab the rear tire, then you can hold two bikes per miata!



Also, my PWM idle transistor exploded, just sitting chilling on the jimstim. I don't think I need it since I have ms3x but it's odd it smoked itself with no load hooked up.
deezums is offline
