Old 01-27-2015, 01:50 PM   #221
Junior Member
Thread Starter
iTrader: (1)

Join Date: Feb 2013
Location: Windsor, Ontario
Posts: 404
Total Cats: 64
Default

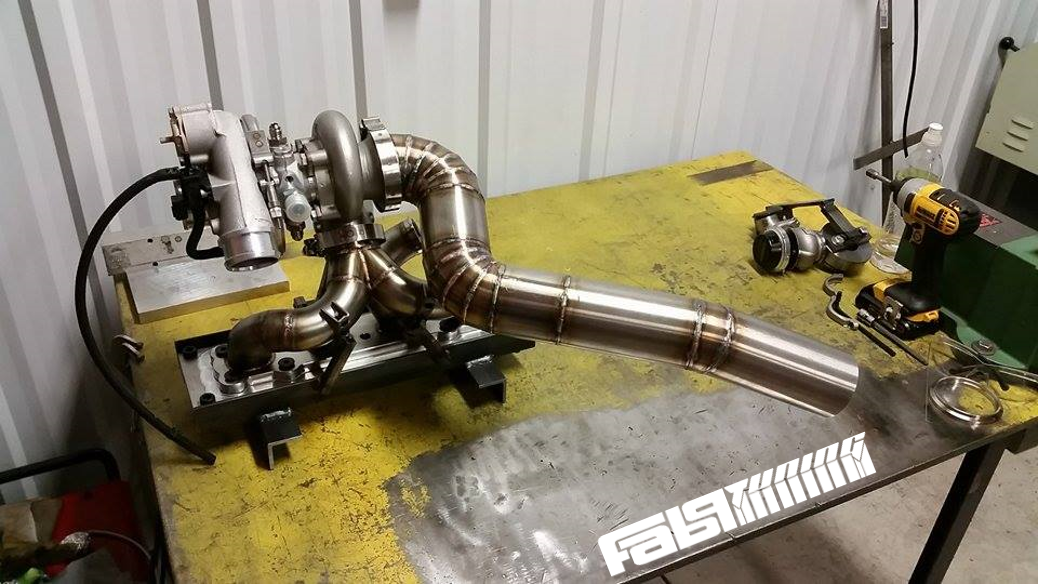

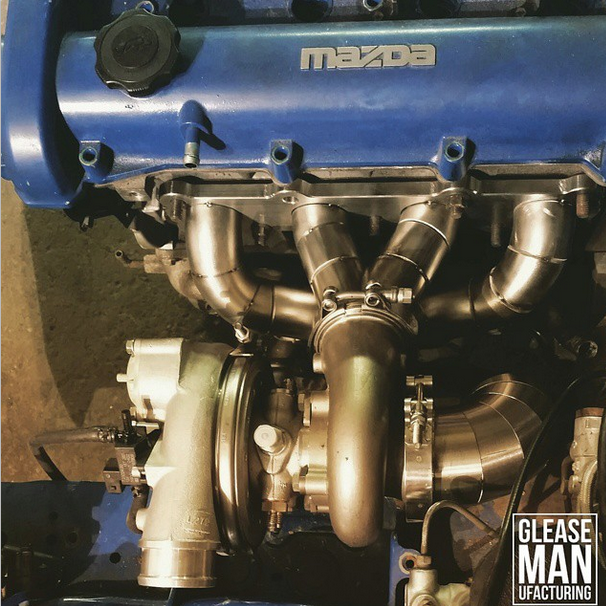

So, as I'm sure you guys can tell from the post above by Bryan, there is progress on the manifold! I'm really excited about this as its been a few months in the making. What started as a one-off manifold built by Glease Manufacturing is turning into something much more than that. After talking with Bryan a few times about the lack of manifold options for EFRs out there he mentioned how Fab9 was looking to offer something to the market so I introduced him to John of Glease Manufacturing and that's what brings us to the next few updates that will be posted in here.

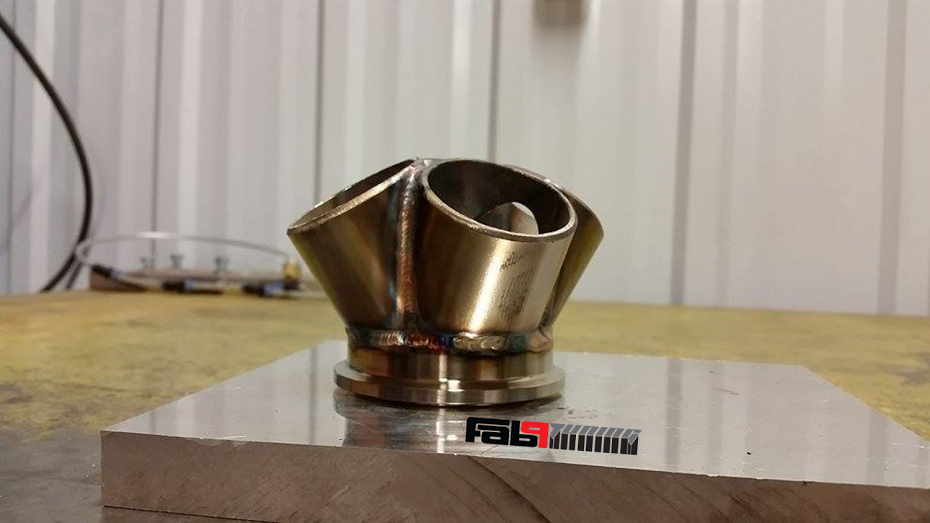

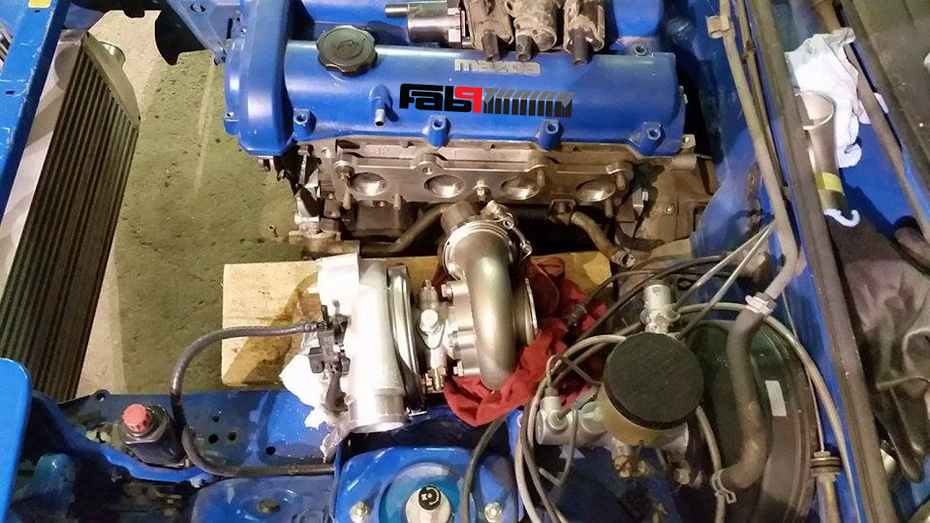

Here are a couple more pics, one more of the collector and one of the target placement for the turbo taken by a potato.

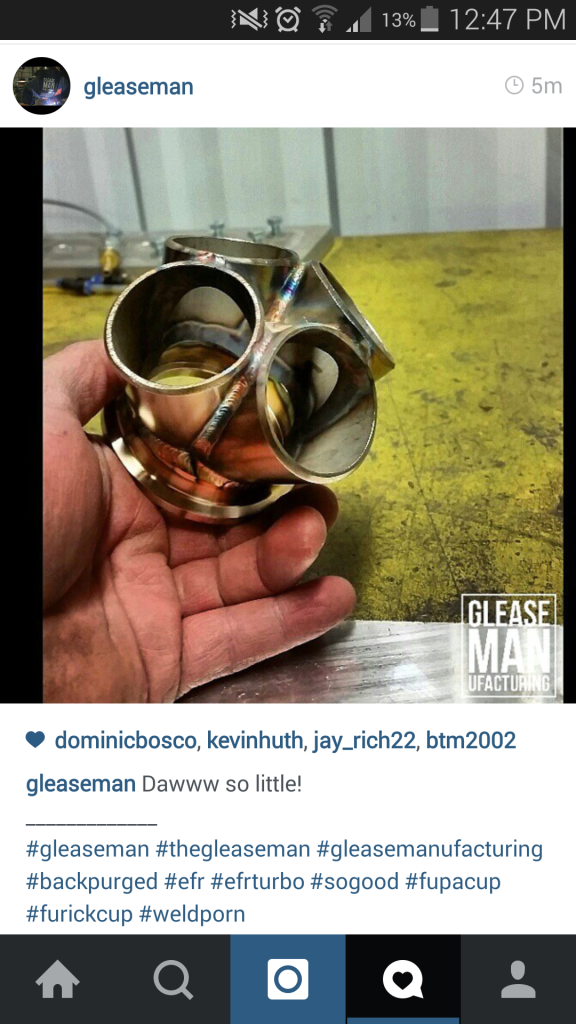

For you guys that have Instagram you can follow Glease Manufacturing as he posts updates of the build and other really sexy fab things @gleaseman

Attached Thumbnails
Building the boosted smurf-collector3_zps8bledpil.png   Building the boosted smurf-turbo%2520placement_zpsbfyu2haj.png   Building the boosted smurf-screenshot_2015-01-27-12-47-52_zpsyrzfc2om.png

Last edited by BoostedSmurf; 01-27-2015 at 02:03 PM.
BoostedSmurf is offline   Reply With Quote
Old 01-29-2015, 01:55 AM   #222
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Just saw the partially completed one on his instagram...hotness.

Jeffbucc is offline   Reply With Quote
Old 01-29-2015, 02:14 AM   #223
Junior Member
Thread Starter
iTrader: (1)

Join Date: Feb 2013
Location: Windsor, Ontario
Posts: 404
Total Cats: 64
Default

Quote:
Originally Posted by Jeffbucc View Post
Just saw the partially completed one on his instagram...hotness.
like I said in your thread. INB4 Jeff goes EFR
BoostedSmurf is offline   Reply With Quote
Old 01-29-2015, 02:18 AM   #224
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,191
Total Cats: 260
Default

Man this thing is gonna be slow!
Erat is offline   Reply With Quote
Old 01-29-2015, 03:59 AM   #225
FAB
Fab9Tuning.com
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 943
Total Cats: 394
Default

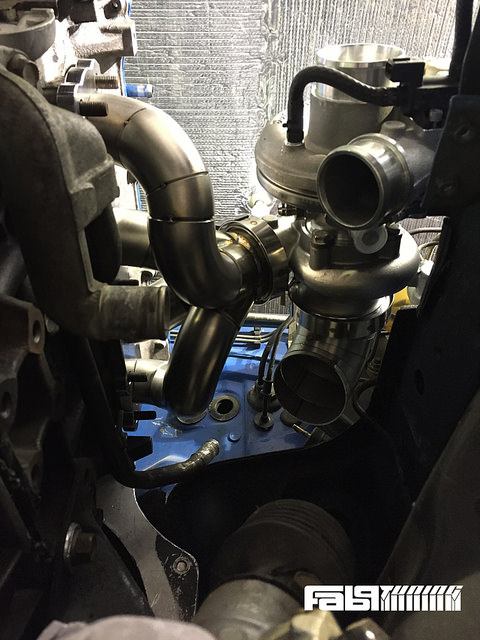

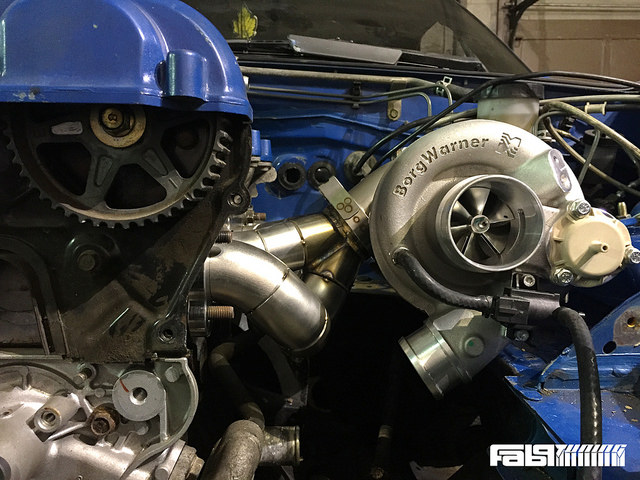

We spent some time tonight to finalize the down pipe and clock positions.. I think we're ready to go here Paul..



Attached Thumbnails
Building the boosted smurf-16392918282_da724fac8c_z.jpg   Building the boosted smurf-16207951587_a3a10f0b8e_z.jpg
FAB is offline   Reply With Quote
Old 01-29-2015, 04:31 AM   #226
Junior Member
Thread Starter
iTrader: (1)

Join Date: Feb 2013
Location: Windsor, Ontario
Posts: 404
Total Cats: 64
Default

Holy **** ***** it's beautiful
BoostedSmurf is offline   Reply With Quote
Old 01-29-2015, 05:14 AM   #227
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Bryan was your shelf already cut or is it necessary to clear the intake of the compressor?
Jeffbucc is offline   Reply With Quote
Old 01-29-2015, 06:02 AM   #228
Junior Member
Thread Starter
iTrader: (1)

Join Date: Feb 2013
Location: Windsor, Ontario
Posts: 404
Total Cats: 64
Default

Quote:
Originally Posted by Jeffbucc View Post
Bryan was your shelf already cut or is it necessary to clear the intake of the compressor?
That's my shelf, it was cut from when I installed the fmII on my car
BoostedSmurf is offline   Reply With Quote
Old 02-04-2015, 06:15 AM   #229
Junior Member
Thread Starter
iTrader: (1)

Join Date: Feb 2013
Location: Windsor, Ontario
Posts: 404
Total Cats: 64
Default

BoostedSmurf is offline   Reply With Quote
Old 02-04-2015, 03:26 PM   #230
Junior Member
Thread Starter
iTrader: (1)

Join Date: Feb 2013
Location: Windsor, Ontario
Posts: 404
Total Cats: 64
Default

So I ordered a good chunk of parts last weekend that should be showing up soon as I get ready to put the car together.

- 2 Mishimoto baffled catch cans
- Innovate EGT
- ID2000cc injectors
- Walbro 430lph fuel pump
- Fuelab 515 FPR
- Snow Performance Meth injection kit
- Setrab oil cooler

I know the injectors are big, but I don't want to run into the problem of possibly overworking ID1300's so I figured I'd give myself some headroom. And from what I'm read, the ID2000's linearity is great and shouldn't be too much of a pain for tuning. Plus they're right around the same price for either one. Although there's always the possibility that I've made a terrible mistake.

Car should be moving to a friend's garage closer to home this weekend at which point clean up and prep of the car will start and hopefully the engine will be ready shortly after that.
BoostedSmurf is offline   Reply With Quote
Old 02-04-2015, 05:44 PM   #231
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,191
Total Cats: 260
Default

Are you sure you're not going to run e85?
Erat is offline   Reply With Quote
Old 02-04-2015, 05:46 PM   #232
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,173
Total Cats: 2,575
Default

geez, id2k's. are you shooting for 700+?
that's some serious fueling.
18psi is offline   Reply With Quote
Old 02-04-2015, 06:16 PM   #233
Supporting Vendor
iTrader: (6)

Join Date: Mar 2005
Location: Broken Arrow,Ok
Posts: 1,061
Total Cats: 40
Default

This just keeps getting better and better. ID 2000's are bananas, but I like the feeling of headroom as well. Which setrab unit did you pick up? I'm also looking at those at the moment.
TheBandit is offline   Reply With Quote
Old 02-06-2015, 01:33 PM   #234
Junior Member
Thread Starter
iTrader: (1)

Join Date: Feb 2013
Location: Windsor, Ontario
Posts: 404
Total Cats: 64
Default

I realize it is serious fueling. I'm also trying to leave myself with a lot of headroom for down the road. The entire idea of this build is to do everything once, not needing to go back and keeping buying things again. The ID2000's will do their job at "moderate" power levels and will let me run crazy power levels when I decide to. And from my research the driveability tuning with them is relatively pain free.

@TheBandit - I went with the 25-row oil cooler
BoostedSmurf is offline   Reply With Quote
Old 02-06-2015, 01:57 PM   #235
Junior Member
Thread Starter
iTrader: (1)

Join Date: Feb 2013
Location: Windsor, Ontario
Posts: 404
Total Cats: 64
Default

BoostedSmurf is offline   Reply With Quote
Old 02-06-2015, 04:48 PM   #236
Junior Member
iTrader: (1)

Join Date: May 2014
Posts: 248
Total Cats: 13
Default

O LAWD.
stoves is offline   Reply With Quote
Old 02-06-2015, 09:44 PM   #237
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,173
Total Cats: 2,575
Default

aww yiss

propped
18psi is offline   Reply With Quote
Old 02-06-2015, 09:47 PM   #238
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,191
Total Cats: 260
Default

I had a dream last night that you dropped contact with everyone, sold everything off and you disappeared. It was a nightmare i never wish to awake from again.
Erat is offline   Reply With Quote
Old 02-06-2015, 10:31 PM   #239
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Wait... since when is this an EFR thread? I'm so behind :P
EO2K is offline   Reply With Quote
Old 02-06-2015, 10:37 PM   #240
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Quote:
Originally Posted by EO2K View Post
Wait... since when is this an EFR thread? I'm so behind :P
Since 7163 allofitness!

With your engine build and transmission actually able to hold 5-600 HP, I'm so excited for your first drag strip video.
Jeffbucc is offline   Reply With Quote
