Old 10-16-2014, 03:41 PM   #201
Junior Member
Thread Starter
iTrader: (1)

Join Date: Feb 2013
Location: Windsor, Ontario
Posts: 404
Total Cats: 64
Default

Quote:
Originally Posted by Jeffbucc View Post
Jesus Paul...this is going to be incredible.
I haven't even posted pics of the turbo yet
BoostedSmurf is offline   Reply With Quote
Old 10-16-2014, 04:46 PM   #202
FAB
Fab9Tuning.com
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 943
Total Cats: 394
Default

Quote:
Originally Posted by BoostedSmurf View Post

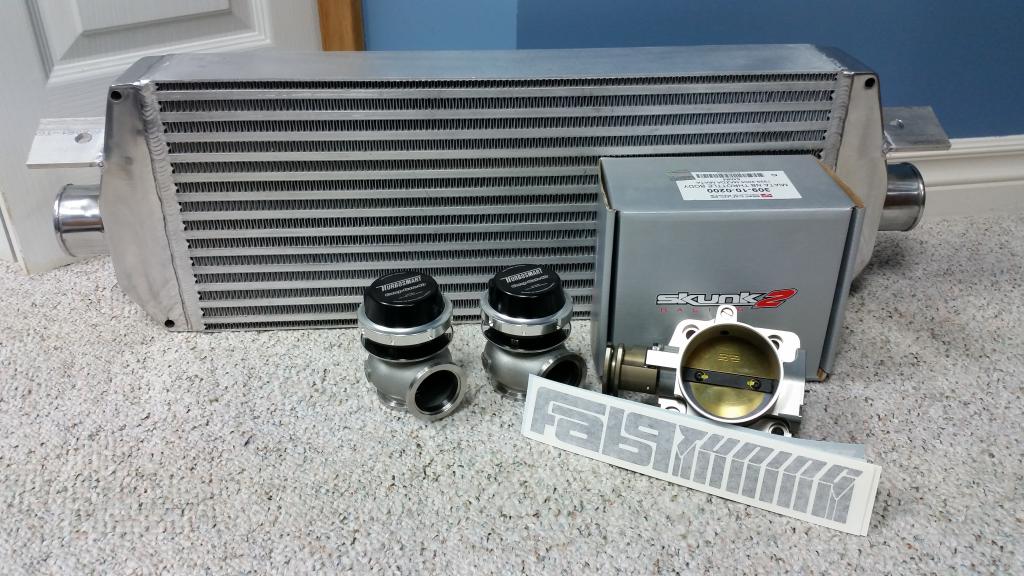

Met up with Bryan from Fab9 today to pick up the first few parts. I can only bring so many parts across the border at a time before I start getting charged extra fees and duty. That and I have to pay for all my fabwork on the drivetrain swap and manifold before I really start ordering parts.

Fab9 550hp intercooler
Skunk2 throttlebody
2 40mm Turbosmart external wastegates

...I feel like I'm feeding my own defeat. This car is going to be very fast - might have to up my game a bit. I've already decided that if you come across the boarder and you're faster than me, I'm buying an Exocet and dropping my power plant into it.
FAB is offline   Reply With Quote
Old 10-16-2014, 04:48 PM   #203
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Quote:
Originally Posted by FAB View Post
I've already decided that if you come across the boarder and you're faster than me, I'm buying an Exocet and dropping my power plant into it.
So suicide by Exocet? I can't imagine your power plant at 1500lbs...scary scay scary.
Jeffbucc is offline   Reply With Quote
Old 10-16-2014, 05:18 PM   #204
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,196
Total Cats: 260
Default

Quote:
Originally Posted by FAB View Post
...I feel like I'm feeding my own defeat. This car is going to be very fast - might have to up my game a bit. I've already decided that if you come across the boarder and you're faster than me, I'm buying an Exocet and dropping my power plant into it.
So what size EFR did you sell him?
Erat is offline   Reply With Quote
Old 10-16-2014, 05:34 PM   #205
FAB
Fab9Tuning.com
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 943
Total Cats: 394
Default

Quote:
Originally Posted by Erat View Post
So what size EFR did you sell him?
A gentleman doesn't kiss and tell.
FAB is offline   Reply With Quote
Old 10-16-2014, 10:53 PM   #206
Junior Member
Thread Starter
iTrader: (1)

Join Date: Feb 2013
Location: Windsor, Ontario
Posts: 404
Total Cats: 64
Default

Quote:
Originally Posted by FAB View Post
...I feel like I'm feeding my own defeat. This car is going to be very fast - might have to up my game a bit. I've already decided that if you come across the boarder and you're faster than me, I'm buying an Exocet and dropping my power plant into it.
I'm looking forward to the Exocet build haha

@erat, you'll just have to wait until it shows up to find out. Shouldn't be much longer

Last edited by BoostedSmurf; 10-16-2014 at 11:27 PM.
BoostedSmurf is offline   Reply With Quote
Old 11-11-2014, 02:33 PM   #207
Junior Member
Thread Starter
iTrader: (1)

Join Date: Feb 2013
Location: Windsor, Ontario
Posts: 404
Total Cats: 64
Default

So a little bit of an update.

Finally found a Tii diff, unfortunately it is an s5 diff rather than an s4 so it is not the clutch type LSD. Oh well, I wanted to get the mounts fabbed up and didn't want to wait around anymore. I'll still try to find an s4 diff and then this diff will become a spare.

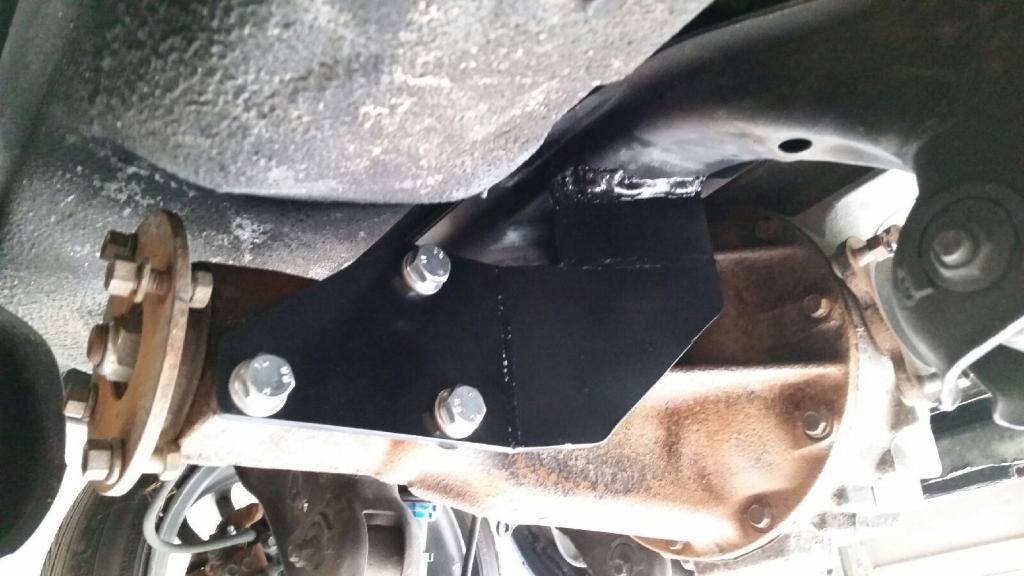

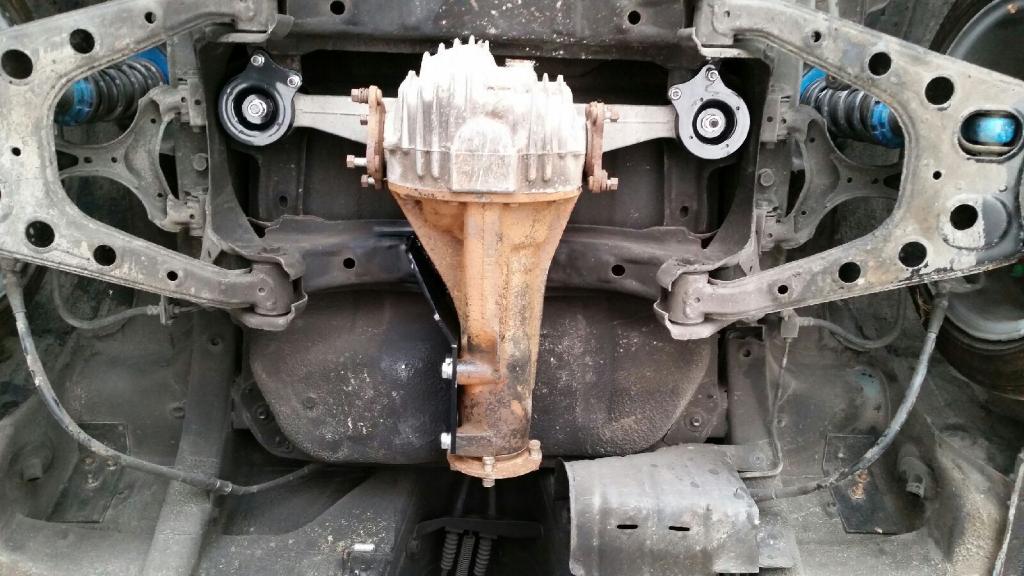

Diff is now mounted in the car, next is installing the hubs I got today from MonsterMiata since MiataRoadster stopped making them. I also need to take measurements and have a driveshaft built.

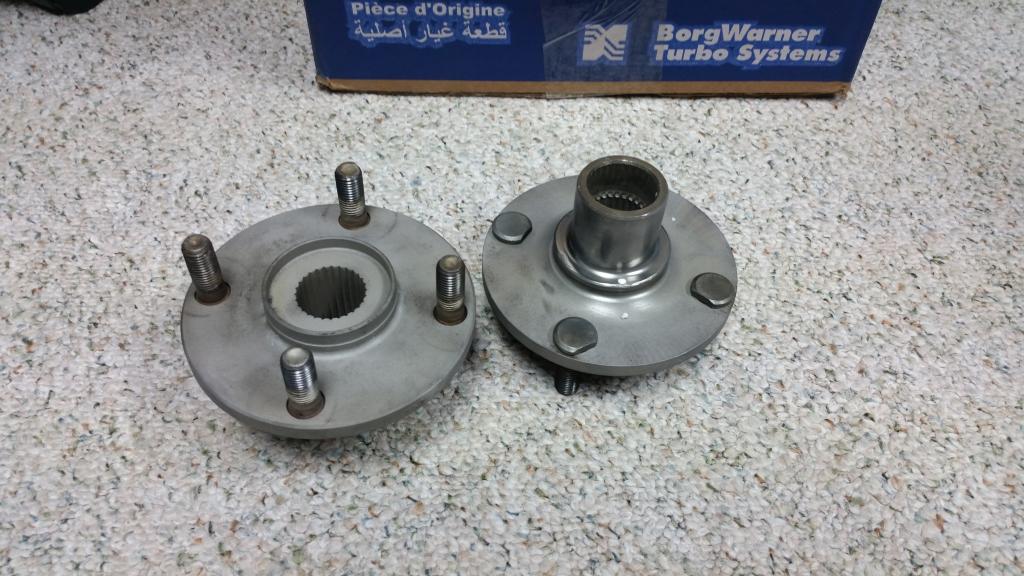

New miata rear hubs broached to fit rx7 axles

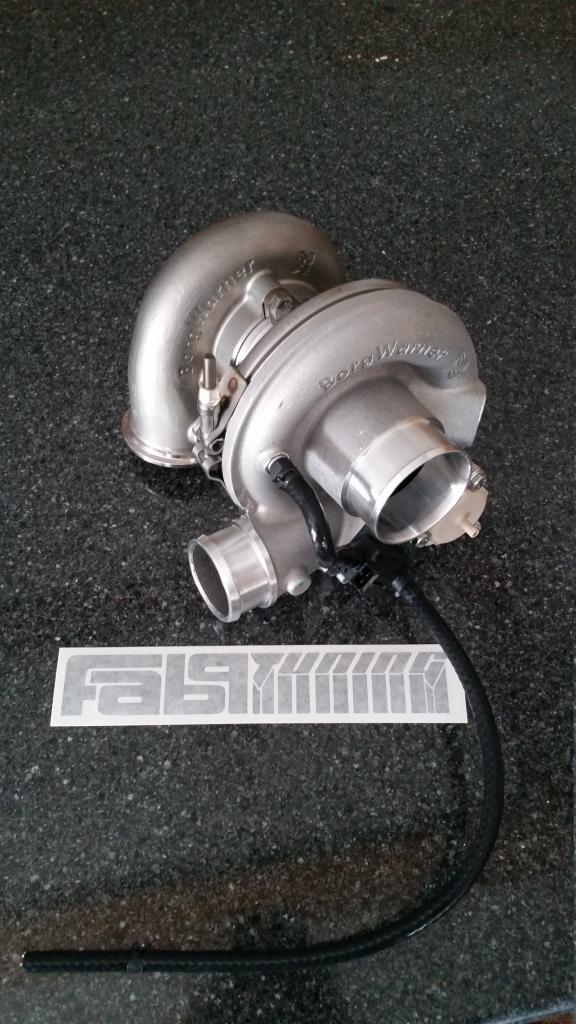

And finally, here it is! Visited Bryan at fab9 today to pick up my turbo. Decided to go with an EFR 7163 vband. Originally was going to go twin scroll but decided to go with the single scroll vband. So pretty!


Work should begin on the manifold in the next week or two!
Attached Thumbnails
Building the boosted smurf-20141030_140557_zpsp2wit6en.jpg   Building the boosted smurf-20141030_140536_zpsb2sblose.jpg   Building the boosted smurf-20141111_131653_zpst19twvkg.jpg   Building the boosted smurf-20141111_130502_zpsfyy1yonh.jpg
BoostedSmurf is offline   Reply With Quote
Old 12-05-2014, 01:39 PM   #208
Junior Member
Thread Starter
iTrader: (1)

Join Date: Feb 2013
Location: Windsor, Ontario
Posts: 404
Total Cats: 64
Default

Been kind of quiet around here. Been waiting on progress on the manifold and DP before ordering too many more things but then I got impatient.

Ordered all the engine things:

- Wiseco 83.5mm 8.5:1 Pistons
- Manley Forged H-beam Rods
- ARP head studs
- ARP main studs
- ATI Harmonic Balancer
- ACL RACE bearings
- Cometic MLS Headgasket
- Boundary Engineering Street Oil Pump 2 shims
- Supertech Intake Valves
- Supertech Exhaust Valves
- Supertech Dual Valve Spring Kit 63lbs
- Supertech Valve Seal Set
- Gaskets - Oil Pan, Crankshaft + Front Seal, Rear Main
- Gates Complete Water Pump + Racing Timing Component Kit

Finally made it out to do some work on the car last weekend.

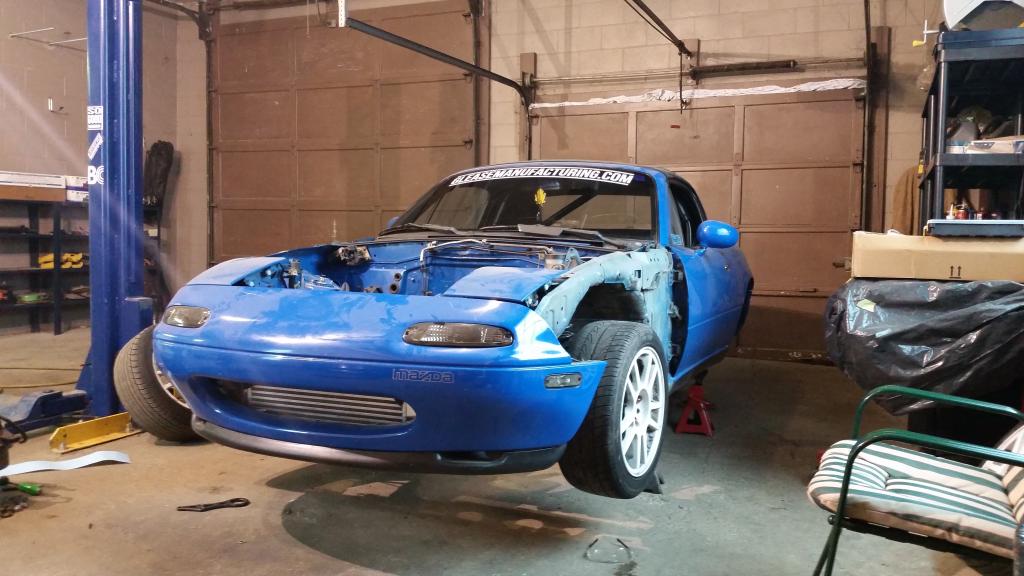

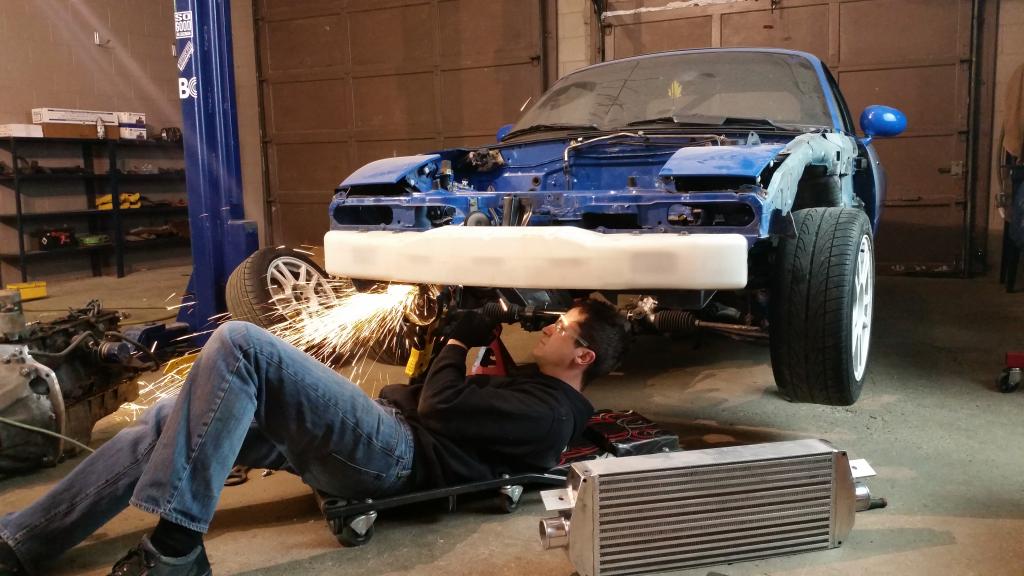

Made the cuts to fit the Stage 2 Fab9Tuning intercooler and mocked that up. The pulled the rear hubs, just waiting on my wheel bearings to come in before putting the new hubs back in.



Attached Thumbnails
Building the boosted smurf-20141122_123858_zps8yax5lot.jpg   Building the boosted smurf-20141122_144158_zpseornsjvl.jpg
BoostedSmurf is offline   Reply With Quote
Old 12-07-2014, 03:26 AM   #209
Junior Member

Join Date: Sep 2012
Location: New Zealand Christchurch
Posts: 207
Total Cats: -5
Default

loving the progress should be pretty scary when shes done
jimmyneutron is offline   Reply With Quote
Old 12-07-2014, 11:45 AM   #210
Supporting Vendor
iTrader: (6)

Join Date: Mar 2005
Location: Broken Arrow,Ok
Posts: 1,061
Total Cats: 40
Default

Incredible progress! I'm definitely in to see how this gets sorted out. You went full baller on us with the 7163.
TheBandit is offline   Reply With Quote
Old 12-18-2014, 10:22 AM   #211
Junior Member
Thread Starter
iTrader: (1)

Join Date: Feb 2013
Location: Windsor, Ontario
Posts: 404
Total Cats: 64
Default

Quote:
Originally Posted by jimmyneutron View Post
loving the progress should be pretty scary when shes done
Quote:
Originally Posted by TheBandit View Post
Incredible progress! I'm definitely in to see how this gets sorted out. You went full baller on us with the 7163.
Thanks guys! I'm a little nervous about driving a Miata with however much power it'll make with the 7163 but really looking forward to it at the same time. Only problem is I can't go for all the power ever because no E85. Limited to pump gas and meth.

Nothing much new. Got the hubs swapped out so I can install my axles and see what needs to be modified on the exhaust to make that fit.

I want to have the engine at the machine shop in the next week or two.

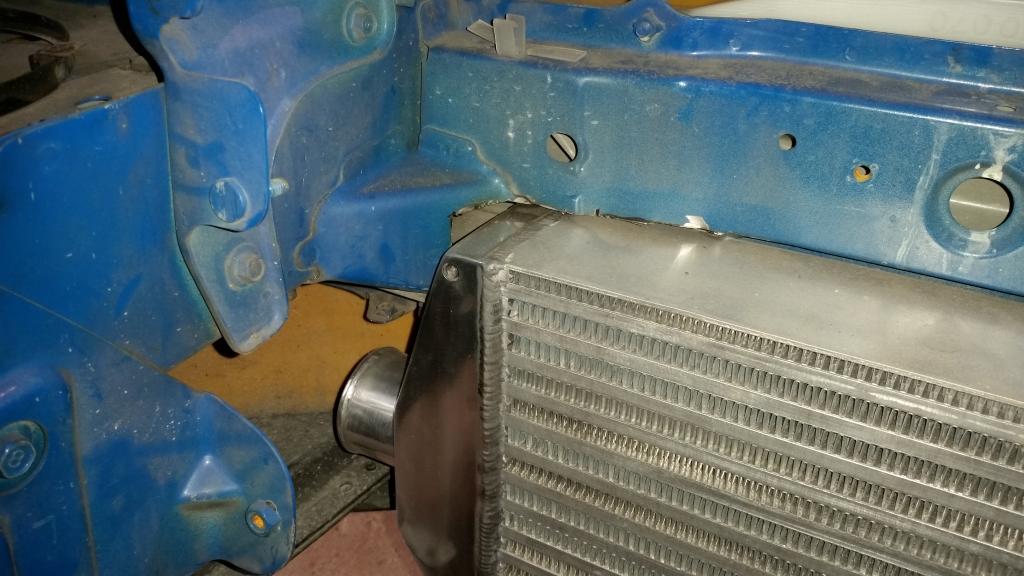

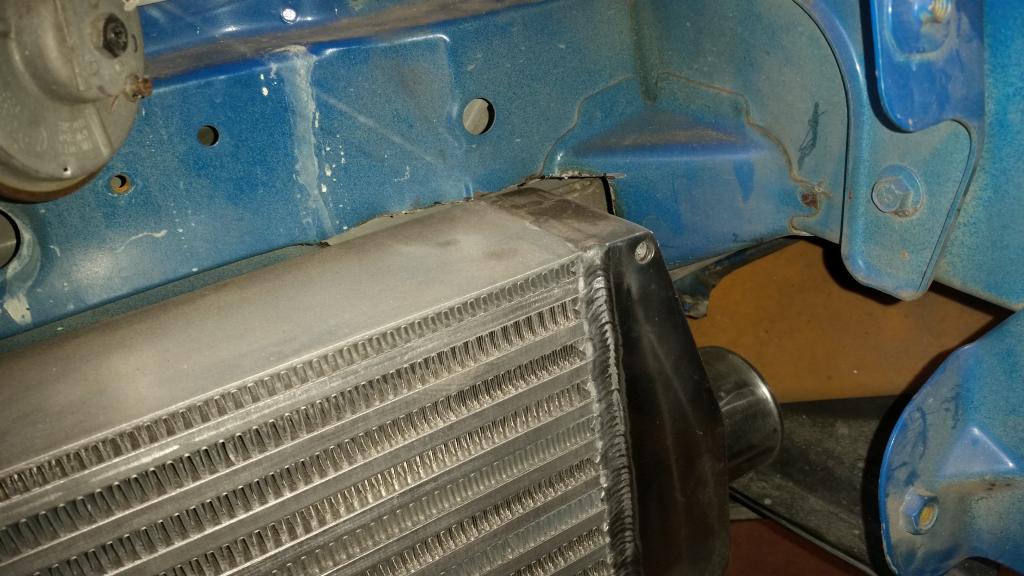

I couldn't find any pics online of the cuts that were needed to fit the stage 2 intercooler from Fab9 so I took these to give people an idea. Not the prettiest cuts but they'll do.





Got word that things are actually happening for the manifold now so that's kind of exciting. After the manifold and downpipe are built the car can finally come closer to home where I can actually make some progress on putting things together.
Attached Thumbnails
Building the boosted smurf-20141213_134635_zpsb0to8ndb.jpg   Building the boosted smurf-20141213_134644_zpst8ocew8z.jpg
BoostedSmurf is offline   Reply With Quote
Old 12-18-2014, 08:27 PM   #212
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,196
Total Cats: 260
Default

You don't have e85 over there? That blows.

If you ever want to put an e85 tune on for whatever reason we have plenty of it here.
Erat is offline   Reply With Quote
Old 12-19-2014, 09:33 AM   #213
Junior Member
Thread Starter
iTrader: (1)

Join Date: Feb 2013
Location: Windsor, Ontario
Posts: 404
Total Cats: 64
Default

Quote:
Originally Posted by Erat View Post
You don't have e85 over there? That blows.

If you ever want to put an e85 tune on for whatever reason we have plenty of it here.
As soon as the first e85 pump is in windsor I'll look at tuning for e85, until then I'll just deal with pump gas.

Although having e85 for those nights on Woodward could be fun I don't think it's worth the hassle until I'm able to get it locally too.
BoostedSmurf is offline   Reply With Quote
Old 01-18-2015, 06:46 AM   #214
Junior Member
Thread Starter
iTrader: (1)

Join Date: Feb 2013
Location: Windsor, Ontario
Posts: 404
Total Cats: 64
Default

Couple more small updates, just finishing up some loose ends while waiting for progress on my manifold and motor. Just waiting on the EFR vband flange to show up for the manifold build to start and last I heard the machine work was completed on the block earlier this week, hoping for that to be done in a few weeks so assembly on the rest of the car can start.

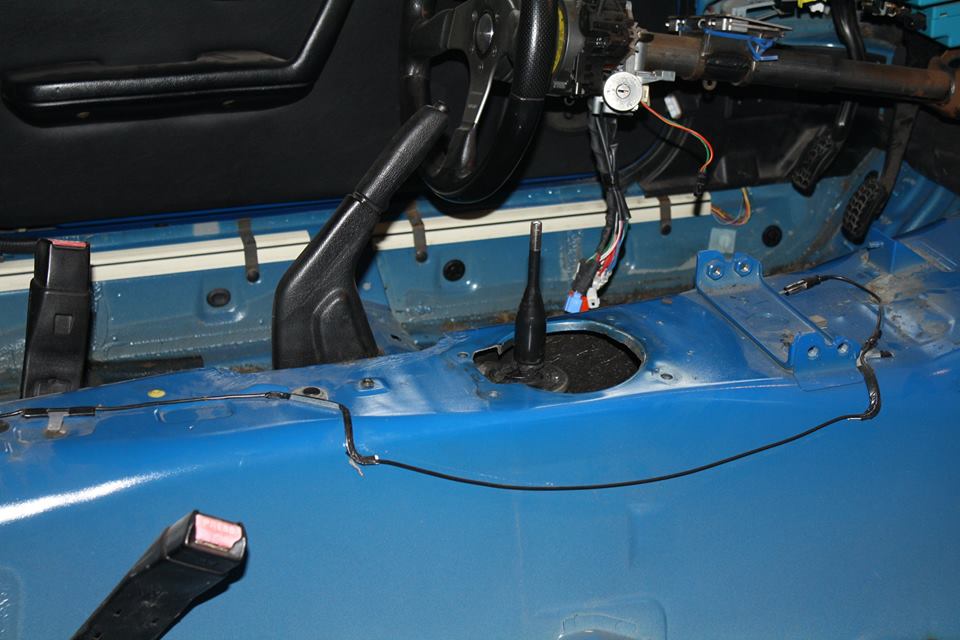

Cuts made in the transmission tunnel for the TII shifter to fit because of the longer transmission.

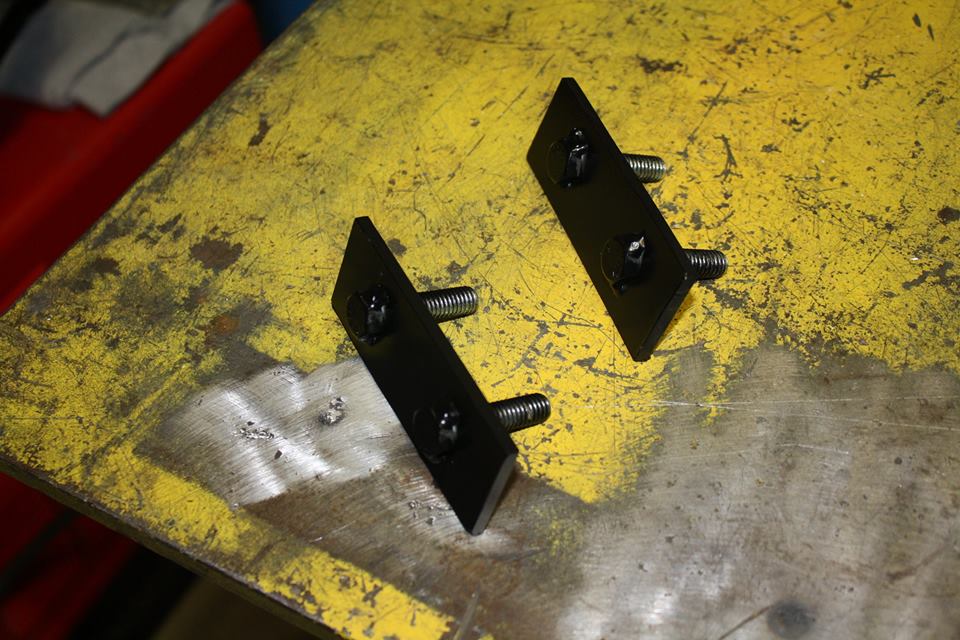

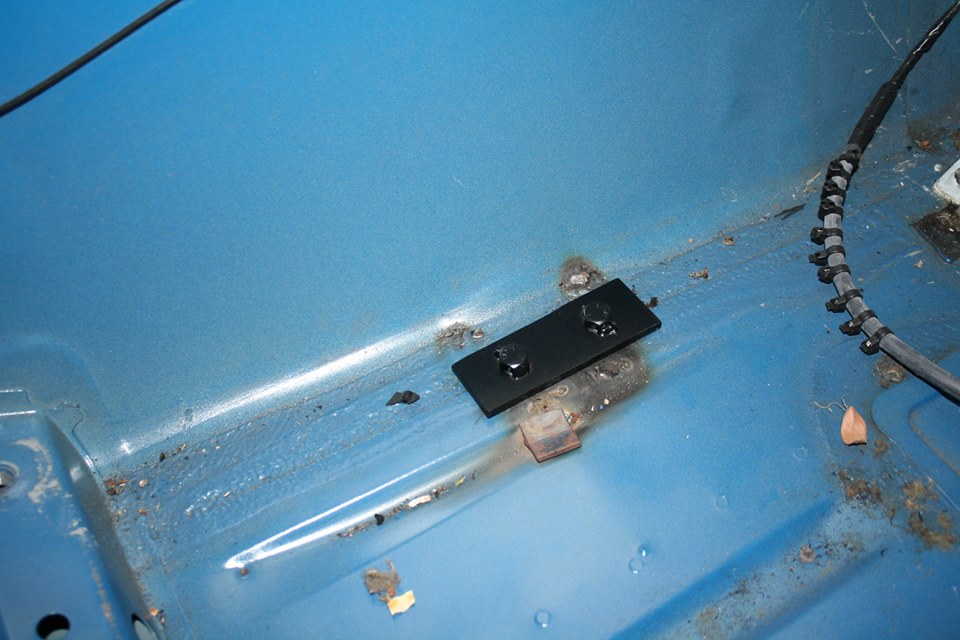

Someone brought up that the mounts on just the bottom side of the car for the transmission might not be strong enough, so with the entire theme of this build and overdoing everything we went back and added bolt on plates from the top side to give it a bit more strength. The original mounts probably would have been fine but while we're in there may as well do this as well. Doesn't hurt.

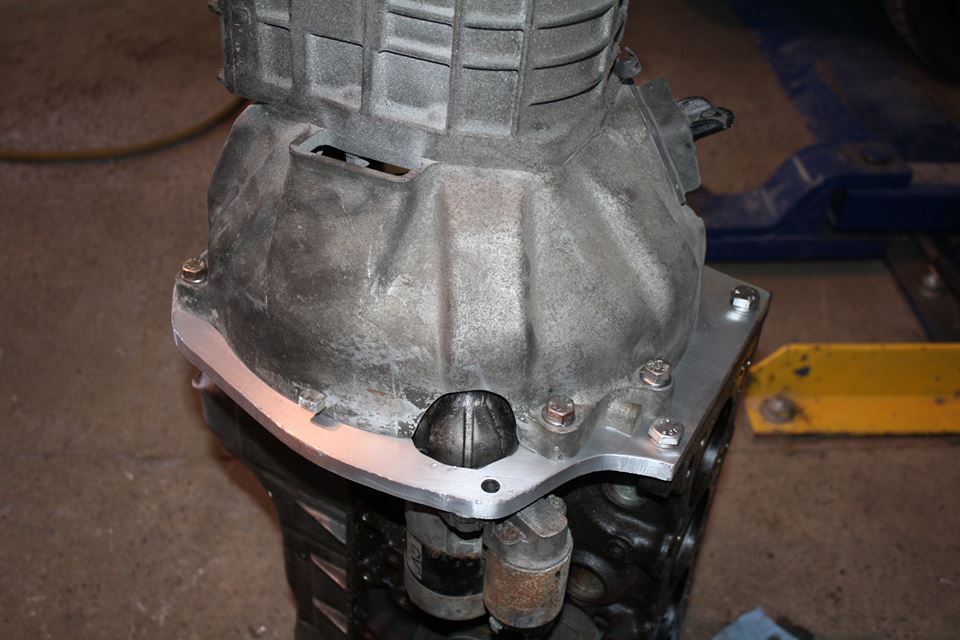

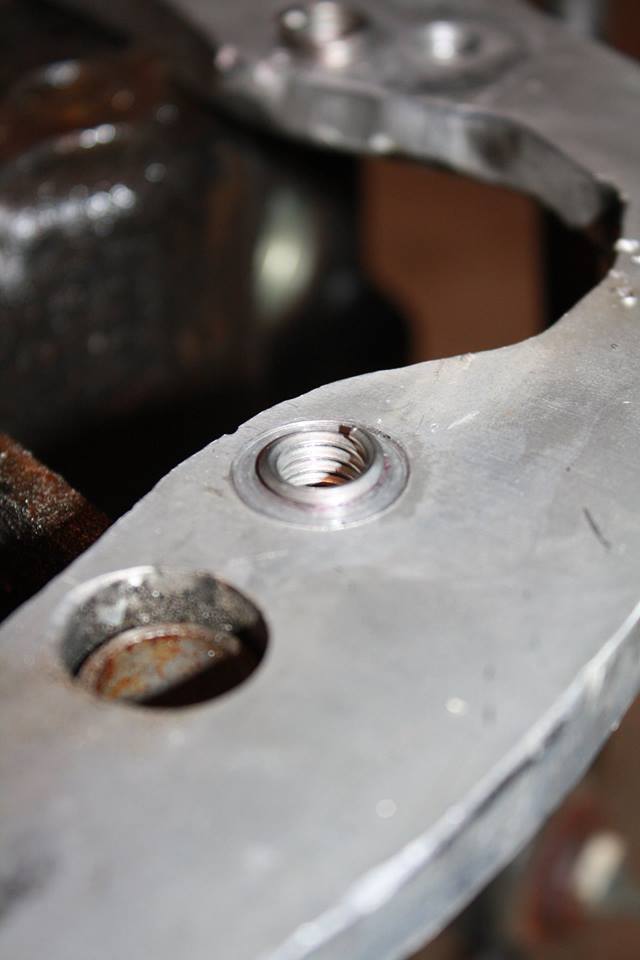

Then there was an issue with the starter. The way it mounted to the adapter plate meant that the trans would need to be removed to change the starter in case it ever failed. Rather than dealing with that a helicoil was added to the adapter plate to allow for easy r&r of the starter.



All together again

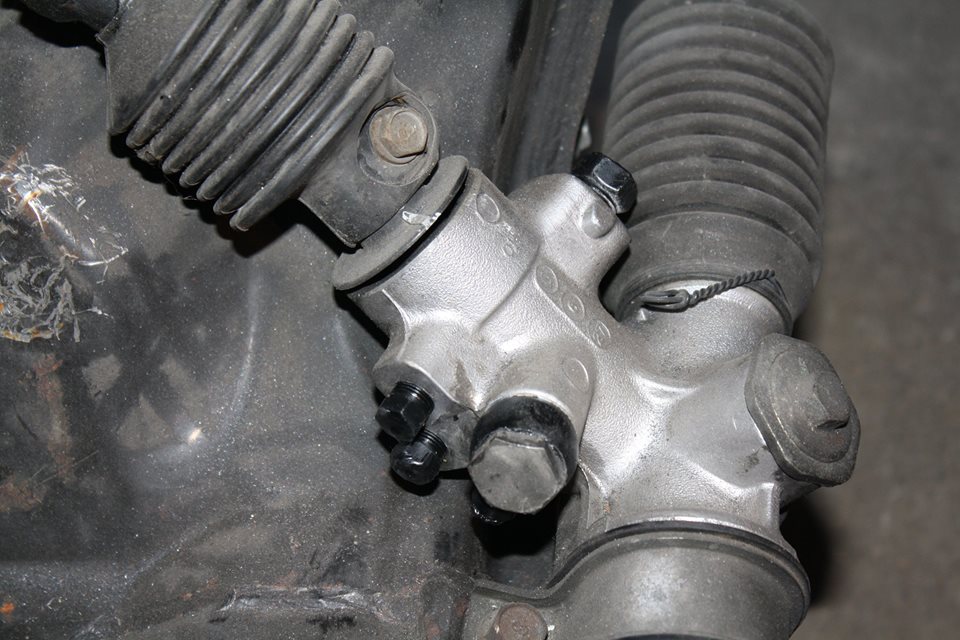

Then the power steering delete on the rack was cleaned up. I did it really ghetto last time since it was a last minute thing when I was putting the car together and I just had the lines crimped and twisted. Not like anyone will ever see this but its a bit cleaner

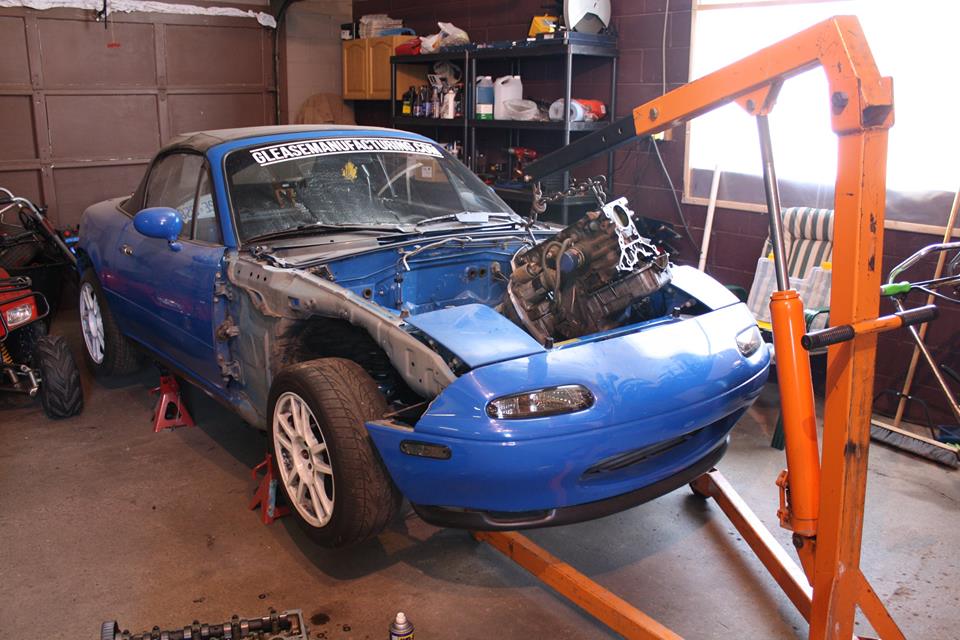

Mock up motor back in the car for manifold fab



New hubs were installed with the axles. Pretty tight squeeze with the bigger axles so the exhaust is definitely going to have to be modified.

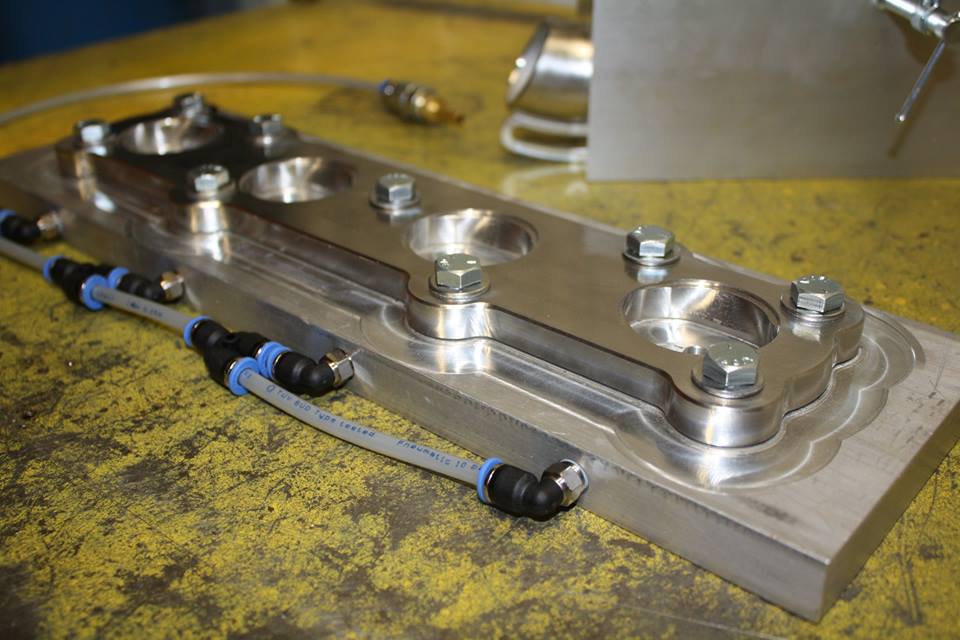

And a little teaser of things to come.. Hello stainless steel sexiness

Attached Thumbnails
Building the boosted smurf-10917746_10152696990673541_881684142_n_zpsbb87f151.jpg   Building the boosted smurf-10928729_10152696990653541_1475241238_n_zps9b916f97.jpg   Building the boosted smurf-10904208_10152696990648541_1689919210_n_zps064aaffe.jpg   Building the boosted smurf-10928043_10152696990633541_1929488678_n_zpsfb403581.jpg   Building the boosted smurf-961462_10152696990638541_1820024181_n_zps45aa5f17.jpg

Building the boosted smurf-10893682_10152696990643541_709671537_n_zps12b382c4.jpg   Building the boosted smurf-10893895_10152696990663541_20847465_n_zps055f2cc0.jpg   Building the boosted smurf-10893610_10152696990678541_1138997118_n_zps5e51aab8.jpg
BoostedSmurf is offline   Reply With Quote
Old 01-19-2015, 01:34 PM   #215
Junior Member
Thread Starter
iTrader: (1)

Join Date: Feb 2013
Location: Windsor, Ontario
Posts: 404
Total Cats: 64
Default

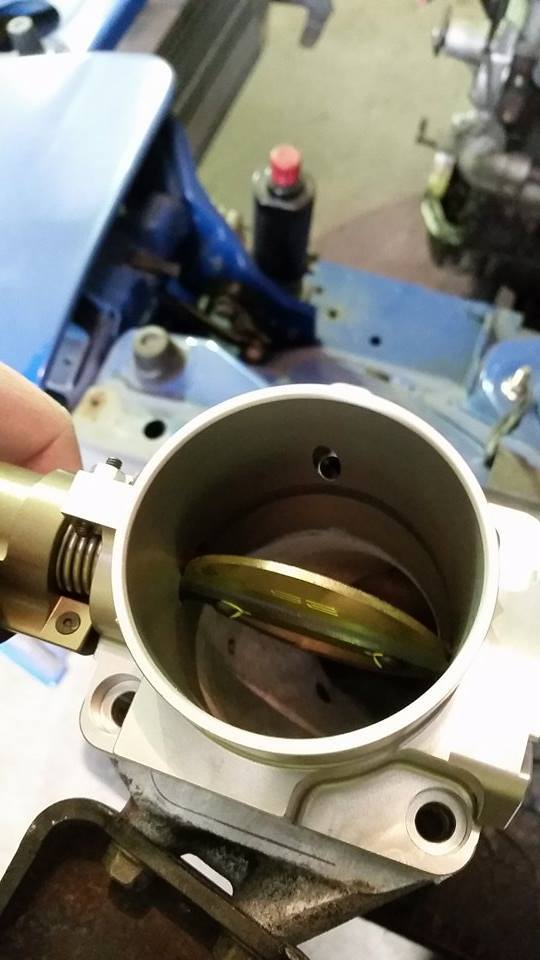

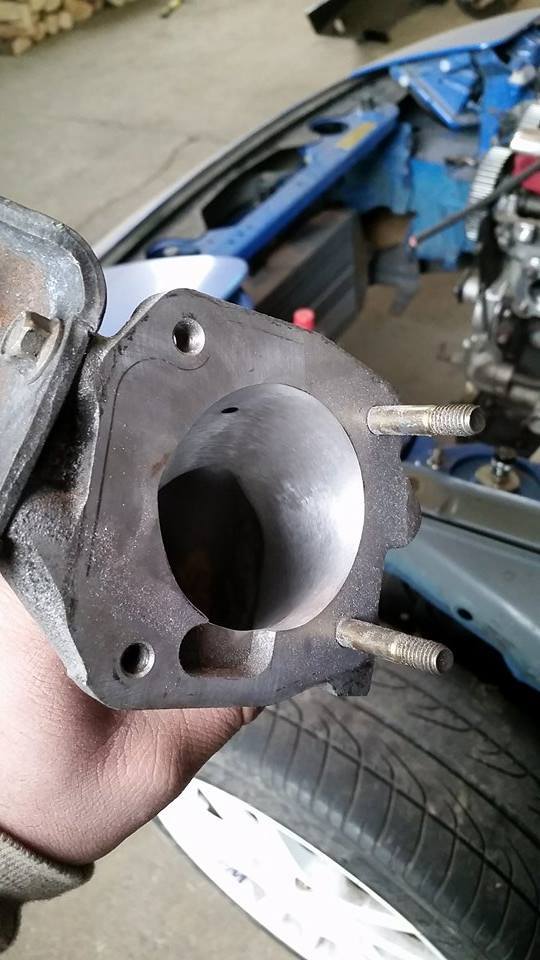

Had my Squaretop manifold inlet matched up to the bigger skunk2 throttle body.


Attached Thumbnails
Building the boosted smurf-received_10152748131193541_zpsokmfz8bg.jpeg   Building the boosted smurf-received_10152748131093541_zpslmmospfs.jpeg
BoostedSmurf is offline   Reply With Quote
Old 01-25-2015, 05:07 PM   #216
Junior Member
Thread Starter
iTrader: (1)

Join Date: Feb 2013
Location: Windsor, Ontario
Posts: 404
Total Cats: 64
Default

Picked up some more things today.

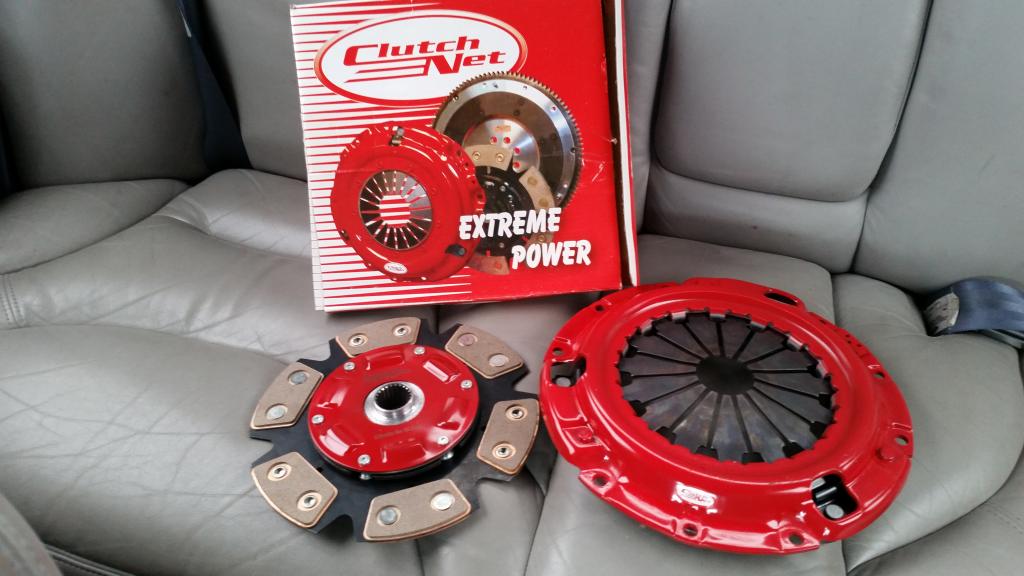

Custom clutch kit from clutchnet.com to work with my TII transmission. Rated for 500ft/lb of torque.

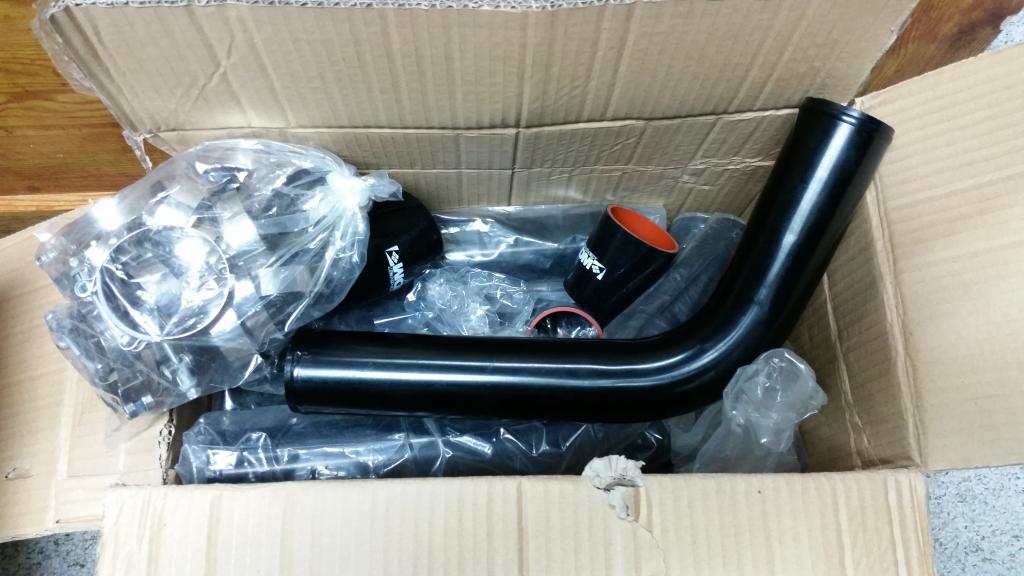

Intercooler piping from Vlad. I was an idiot and just looked at the picture really quickly on mobile when buying it and didn't realize they were black. Oh well, I'll make it work.

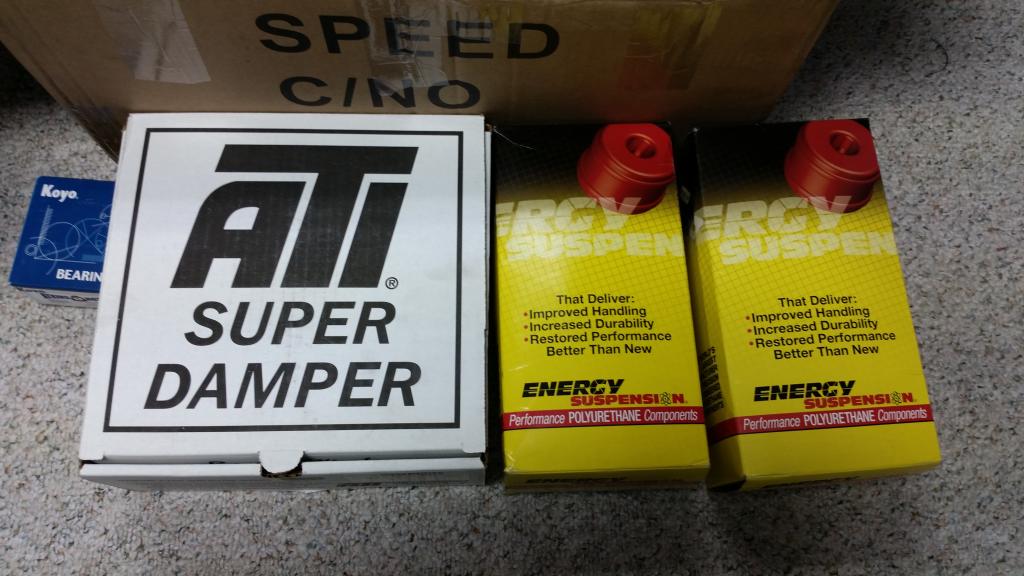

Met up with Bryan from Fab9 again for a few more parts before putting in another bigger order in the next few weeks.


Some exciting things should be happening in the next week or two. The vband flange for the manifold showed up today so that will start to be built tomorrow morning. The block is assembled, and head work including port and polish should be started this week, just had to wait on the machine shop to get the tooling to do the +2mm valves. Hoping for the engine and hot side to be done in the next 2 weeks.
Attached Thumbnails
Building the boosted smurf-20150125_145331_zps25anhpq8.jpg   Building the boosted smurf-20150125_154910_zpscuhwbzzz.jpg   Building the boosted smurf-20150125_155045_zpsuluodry5.jpg
BoostedSmurf is offline   Reply With Quote
Old 01-26-2015, 03:19 AM   #217
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,578
Default

hahaha what color did you think they were?

cool progress, so clutch net just made a 1 off to your spec? for the clutch
18psi is offline   Reply With Quote
Old 01-26-2015, 04:40 AM   #218
Junior Member
Thread Starter
iTrader: (1)

Join Date: Feb 2013
Location: Windsor, Ontario
Posts: 404
Total Cats: 64
Default

Quote:
Originally Posted by 18psi View Post
hahaha what color did you think they were?

cool progress, so clutch net just made a 1 off to your spec? for the clutch
I thought they were just shiny aluminum haha

Basically. They made the clutch disk the diameter of a miata clutch with the spline of a tii transmission (23x1). Actually pretty affordable, especially with that torque capacity. It was supposed to be a two week turnaround but they kept putting it off and delaying the shipping so it turned into a 1-2 month wait.
BoostedSmurf is offline   Reply With Quote
Old 01-26-2015, 11:55 PM   #219
FAB
Fab9Tuning.com
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 943
Total Cats: 394
Default

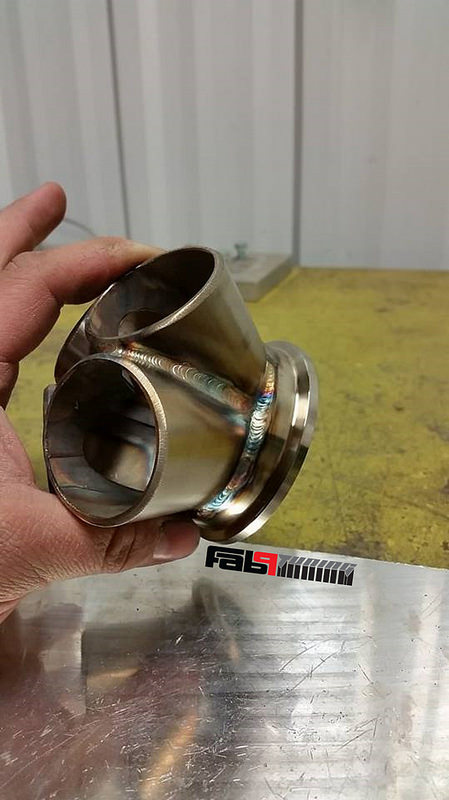

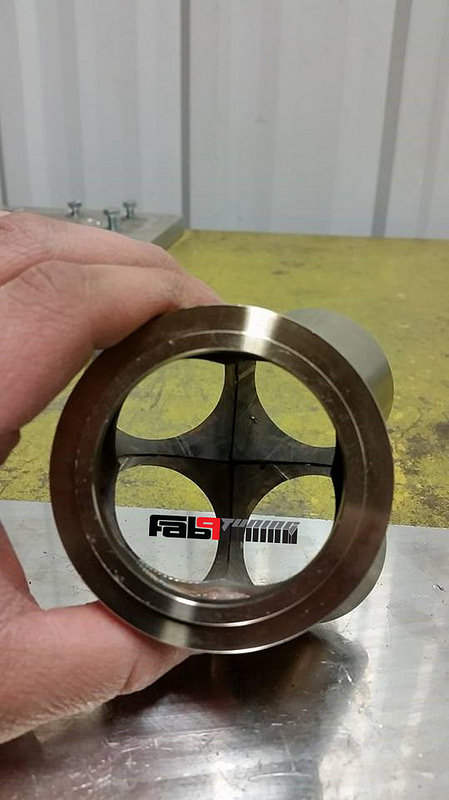

Ohhh Paul....



Attached Thumbnails
Building the boosted smurf-16376899182_6fc03efe04_c.jpg   Building the boosted smurf-16377794795_0e0ef9e1ec_c.jpg
FAB is offline   Reply With Quote
Old 01-27-2015, 12:33 AM   #220
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,457
Default

Quote:
Originally Posted by FAB View Post
Ohhh Paul....



ungggg, image quoted because of sexiness.
aidandj is offline   Reply With Quote
