Old 07-01-2014, 11:13 AM   #121
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

Wow, just wow.
Zaphod is offline   Reply With Quote
Old 07-01-2014, 11:02 PM   #122
Supporting Vendor

KMiata's Avatar

Join Date: Sep 2012
Posts: 444
Total Cats: 145
Default

This thing is going to be nuts. Really nice work here.
KMiata is offline   Reply With Quote
Old 07-02-2014, 01:56 PM   #123
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

These flares look so much nicer.

Good job.
shlammed is offline   Reply With Quote
Old 07-02-2014, 02:35 PM   #124
Elite Member
iTrader: (1)

cordycord's Avatar

Join Date: Dec 2011
Location: SoCal
Posts: 1,775
Total Cats: 148
Default

Need to see fireballs spitting out of the exhaust during the dyno pull, and then the craziness that this thing is capable of at the track.
cordycord is offline   Reply With Quote
Old 07-02-2014, 02:36 PM   #125
Junior Member
Thread Starter
iTrader: (5)

Join Date: Feb 2010
Location: Hubertus, WI
Posts: 189
Total Cats: 45
Default

Quote:
Originally Posted by cordycord View Post
Need to see fireballs spitting out of the exhaust during the dyno pull, and then the craziness that this thing is capable of at the track.
Hopefully will be on the dyno end of the month early August. Then on track right away! Its been way too long!
1BAD96 is offline   Reply With Quote
Old 09-16-2014, 09:34 AM   #126
Junior Member
Thread Starter
iTrader: (5)

Join Date: Feb 2010
Location: Hubertus, WI
Posts: 189
Total Cats: 45
Default

Some small updates:

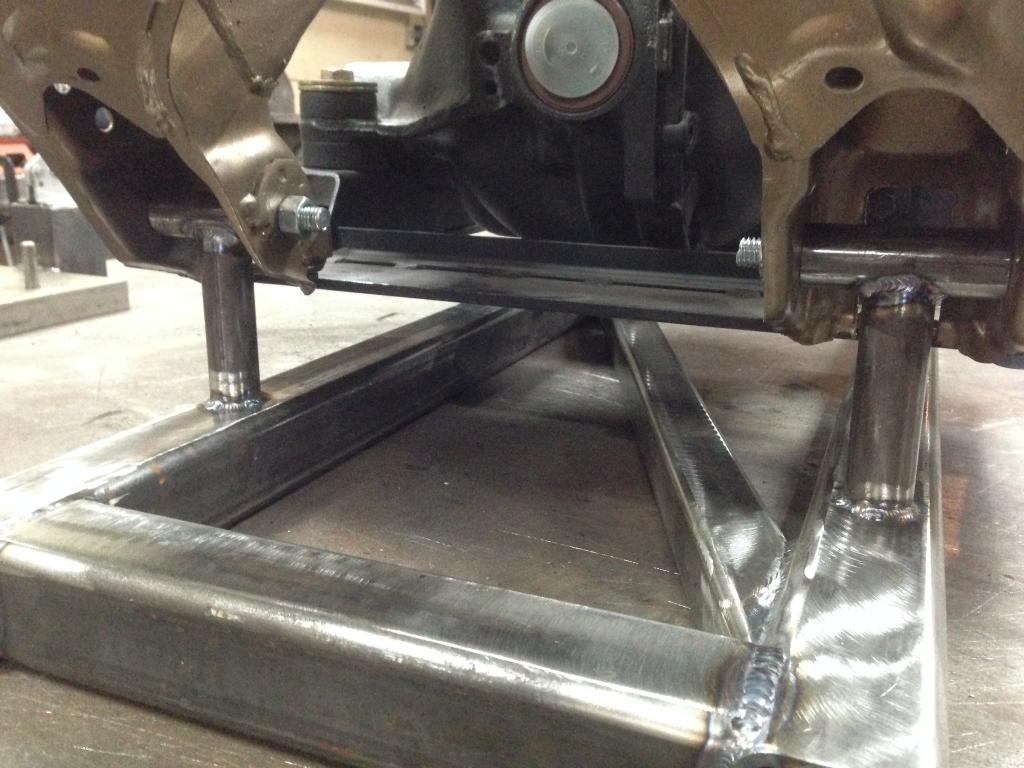

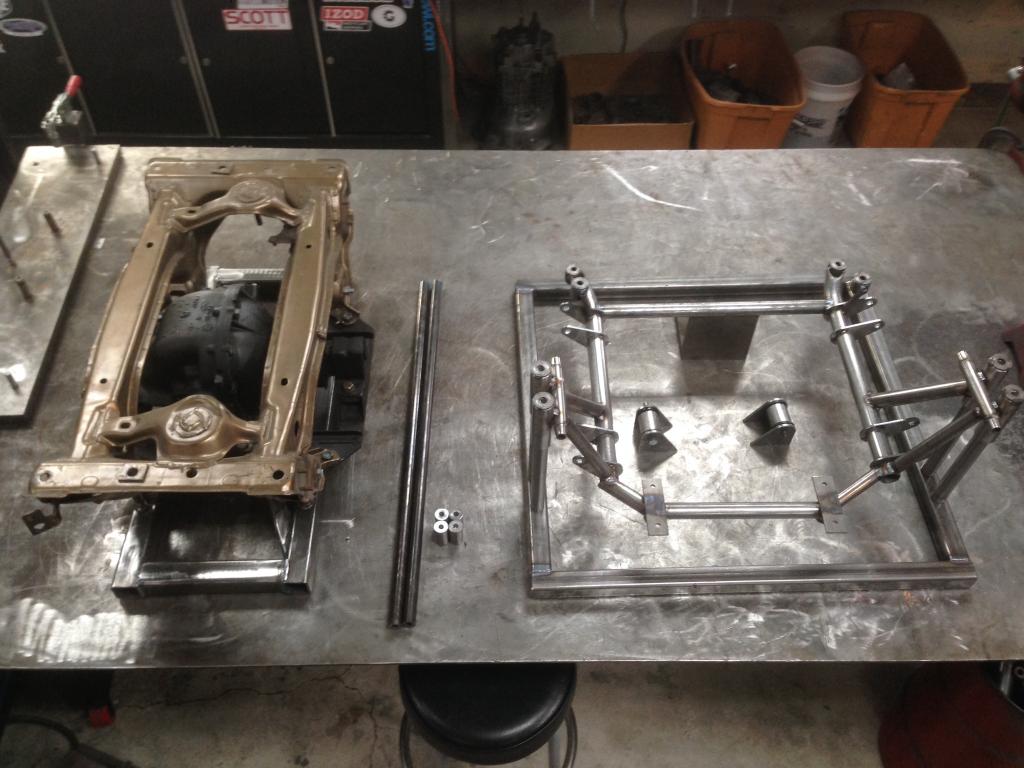

Currently jigging up the rear subframe to make a tubular one with integrated mounts for the 8.8, we should be saving nearly 50lbs going this direction.

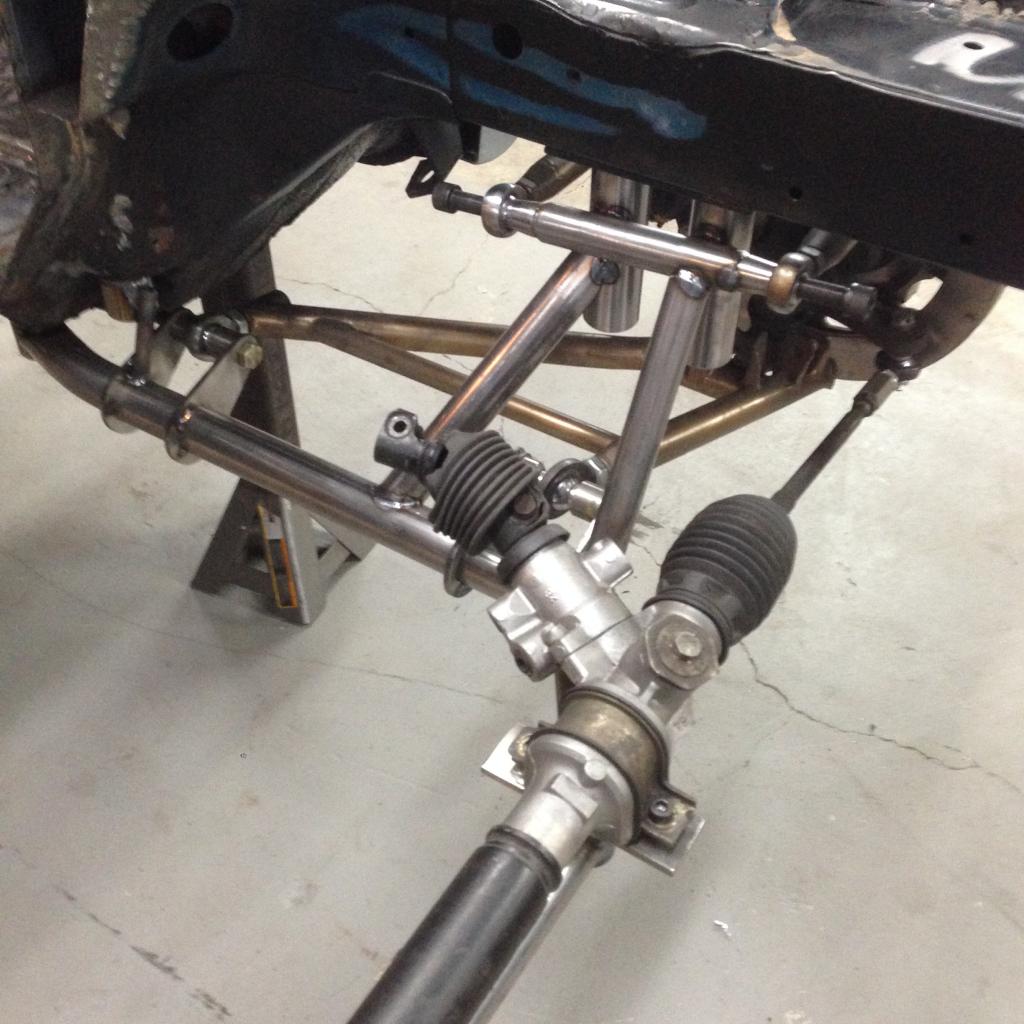

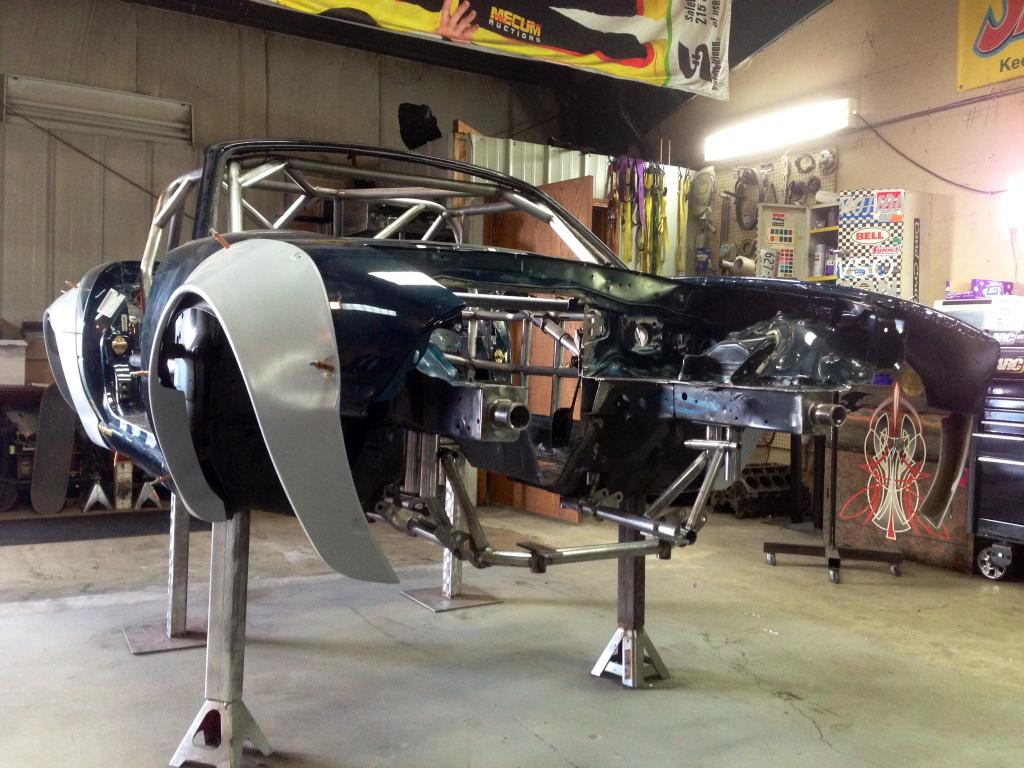

Tubular front subframe is taking shape and waiting for final welding and gussets and then the engine will go in for motor mounts and trans mounts! I’m much happier with the angle on the steering rack as I wanted to keep that in the factory location.

Really can’t wait to get this thing back on the ground and home to start working on the aero. Have lots of plans to incorporate dtm and wtac aero!
Attached Thumbnails
Built Turbo F20C Time Attack Miata-photo3_zpsbed9b214.jpg   Built Turbo F20C Time Attack Miata-photo1_zps5d647b79.jpg   Built Turbo F20C Time Attack Miata-photo2_zpsafe406aa.jpg
1BAD96 is offline   Reply With Quote
Old 09-16-2014, 09:45 AM   #127
Junior Member

Join Date: Oct 2013
Location: Portugal
Posts: 109
Total Cats: 24
Default

****. I have no words for this project
Filipe Dias is offline   Reply With Quote
Old 09-16-2014, 12:06 PM   #128
Junior Member
iTrader: (1)

Join Date: Mar 2013
Posts: 49
Total Cats: -2
Default

This build continues to impress! Nice update.
ahawks9er is offline   Reply With Quote
Old 09-16-2014, 03:06 PM   #129
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,926
Total Cats: 526
Default

Bob Hall would not recognize this car. Incredible work.
turbofan is offline   Reply With Quote
Old 09-16-2014, 05:58 PM   #130
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Edit: didn't see the date of your last post.

Last edited by aidandj; 09-16-2014 at 05:58 PM. Reason: I am an idiot
aidandj is offline   Reply With Quote
Old 09-18-2014, 02:11 AM   #131
Senior Member
iTrader: (2)

Join Date: Jan 2010
Location: Denver
Posts: 909
Total Cats: 14
Default

Very interested in the new sub frame. How are you keeping the stock location, lifting the engine for clearance? I assume it has bee jigged, would be interested in a price quote for a sub frame for my f20c car. Talk with your fabricator. Anxiously awaiting some more pics of the the car with engine in place!!
hingstonwm is offline   Reply With Quote
Old 09-18-2014, 03:27 AM   #132
Senior Member
iTrader: (1)

Join Date: Mar 2010
Location: Bay Area, CA
Posts: 695
Total Cats: 140
Default

Interested in seeing this new rear subframe. I don't suppose you would be interested in selling them or shipping me the jig when you are done?
gesso is offline   Reply With Quote
Old 09-18-2014, 09:12 AM   #133
Junior Member
Thread Starter
iTrader: (5)

Join Date: Feb 2010
Location: Hubertus, WI
Posts: 189
Total Cats: 45
Default

Quote:
Originally Posted by hingstonwm View Post
Very interested in the new sub frame. How are you keeping the stock location, lifting the engine for clearance? I assume it has bee jigged, would be interested in a price quote for a sub frame for my f20c car. Talk with your fabricator. Anxiously awaiting some more pics of the the car with engine in place!!
For my particular car, my suspension pickup points don't use the standard Miata eccentric bolt. They are designed for 1/2" bolts. Also for my car the firewall was cut to push the motor back and maintain the factory rack location and keep the motor as low as possible.
My fabricator will be offering them for sale with a firewall template as well as an option for not cutting the firewall.

Engine should be in next week for placement!

Quote:
Originally Posted by gesso View Post
Interested in seeing this new rear subframe. I don't suppose you would be interested in selling them or shipping me the jig when you are done?
They will be available; however, like the front they are designed for 1/2 bolts! I'm sure we can water-jet new tabs for the front and rear to use the factory eccentric bolts!
1BAD96 is offline   Reply With Quote
Old 09-18-2014, 10:16 AM   #134
Senior Member

Join Date: Mar 2011
Location: South Chicago
Posts: 701
Total Cats: 26
Default

What do you think it's going to be like jumping from the old car into this one on the track? I'd probably wet myself.

Attached Thumbnails
Built Turbo F20C Time Attack Miata-image.jpg
Mazduh is offline   Reply With Quote
Old 09-18-2014, 11:17 AM   #135
Junior Member
Thread Starter
iTrader: (5)

Join Date: Feb 2010
Location: Hubertus, WI
Posts: 189
Total Cats: 45
Default

Quote:
Originally Posted by Mazduh View Post
What do you think it's going to be like jumping from the old car into this one on the track? I'd probably wet myself.
Everything I've dreamed about it being, Just mental! But in all reality it will take some time to sort the car to really be able to see what it can do. Hopefully next year i can switch to the AEM Infinity and have traction control! Then once the cars sorted I want to throw a sequential in the car.

Until then, I can't wait to get it on track!
1BAD96 is offline   Reply With Quote
Old 09-19-2014, 02:01 PM   #136
Senior Member
iTrader: (2)

Join Date: Jan 2010
Location: Denver
Posts: 909
Total Cats: 14
Default

Quote:
Originally Posted by 1BAD96 View Post
For my particular car, my suspension pickup points don't use the standard Miata eccentric bolt. They are designed for 1/2" bolts. Also for my car the firewall was cut to push the motor back and maintain the factory rack location and keep the motor as low as possible.
My fabricator will be offering them for sale with a firewall template as well as an option for not cutting the firewall.

Engine should be in next week for placement!



They will be available; however, like the front they are designed for 1/2 bolts! I'm sure we can water-jet new tabs for the front and rear to use the factory eccentric bolts!
Okay, so the fire wall was cut to keep stock location for steering rack. Makes sense, will be interested to see the fitment of the turbo, are you using a top, bottom, or sidewinder setup for the turbo manifold?

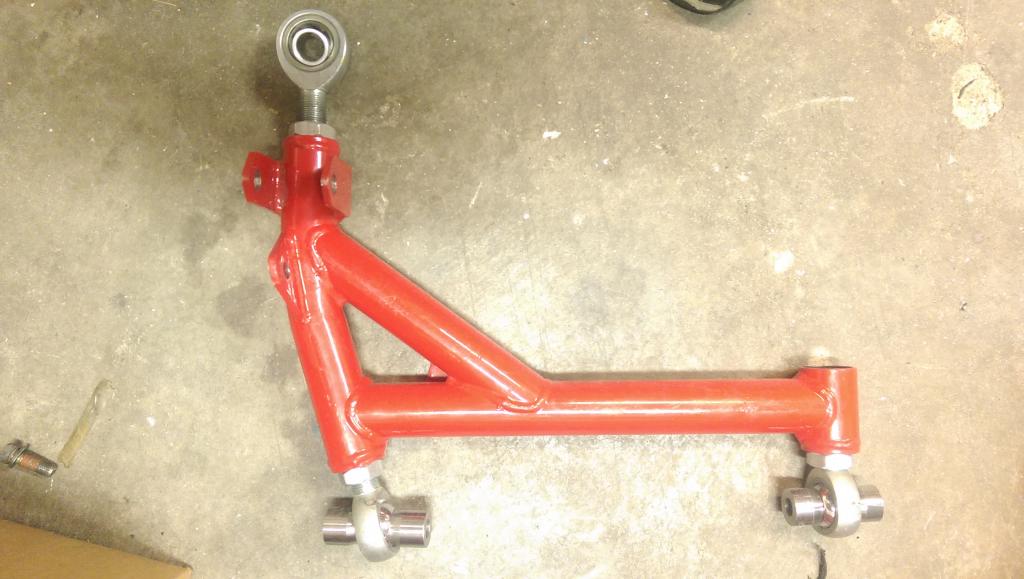

One other thought, you may need to rethink the size of your lower end links/heim joints I ran the 1/2 inch size on my fp car and bent several of them, Have sense moved to the v8 roadster arms with a substantial increase in size of shank to avoid this "weak point"...just a thought.

Attached Thumbnails
Built Turbo F20C Time Attack Miata-imag1235_zps779c44d7.jpg
hingstonwm is offline   Reply With Quote
Old 09-19-2014, 04:59 PM   #137
Junior Member
Thread Starter
iTrader: (5)

Join Date: Feb 2010
Location: Hubertus, WI
Posts: 189
Total Cats: 45
Default

Quote:
Originally Posted by hingstonwm View Post
Okay, so the fire wall was cut to keep stock location for steering rack. Makes sense, will be interested to see the fitment of the turbo, are you using a top, bottom, or sidewinder setup for the turbo manifold?

One other thought, you may need to rethink the size of your lower end links/heim joints I ran the 1/2 inch size on my fp car and bent several of them, Have sense moved to the v8 roadster arms with a substantial increase in size of shank to avoid this "weak point"...just a thought.
Will still be running our custom Sheepey sidewinder, the exhaust will be interesting to figure out but with the new subframe I will have much more room to play with!

As far as the heims go! The lowers are actually 5/8" and uppers are 1/2"
Same for the rear! These i got from John Brakke who runs EP.
1BAD96 is offline   Reply With Quote
Old 09-22-2014, 11:37 AM   #138
Supporting Vendor
iTrader: (1)

OGRacing's Avatar

Join Date: May 2014
Posts: 1,764
Total Cats: 46
Default

you know i want that tubular rear subframe, so lets do this...
OGRacing is offline   Reply With Quote
Old 09-30-2014, 09:56 AM   #139
Junior Member
Thread Starter
iTrader: (5)

Join Date: Feb 2010
Location: Hubertus, WI
Posts: 189
Total Cats: 45
Default

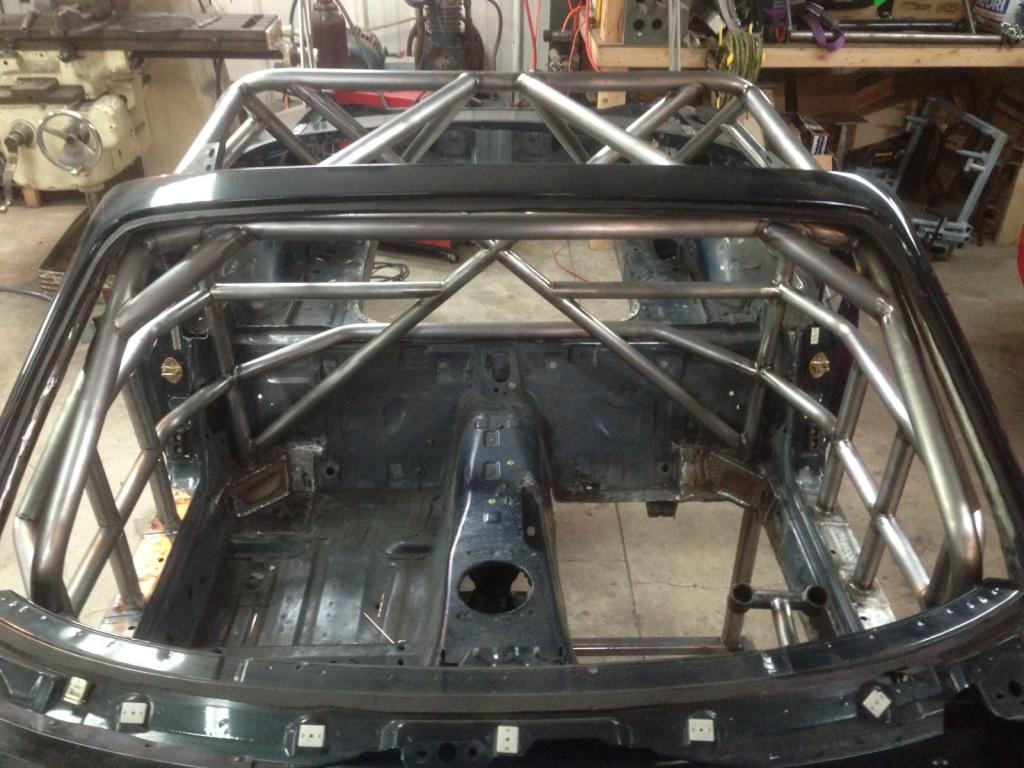

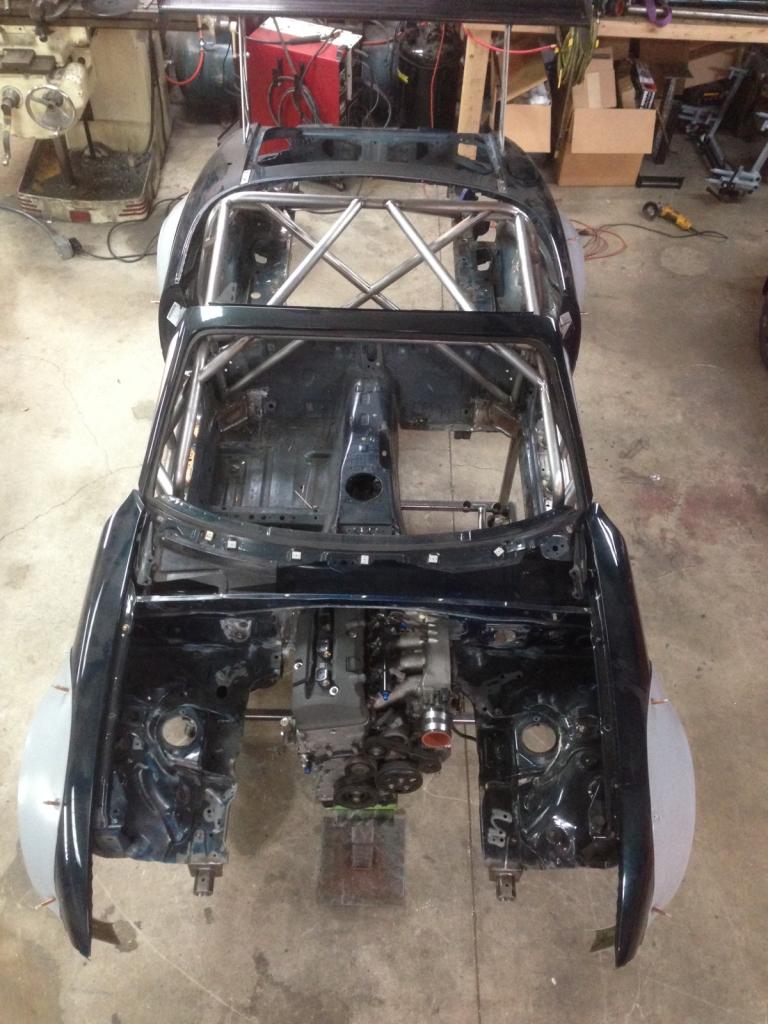

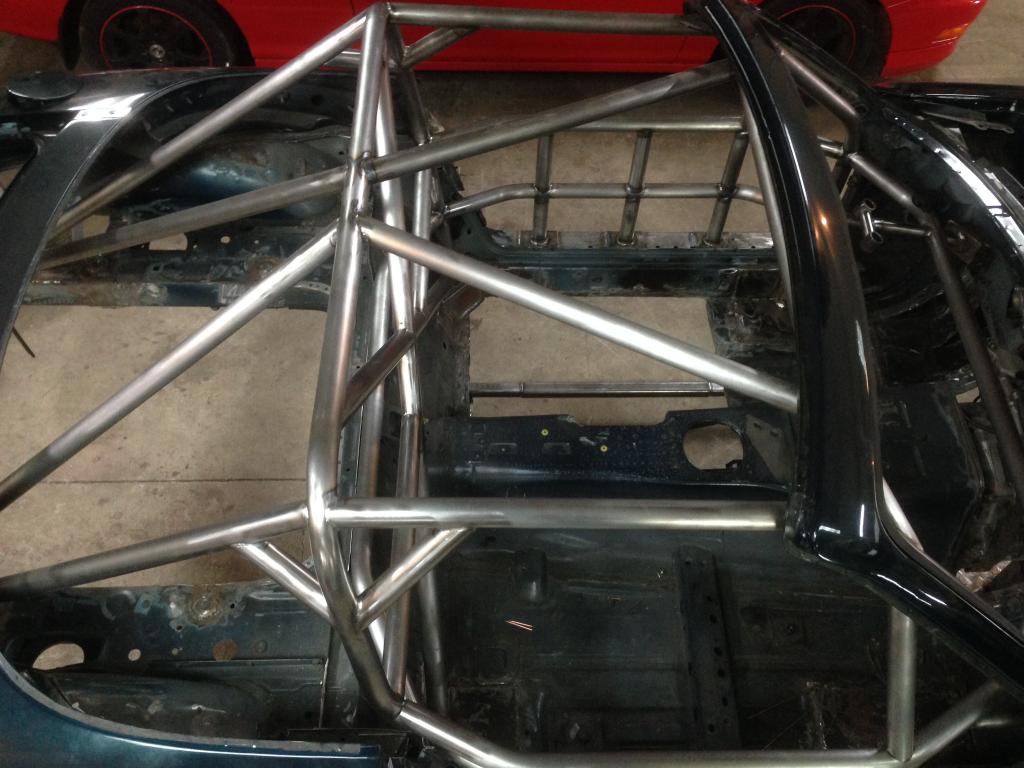

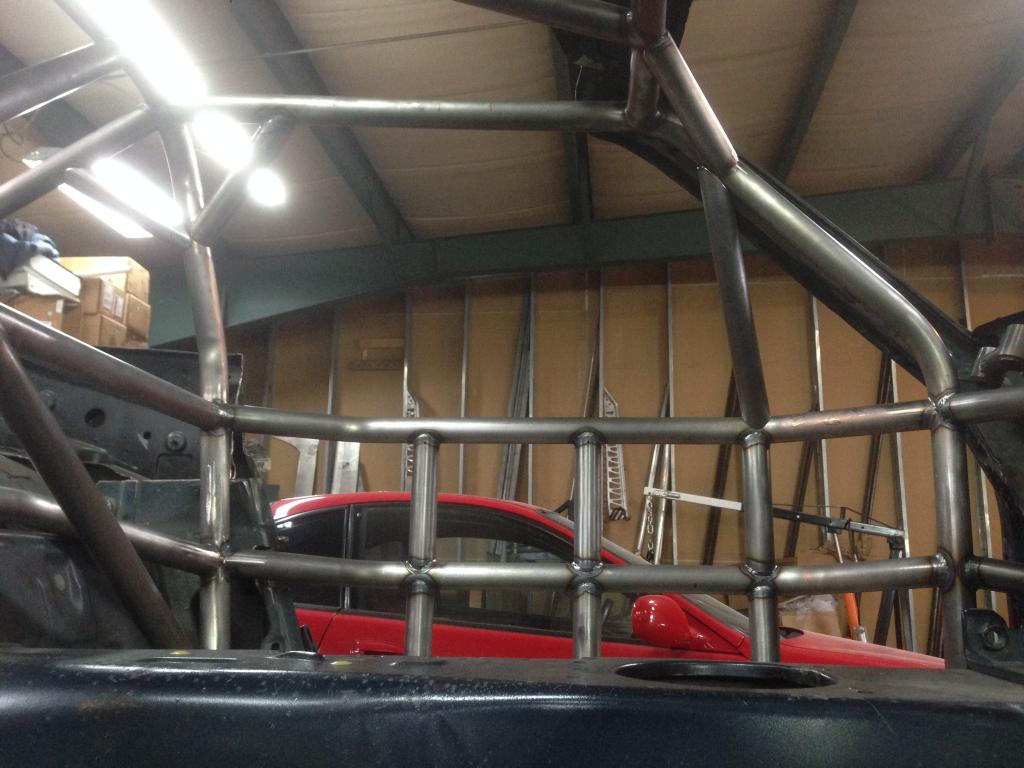

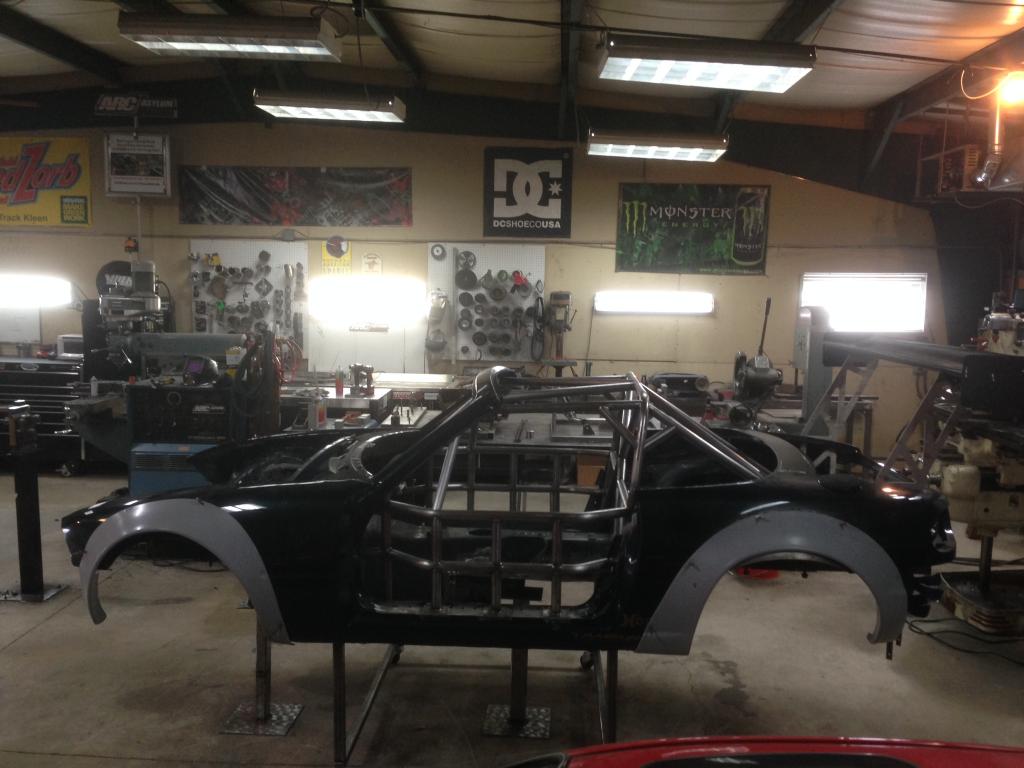

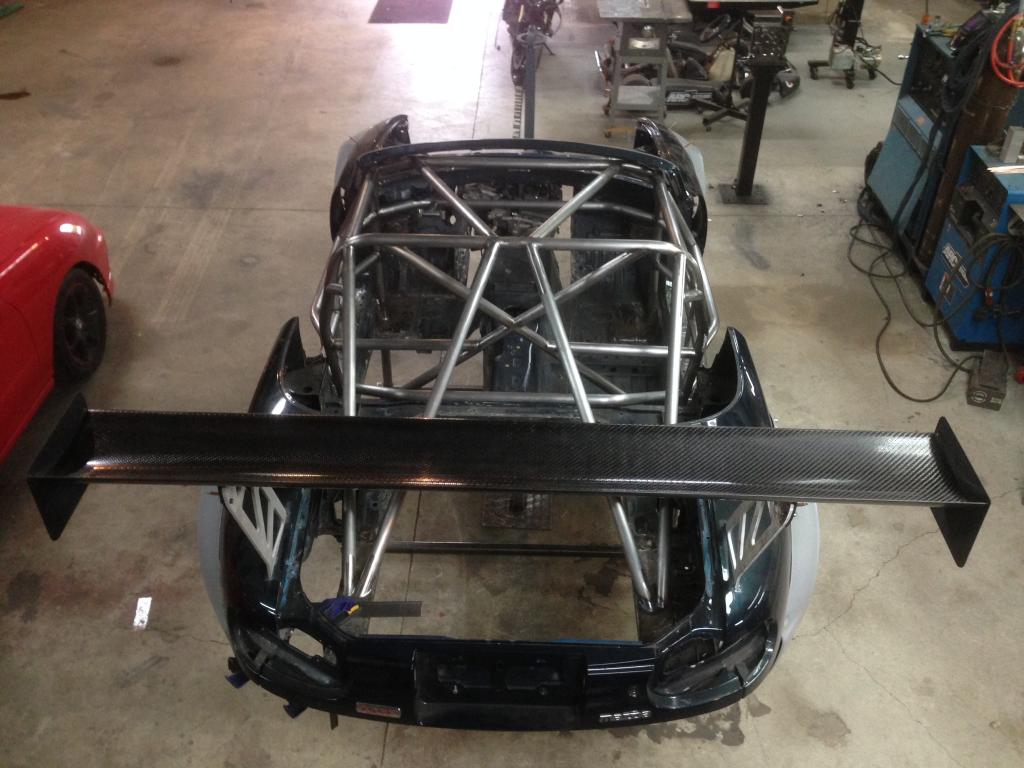

I have a few updates for you guys! The cage is finally complete; a few dimple die pieces still need to go in but other than that the cage is done! Front tubular subframe is nearly done; need to add some more gussets and that will be complete. Then the motor can be finally placed and engine and trans mounts can be fabricated as well as the crazy exhaust that is planned. Rear tubular subframe jig is started and will be an awesome piece with built in mounts for the 8.8 and extremely light! Then the a-arms can be modified, fuel cell mounted, sheet metal installed, front tubular core built, and v-mount setup and the car will be done at fab! Long way to go but the end is near.






Attached Thumbnails
Built Turbo F20C Time Attack Miata-img_1124_zps3895aafd.jpg   Built Turbo F20C Time Attack Miata-img_1128_zps20a5084f.jpg   Built Turbo F20C Time Attack Miata-img_1129_zps70169471.jpg   Built Turbo F20C Time Attack Miata-img_1127_zpsa72662dd.jpg   Built Turbo F20C Time Attack Miata-img_1126_zps9b3ea439.jpg

Built Turbo F20C Time Attack Miata-img_1125_zps2e855e80.jpg   Built Turbo F20C Time Attack Miata-img_1130_zpsa02a36a8.jpg
1BAD96 is offline   Reply With Quote
Old 09-30-2014, 09:56 AM
1BAD96
This message has been deleted by curly. Reason: Double post
Old 10-01-2014, 01:27 PM   #140
Hug Life
iTrader: (3)

Monk's Avatar

Join Date: Apr 2014
Location: Huntington, Indiana
Posts: 2,804
Total Cats: 494
Default

This thing is going to be terrifying.
Monk is offline   Reply With Quote
