Old 03-30-2012, 06:36 PM   #1661
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by shuiend View Post
Mine does that randomly also. It all started spring 2011 when I was at the dyno day with Braineack. He was like what does this single button on the temp gauge do? He then started pressing it changing ----. After that it would also do the read way off. Back in February sometime it just randomly started working again. Nothing at all changed. As far as I can tell with working with tech support it has something to do with how the temp sensor is grounded. They will tell you to take the wire that is running to the temp sensor and touch it to the metal casing around the gauge to see if the temps go up to somewhere in the 300's. If so then the gauge is fine, and it is something with the sensor grounding.

When it does work fine it is within 10 degrees of what TS reads my temps as.
When I ground it at the thermocouple gnd, it goes HI, so I'm going to get a resistor. He told if worse comes to worse, he'll change the table in the firmware and send it back. Its nice when you get good customer service and the guy working there gives you his cell and home email, lol. Once we get this fixed, I may switch ever gauge to a VEI aside from the tach. I'm going to use my old gauge for trans temp now.
hustler is offline   Reply With Quote
Old 03-31-2012, 06:02 PM   #1662
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Help me diagnose my water temp sender problems. I have a VEI water temp gauge and an NA temp sender for the computer. The EFI computer's water temp sender is in the back of the head in a water jacket; the VEI gauge sender in the NPT plug location on the back of the head. I have a temp strip that activates the 190*f indicator.

I see ~160*f on the VEI gauge when Tuner Studio says 195*f. I bought a 180ohm 2% resistor to test the VEI gauge/meter and it comes out 6* high at 186 (suggested test from VEI), I think that's close enough to rule out a bad meter and sender on that side. So I guess the other variables are a bad calibration on my CLT sensor in MT or something far more sinister. I noticed that every time I take the gauge sender out of the back of the head, no water drips out. This tells me there is air in the system and possibly a flaw in my ghetto coolant reroute, and without water on the gauge sender, I'm not seeing true water temps.

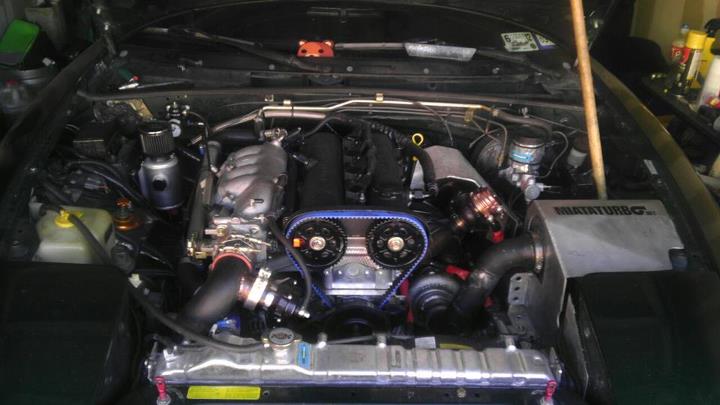

See how high my return pipe is on the passenger side?

Could this be the problem? What do you guys think?
Attached Thumbnails
hustler's "driver shame" thread-423367_10100640492270390_23911356_50898303_325090336_n.jpg
hustler is offline   Reply With Quote
Old 03-31-2012, 06:19 PM   #1663
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

My thermfactor.inc:
Quote:
; Generated using EasyTherm4.exe
;
; Coolant Thermistor Comment Field
;
; File generated for use with stock 2490 ohm resistor at R7
;
; Steinhart-Hart coefficients: A= 2.280871E-03 B=5.340109E-05 C= 1.264782E-06
;
; Input Data: Temp, degF Resistance
; -4 16200
; 86 2450
; 176 320

Last edited by hustler; 03-31-2012 at 06:49 PM.
hustler is offline   Reply With Quote
Old 03-31-2012, 07:35 PM   #1664
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

By return pipe, you mean return to radiator, correct? Maybe a pic of the back of a '99 head to show us exactly where your senders are. That pipe is higher than mine and most others I've seen, but I'm not sure how that would be an issue. Unless your vei sender is at the top.
curly is offline   Reply With Quote
Old 03-31-2012, 10:49 PM   #1665
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I just shot temps with a Craftsman laser thermometer after a thermostat cycle. Black hose coming out of the thermostat is 170*f, MS says 190*f, gauge says 160*f the first time. Which one is right? How can I really narrow this down?
hustler is offline   Reply With Quote
Old 03-31-2012, 10:52 PM   #1666
Junior Member
iTrader: (4)

Join Date: Oct 2009
Location: College Station, TX
Posts: 281
Total Cats: 5
Default

What do your temp strips read?
palmtree is offline   Reply With Quote
Old 03-31-2012, 11:00 PM   #1667
Junior Member
iTrader: (4)

Join Date: Oct 2009
Location: College Station, TX
Posts: 281
Total Cats: 5
Default

Also, doesn't metal conduct heat better than the rubber hose coming out of the thermostat? What does your metal reroute pipe temp at with the laser? Do you have a thermocouple to verify the laser's temps with? I would try a few different methods of measuring temps (thermocouple, temp strips, laser thermometer, gauge, MS). See which two or three are reading the same and assume that is the correct temp.
palmtree is offline   Reply With Quote
Old 03-31-2012, 11:02 PM   #1668
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by palmtree View Post
Also, doesn't metal conduct heat better than the rubber hose coming out of the thermostat? What does your metal reroute pipe temp at with the laser? Do you have a thermocouple to verify the laser's temps with? I would try a few different methods of measuring temps (thermocouple, temp strips, laser thermometer, gauge, MS). See which two or three are reading the same and assume that is the correct temp.
When I measure off the metal, I get whacked-out numbers, probably because its reflective. I'll go throw a temp-strip on there because I suspect those are the most accurate of the bunch.
hustler is offline   Reply With Quote
Old 03-31-2012, 11:10 PM   #1669
Elite Member
iTrader: (1)

Join Date: Dec 2010
Location: SoCal
Posts: 4,165
Total Cats: 19
Default

Quote:
Originally Posted by hustler View Post
I just shot temps with a Craftsman laser thermometer after a thermostat cycle. Black hose coming out of the thermostat is 170*f, MS says 190*f, gauge says 160*f the first time. Which one is right? How can I really narrow this down?
Boil some water and use the craftsman thermometer to see the temp, compare that to the boiling temp of water, which depends on elevation but is 212* F at sea level (100* C).

Make a known known.
gearhead_318 is offline   Reply With Quote
Old 03-31-2012, 11:26 PM   #1670
Junior Member
iTrader: (4)

Join Date: Oct 2009
Location: College Station, TX
Posts: 281
Total Cats: 5
Default

Or just put ice in water. Should read 32* F. That's how we calibrated thermometers in restaurants.
palmtree is offline   Reply With Quote
Old 03-31-2012, 11:46 PM
hustler
This message has been deleted by hustler.
Old 04-01-2012, 12:31 AM   #1671
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 406
Default

i like the ice water and boiling water test. if you can get boiling water to your car.
y8s is offline   Reply With Quote
Old 04-01-2012, 12:41 AM   #1672
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,176
Total Cats: 261
Default

Put a piece of masking tape on the metal pipe for the laser to read.
Mobius is offline   Reply With Quote
Old 04-01-2012, 01:46 AM   #1673
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Quote:
Originally Posted by y8s View Post
i like the ice water and boiling water test. if you can get boiling water to your car.
To be fair to shearhead, he mentioned it to check the accuracy of the craftsman infrared thermometer, although it would be great if Hustler could get His temp senders in some frozen/boiling water.
curly is offline   Reply With Quote
Old 04-01-2012, 01:51 AM   #1674
Elite Member
iTrader: (1)

Join Date: Dec 2010
Location: SoCal
Posts: 4,165
Total Cats: 19
Default

Quote:
Originally Posted by curly View Post
To be fair to shearhead, he mentioned it to check the accuracy of the craftsman infrared thermometer, although it would be great if Hustler could get His temp senders in some frozen/boiling water.
yeay me
gearhead_318 is offline   Reply With Quote
Old 04-01-2012, 09:51 AM   #1675
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Alright, boiling water is 210-214 on my lay-zer.

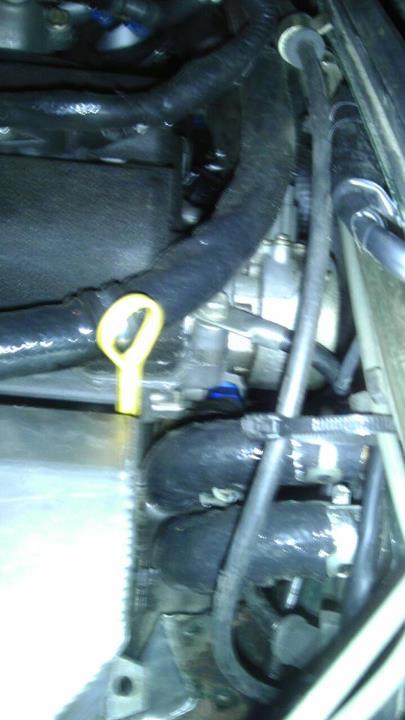

My fancy type gauge sender is under that little blue fitting, in the back of the head in, just like on a 1.6.

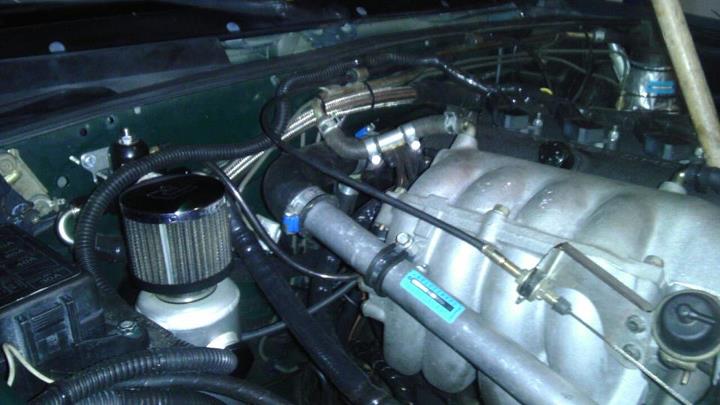

Here is my return pipe, it's pretty high:

I had to get it that high because the MS CLT sensor is right next to the water-neck.

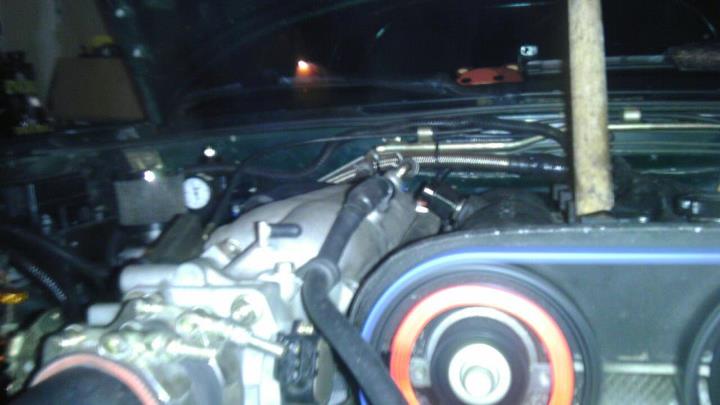

This picture is just bauce and shows the relative height of the return pipe.


Known knowns:
  • Laser thermo is accurate enough that my gauge should match
  • VEI sender is supposed to show 185*f with a 180 ohm resistor, it does
  • The car runs the same AFRs in the cold and hot
  • Temp strips show that my car is not melting-down on the track
Known unknowns:
  • What part of the pipe should I shoot the laser at? Rubber or metal? Thermostat housings, rubber return pipes, metal return pipes, radiator?
  • Since no water runs out of the head when I pull the sender, does that mean I have air in the system? Could this cause a variance 30* variance in sensors?
  • Do I need to run Easytherm again and adjust the firmware for my CLT sensor since we have this clear variance?
  • Should I re-engineer the water return to go lower?
Unknown unknowns:
  • See Donald Rumsfeld
Attached Thumbnails
hustler's "driver shame" thread-554439_10100758767490900_23911356_51349401_832011541_n.jpg   hustler's "driver shame" thread-427940_10100758767885110_23911356_51349404_1904618801_n.jpg   hustler's "driver shame" thread-558696_10100758767775330_23911356_51349403_151630233_n.jpg
hustler is offline   Reply With Quote
Old 04-01-2012, 09:56 AM   #1676
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by curly View Post
To be fair to shearhead, he mentioned it to check the accuracy of the craftsman infrared thermometer, although it would be great if Hustler could get His temp senders in some frozen/boiling water.
I can't take the sensors out today for a few reasons. They are a bitch to get to and I did legs yesterday and I'm having trouble walking today, I need to work on a window regulator in the white car, and I need to put my RB header in the white car.
hustler is offline   Reply With Quote
Old 04-01-2012, 10:00 AM   #1677
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

...or maybe it's time for a little header tank I can put in the rain/windsheild area.
hustler is offline   Reply With Quote
Old 04-01-2012, 10:52 AM   #1678
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,684
Total Cats: 555
Default

For a non-contact thermostat, you want to aim at a non-shiny part that is metal. Shiny or rubber will give slightly different reading due to reflectivity and/or insulating properties.

No water coming out, you should probably bleed it.

No idea on the rest of it.
rleete is offline   Reply With Quote
Old 04-01-2012, 12:10 PM   #1679
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Why's it high? Just so you can use that bolt on the intake manifold or does the thermostat cover point upwards.

I'd replace all that with the GM hose anyways. I know you bitch about it cause it's not metal, but I'd rather have all rubber than two extra leak points. What's that thing T'ing off of it near the back? Do you have a "racer" reroute?

Attached Thumbnails
hustler's "driver shame" thread-17594849.jpg
curly is offline   Reply With Quote
Old 04-01-2012, 12:11 PM   #1680
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by hustler View Post
...or maybe it's time for a little header tank I can put in the rain/windsheild area.
Either that or a ventable/fillable splice.

I think that you have air.

http://www.streetperformance.com/m/c...se-filler.html
Faeflora is offline   Reply With Quote
