Old 02-08-2013, 02:07 PM   #21
mkturbo.com
Thread Starter
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,777
Total Cats: 1,106
Default

Quote:
Originally Posted by TurboTim View Post
Right, but when you weld the rods together where they all converge, over the center of the wheel, they will be rigid. Nah-mean?
That does make sense now. I will see how feasible that is this afternoon.

Quote:
Originally Posted by IcantDo55 View Post
Do you really love lamp or are you just saying that?


Need to get some billet aluminum rods and just tig them up.
I will love this lamp.

So what you are saying is I need to contact vader and get them to send me a ton of messed up aluminum rods.
shuiend is online now   Reply With Quote
Old 02-08-2013, 03:49 PM   #22
Elite Member
iTrader: (2)

Join Date: Sep 2008
Location: Central Florida
Posts: 3,284
Total Cats: 178
Thumbs up

Quote:
Originally Posted by TurboTim View Post
Right, but when you weld the rods together where they all converge, over the center of the wheel, they will be rigid. Nah-mean?
Nice. The most ingenious ideas are often the simplest.

Looking at his first mock-up picture, he may need more rods because having them bolted around the spokes may expand the angle enough that the first set won't touch?
Scrappy Jack is offline   Reply With Quote
Old 02-08-2013, 03:55 PM   #23
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

Quote:
Originally Posted by TurboTim View Post
I thought this was a picture of Joe Perez for a moment there.
Fireindc is offline   Reply With Quote
Old 02-08-2013, 04:35 PM   #24
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,199
Total Cats: 260
Default

Your professor would be lying if he told you there was a "right" way to "weld" these together. It can be brazed, fused. But it will look ugly. Not sure if you're going to paint or not. The brazing won't be very strong. There is no penetration like a normal weld.
Erat is online now   Reply With Quote
Old 02-08-2013, 04:55 PM   #25
mkturbo.com
Thread Starter
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,777
Total Cats: 1,106
Default

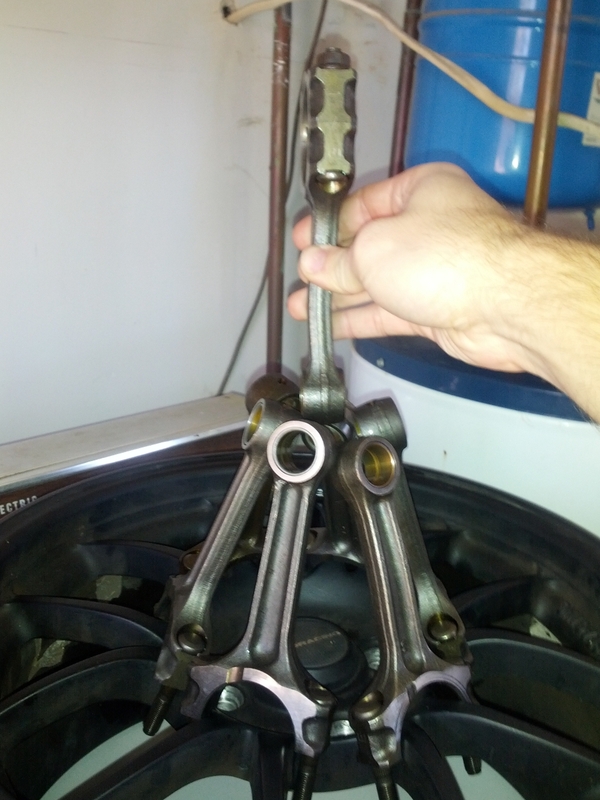

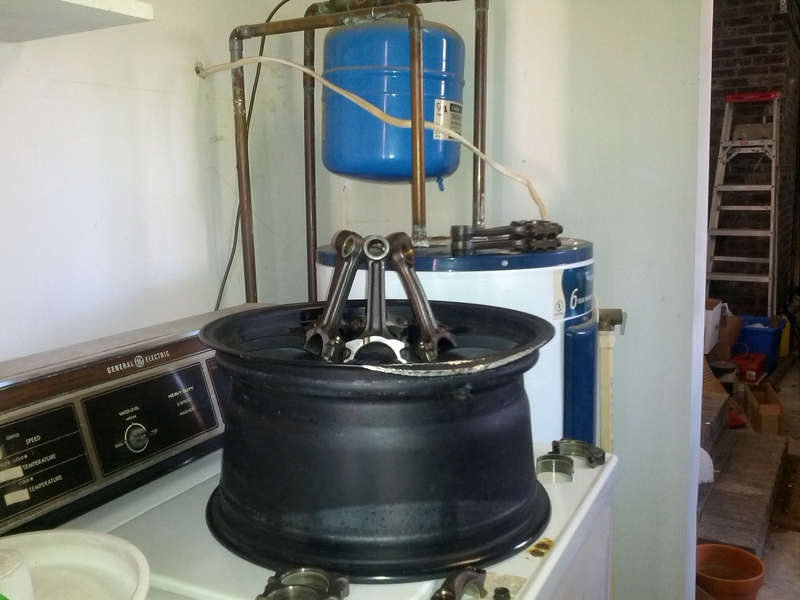

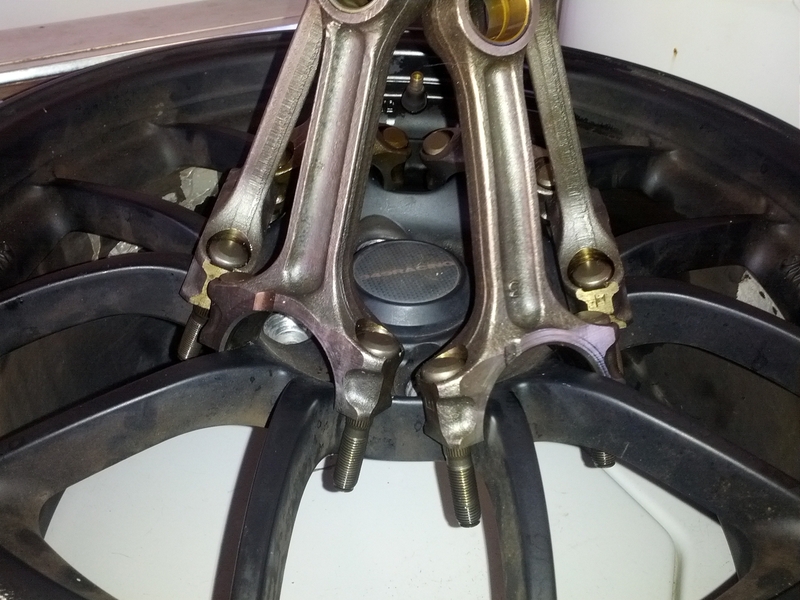

So I can not fit the cap on the bottom of rod, the studs are not long enough. I might see if I can remove the studs and use some longer bolts.
Attached Thumbnails
I love lamp.-img_20130208_154446.jpg   I love lamp.-img_20130208_154900.jpg   I love lamp.-img_20130208_154910.jpg
shuiend is online now   Reply With Quote
Old 02-08-2013, 05:57 PM   #26
Elite Member
iTrader: (2)

Join Date: Sep 2008
Location: Central Florida
Posts: 3,284
Total Cats: 178
Question

Quote:
Originally Posted by shuiend View Post
So I can not fit the cap on the bottom of rod, the studs are not long enough. I might see if I can remove the studs and use some longer bolts.
Again, it might require more rods, but what if you shift the rods over so that each rod and cap goes over a single spoke, rather than "a set of split spokes?"

That would let the rod sit lower, increasing the amount of room for the cap?
Scrappy Jack is offline   Reply With Quote
Old 02-08-2013, 06:01 PM   #27
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

It's a welding class. Weld a longer stud on the end.
thenuge26 is offline   Reply With Quote
Old 02-08-2013, 09:10 PM   #28
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

The studs hammer out with enough force. It's not like you have to protect the rods...
curly is offline   Reply With Quote
Old 02-08-2013, 09:28 PM   #29
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Why not just put the studs through the holes for the wheel nuts and nut them from the other side?
triple88a is offline   Reply With Quote
Old 02-09-2013, 02:54 PM   #30
Junior Member

Join Date: Nov 2007
Location: Ontario, Canada
Posts: 106
Total Cats: 1
Default

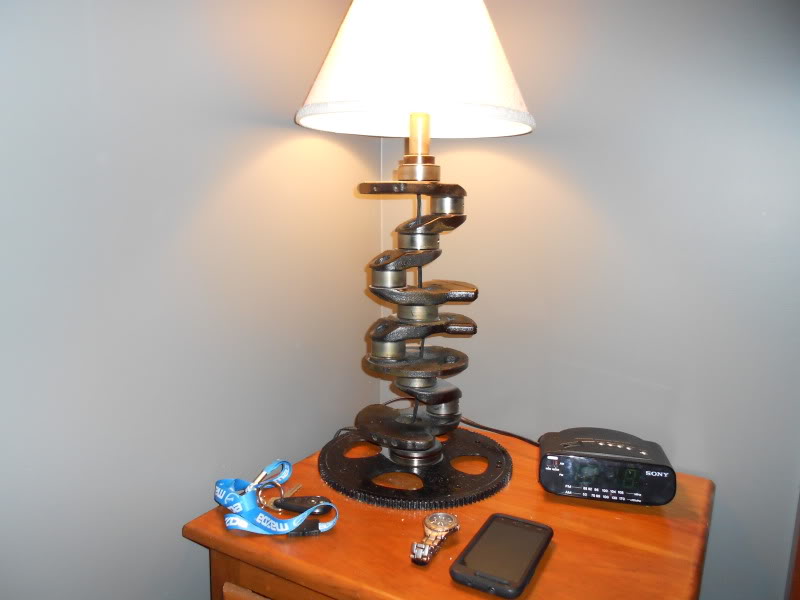

Car part lamps are the ****!

Mine made from my first saturn

Attached Thumbnails
I love lamp.-dscn0081.jpg
NoiseRacing is offline   Reply With Quote
Old 02-09-2013, 03:30 PM   #31
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

I opened this thread to see how much you love Linux, Apache, MySQL and PHP. I am disappointed. This thread is disappoint as well.

In conclusion, Shiuend, thou hast let me down mightly.
Reverant is offline   Reply With Quote
Old 02-09-2013, 03:35 PM   #32
Senior Member
iTrader: (8)

Join Date: Sep 2010
Location: misery
Posts: 1,130
Total Cats: 9
Default

can't wait to see final pictures.
the crank lamp is awesome!
phillyb is offline   Reply With Quote
Old 02-09-2013, 05:25 PM   #33
Junior Member
iTrader: (3)

Join Date: Oct 2011
Posts: 87
Total Cats: 9
Default

Quote:
Originally Posted by thenuge26 View Post
It's a welding class. Weld a longer stud on the end.
Don't bother with the extra studs on the end. But yeah, it's a welding class... so if there's no threads showing but stud end is fairly flush, why not just weld stud right to the cap?

Btw, awesome crank lamp! May have to rip that one down the road if I end up stripping down the 1.6 coming out later.
rkim is offline   Reply With Quote
Old 02-09-2013, 06:10 PM   #34
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

Quote:
Originally Posted by Reverant View Post
In conclusion, Shiuend, thou hast let me down mightly.

remember when i explained to you how the AFX is better than the LC-1?
Braineack is offline   Reply With Quote
Old 02-10-2013, 06:04 PM   #35
mkturbo.com
Thread Starter
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,777
Total Cats: 1,106
Default

Quote:
Originally Posted by NoiseRacing View Post
Car part lamps are the ****!

Mine made from my first saturn

I am making one of those next.


Test welded 2 rods together.
shuiend is online now   Reply With Quote
Old 02-10-2013, 06:12 PM   #36
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,199
Total Cats: 260
Default

So does all this get clear coated to avoid corrosion?
Erat is online now   Reply With Quote
Old 02-10-2013, 09:59 PM   #37
Junior Member

Join Date: Nov 2007
Location: Ontario, Canada
Posts: 106
Total Cats: 1
Default

I cleared mine and painted the flex plate, I did this after my cam towel rack rusted before even putting a towel on it in my basement bathroom.
NoiseRacing is offline   Reply With Quote
Old 02-16-2013, 05:43 PM   #38
mkturbo.com
Thread Starter
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,777
Total Cats: 1,106
Default

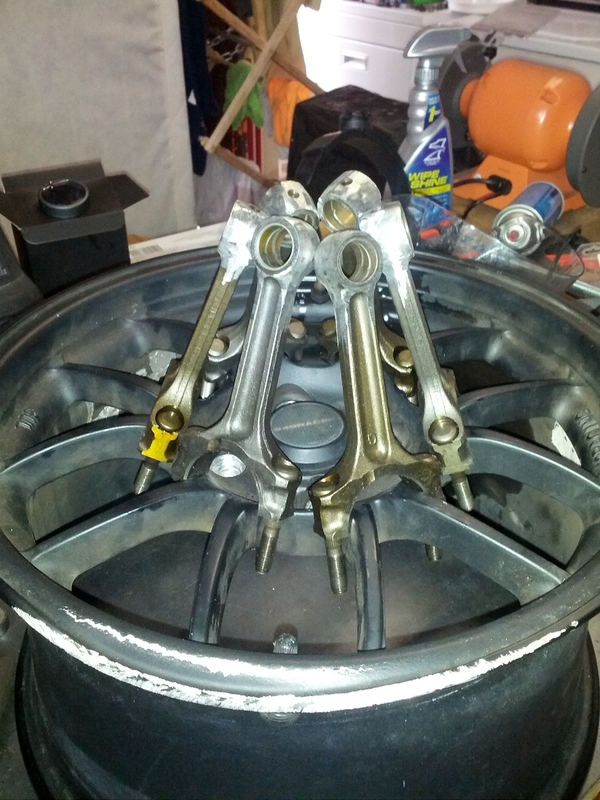

The rods are now nice and shiny for welding. I plan on welding the tops together first. Then go around one by one and weld each cap onto the rod. This should hold the rods the the rim perfectly. I am also cleaning on cleaning them several times in dish detergent to get as much oil out of the rest of the rod as possible.
Attached Thumbnails
I love lamp.-img_20130216_161427.jpg
shuiend is online now   Reply With Quote
Old 02-16-2013, 06:04 PM   #39
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

I'm curious, how big will this lamp be? Full size 7 foot living room floor lamp?
triple88a is offline   Reply With Quote
Old 02-16-2013, 06:06 PM   #40
mkturbo.com
Thread Starter
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,777
Total Cats: 1,106
Default

Quote:
Originally Posted by triple88a View Post
I'm curious, how big will this lamp be? Full size 7 foot living room floor lamp?
5 rods + 6ul + 1rod base so far. If It get more rods I will go taller.
shuiend is online now   Reply With Quote
