Old 06-09-2013, 05:52 AM   #41
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Candidate colour: 3M Matte Orange.
Plenty of samples here:
https://www.google.nl/search?q=3m+ma...bm=isch&tab=wi
Attached Thumbnails
Laur3ns going AbsurdFlow-wp_20130609_003.jpg
Laur3ns is offline   Reply With Quote
Old 06-09-2013, 08:17 AM   #42
Elite Member
iTrader: (2)

Join Date: Sep 2008
Location: Central Florida
Posts: 3,284
Total Cats: 178
Default

This car was already pretty awesome. Now it's progressing towards legendary.

Edit: And yes to matte orange for a race car.
Scrappy Jack is offline   Reply With Quote
Old 06-09-2013, 05:21 PM   #43
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

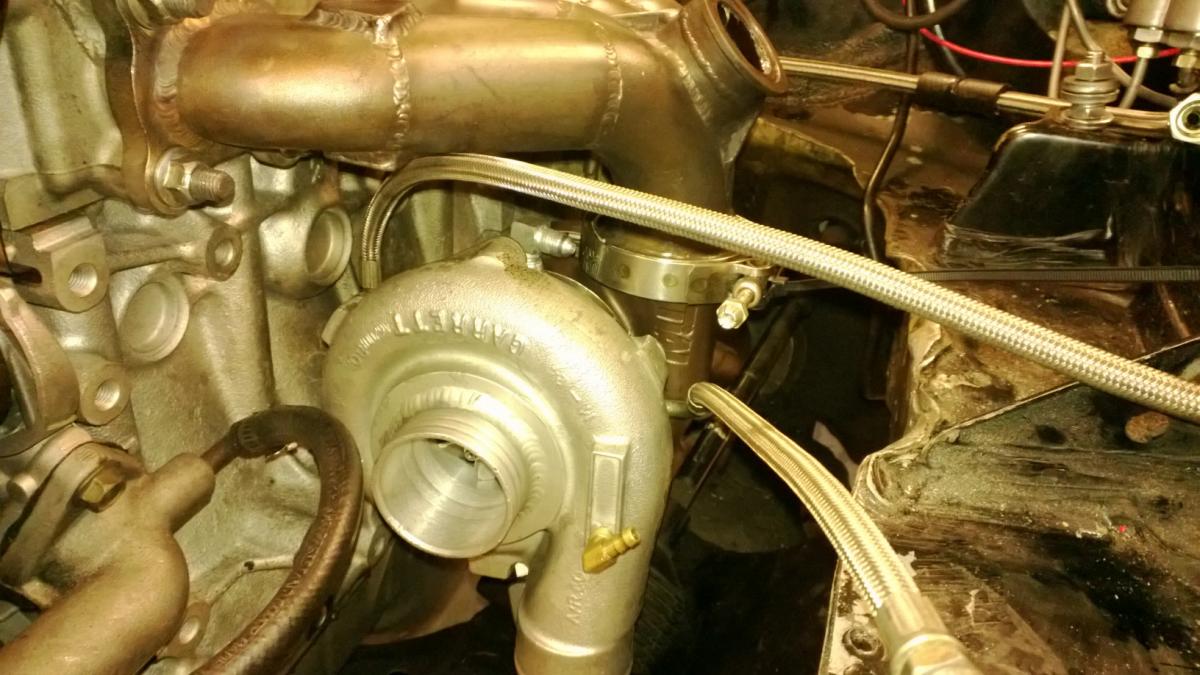

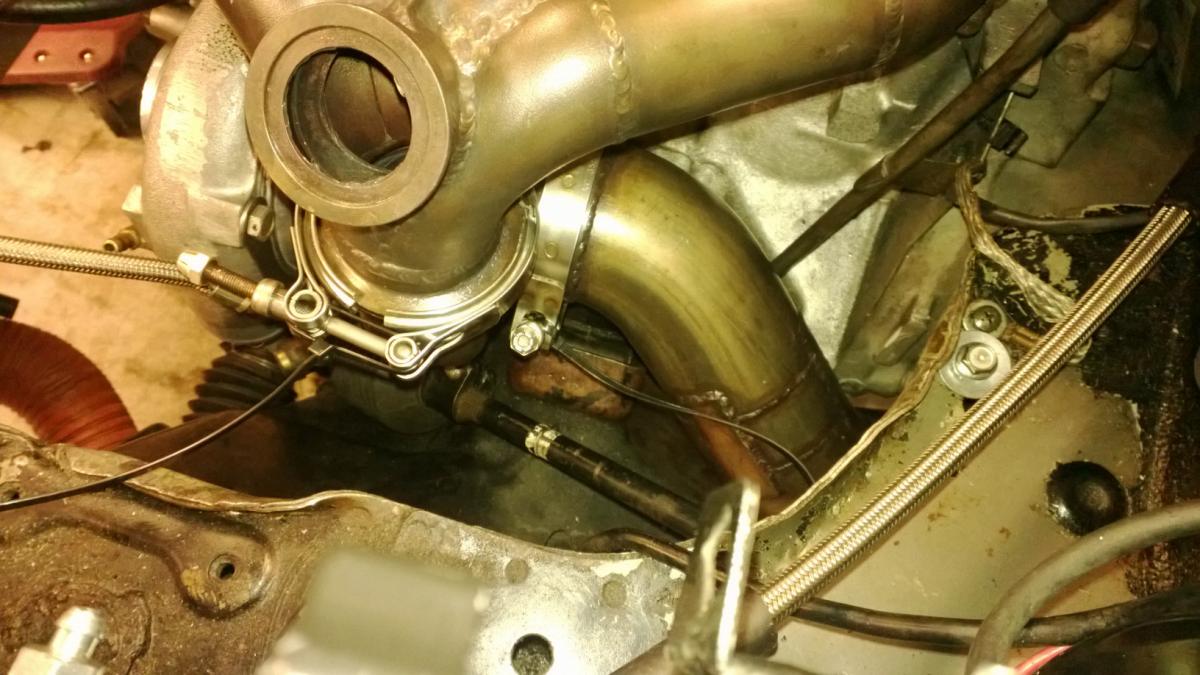

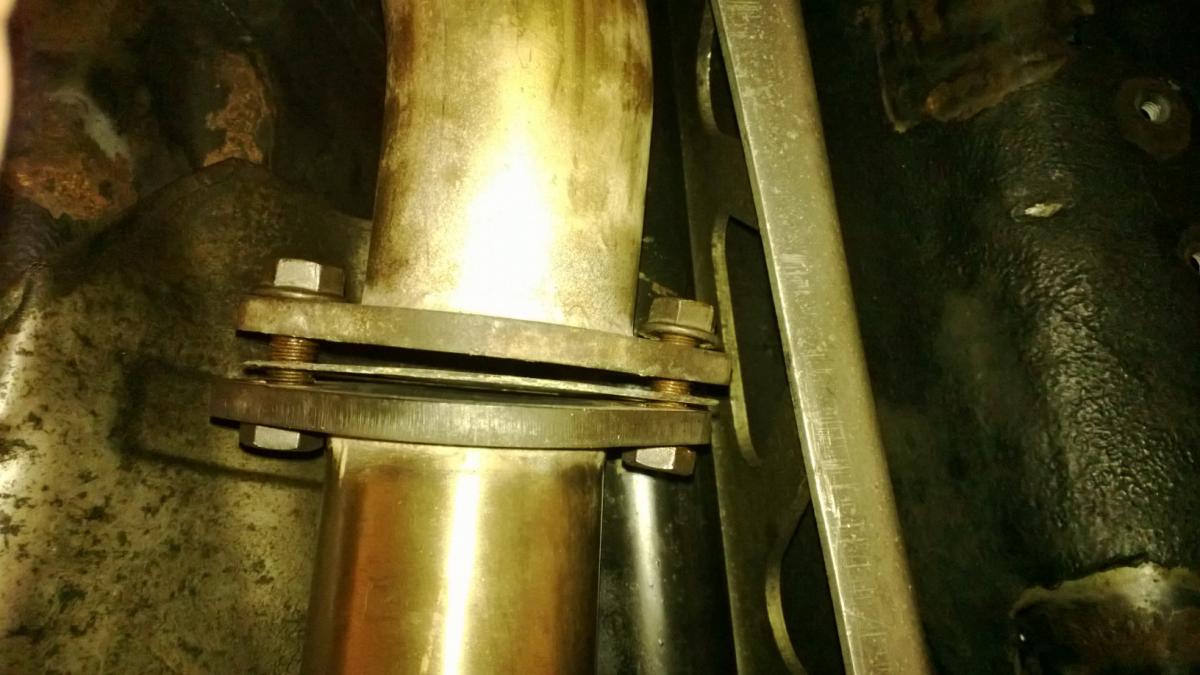

Fitment almost complete. Turbo now mated to manifold and exhaust. Going to use a 10mm (~1/2") spacer so I don't have to pull the exhaust forward and cause strain. Figured out 99% of the oil/water lines. Turbo almost 'hit block', so the inside water line is fiddly. The oil return may prove tricky if my return is more to the front of the pan, which seems the case.

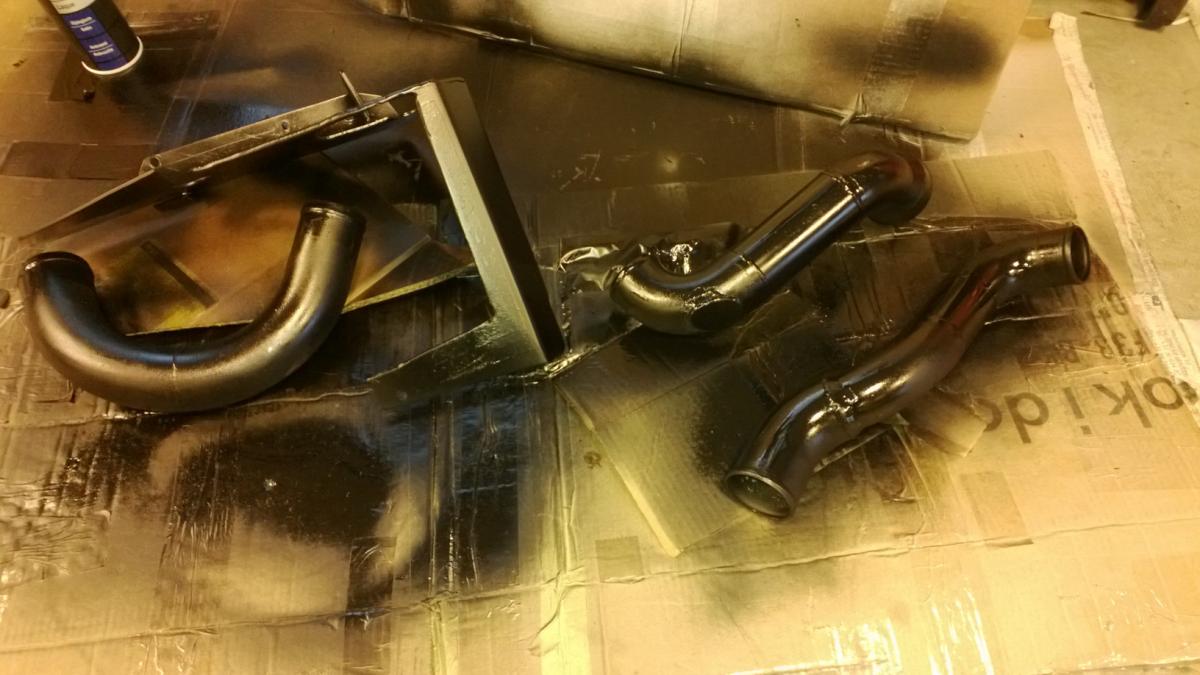

Oh, the intercooler pipes fit flawlessly. The cold side is clocked now. Spray painted the new pipes.
Attached Thumbnails
Laur3ns going AbsurdFlow-wp_20130609_011.jpg   Laur3ns going AbsurdFlow-wp_20130609_013.jpg   Laur3ns going AbsurdFlow-wp_20130609_015.jpg   Laur3ns going AbsurdFlow-wp_20130609_016.jpg
Laur3ns is offline   Reply With Quote
Old 06-10-2013, 05:47 PM   #44
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

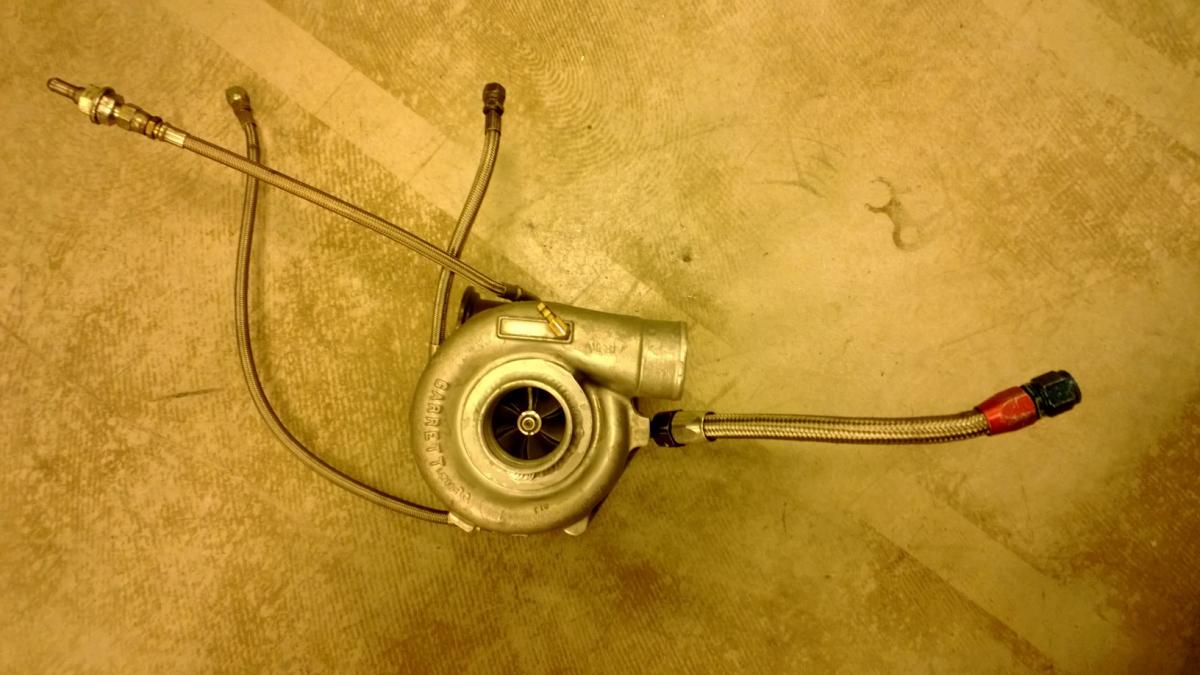

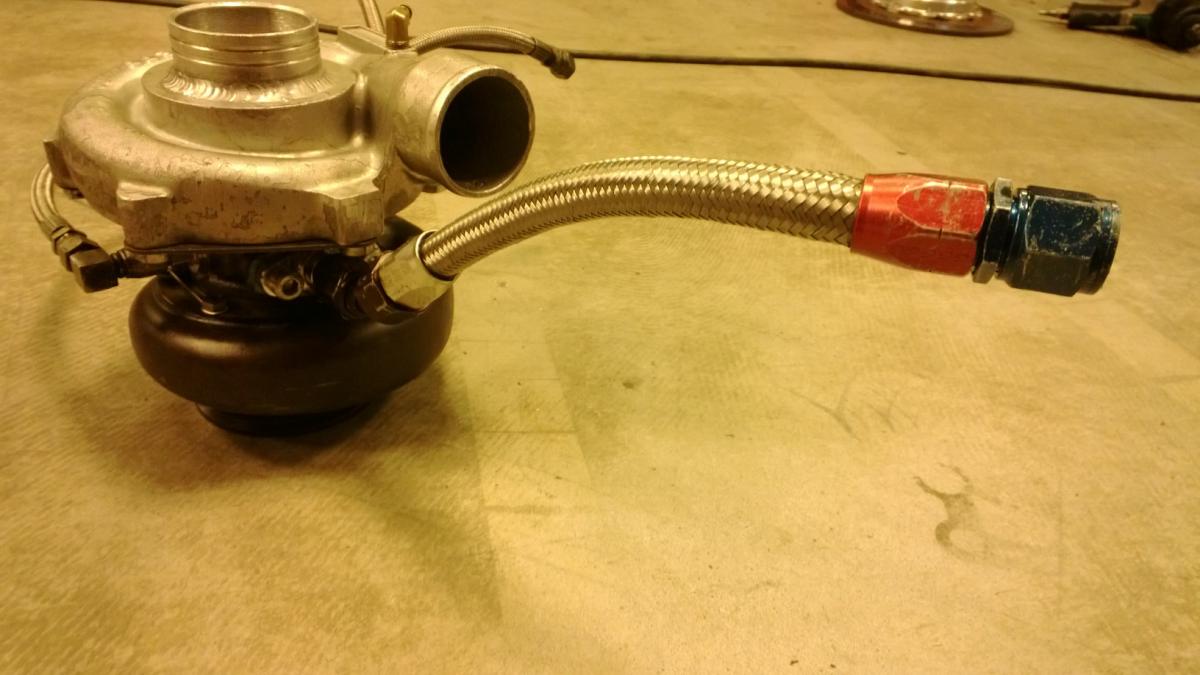

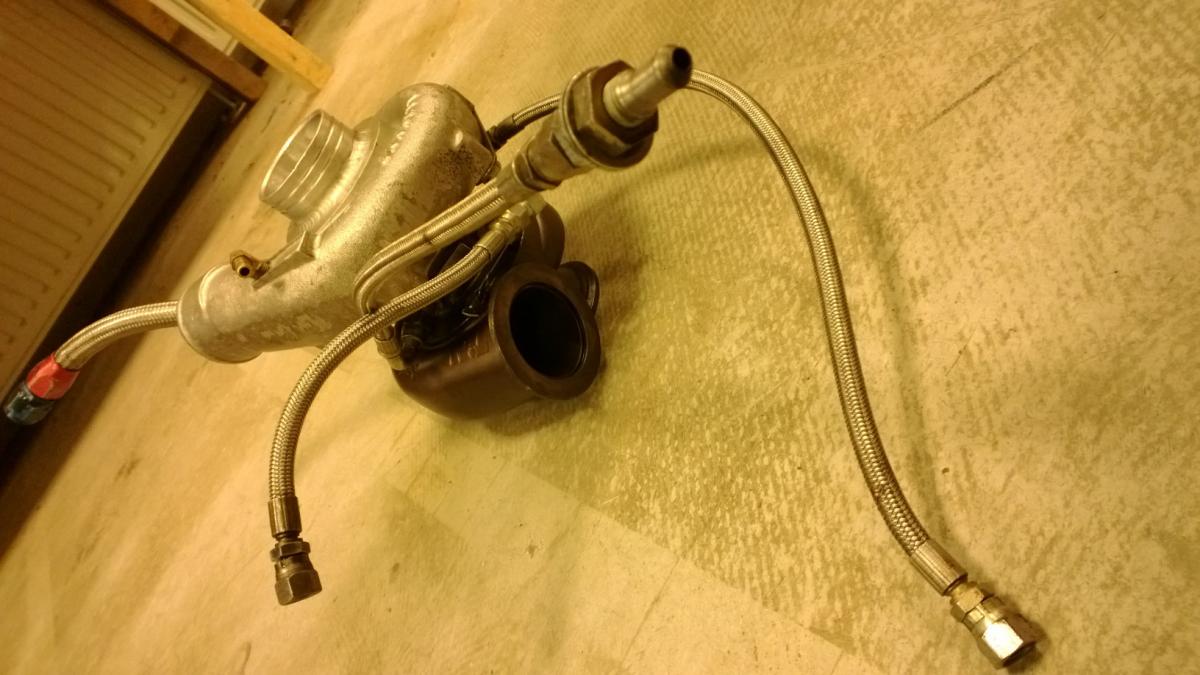

Fabbed a new oil return line and finalized the oil inlet and water in/outlet. Clocked the compressor side. Awaiting some parts so I can finalize the turbo installation.

Right now I'm on safety wire detail so I can safety wire the cold side bolts.
Attached Thumbnails
Laur3ns going AbsurdFlow-wp_20130610_003.jpg   Laur3ns going AbsurdFlow-wp_20130610_004.jpg   Laur3ns going AbsurdFlow-wp_20130610_005.jpg
Laur3ns is offline   Reply With Quote
Old 06-11-2013, 05:10 PM   #45
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Safety wired the compressor housing and bolted that sh*t up.

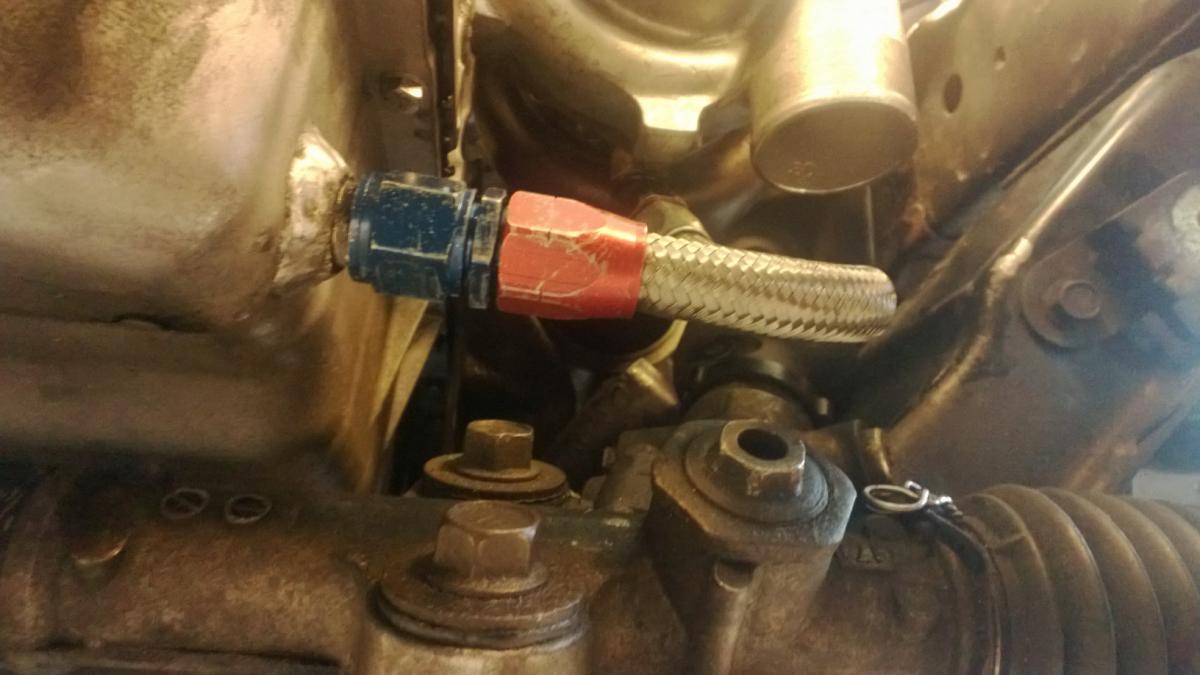

New oil drain line completed. It's tight with the steering rack, compressor outlet pipe and all, but will work.

Got the new rear hubs ready to fit. No pics of those.
Attached Thumbnails
Laur3ns going AbsurdFlow-wp_20130611_001.jpg   Laur3ns going AbsurdFlow-wp_20130611_002.jpg
Laur3ns is offline   Reply With Quote
Old 06-11-2013, 05:37 PM   #46
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Ah, and my name change fell through, nice.
Laur3ns is offline   Reply With Quote
Old 06-11-2013, 09:48 PM   #47
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Why are you Laur3ns. I don't get it. What happened to Spookyfish.
curly is offline   Reply With Quote
Old 06-11-2013, 09:49 PM   #48
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,583
Default

yeah, spookyfish was awesome
18psi is offline   Reply With Quote
Old 06-12-2013, 03:04 AM   #49
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Sorry for those who liked the Southpark character, but it was time for a change.

Doesn't make me nor the car any different ��
Laur3ns is offline   Reply With Quote
Old 06-12-2013, 09:39 AM   #50
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

It kinda does.
Braineack is offline   Reply With Quote
Old 06-12-2013, 10:09 AM   #51
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Just await dyno sheets and Ring vids ��
Laur3ns is offline   Reply With Quote
Old 06-13-2013, 02:51 PM   #52
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Small stuff:
- Rear bump stops shortened

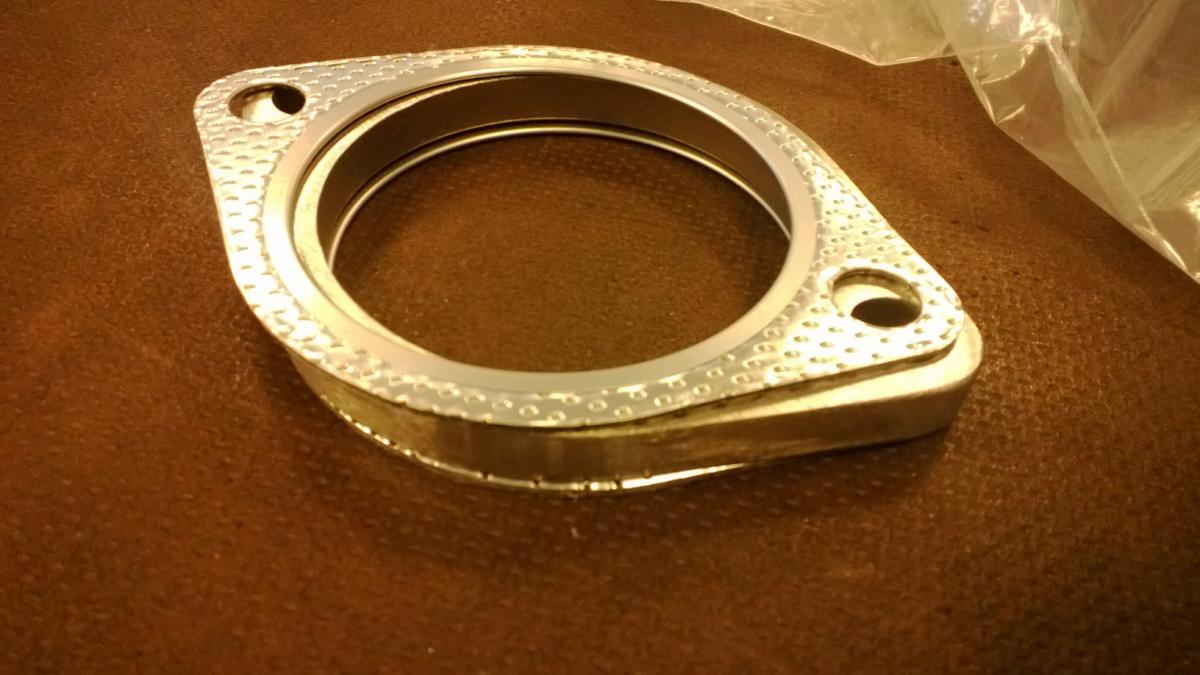

- Exhaust spacer arrived

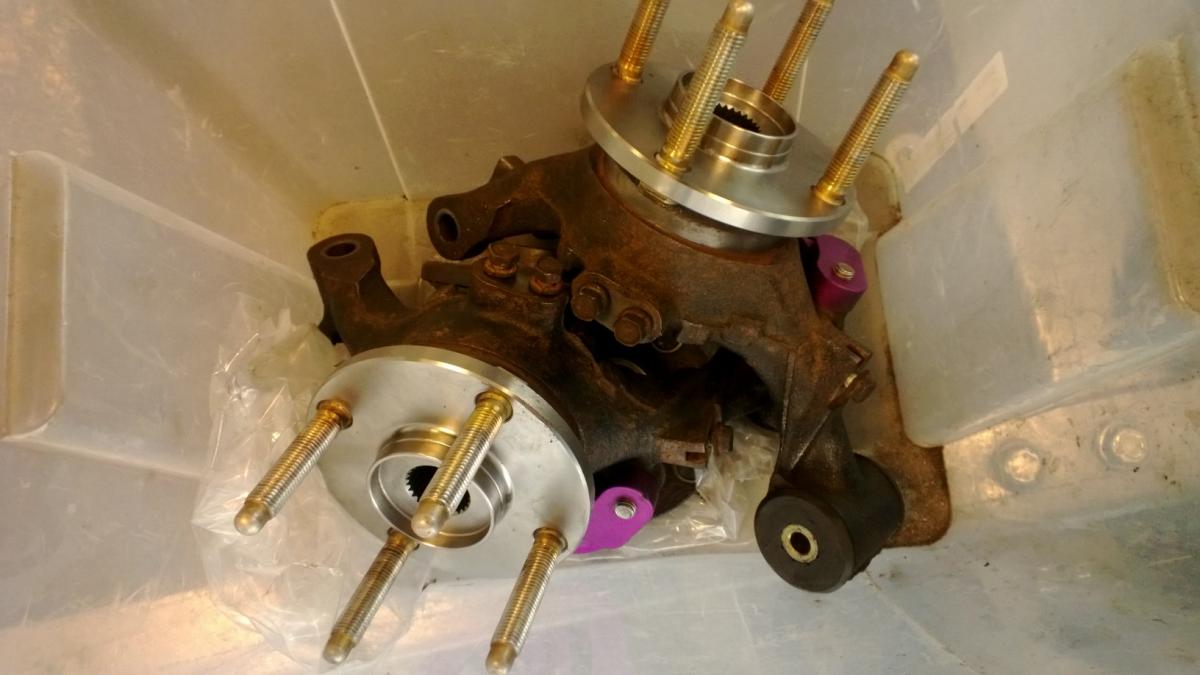

- New hubs mounted in the rear uprights with ARP studs
Attached Thumbnails
Laur3ns going AbsurdFlow-wp_20130613_009.jpg   Laur3ns going AbsurdFlow-wp_20130613_010.jpg   Laur3ns going AbsurdFlow-wp_20130613_011.jpg
Laur3ns is offline   Reply With Quote
Old 06-13-2013, 04:41 PM   #53
Junior Member

Join Date: Jan 2010
Location: Helsinki, Finland
Posts: 153
Total Cats: 9
Default

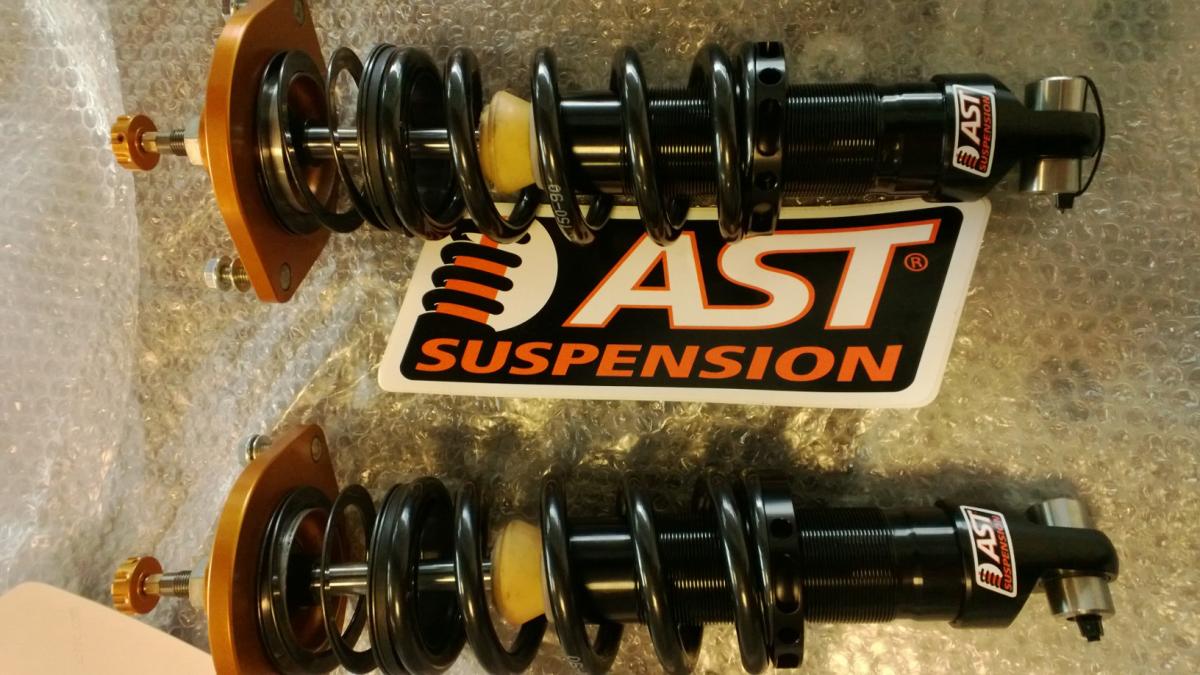

Really looking forward to hear how you like the AST's. Do you have any restrictions/law's about build your car in NL?
samulis is offline   Reply With Quote
Old 06-13-2013, 08:39 PM   #54
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

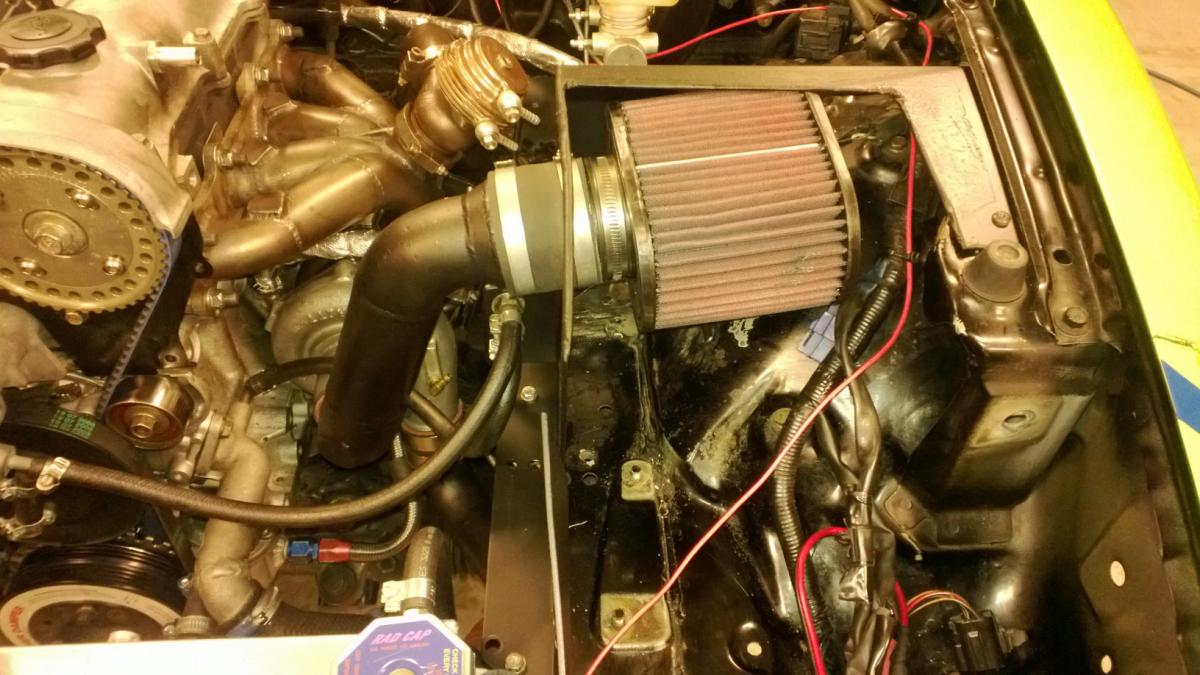

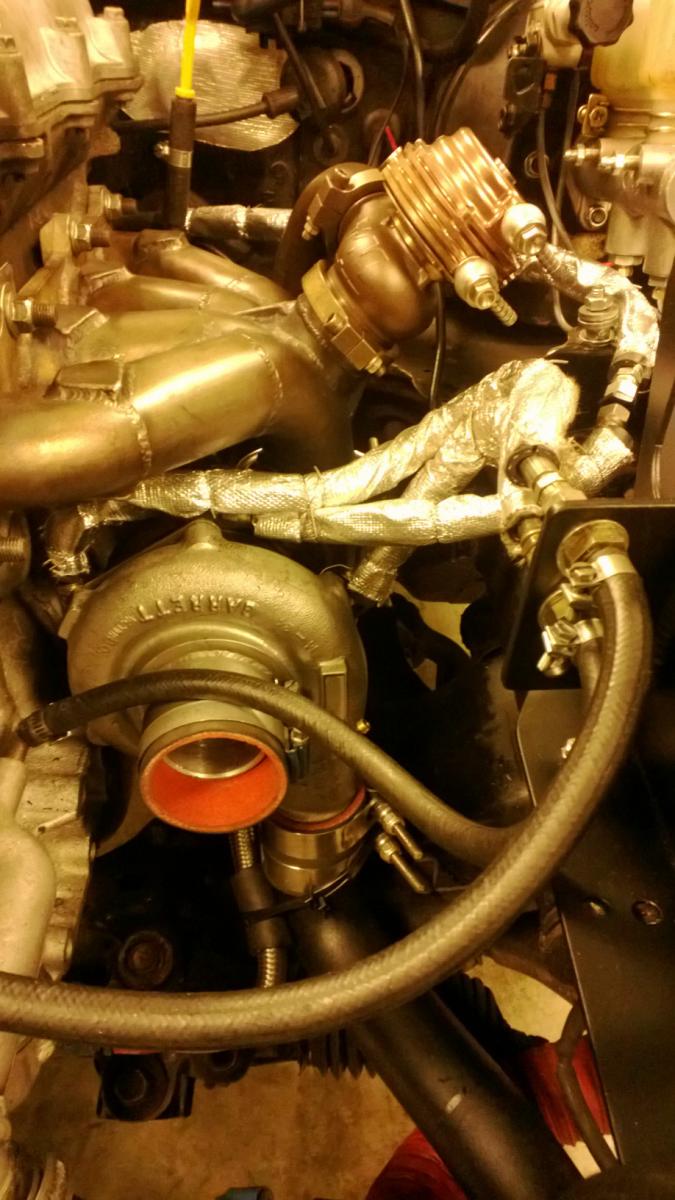

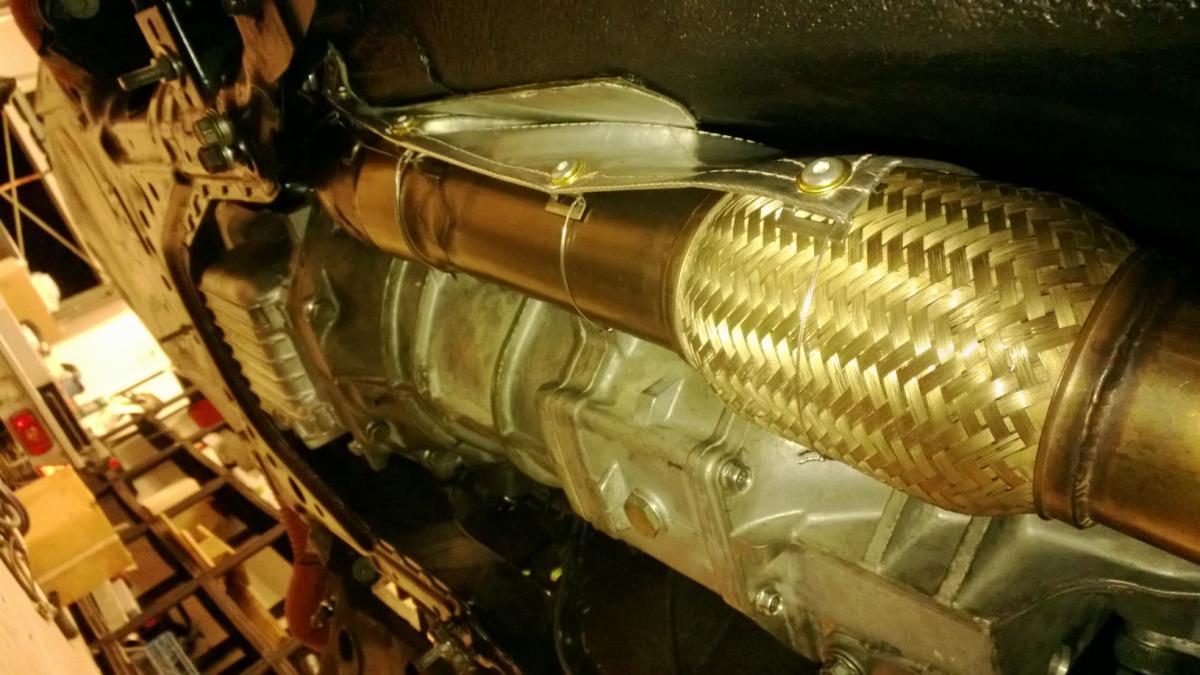

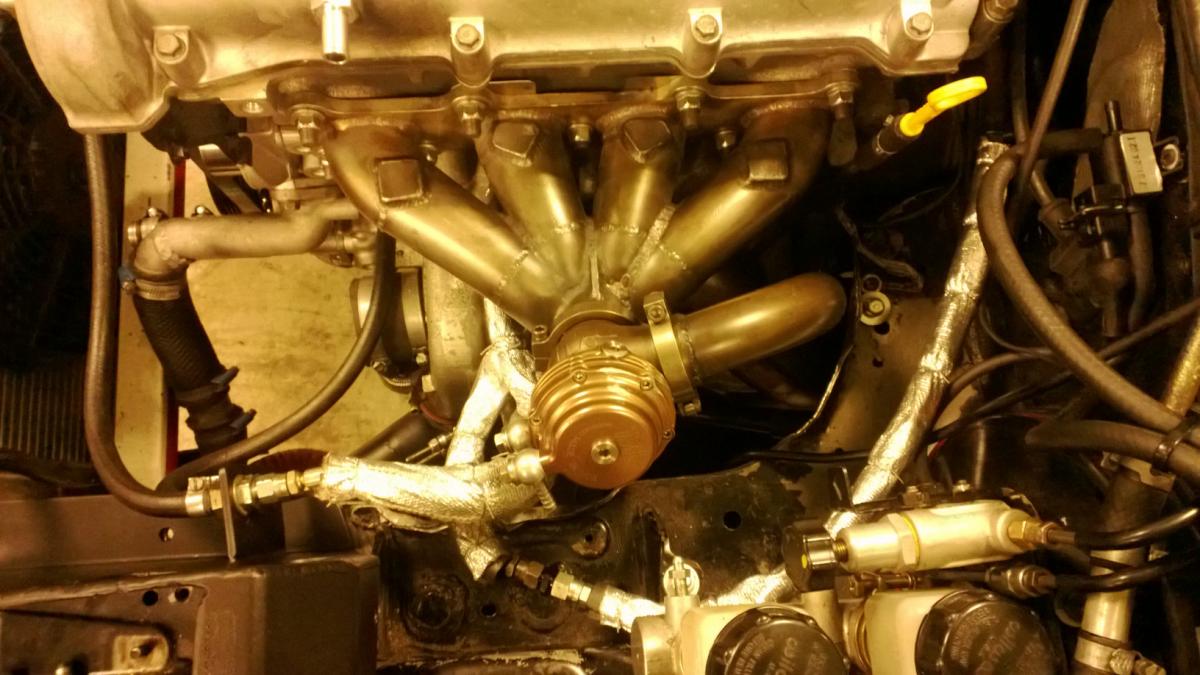

So, all the stuff is bolted up!
Car starts, oil the grease is smoking off, turbo makes scary sounds.

Need to fix wastegate plumbing, install suspension, rear hubs and get some dyno time.
Attached Thumbnails
Laur3ns going AbsurdFlow-wp_20130614_002.jpg   Laur3ns going AbsurdFlow-wp_20130614_004.jpg   Laur3ns going AbsurdFlow-wp_20130614_005.jpg   Laur3ns going AbsurdFlow-wp_20130614_006.jpg   Laur3ns going AbsurdFlow-wp_20130614_008.jpg

Laur3ns is offline   Reply With Quote
Old 06-13-2013, 08:43 PM   #55
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Laur3ns is offline   Reply With Quote
Old 06-13-2013, 08:52 PM   #56
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

I dont hear nuthin.
Leafy is offline   Reply With Quote
Old 06-14-2013, 10:06 AM   #57
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,778
Total Cats: 1,106
Default

Quote:
Originally Posted by Laur3ns View Post
This scares me:

GT2860RS Spin - YouTube
That did not seem to strange. I know Hustler got upgraded bearings and such inside the turbo which might account for a little of the noise. I can see if I can get a video of how mine sounds being spun by hand when I get home.
shuiend is offline   Reply With Quote
Old 06-14-2013, 11:57 AM   #58
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Oil drain has oil, so I am probably overreacting. I feel better about it than I did last night.
Also, how tight are those v-bands supposed to be? I think I still have a slight exhaust leak somewhere.

I've already killed one on the test pipe Luckily I had a spare. Hand tools only.
Laur3ns is offline   Reply With Quote
Old 06-14-2013, 11:58 AM   #59
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

My bb turbo you would hear spin for a long time when it was turned off.

prime the oil in the turbo before you start the car and almost guaranteed your noise will go away
shlammed is offline   Reply With Quote
Old 06-14-2013, 11:59 AM   #60
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by Laur3ns View Post
Oil drain has oil, so I am probably overreacting. I feel better about it than I did last night.
Also, how tight are those v-bands supposed to be? I think I still have a slight exhaust leak somewhere.

I've already killed one on the test pipe Luckily I had a spare. Hand tools only.
Nickle anti-seize.
Leafy is offline   Reply With Quote
