So, I've been working on fitting the 2001+ ABS system into my 94 chassis.
So far, so good, but slow.
Got some brake pipe, fittings and flaring tools to make it nice.

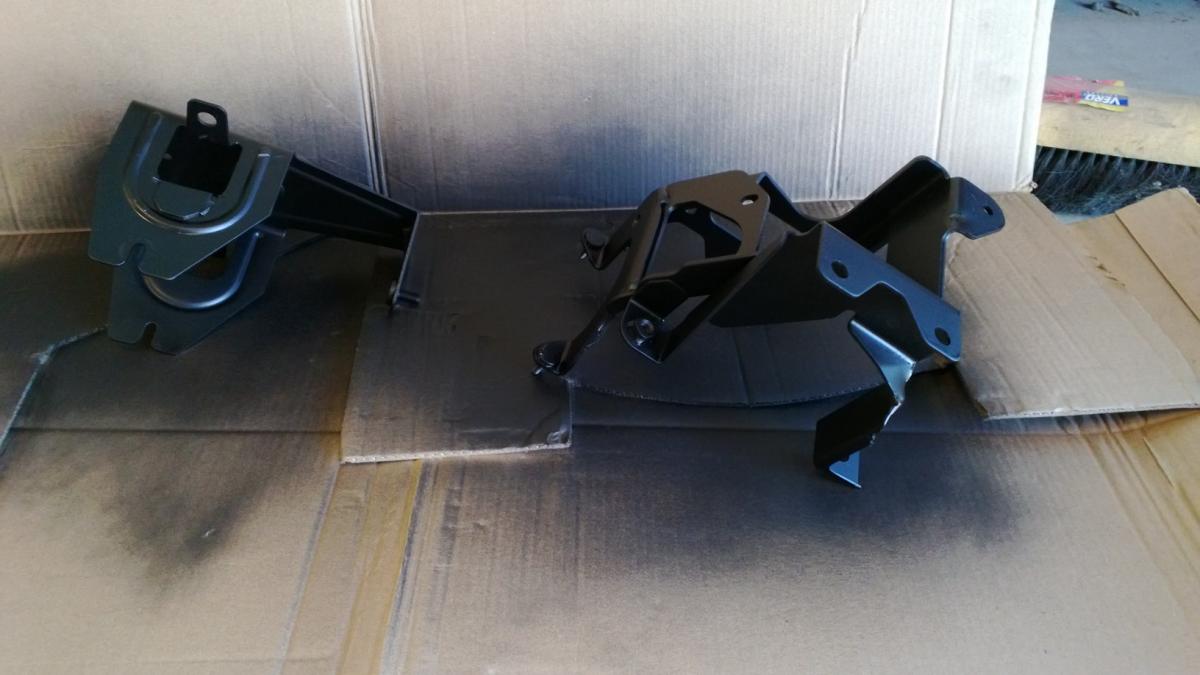

I needed to adjust the 2001+ ABS unit brackets slightly to fit in the car and still mount the fuse box and not crush existing brake lines. That is all done now.

Next steps are, fitting the unit. Making intermediate pipes to the ABS unit. Do all the wiring, which sounds harder than it is.

If I can make it, I will do another track day next Wednesday to test the ABS/EBD system.

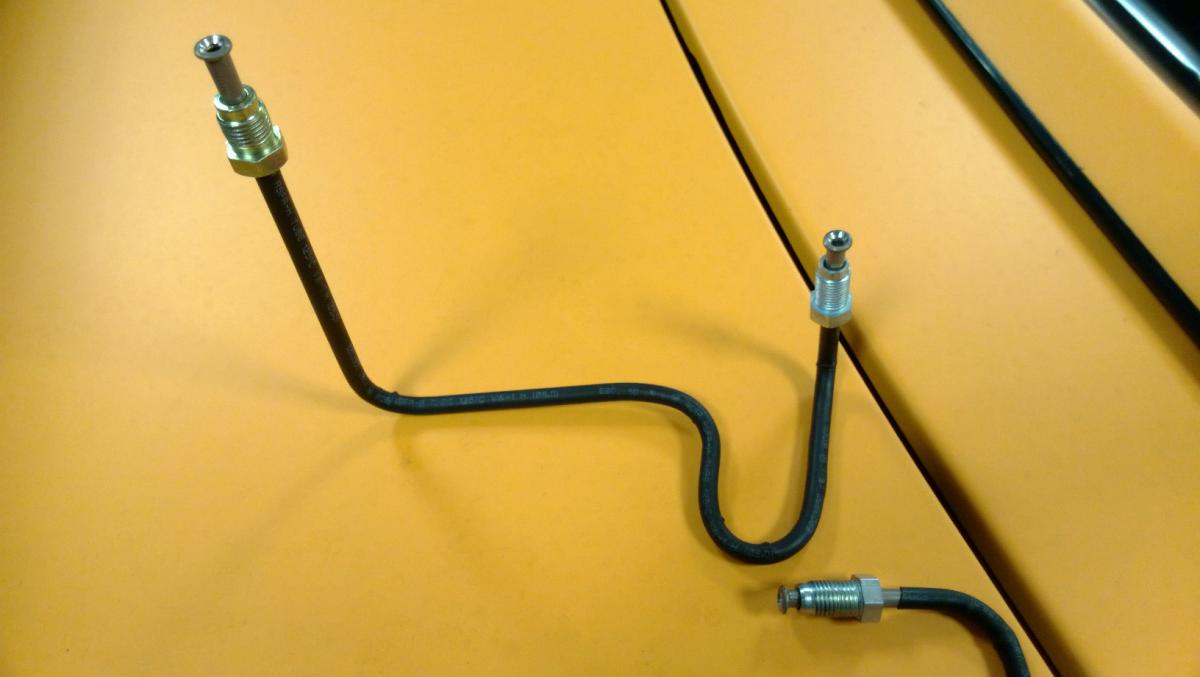

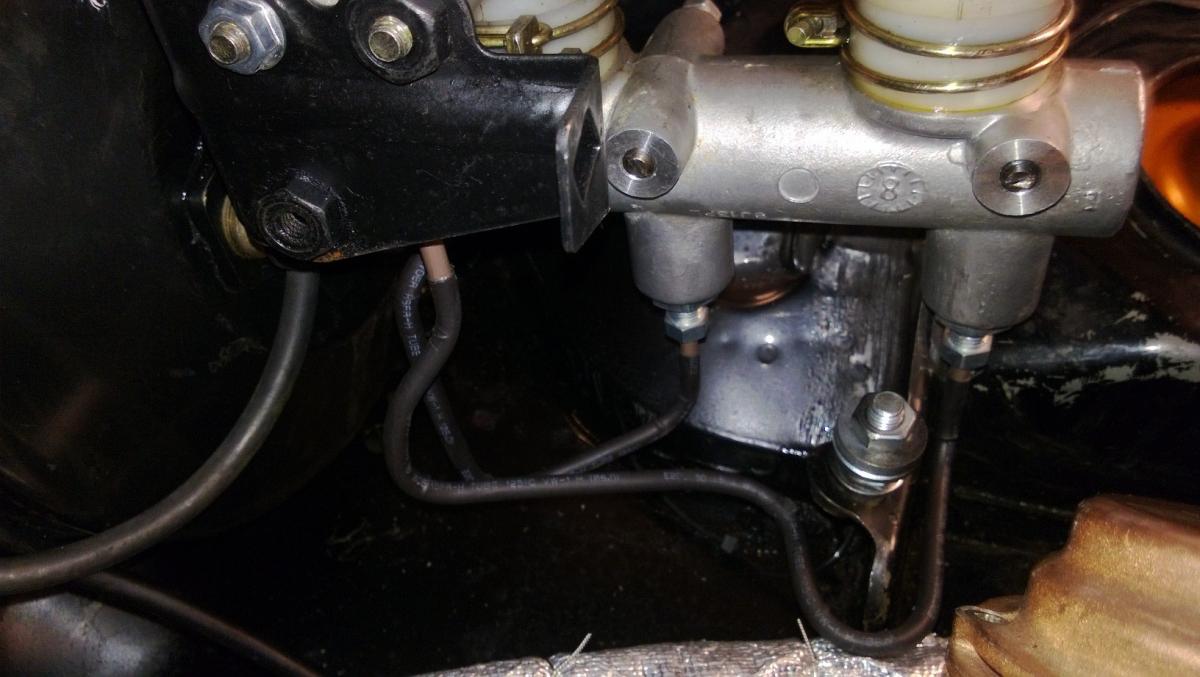

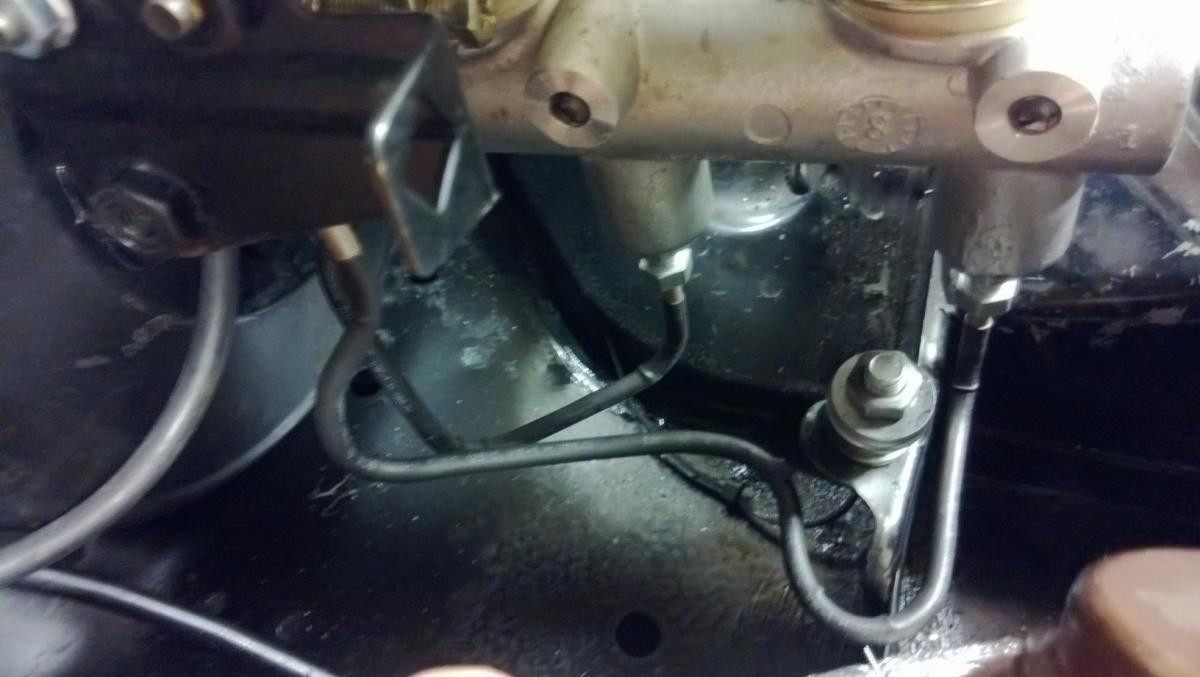

Attached Thumbnails
Laur3ns going AbsurdFlow-wp_20130811_004.jpg   Laur3ns going AbsurdFlow-wp_20130811_005.jpg   Laur3ns going AbsurdFlow-wp_20130811_006.jpg   Laur3ns going AbsurdFlow-wp_20130813_001.jpg
Laur3ns is offline   Reply With Quote
Old 08-13-2013, 06:36 PM   #122
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

Master still leaking I see?
Oscar is offline   Reply With Quote
Old 08-13-2013, 06:55 PM   #123
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Quote:
Originally Posted by Oscar View Post
Master still leaking I see?
Car still not running?

Slightly more seriously: there isn't even fluid in there, so not sure what you're referring too. I'm replacing the half baked fluid reservoirs too.
Laur3ns is offline   Reply With Quote
Old 08-13-2013, 06:59 PM   #124
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

Quote:
Originally Posted by Laur3ns View Post
Car still not running?


Quote:
Originally Posted by Laur3ns View Post
there isn't even fluid in there.
Exactly

Weren't both you and Ton dealing with less than awesome or even questionable reservoirs?
Oscar is offline   Reply With Quote
Old 08-14-2013, 07:59 PM   #125
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Quote:
Originally Posted by Oscar View Post
Weren't both you and Ton dealing with less than awesome or even questionable reservoirs?
Yeah, the caps on those might need replacing every other week to keep them tight.

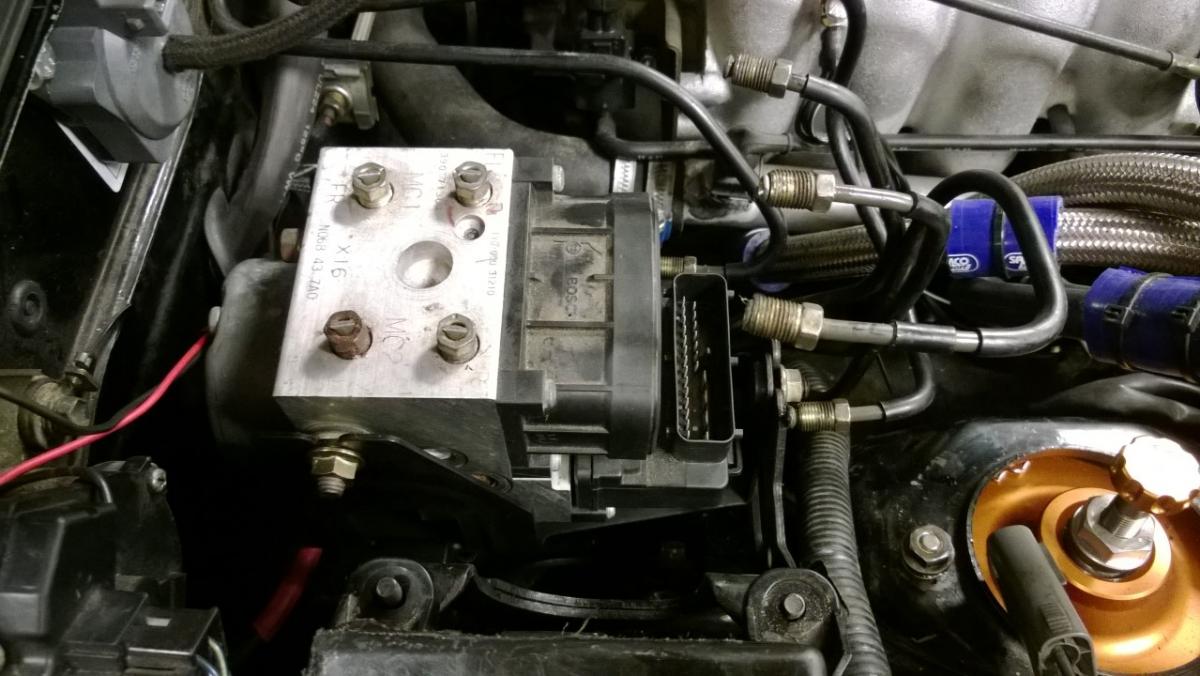

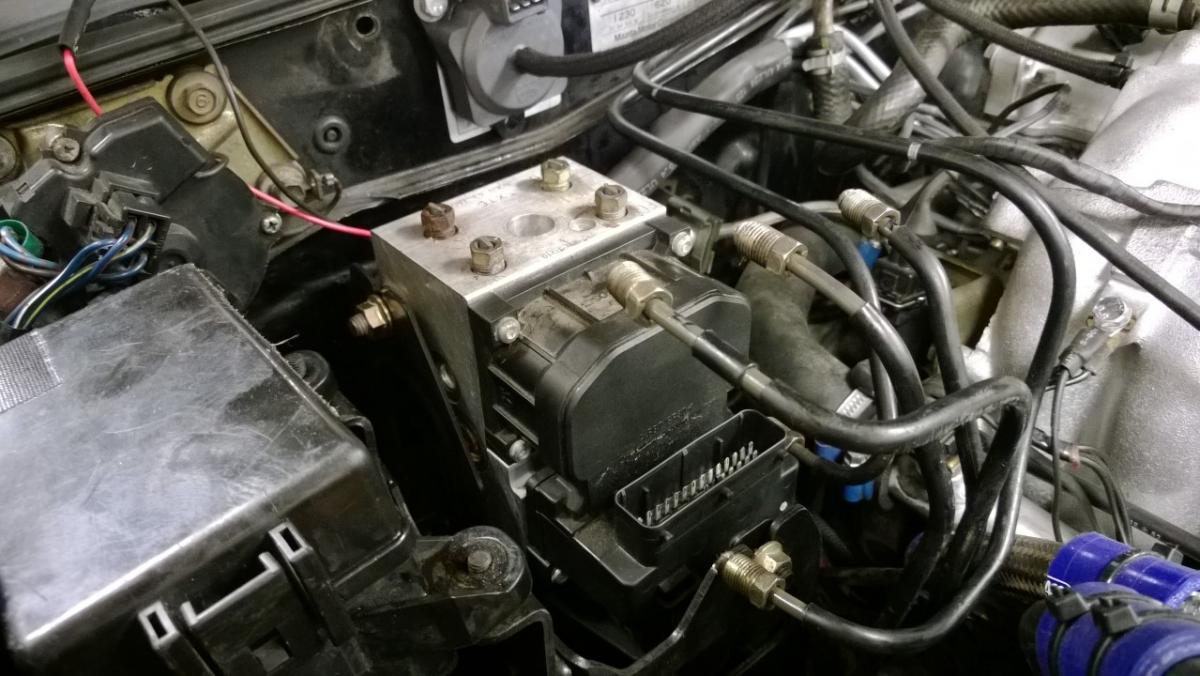

Anway, the NB2 ABS unit test fits in it's new bracket.
Next are hydraulics and electrics.
Attached Thumbnails
Laur3ns going AbsurdFlow-wp_20130815_003.jpg   Laur3ns going AbsurdFlow-wp_20130815_004.jpg
Laur3ns is offline   Reply With Quote
Old 08-15-2013, 02:19 PM   #126
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

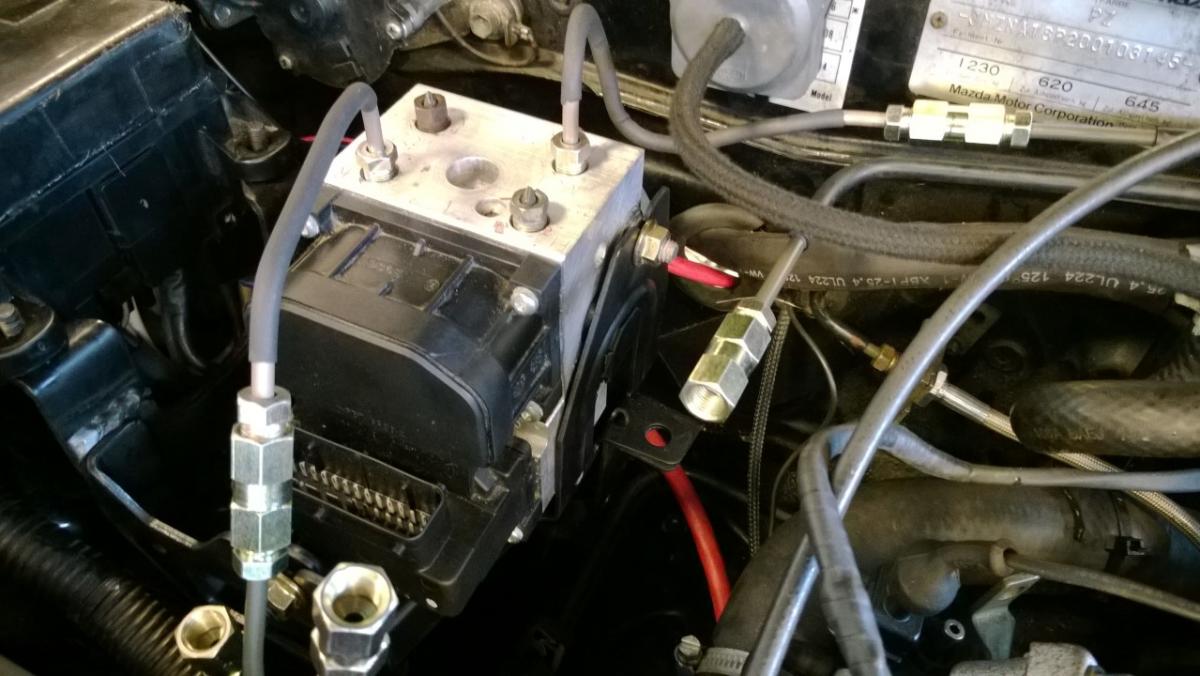

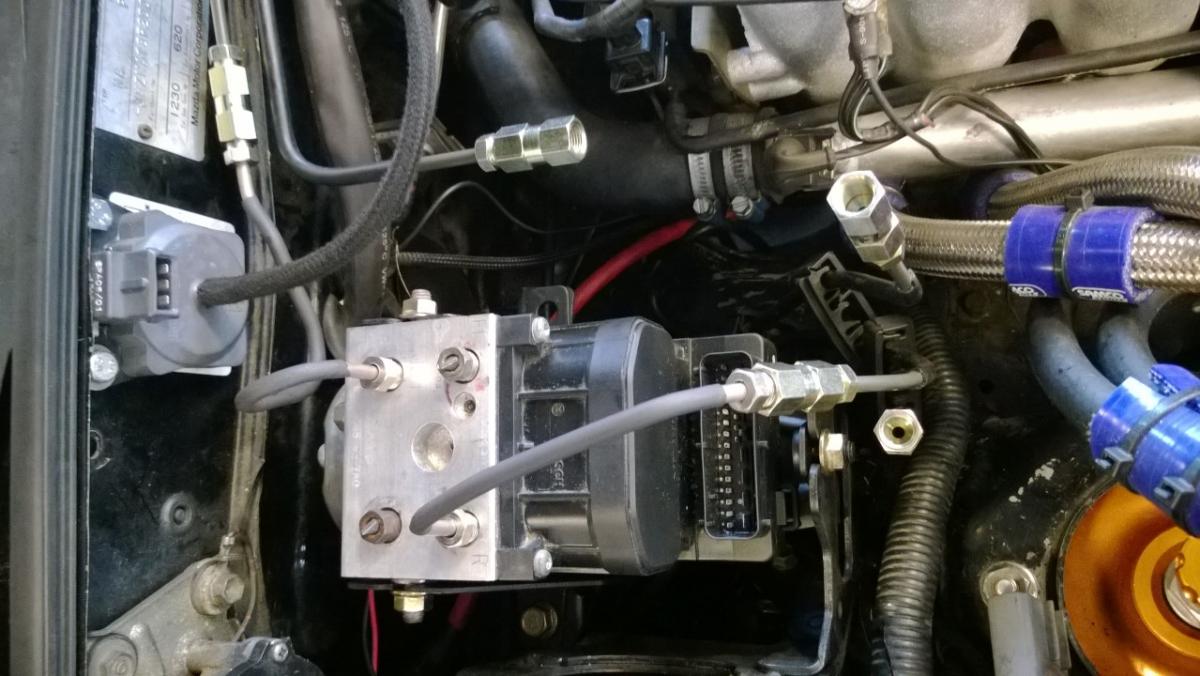

Brake lines cut, union fitted and now making the final hard line connections.
Attached Thumbnails
Laur3ns going AbsurdFlow-wp_20130815_007.jpg   Laur3ns going AbsurdFlow-wp_20130815_008.jpg
Laur3ns is offline   Reply With Quote
Old 08-15-2013, 02:32 PM   #127
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

why is it that i REALLY hate brake line fittings?
Braineack is offline   Reply With Quote
Old 08-15-2013, 02:34 PM   #128
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by Braineack View Post
why is it that i REALLY hate brake line fittings?
Because everyone REALLY hates brake fittings.
Leafy is offline   Reply With Quote
Old 08-16-2013, 04:11 AM   #129
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Quote:
Originally Posted by Leafy View Post
Because everyone REALLY hates brake fittings.
I think mainly because people don't usually have flaring tools at hand. So if you mess things up, you'll have down time. Also, it can get frustrating if you don't understand that the flare forms the seal, not the fitting itself.

I'm saying this before I've actually been able to test the system. But flaring, bending, cutting, deburring, etc. is actually quite easy and relaxing work. That is, if you have ample supply of cunifer brake line, nipples, joints, etc. and the proper tools.

I use this flaring tool:
Single Double Flare Brake Pipe Flaring Tool Kit 3 16 1 4 5 16 3 8 1 2" | eBay
Laur3ns is offline   Reply With Quote
Old 08-16-2013, 11:31 AM   #130
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Laur3ns View Post
Here is another 17mins of fun last Wednesday:
Nice and relaxed. It must be slow if it doesn't spin the tires in 2nd.
hustler is offline   Reply With Quote
Old 08-16-2013, 07:32 PM   #131
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

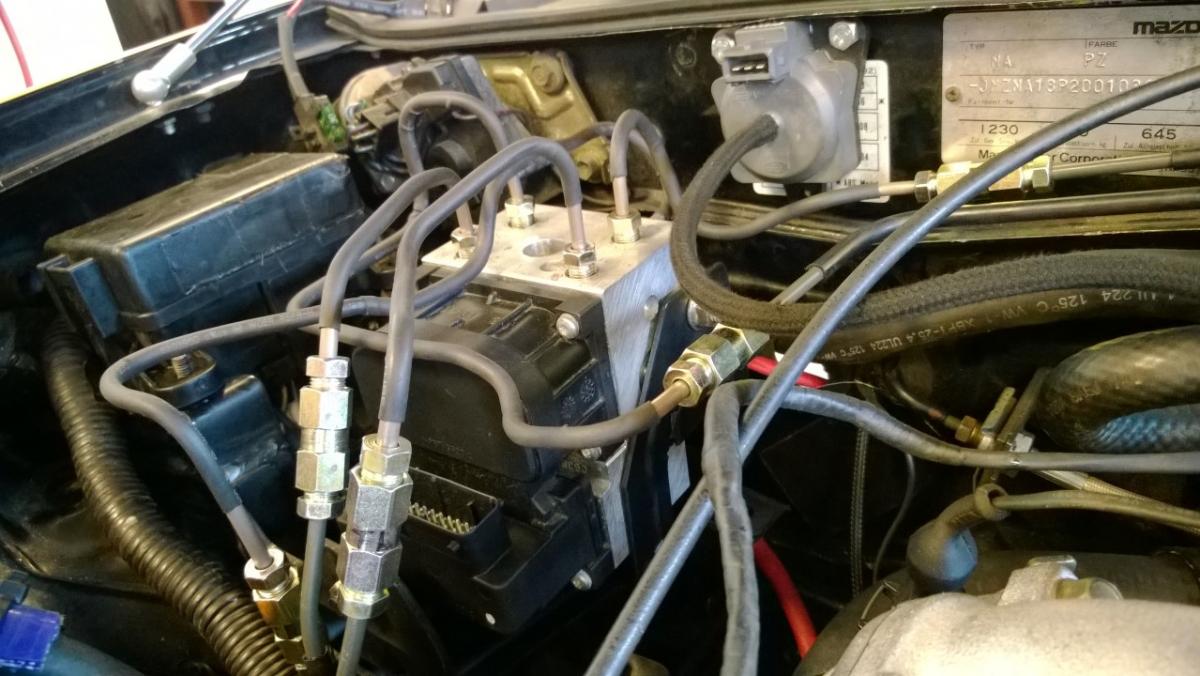

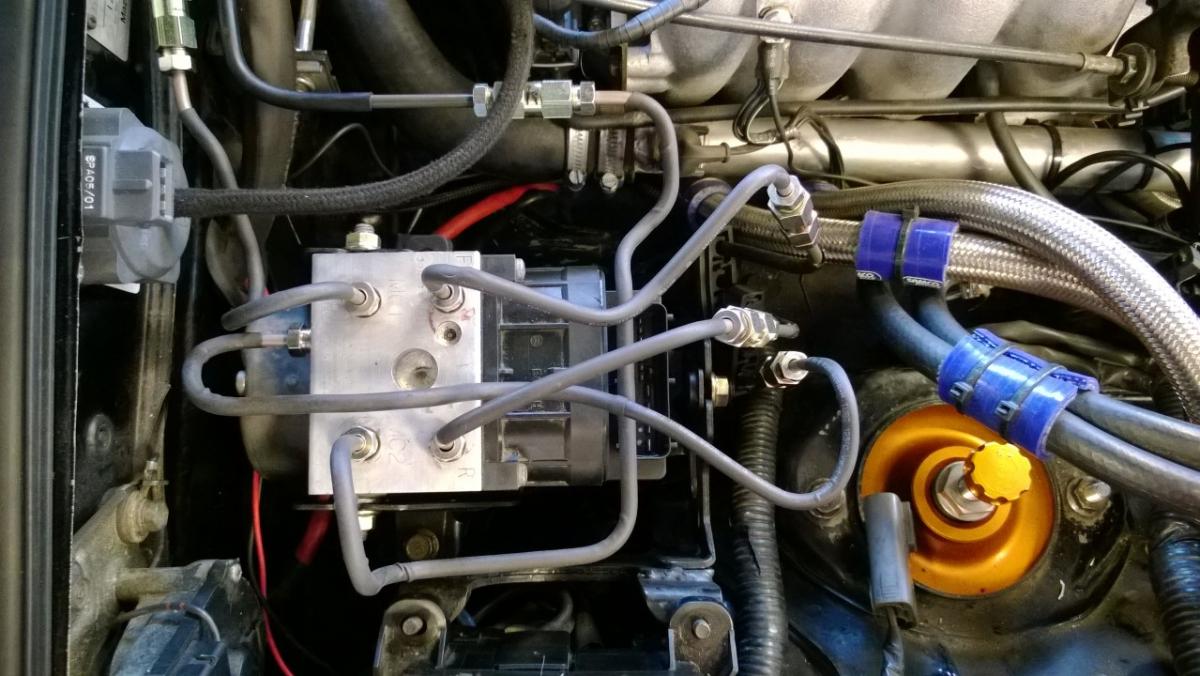

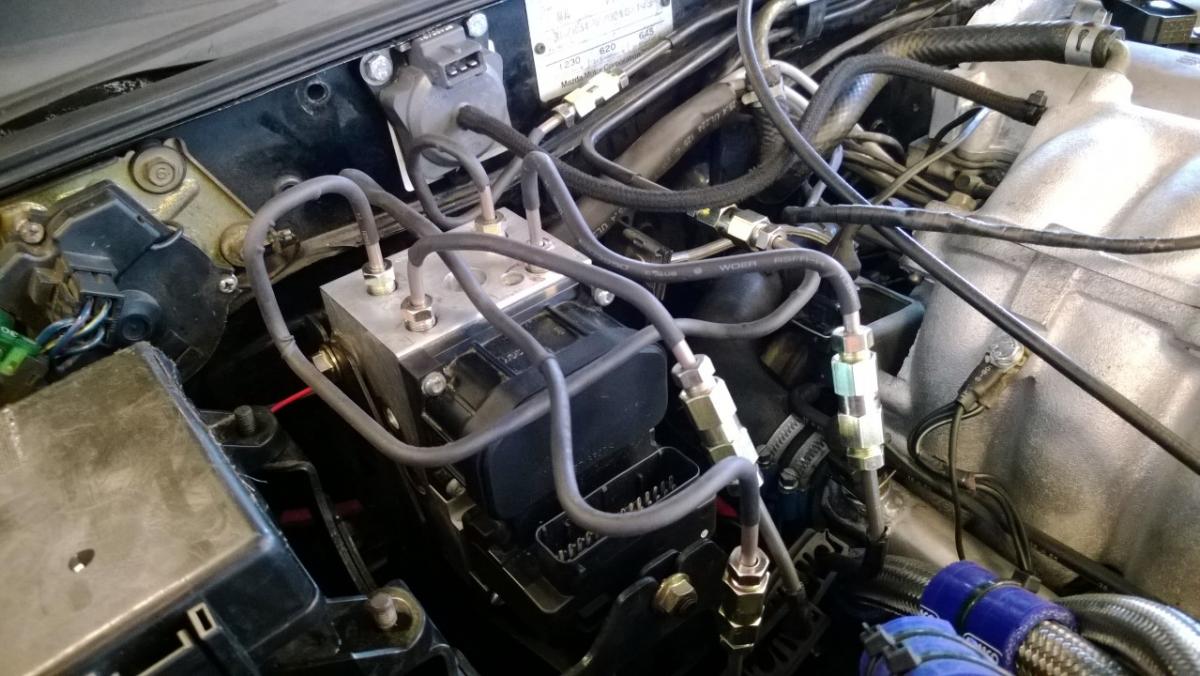

Finished the hard lines this evening. Now on to final tightening and wiring.
Attached Thumbnails
Laur3ns going AbsurdFlow-wp_20130816_001.jpg   Laur3ns going AbsurdFlow-wp_20130816_002.jpg   Laur3ns going AbsurdFlow-wp_20130816_003.jpg
Laur3ns is offline   Reply With Quote
Old 08-17-2013, 03:05 AM   #132
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,878
Total Cats: 344
Default

Very nice. Looking at yours makes me realize that the bit I've been dreading about converting mine (installing the line that goes to the rear of the car) would be a whole lot easier if I just chop off the end of the line that's already in the car and splice on the end of the 2003 line that won't fit past the transmission while it's still in the car.

What size are the Miata lines?

--Ian
codrus is offline   Reply With Quote
Old 08-17-2013, 03:49 AM   #133
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

3/16in or 4.75mm.
Do NOT get copper, but cunifer.

The fittings are M10x1.0 except for anything Wilwood, which is not metric.
Laur3ns is offline   Reply With Quote
Old 08-19-2013, 05:43 AM   #134
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

All the hard lines are done, tight and sealed. System bled, hard pedal. So the car is drivable at least

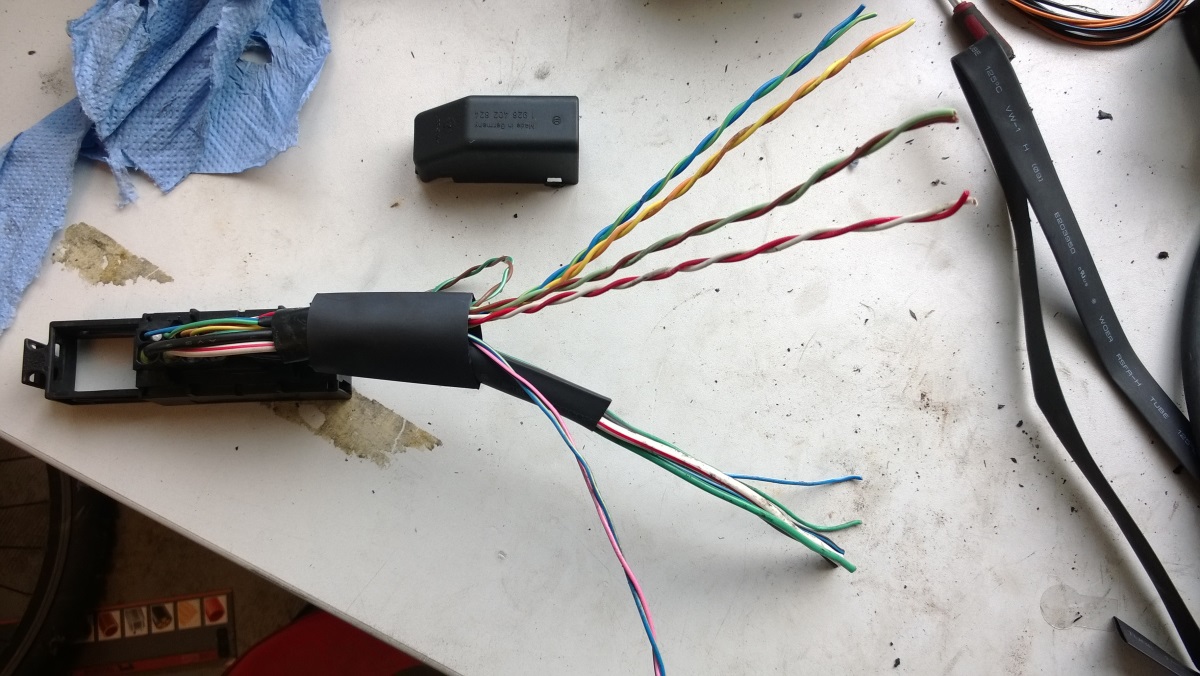

Now onto the wiring harness. I figured all the sources so now it's just a matter of connecting it all and hoping it works
Attached Thumbnails
Laur3ns going AbsurdFlow-wp_20130818_002.jpg
Laur3ns is offline   Reply With Quote
Old 08-22-2013, 12:15 PM   #135
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

The NB2 ABS unit is in, so time for a test.
Works amazingly, when it works. Faulty sensor made me go 4x4.

Test session at Zandvoort yesterday:


Chasing 450hp BMW M3 GTS + off:
Laur3ns is offline   Reply With Quote
Old 08-22-2013, 12:26 PM   #136
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

what happened at 3:00/?
Braineack is offline   Reply With Quote
Old 08-22-2013, 01:23 PM   #137
Junior Member

Join Date: Jan 2009
Posts: 121
Total Cats: 3
Default

That would be the faulty ABS sensor followed by "exit stage left" and code red for the rest of us

The ABS (when not trying to kill you) did feel like a drastic improvement over the earlier stuff from the passenger seat. Considering that the NB stuff also removes ~6lbs from the nose off the car compared to the NA unit its one upgrade that is definitely on my winter to-do list.
damir130 is offline   Reply With Quote
