Old 10-08-2012, 04:20 AM   #281
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Quote:
Originally Posted by hustler View Post
Dear Reverant,
Will I need to adjust the tach-out since I'm going to run the 99+ timing wheel settings? Does the NB Miata use a two-pulse/trigger set-up for the tach?
(I assume this will also be a problem on my 12-1 set-up for the green car)
The tachout does not need to be adjusted. The Megasquirt will always output 1 pulse per ignition fire.
Reverant is offline   Reply With Quote
Old 10-08-2012, 07:47 PM   #282
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

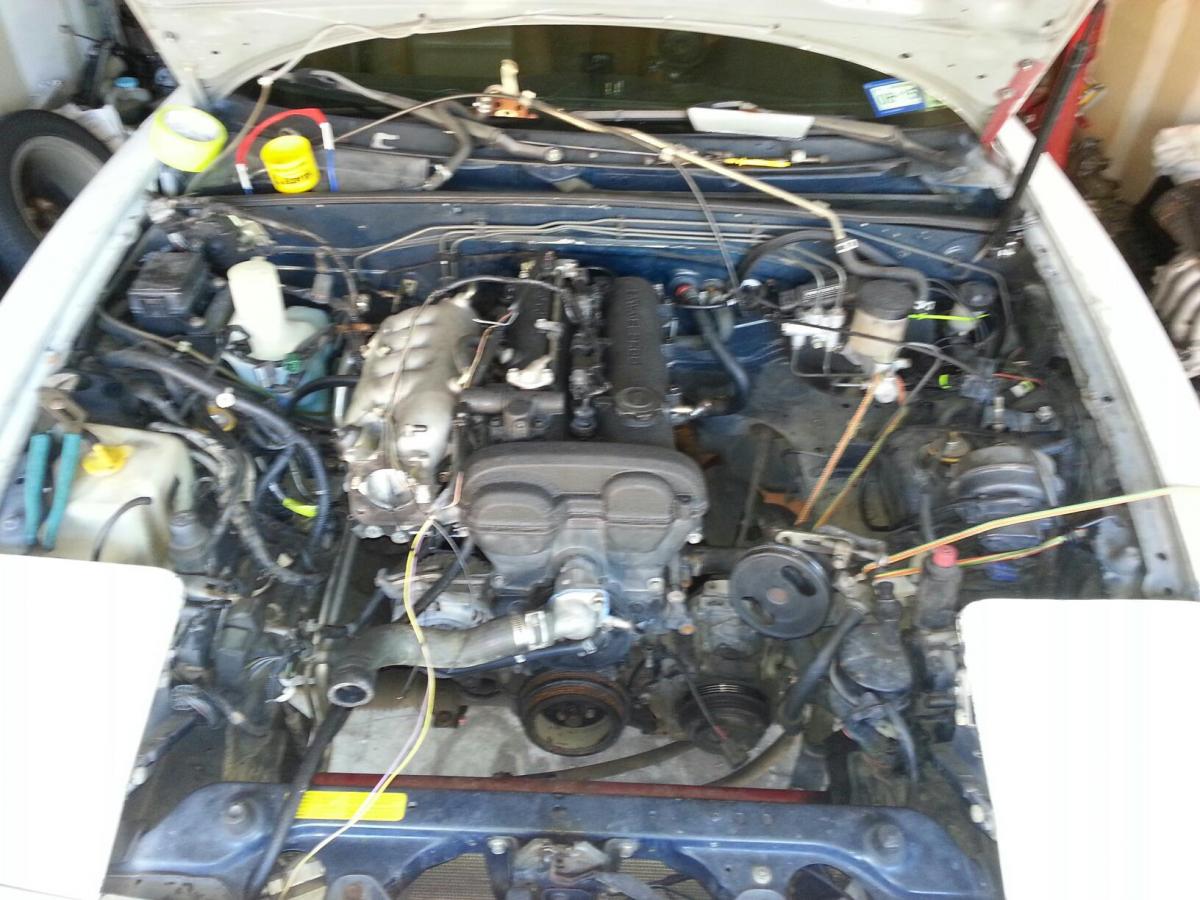

The heavy work on the engine is done:

Tomorrow is wiring day. Is there any reason I can't clip one of the EGR wires at the computer and at the connector, run that to the VVT solenoid, then grab power from anywhere, and be done? This is the part where I need to learn about small electronics. Also, can I do the same with VICS?

Thanks for the help.
Attached Thumbnails
My awesome daily project 35mpg/150whp highway donut-133910_10101153176691700_852828149_o.jpg

Last edited by hustler; 10-08-2012 at 08:06 PM.
hustler is offline   Reply With Quote
Old 10-08-2012, 08:04 PM   #283
Elite Member
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

Quote:
Originally Posted by hustler View Post
Tomorrow is wiring day. Is there any reason I can't clip one of the EGR wires at the computer and at the connector, run that to the VVT solenoid, then ground the other solenoid wire to the engine, and be done? This is the part where I need to learn about small electronics. Also, can I do the same with VICS and run the ground to the same place?

Thanks for the help.
Yes. That will work well. I run my tacho signal through the wires originally intended for the Evap purge solenoid.
Bryce is offline   Reply With Quote
Old 10-08-2012, 08:08 PM   #284
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Quote:
Originally Posted by hustler View Post
The heavy work on the engine is done:

Tomorrow is wiring day. Is there any reason I can't clip one of the EGR wires at the computer and at the connector, run that to the VVT solenoid, then ground the other solenoid wire to the engine, and be done? This is the part where I need to learn about small electronics. Also, can I do the same with VICS and run the ground to the same place?

Thanks for the help.
Yes you can clip the egr wire and run the violet/yellow wire back through it. The yellow wire should be going to a positive wire. I wired it into the same wire as the cam and crank sensor. At the MS side you might not even need to cut the wire. It might be possible to hook up a wire inside the MS and then route it to the VVT Tuner, or else yes clipping it should work fine.

You can use other EGR wires and free ones back to the ECU for VICS. As to if the other VICS wire goes to 12v or ground I am not sure.
shuiend is offline   Reply With Quote
Old 10-08-2012, 08:16 PM   #285
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Thanks. this might end up being not so bad. This thing might run on Wednesday as planned.

VICS goes to a 12v, I brain farted.
hustler is offline   Reply With Quote
Old 10-08-2012, 08:19 PM   #286
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I need a square-top for this bitch.
hustler is offline   Reply With Quote
Old 10-08-2012, 08:25 PM   #287
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Quote:
Originally Posted by hustler View Post
Thanks. this might end up being not so bad. This thing might run on Wednesday as planned.

VICS goes to a 12v, I brain farted.
Yes you can.


Quote:
Originally Posted by hustler View Post
I need a square-top for this bitch.
Any reason why not getting a Civic manifold and having Abe mate it to the 99 head flange? Might be a little cheaper, and even if it does not help it will give us concrete data about it. Hell if it does not work, I might buy it off you to try against my BEGI IM.
shuiend is offline   Reply With Quote
Old 10-08-2012, 09:29 PM   #288
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Wow, you did it bro. I thought it was just an idea you had.

In for ecomodded Miata. You could probably get past 40mpg highway with the 3.63s, aero, and a hot air intake.
kotomile is offline   Reply With Quote
Old 10-08-2012, 09:48 PM   #289
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Some little aero mods are still on the table, but next year when I have more time. After this, I get to put MS2 in my track car, corner balance, align, then track the **** out of it and get ready for TTC in 2013.
hustler is offline   Reply With Quote
Old 10-08-2012, 10:23 PM   #290
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Quote:
Originally Posted by hustler View Post
Some little aero mods are still on the table, but next year when I have more time. After this, I get to put MS2 in my track car, corner balance, align, then track the **** out of it and get ready for TTC in 2013.
Make him make it an MS3.

I checked over you cam and crank wiring and it looks correct. I will check on my car in the morning and verify it again though.
shuiend is offline   Reply With Quote
Old 10-08-2012, 10:25 PM   #291
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by shuiend View Post
Make him make it an MS3.

I checked over you cam and crank wiring and it looks correct. I will check on my car in the morning and verify it again though.
I want Green Glory drivable now, not later. I don't have time to wait since his MS3 stuff isn't ready.

Thank you very much for going through this.
hustler is offline   Reply With Quote
Old 10-09-2012, 01:11 AM   #292
Junior Member
iTrader: (4)

Join Date: May 2009
Location: Athens GA
Posts: 434
Total Cats: 3
Default

For the VVT I used the +12V from the injector harness.

-Raj
redrider706 is offline   Reply With Quote
Old 10-09-2012, 11:13 AM   #293
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

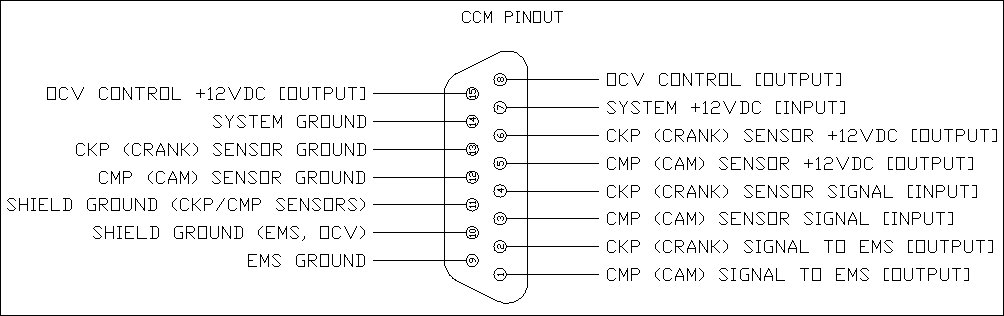

Do pins 8 and 15 both need to go to the solenoid, or can I run only 15?

I've read through the guide here, but I'm making an assumption and that's dangerous.
Attached Thumbnails
My awesome daily project 35mpg/150whp highway donut-ccmplug.png
hustler is offline   Reply With Quote
Old 10-09-2012, 12:37 PM   #294
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Pin 15 is just a handy 12V source. You can source +12V to the OCV from anywhere convenient. Pin 15 is the critical connection. The VVTuner pulses the ground side of the OCV.
Ben is offline   Reply With Quote
Old 10-09-2012, 01:14 PM   #295
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

Quote:
Originally Posted by hustler View Post
I want Green Glory drivable now, not later. I don't have time to wait since his MS3 stuff isn't ready.

I just shipped (4) PNP MS3xes this morning... just sayin'

Braineack is offline   Reply With Quote
Old 10-09-2012, 09:22 PM   #296
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I had a productive day. I started at 9am, swapped the rear end, cleaned and tightened up the PPF, removed the 01 alternator which I forgot and replaced it with the 94 alternator, added trans oil, gear oil, engine oil, water, discovered this engine had a turbo on it and picked-up a plug for the old turbo oil return in the pan, picked-up a new O2 bung plug, replaced all hoses aside from the lower rad hose, new belts, added the new SS clutch line, and I think that's it. Today was basically all the nit-pick mechanical stuff. Tomorrow I will get up early to start the wiring and probably drive it if my wire stuff is right. For now, I'm going to a bar.

Things left to do:
Bolt the wheels on
Bleed the clutch
Wire CKP, CMP, coils, VVT
Cut one wire at the computer, move it to the VVTuner

Last edited by hustler; 10-09-2012 at 09:55 PM.
hustler is offline   Reply With Quote
Old 10-09-2012, 10:06 PM   #297
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Ben View Post
Pin 15 is just a handy 12V source. You can source +12V to the OCV from anywhere convenient. Pin 15 is the critical connection. The VVTuner pulses the ground side of the OCV.
Thanks.
hustler is offline   Reply With Quote
Old 10-09-2012, 10:13 PM   #298
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by Ben View Post
Pin 15 is just a handy 12V source. You can source +12V to the OCV from anywhere convenient. Pin 8 is the critical connection. The VVTuner pulses the ground side of the OCV.
Fixed
Ben is offline   Reply With Quote
Old 10-09-2012, 10:56 PM   #299
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Thanks Ben. How well do the standard settings usually work for most users? Do you set it up prior to shipping?
hustler is offline   Reply With Quote
Old 10-10-2012, 01:53 AM   #300
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

What is this "****" I've heard that VVTuner doesn't output a clean-enough signal for my Greco MS2+++? Now I'm paranoid and I don't care to pull this head off the car.

Last edited by hustler; 10-10-2012 at 02:08 AM.
hustler is offline   Reply With Quote
