Old 03-21-2011, 12:34 PM   #81
Senior Member
Thread Starter
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

What motor mounts are you using?
dgmorr is offline   Reply With Quote
Old 03-21-2011, 04:02 PM   #82
Senior Member
iTrader: (34)

ARTech's Avatar

Join Date: Mar 2009
Location: Dallas
Posts: 530
Total Cats: 9
Default

If you just loosen it a bit and and pivot the WG v-bands I'm sure you can gain another 1/4" of clearance. The tab has a little give.

1/8" is definitely too little. I don't see how you're not hitting the frame

ARTech is offline   Reply With Quote
Old 03-21-2011, 04:43 PM   #83
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

engine twist the other way? i dont know.
stock mounts.
shlammed is offline   Reply With Quote
Old 03-21-2011, 04:57 PM   #84
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

Quote:
Originally Posted by ARTech View Post
If you just loosen it a bit and and pivot the WG v-bands I'm sure you can gain another 1/4" of clearance. The tab has a little give.

1/8" is definitely too little. I don't see how you're not hitting the frame

Twinturbo? What kinda dumbass idea is that?! At least post the 270rwhp vid.
http://www.youtube.com/watch?v=8VPloV9a-mE
EDIT: OOps 289rwhp
http://www.youtube.com/watch?v=mI9dclLeMqA

Anyway, my circa '92 mount(s) are busted.

I like 1/8 between pipes/trans that move together. As much as possible between the things that don't like the steering. I'm a little nervous with a thumbs width (~5/8") between turbine & steering rod on the current setup i'm building.
TurboTim is offline   Reply With Quote
Old 03-22-2011, 05:27 PM   #85
Newb

Join Date: Mar 2011
Location: Milton, ON
Posts: 43
Total Cats: 0
Default

Dave, your miata is really coming along it looks promising!
sleeperavant is offline   Reply With Quote
Old 03-22-2011, 05:53 PM   #86
Senior Member
Thread Starter
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

Damn you again, USPS



dgmorr is offline   Reply With Quote
Old 03-22-2011, 10:00 PM   #87
Senior Member
Thread Starter
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

This safety wiring business isn't as easy as it looks, damnit. Does the wire between the two nuts have to be rigid to be effective?

I'm just waiting on the new coolant lines to arrive, get a new oil feed line with a 90* fitting and I'll be ready to start it up again. Still unsure if I should go with a new IC and piping or not. Mine does not live up to the rest of the system. I will probably just live with it for now and upgrade later.

Last edited by dgmorr; 03-22-2011 at 10:10 PM.
dgmorr is offline   Reply With Quote
Old 03-22-2011, 10:21 PM   #88
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,072
Total Cats: 253
Default

What is wrong with your current intercooler setup?
viperormiata is online now   Reply With Quote
Old 03-22-2011, 10:26 PM   #89
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

Nice pic of the bolts!! Can I use it?
TurboTim is offline   Reply With Quote
Old 03-22-2011, 10:26 PM   #90
Senior Member
Thread Starter
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

Quote:
Originally Posted by viperormiata View Post
What is wrong with your current intercooler setup?
Nothing really. Just one sub-optimal bend, chipping black paint on steel pipes, hose clamp for the Forge style bov. I was going to have Weirtech make me something nice. All aluminum, new Mishimoto ricer gold IC, minimal silicone connectors, Tial bov, you fancy huh.
http://www.mishimoto.com/mishimoto-m...-all-gold.html

I'll see how it holds up after the first event and decide. I'm surprised the charge pipes fit in the same position even though the turbo is not in the same spot. Either I'm doing it wrong, or <blank>.

Current IC setup, made by Stein. I don't have my own pics of it.


dgmorr is offline   Reply With Quote
Old 03-25-2011, 05:15 PM   #91
Senior Member
Thread Starter
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

I guess I could have got the car running by now, but I've been dragging my feet on getting a new oil feed line with a 90* off the turbo. Finally went and got it today and some heater hose.

What do you guys typically do to run this heater hose back to the firewall? This hose has a big minimum bend radius and will collapse if I make it neat and tight. I could delete the heater core, but i'd still have to loop this to the back of the head. I have a flipped mixing manifold, so the outlet faces forward. I could get a 90* off the mixing manifold but I want a better idea of how to get it back. Should I just put the stock water pipe in place under the exhaust manifold? I wish I had Abe cut the water neck off and weld it towards the front to keep the water pipe outlet in the stock location. Looking for some creativity here.


I'm also waiting for the water lines to come, damn USPS.



dgmorr is offline   Reply With Quote
Old 03-25-2011, 05:28 PM   #92
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

You can route it up through the bumper, along the drivers headlight, along the wheel well and over the brake booster.

Or get a longer line and do the same thing via the coldside.
Faeflora is offline   Reply With Quote
Old 03-25-2011, 09:50 PM   #93
Senior Member
Thread Starter
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

Option 1. Yes, I see that the hose is collapsed. Damn this soft, supple hose. I doubt I'll be keeping it like this. Just messing around before I can get out to Lowes Racing.



dgmorr is offline   Reply With Quote
Old 03-25-2011, 09:57 PM   #94
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

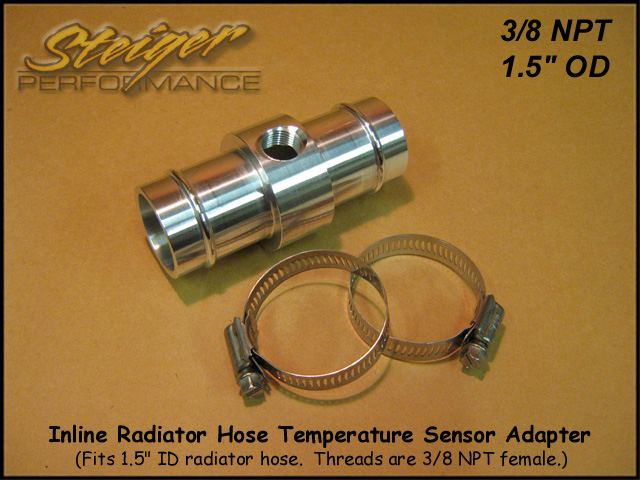

I asked Abe what he does for a solution. He showed me yours and also gave me this link to an adapter. Might work out for a cleaner solution for you.

http://cgi.ebay.com/ebaymotors/Inlin...Q5fAccessories
Attached Thumbnails
My Money Pit - part 2 (next time do it right the first time)-radiatorhoseadapter.jpg
TurboTim is offline   Reply With Quote
Old 03-25-2011, 10:04 PM   #95
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

Quote:
Originally Posted by dgmorr View Post
Nothing really. Just one sub-optimal bend, chipping black paint on steel pipes, hose clamp for the Forge style bov. I was going to have Weirtech make me something nice. All aluminum, new Mishimoto ricer gold IC, minimal silicone connectors, Tial bov, you fancy huh.
http://www.mishimoto.com/mishimoto-m...-all-gold.html

I'll see how it holds up after the first event and decide. I'm surprised the charge pipes fit in the same position even though the turbo is not in the same spot. Either I'm doing it wrong, or <blank>.

Current IC setup, made by Stein. I don't have my own pics of it.

word on the street is that aaron was going to stop fabbing and just do flanges....


if you want, i can build you some IC piping too...
bring your car down and i can do it same day. Just give me a week or 2 notice so i can have the day not busy with other projects or racing.

-Matt
shlammed is offline   Reply With Quote
Old 03-25-2011, 10:18 PM   #96
Senior Member
Thread Starter
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

Quote:
Originally Posted by TurboTim View Post
I asked Abe what he does for a solution. He showed me yours and also gave me this link to an adapter. Might work out for a cleaner solution for you.

http://cgi.ebay.com/ebaymotors/Inlin...Q5fAccessories
You mean instead of running my 5/8" barbed fitting? Or do you mean to Tee into my lower rad hose and drill/tap that out for a 5/8" fitting (if that size exists for NPT)? Is a 3/8" hose big enough?

My mixing manifold right now has a 3/4" NPT barbed fitting coming off the end. I'll look for a male NPT plug and see if I can seal it up. JayL sent me pics of how he did his and it looks great.

I've seen someone with the mixing manifold in the factory orientation, but the rad hose end was welded towards the front allowing the water pipe to plug in like normal. It looked like a simple solution that I should have asked for.

Quote:
Originally Posted by shlammed View Post
word on the street is that aaron was going to stop fabbing and just do flanges....


if you want, i can build you some IC piping too...
bring your car down and i can do it same day. Just give me a week or 2 notice so i can have the day not busy with other projects or racing.

-Matt
Yeah, he said he was busy with some other big contract, but would make time. I still want new pipes made, I'm sure the track will pull a connector off as it sits now. PM me a price for a similar route like in my pics and I'll make a trip to Kingston.

Last edited by dgmorr; 03-25-2011 at 10:49 PM.
dgmorr is offline   Reply With Quote
Old 03-26-2011, 09:42 AM   #97
Senior Member
Thread Starter
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

Quote:
Originally Posted by TurboTim View Post
Nice pic of the bolts!! Can I use it?
Didn't see this. Yes you can use it.
dgmorr is offline   Reply With Quote
Old 03-26-2011, 12:09 PM   #98
Newb

Join Date: Mar 2011
Location: Milton, ON
Posts: 43
Total Cats: 0
Default

sleeperavant is offline   Reply With Quote
Old 03-26-2011, 01:46 PM   #99
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Quote:
Originally Posted by dgmorr View Post
You mean instead of running my 5/8" barbed fitting? Or do you mean to Tee into my lower rad hose and drill/tap that out for a 5/8" fitting (if that size exists for NPT)? Is a 3/8" hose big enough?
See below. 3/8 NPT is 5/8" barb. Or at least it can be, 5/8" or 3/4".

Quote:
Originally Posted by dgmorr View Post
My mixing manifold right now has a 3/4" NPT barbed fitting coming off the end. I'll look for a male NPT plug and see if I can seal it up.
3/4" NPT or 3/4" barb? Two VERY different measurements. A 3/4" NPT is approx. 1" OD, where as 3/8 NPT has an O.D. of .675".

Quote:
Originally Posted by dgmorr View Post
JayL sent me pics of how he did his and it looks great.
Show us please
curly is offline   Reply With Quote
Old 03-28-2011, 01:00 AM   #100
Senior Member
iTrader: (34)

ARTech's Avatar

Join Date: Mar 2009
Location: Dallas
Posts: 530
Total Cats: 9
Default

Curly, the fitting is a 3/4NPT to 3/4" barb adapter.

It was just a DIY solution I suggested since I wasn't sure if you wanted to pay to have one modified. Probably should have asked. I just received your core Saturday and modified it to point the lower rad hose towards the front of the car. If you want, I'll ship you this one.

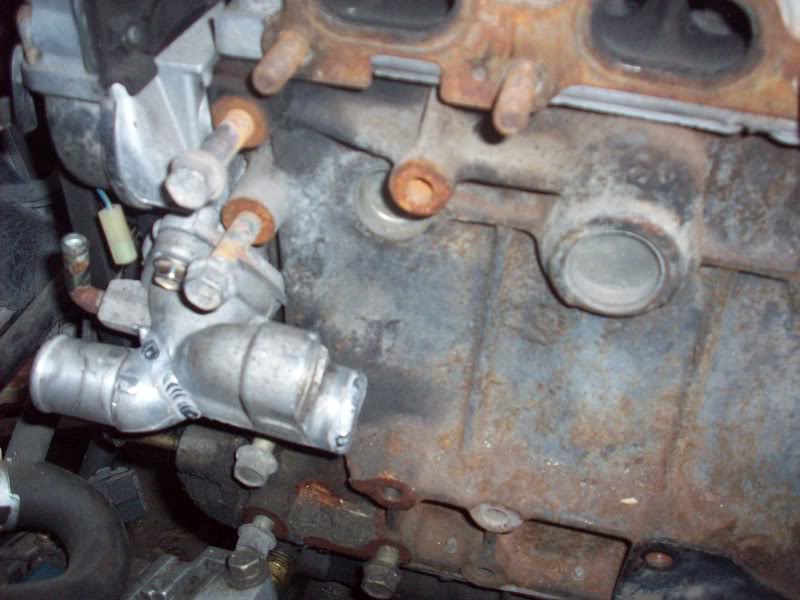

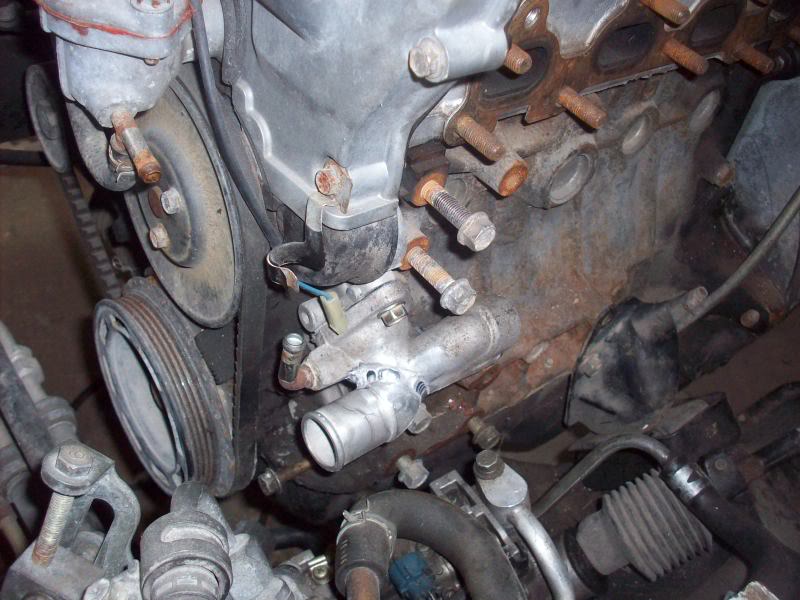

Name:  109_0035.jpg
Views: 0
Size:  78.2 KB

Name:  109_0036.jpg
Views: 0
Size:  71.2 KB

For future reference (or as a temp solution while the new mixing manifold gets there) you can slide a spring over the hose to keep it from collapsing. Not a bad idea to do it on the oil drain hose either since it will need make a sharp turn towards the oil pan. BTW, that drain fitting looks pretty small, what size is it?
ARTech is offline   Reply With Quote
