Old 06-21-2014, 09:06 PM   #221
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,597
Total Cats: 936
Default

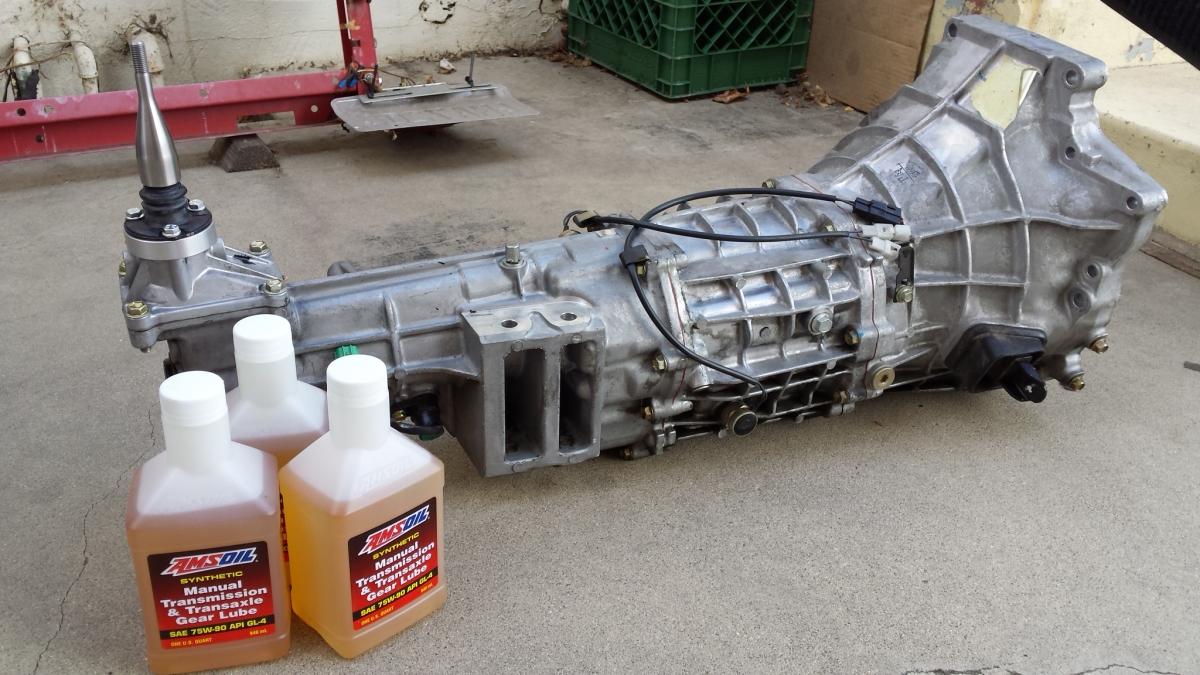

Awwww yissssss!


  • 70k/mi 6 Speed from 2004 Miata
  • MiataRoadster Short Shift Kit
  • Amsoil MTG 75w-90
Attached Thumbnails
Nothing to see here, just project Sisyphus, move along-20140621_171637.jpg
EO2K is offline   Reply With Quote
Old 06-21-2014, 09:23 PM   #222
Senior Member
iTrader: (1)

Join Date: Mar 2010
Location: Bay Area, CA
Posts: 691
Total Cats: 139
Default

Quote:
Originally Posted by EO2K View Post
Awwww yissssss!


  • 70k/mi 6 Speed from 2004 Miata
  • MiataRoadster Short Shift Kit
  • Amsoil MTG 75w-90
Do you have a way to get it here tomorrow?
gesso is offline   Reply With Quote
Old 06-21-2014, 09:26 PM   #223
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,757
Total Cats: 2,494
Default

Now there's about the best trans setup you can get on a budget these days
18psi is offline   Reply With Quote
Old 06-21-2014, 09:48 PM   #224
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,597
Total Cats: 936
Default

Quote:
Originally Posted by gesso View Post
Do you have a way to get it here tomorrow?
If it comes down to it, I can strap it to the tire trailer.
EO2K is offline   Reply With Quote
Old 06-22-2014, 01:28 AM   #225
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,597
Total Cats: 936
Default

Quote:
Originally Posted by 18psi View Post
Now there's about the best trans setup you can get on a budget these days
Absolute truth. There are other options, but I prefer something that works. I don't plan on running ALLOFIT on the EFR to the point where transmissions become consumable, so this should do me just fine for quite some time.

I also spent about 2~3 hours this afternoon adding Rattle Trap to the insides of the doors on the NB. I probably covered 1/2 the internal surface of the outside skin and then a bunch of little random patches to the inside surface under the door cards. I probably added 3-5lbs overall to the weight of the car so that ain't no big deal. Best 3-5lbs EVER! Now when I shut the door it gives a nice thud or thunk rather than a tinny clang like its always done in the past. No pics, because my hands were sticky. Proof will be in the pudding when I drive it up to SC tomorrow.

My wife caught me standing in the driveway opening and closing the door to my car and grinning like an idiot. She eventually sighed and walked away because she knows better than to ask questions at this point, bless her heart

Also: Engine and trans swap tomorrow!

The "other" BP4W and above 6 speed are going in and my rattly *** stock motor is coming out. Gesso and I have pulled various things in and out of Miata engine bays often enough that this "should" be cake. I'm bringing along my fancy 70D engine mounts so I can see how bad they actually are. If its too much, I'm sure they'll find a home in Gesso's project. My Energy Suspension Poly Diff bushings are already in his vehicle so it'll be a good match.

If there is time tomorrow while the engine and trans are out, I'm going to try to do DEI Floor and Tunnel Shield up the firewall and as far back into the tunnel as I can go with the material I have available. I really want to see what this stuff can do. Its packed up in the car so we'll see what happens.
EO2K is offline   Reply With Quote
Old 06-22-2014, 07:26 AM   #226
Elite Member
iTrader: (8)

Ryan_G's Avatar

Join Date: Jan 2012
Location: Tampa, Florida
Posts: 2,540
Total Cats: 151
Default

Definitely want to know your impressions on those mounts.
Ryan_G is offline   Reply With Quote
Old 06-22-2014, 10:56 AM   #227
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,597
Total Cats: 936
Default

Quote:
Originally Posted by Ryan_G View Post
Definitely want to know your impressions on those mounts.
I shall report as appropriate, though it may take a while to get through the 500 mile break-in everyone talks about. Though keep in mind that my back-to-back will be 14 year old factory installed mounts

I suspect I'll be ripping my dash out and going Jeffbucc anti-rattle OCD on everything once the stiffer mounts go in and the rattles begin anew.
EO2K is offline   Reply With Quote
Old 06-22-2014, 01:12 PM   #228
Junior Member
iTrader: (5)

Join Date: Oct 2011
Location: San Diego, CA
Posts: 402
Total Cats: 21
Default

Are my eyes deceiving me or is that a hole in the bell housing?

Hope your guys transplant is going well.
slmhofy is offline   Reply With Quote
Old 06-22-2014, 02:02 PM   #229
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,884
Total Cats: 521
Default

Tis a sticker.

Nice progress!
turbofan is offline   Reply With Quote
Old 06-23-2014, 06:20 AM   #230
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,597
Total Cats: 936
Default

Gesso and i have successfully transformed my car into a 6 speed, 145hp, metallic orange *****.
EO2K is offline   Reply With Quote
Old 06-24-2014, 02:10 PM   #231
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,597
Total Cats: 936
Default

Progress!

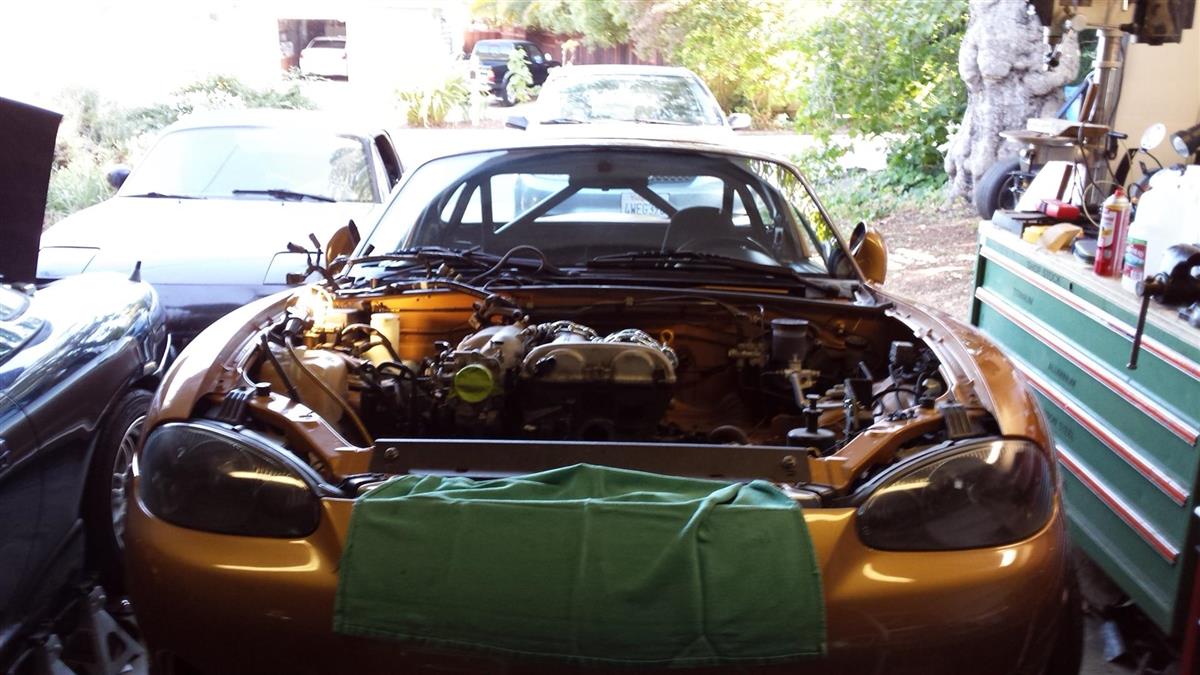

Old engine. So may Miatas in this image

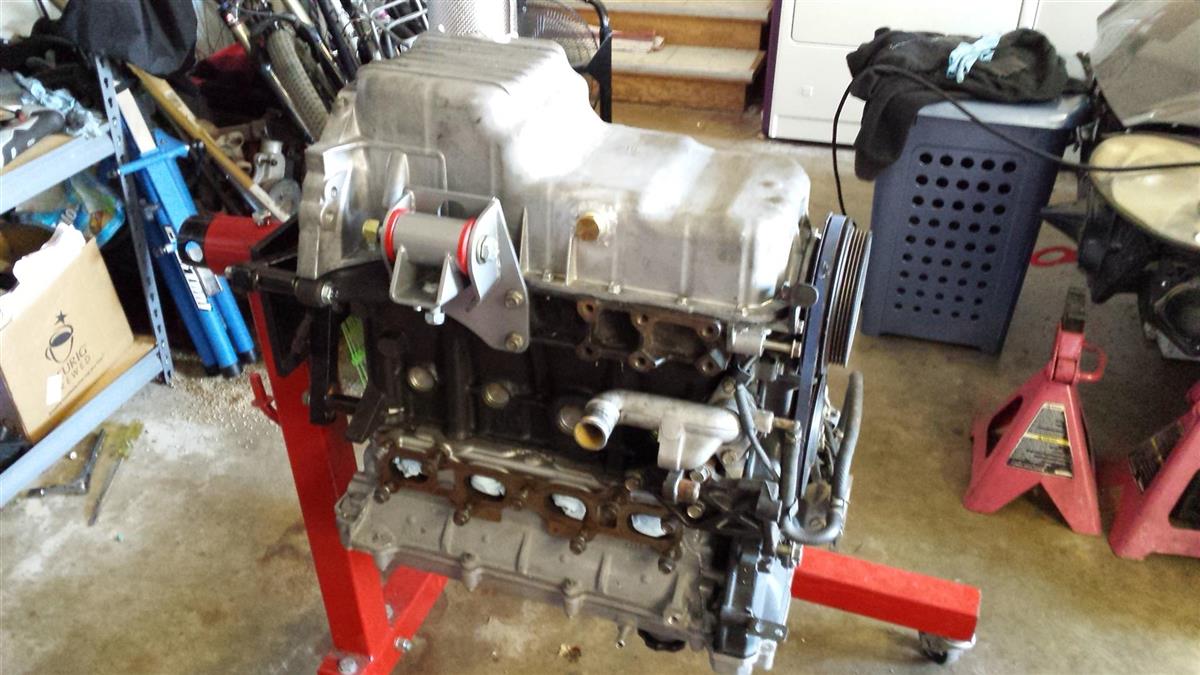

More differenter engine. It's supposed to look like that, right? This is right after we installed the oil pan. There is enough The Right Stuff® on that oil pan to choke a dozen donkeys. I don't think its ever coming off again. The good news is that it does not leak, the bad news is that my bung locations are not exactly ideal. More on that later. Also shown: 70D engine mounts.

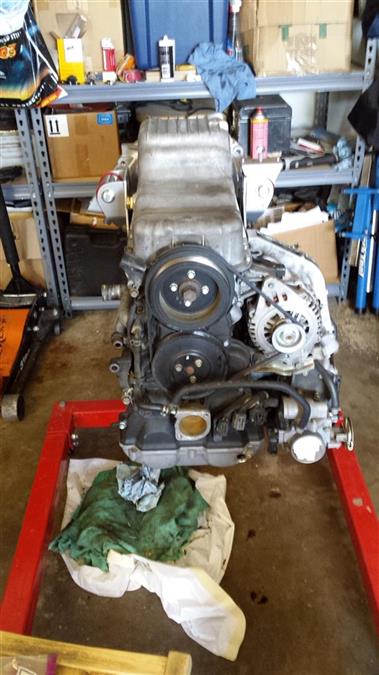

More upside-down engine ****. I removed the AC bracket, **** The Police.


Much grime. So dirty. Wow.
The front (and apparently rear) main seals had been weeping for quite some time, so there is A LOT of **** on the subframe and tunnel. It was very late (or early, can't remember) so in the interest of time, it was decided to not worry about cleaning things this time around. Thus no Floor and Tunnel Shield this time around either. Also shown: 70D engine mounts.

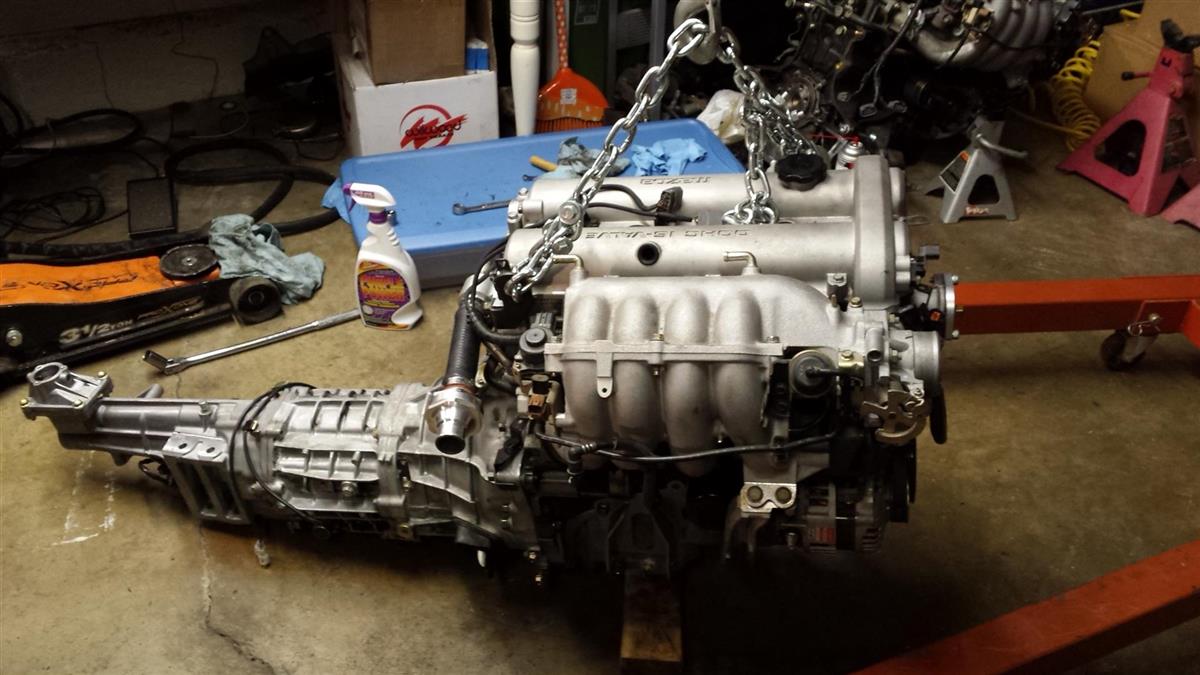

More differenter engine with 6 speed. So exciting! We moved the entire fuel rail, injectors, M-Tuned reroute parts and engine harness off the old 4W and onto the new 4W.

Filled the coolant system with straight distilled water, filled the engine with 5w40 T6 and the trans with MTG 75w-90. I disconnected the coils (but not the injectors ) and cranked it until it had oil pressure. Reconnected the coils and she fired right up! Pretty good for an engine that's been sitting for more than a year. Much burping and thermostat cycling thus commenced.

And then it was like 2:30AM Monday so no mas pics.

Results!

More differenter engine: Does not leak anything, makes more power, is marginally quieter. Definitely a good decision.

6 Speed + MTG: ALLTHEGEARS! ALLTHESHIFTING! Shifts like buttah. Anyone who complains about a notchy 6 speed really needs to consider MTG. I can't even feel the syncro engagement on this trans, its that good. Rev matching a downshifting is going to take some practice as my brain is having issues picking the correct gears, and I found 3rd rather than 6th at least twice, but those wetware problems

MiataRoadster Short Throw Shifter: I bought the "stock height" straight one. Jesus christ, this thing feels amazing. I greased it up per instructions and used Amsoil 2000/Dominator because that's what I had on hand. The shifts are so bloody short on this thing its insane. Snick-snick-snick through the gears. No grinds, no drama, no issues. The engagement point on my FM1 clutch is waaaaaaay down on the floor so I'm finding I can shift far, far faster than I can get the clutch operated. Also, finding reverse is a new experience for me coming from a 5 speed. Again, these gripes are wetware issues.

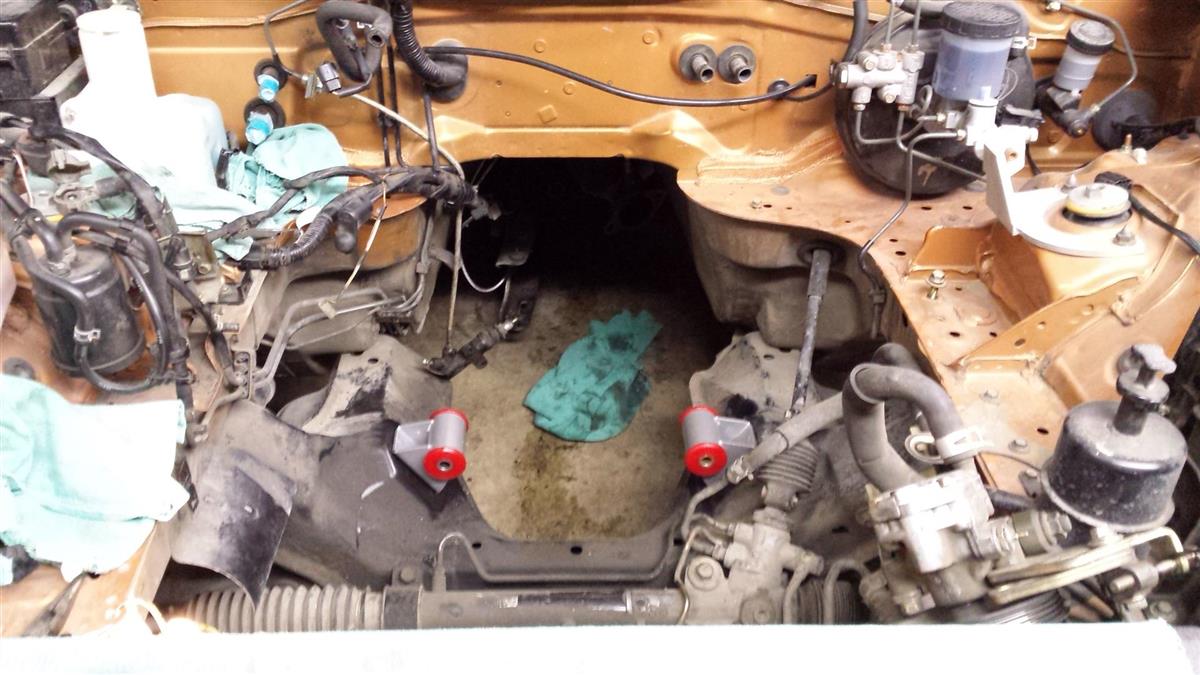

AWR/949 70D engine mounts: Initial impression? OHGODWHY?! Holy mother of god, these things are STIFF. If you miss a shift with these installed, then you don't know how to transmission. If you put these on your car, be sure there is nothing extraneous in your glove box/door pockets/center console because you WILL hear it. The additional NVH is amazing with these things. At idle, it sounds like the car is coming apart. The display on my MTX-L seems to "float" in my vision, like its not attached to the gauge. As the engine warmed up and the idle RPM dropped, I got to enjoy identifying the resonant frequencies of the different body panels in the car. Once driving the frequencies increase enough that the audible portion (partially) goes away, but I can still feel a high frequency vibration through the steering wheel and the rear view mirror is slightly blurry. Everything I've read about these mounts says that you need to withhold judgement on these until after the 500 mile break-in period. I'm only about 50 miles into the 500 but unless the break-in is super effective, I may get a set of MazdaComp mounts.
Attached Thumbnails
Nothing to see here, just project Sisyphus, move along-20140622_144257.jpg   Nothing to see here, just project Sisyphus, move along-20140622_144315.jpg   Nothing to see here, just project Sisyphus, move along-20140622_175041.jpg   Nothing to see here, just project Sisyphus, move along-20140622_214127.jpg   Nothing to see here, just project Sisyphus, move along-20140622_214140.jpg


Last edited by EO2K; 06-25-2014 at 11:27 AM.
EO2K is offline   Reply With Quote
Old 06-24-2014, 03:01 PM   #232
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,597
Total Cats: 936
Default

Ungh, stupid broken images. Let me see if I can fix that...

Edit: Apparently file size limit is 1200x1200 so my glorious 2048x1152 images cannot be uploaded

Last edited by EO2K; 06-24-2014 at 04:35 PM.
EO2K is offline   Reply With Quote
Old 06-24-2014, 11:00 PM   #233
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,124
Total Cats: 257
Default

Mobius is offline   Reply With Quote
Old 06-24-2014, 11:44 PM   #234
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,597
Total Cats: 936
Default

Quote:
Originally Posted by Mobius View Post
OSX...
What do I look like, a fascist?
EO2K is offline   Reply With Quote
Old 07-10-2014, 07:03 PM   #235
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,597
Total Cats: 936
Default

So I'm 100 miles into the 500 mile break-in on the 70D mounts. I'm not sure if they have started to break in or if I'm getting used to it, but they do seem slightly better. I'm not sure I'm hardcore enough for these things, all I can do is worry about every fastener in my car vibrating loose.
EO2K is offline   Reply With Quote
Old 07-12-2014, 05:42 PM   #236
Junior Member
iTrader: (1)

Join Date: May 2013
Location: Sandia Park, NM
Posts: 386
Total Cats: 38
Default

Are the bushings split? Or is it all one big piece that's pressed in?
70D is really really hard... If they're split then maybe some softer ones could be poured and easily tried out...
I've used this stuff before (non car related) with really good results.
http://www.smooth-on.com/tb/files/TASK_13_14_TB.pdf
leboeuf is offline   Reply With Quote
Old 07-12-2014, 09:34 PM   #237
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,597
Total Cats: 936
Default

Not factory mounts, is dis tings:
Quote:
Originally Posted by EO2K View Post
Got mine today. I plan to never miss a shift again



- 70D Engine Mounts
- 95D Energy Suspension diff bushings

Time to figure out if I can man up and
Engine mounts installed, diff mounts ended up on Gesso's project. Not sure I'm man enough for these things. We'll see in another 400 miles.
EO2K is offline   Reply With Quote
Old 07-13-2014, 03:56 AM   #238
Senior Member
iTrader: (1)

Join Date: Mar 2010
Location: Bay Area, CA
Posts: 691
Total Cats: 139
Default

Quote:
Originally Posted by EO2K View Post
Not factory mounts...
I think he means are the bushings 2 piece like the control arm bushings. Where a bushing pushes in from either side of the hole. I didn't look when we installed them, but given the lip on either side I would guess they are 2 piece.
gesso is offline   Reply With Quote
Old 07-13-2014, 10:24 AM   #239
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,597
Total Cats: 936
Default

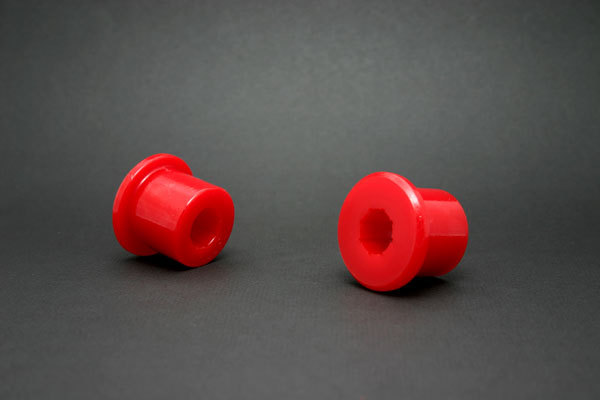

Yep, they are 2 piece. AWR has replacements on the website.

From whence I stole this picture:

Attached Thumbnails
Nothing to see here, just project Sisyphus, move along-bush_70_dursm__27636.1276108696.1280.1280.jpg
EO2K is offline   Reply With Quote
Old 07-13-2014, 10:47 AM   #240
FAB
Fab9Tuning.com
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 936
Total Cats: 394
Default

I think the problem with softer bushings is them holding up to the weight/load. The reason 70d's are so firm is because of the small amount of material being used in this design (just my thought). I have them in my car and I don't think it's too firm at all but it really is just a matter of your idea of "too firm".

If you aren't happy with them I could take them back for some type of credit. Granted they aren't my design, I still don't like recommending something to someone and they aren't happy with the results.

If a different duro might solve the problem I have a really good relationship with Energy suspension and wouldn't mind looking into a softer replacement. It would probably take a small batch to get things going though.
