Old 09-14-2011, 12:00 PM   #101
Senior Member
iTrader: (3)

Join Date: Nov 2009
Location: Royal Palm Beach, FL
Posts: 725
Total Cats: 5
Default

post screen shots of the errors you are getting.
Clos561 is offline   Reply With Quote
Old 10-21-2011, 09:45 PM   #102
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

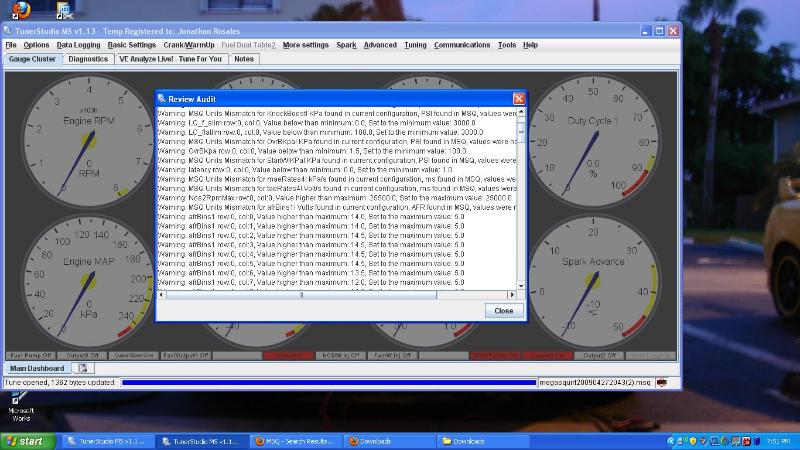

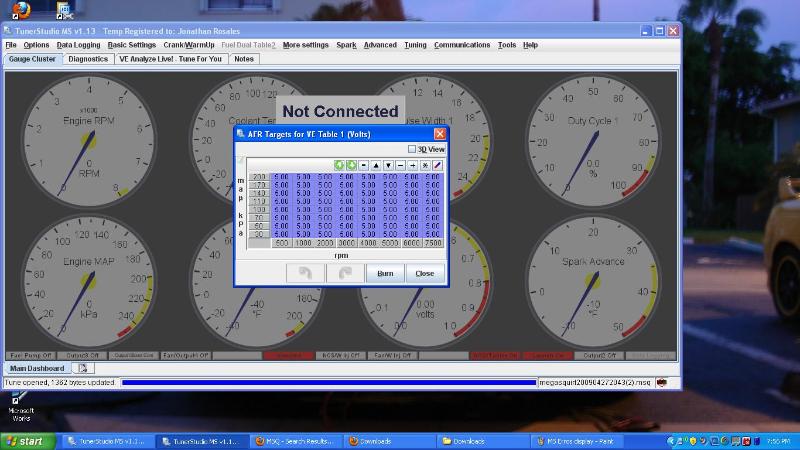

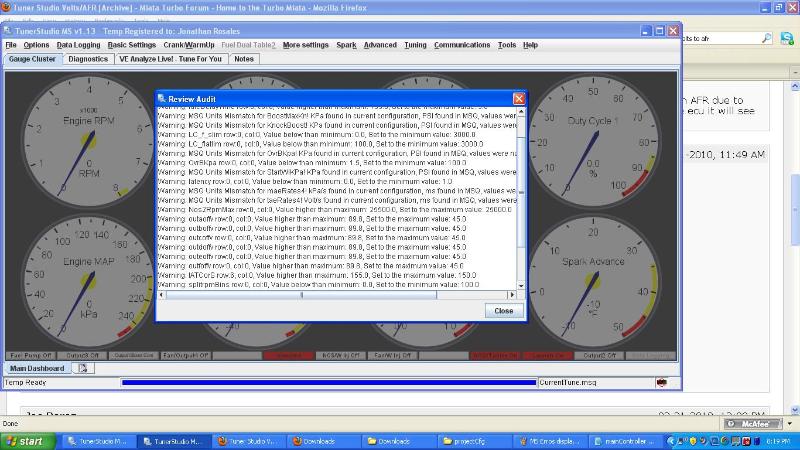

Those are some scree shots of the errors...
Attached Thumbnails
Raft 2.0-mserrosdisplay.jpg   Raft 2.0-mserrosdisplay1.jpg   Raft 2.0-mserrosdisplay2.jpg
buffon01 is offline   Reply With Quote
Old 10-22-2011, 11:51 AM   #103
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

Attached is the tune that I am using now (yes is shitty). I solved my charging problem and the leaks, but now I seem to have problems starting the car. I don't think I am getting enough cranking amps. I have a reg duralast battery :/
Attached Files
File Type: msq 2011-10-22_10.44.49.msq (39.8 KB, 60 views)
buffon01 is offline   Reply With Quote
Old 10-23-2011, 10:35 PM   #104
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

So now engine turns but does not start. Motherfucking a!

Anyone wants to comment?
buffon01 is offline   Reply With Quote
Old 10-23-2011, 11:26 PM   #105
Elite Member
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

Have the battery tested and see if its even holding a charge.
SKMetalworks is offline   Reply With Quote
Old 10-23-2011, 11:56 PM   #106
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

The battery is holding charge. At first I thought it just did not have enough power to start the car so I went ahead and used a jump, the engine turns but doesn't start. I noticed that now the fuel gauge is not working. The information I found yields that the fuel sending unit should be dead or the gauge itself is dead. Given that the car is not starting I am leaning towards the sender being the smoking gun. Also the fuel pump could have gone bye bye.
buffon01 is offline   Reply With Quote
Old 10-25-2011, 03:24 PM   #107
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

I just replaced the fuel pump. Engine spins, no start. I can hear the new pump (walbro) hiss before I try to start the car. Should I move to the fuel pump relay? Suggestions?
buffon01 is offline   Reply With Quote
Old 11-16-2011, 11:51 PM   #108
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

Replacement CAS arrived today. Car is running again yay

Also it seems that the fuel pump that I replace was a major issue in the system. I am SUPER PIG rich all over the board now with the new walbro. After I find out why the alternator belt squeels so ******* much I'll be in business again.
buffon01 is offline   Reply With Quote
Old 11-17-2011, 02:09 PM   #109
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,776
Total Cats: 1,106
Default

I am glad the CAS I sent you worked.
shuiend is offline   Reply With Quote
Old 11-18-2011, 08:08 PM   #110
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

Me three... Now the starter took a dump
buffon01 is offline   Reply With Quote
Old 11-23-2011, 12:10 AM   #111
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

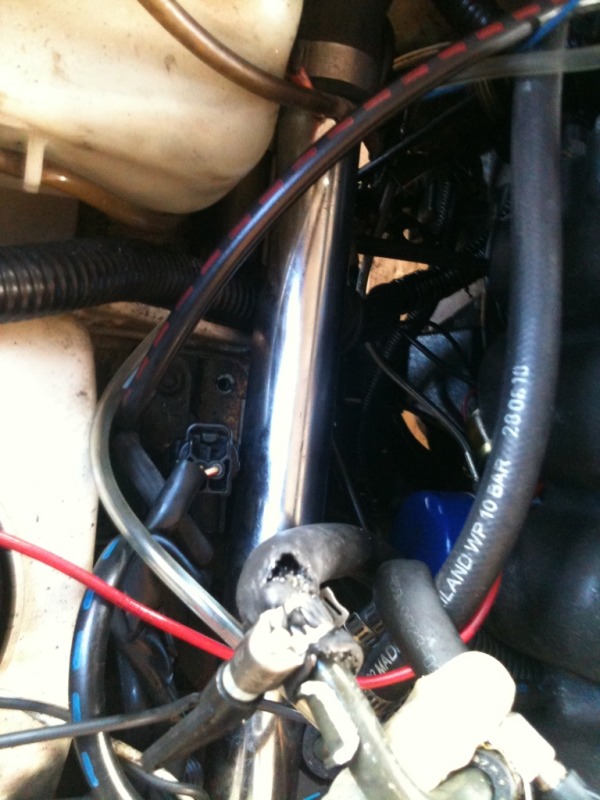

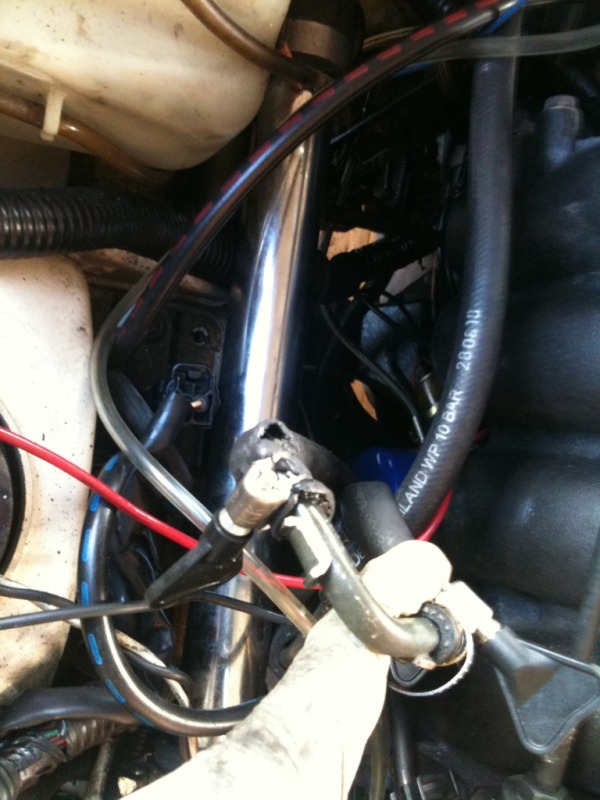

Okay fellas the starter has been replaced and the car is working... somewhat. After the starter job was finished, I turned on the car to check for some oil leaks that have been bothering me. Along with said oil leak my fuel hose went sprinkler on me. See pics attached





So yeah, cool story fuel hose. Please tell it again AND it did so. I came back home later that afternoon after my alternator belt went also bye bye in the middle of rush hour to find out the same hose had broken again... I couldn't take pics because it was dark I haz no flash.

So that's that. Now about the oil leak. I do not understand how after front has been replaced this is happening



The funny part is that I actually paid to have this seal replaced. Yah, joke is on me.
Attached Thumbnails
Raft 2.0-8e8f35fa.jpg   Raft 2.0-5e51d109.jpg
buffon01 is offline   Reply With Quote
Old 11-26-2011, 02:11 PM   #112
Elite Member

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

Did you replace the two half moon seals on the front and rear of the oil pan?

Also check the tee on the oil sender.
flounder is offline   Reply With Quote
Old 11-26-2011, 08:10 PM   #113
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

Long story short: I am not "allowed" to do work on cars where I live (stupid old farts in the association). I had someone else do the job. I took some videos today and after reading your post that may seem like the smoking gun.

The inside of the pulley is relatively dry and there is no fresh oil. I was expecting that area to show some wetness due to the leak. However, the area where is does leak is from the pan bolt adjacent to the "half moons".

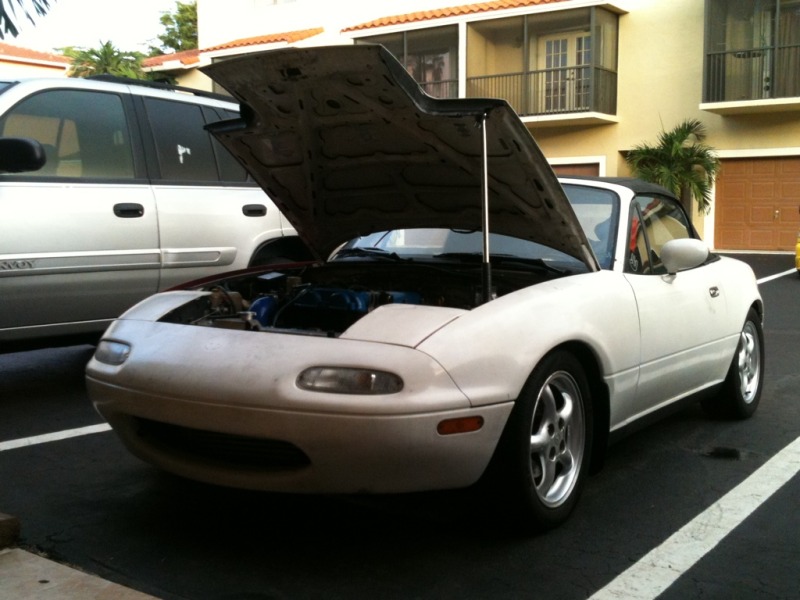

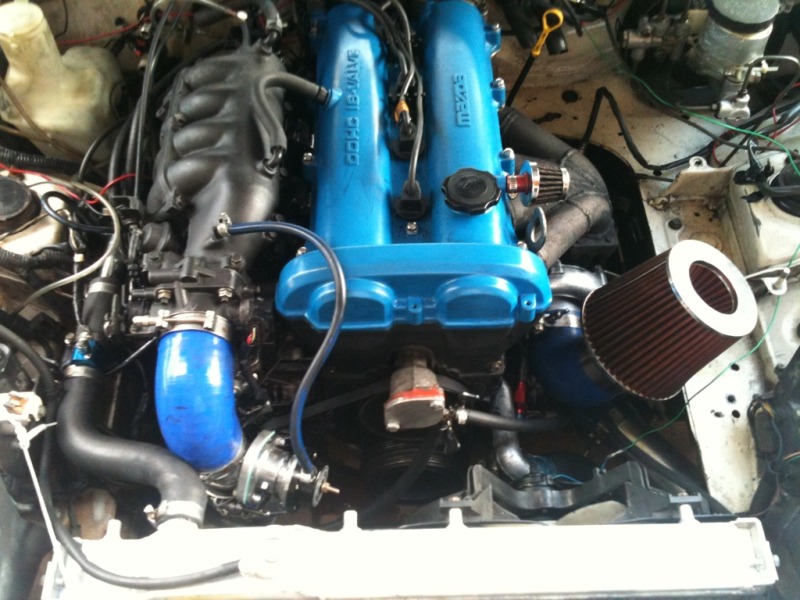

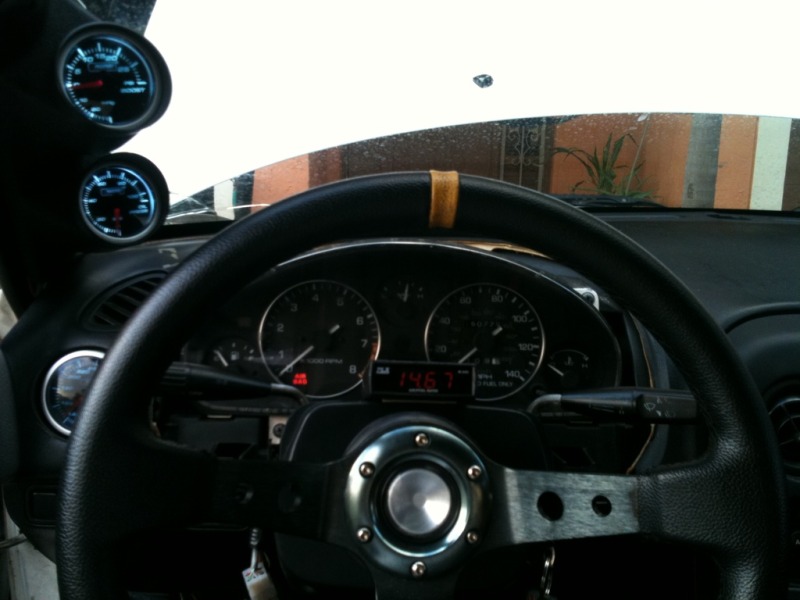

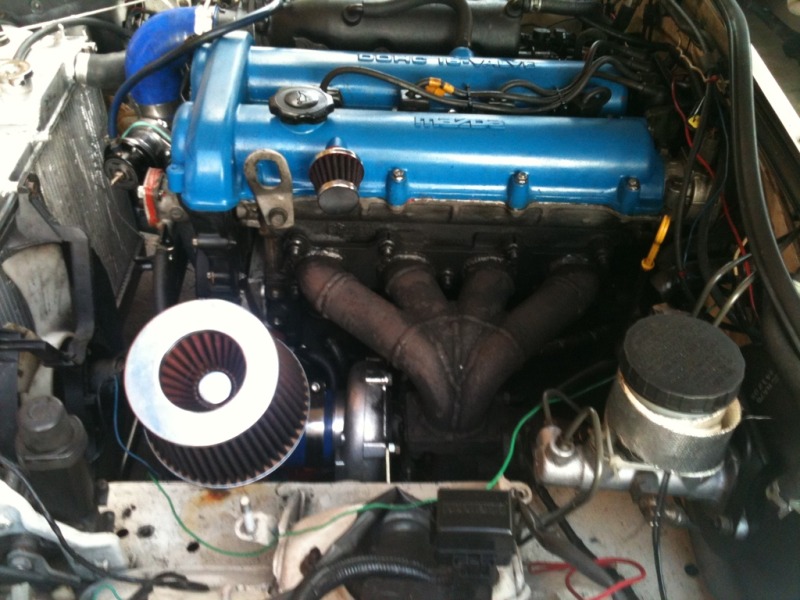

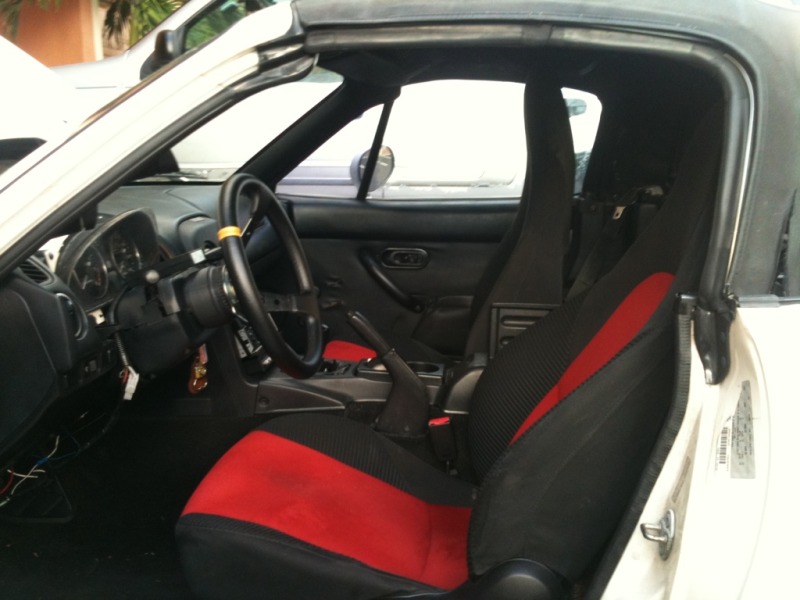

I'm editing the videos that I took today. I'll post them later. In the meantime here are some pics I took today also.

95 with a 99 engine
Tubular manifold with a China 2870
3" turbo back straight-pipe
NRG blow off valve (Type-S knock off)
Brain MS
RX7 460
Coolant Re-Route
Godspeed FMIC
CRX Aluminum radiator
Riceland coilovers
Prosport gauges
Ebay steering wheel
NB wheels with 205/50 Neogens
MSM seats courtesy of Jared









Attached Thumbnails
Raft 2.0-3d600793.jpg   Raft 2.0-45ccf554.jpg   Raft 2.0-84e69586.jpg   Raft 2.0-e3506f2e.jpg   Raft 2.0-e3c247c5.jpg

buffon01 is offline   Reply With Quote
Old 11-26-2011, 08:15 PM   #114
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,072
Total Cats: 253
Default

Bring it here. We can knock out the small stuff and then head downtown.
viperormiata is offline   Reply With Quote
Old 11-26-2011, 08:27 PM   #115
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

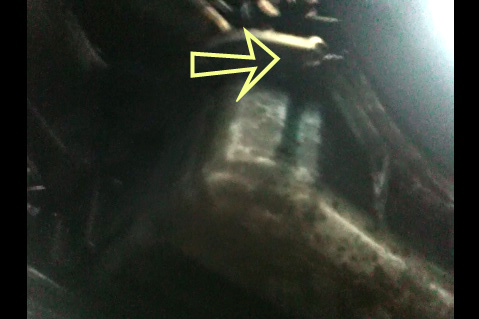

The video is not very good, but around 0:16 the droplet of oil can be spotted. at this location



Attached Thumbnails
Raft 2.0-f2cb3daf-1.jpg
buffon01 is offline   Reply With Quote
Old 11-26-2011, 08:31 PM   #116
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

Quote:
Originally Posted by viperormiata View Post
Bring it here. We can knock out the small stuff and then head downtown.
Finals are coming up so I don't know about this week or the next. I will visit you though. It seems like I can make it down there
buffon01 is offline   Reply With Quote
Old 11-26-2011, 09:00 PM   #117
Elite Member

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

Your video hurt my eyes, and actually made this more difficult to diagnose.

Did you make sure to clean the hell out of the pan and block and use a shitload of rtv along with new seals and proper torquing?

What sucks is that in order to fix it, either the cradle is coming down or your pulling the motor again.
flounder is offline   Reply With Quote
Old 11-26-2011, 09:10 PM   #118
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

Like I said I didn't do the job. Yea the video is super shitty And holy **** Batman, I am not pulling that bitch out again
buffon01 is offline   Reply With Quote
Old 11-27-2011, 12:51 AM   #119
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

For the fuel line: this is why I don't use worm clamps there. Fuel injection hose only, and fuel injection clamps only. Either stock, or there are specific ones sold at autoparts stores that don't use a lacerating design.

Looks like a combination of shitty hose and a shitty clamp.
curly is offline   Reply With Quote
Old 11-27-2011, 03:38 AM   #120
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

Hose was replaced. I'll look into the fuel hose clamps. Thanks for the advice man
buffon01 is offline   Reply With Quote
