Old 11-28-2011, 03:15 PM   #121
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

Ninja edit. I freaked out when I was checking the system on my own the leak was fixed. Injector 1's o-ring appears to be shot and is leaking.



I'm so glad is not the hard line

Last edited by buffon01; 11-28-2011 at 06:04 PM.
buffon01 is offline   Reply With Quote
Old 11-28-2011, 04:31 PM   #122
Elite Member
iTrader: (6)

Join Date: Nov 2007
Location: Southlake,Texas
Posts: 3,251
Total Cats: 17
Default

Your probably have 20000psi of fuel pressure.
Bond is offline   Reply With Quote
Old 12-22-2011, 10:59 PM   #123
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

Well I had fuel leak problems today for the millionth time now... After a while I realized that I may have hooked up the wrong hoses to that fuel pressure switch the NAs have, which can lead to higher rail pressure according to a m.net thread I came across.

Anyhooters I came with with a vato-ghetto-homie fix. I T'ed off the feed fuel line and used a hose to set up the fpr and the return line. I figure that this should alllow the fpr to do its function, but I don't plan on living it as so.

I'll take pics tomorrow so we can

Also I am looking for a NB fuel rail that has the fpr port in the front of the rail. If anyone has one hook a vato up.
buffon01 is offline   Reply With Quote
Old 03-20-2012, 12:27 AM   #124
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

So it appears the car is not going anywhere. The plan now is not make it a bit less annoying. I finally outgrew the straight pipe thing and I am looking to quite down the car a bit by adding one of those large straight through Magnaflow. Hopefully now I wont get a headache every time I drive the car over a long distance.

Also aside from the Traceline oil dye what other product is recommended to pin-point oil leaks?
buffon01 is offline   Reply With Quote
Old 04-29-2012, 05:26 PM   #125
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

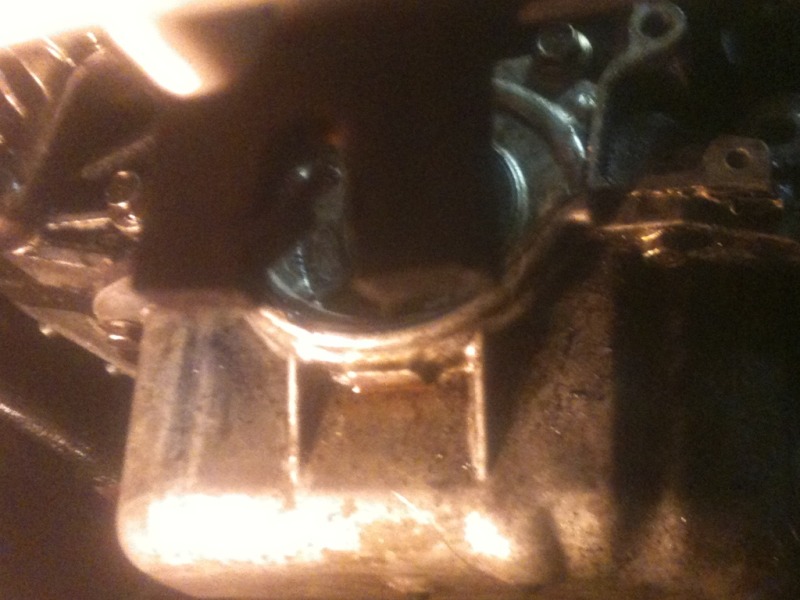

So I finally got to do something with my car. I used the oil dye to try to pin point an oil leak. I discovered a trail of oil right in between the ridges in this picture

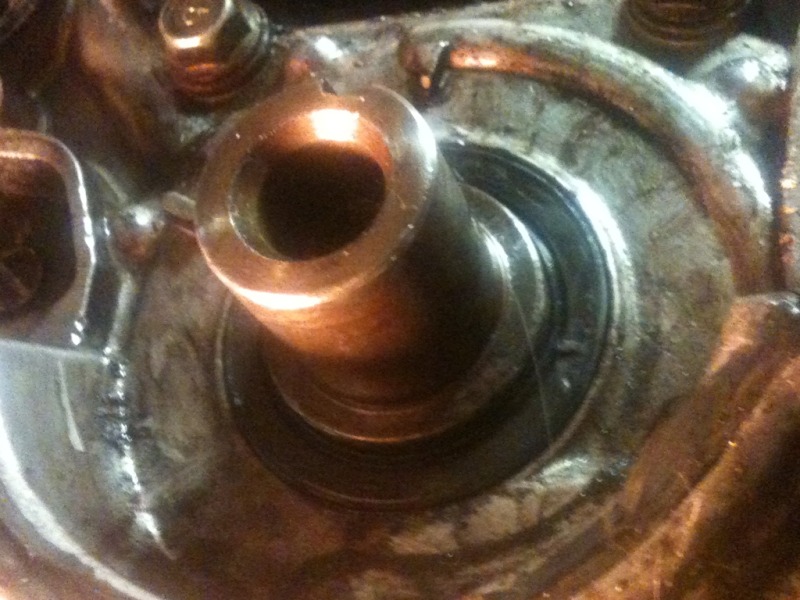

I went ahead and opened the engine with the opinion that it was the main front. When I got to the main front this is what I found

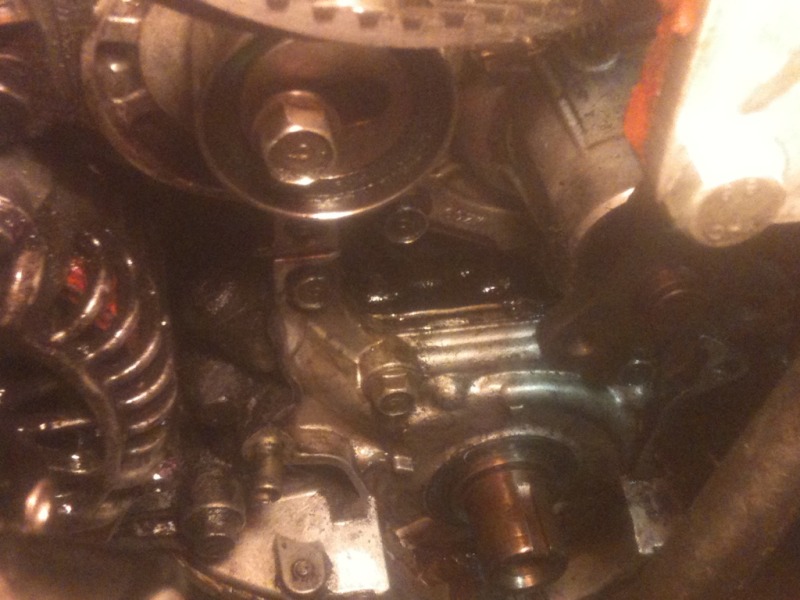

There was no trail from the seat itself. However, I then discovered a little puddle of oil right below the water pump (see pic).

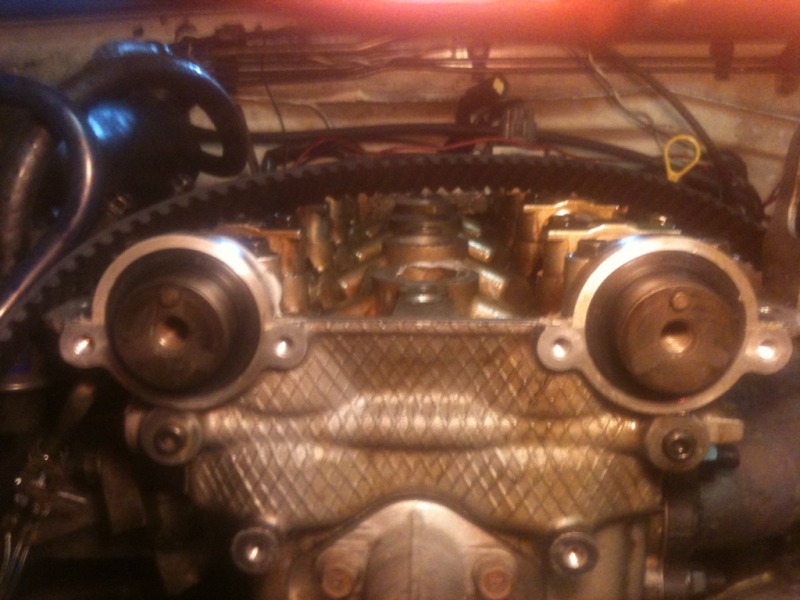

I then said it has to the be the cam seals. I went ahead and remove the cams to find the seal with no real evidence of leaking. The cam seals were the only ones that I had not replaced previously so I went ahead and changed them.



The question now is what the hell do I do? where is this leak coming from? should I replace the main front?

Thanks
Attached Thumbnails
Raft 2.0-67feec68.jpg   Raft 2.0-227523d2.jpg   Raft 2.0-2be9f3e8.jpg   Raft 2.0-70384717.jpg
buffon01 is offline   Reply With Quote
Old 04-29-2012, 05:30 PM   #126
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

Here's a shitty video, but at 0:37 you can see a clear trail of oil.

buffon01 is offline   Reply With Quote
Old 04-29-2012, 09:58 PM   #127
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,776
Total Cats: 1,106
Default

Feel the back of the upper timing cover and see if there is oil there.
shuiend is offline   Reply With Quote
Old 04-29-2012, 11:45 PM   #128
Elite Member
iTrader: (12)

Join Date: Nov 2009
Location: Harpers Ferry WV
Posts: 1,521
Total Cats: 20
Default

Just had a similar problem with my dads car. It was the cam seals leaking down the back of the upper timing cover backing plate. Replaced all seals, cam and crank as well as the valve cover gasket just in case. Boom problem solved.
Sean is offline   Reply With Quote
Old 04-29-2012, 11:55 PM   #129
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

Crank seal, cam seals, and valve cover gasket are now replaced. The car turns on but idles rough. It was suggested that I re-set the timing in MS and I should be in business once more.
buffon01 is offline   Reply With Quote
Old 04-30-2012, 12:38 AM   #130
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,072
Total Cats: 253
Default

Think about baseball, bro. Helps you stop from nutting so fast.
viperormiata is offline   Reply With Quote
Old 05-08-2012, 01:22 PM   #131
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

I forgot to update this, but I reset the timing in megasquirt. There are two things that are concerning me now. First is that that I had add a lot of fuel to the idling cells after the timing was readjusted. My idling cells went from about 42/44 to 58/60 in order to maintain a ~14.x afr. Second I pulled the car out of my driveway and tried to drive it, but it felt as if it was running not on all cylinders. There's a lot of movement in the engine. So I just parked it again.

Any opinions? I'll go out and tune the VE table a bit more later when it cools down a bit. Attached is the current tune.
Attached Files
File Type: msq 2012-05-08_11.56.13.msq (36.3 KB, 54 views)
buffon01 is offline   Reply With Quote
Old 05-10-2012, 09:21 PM   #132
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

Plug wires were bad. Thanks to the bros from the chat for all the help Time to look for a cheap paint job. Macco anyone?
buffon01 is offline   Reply With Quote
Old 05-11-2012, 02:38 AM   #133
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,072
Total Cats: 253
Default

Yo Jon, glad we got that figured out. I'd love to get a ride in the car again, now that it's running well.

I'll bring my ear plugs.
viperormiata is offline   Reply With Quote
Old 05-11-2012, 06:09 AM   #134
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

@ ear plugs. I'm getting the big magnaflow soon. Hopefully that will take care of the noise.
buffon01 is offline   Reply With Quote
Old 08-08-2012, 12:54 AM   #135
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

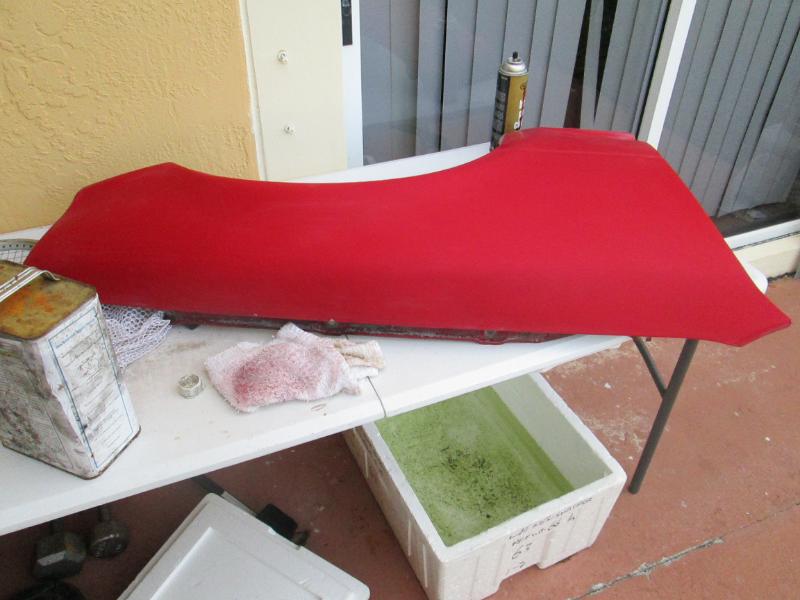

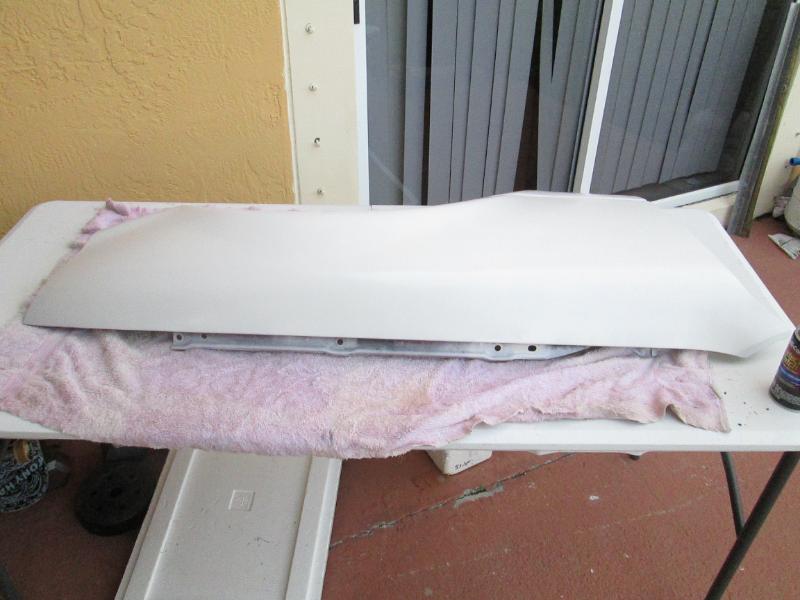

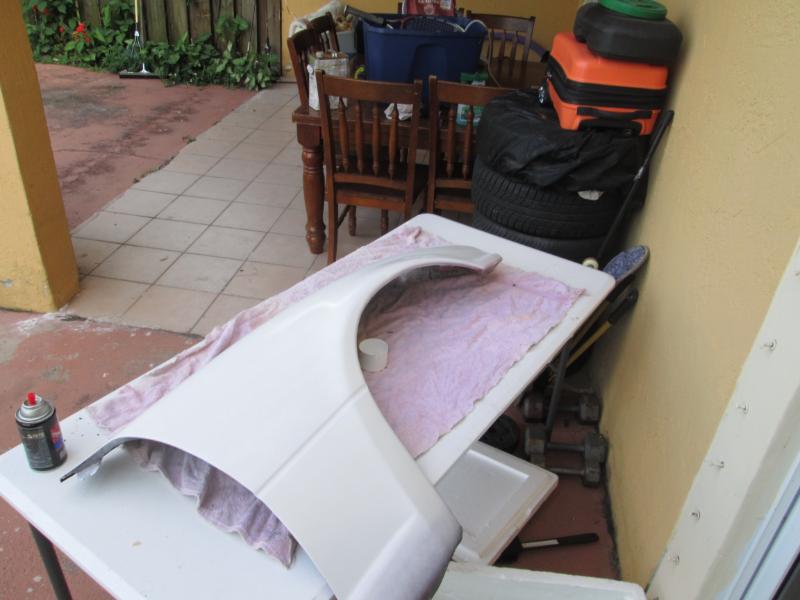

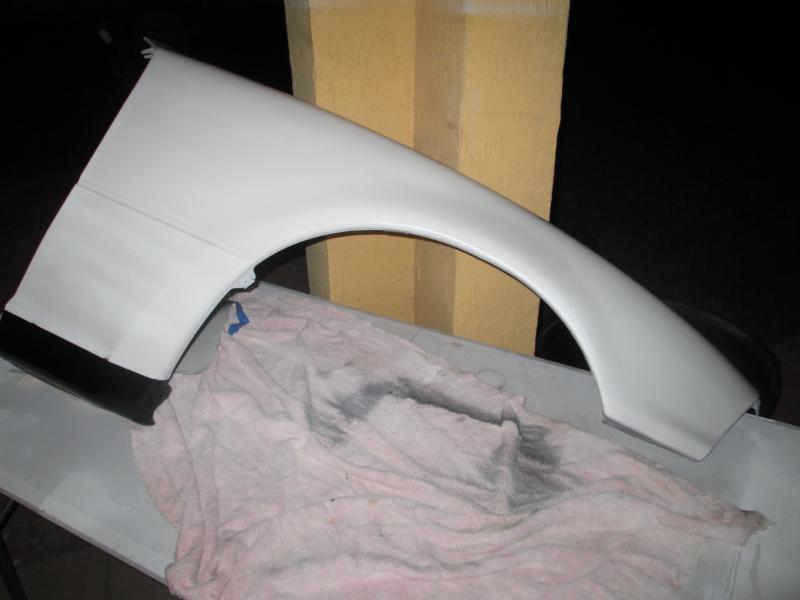

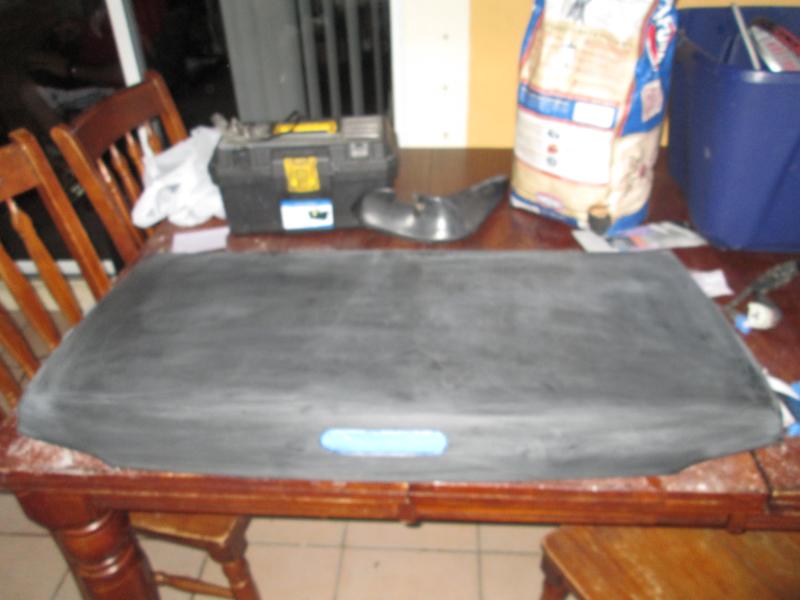

I finally decided to do something about that red fender on my car. I took some duplicolor spray can and paint it white. The duplicolor white should be close/similar to the stock color, but not a perfect match. I really just wanted to be all white even if it's different shades. I took some pics this afternoon when I started. I'm leaving the fender and trunk lid rest overnight. I'll update pictures in the morning with the final product.

Also, in the mail are mazda comp engine mounts!!! No more rocking engine yay!!











Attached Thumbnails
Raft 2.0-img_0176.jpg   Raft 2.0-img_0178.jpg   Raft 2.0-img_0180.jpg   Raft 2.0-img_0187.jpg   Raft 2.0-img_0184.jpg

Raft 2.0-img_0188.jpg
buffon01 is offline   Reply With Quote
Old 08-08-2012, 03:09 AM   #136
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,072
Total Cats: 253
Default

Install pics plze
viperormiata is offline   Reply With Quote
Old 08-08-2012, 03:13 AM   #137
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

Of the motor mounts?
buffon01 is offline   Reply With Quote
Old 08-08-2012, 03:26 AM   #138
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,072
Total Cats: 253
Default

Of the shiny white panels.
viperormiata is offline   Reply With Quote
Old 08-08-2012, 03:36 AM   #139
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

Okay, hopefully the difference is minimal. :v
buffon01 is offline   Reply With Quote
Old 08-08-2012, 02:03 PM   #140
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

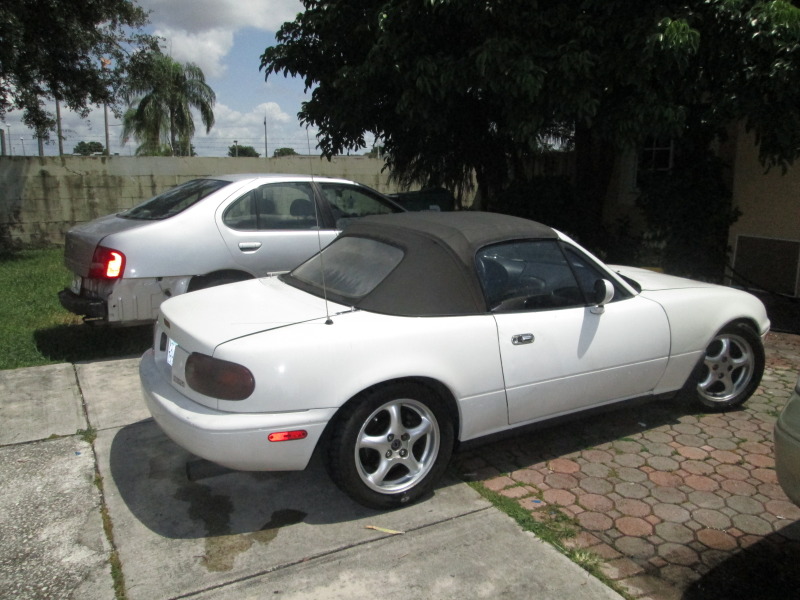

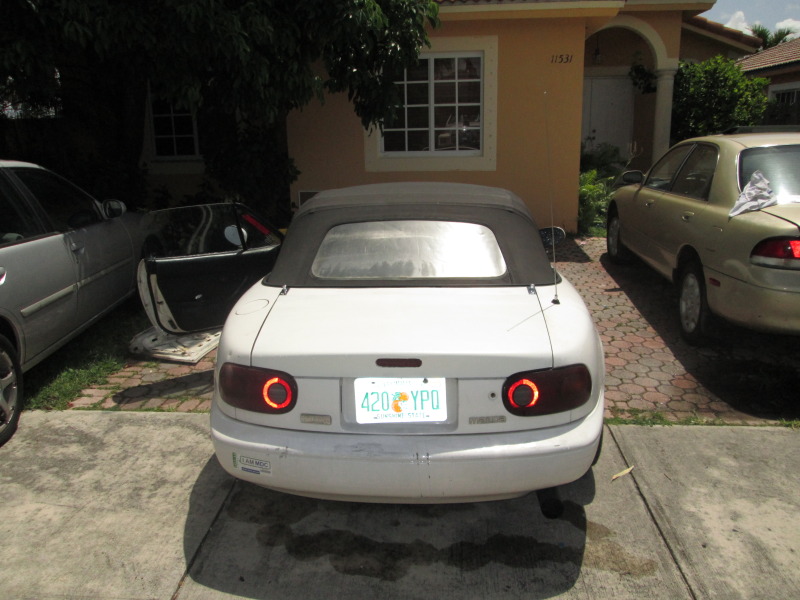

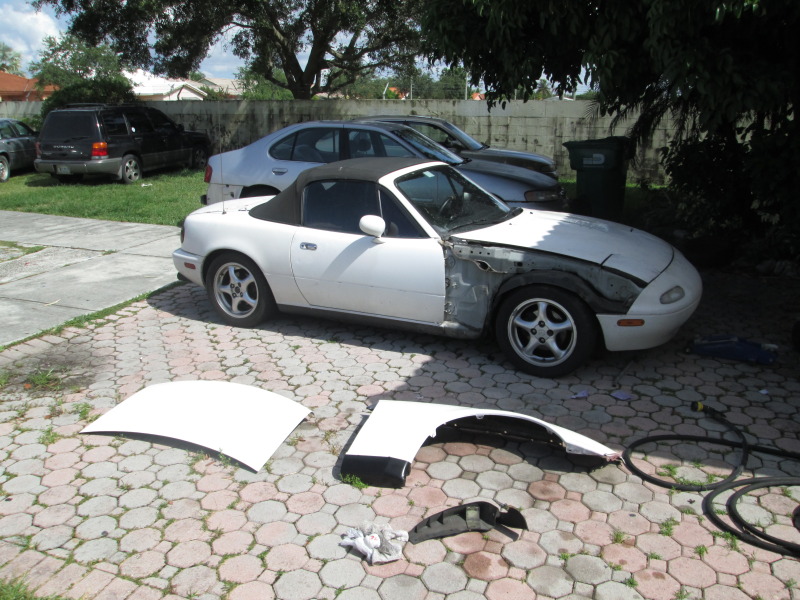

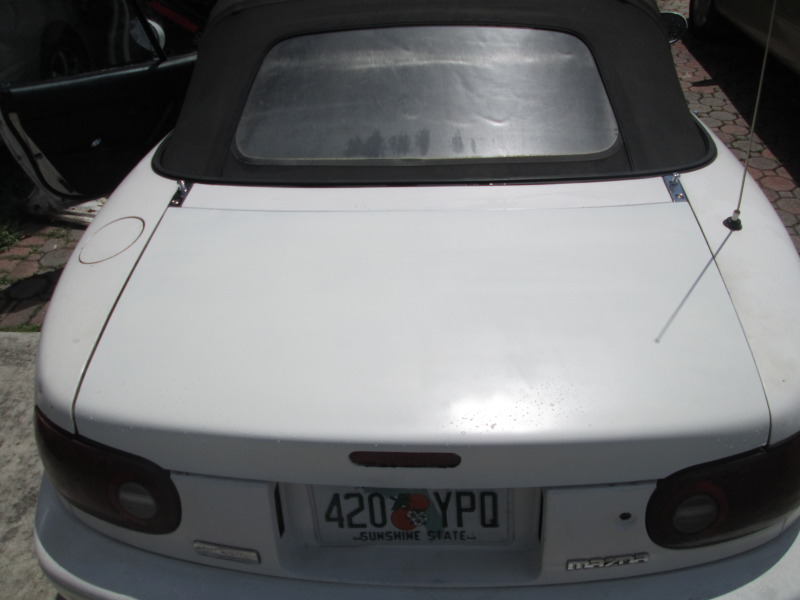

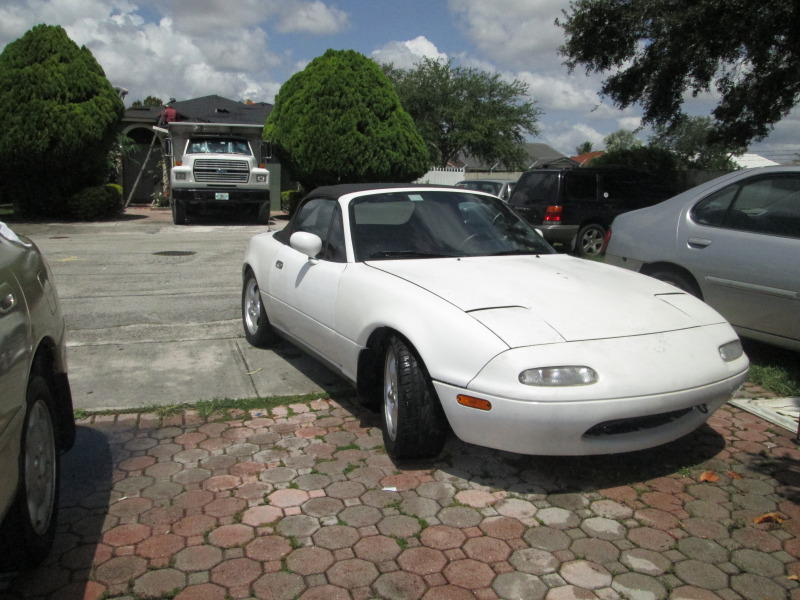

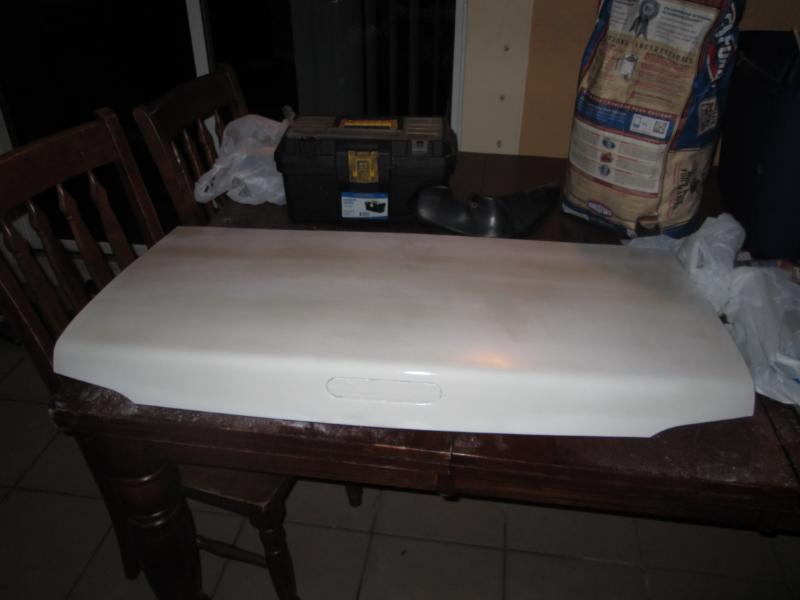

The color difference is not that much. The door is from another car and thus makes the fender a bid dull, but it goes well with the rest of the car. The fender is smooth and overall very well for a spray can job. The trunk in the other had is not that great. I had problems with a nozzle that came off the can while spraying. After all, the short term goal was achieved. The car it all white now yay











Attached Thumbnails
Raft 2.0-img_0193.jpg   Raft 2.0-img_0207.jpg   Raft 2.0-img_0199.jpg   Raft 2.0-img_0201.jpg   Raft 2.0-img_0200.jpg
