Old 09-01-2011, 12:30 AM   #81
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

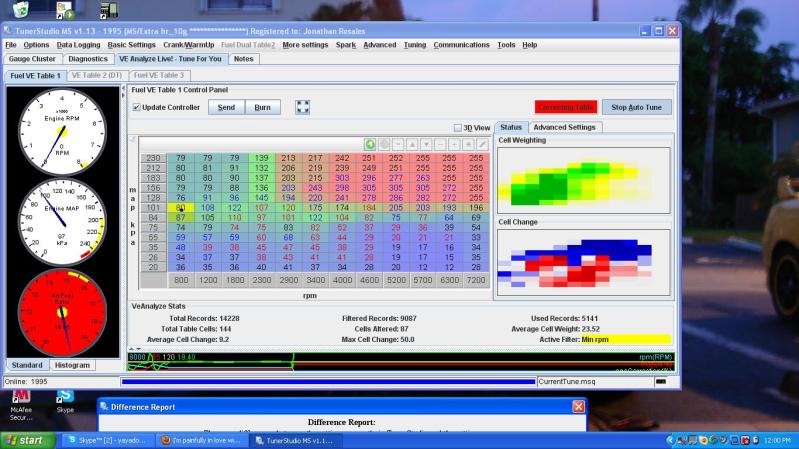

Here is a pic of the VE analyzer

Attached Thumbnails
Raft 2.0-screenshotvevaluesover255.jpg
buffon01 is offline   Reply With Quote
Old 09-01-2011, 02:53 AM   #82
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

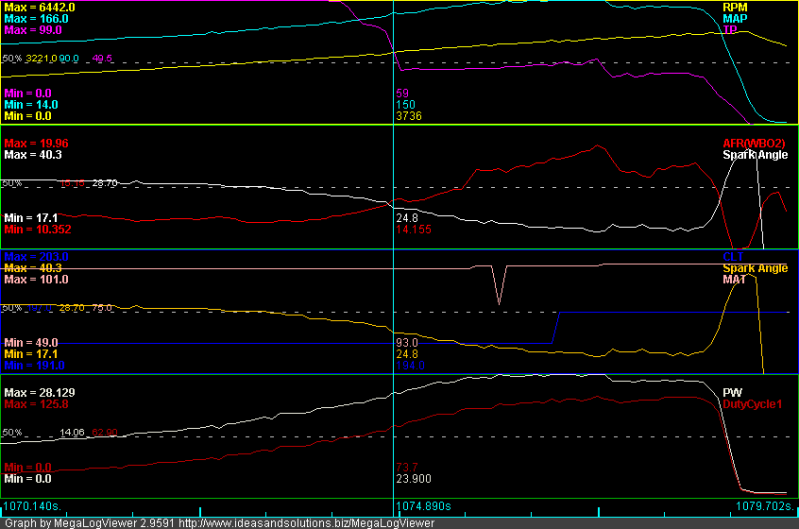

How the hell are my injectors maxed out at 8 psi?? Help needed. Thanks.

Ignore the msq. The second pic is a shot at 166 kpa. DC for 460 is 100. Can I be really flowing that much more air??
Attached Thumbnails
Raft 2.0-screenshotlog08312011.png
buffon01 is offline   Reply With Quote
Old 09-01-2011, 07:43 PM   #83
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Sounds like a fuel pump and/or regulator problem to me. Do a fuel pressure check.
wayne_curr is offline   Reply With Quote
Old 09-01-2011, 09:58 PM   #84
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

Okay thanks... I just got back from school. I missed the bus so I had to drive. Now the tach doesn't work. I'm definitely having electrical issues. I am using a regular duralast battery and I think is shitting itself. My gauges were working poorly, and when the power when off the markings matched MS....
buffon01 is offline   Reply With Quote
Old 09-01-2011, 09:58 PM   #85
Junior Member

Join Date: May 2007
Location: Toronto Area, Ontario
Posts: 139
Total Cats: 29
Default

Quote:
Originally Posted by buffon01 View Post
VE values in boost have almost doubled.
Do you have the vac/pressure line on the FPR connected?

Are the VE values out of boost, exactly the same?
oreo is offline   Reply With Quote
Old 09-01-2011, 10:00 PM   #86
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

Quote:
Originally Posted by oreo View Post
Do you have the vac/pressure line on the FPR connected?

Are the VE values out of boost, exactly the same?
Yes, and out of boost there's nothing unusual.
buffon01 is offline   Reply With Quote
Old 09-01-2011, 10:03 PM   #87
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

Here is my msq
Attached Files
File Type: msq 2011-09-01_14.07.04.msq (39.8 KB, 70 views)
buffon01 is offline   Reply With Quote
Old 09-01-2011, 10:28 PM   #88
Senior Member
iTrader: (3)

Join Date: Nov 2009
Location: Royal Palm Beach, FL
Posts: 725
Total Cats: 5
Default

how many miles did the block have when it went boom
Clos561 is offline   Reply With Quote
Old 09-01-2011, 10:39 PM   #89
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

The old one? 160K? I don't recall exactly... Why?
buffon01 is offline   Reply With Quote
Old 09-01-2011, 11:29 PM   #90
Senior Member
iTrader: (3)

Join Date: Nov 2009
Location: Royal Palm Beach, FL
Posts: 725
Total Cats: 5
Default

just curios, cuz i just boosted my car. 154k on the clock lol
Clos561 is offline   Reply With Quote
Old 09-01-2011, 11:52 PM   #91
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Are you running cops or stock coils? If you are running the stock coils could you look at one of the plugs that plugs into the coil pack and tell me if it is 3 or 4 wire?

On 90-95.5 the tach is driven off the coils, in the later years it is driven off the ecu.
shuiend is offline   Reply With Quote
Old 09-02-2011, 02:52 AM   #92
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

Quote:
Originally Posted by Clos561 View Post
just curios, cuz i just boosted my car. 154k on the clock lol
Oh, don't worry. I blew up because I had a SHITTYYYYY tune and I was beating the care like I stole it AND my engine was weak already. You should be fine.

Quote:
Originally Posted by shuiend View Post
Are you running cops or stock coils? If you are running the stock coils could you look at one of the plugs that plugs into the coil pack and tell me if it is 3 or 4 wire?

On 90-95.5 the tach is driven off the coils, in the later years it is driven off the ecu.
Stock coils. I know my car is the one that the tach works with the resistor in the diagnostic box. I think the problem with the tach was voltage. I reviewed my log and I wast oscillating between 10 and 11 volts all the way home. I think my battery got disconnected somehow.
buffon01 is offline   Reply With Quote
Old 09-03-2011, 03:50 PM   #93
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

Okey, I just bought a 255lhp guel pump from Railz and I am now debating whether I should but 550cc or 800cc injectors. Anyone wants to chime in?
buffon01 is offline   Reply With Quote
Old 09-04-2011, 02:36 AM   #94
Elite Member
iTrader: (5)

pusha's Avatar

Join Date: Nov 2009
Location: Miami, FL
Posts: 7,363
Total Cats: -32
Default

ID1000s!!!
pusha is offline   Reply With Quote
Old 09-05-2011, 11:55 PM   #95
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

... anyone else?
buffon01 is offline   Reply With Quote
Old 09-06-2011, 10:23 AM   #96
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,838
Total Cats: 1,787
Default

EV14 660-1000cc

what turbo?



what are your current injectors? that log posted above is fucked up.
Braineack is offline   Reply With Quote
Old 09-06-2011, 11:14 PM   #97
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

I'm going to get railz' DW1000. This is the set up:

99 block and head
MS built by Brain
460cc injectors
Stock fuel rail and pump
GT2870 (churbo) 15 psi internal wastegate
AbsurdFlow tubular low mount mani
3" turbo back straight pipe

Regarding to the tune, yesterday I modded a base map. At first, I tried to do it through TS and I got a lot of error messages. TS is set to HR_10 and I followed the steps to set it up according to my MS. After I did the same in Megatune and I did not have a single issue. Suggestions? Thanks
buffon01 is offline   Reply With Quote
Old 09-11-2011, 09:47 PM   #98
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

Update. The leaks appear to be fixed now. My alternator seems to have taken a ****. Hopefully I get up of my couch sometime this week to take alternator out and take it to have it replaced.

Anyone wants to input on the TS issue?
buffon01 is offline   Reply With Quote
Old 09-11-2011, 10:24 PM   #99
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,065
Total Cats: 253
Default

I really, really want to get my hands on your MS(***) and figure this **** out. Serious. It's not even my car and I'm getting frustrated, lol.
viperormiata is offline   Reply With Quote
Old 09-14-2011, 12:41 AM   #100
Elite Member
Thread Starter
iTrader: (9)

Join Date: Sep 2008
Location: Bloomfield, Michigan
Posts: 5,682
Total Cats: 10
Default

I don't even know if it's the MS. Megatune works fine but TS doesn't. I get error messages that I did not get before and TS is set up with the correct firmware
buffon01 is offline   Reply With Quote
