Old 12-20-2012, 03:52 PM   #101
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2011
Location: SoCal
Posts: 100
Total Cats: 4
Default

As I anxiously wait my return home to socal to order my 6ULs heres a part list of everything thats gone in to the car so far:

Current Engine
Koyo 37 mm race radiator
Skunk2 64mm throttle body
K&N Short ram intake - polished
Deleted A/C compressor and condenser
Deleted Cruise control

Engine Build in progress:
1.9L 01 Bottom End
84mm Wiseco forged 10.5:1 Pistons (3.307" bore rings gapped to .015" and .018")
Manley H-beam rods
ACL Rod bearings .002" oil clearance
ACL Main bearings .002" oil clearance
Mazda OEM thrust washer
ARP Main cap studs

VVT Head
ARP Head studs
Cometic 99 Headgasket
Coolant reroute


Transmission
Flyin Miata Clutch/Pressure plate (installed soon)
Flyin Miata half-weight 10lb flywheel (installed soon)

Suspension
Fat Cat motorsports coilover - revalved Bilsteins with shortened bodies w/ 600/400 springs on ground control sleeves

Wheels/Brakes
15x10 +25 949racing 6UL's - Nickel
Hankook RS3's 225/45/15
Muteki open-ended shorty lug nuts
EBC Ultimax Rotors
EBC Redstuff brake pads

Exterior
Stage21 Extractor Hood
Autokonexion trunk v1
Autokonexion fender flares
Mazda OEM small sideskirts
Moss Motors Fuel door cover - chrome sanded down then painted gloss black
LED strip License plate lights
DDM Tuning 55W 6000K HID headlights

Interior
OMP Corsica 350 mm wheel - blue suede and gold spokes
MOMO steering wheel hub
NRG Gen 3 Quick Release - black
Corbeau FX1 Pro - microsuede
G-Force 3" 6 point Harness - black
Pro-Car Innovations side mount seat bracket
9k Racing Shift **** in 150mm - Cream Swirl
Wink 5-panel mirror
Hard Dog Hard Core Double-diagonal Roll bar
Hard Dog harness bar

Last edited by GTurbo; 12-20-2012 at 06:23 PM.
GTurbo is offline   Reply With Quote
Old 12-20-2012, 04:05 PM   #102
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,927
Total Cats: 526
Default

I know you think you know why you're doing a supercharger on this thing, but even so, I read that parts list and weep that it doesn't say "artech ramhorn vband manifold and Borg efr turbo" or something along those lines.
turbofan is offline   Reply With Quote
Old 12-20-2012, 04:16 PM   #103
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Quote:
Originally Posted by GTurbo View Post
Current Engine
Koyo 37 mm race radiator
I really hope you are planning to replace your radiator, because a 37 is not going to cut it, ask me how I know. I also don't see "coolant reroute" on that list.

Where are you at currently that you are not in SoCal?
EO2K is offline   Reply With Quote
Old 12-20-2012, 06:29 PM   #104
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2011
Location: SoCal
Posts: 100
Total Cats: 4
Default

Quote:
Originally Posted by turbofan View Post
I know you think you know why you're doing a supercharger on this thing, but even so, I read that parts list and weep that it doesn't say "artech ramhorn vband manifold and Borg efr turbo" or something along those lines.
yaaa yaaaa well the supercharger will be loads more fun than the stock 01 engine I have.

Quote:
Originally Posted by EO2K View Post
I really hope you are planning to replace your radiator, because a 37 is not going to cut it, ask me how I know. I also don't see "coolant reroute" on that list.

Where are you at currently that you are not in SoCal?
Sorry, didnt add it to the list. but the Cometic gasket I'm using is the earlier model so I can do that cadillac hose reroute.

With a reroute and and upgraded fans/radiator I cant imagine I would need much more except on some hot *** track days.


I'm in Nor Cal for a week visiting my dad for the holidays.


oh and last chance to sell me your RS3s if you still have them before I buy some!
GTurbo is offline   Reply With Quote
Old 12-20-2012, 06:47 PM   #105
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,927
Total Cats: 526
Default

indeed it will be more fun. I'm sure you'll love it. Til you realize you need MOAR.
turbofan is offline   Reply With Quote
Old 12-20-2012, 07:09 PM   #106
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

My thoughts exactly. How far north? I'll be heading up to Butte county Friday or Saturday night and then back probably on the 26th.

Last time I ran them was April 1st @ Laguna Seca in the rain. I just barely wore the flames and the "Ventus" text off the center stripe, so almost no wear whatsoever. I can get some pics if you are interested, but these are pretty damn fresh. Dismounted them in favor of NT-01s on the April 2nd and they have been stashed in the garage ever since.

Tire Rack has them listed at $125/ea and then another $50 to ship. I was going to put them on Craigslist for $450, but I'd do $400 on them and meet you somewhere up north/in the middle just so I don't have to deal with the CL pukes we seem to have out here.
EO2K is offline   Reply With Quote
Old 12-20-2012, 07:23 PM   #107
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2011
Location: SoCal
Posts: 100
Total Cats: 4
Default

Quote:
Originally Posted by EO2K View Post
My thoughts exactly. How far north? I'll be heading up to Butte county Friday or Saturday night and then back probably on the 26th.

I'm about 45 minutes east of Sac. right now. Friday I'll be on a hunting trip and saturday I might head to tahoe for the day. We can arrange something for when you get back. You has pmz about tires.
GTurbo is offline   Reply With Quote
Old 12-20-2012, 08:03 PM   #108
Elite Member
iTrader: (8)

Ryan_G's Avatar

Join Date: Jan 2012
Location: Tampa, Florida
Posts: 2,579
Total Cats: 155
Default

Even though I am a turbo guy I am glad to see another well done supercharger. The build looks great and I am sure the car will be a beast.
Ryan_G is offline   Reply With Quote
Old 12-23-2012, 01:43 PM   #109
Senior Member
iTrader: (6)

Join Date: Jun 2010
Location: San Rafael, CA
Posts: 1,125
Total Cats: 41
Default

With the bump in displacement, 10.5:1 CR and VVT you should have a great power curve even down low. Keep redline on the low side 7,200-7,400 to protect the VVT valves (for some reason they get hammered with revs) and gear the rotrex for max speed at that RPM. TDR 150mm crank overlay with 88mm SC nose pulley is a great combo for 7,300/120k rotrex speeds. I prefer going larger crank pulley vs smaller SC nose pulley to maintain belt contact area.

Last edited by k24madness; 12-23-2012 at 02:05 PM.
k24madness is offline   Reply With Quote
Old 12-28-2012, 03:08 AM   #110
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2011
Location: SoCal
Posts: 100
Total Cats: 4
Default

I spent the better part of an hour talking to Emilio on Monday and he gave me some great information on what I should look out for with the head-work. It's getting me antsy to get going on the valve work.

In the meantime, however, I picked up my 15x10 6ULs and had to wait until after Christmas to get the tires ordered and mounted. Feels good to be running on some quality rubber!

Still slightly sunk, but some 10-15mm spacers (according to Emilo) should take care of the extra space with the AK flares.




This shots a little misleading, they're not that flush :/




see?





Quote:
Originally Posted by Ryan_G View Post
Even though I am a turbo guy I am glad to see another well done supercharger. The build looks great and I am sure the car will be a beast.

Thanks for the support!


Quote:
Originally Posted by k24madness View Post
With the bump in displacement, 10.5:1 CR and VVT you should have a great power curve even down low. Keep redline on the low side 7,200-7,400 to protect the VVT valves (for some reason they get hammered with revs) and gear the rotrex for max speed at that RPM. TDR 150mm crank overlay with 88mm SC nose pulley is a great combo for 7,300/120k rotrex speeds. I prefer going larger crank pulley vs smaller SC nose pulley to maintain belt contact area.

Thanks for the input! I'm getting lots of conflicting information on the VVT head's rev limit. Emilio Told me with stiffer valve springs, lighter retainers, and all that it should be good for 8. Although I'm leaning towards being safe and keeping it lower until there's some definitive proof.

I like the idea of running a larger crank pulley as well. While on e85 I'll probably run the blower uncorked as well with no restrictor.
GTurbo is offline   Reply With Quote
Old 12-28-2012, 03:11 AM   #111
MT Pony Underground
iTrader: (6)

Nagase's Avatar

Join Date: May 2009
Posts: 1,811
Total Cats: 0
Default

Holy crap that's a stretch. What'd Emilio have to say about that?
Nagase is offline   Reply With Quote
Old 12-28-2012, 07:24 PM   #112
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2011
Location: SoCal
Posts: 100
Total Cats: 4
Default

Quote:
Originally Posted by Nagase View Post
Holy crap that's a stretch. What'd Emilio have to say about that?
They're not nearly as stretched as I thought they would be personally.
He said RS3s would be fine to run on the 10, I don't really have many other options for a street tire so there has to be some understanding.

This was I can space them out, and take out the spacers to run fat slicks
GTurbo is offline   Reply With Quote
Old 12-31-2012, 01:57 PM   #113
Elite Member
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

Quote:
Originally Posted by GTurbo View Post
see?







Yes, I see something hanging off the back of the car dragging on the ground. What and why?
Stein is offline   Reply With Quote
Old 01-02-2013, 03:35 AM   #114
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2011
Location: SoCal
Posts: 100
Total Cats: 4
Default

Quote:
Originally Posted by Stein View Post
Yes, I see something hanging off the back of the car dragging on the ground. What and why?
its my lucky rabbits foot, its already off the car, it was funny to begin with now just looks st00pid
GTurbo is offline   Reply With Quote
Old 01-03-2013, 08:30 PM   #115
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 3,052
Total Cats: 8
Default

Slowly but surely the rice will be beat out of this one ^

Seriously, good luck with the build.

Good job so far taking the hate from all the haters here. Just remember, we hate because we love.

In for EFR swap in ~9 months...
Efini~FC3S is offline   Reply With Quote
Old 01-04-2013, 03:21 PM   #116
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2011
Location: SoCal
Posts: 100
Total Cats: 4
Default

Quote:
Originally Posted by Efini~FC3S View Post
Slowly but surely the rice will be beat out of this one ^

Seriously, good luck with the build.

Good job so far taking the hate from all the haters here. Just remember, we hate because we love.

In for EFR swap in ~9 months...

Haha, I used to do things to be funny or ironic, but I'm getting more serious about my car.

Thanks, what a lot of people dont realize is I'm not opposed to doing things twice. Never once have I said S/C > turbo, but it will be cool to experience both. I'm never selling the car, so theres no rush
GTurbo is offline   Reply With Quote
Old 01-04-2013, 03:26 PM   #117
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,927
Total Cats: 526
Default

lol @ honda build thread.

"I bought this. I'm gonna do stuff to it."

*3 months pass; no updates or responses*

"FOR SALE."

*3 months pass, no updates*
turbofan is offline   Reply With Quote
Old 01-05-2013, 04:54 PM   #118
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2011
Location: SoCal
Posts: 100
Total Cats: 4
Default

Quote:
Originally Posted by turbofan View Post
lol @ honda build thread.

"I bought this. I'm gonna do stuff to it."

*3 months pass; no updates or responses*

"FOR SALE."

*3 months pass, no updates*

it's a piece of ****. I have absolutely no motivation to work on it now
thermostat gets stuck and blows up a hose, alternator goes out two weeks later, get a flat next week, now the water pump is acting up.

I'd rather put all my money into the miata, which has been a dream of a car from when I bought it, 112k-126k and all I've had to do was brakes and replaced the oem radiator.


edit******: I updated my honda build thread for you<3
GTurbo is offline   Reply With Quote
Old 02-22-2013, 10:09 PM   #119
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2011
Location: SoCal
Posts: 100
Total Cats: 4
Default

Here's some head progress after just a couple of hours of work.
Reconsidering the deal with KW, someone talk me into turbo

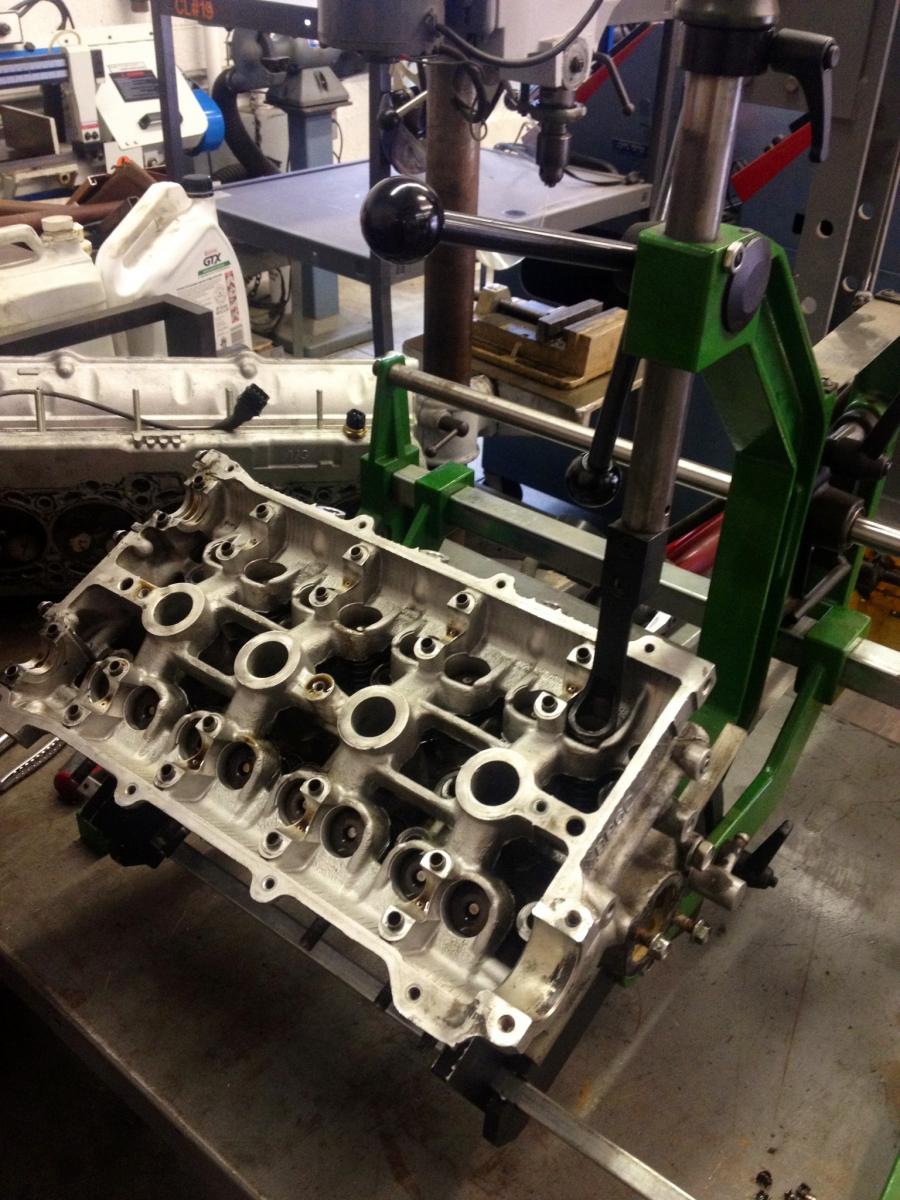

Removing the valve springs was a breeze with this, also made me realize how light stock valve springs are.

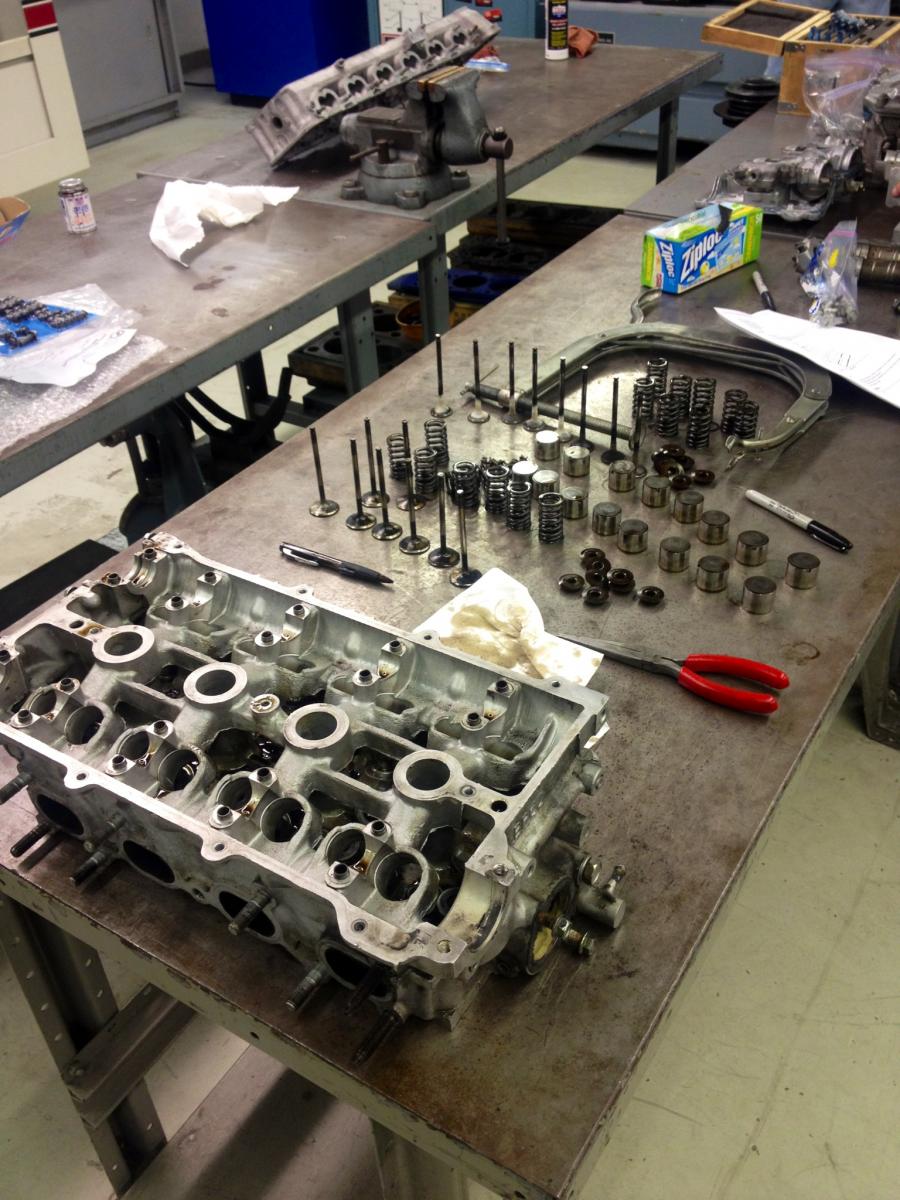

Anyone want to buy my stock valves/springs/Shim-over buckets?

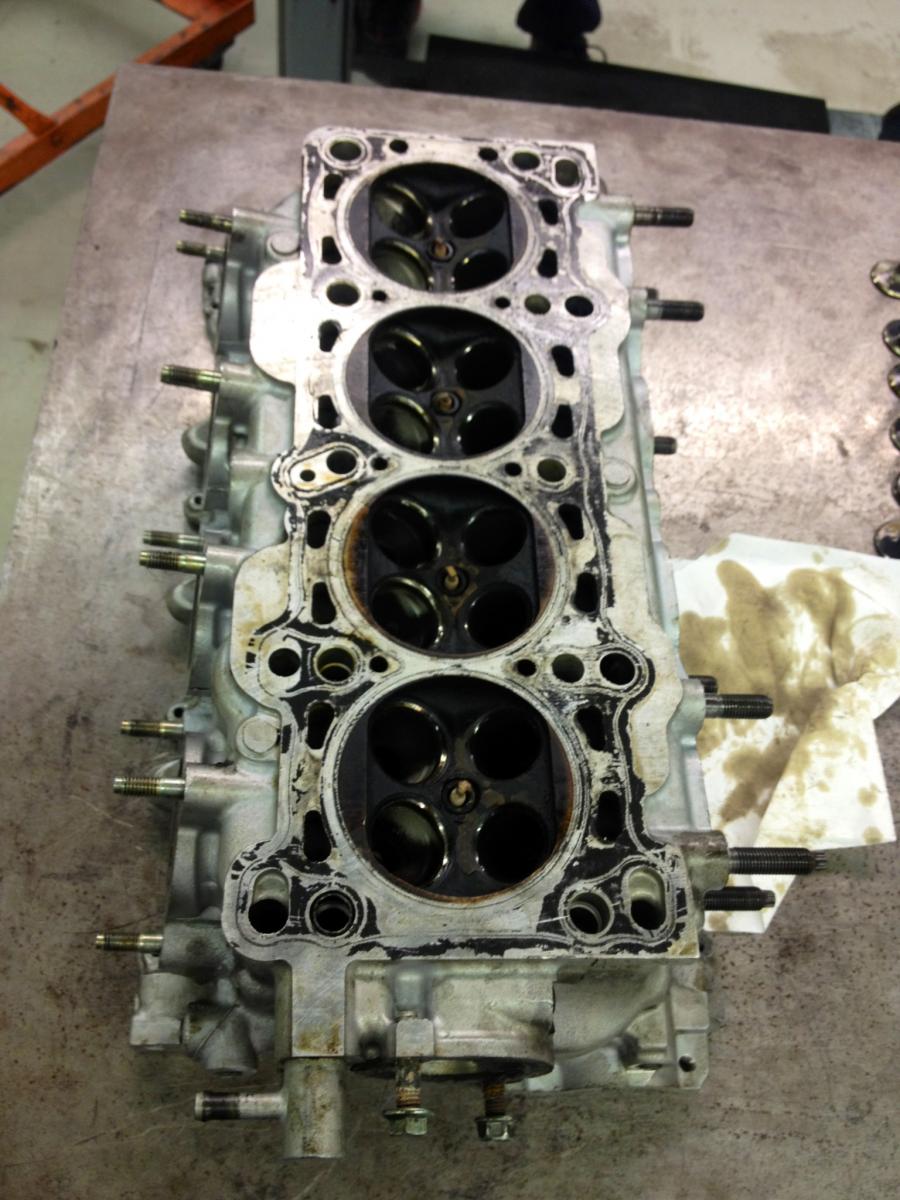

That don't look right

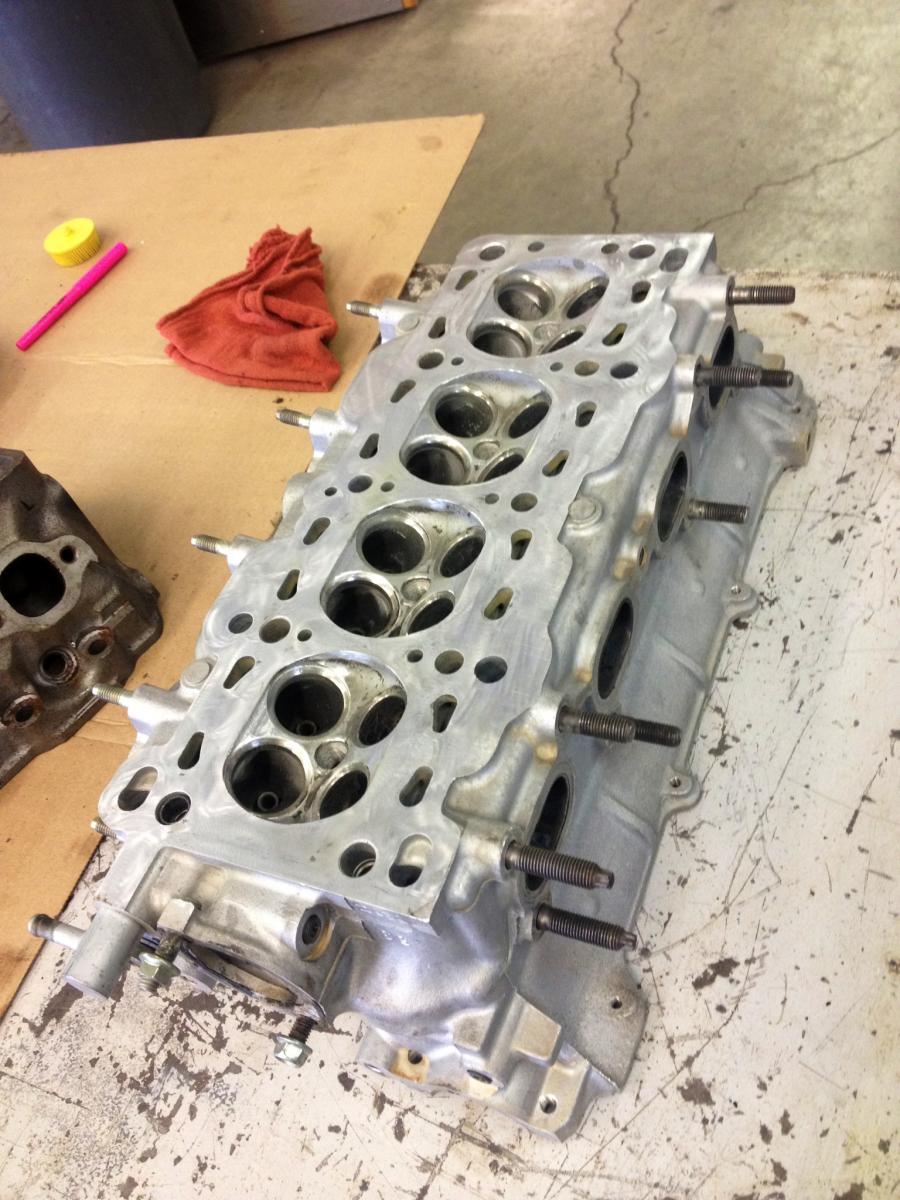

Almost clean, time for the research on unshrouding and polishing the combustion chambers


Do these valve guides look modified at all? I feel like they normally protrude more? anyone have a known stock picture to compare?
Attached Thumbnails
Rotrex Built Engine NB! Come at me bro!-removingvalvesprings.jpg   Rotrex Built Engine NB! Come at me bro!-dissasembly.jpg   Rotrex Built Engine NB! Come at me bro!-dirtycombustionchambers.jpg   Rotrex Built Engine NB! Come at me bro!-cleanedcombustionchambey.jpg
GTurbo is offline   Reply With Quote
Old 02-22-2013, 10:41 PM   #120
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,199
Total Cats: 2,584
Default

Nice progress.

No one's gonna talk you into a turbo.

If its not shockingly obvious to you which way to go, then we'll just sit back and watch you "pave the way" lol
18psi is offline   Reply With Quote


Reply

Related Topics
Thread Thread Starter Forum Replies Last Post
Project Gemini - Turbo Civic on the Cheap Full_Tilt_Boogie Build Threads 59 12-15-2017 09:00 PM
Changing from 460cc to flow force 610cc in diypnp 90 Turbo MEGAsquirt 19 10-19-2015 04:23 PM
Expected intake temps on the track? tazswing Race Prep 20 10-03-2015 12:04 PM
Bad head gasket or ? shooterschmidty Engine Performance 8 09-30-2015 11:28 PM


Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off



All times are GMT -4. The time now is 08:21 AM.
