Trackspeed's '02SE "Acamas" - EFR6758, TSE motor, 500whp or bust
Joined: Sep 2010
Posts: 8,146
Total Cats: 1,087
From: Lake Forest, CA
I feel another request for a ride along outgoing.
Reply
0
0
Thread Starter
Joined: Nov 2006
Posts: 15,442
Total Cats: 2,106
From: Sunnyvale, CA
Got my Xida ACEs a little earlier than expected, got them installed yesterday and aligned the car today. 300/200 rates, didn't have a stock front sway so the RB tubular bar will have to stay until I can get one.
So far, I am pretty impressed. I've had a few different setups on Acamas, most recently a 600/350 MSM Bilstein setup that I felt was underdamped, and a 9/6kg setup with some Taiwanese shocks we were evaluating which was better than the MSM Bilsteins but still slightly underdamped. My initial impression is that 300/200 might be too far in the other direction, especially given this car's setup (~2500lbs, 300whp/270wtq, 245 RS4s on 15x9s), but the ride quality is pretty incredible. I will give it a few weeks to adjust, but my inclination is that I would prefer something slightly stiffer, like 450/300, even if it meant a small hit in ride quality. In a 2200lb car the 300/200 would probably work better, but Acamas is very porky. Ride height was ~5.8F ~6R, I need to check where it settled to after the drive to/from alignment.
The remote has four separate adjustments, each with a range of 1 (full soft) to 5 (full stiff). It has static rebound adjustment for front and rear, a pitch adjustment which stiffens based on accel/decel inputs, and a roll adjustment which stiffens based on g-force input. Currently have the shocks set to 3F/2R static, 4 pitch, 4 roll. On flat, level highway, I can back the static settings off to 2/2 or 2/1 to let it float a little more, but it feels too soft to me around town if I go lower than 3/2. I don't think I've really experienced the full potential of the ACE valve with the driving I've done so far, but it feels much tighter in transitions and under full power than I would expect it to given the spring rates. A car which spins 2nd all the time and 3rd at night should probably feel like a sloppy mess with 200# rear springs, but it definitely doesn't.
It will be at MRLS for test rides.
So far, I am pretty impressed. I've had a few different setups on Acamas, most recently a 600/350 MSM Bilstein setup that I felt was underdamped, and a 9/6kg setup with some Taiwanese shocks we were evaluating which was better than the MSM Bilsteins but still slightly underdamped. My initial impression is that 300/200 might be too far in the other direction, especially given this car's setup (~2500lbs, 300whp/270wtq, 245 RS4s on 15x9s), but the ride quality is pretty incredible. I will give it a few weeks to adjust, but my inclination is that I would prefer something slightly stiffer, like 450/300, even if it meant a small hit in ride quality. In a 2200lb car the 300/200 would probably work better, but Acamas is very porky. Ride height was ~5.8F ~6R, I need to check where it settled to after the drive to/from alignment.
The remote has four separate adjustments, each with a range of 1 (full soft) to 5 (full stiff). It has static rebound adjustment for front and rear, a pitch adjustment which stiffens based on accel/decel inputs, and a roll adjustment which stiffens based on g-force input. Currently have the shocks set to 3F/2R static, 4 pitch, 4 roll. On flat, level highway, I can back the static settings off to 2/2 or 2/1 to let it float a little more, but it feels too soft to me around town if I go lower than 3/2. I don't think I've really experienced the full potential of the ACE valve with the driving I've done so far, but it feels much tighter in transitions and under full power than I would expect it to given the spring rates. A car which spins 2nd all the time and 3rd at night should probably feel like a sloppy mess with 200# rear springs, but it definitely doesn't.
It will be at MRLS for test rides.
Reply
0
0
Thread Starter
Joined: Nov 2006
Posts: 15,442
Total Cats: 2,106
From: Sunnyvale, CA
Working out the final details before I do my big-power E85 tune. Installed an AEM 3.5bar MAP sensor today, doing a little road tuning at current boost levels before I hit the dyno sometime next week. If I don't hit 400whp it's because something broke
Reply
0
0
Thread Starter
Joined: Nov 2006
Posts: 15,442
Total Cats: 2,106
From: Sunnyvale, CA
Reply
2
2
Thread Starter
Joined: Nov 2006
Posts: 15,442
Total Cats: 2,106
From: Sunnyvale, CA
The only thing I can't come up with is a logical purpose for that package to exist.
Reply
1
1
Billet caps? Why no push to market?

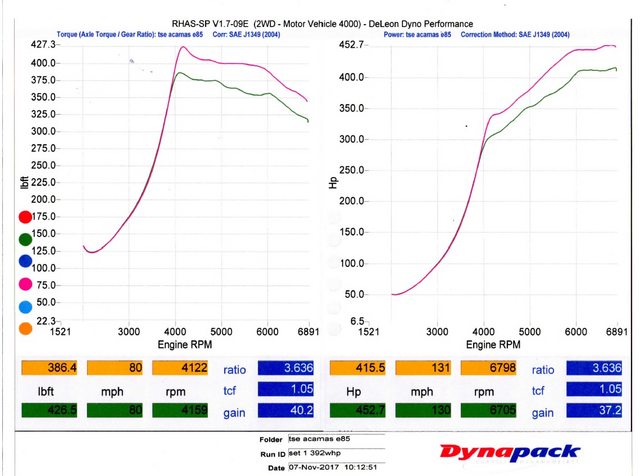

I'm jealous of all that spool. There's something clearly flawed with my setup when looking at everyone's 6758 plots. You're making 20% more power by 4k. No slouch!!
I also don't think my car can handle more right now. But that's a beautiful climbing curve.
I'm jealous of all that spool. There's something clearly flawed with my setup when looking at everyone's 6758 plots. You're making 20% more power by 4k. No slouch!!
I also don't think my car can handle more right now. But that's a beautiful climbing curve.
Reply
0
0
Billet caps? Why no push to market?
I'm jealous of all that spool. There's something clearly flawed with my setup when looking at everyone's 6758 plots. You're making 20% more power by 4k. No slouch!!
I also don't think my car can handle more right now. But that's a beautiful climbing curve.
I'm jealous of all that spool. There's something clearly flawed with my setup when looking at everyone's 6758 plots. You're making 20% more power by 4k. No slouch!!
I also don't think my car can handle more right now. But that's a beautiful climbing curve.
Reply
1
1
