I'll just leave this here for when you part out of the Miata for this new project:
OS Giken TC24-B1Z (420ps) Nissan Fairlady Z (Datsun 240Z)① - Offset Kings 2016 Okayama Japan by Yoshitaka Kato, on Flickr
OS Giken TC24-B1Z (420ps) Nissan Fairlady Z (Datsun 240Z)① - Offset Kings 2016 Okayama Japan by Yoshitaka Kato, on Flickr
#1543
Elite Member
Thread Starter
iTrader: (4)
Join Date: Mar 2012
Location: Northern VA
Posts: 4,648
Total Cats: 544
If anyone wants ninelives wing, powdercoated black, and a splitter hmu.
I'll just leave this here for when you part out of the Miata for this new project:
OS Giken TC24-B1Z (420ps) Nissan Fairlady Z (Datsun 240Z)① - Offset Kings 2016 Okayama Japan by Yoshitaka Kato, on Flickr
OS Giken TC24-B1Z (420ps) Nissan Fairlady Z (Datsun 240Z)① - Offset Kings 2016 Okayama Japan by Yoshitaka Kato, on Flickr
#1546
Elite Member
Thread Starter
iTrader: (4)
Join Date: Mar 2012
Location: Northern VA
Posts: 4,648
Total Cats: 544
May have someone interested in the wing, but I'll let you know if it falls through?
Baltic Birch plywood splitter is still kicking around in my basement. It's wide.
It's the only way to gain street cred. I'm hoping it'll drop seconds off my commute times.
Baltic Birch plywood splitter is still kicking around in my basement. It's wide.
It's the only way to gain street cred. I'm hoping it'll drop seconds off my commute times.
Last edited by psyber_0ptix; 11-21-2019 at 02:00 PM.
#1547
Elite Member
Thread Starter
iTrader: (4)
Join Date: Mar 2012
Location: Northern VA
Posts: 4,648
Total Cats: 544
These came back. I'm debating having an inconel heat shield made for the manifold. Try to recover whatever loss in spool I get from moving up 2 flange sizes.
Last edited by psyber_0ptix; 11-21-2019 at 02:01 PM.
#1548
Elite Member
Thread Starter
iTrader: (4)
Join Date: Mar 2012
Location: Northern VA
Posts: 4,648
Total Cats: 544
A bit of a snag

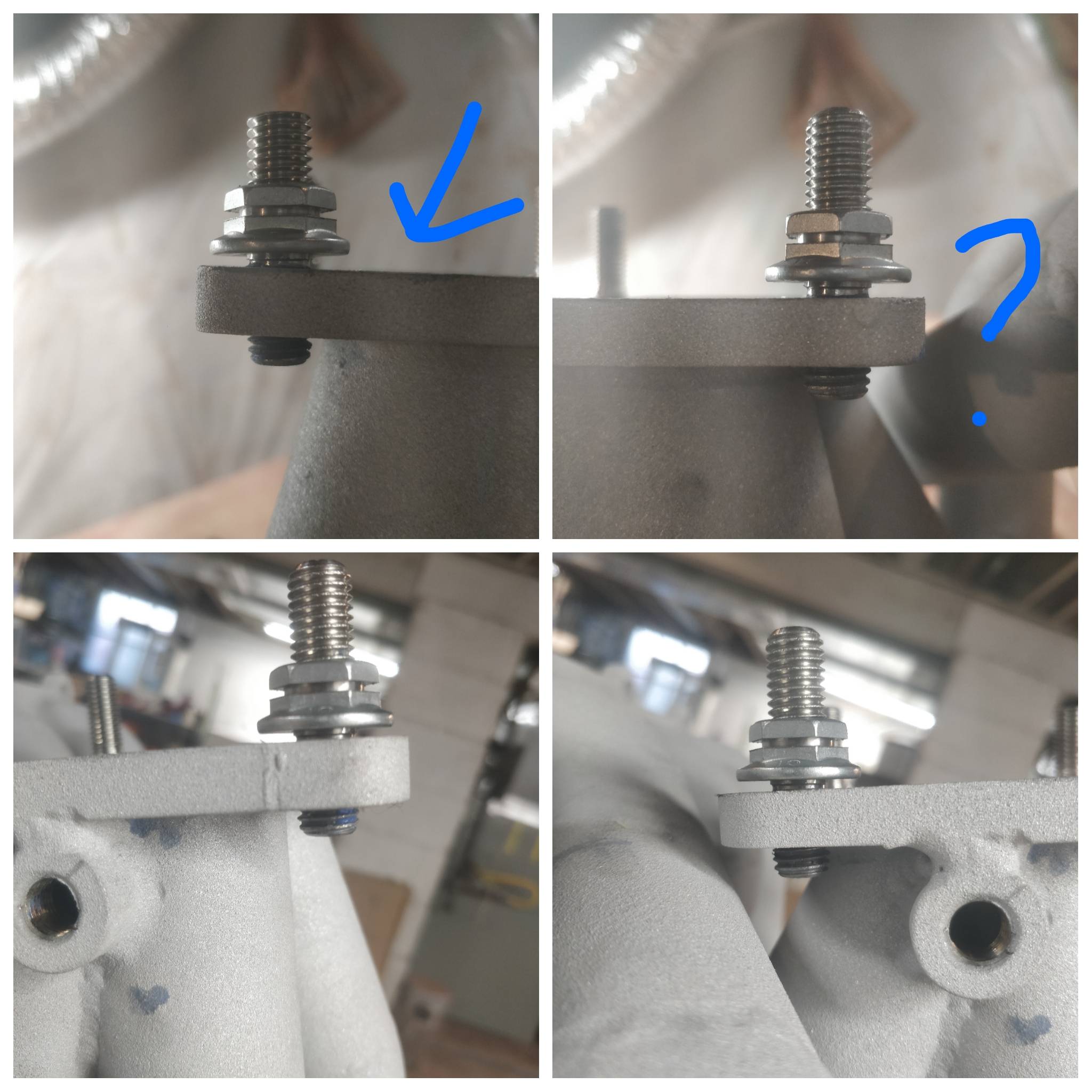

One of the studs is just slightly tapped off angle. Not sure if this can be corrected easily by drilling and helicoil or just wallow out one of the holes on the turbine housing
😓
One of the studs is just slightly tapped off angle. Not sure if this can be corrected easily by drilling and helicoil or just wallow out one of the holes on the turbine housing
😓
#1549
mkturbo.com
iTrader: (24)
Join Date: May 2006
Location: Charleston SC
Posts: 15,176
Total Cats: 1,680
Pictures don't work for me? How far is it off angle? Can you enlarge that one hole on the turbo slightly to make it fit? 30 seconds with a die grinder seems much easier then trying to fix a tapped hole.
#1550
Elite Member
Thread Starter
iTrader: (4)
Join Date: Mar 2012
Location: Northern VA
Posts: 4,648
Total Cats: 544
With the three other studs lining up, the last is leaning off center by about 1/8".
It kinda sucks to have to hog a hole out and tighten a nut down on angle, unless I'm just being pedantic.
no risk of stud breakage or leaks if nor normal to flange surface?
#sendit?
It kinda sucks to have to hog a hole out and tighten a nut down on angle, unless I'm just being pedantic.
no risk of stud breakage or leaks if nor normal to flange surface?
#sendit?
#1551
mkturbo.com
iTrader: (24)
Join Date: May 2006
Location: Charleston SC
Posts: 15,176
Total Cats: 1,680
1. enlarge turbo hole a bit and tighten the bitch down.
2. Attempt to fill in the off hole, and hope to god you can retap it correctly, IE the broke and boosted fix.
3. Cut of flange, weld on new one, resend it out for the coating to be redone.
Option 1 seems the easiest and quickest way to go. 30 seconds with a die grinder and problem is sort of solved. All the others seem like they will cost money and time.
#1552
Elite Member
Thread Starter
iTrader: (4)
Join Date: Mar 2012
Location: Northern VA
Posts: 4,648
Total Cats: 544
I'm tired of spending a dollar on this car. But I'd hate for it to all go in, leak, all go out and send it out again anyway. I never thought it's be something I had to check first. I have no issue grinding the hole, I'm just concerned about the crooked nut and bending the stud when clamping it down, then exhibiting it to thermal cycles. There's a small shoulder that is wider than the threads that'll have to clear before the flange surfaces mate, I guess that could be taken care of with a countersink/debur tool.
-_-
This project is fighting me. I would have beenhalf way 66% toward a KMiata trans kit with this financial effort. The universe is sending me a sign...
-_-
This project is fighting me. I would have been
#1554
Elite Member
Thread Starter
iTrader: (4)
Join Date: Mar 2012
Location: Northern VA
Posts: 4,648
Total Cats: 544
At that point, I'd just want it to be a bolt. But the bolt head or nut will still thread on angle. Resbond kicked in about 10 minutes, I can't remove it unless that stud will be sacrificed or by someone elses capable hands.
#1555
Elite Member
Thread Starter
iTrader: (4)
Join Date: Mar 2012
Location: Northern VA
Posts: 4,648
Total Cats: 544
I'm 90% to the point where I just don't give a ****. I may as well slot the flange and just send it. I'm tired of shipping things, I'm tired of paying for things, just resbond the whole damn turbo to the manifold and **** in the wind.
Now Lars has me thinking about the risk/reward if it gets further fucked, resurfacing, Rewelding, Recoating, Redrill Re-tap. I'm just screwing myself sideways toying around trying to get it right the first time.

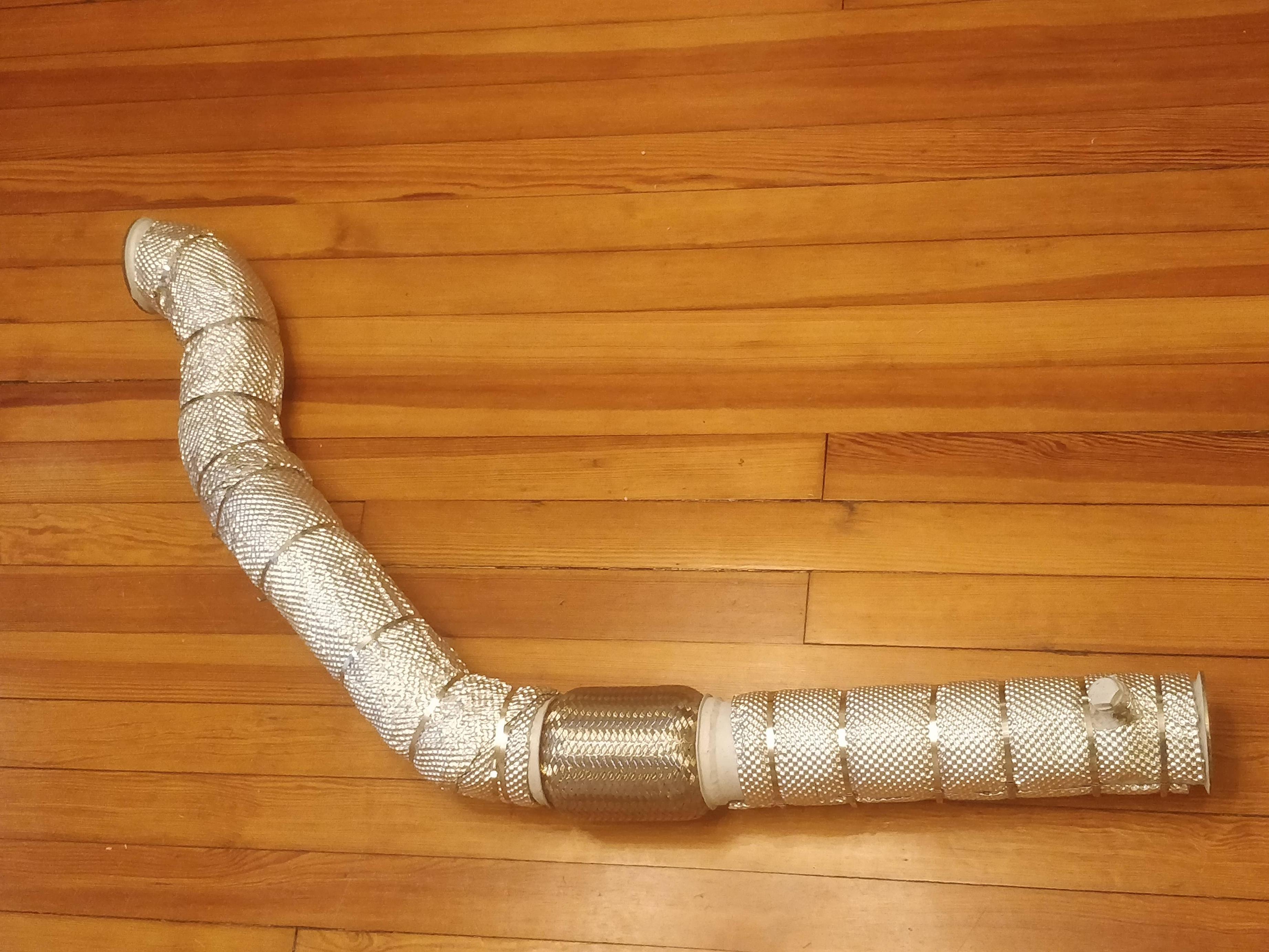

If I'm going to have a leaky turbo with possibly sloth spool, my leg might as well be cold this time. One step closer to partout. In my frustration over everything I wrapped a downpipe.
Now Lars has me thinking about the risk/reward if it gets further fucked, resurfacing, Rewelding, Recoating, Redrill Re-tap. I'm just screwing myself sideways toying around trying to get it right the first time.
If I'm going to have a leaky turbo with possibly sloth spool, my leg might as well be cold this time. One step closer to partout. In my frustration over everything I wrapped a downpipe.
Last edited by psyber_0ptix; 03-05-2019 at 10:37 PM.
#1556
Retired Mech Design Engr
iTrader: (3)
Join Date: Jan 2013
Location: Seneca, SC
Posts: 5,009
Total Cats: 856
If you obround (enlarge) the hole, use a washer under the nut so the angular fit wil be round rather than the edges of the hex flats trying to gouge into the turbine flange.
Altenatively, spot an angular countersink in the turbine flange that matches the stud angle. Hard to do without tools, Cutting into ceramic. More time. Meh, add a washer. They make tapered washers but I don’t know where you could find. One other possibility would be to get a thick washer and taper it on a belt sander.
DNM
Altenatively, spot an angular countersink in the turbine flange that matches the stud angle. Hard to do without tools, Cutting into ceramic. More time. Meh, add a washer. They make tapered washers but I don’t know where you could find. One other possibility would be to get a thick washer and taper it on a belt sander.
DNM
#1557
Elite Member
Thread Starter
iTrader: (4)
Join Date: Mar 2012
Location: Northern VA
Posts: 4,648
Total Cats: 544
Threading the nut down on the flange, it's the short stud under the housing that is the fault. The one you have to thread down surfing install, I'll see if I can squeeze a washer there but am otherwise in over my head for that tiny space.
Last edited by psyber_0ptix; 03-06-2019 at 06:55 AM.
#1558
mkturbo.com
iTrader: (24)
Join Date: May 2006
Location: Charleston SC
Posts: 15,176
Total Cats: 1,680
I very much dislike wrapping down pipes. Mostly because next time you touch it all that stuff will flake off and your hand will itch for a week.
The of stud being on the corner where it needs to be shorter is annoying. That one may be hard to get a washer under and then the nut on.
Alternative solution.
I bring up the nice BW S66 turbo setup with quick spool valve and 4" exhaust I have in the garage. Guaranteed to not leak at the flange. As a bonus it is already 495 roll race tested.
The of stud being on the corner where it needs to be shorter is annoying. That one may be hard to get a washer under and then the nut on.
Alternative solution.
I bring up the nice BW S66 turbo setup with quick spool valve and 4" exhaust I have in the garage. Guaranteed to not leak at the flange. As a bonus it is already 495 roll race tested.
#1560
Elite Member
Thread Starter
iTrader: (4)
Join Date: Mar 2012
Location: Northern VA
Posts: 4,648
Total Cats: 544
#onestepclosertopartout
