Old 01-18-2010, 01:12 PM   #81
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,484
Total Cats: 248
Default

Quote:
Originally Posted by levnubhin View Post
How do you guys think this will perform against the FM/Begi cast mani's that a lot of us run?
A lot better.
TurboTim is offline   Reply With Quote
Old 01-18-2010, 01:14 PM   #82
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Quote:
Originally Posted by TurboTim View Post
A lot better.

I'll assume that means it will perform better everywhere.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 01-18-2010, 01:14 PM   #83
Senior Member
iTrader: (34)

ARTech's Avatar

Join Date: Mar 2009
Location: Dallas
Posts: 530
Total Cats: 9
Default

^ do you already have numbers of your current setup? and is wayne building you the one in the pic above or one like his?
ARTech is offline   Reply With Quote
Old 01-18-2010, 01:16 PM   #84
Senior Member
Thread Starter
iTrader: (8)

Join Date: Feb 2009
Location: Jax, Fl
Posts: 907
Total Cats: 0
Default

No previous numbers. It was a very very halfassed setup from the previous owner with alot of BS parts. He's building one like posted above
johnmatt is offline   Reply With Quote
Old 01-18-2010, 01:36 PM   #85
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,484
Total Cats: 248
Default

Quote:
Originally Posted by levnubhin View Post
I'll assume that means it will perform better everywhere.
I will guess that it will perform better everywhere.
TurboTim is offline   Reply With Quote
Old 01-18-2010, 02:57 PM   #86
Senior Member
iTrader: (34)

ARTech's Avatar

Join Date: Mar 2009
Location: Dallas
Posts: 530
Total Cats: 9
Default

How are you going to compare them then? Logs of spool at least?

He's going to have fun with that one, it's a bit harder than the one he made for himself. He'll spend as much time getting things fitted as a ramhorn/absurdflow.

I think it'll make more power than begi/fm, but I'd like to see how much. Lets say a ramhorn makes 40-50 more hp in a 300hp setup over a standard log like the taco taco (from h-t thread). A begi directed pulse log already flows better than a taco taco, so then where does the tubular shorty fall in?
ARTech is offline   Reply With Quote
Old 01-18-2010, 03:07 PM   #87
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Quote:
Originally Posted by ARTech View Post
How are you going to compare them then? Logs of spool at least?

He's going to have fun with that one, it's a bit harder than the one he made for himself. He'll spend as much time getting things fitted as a ramhorn/absurdflow.

I think it'll make more power than begi/fm, but I'd like to see how much. Lets say a ramhorn makes 40-50 more hp in a 300hp setup over a standard log like the taco taco (from h-t thread). A begi directed pulse log already flows better than a taco taco, so then where does the tubular shorty fall in?

Well, I've got an OOOOOOLD Begi mani, I don't think it's direct pulses. If I get one of those mani's I will do before and after 4th gear pulls and I'll take it to the same dyno that I just went to.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 01-18-2010, 03:15 PM   #88
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,484
Total Cats: 248
Default

Quote:
Originally Posted by ARTech View Post
He's going to have fun with that one, it's a bit harder than the one he made for himself. He'll spend as much time getting things fitted as a ramhorn/absurdflow.
I haven't made this one yet because it seems like it would be a little harder than my standard manifold (just cause I've made enough of the standard that it's getting a little easier) and flow worse, in my opinion. So for me to make it doesn't make much sense. It'll be cool to see it done though.

Quote:
I think it'll make more power than begi/fm, but I'd like to see how much. Lets say a ramhorn makes 40-50 more hp in a 300hp setup over a standard log like the taco taco (from h-t thread). A begi directed pulse log already flows better than a taco taco, so then where does the tubular shorty fall in?
I think this would flow better than my tubular BEGI replacement, which already made more power and spooled sooner on my car than a BEGI S3 on a closely similar spec'ed car (jondoe's).
TurboTim is offline   Reply With Quote
Old 01-18-2010, 04:19 PM   #89
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

If you guys want that manifold its going to cost more than I quoted you. I thought you guys wanted the one like mine:

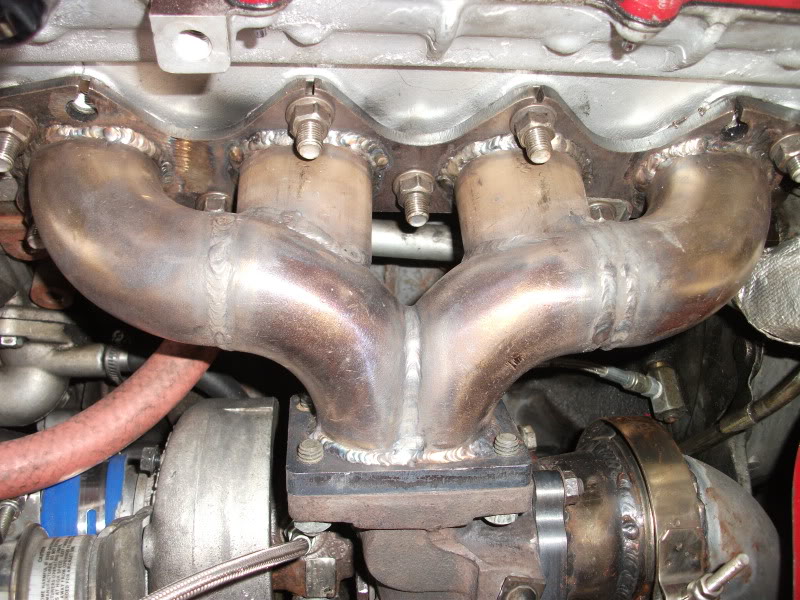

Name:  DSCF0078.jpg
Views: 6
Size:  142.9 KB
wayne_curr is offline   Reply With Quote
Old 01-18-2010, 04:35 PM   #90
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

levnubhin is offline   Reply With Quote
Old 01-18-2010, 04:37 PM   #91
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

PM'd you.
wayne_curr is offline   Reply With Quote
Old 01-18-2010, 05:38 PM   #92
Elite Member
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

Its definitely more difficult than Tims design i can tell you that much.

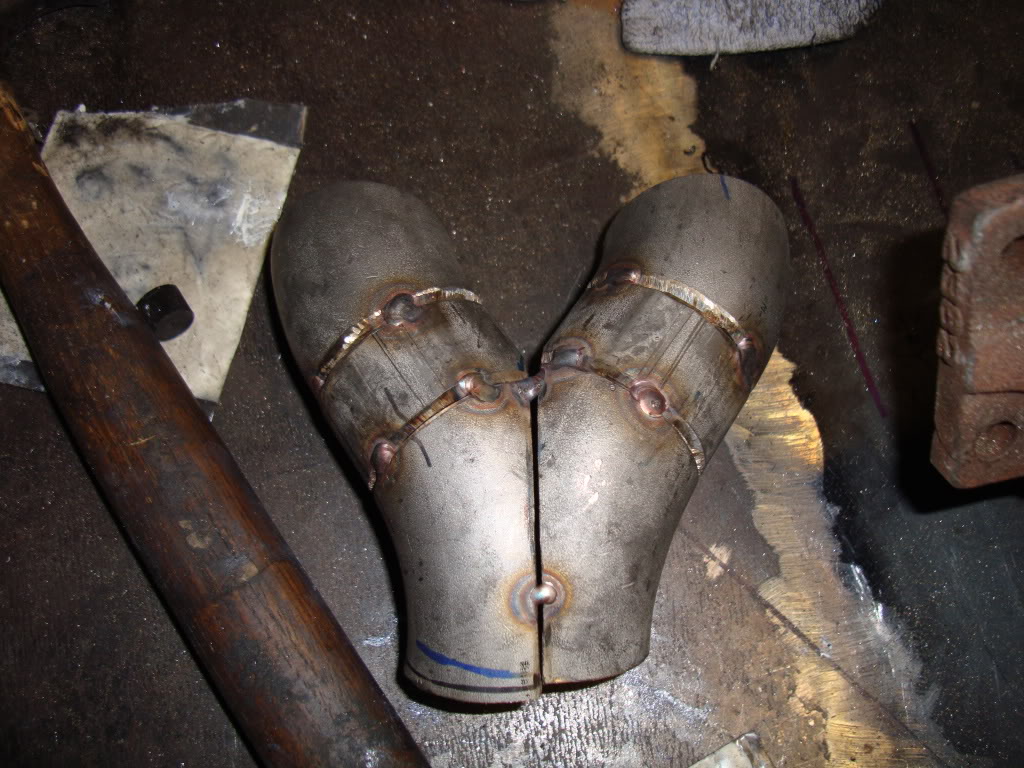

Name:  DSC00239.jpg
Views: 4
Size:  178.6 KB

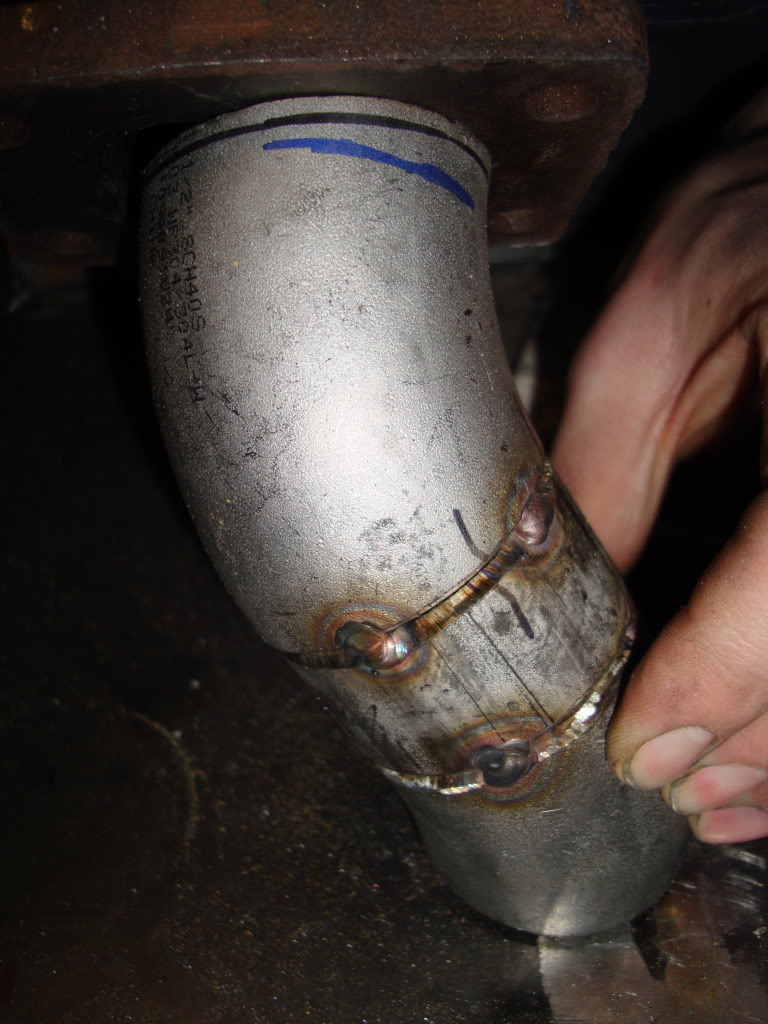

Name:  DSC00237.jpg
Views: 6
Size:  134.4 KB

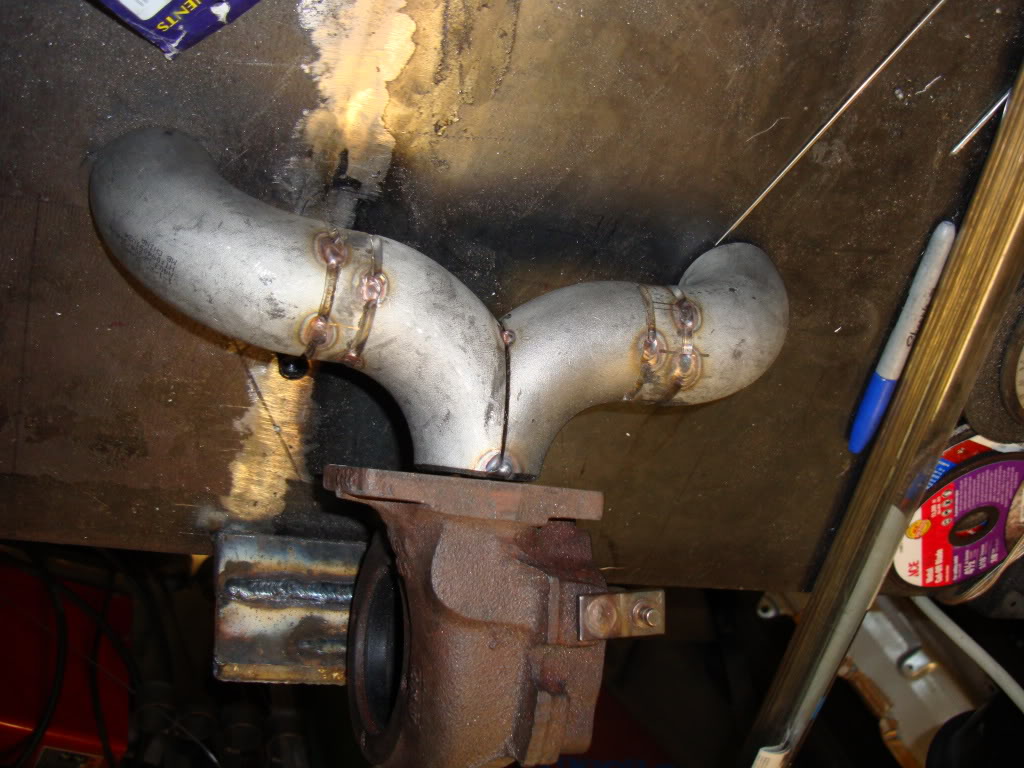

Name:  DSC00231.jpg
Views: 5
Size:  150.8 KB


The hardest part will be making the #2 and #3 merge with #1 and #4.
SKMetalworks is offline   Reply With Quote
Old 01-18-2010, 05:41 PM   #93
Senior Member
Thread Starter
iTrader: (8)

Join Date: Feb 2009
Location: Jax, Fl
Posts: 907
Total Cats: 0
Default

Is that the one he's making now? Not off to a bad start
johnmatt is offline   Reply With Quote
Old 01-18-2010, 05:46 PM   #94
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

I still think it'll be easier merging 2 and 3 than coping 2 and 3 into 1 and 4 like I did on mine.
wayne_curr is offline   Reply With Quote
Old 01-18-2010, 07:17 PM   #95
Elite Member
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

Quote:
Originally Posted by wayne_curr View Post
I still think it'll be easier merging 2 and 3 than coping 2 and 3 into 1 and 4 like I did on mine.
I dont think so, marking and cutting a hole from a straight piece is alot easier than coping the whole 90 * bend with 2 different radii and a straight section in there.
SKMetalworks is offline   Reply With Quote
Old 01-19-2010, 12:50 AM   #96
Senior Member
iTrader: (34)

ARTech's Avatar

Join Date: Mar 2009
Location: Dallas
Posts: 530
Total Cats: 9
Default

Quote:
Originally Posted by TurboTim View Post
I think this would flow better than my tubular BEGI replacement, which already made more power and spooled sooner on my car than a BEGI S3 on a closely similar spec'ed car (jondoe's).
I think we've talked about this before...same size DP or bigger?
ARTech is offline   Reply With Quote
Old 01-19-2010, 09:03 AM   #97
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,484
Total Cats: 248
Default

Quote:
Originally Posted by ARTech View Post
I think we've talked about this before...same size DP or bigger?
I ran my 3" bellmouth DP with my ol' 3" exhaust/metal core cat. He ran BEGI's stainless SGDP which went up to 3" at some point, metal core cat, and enthuza's 3" exhaust. Trying to argue the bellmouth DP is better than a SGDP is difficult but I think it could have added to the difference, not just all the manifold.
TurboTim is offline   Reply With Quote
Old 01-19-2010, 11:14 AM   #98
Senior Member
iTrader: (34)

ARTech's Avatar

Join Date: Mar 2009
Location: Dallas
Posts: 530
Total Cats: 9
Default

I don't think it was the Bellmouth vs SGDP that made a difference as much as it was the 3" vs 2.5" size difference. AFAIK begi doesn't make a 3" DP, they just flare it to 3" at the end to meet a 3" cat/exhaust.
ARTech is offline   Reply With Quote
Old 01-19-2010, 11:32 AM   #99
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,484
Total Cats: 248
Default

I think it's 2.75 after the dump tube blends in, then goes to 3" right at the end. I don't know for sure.

Whatever.
TurboTim is offline   Reply With Quote
Old 01-19-2010, 12:36 PM   #100
Senior Member
iTrader: (34)

ARTech's Avatar

Join Date: Mar 2009
Location: Dallas
Posts: 530
Total Cats: 9
Default

From their website:

BEGi can make a downpipe that has a 3.0" outlet to the exhaust system on it. However, it will not bolt up to the stock exhaust or any stock exhaust replacement. The downpipe will outlet the turbo at 2.25" and swage up to 2.5" prior to the wastegate vent tube dump. Then the downpipe will swage to 2.75" at the flex joint and swage up to 3.0" after the flex joint. This is a customizing option and is considered a custom order. 3.0" Downpipes cannot be returned for refund or exchange. All measurements are in OD.
ARTech is offline   Reply With Quote
