Old 01-19-2010, 12:57 PM   #101
Senior Member
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

Quote:
Originally Posted by levnubhin View Post
No, I'm interested in this one............

http://img.photobucket.com/albums/v6...maniblend2.jpg
This one is a PITA to build, that is the design I based my recent build off of. The next one I build will be a ram horn. I think the ram horn will be much easier to mock up but slightly harder to weld which is fine with me.
Gotpsi? is offline   Reply With Quote
Old 01-19-2010, 01:27 PM   #102
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

needs more:

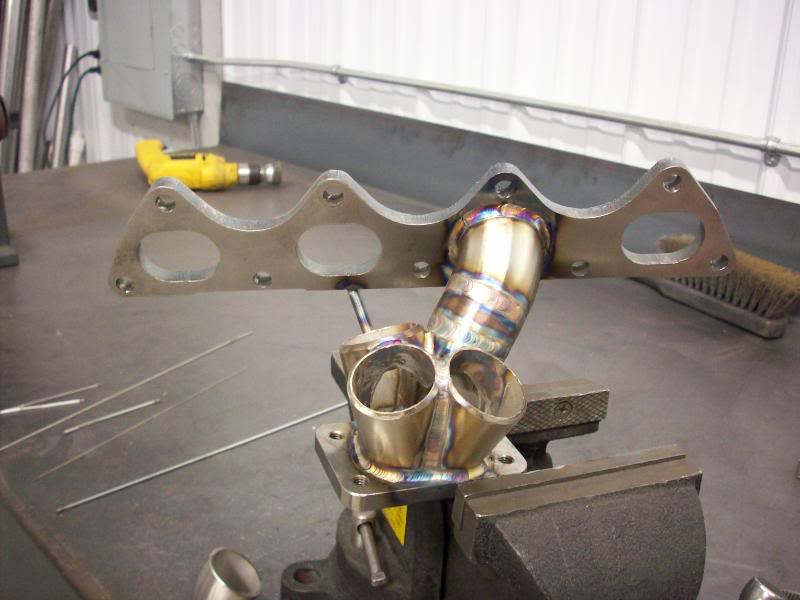

Name:  4doormanifold005.jpg
Views: 11
Size:  52.3 KB

Name:  4doormanifold010.jpg
Views: 7
Size:  49.8 KB

Name:  4doormanifold012.jpg
Views: 5
Size:  73.5 KB

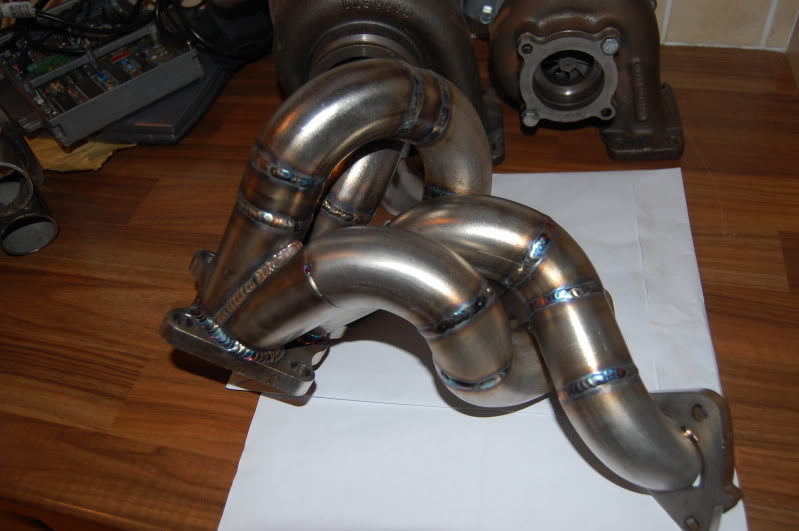

Name:  DSC_0290.jpg
Views: 6
Size:  80.8 KB
Braineack is offline   Reply With Quote
Old 01-19-2010, 01:27 PM   #103
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

That is an interesting design...........

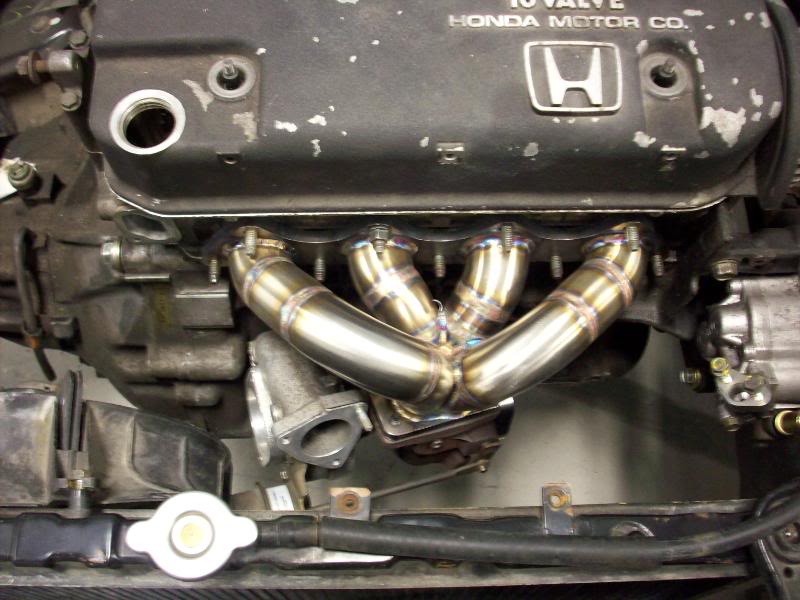

Name:  4doormanifold012.jpg
Views: 6
Size:  73.5 KB
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 01-19-2010, 02:58 PM   #104
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Quote:
Originally Posted by levnubhin View Post
That is an interesting design...........

I'm nearly certain that will hang the turbo too low.
wayne_curr is offline   Reply With Quote
Old 01-19-2010, 04:01 PM   #105
Senior Member
iTrader: (7)

Join Date: Dec 2006
Location: Chicagoland
Posts: 1,362
Total Cats: 3
Default

^^That design won't make near as much power as the longer tubed manifolds.
jtothawhat is offline   Reply With Quote
Old 01-19-2010, 04:03 PM   #106
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

I'd rather have that design than the two shorty bottom mounts that everyone else is posting here. It'll spool fast and flow just fine for my 7K rev limiter and stock block.

I personally like the second design I posted better.
Braineack is offline   Reply With Quote
Old 01-19-2010, 04:43 PM   #107
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

Quote:
Originally Posted by jtothawhat View Post
^^That design won't make near as much power as the longer tubed manifolds.
Define "no where near".
TurboTim is offline   Reply With Quote
Old 01-19-2010, 05:02 PM   #108
Senior Member
iTrader: (7)

Join Date: Dec 2006
Location: Chicagoland
Posts: 1,362
Total Cats: 3
Default

Equal Length vs Log Manifold Test - Tampa Racing

Granted it's not a log manifold, the runners are still shorter...so maybe 10-20 whp
jtothawhat is offline   Reply With Quote
Old 01-19-2010, 05:06 PM   #109
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

Quote:
Originally Posted by jtothawhat View Post
Equal Length vs Log Manifold Test - Tampa Racing

Granted it's not a log manifold, the runners are still shorter...so maybe 10-20 whp

see post #52.
Braineack is offline   Reply With Quote
Old 01-19-2010, 05:15 PM   #110
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

Quote:
Originally Posted by jtothawhat View Post
Equal Length vs Log Manifold Test - Tampa Racing

Granted it's not a log manifold, the runners are still shorter...so maybe 10-20 whp
Cool. So Sav can expect an extra 20-70 hp if I make him a "long" tube manifold.

But...I really like this one. I'm gonna see what I can do to put it in the same spot as my manifold and the other shorty one posted here.

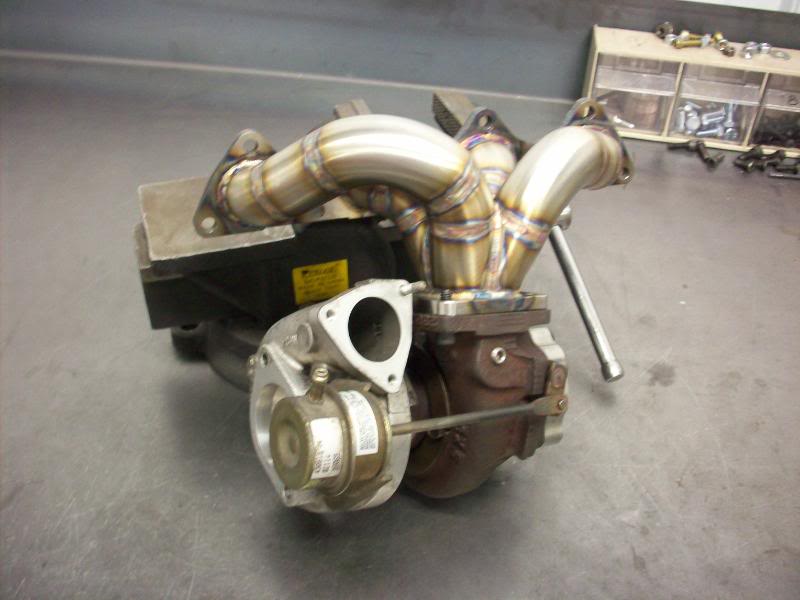

Name:  4doormanifold010.jpg
Views: 8
Size:  49.8 KB
TurboTim is offline   Reply With Quote
Old 01-20-2010, 01:15 AM   #111
Senior Member
iTrader: (34)

ARTech's Avatar

Join Date: Mar 2009
Location: Dallas
Posts: 530
Total Cats: 9
Default

I tried making a shorty a while back, but gave up after I couldn't get it to clear the motor mount and/or steering column (with a GT2560). There's just not enough room under there in a Miata







That other manifolds looks like they'd be fun to build though. Anyone want to try an evo twin scroll?
ARTech is offline   Reply With Quote
Old 01-20-2010, 07:17 AM   #112
Newb

Join Date: Jul 2008
Posts: 17
Total Cats: 1
Default

No steering column though...

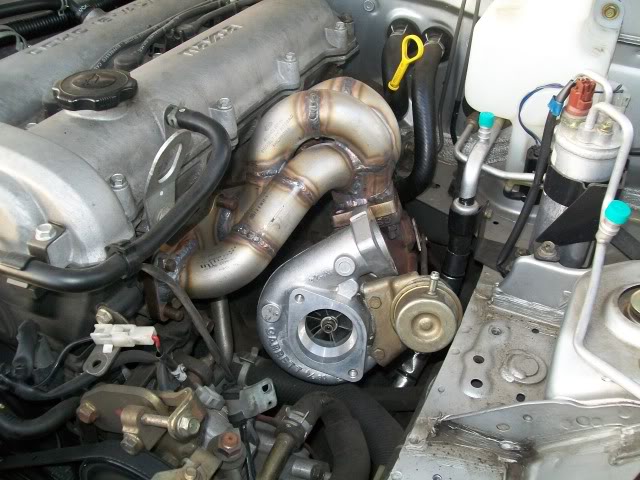

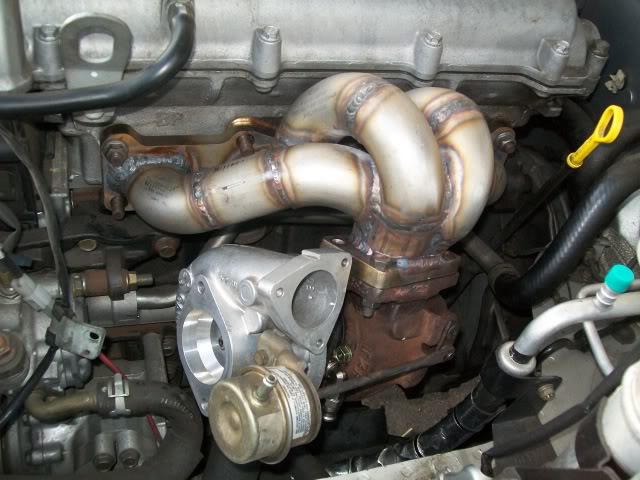

Name:  mx5manifold034.jpg
Views: 9
Size:  108.1 KB

Name:  mx5manifold036.jpg
Views: 6
Size:  99.7 KB
rxmx is offline   Reply With Quote
Old 01-20-2010, 09:34 AM   #113
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

You could make it a non P/S manifold and have it moved more stern to clear the steering column.


sorta like this:

Braineack is offline   Reply With Quote
Old 01-20-2010, 11:45 AM   #114
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

Or you can do something like this:

TurboTim is offline   Reply With Quote
Old 01-20-2010, 11:51 AM   #115
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

then you're left without a more optimal collector again....
Braineack is offline   Reply With Quote
Old 01-20-2010, 03:51 PM   #116
Senior Member
iTrader: (34)

ARTech's Avatar

Join Date: Mar 2009
Location: Dallas
Posts: 530
Total Cats: 9
Default

Quote:
Originally Posted by rxmx View Post
No steering column though...

Lets see a shot of the collector.

Quote:
people would complain about the collector not being in the middle, and filter placement would be an issue if you have headlights
ARTech is offline   Reply With Quote
Old 01-20-2010, 04:08 PM   #117
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

people are ******.
Braineack is offline   Reply With Quote
Old 01-20-2010, 04:28 PM   #118
Senior Member
iTrader: (34)

ARTech's Avatar

Join Date: Mar 2009
Location: Dallas
Posts: 530
Total Cats: 9
Default

true story
ARTech is offline   Reply With Quote
Old 01-20-2010, 06:19 PM   #119
Newb

Join Date: Jul 2008
Posts: 17
Total Cats: 1
Default

You guys are right, prob not the best setup. And didn't mean to offend or challenge ARTech's or anyones abilities, he's an awesome fabricator. Just thought id share a pic of what someone did to try and challenge the space issue with a similar type mani on a miata.
rxmx is offline   Reply With Quote
Old 01-20-2010, 06:25 PM   #120
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

I dont see how you'd accomplish the shorty mani without copying something like the S4 manifold design:

wayne_curr is offline   Reply With Quote
