Default 16g rebuild

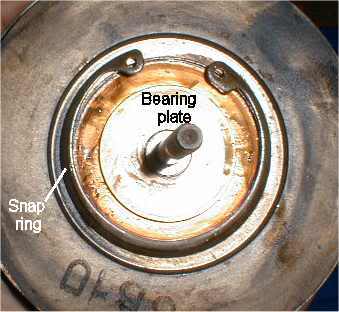

Where in the hell does this snap ring go?

Name:  rebuild16g6.jpg
Views: 2
Size:  17.6 KB
mazda/nissan is offline   Reply With Quote
Old 01-12-2008, 03:17 PM   #2
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Location: Lexington, SC
Posts: 2,084
Total Cats: 0
Default

****, well i figured it out but forgot to put the cap under the exhaust turbine
mazda/nissan is offline   Reply With Quote
Old 01-12-2008, 03:19 PM   #3
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

Braineack is offline   Reply With Quote
Old 01-12-2008, 04:11 PM   #4
I'm Miserable!
iTrader: (1)

Join Date: Oct 2005
Location: Columbia, SC
Posts: 858
Total Cats: 0
Default

often times on those snap-rings, there is a completely flat side and a slightly rounded side. If yours is like that, completely flat side goes IN, rounded goes out.

Why does it matter? I have no idea but a turbo rebuilder specialist guy told me that once.
SloS13 is offline   Reply With Quote
Old 01-12-2008, 04:18 PM   #5
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Location: Lexington, SC
Posts: 2,084
Total Cats: 0
Default

well thats good because thats the way i installed them. The thing i forgot was to push the bearing plate down inside the o-ring i put inside the turbo, then had to take it all apart again. I did get 2 little 16mm snap rings that i no idea where they go, i didn't take any off that size so i have no idea, did i miss something? Thx for the picture braineack
