Old 04-09-2010, 08:27 PM   #21
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

Quote:
Originally Posted by Savington View Post
I'd love to see a test of how comparable the .48 T3 is to the .64 T25, and the .63 T3 to the .86 T25.

Tom went with that housing because he figured the larger inlet of the T3 housing would be better, but wanted to stick with the smaller T3 .48 A/R size for his low CR 1.6L. But I've heard the are pretty much identical as far as teh ratio is concerned.
Braineack is offline   Reply With Quote
Old 04-09-2010, 08:28 PM   #22
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

shlammed, where's your intake filter, in the tire well? pics of this now pleeeeze.
Braineack is offline   Reply With Quote
Old 04-09-2010, 08:50 PM   #23
Elite Member
iTrader: (11)

Join Date: Feb 2009
Posts: 2,982
Total Cats: 10
Default

Damn, I thought .64 A/R was where it's at. Damn, I should have got the .8 A/R.
miatauser884 is offline   Reply With Quote
Old 04-09-2010, 09:21 PM   #24
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by djp0623 View Post
Damn, I thought .64 A/R was where it's at. Damn, I should have got the .8 A/R.
Maybe...I was fine with hitting target boost at 4400rpm before, but with the AF mainfold it makes that pressure 1200rpm earlier.
hustler is offline   Reply With Quote
Old 04-09-2010, 09:35 PM   #25
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

wow, that's an insane difference in flow!
Braineack is offline   Reply With Quote
Old 04-09-2010, 10:11 PM   #26
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

Quote:
Originally Posted by Braineack View Post
shlammed, where's your intake filter, in the tire well? pics of this now pleeeeze.

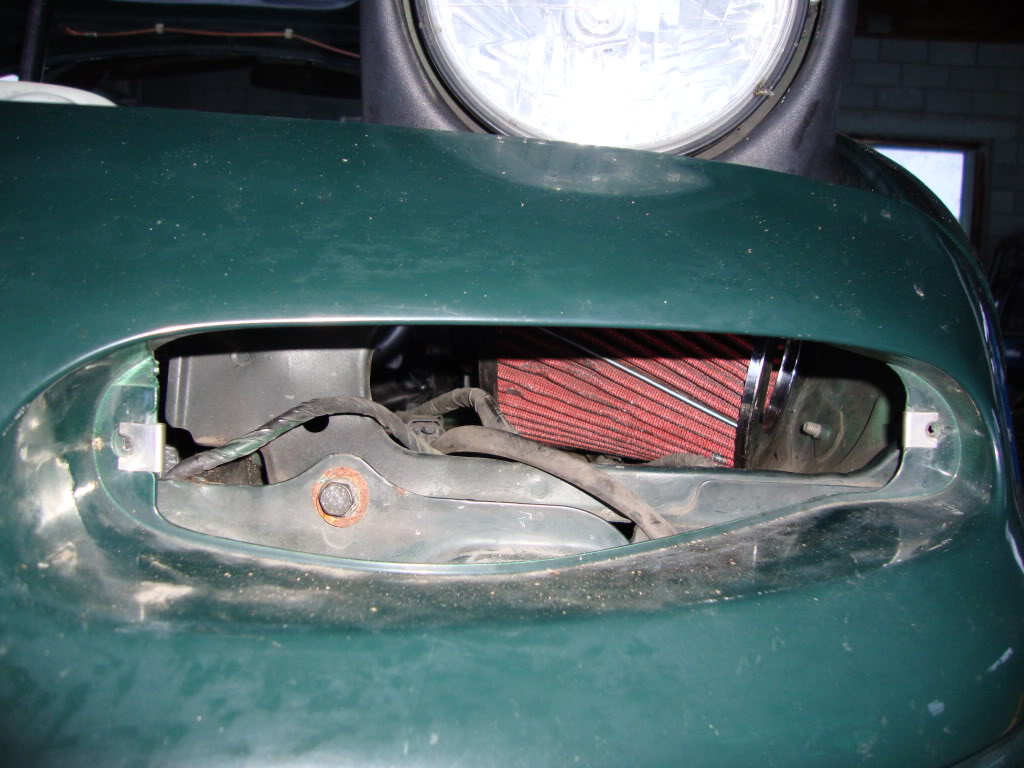

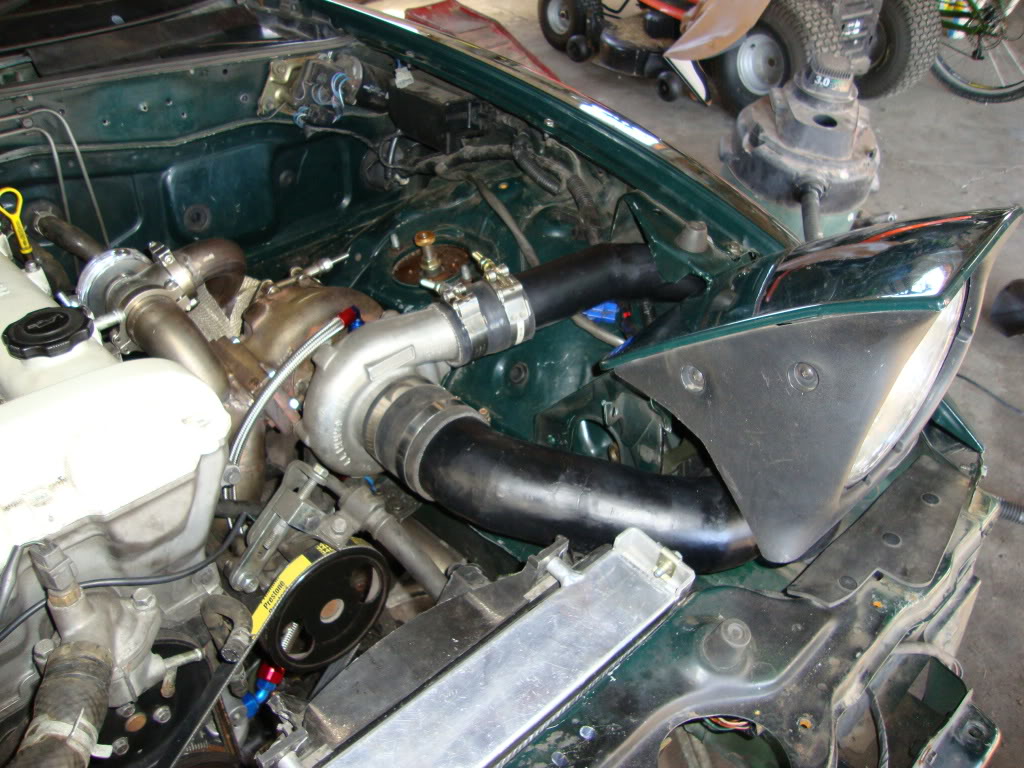

hi2u filter.
Name:  017.jpg
Views: 5
Size:  117.0 KB
Name:  DSC00849.jpg
Views: 5
Size:  178.4 KB
shlammed is offline   Reply With Quote
Old 04-09-2010, 10:26 PM   #27
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

seems like someone cant lower their headlights...
Braineack is offline   Reply With Quote
Old 04-09-2010, 11:14 PM   #28
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

they are always up anyways, so it doesnt matter lol.
shlammed is offline   Reply With Quote
Old 04-09-2010, 11:41 PM   #29
Elite Member
iTrader: (8)

Join Date: Jun 2009
Location: Albany, NY
Posts: 1,523
Total Cats: 4
Default

shlammage, 440s might be marginal for you.
webby459 is offline   Reply With Quote
Old 04-10-2010, 12:35 AM   #30
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

:S
i was thinking that too.
i NEED to convert my 92 over to sequential or im 100% going to run out of injector. what about fuel pumps... when do the stock ones tend to die? the FAQ just says PSI not horsepower they support

i have a dyno tune day setup for the first of the month too.


Sorry for de-railing this thread...
i will start a build thread shortly.
shlammed is offline   Reply With Quote
Old 04-10-2010, 09:41 AM   #31
Elite Member
iTrader: (8)

Join Date: Jun 2009
Location: Albany, NY
Posts: 1,523
Total Cats: 4
Default

I don't think doing sequential gives you any more head room.

Fuel pump, guys use the stock one to 300 wheel plus on gas. I would think if you are above that, you've got serious money in your motor, a new pump is very cheap insurance considering the age of our stockers.
webby459 is offline   Reply With Quote
Old 04-11-2010, 04:22 PM   #32
Elite Member
Thread Starter

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

There are 3 compressor trims 48, 52 (Sav's) and 56.

The 48 appears to be a nice size for a 15 psi street setup:


52 trim:


Note that the 48 trim's max efficiency point is closer to the miata's peak torque in a 15 psi setup which would be around 250 hp / 25 lbs/min.

The 52 trim would be better for a track setup because the max effciency point is closer to the powerband peak (~280-320 hp)

The GT2860RS may be better at lower boost because its max efficiency point is closer to 10-12 psi and is probably better at spoolup at lower RPm because it's more efficient in the 5-10 psi range and lower flows:



There is a small trim GTxx60 - 55 trim which would be good for a lower power setup:


which is pretty close to the GT2560
JasonC SBB is offline   Reply With Quote
