Default 3" downpipe q's

So of those of you who are running these do you have any clearance issues? If so how did/do you overcome it? My downpipe (3" in a 90 chassis with a 1.8L using ms mounts) is very tight and when the engine torques over the downpipe presses against the steering linkage which induces vibration into the dashboard which is uber unpleasant. The theories for a remedy for this situation I have come up with are:
1.beat the downpipe into submission with a bfh
2.get some oval mandrel bent pipe (naturally it would start as 3" id round and transition into an oval and back to round while executing the necessary bend) and weld it in place where I am having the rubbing issues
3.deal with it
So if you guys did my second idea where did you source said pipe? I have a source but would like to know yours as well
astroboy is offline   Reply With Quote
Old 03-01-2010, 01:32 PM   #2
Senior Member
iTrader: (8)

Join Date: Feb 2009
Location: Jax, Fl
Posts: 907
Total Cats: 0
Default

Pics of said downpipe and maybe you could try this if you've got a few $$ to spend 3" V-Band Downpipe - Low Profile 90 Degree w/Flex : atpturbo.com
johnmatt is offline   Reply With Quote
Old 03-01-2010, 02:00 PM   #3
Junior Member
iTrader: (2)

Join Date: Oct 2007
Location: Near buffalo
Posts: 140
Total Cats: 0
Default

If you start with 3" round tube and then make it into an oval you will lose cross-sectional area. I'd just make the smallest dent possible to spot it from hitting your steering column or get even stiffer motor mounts.
mikewolf is offline   Reply With Quote
Old 03-01-2010, 02:40 PM   #4
Junior Member
iTrader: (1)

Join Date: Apr 2009
Posts: 124
Total Cats: -2
Default

Go RHD. What about stacking a couple gaskets on the manifold to push it away from the motor a bit more combined with a dent should work.

bluemonkey is offline   Reply With Quote
Old 03-01-2010, 03:20 PM   #5
Elite Member
Thread Starter
iTrader: (18)

Join Date: Dec 2007
Location: oahu
Posts: 1,720
Total Cats: 2
Default

If I push it over I start to hit the block, that's why I was thinking of an oval piece...I am really leaning toward bfh.

Last edited by astroboy; 03-01-2010 at 08:31 PM.
astroboy is offline   Reply With Quote
Old 03-01-2010, 04:43 PM   #6
Elite Member
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

Mm... Thats why I made my own 3". I would recommend cutting, Creating alittle bend, then welding. Creating dents just messes with flow.
cardriverx is offline   Reply With Quote
Old 03-01-2010, 08:30 PM   #7
Elite Member
Thread Starter
iTrader: (18)

Join Date: Dec 2007
Location: oahu
Posts: 1,720
Total Cats: 2
Default

These pics best illustrate what is going on:

Looking at the downpipe from the radiator


Downpipe on the top, linkage on the bottom


Downpipe on the right, block on the left
astroboy is offline   Reply With Quote
Old 03-01-2010, 08:36 PM   #8
Junior Member

Join Date: Dec 2009
Location: Shelbina, MO (North East)
Posts: 335
Total Cats: 0
Default

Mine has been bent with BFH near the steering shaft as best I can tell. Purchased this way.
rweatherford is offline   Reply With Quote
Old 03-01-2010, 08:58 PM   #9
Senior Member

Join Date: Jun 2005
Location: WA
Posts: 500
Total Cats: 0
Default

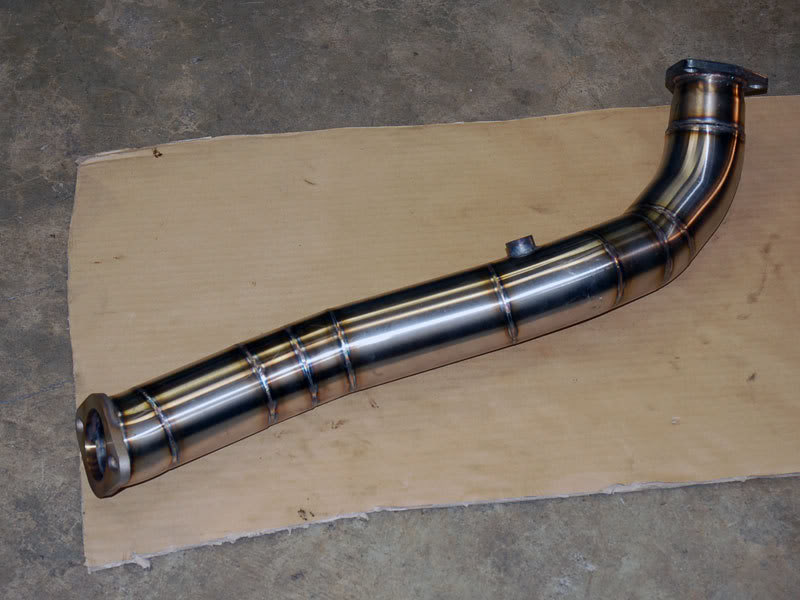

I did this but still had to beat it with a hammer after this to clear the subframe
Name:  dp1.jpg
Views: 3
Size:  63.7 KB
RusMan is offline   Reply With Quote
Old 03-01-2010, 09:28 PM   #10
Elite Member
Thread Starter
iTrader: (18)

Join Date: Dec 2007
Location: oahu
Posts: 1,720
Total Cats: 2
Default

That is dead sexy, I dare not show mine! It is quite crude. So beating with a hammer: 2, funky bends: 1, oval piping: -1. Also while I was looking at my setup I noticed there is a little room to the left. Would it be possible to cut the pipe off of the flange and weld it back on about 1 inch closer to the block? I am going to be redoing my wastegate piping so I am not too worried about that.

astroboy is offline   Reply With Quote
Old 03-01-2010, 10:38 PM   #11
Junior Member

Join Date: Dec 2009
Location: Shelbina, MO (North East)
Posts: 335
Total Cats: 0
Default

Quote:
Originally Posted by RusMan View Post
I did this but still had to beat it with a hammer after this to clear the subframe
I couldn't bring myself to take a hammer to that..... wow.
