DIY Turbo Discussion greddy on a 1.8? homebrew kit?

Reply



LinkBack Thread Tools
Old 11-29-2013, 12:24 AM   #41
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

I'm genuinely interested to see what the F/IC can do. We don't really have many people running these, the last time I checked. Probably because the $300 for the Boomslang harness and $400 for the AEM F/IC-6 puts you solidly in the range of an MSLabs MS3 Basic.

I guess already having the F/IC takes out a lot of the sting.
EO2K is offline   Reply With Quote
Old 11-29-2013, 12:44 AM   #42
Junior Member
Thread Starter

Join Date: Apr 2011
Posts: 78
Total Cats: -3
Default

THENUGE26 you're right there is no rods in the block, it is totally stock. For the longevity of the engine all I can say is that it already survived a couple time banging the limiter in 6th gear and in a weather that was almost 30 degree colder than when we dynoed the car (so power was almost certainly over what we measured on the dyno) and the compression is still within 1 psi on each cylinder and didn't went down at all so everything is still in great shape in the engine.(no bent rod)

18PSI please wait for the dynosheet before saying anything on the turbo. I think everyone will be surprised of what it can do.

EO2K the reason I went with the FIC is first because of the simplicity of tuning because my dad wanted a perfectly runing car as fast as possible and the second reason is as you stated because I had one in stock. Let's say that money was not a big factor in this build.(even if my choice of parts seem to suggest it)
karlou426hemi is offline   Reply With Quote
Old 11-29-2013, 12:56 AM   #43
Junior Member
Thread Starter

Join Date: Apr 2011
Posts: 78
Total Cats: -3
Default

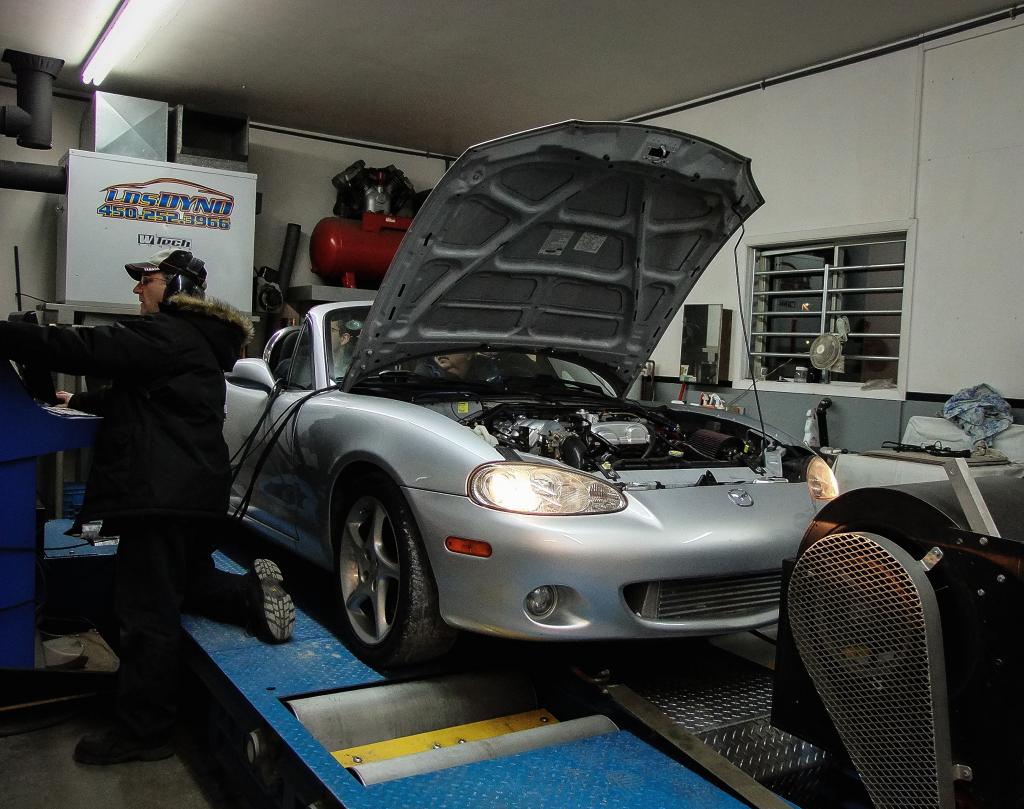

a little teaser for the next time i'll post something.....


yes 300+whp on a MUSTANG DYNO




Attached Thumbnails
300+whp 2002 miata custom turbo kit project-dscf2270_zps388c2beb.jpg
karlou426hemi is offline   Reply With Quote
Old 11-29-2013, 12:59 AM   #44
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default



I'm sure we'll all be surprised what a 20 year old turbo can do.
thenuge26 is offline   Reply With Quote
Old 11-29-2013, 01:03 AM   #45
Junior Member

Join Date: Jul 2010
Location: Camp Pendleton, CA
Posts: 93
Total Cats: 2
Default

Interested to see where this goes.

Regardless of opinions, work looks great. Nice welding.
Darthteddy is offline   Reply With Quote
Old 11-29-2013, 01:03 AM   #46
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,640
Total Cats: 25
Default

That wasn't his point..
nitrodann is offline   Reply With Quote
Old 11-29-2013, 03:06 AM   #47
Senior Member
iTrader: (6)

Join Date: Sep 2007
Posts: 1,086
Total Cats: 30
Default

Nice to see something different on here. Curious to see how this one turns out.
albumleaf is offline   Reply With Quote
Old 12-03-2013, 10:23 AM   #48
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 784
Default

Quote:
Originally Posted by 18psi View Post
I'm really surprised you're doing all this and sticking with such a crappy turbo. Genuinely surprised.


Hayyyyy bro, wanna race me from a roll?



Ok but seriously, what makes the turbo so crappy? The fact that it's huge for the power it's capable of? The fact that it's a 25 year old turbo? Or the fact that it sucked when attached to the motor that it came off of?

I'm skeptical of the idea of one on a BP, but i love it on my F2. They last forever, refuse to die, can be purchased in working condition for $50, and nobody wants them, so spares are never an issue.
concealer404 is offline   Reply With Quote
Old 12-03-2013, 10:33 AM   #49
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,206
Total Cats: 2,587
Default

LOL
I don't think its really even a good roll race turbo. Its big and heavy, like a roll race turbo, yet doesn't offer any of the perks of a roll race turbo like topend for days. I craps out at what, like 12-14psi? I remember tuning my friends bolt on mk3 supra and being really disappointed with this turbo.

In for (hopefully) surprising dyno plot
Maybe I'm completely wrong and somehow magically this is a perfect turbo for a 1.8 BP
18psi is offline   Reply With Quote
Old 12-03-2013, 10:36 AM   #50
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 784
Default

Quote:
Originally Posted by 18psi View Post
LOL
I don't think its really even a good roll race turbo. Its big and heavy, like a roll race turbo, yet doesn't offer any of the perks of a roll race turbo like topend for days. I craps out at what, like 12-14psi? I remember tuning my friends bolt on mk3 supra and being really disappointed with this turbo.

In for (hopefully) surprising dyno plot
Maybe I'm completely wrong and somehow magically this is a perfect turbo for a 1.8 BP
It craps out at about 14psi....

On a 7mgte.

So that has approximately ****-all to do with any of the cars being mentioned in this thread.

It's not the perfect turbo for a BP, i know that for sure, but it's not going to crap out at 14psi either. Think more like... 20psi. Or more.

Mine pulls hard as a ************ up top at 24psi, verified.
concealer404 is offline   Reply With Quote
Old 12-03-2013, 10:39 AM   #51
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,206
Total Cats: 2,587
Default

Hmm, ok so then I might be pleasantly surprised.

Sounds good.
18psi is offline   Reply With Quote
Old 12-03-2013, 10:42 AM   #52
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 784
Default

I think you will. Like i said, don't expect a perfect plot, but if the tune is worth a damn, it's not going to be as limpdick as you think.

I'd never SEEK out this turbo for a BP, but in a budget "what the **** do i have laying around the shop today?" build, sure, absolutely.
concealer404 is offline   Reply With Quote
Old 12-03-2013, 09:55 PM   #53
Senior Member
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

It's better then the MSM IHI turbo.
Impuls is offline   Reply With Quote
Old 12-06-2013, 11:21 AM   #54
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 784
Default

Quote:
Originally Posted by Impuls View Post
It's better then the MSM IHI turbo.

---- fissures are better than the MSM IHI turbo.
concealer404 is offline   Reply With Quote
Old 12-06-2013, 11:56 AM   #55
Senior Member
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

Quote:
Originally Posted by concealer404 View Post
---- fissures are better than the MSM IHI turbo.
Now that is saying something..
Don't Google it by the way.
Impuls is offline   Reply With Quote
Old 12-08-2013, 11:51 PM   #56
Junior Member
Thread Starter

Join Date: Apr 2011
Posts: 78
Total Cats: -3
Default

Now time for some results....

Car was tuned using homemade det cans and filled with 91 octane gas.
All pulls were done in 5th gear (1:1 ratio)
Boost was totally straight thru the entire pull (varying from 11.8 to 12.2 psi)

Interesting thing was that I was able to hit MBT while tunning my timing map even with the vvt high compression engine. I would have taught that i would be limited by knock with such a high compression ratio and boost but i had to add 6 degrees past MBT before i could ear a single knock event in the det cans and power was already down by 13whp with 6 more degree of timing. So what it means is that I have a safety margin of 6 degree with my current running map witch is pretty awesome!!!

Here is one of the dyno pulls:

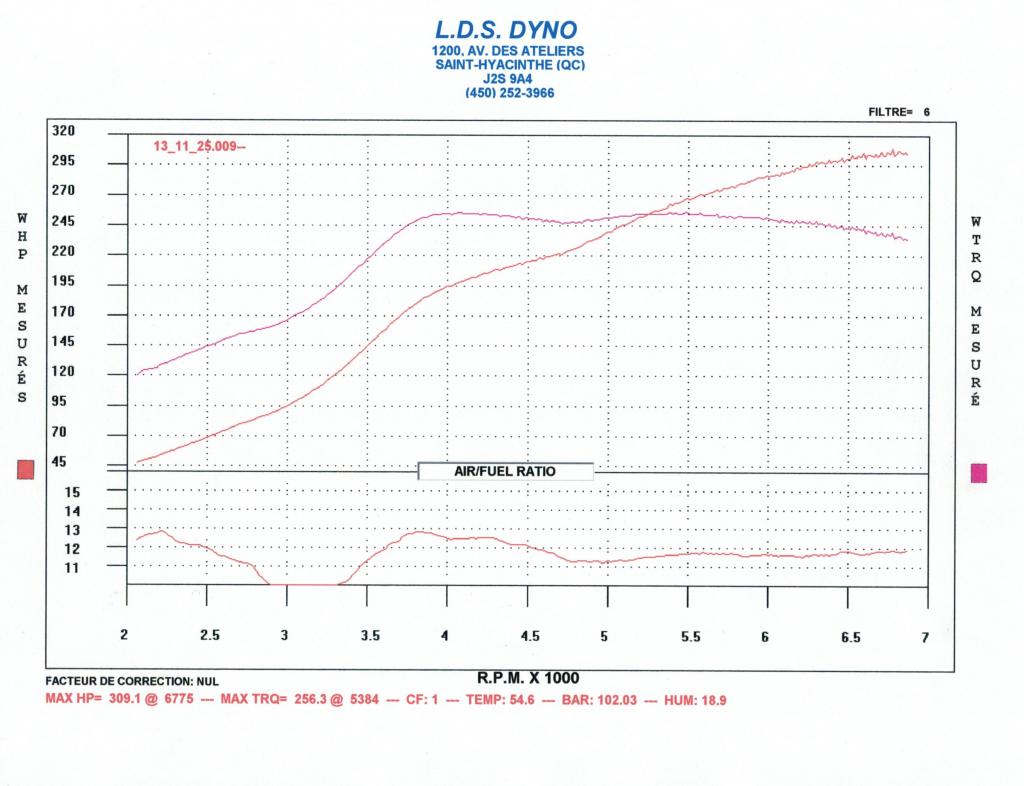

here's the dynosheet :



Honestly, on the the dyno I missed my MS3X....
First I would have loved to bump the limiter to 7500 because power was still climbing a bit.

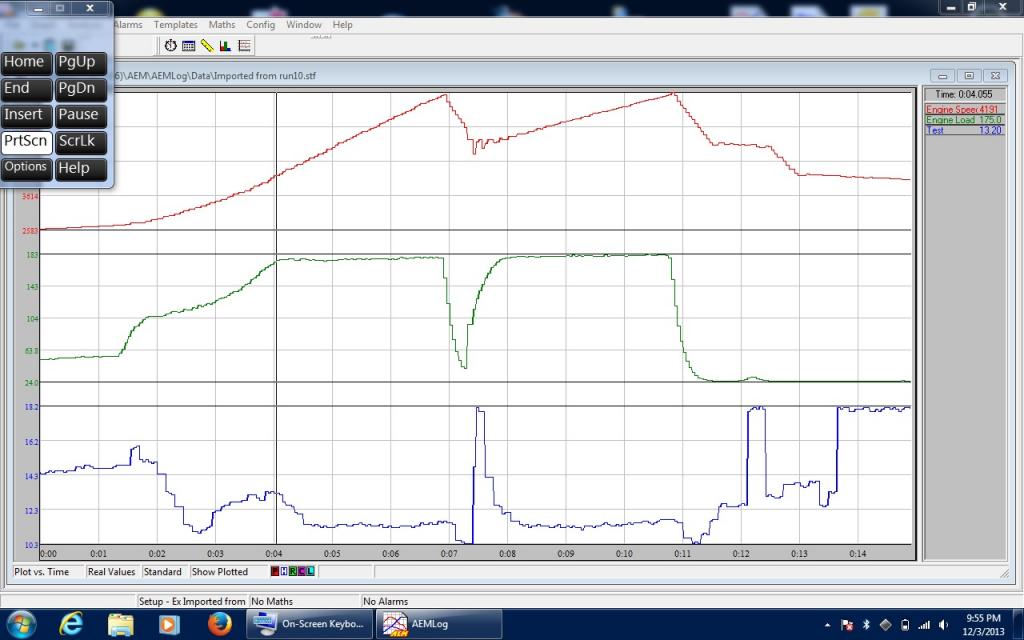

And Second I would have been able to remove that ''too rich'' section followed by that 800rpm section where I am a little lean. I had to have that rich part because there is no load enrichment in the stock ECU with the AEM FIC and if it is not there it would go crazy lean when boost would build fast when shifting or flooring it at high RPM. On the road this rich and lean part is totally unnoticeable. (Here's a log from AEMLOG that shows the rich and lean part is not there when I shift from 2nd to 3rd) (and also notice how boost set smoothly and is constant thru the rpm range)






And now for all of you who think that the ct26 is not a good match for the miata engine here is a video that shows how it respond in diferent situations. And there's also a 2nd to 3rd flyby to show the sound of the car with my manifold exhaust combo


Now Please leave comments and questions and i'll be happy to respond to them.
Attached Thumbnails
300+whp 2002 miata custom turbo kit project-dynomiata_zpscebda63b.jpg   300+whp 2002 miata custom turbo kit project-log2ndand3rdgear_zps45c782aa.jpg   300+whp 2002 miata custom turbo kit project-dynomiata_zpscebda63b.jpg   300+whp 2002 miata custom turbo kit project-log2ndand3rdgear_zps45c782aa.jpg

Last edited by karlou426hemi; 12-09-2013 at 12:30 AM.
karlou426hemi is offline   Reply With Quote
Old 12-08-2013, 11:54 PM   #57
Junior Member
Thread Starter

Join Date: Apr 2011
Posts: 78
Total Cats: -3
Default

****Boost gauge isn't there normally, it was only for the purpose of the video*****
****also initial boost was set down to 9psi due to boost climbing 3 psi with RPM in cold weather (below 0 degree)*****
karlou426hemi is offline   Reply With Quote
Old 12-09-2013, 12:34 AM   #58
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,206
Total Cats: 2,587
Default

Well that's pretty impressive if that plot is legit.

Good for you.
18psi is offline   Reply With Quote
Old 12-09-2013, 01:08 AM   #59
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

ct26 does still look pretty lazy on the 1.8 a 300hp turbo not making full torque by 3000 rpm?
Leafy is offline   Reply With Quote
Old 12-09-2013, 01:19 AM   #60
Junior Member
Thread Starter

Join Date: Apr 2011
Posts: 78
Total Cats: -3
Default

Sure not full torque at 3000 but find me a turbo that have full torque by 3000 and that has that flat of a torque curve up to the limiter....(with a dyno proof of course)
karlou426hemi is offline   Reply With Quote
