Old 03-16-2015, 08:55 PM   #181
Junior Member
Thread Starter

Join Date: Apr 2011
Posts: 78
Total Cats: -3
Default

Now for the upgrades...

This year we will try to pass the 375whp mark on pump so we changed a couple off things.

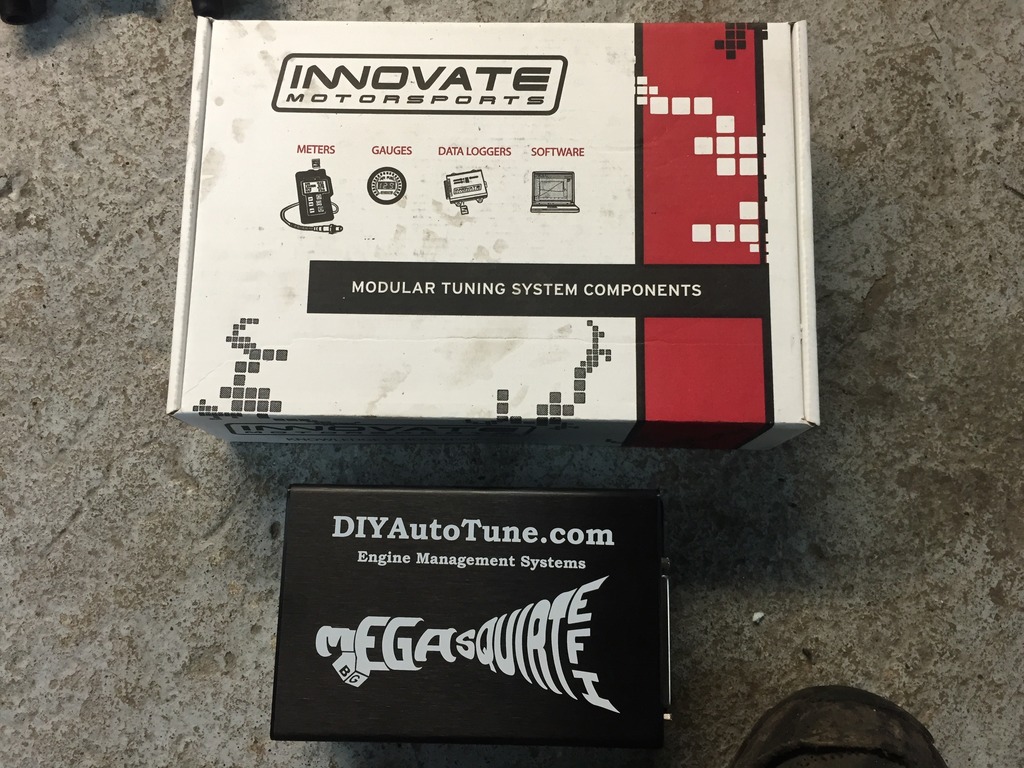

1. We sold the AEM FIC and bought an ms3/ms3x with an LC2 wideband. the megasquirt will add some nice features impossible to achieve with the FIC. The most noticeable one will be to be able to bump the limiter from 6900 stock to 8000 as power is still climbing at 7k. It will also add stuff like, launch control, traction control, afr safety, high power time enrichment, closed loop boost control...

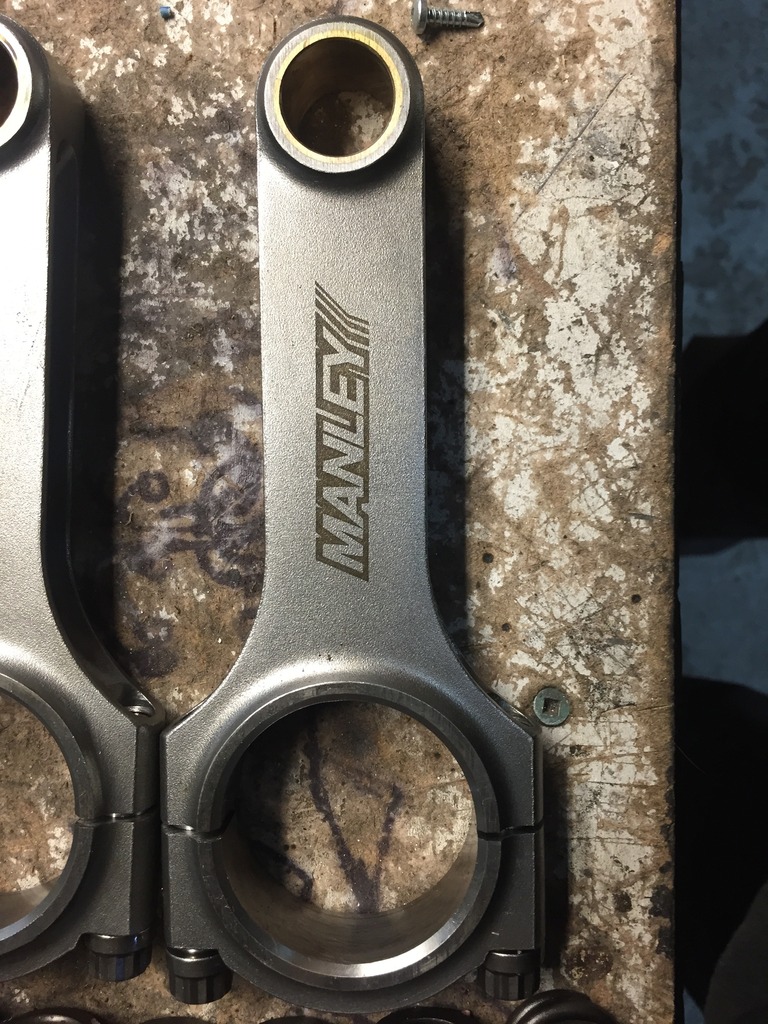

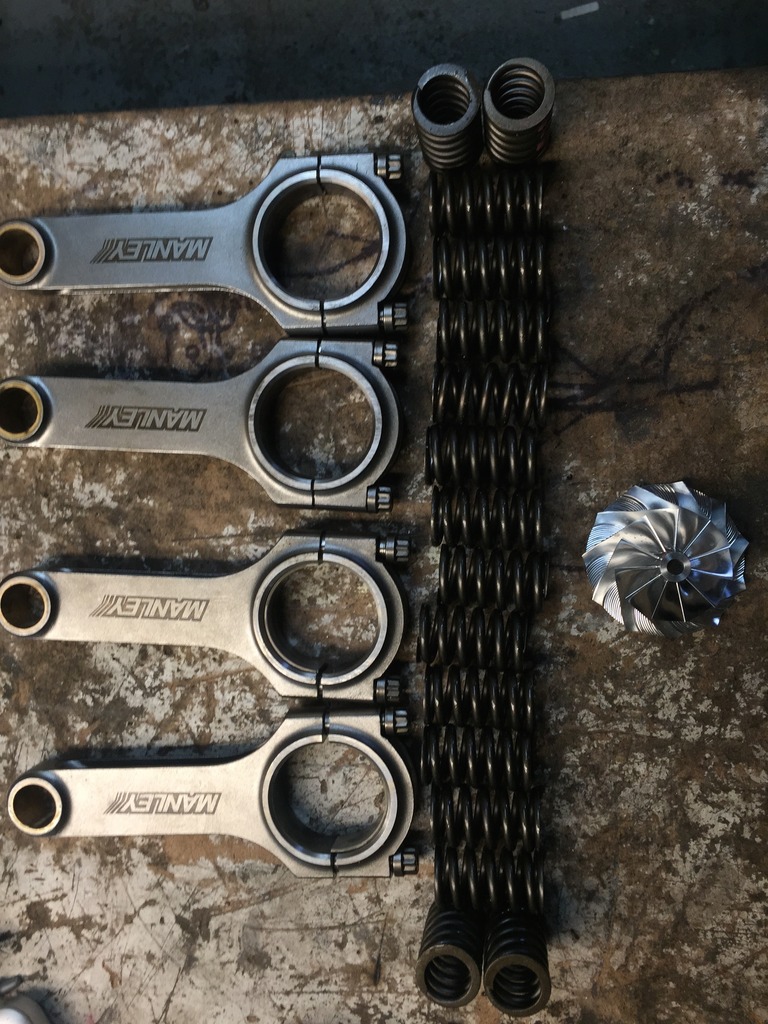

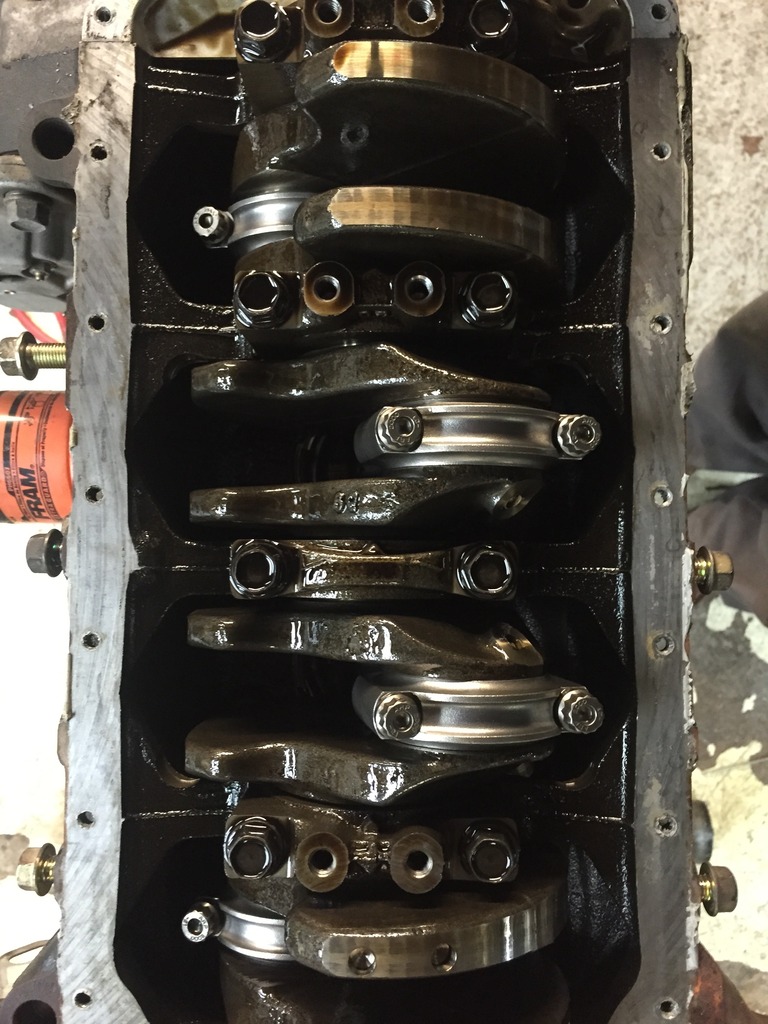

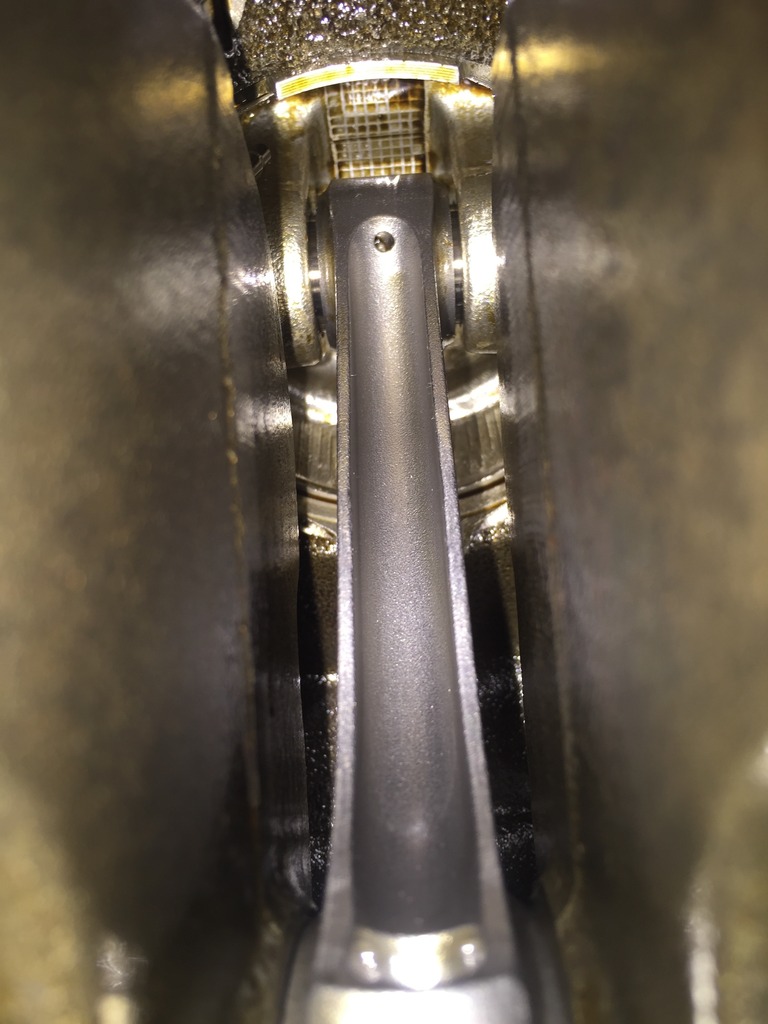

2. We swap the OEM rods for MANLEY H beams

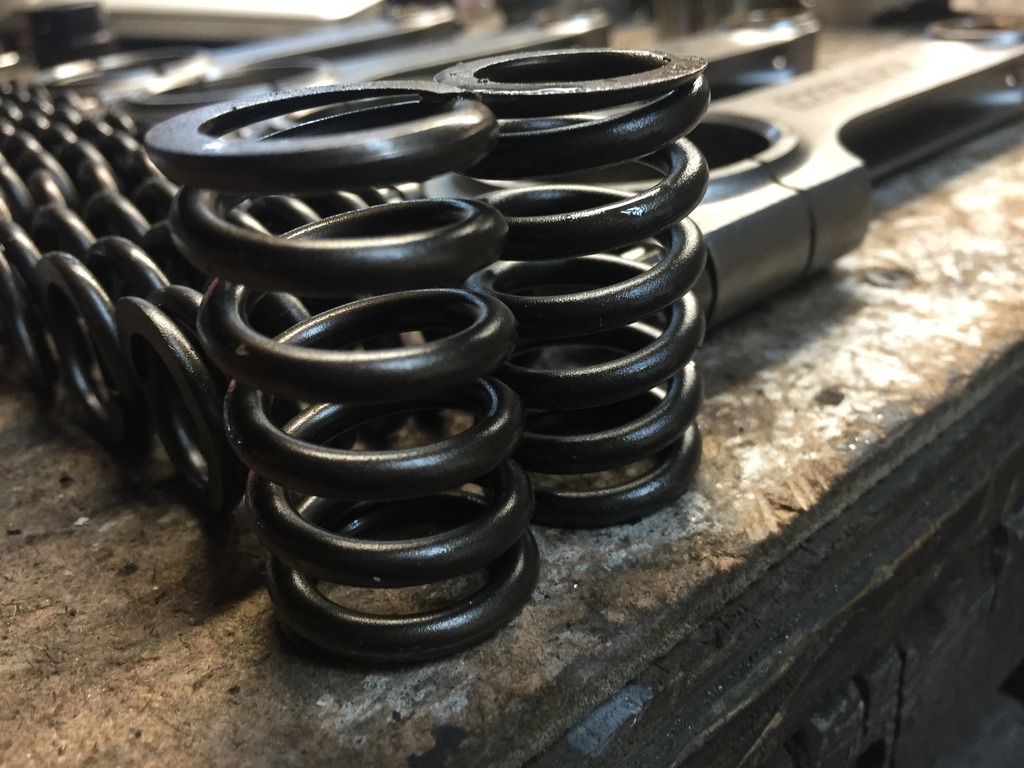

3. We upgrade valve springs to ZVS855 volvo springs






4. FM stage 1 clutch goes out and we install a custom KMP clutch built by me

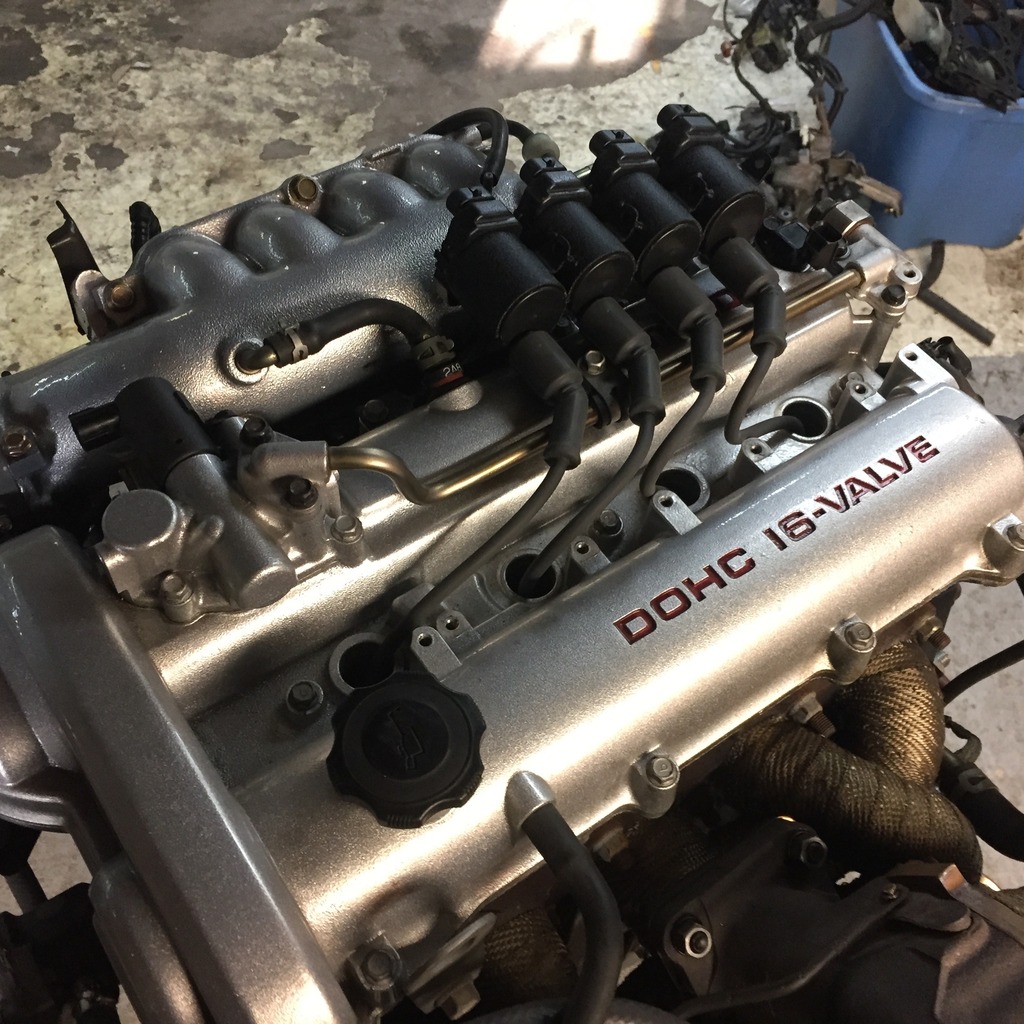

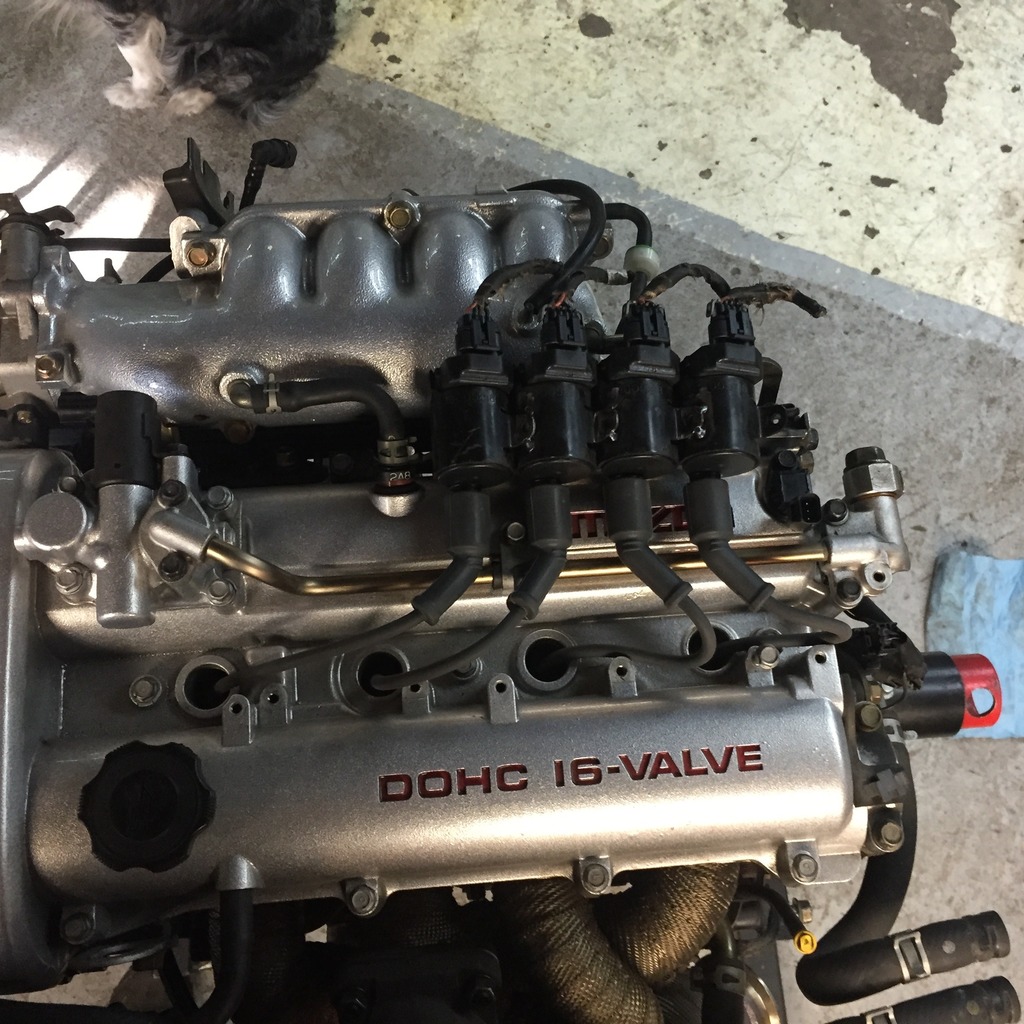

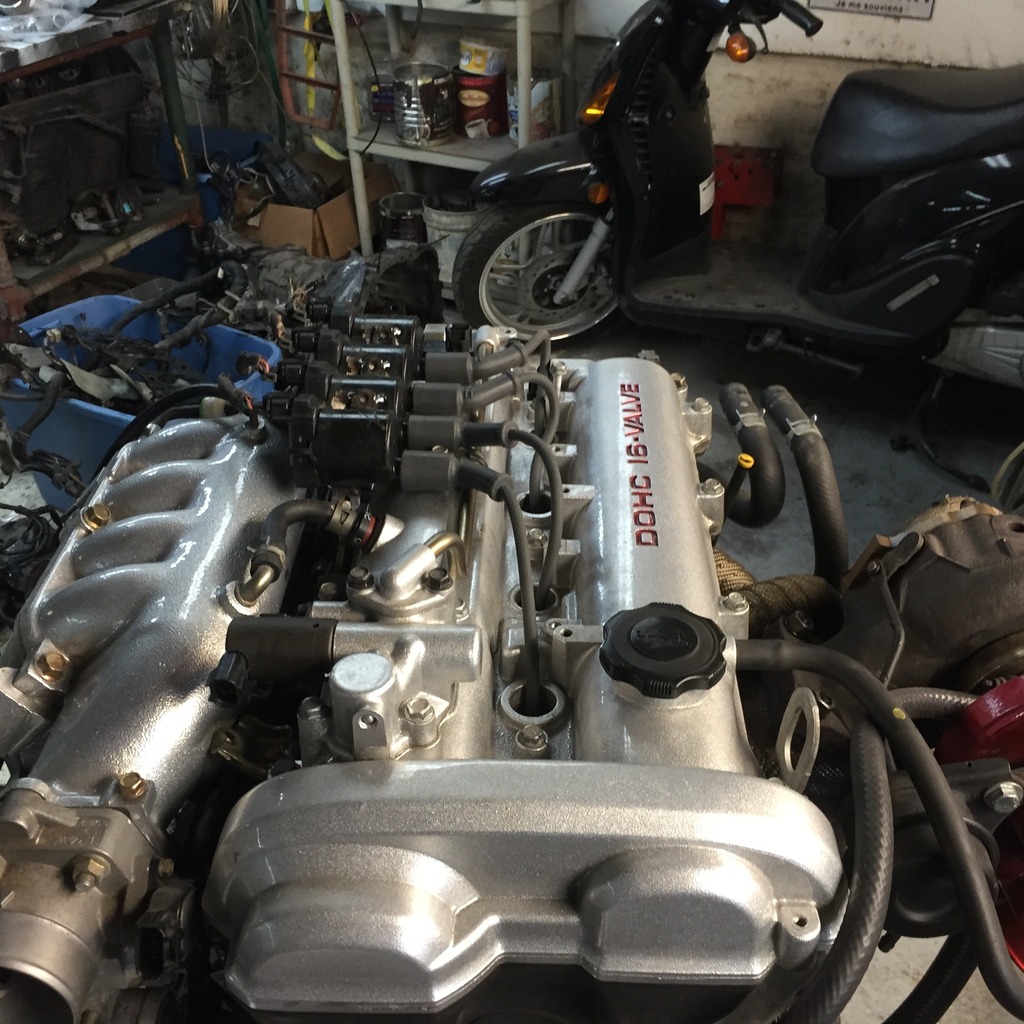

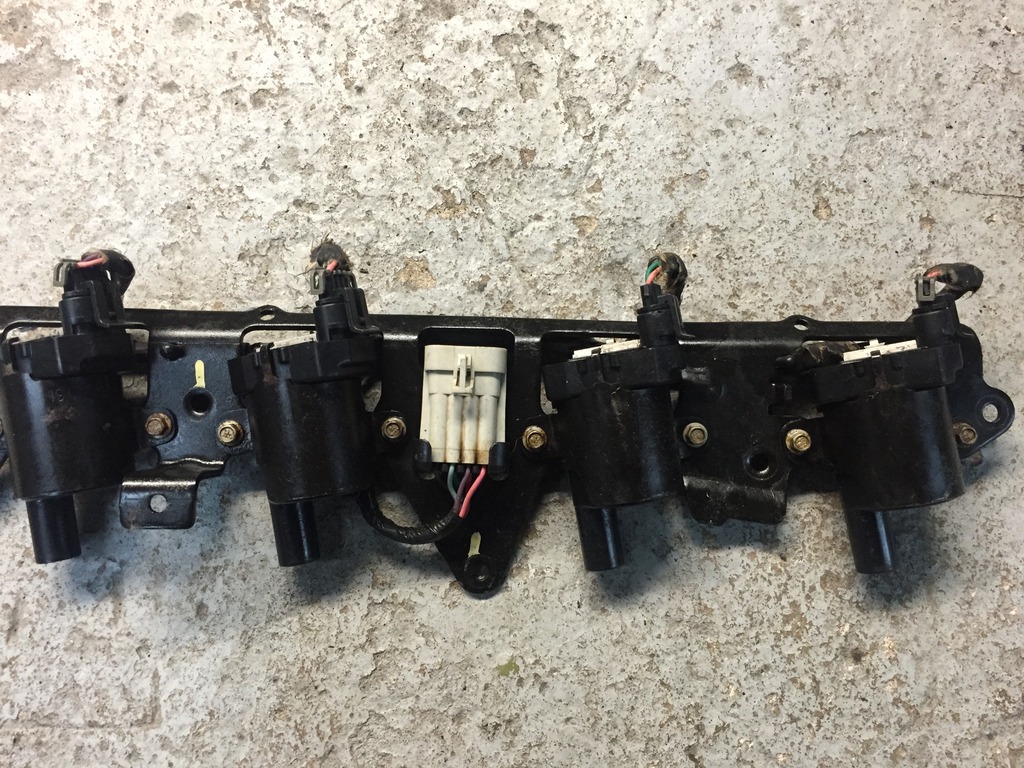

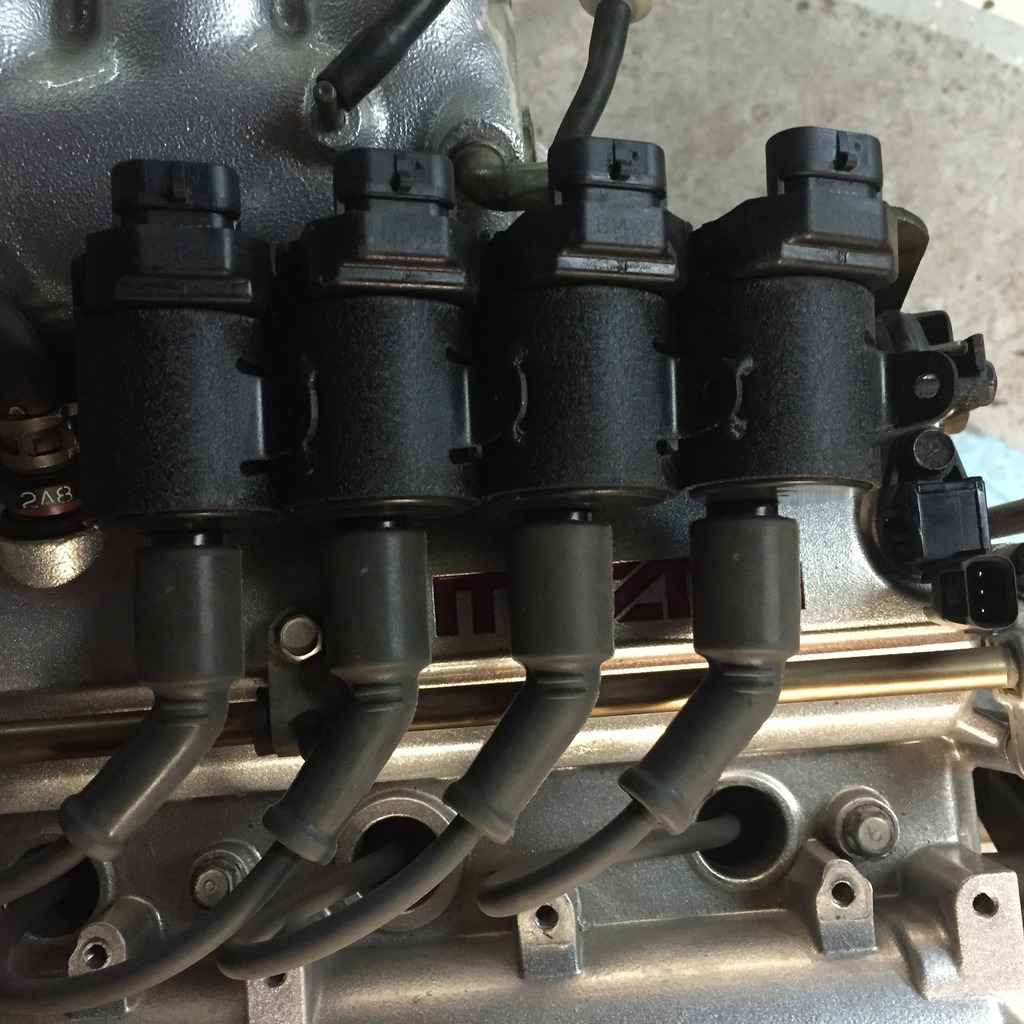

5. we upgrade the crappy stock coils to LQ9 ones with plugs gapped at .040 instead off .018 currently with the stock coils

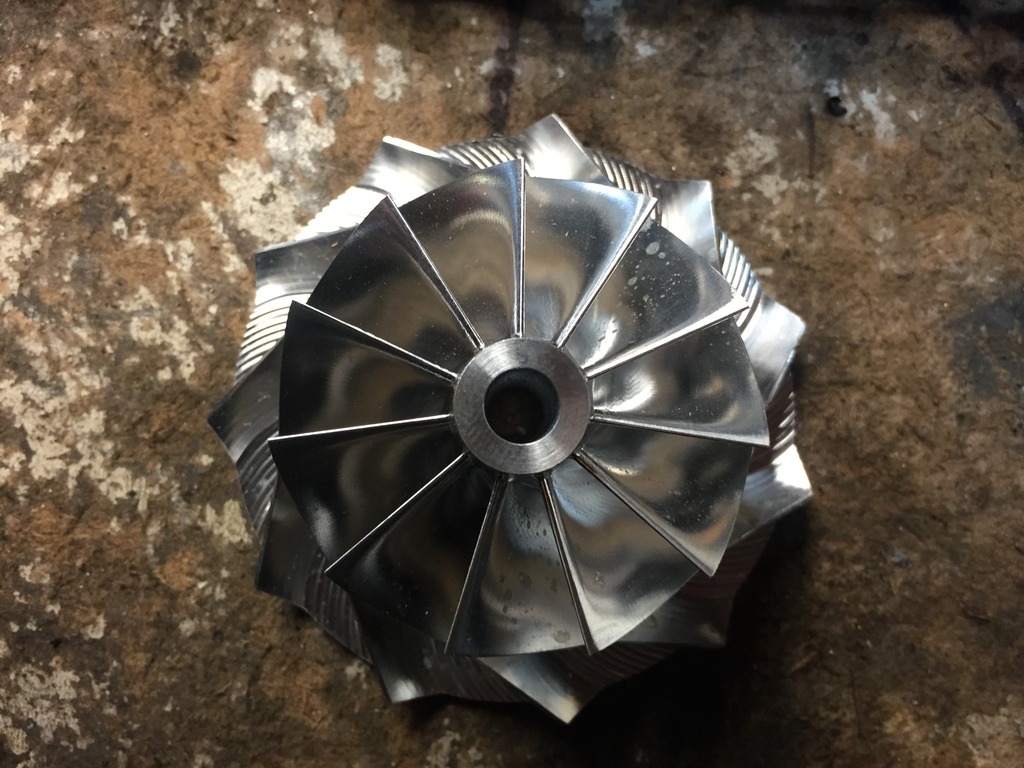

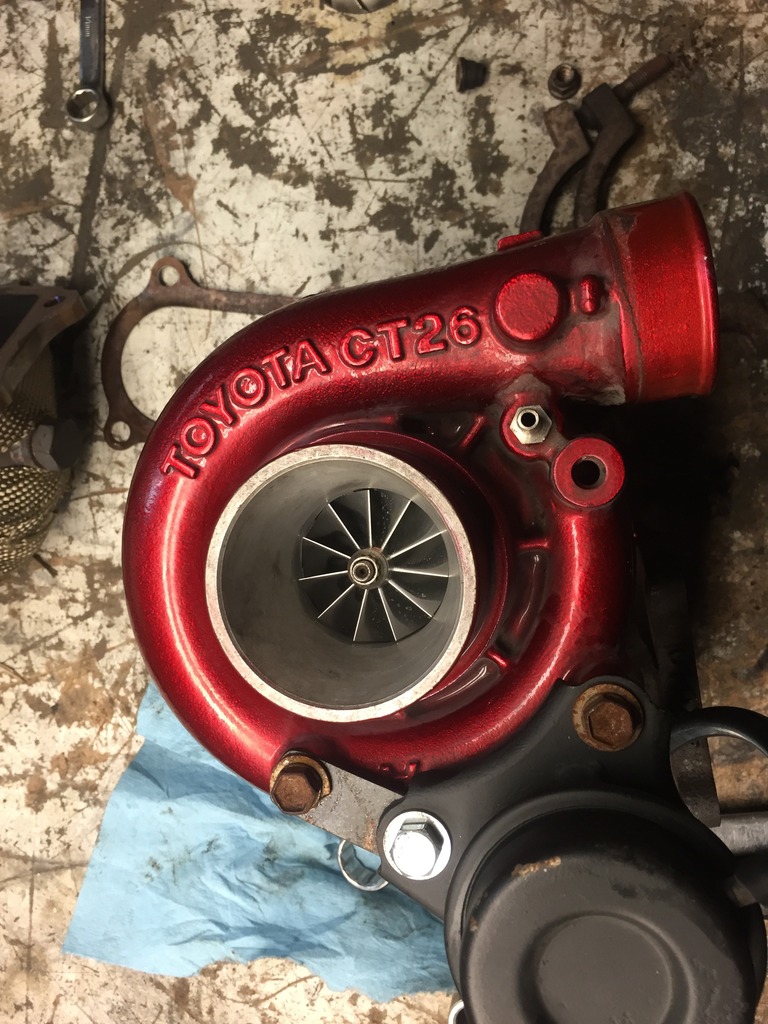

6. We install a billet 11 blade extended tip wheel in the ct26. this should give a better transient response and some extra air from the ct26




New dyno sheet should come in around a month as soon as the snow will be gone here..
I'll try to make more videos this summer of some pulls and at the track...
Attached Thumbnails
300+whp 2002 miata custom turbo kit project-img_1653_zpsh4uovgk9.jpg   300+whp 2002 miata custom turbo kit project-img_1649_zpscecbu9ta.jpg   300+whp 2002 miata custom turbo kit project-img_1659_zpsajcviogk.jpg   300+whp 2002 miata custom turbo kit project-img_1658_zpswibnqmah.jpg   300+whp 2002 miata custom turbo kit project-img_1650_zpstcv6qgqe.jpg

300+whp 2002 miata custom turbo kit project-img_1648_zpsoyxq5dwm.jpg   300+whp 2002 miata custom turbo kit project-img_1652_zpscmk3yvt7.jpg   300+whp 2002 miata custom turbo kit project-img_1701_zpsb2jfh7xm.jpg   300+whp 2002 miata custom turbo kit project-img_1698_zpszeolbfx8.jpg   300+whp 2002 miata custom turbo kit project-img_1699_zpsguz1t23m.jpg

300+whp 2002 miata custom turbo kit project-img_1702_zpsnveemjy8.jpg   300+whp 2002 miata custom turbo kit project-img_1703_zpslwrpulhd.jpg   300+whp 2002 miata custom turbo kit project-img_1651_zpst8ipiae5.jpg   300+whp 2002 miata custom turbo kit project-img_1656_zps2k4hlhg6.jpg
karlou426hemi is offline   Reply With Quote
Old 03-21-2015, 02:10 PM   #182
Junior Member
Thread Starter

Join Date: Apr 2011
Posts: 78
Total Cats: -3
Default

Up

ordered a treadstone 255 hp fuel pump and an aeromotive FPR today.
Last night test showed that the OEM fuel pump max at around 330whp since i was unable to give it more fuel at 15psi and i was leaning out bad on the top end....

dyno will come soon after the new pump and ajustable regulator will be installed
karlou426hemi is offline   Reply With Quote
Old 05-19-2015, 07:14 PM   #183
Junior Member
Thread Starter

Join Date: Apr 2011
Posts: 78
Total Cats: -3
Default

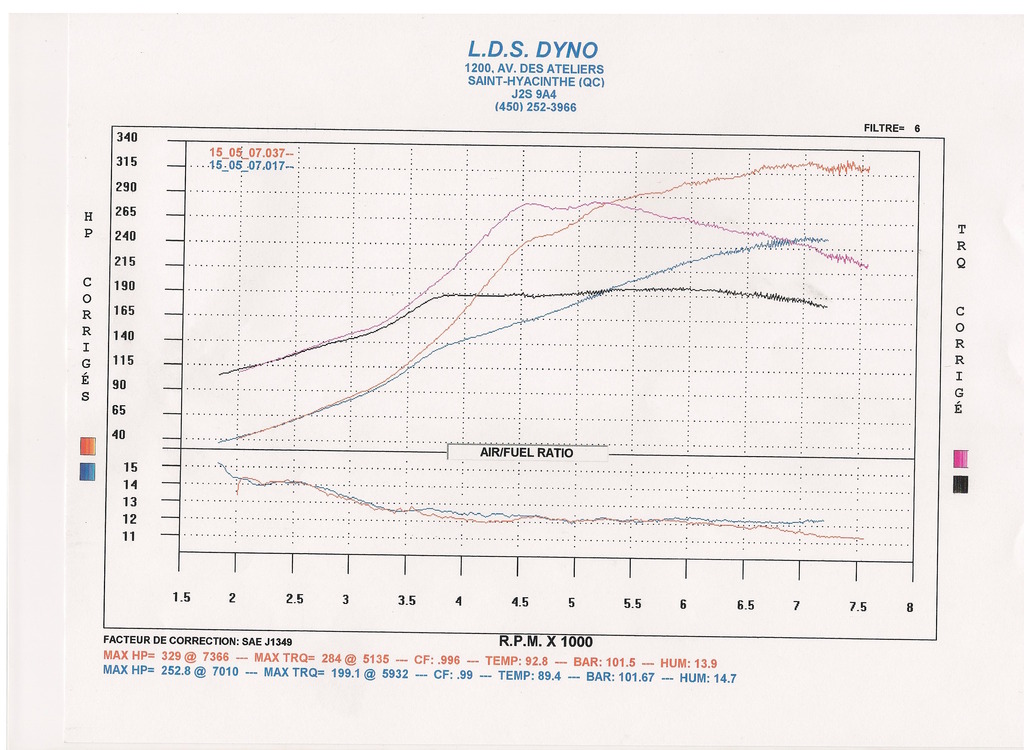

dyno resuslt, Finally.

We are pretty satisfied with the results. the OEM 10:1 compression ratio was really killing the allowable timing at more than 14psi but still happy with the numbers . total timing advance was around 11 deg on the high boost pull
Also outside temps was around 50deg higher than last time on dyno so it may hurt the numbers and spool a bit

Pink and red 19psi going down to 17psi
Black and blue is dead steady 7psi
(we were picking noise on the dyno at high speed approaching 130mph so that is why the curve is not smooth up top)

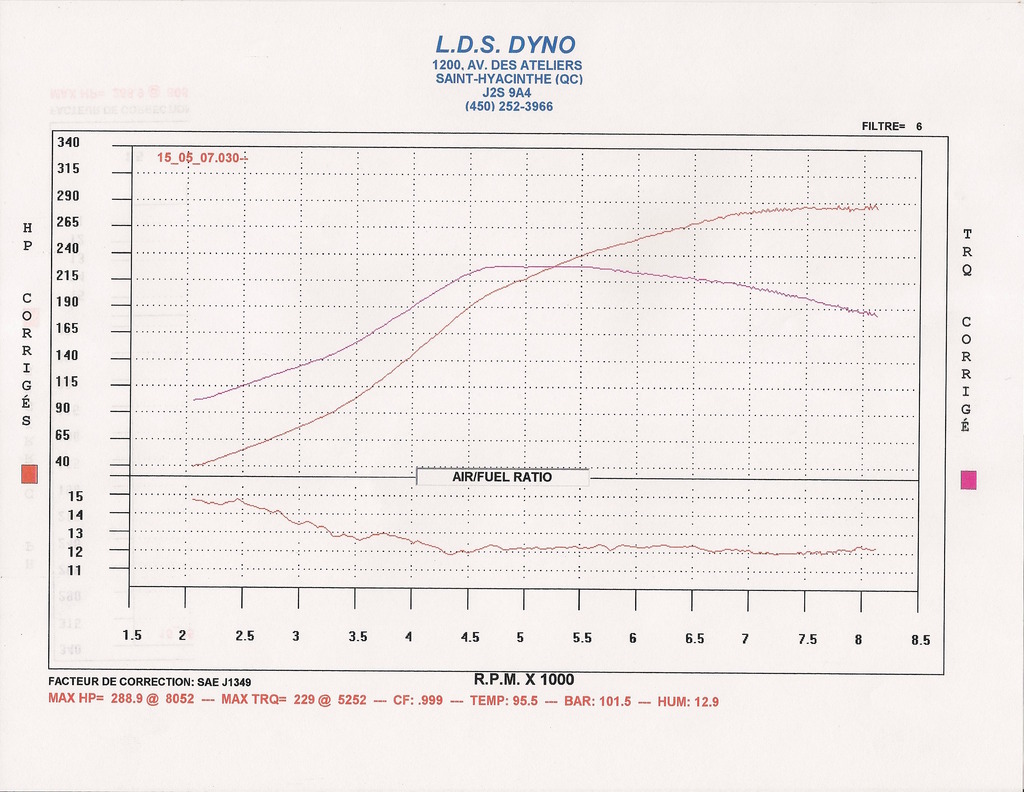

This is a 4th gear pull eliminating the high speed noise and to show that the power don't want to fall off even at 8200 (limiter is set at 8300)
Obviously numbers are lower because friction adjustment was made in 5th gear

Attached Thumbnails
300+whp 2002 miata custom turbo kit project-numeacuteriser_zpscjzl67g7.jpeg   300+whp 2002 miata custom turbo kit project-numeacuteriser%25201_zpsi3fook9e.jpeg
karlou426hemi is offline   Reply With Quote
Old 05-19-2015, 07:31 PM   #184
Senior Member
iTrader: (8)

Join Date: Jan 2012
Location: Azusa, CA
Posts: 1,376
Total Cats: 80
Default

8300... you have *****. I might have the copy that bracket for the LS coils. Did you make custom wires or did you find off the shelf wires that were the right length.
cyotani is offline   Reply With Quote
Old 05-19-2015, 08:30 PM   #185
Junior Member
Thread Starter

Join Date: Apr 2011
Posts: 78
Total Cats: -3
Default

OEM LQ9 plug wires

and 8300 isn't that high, I was spinning a 95 bp with the same springs and rods to 9k in a drag only protege, and it never failed in 3 years beating the **** out of it lol
karlou426hemi is offline   Reply With Quote
Old 05-19-2015, 09:56 PM   #186
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

Details on the LS coil bracket? Is the original from the truck, and you welded them together?

Also nice numbers, looks like it's not really giving much up on a GT2871/76 as far as spool.
thenuge26 is offline   Reply With Quote
Old 05-19-2015, 10:51 PM   #187
Junior Member
Thread Starter

Join Date: Apr 2011
Posts: 78
Total Cats: -3
Default

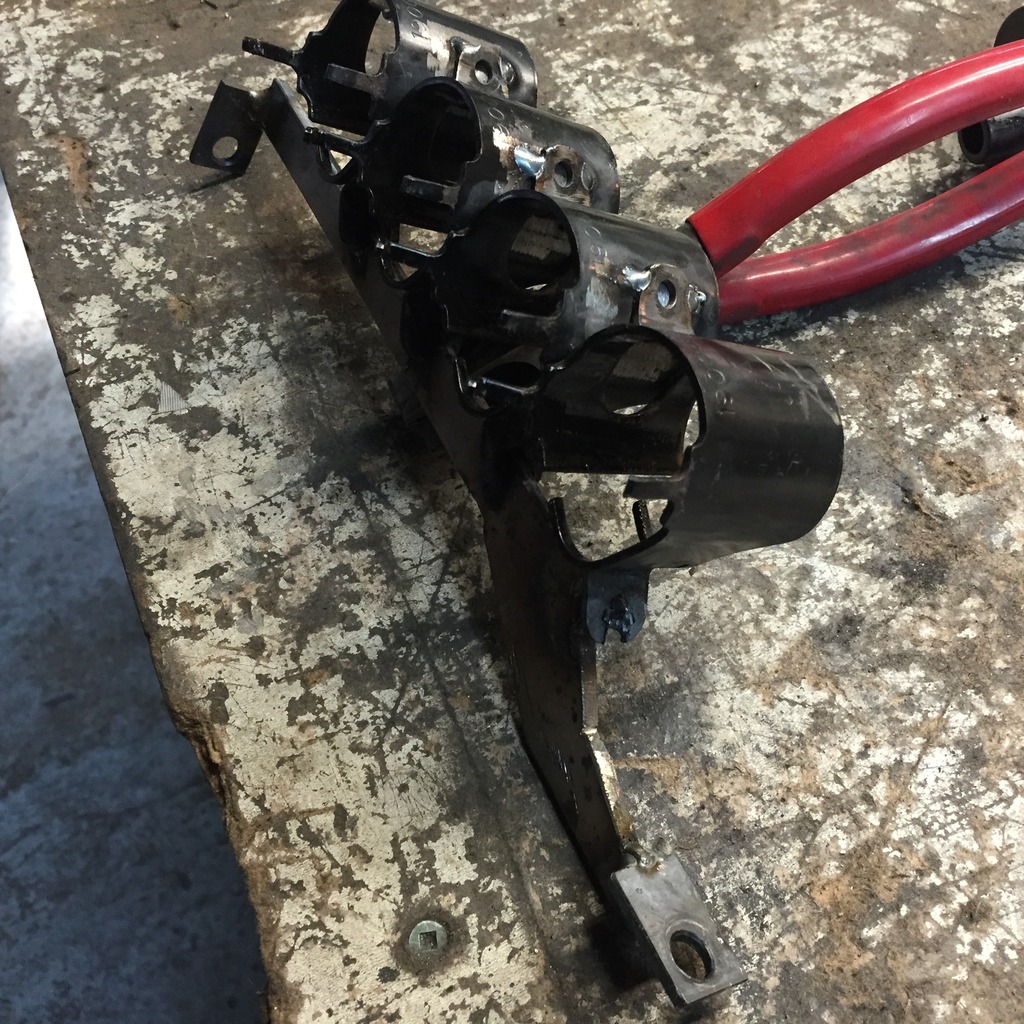

yes it is the original coil holders welded together.
there is detailed pics of it in my previous post on the begining of page 10
karlou426hemi is offline   Reply With Quote
Old 05-20-2015, 01:04 AM   #188
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

Thanks, I saw that, just making sure that's what the bracket was. Time to search the junkyards.
thenuge26 is offline   Reply With Quote
Old 11-02-2015, 04:51 PM   #189
Junior Member
Thread Starter

Join Date: Apr 2011
Posts: 78
Total Cats: -3
Default Update new setup

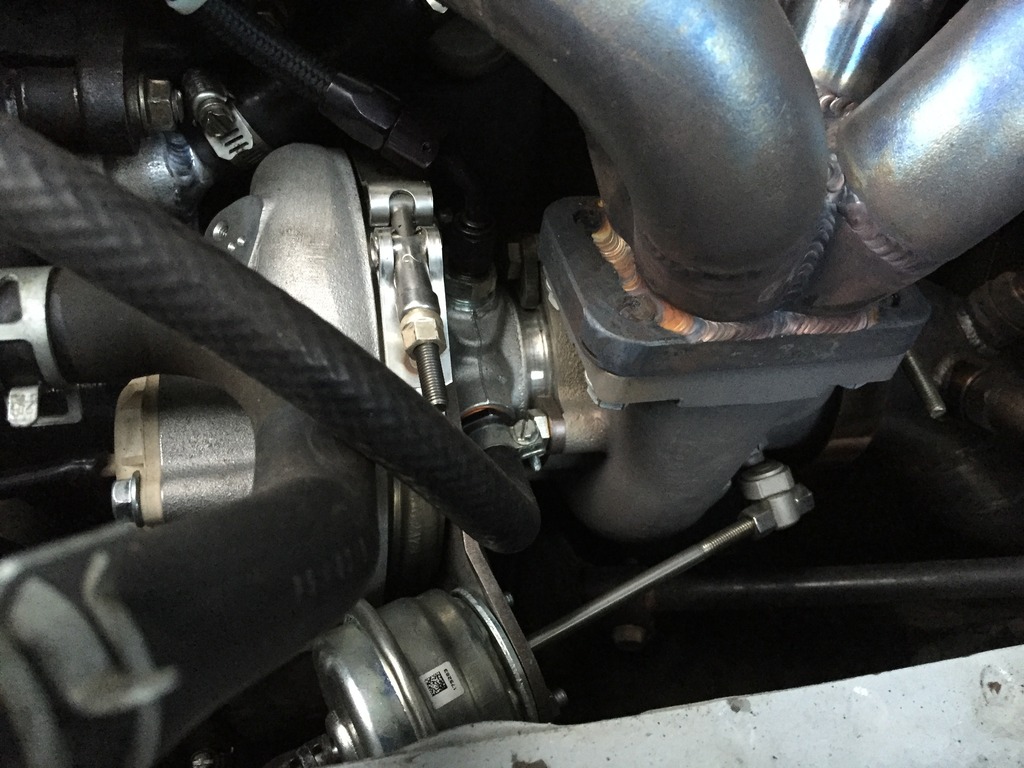

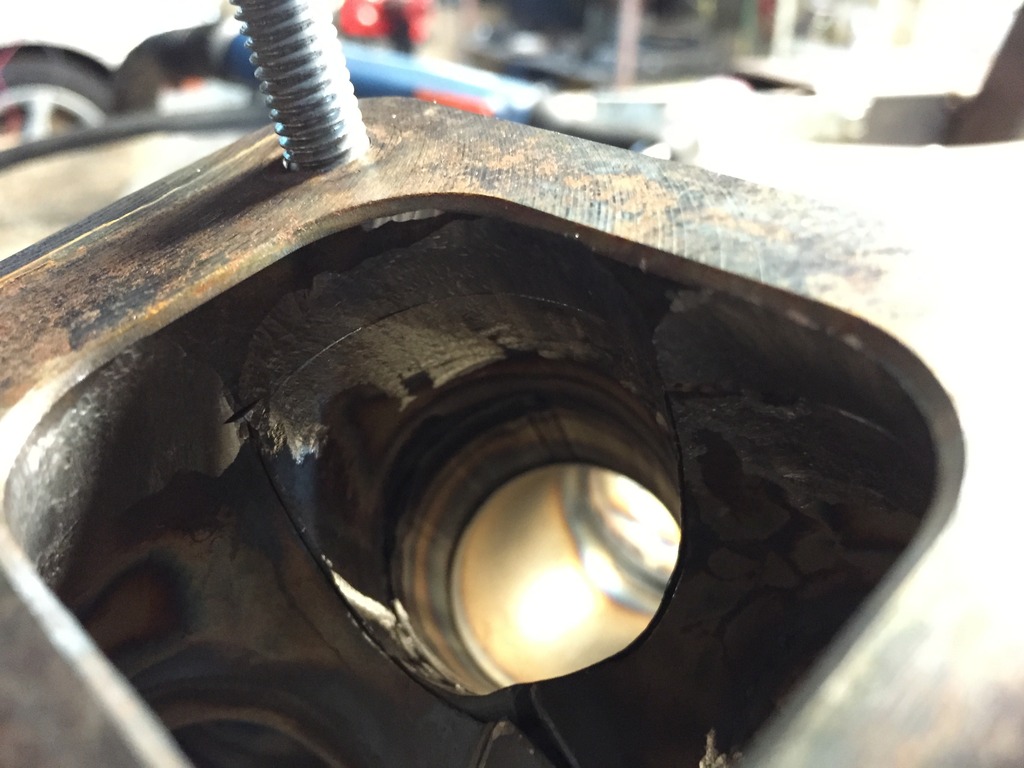

So we finally blew the t26 after driving it 3 month at full tilt and decided to upgrade instead of rebuilding it to run it past its capabilities again

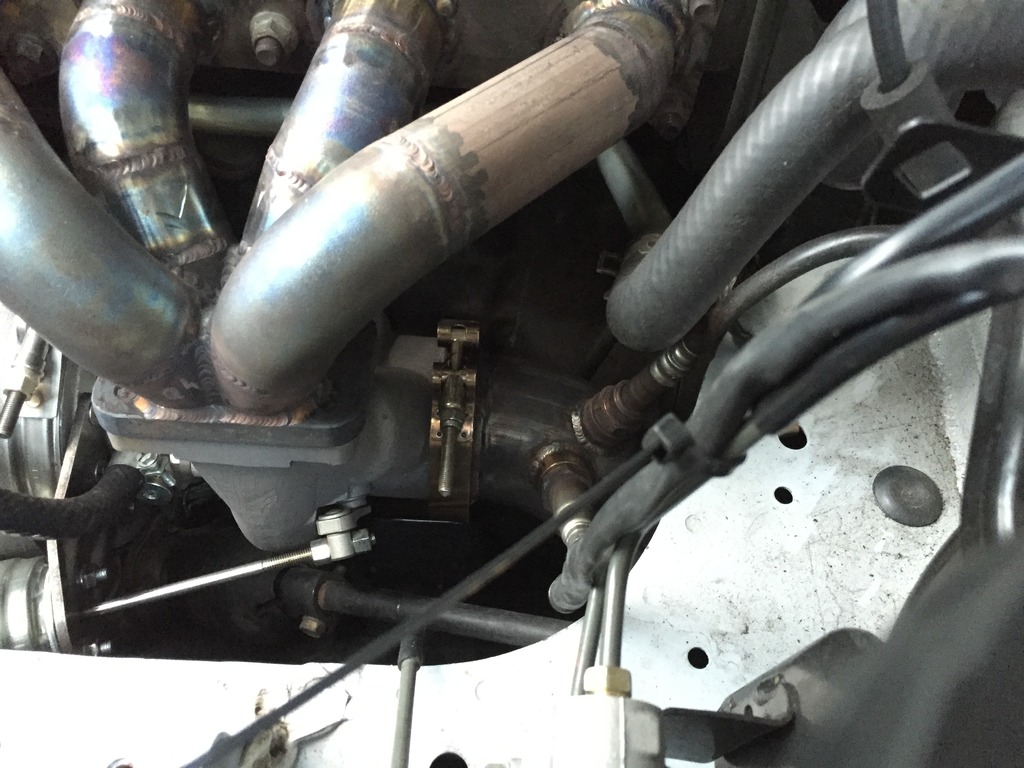

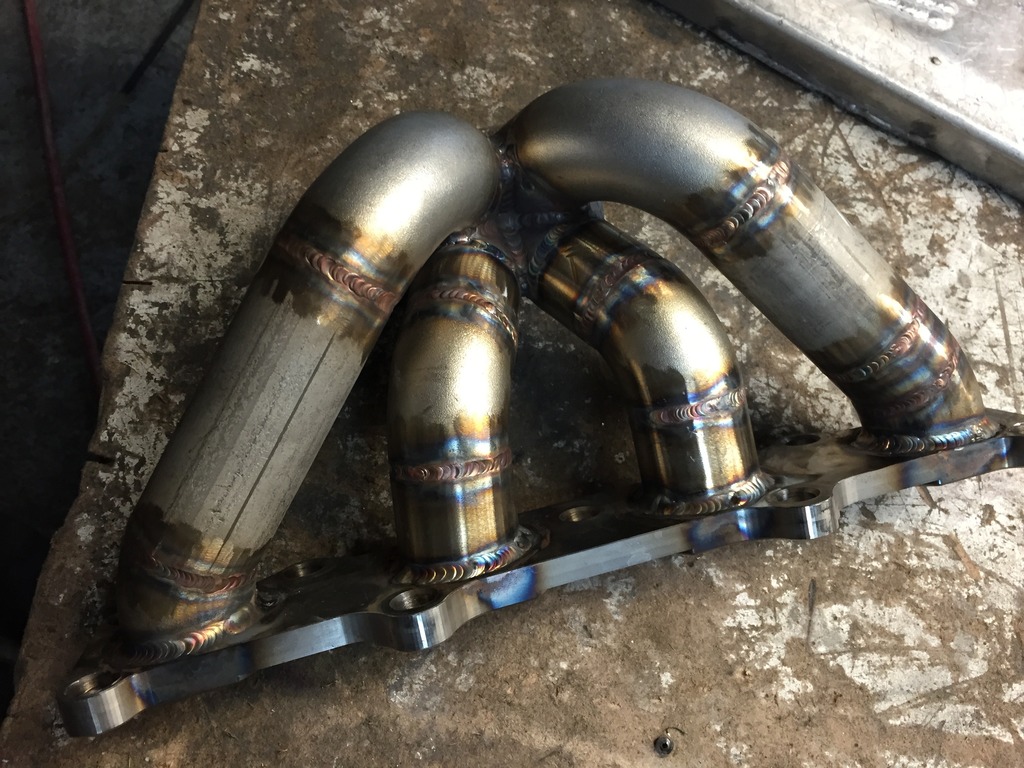

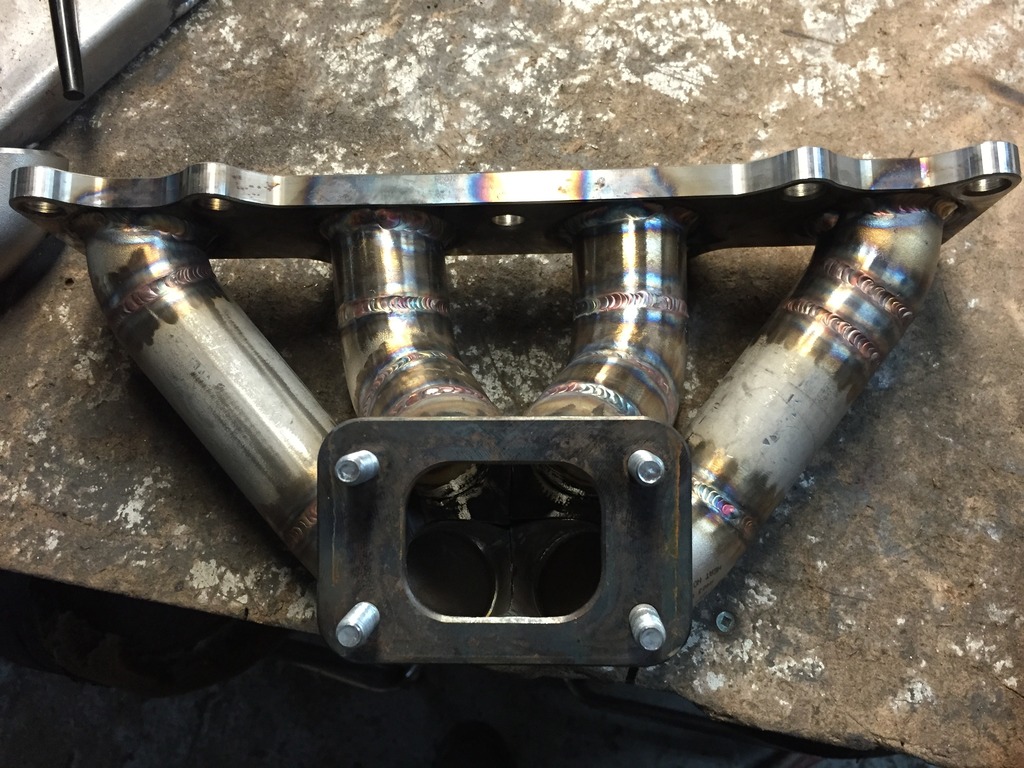

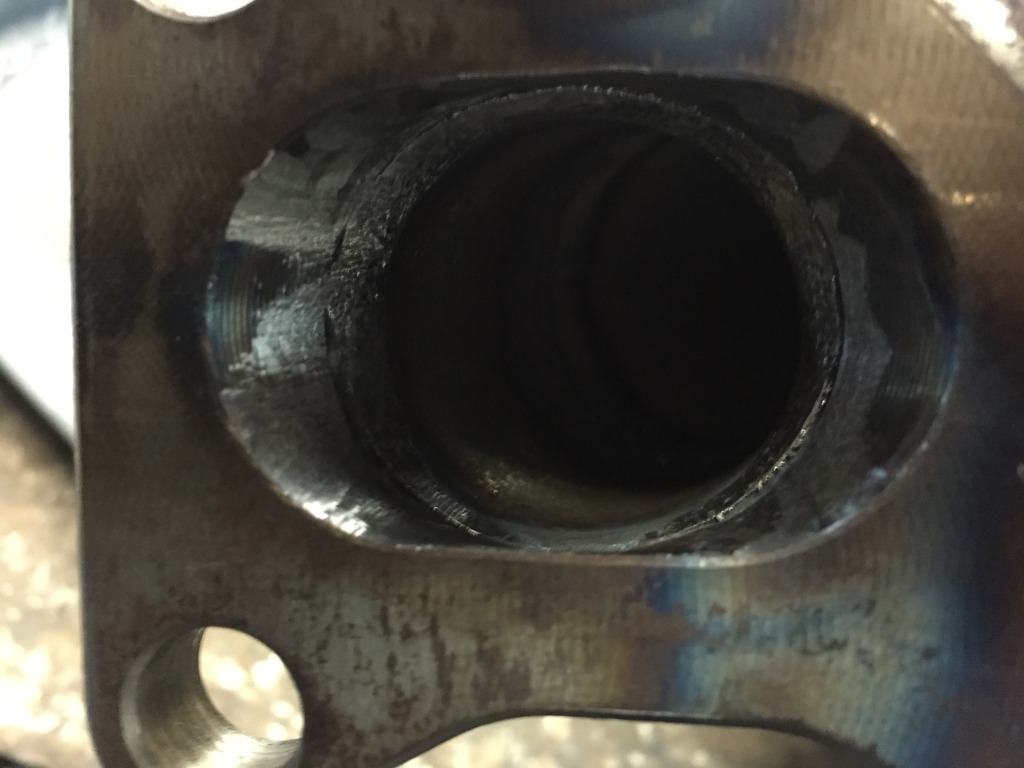

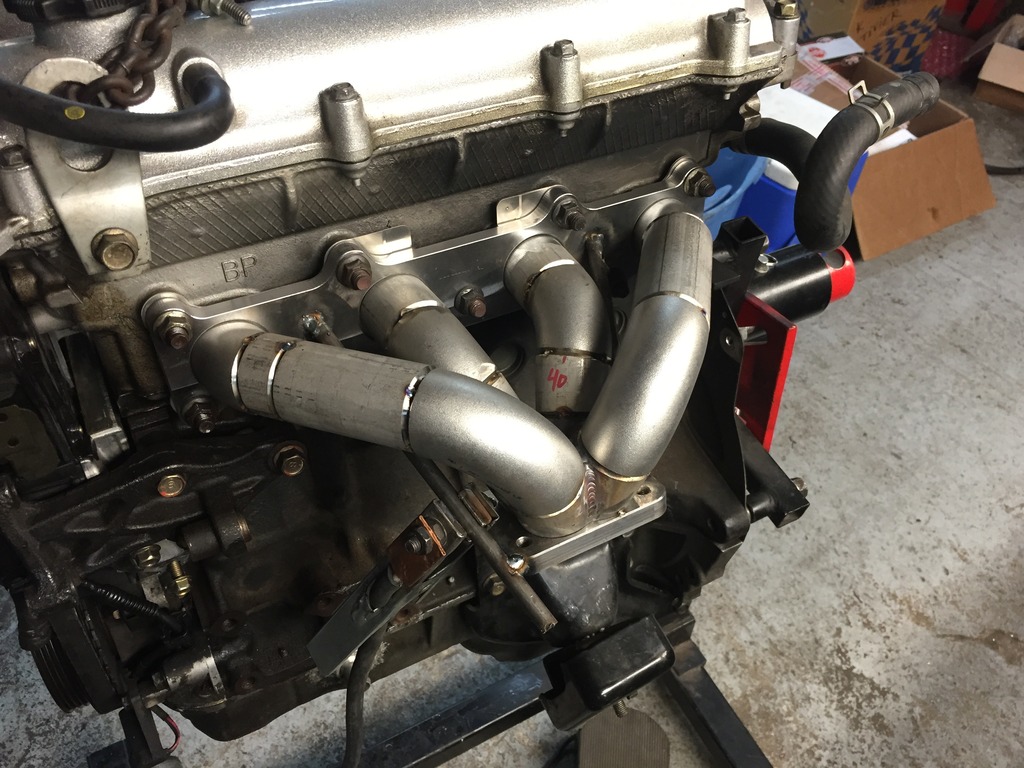

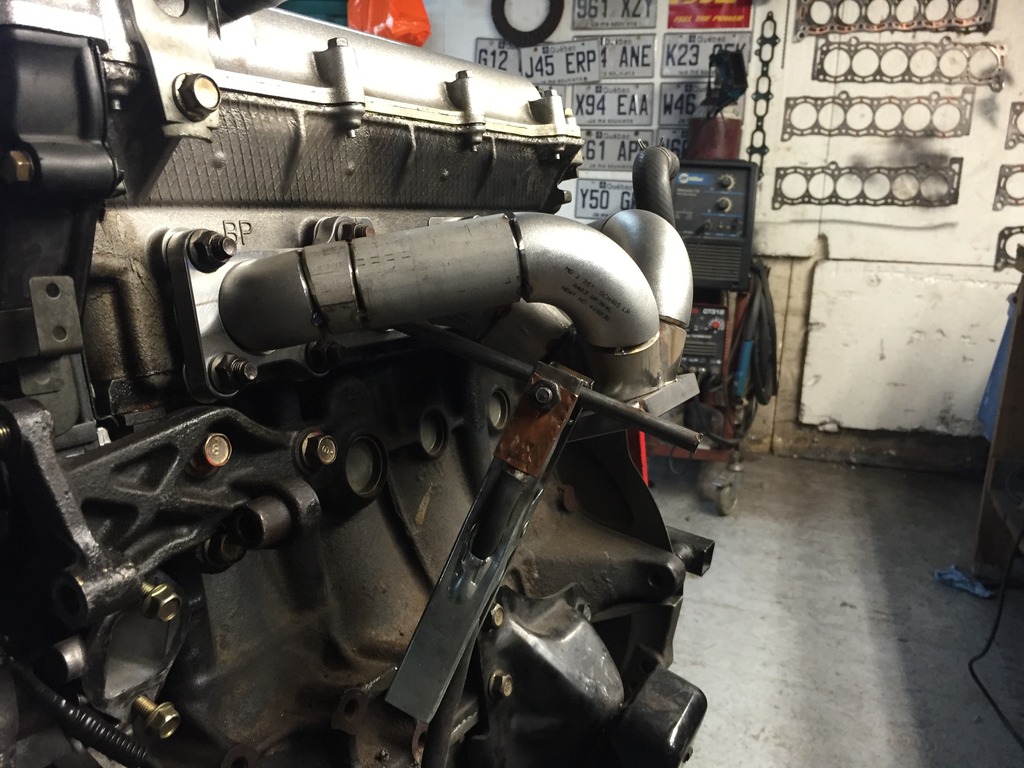

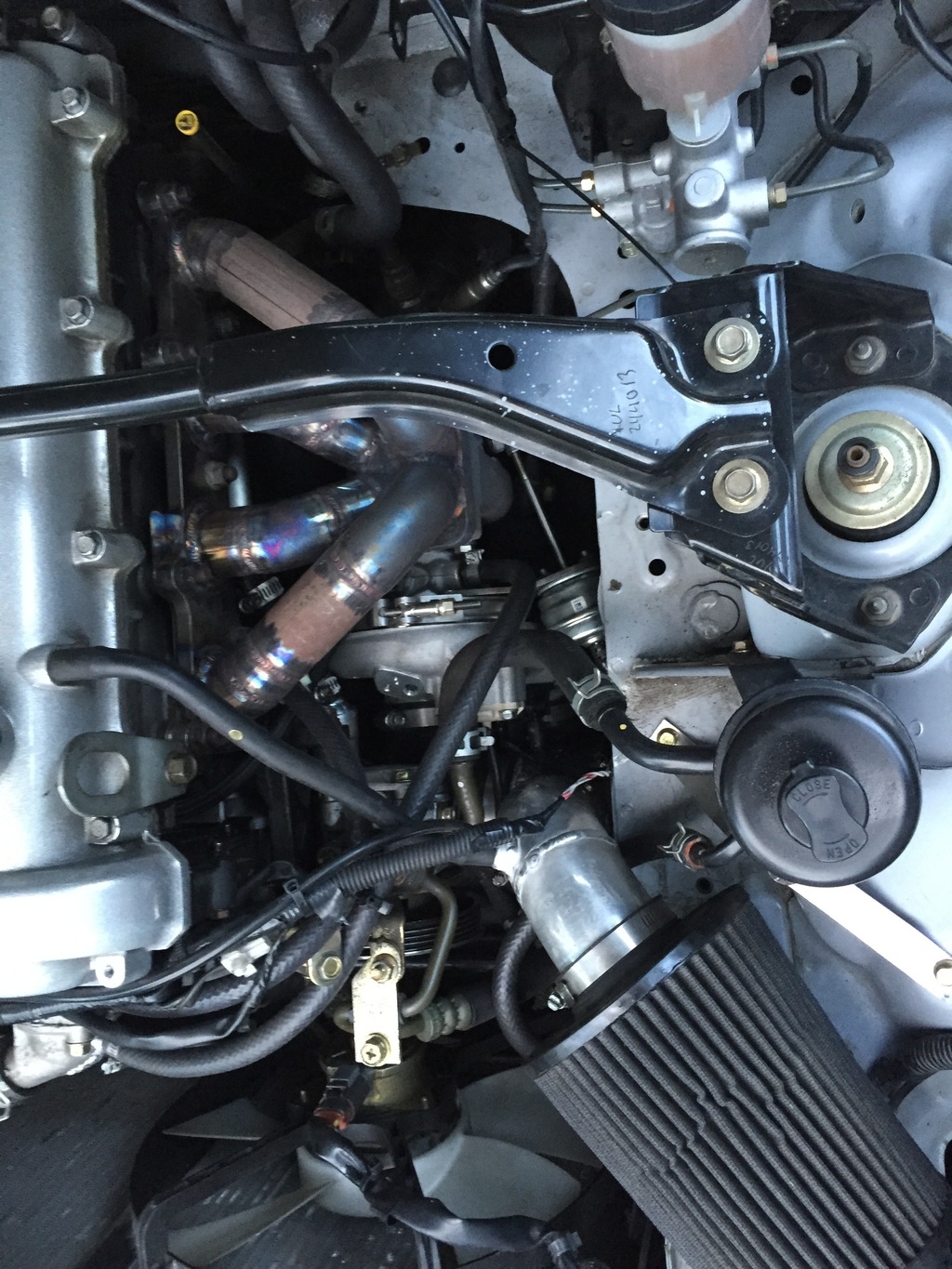

so I fabricated a new manifold
a new downpipe (witch don't really go down at all lol)
we bought an efr6758
And installed a custom water/meth kit that i built

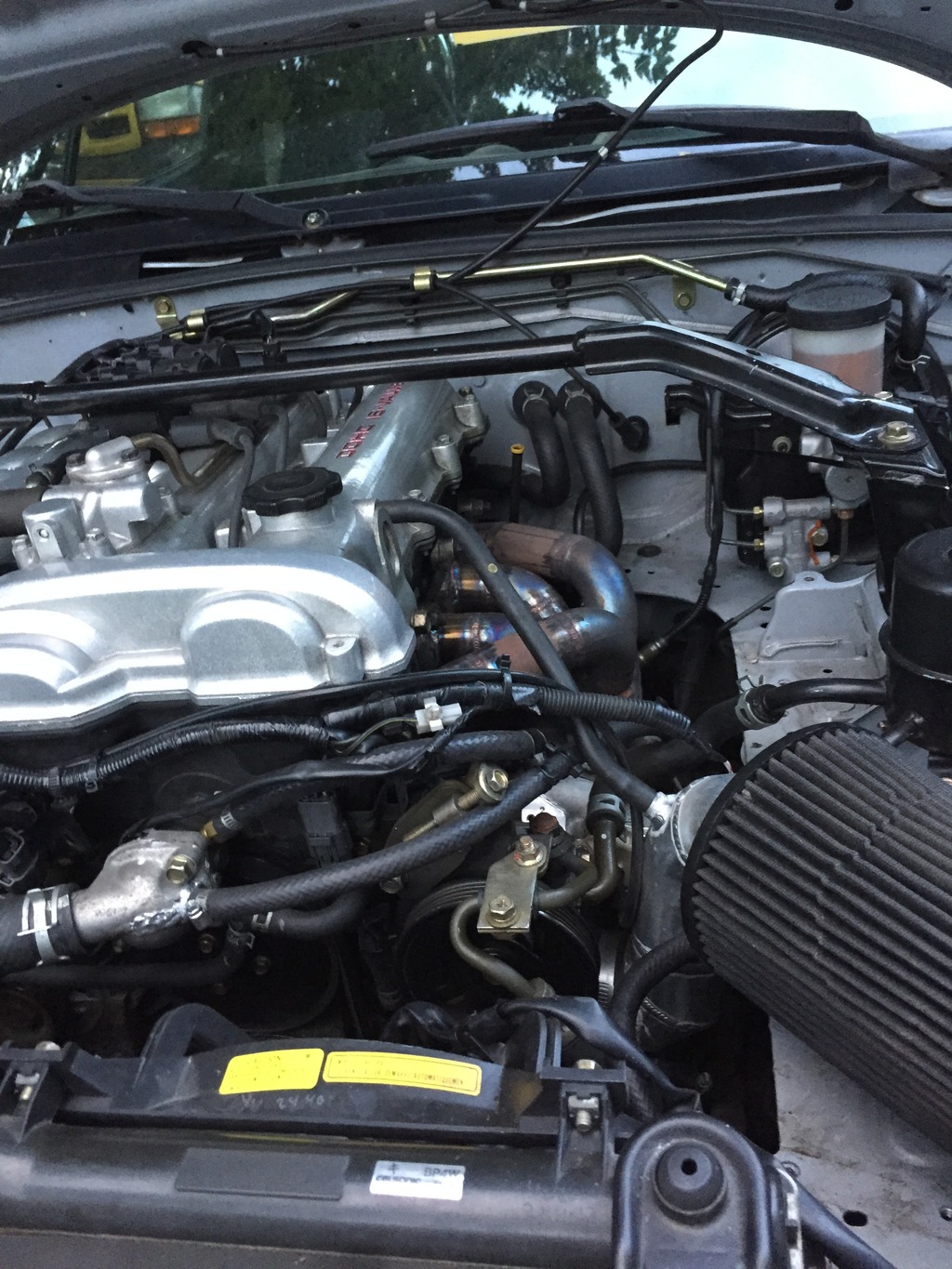

here is the new setup, with the turbo that low it really helps with under hood temps !!!



















Attached Thumbnails
300+whp 2002 miata custom turbo kit project-img_1986_zpsdkkswgl5.jpg   300+whp 2002 miata custom turbo kit project-img_1987_zpsnuzwxquh.jpg   300+whp 2002 miata custom turbo kit project-img_1988_zpsngpzx8ci.jpg   300+whp 2002 miata custom turbo kit project-img_1990_zpsbbpv3w3n.jpg   300+whp 2002 miata custom turbo kit project-img_1991_zps35t3kxzh.jpg

300+whp 2002 miata custom turbo kit project-img_1992_zpssufq1eu6.jpg   300+whp 2002 miata custom turbo kit project-img_2001_zpsbbaez4q1.jpg   300+whp 2002 miata custom turbo kit project-img_2002_zps7rolql9t.jpg   300+whp 2002 miata custom turbo kit project-img_2003_zpsd2vkjusm.jpg   300+whp 2002 miata custom turbo kit project-img_2004_zps2awxguno.jpg

karlou426hemi is offline   Reply With Quote
Old 11-02-2015, 04:53 PM   #190
Junior Member
Thread Starter

Join Date: Apr 2011
Posts: 78
Total Cats: -3
Default

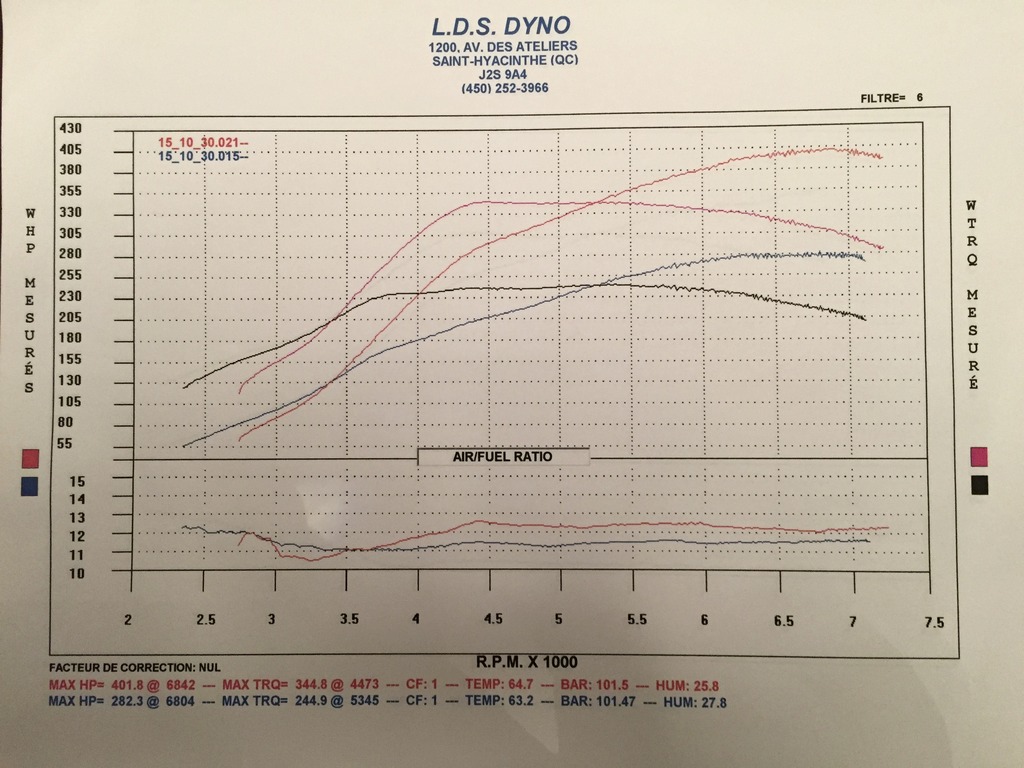

And here is the dynosheet

Red line 21 psi + WM
blue 10psi

Attached Thumbnails
300+whp 2002 miata custom turbo kit project-img_2100_zpsa18ctail.jpg
karlou426hemi is offline   Reply With Quote
Old 11-02-2015, 04:57 PM   #191
Senior Member

Join Date: Mar 2011
Location: South Chicago
Posts: 701
Total Cats: 26
Default

Holy crap....
Mazduh is offline   Reply With Quote
Old 11-02-2015, 05:07 PM   #192
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Man, I should have done a low mount.

Glorious result comrade!

inb4transmissionsolution
EO2K is offline   Reply With Quote
Old 11-02-2015, 05:09 PM   #193
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,198
Total Cats: 2,584
Default

Very nice, congrats. That's some serious power, and it doesn't give up too much lowend to the 6258 from what it looks like.
18psi is offline   Reply With Quote
Old 11-02-2015, 05:57 PM   #194
Junior Member
iTrader: (1)

Join Date: Oct 2015
Location: Metro Detroit, MI
Posts: 268
Total Cats: 19
Default

Sweet mother of gawd. Great numbers man!
Goingnowherefast is offline   Reply With Quote
Old 11-03-2015, 10:21 AM   #195
Supporting Vendor
iTrader: (1)

OGRacing's Avatar

Join Date: May 2014
Posts: 1,764
Total Cats: 46
Default

dang you almost have the same hp as i do.
OGRacing is offline   Reply With Quote
Old 11-05-2015, 01:32 PM   #196
Junior Member
Thread Starter

Join Date: Apr 2011
Posts: 78
Total Cats: -3
Default

0-200
Smooth shifting
Bugged launch

karlou426hemi is offline   Reply With Quote
Old 11-05-2015, 01:33 PM   #197
Junior Member
Thread Starter

Join Date: Apr 2011
Posts: 78
Total Cats: -3
Default

click to play

karlou426hemi is offline   Reply With Quote
Old 11-05-2015, 01:33 PM   #198
Junior Member
Thread Starter

Join Date: Apr 2011
Posts: 78
Total Cats: -3
Default

**** the link wont copy

Go on facebook
Search for KMPsystems page

Video is there
karlou426hemi is offline   Reply With Quote
Old 11-05-2015, 01:36 PM   #199
Junior Member

Join Date: Mar 2009
Location: Raleigh NC
Posts: 110
Total Cats: 2
Default

I see it just fine. That's an angry beast!
demoniam is offline   Reply With Quote
Old 11-05-2015, 01:38 PM   #200
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,198
Total Cats: 2,584
Default

fixed the link for you...I think
18psi is offline   Reply With Quote
