Old 12-09-2013, 05:14 PM   #81
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

we all need to get bigger turbos.

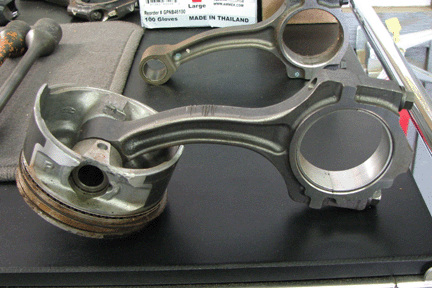

Maybe all the rods look like this, giving a nice low compression?

Attached Thumbnails
300+whp 2002 miata custom turbo kit project-bent%2520rod_full.gif
TurboTim is offline   Reply With Quote
Old 12-09-2013, 05:16 PM   #82
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by TurboTim View Post
we all need to get bigger turbos.

Maybe all the rods look like this, giving a nice low compression?

Come on tim, you know that rod length does effect compression.
Leafy is offline   Reply With Quote
Old 12-09-2013, 05:20 PM   #83
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 783
Default

Quote:
Originally Posted by thenuge26 View Post
If only your valve springs were stronger than 21lbs you would have been OK

Doesn't matter, still made more power than my limpdick BP.

Also: I'm pretty sure my current seat pressure is like..... 110lbs. NECESSARY.
concealer404 is offline   Reply With Quote
Old 12-09-2013, 05:38 PM   #84
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

Quote:
Originally Posted by Leafy View Post
Come on tim, you know that rod length does effect compression.
I will say it does. A bent rod (or shorter rod length) affects clearance volume, no? You have more combustion chamber volume with that bent rod.

Come on, all the cool kids run bent rods. You really think Lars wanted those rods for a damn lamp post?!

Displacement stays the same.
TurboTim is offline   Reply With Quote
Old 04-30-2014, 08:02 PM   #85
Junior Member
Thread Starter

Join Date: Apr 2011
Posts: 78
Total Cats: -3
Default

Little update on the car...

First it is still alive with still perfect compression across all cylinders

went to the strip last friday and did around 6-7 passes and managed to do a best of 12,70 @ 111.1mph witch I consider pretty decent considering we had totally worn out tires that are probably more than 5 years old and a totally full tank of gas....

I also realized how the 6 speed is geared like crap for a quarter mile lol. It is as bad as it is fun like hell on the street.... first gear is so short and shifting 5 gears in a quarter mile is a little too much shifting for my taste.
karlou426hemi is offline   Reply With Quote
Old 04-30-2014, 08:48 PM   #86
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,584
Default

sounds like you need to get in on the 3.3 fd group buy
18psi is offline   Reply With Quote
Old 04-30-2014, 11:02 PM   #87
Senior Member
iTrader: (2)

Join Date: Mar 2014
Location: Meridian, Mississippi
Posts: 637
Total Cats: 42
Default

Naaa, run a 4.3 and start off in 2nd gear

For myself eventually I want a 3.63 with a 6 speed. The 3.3 seems a little extreme for now. If I build the engine and start making huge power perhaps i will think differently.

Keith
Twodoor is offline   Reply With Quote
Old 05-01-2014, 12:18 AM   #88
Junior Member
Thread Starter

Join Date: Apr 2011
Posts: 78
Total Cats: -3
Default

can't go 4.3 id had to shift 6th at the end of the run.

My father is thinking about ms3x rods and valve springs for next year so ill probably just bump the limiter to 8.5k so he'll stay in 4th up to roughly 115mph...
karlou426hemi is offline   Reply With Quote
Old 05-01-2014, 02:29 AM   #89
Junior Member

Join Date: Sep 2008
Location: ATL GA
Posts: 290
Total Cats: -217
Default

Based on 1/4 mile times I would say 300hp is about right. Great job. Love to see more videos. If you could do a 0-100 pull that shows your rpms that would be awsome. Im working on a budget turbo build and have a 6 speed and a gt2876r I may use. im Always afraid of going over 250wtq due to stock rods your dyno shows you right at it and 300whp so I hope your motor last a long time.
locomonkeyboricua is offline   Reply With Quote
Old 05-01-2014, 04:09 AM   #90
Senior Member
iTrader: (2)

Join Date: Mar 2014
Location: Meridian, Mississippi
Posts: 637
Total Cats: 42
Default

Quote:
Originally Posted by karlou426hemi View Post
can't go 4.3 id had to shift 6th at the end of the run.

My father is thinking about ms3x rods and valve springs for next year so ill probably just bump the limiter to 8.5k so he'll stay in 4th up to roughly 115mph...
With standard diameter tires and a 4.3 in a 6 speed 7000 RPM in 5th is 111 mph... starting in 2nd and running to the top of 5th you would be doing one less gear change than you are now. I know that at the drag strip "terminal speed" and "trap speed" are two different things. Since trap speed is the average over the last 60' of the track, your actual terminal speed will be higher... but you can run 5th out to 7400 RPM and still be in 5th at the end of the 1/4 with the 4.3.

Keith
Twodoor is offline   Reply With Quote
Old 05-01-2014, 11:27 AM   #91
Elite Member

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

What size injectors and fuel system? stock pump? returnless?
flounder is offline   Reply With Quote
Old 05-01-2014, 05:32 PM   #92
Junior Member
Thread Starter

Join Date: Apr 2011
Posts: 78
Total Cats: -3
Default

stock fuel system exept 550cc injectors,

Can't go any higher than stock limiter because i am still on the stock ecu so ill live with the gearing i have now.
karlou426hemi is offline   Reply With Quote
Old 05-01-2014, 08:37 PM   #93
Junior Member

Join Date: Sep 2008
Location: ATL GA
Posts: 290
Total Cats: -217
Default

What brand 550 injectors? I hope to see more people get away with stock 300hp engines and like to see them last for years. Cool to see the old turbo working great.
locomonkeyboricua is offline   Reply With Quote
Old 05-02-2014, 11:54 AM   #94
Senior Member
iTrader: (2)

Join Date: Mar 2014
Location: Meridian, Mississippi
Posts: 637
Total Cats: 42
Default

Quote:
Originally Posted by locomonkeyboricua View Post
I hope to see more people get away with stock 300hp engines and like to see them last for years.
I am hopping to manage this with the EBC function of the megasquirt. I plan to limit torque output to 225 lb-ft throughout the rev range, by running low boost (10 to 12 psi) in the lower RPM range, and ramping it up to higher boost pressures in the upper RPM ranges I hope to maintain that 225 lb-ft all the way through to redline. 225 lb-ft at 7000 RPM = 299.89 Rounds up to 300

My only concern is I may run out of injector running E85 and the RX8 injectors at that power level. If I start getting ridiculous duty cycles I will need to back off until I get new injectors. I can't wait! My turbo system is almost finished, COP has been shipped, my repaired MS3 has been shipped, clutch and flywheel are ready to go in, and Xida clubsports should ship this month!

Keith
Twodoor is offline   Reply With Quote
Old 05-02-2014, 09:15 PM   #95
Junior Member

Join Date: Sep 2008
Location: ATL GA
Posts: 290
Total Cats: -217
Default

Good idea. I was thinking of managing tq by ignition timing map. Around 3-4.5 k keep timing down to lower the tq output and then tune it from 4.5 -7.5 for max power. So after I shift I should stay in the upper power band. The boost method works great as well.
locomonkeyboricua is offline   Reply With Quote
Old 05-03-2014, 12:58 AM   #96
Junior Member

Join Date: Sep 2008
Location: ATL GA
Posts: 290
Total Cats: -217
Default

Does anyone else in here think that the 6speed helps keep stock engines with over 250whp running due to the shorter gearing keeping the rpms up there for putting less stress on rods??? Just a thought.
locomonkeyboricua is offline   Reply With Quote
Old 05-03-2014, 04:32 AM   #97
Senior Member
iTrader: (2)

Join Date: Mar 2014
Location: Meridian, Mississippi
Posts: 637
Total Cats: 42
Default

Quote:
Originally Posted by locomonkeyboricua View Post
Does anyone else in here think that the 6speed helps keep stock engines with over 250whp running due to the shorter gearing keeping the rpms up there for putting less stress on rods??? Just a thought.
I don't think so, I will check on my excel spread sheet of Miata gear ratio's when I get home. Using that I can easily see what RPM you drop to when shifting at 7000 RPM in each gear on both transmissions. I am at work right now so I can't access it.

Keith
Twodoor is offline   Reply With Quote
Old 05-03-2014, 07:20 AM   #98
Senior Member
iTrader: (2)

Join Date: Mar 2014
Location: Meridian, Mississippi
Posts: 637
Total Cats: 42
Default

Quote:
Originally Posted by locomonkeyboricua View Post
Does anyone else in here think that the 6speed helps keep stock engines with over 250whp running due to the shorter gearing keeping the rpms up there for putting less stress on rods??? Just a thought.
Quote:
Originally Posted by Twodoor View Post
I don't think so, I will check on my excel spread sheet of Miata gear ratio's when I get home. Using that I can easily see what RPM you drop to when shifting at 7000 RPM in each gear on both transmissions. I am at work right now so I can't access it.

Keith
Allright, here is the data.

Gear change . . . . . . . . .5 speed. . . . . . . . . . . . . . . . . .6 speed
1 to 2 . . . . . . . . . . drops to 4100 RPM . . . . . . . . . drops to 4200 RPM
2 to 3 . . . . . . . . . . drops to 4800 RPM . . . . . . . . . drops to 5100 RPM
3 to 4 . . . . . . . . . . drops to 5300 RPM . . . . . . . . . drops to 5350 RPM
4 to 5 . . . . . . . . . . drops to 5700 RPM . . . . . . . . . drops to 5550 RPM
5 to 6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . drops to 5900 RPM

So, the only significant difference is on the 2 to 3 shift the 5 speed drops 300 RPM more than the 6 speed. Not enough of a difference to make the pistons or rods last longer at higher torque values.

Keith
Twodoor is offline   Reply With Quote
Old 05-03-2014, 10:04 PM   #99
Junior Member

Join Date: Sep 2008
Location: ATL GA
Posts: 290
Total Cats: -217
Default

Well so much for that thinking. I swear when I was watching youtube of the 6speed with I think 4.10 it would not drop much seem to always be above 5k. But maybe I was wrong. Why do people say the 6 speed gearing is so short if only 300 rpm or so shorter.
locomonkeyboricua is offline   Reply With Quote
Old 05-04-2014, 12:38 AM   #100
Senior Member
iTrader: (2)

Join Date: Mar 2014
Location: Meridian, Mississippi
Posts: 637
Total Cats: 42
Default

Quote:
Originally Posted by locomonkeyboricua View Post
Well so much for that thinking. I swear when I was watching youtube of the 6speed with I think 4.10 it would not drop much seem to always be above 5k. But maybe I was wrong. Why do people say the 6 speed gearing is so short if only 300 rpm or so shorter.
I didn't put the mph in the chart... Short gearing has to do with what speed you gain between shift, not what RPM you drop to after the shift.

Keith
Twodoor is offline   Reply With Quote
