Default 99/00 Intercooler with AC/PS

Ok so Iíve seen a few people asking about nb intercooler setups while keeping ac/ps so I figured Iíd start a thread on how I did mine. Iím definitely not the first to do this. I actually got the idea from one of 18psiís builds and I think he got it from someone else. Regardless of whos idea it is, heres how I got it to work on mine. There is a hole behind the driver side headlight. Obviously its too small for a pipe but can easily be expanded to fit a 2.5Ē i/c pipe. Then its just a 90* into the intercooler. The cold side is fairly straight forward and similar to other year models. Just down and around the radiator.

One issue I did have was mounting the intercooler because of the a/c canister. If I recall correctly my i/c is a 27"X5.5"X2.5" ebay special. I donít think a 3Ē would fit.

Ok so heres some pictures. Please go easy on my rusty innards :(

Heres a pic of the i/c

Mocking it up

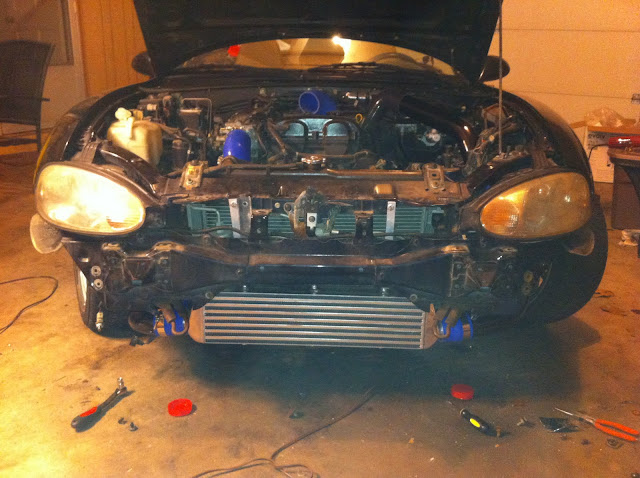

All mounted up

Heres a picture of the hole placement. I canít remember if this is the final shape of the hole but pretty close.

Here it is from the front looking through the headlight hole.

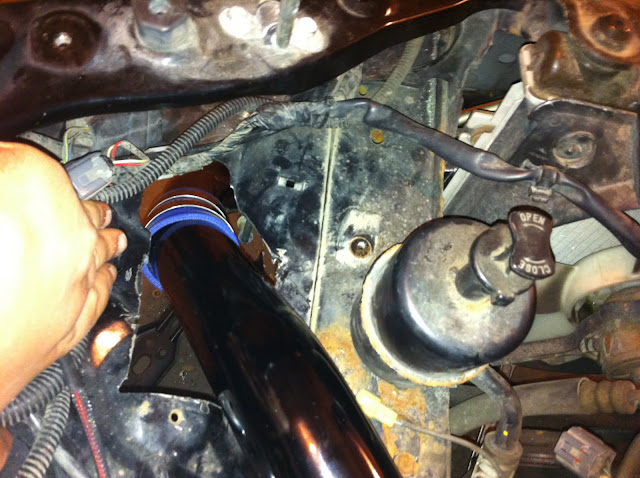

Hereís a shot from the top with pipe in place. As you can tell I got a little trigger happy with the grinder, probably didnít need to be quite that big.

Another picture from the top. Make sure you either round the cut area or do what I did and put a scrap piece of coupler between the pipe and metal. Otherwise it will rub and cut a hole in your pipe.

Here it is from under neath

Where it meets the i/c.

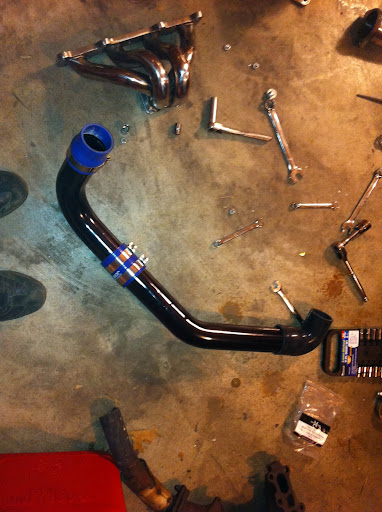

Heres a picture of the hotside pipeing out of the car for reference.

Cold side:

Heres a pic of the cold side piping out of the car for reference.

Side view, this is a good picture of how the intercooler sets up against the canister in front of the condenser and rad. Also after these pics were taken the ic was drilled and tapped for an iat sensor on the cold side.

From the throttle body its just straight down. I had to remove the ducting but I havnít had any problems (115 heat this summer but I donít do track days) so if you anticipate problems youíll need to make custom ducting. Hope this helps.
Golferluke is offline   Reply With Quote
Old 08-25-2011, 09:30 PM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,165
Total Cats: 2,573
Default

Good ****.
For the record I got the idea from CEO's BIIIG turbo setup, although his was a bit different still.
Its a no-brainer though. Works like a charm. Glad is working for you too.
18psi is offline   Reply With Quote
Old 08-25-2011, 09:31 PM   #3
Senior Member
iTrader: (3)

Join Date: Nov 2009
Location: Royal Palm Beach, FL
Posts: 725
Total Cats: 5
Default

mine is routed without having to cut a big hole like yours. besides the hole it looks clean
Clos561 is offline   Reply With Quote
Old 08-25-2011, 10:20 PM   #4
Junior Member
Thread Starter

Golferluke's Avatar

Join Date: Oct 2009
Location: Springfield, MO
Posts: 497
Total Cats: 3
Default

Ya hole looks like **** but with the headlight in and wires tucked you can't even see it. Thats why I wasn't really worried about how pretty it looked. Plus my engine bays not exactly prestine to begin with.
Golferluke is offline   Reply With Quote
Old 08-25-2011, 11:06 PM   #5
Junior Member
iTrader: (2)

Join Date: May 2008
Location: Bethalto, Il
Posts: 318
Total Cats: 2
Default

i think i may go with a over the radiator set up with a top panel.

if i were to do this and cut holes i would use a metel hole drilling kit that would make the hole a circle or round the edges to where you could put some edging there.



but either way that is a good looking setup and i like the size of the intercooler. thanks for the pictures also.
turbotyla is offline   Reply With Quote
Old 08-26-2011, 12:22 AM   #6
Junior Member
Thread Starter

Golferluke's Avatar

Join Date: Oct 2009
Location: Springfield, MO
Posts: 497
Total Cats: 3
Default

Ya over the top is definately an option, I just don't remember seeing an over the top setup work with ac. Plus I like the look of the entire mouth filled. Your right it would definitely be better with the correct tools. All I had was a 3" grinder I picked up at wally world. Also I wasn't sure where the pipe needed to be, I originally had the pipe farther towards the back and had to cut the hole bigger to move the pipe forward.
Golferluke is offline   Reply With Quote
Old 08-26-2011, 12:55 AM   #7
Senior Member
iTrader: (3)

Join Date: Nov 2009
Location: Royal Palm Beach, FL
Posts: 725
Total Cats: 5
Default

its not over the top, the fitment its crazy tight but it will work on mine.


Attached Thumbnails
99/00 Intercooler with AC/PS-2011-07-07180504.jpg   99/00 Intercooler with AC/PS-2011-07-07182047.jpg
Clos561 is offline   Reply With Quote
Old 08-26-2011, 01:37 AM   #8
Junior Member
Thread Starter

Golferluke's Avatar

Join Date: Oct 2009
Location: Springfield, MO
Posts: 497
Total Cats: 3
Default

Oh was talking to turbotyla about the over the top set up. Ya I've seen pictures of yours, thats pretty cool! How big is the piping?
Golferluke is offline   Reply With Quote
Old 08-26-2011, 01:44 AM   #9
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,165
Total Cats: 2,573
Default

Quote:
Originally Posted by turbotyla View Post
if i were to do this and cut holes i would use a metel hole drilling kit that would make the hole a circle or round the edges to where you could put some edging there.
The way I did mine you wouldn't even be able to tell that its been enlarged. I carefully cut off just a TINY bit and bent the edges EXACTLY how they were in the original, oem hole, so even though you couldn't see it underneath the headlight and pipe, it still looked clean.

Took a good chunk of time to do right though. Probably like 3-4 hours cause I even made sure not to crack the paint
18psi is offline   Reply With Quote
Old 08-26-2011, 03:42 AM   #10
Junior Member
Thread Starter

Golferluke's Avatar

Join Date: Oct 2009
Location: Springfield, MO
Posts: 497
Total Cats: 3
Default

Quote:
Originally Posted by 18psi View Post
Took a good chunk of time to do right though. Probably like 3-4 hours cause I even made sure not to crack the paint

I'd say mine took a solid 45 minutes
Golferluke is offline   Reply With Quote
Old 08-26-2011, 11:56 AM   #11
Senior Member
iTrader: (3)

Join Date: Nov 2009
Location: Royal Palm Beach, FL
Posts: 725
Total Cats: 5
Default

2 inch hot side 2.5 inch cold side
Clos561 is offline   Reply With Quote
Old 08-26-2011, 08:47 PM   #12
Junior Member
iTrader: (1)

Join Date: Feb 2011
Location: Minot, ND
Posts: 242
Total Cats: 21
Default

I was one of the people looking for pics of this kinda setup Props, can't wait to get my kit on, but due to this hurricane.... it may be postponed to mid week next week. I can wait lol
sickmiatabra is offline   Reply With Quote
Old 11-03-2014, 12:19 AM   #13
Senior Member
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,342
Total Cats: 78
Default

Commenting so I can find this later. Too cool for bookmarks and 18psi's pictures are gone.
Schuyler is offline   Reply With Quote
Old 11-03-2014, 09:09 AM   #14
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

Why does everyone use blue couplers?

So not classy.
Braineack is offline   Reply With Quote
Old 11-03-2014, 01:18 PM   #15
Senior Member
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,342
Total Cats: 78
Default

I haz black ones.
Schuyler is offline   Reply With Quote
Old 11-03-2014, 01:33 PM   #16
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

class act.
Braineack is offline   Reply With Quote
Old 11-03-2014, 01:39 PM   #17
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,875
Total Cats: 344
Default

Quote:
Originally Posted by Braineack View Post
Why does everyone use blue couplers?

So not classy.
Because siliconeintakes.com is back-ordered on black ones in the right size, and blue is less ugly than red? At least, that's why I am considering ordering a blue one.

--Ian
codrus is offline   Reply With Quote
Old 11-03-2014, 01:43 PM   #18
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

blue/red couplers should be illegal.
Braineack is offline   Reply With Quote
Old 11-06-2014, 02:09 PM   #19
Junior Member

Join Date: Sep 2014
Location: Canton, GA
Posts: 153
Total Cats: -84
Default

I am really interested on how much this affects the cars structural rigidity.. That is a gaping hole in the uni-body, not to mention at the same location of some very critical joints.

I don't approve, but I don't have to. Just don't be surprised if you track/AutoX the car for a while and then get back to the alignment shop and see some very bizarre "numbers" on the rack. In a hard right turn I would bet money that outside wheel is not acting as it should.
NBoost is offline   Reply With Quote
Old 11-06-2014, 02:12 PM   #20
Senior Member
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,342
Total Cats: 78
Default

I don't consider that part of the unibody. Nor do I consider it structural.
Schuyler is offline   Reply With Quote
