Old 07-02-2016, 01:58 PM   #141
Junior Member
Thread Starter

Join Date: Mar 2014
Location: Jacksonville, FL
Posts: 321
Total Cats: 19
Default

Quote:
Originally Posted by 18psi View Post
yeah you're exceeding the threshold and the car just defaults to high idle valve duty
this is what it took to get 950rpm idle, any higher % and idle i higher.

how do i bring idle low and have higher % pwm?
borka is offline   Reply With Quote
Old 07-02-2016, 02:01 PM   #142
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 114
Default

There is a window of percentages that will make an appreciable difference on the idle, you need to use those percentages in the closed loop idle settings. Everything outside this window is non-linear and not to be trusted. 5% is way too low, never heard of any miata using those values.

After that, you need to set the idle screw so that it's ~700 rpm at the lowest percentage duty you found earlier.

Hope that helps.
deezums is offline   Reply With Quote
Old 07-02-2016, 03:25 PM   #143
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,370
Total Cats: 2,245
Default

don't touch the idle screw. ever
everything the oem ecu can do, the ms can do. so the idle screw should never be touched and remain how it left the factory
do the idle valve test. test ALL ranges. set lowest/highest based on maximum duty to achieve max rpm and minimum duty to achieve minimum rpm. now you have a window for CL idle control to work with. next you set the parameters for it
18psi is offline   Reply With Quote
Old 07-02-2016, 03:46 PM   #144
Junior Member
Thread Starter

Join Date: Mar 2014
Location: Jacksonville, FL
Posts: 321
Total Cats: 19
Default

Quote:
Originally Posted by 18psi View Post
don't touch the idle screw. ever
everything the oem ecu can do, the ms can do. so the idle screw should never be touched and remain how it left the factory
do the idle valve test. test ALL ranges. set lowest/highest based on maximum duty to achieve max rpm and minimum duty to achieve minimum rpm. now you have a window for CL idle control to work with. next you set the parameters for it
i will play with the settings some more, the way i have it setup now works great, except the 2 times that out of no where idle would go to 2.5k and wont come down for a few hours. then all of a sudden after driving an hour, will magically come back to normal. also while driving with the high idle condition, when i let off the gas to coast in gear, fuel overrun doesnt work and no fuel cut while coasting.

Now for my official first turbo project FAIL.

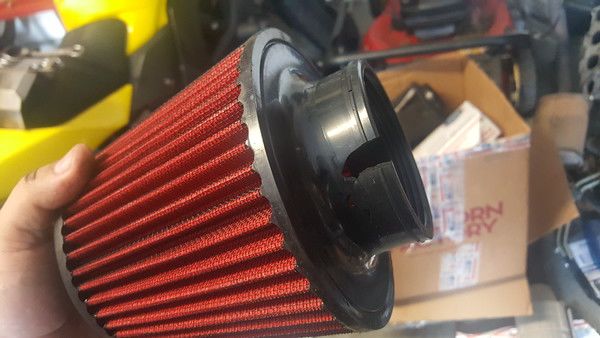

I ghetto rigged my air filter, as i didnt have the 3" diameter adapter at the time of building the turbo, so i mounted the filter to a smaller silicone hose...
Well the filter popped off and ripped, and a rubber piece got ingested into the turbo, and it looks like it bent some blades.

how hard is the compressor wheel to replace and where should i get one? or should i send the turbo to a pro to replace the wheel?

turbo seems to work fine, but the sound changed to more of a whistle than a whoosh



Attached Thumbnails
99 Sport eBay turbo build-80-i_gwmz94h_m_f28e892e7d3e1db220efaa4507818ec2285614d4.jpg   99 Sport eBay turbo build-80-i_j2dlmpf_xl_9ba7b7f7c734d0ab3459a8fe4695db71f8be6558.jpg
borka is offline   Reply With Quote
Old 07-02-2016, 08:22 PM   #145
Senior Member

farpolemiddle's Avatar

Join Date: May 2016
Location: Lents, Oregon
Posts: 515
Total Cats: 51
Default

That was a expensive lesson on ghetto rigging. I will learn from it though.
farpolemiddle is online now   Reply With Quote
Old 07-02-2016, 10:53 PM   #146
Junior Member
Thread Starter

Join Date: Mar 2014
Location: Jacksonville, FL
Posts: 321
Total Cats: 19
Default

Quote:
Originally Posted by farpolemiddle View Post
That was a expensive lesson on ghetto rigging. I will learn from it though.
if i can fix it myself the compressor wheel is $50. but i am worried that it needs to be balanced to do properly.

I will probably send it out to pureturbos and have them fit an upgraded billet wheel, for more flow and faster spool, at the cost of $350

lesson learned. dont rush the install, use correct parts for the job.
borka is offline   Reply With Quote
Old 07-06-2016, 05:19 PM   #147
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,421
Total Cats: 469
Default

^I think that's a good idea. Wouldn't be a good idea to ghetto rig a fix for your ghetto rigged fix.
turbofan is offline   Reply With Quote
Old 07-07-2016, 06:35 PM   #148
Junior Member
Thread Starter

Join Date: Mar 2014
Location: Jacksonville, FL
Posts: 321
Total Cats: 19
Default

ok. spoke to pureturbo, i am sending out my turbo to them and having them machine the compressor opening +1mm and install a gt2860 billet wheel.
They said same spool as stock wheel, and more flow.

Machine work, install and balance, $350. not bad.
borka is offline   Reply With Quote
Old 07-08-2016, 11:09 AM   #149
Junior Member

Join Date: Sep 2014
Location: Canton, GA
Posts: 150
Total Cats: -85
Default

Quote:
Originally Posted by borka View Post
, $350. not bad.
K&N's most expensive air filter
NBoost is offline   Reply With Quote
Old 08-09-2016, 10:21 AM   #150
Junior Member
Thread Starter

Join Date: Mar 2014
Location: Jacksonville, FL
Posts: 321
Total Cats: 19
Default

Got the turbo back from Pure Turbos with the billet gt2860 compressor wheel.

Removing the manifold/downpipe seems so straight forward, except that its almost impossible to reach half the bolts, so what seems like a 2 hour job, turns into a weekend full of wrenching and cursing.
Miata is back on the road. so not looking forward to having to remove the turbo again.

Before:


After:






borka is offline   Reply With Quote
Old 08-09-2016, 10:24 AM   #151
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,370
Total Cats: 2,245
Default

Ooh nice, it's going to make a bit more topend
