Default Airfilters

Who makes airfilters? I'm looking for a new cone filter, prefer 2" long flange of 2.75"-3" diameter on a 20* or so offset, no more than 4.5" diamater at widest point at filter bottom tapering to 3.5" or so at filter top, and the top cap needs to be open or a velocity stack style. Closest I've found so far is THIS K&N.

It's perfect except the top cap is rubber.
Any suggestions? Who else makes filters?



So far this one is first runner up
Attached Thumbnails
Ben is offline   Reply With Quote
Old 05-13-2007, 03:55 AM   #2
Elite Member
iTrader: (14)

Join Date: Mar 2006
Location: Edmonton, AB
Posts: 4,921
Total Cats: 0
Default

I've got that K&N filer in my car. Seems to be working ok. Why is the rubber endcap bad?
jayc72 is offline   Reply With Quote
Old 05-13-2007, 09:31 AM   #3
Ben
Supporting Vendor
Thread Starter
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

If front end is open, hopefully it can scavenge some of the (cooler) ambient air coming in from the headlamp area.
Ben is offline   Reply With Quote
Old 05-16-2007, 11:29 AM   #4
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

What size is the TD04's intake. mine is 2 inches i am having hard time finding a suitable filter. how do you make 2.75 inches work?
magnamx-5 is offline   Reply With Quote
Old 05-16-2007, 11:44 AM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

could you not make this work? It can fit a 2.5" pipe.

http://www.knfilters.com/search/prod...x?Prod=RX-3800
Braineack is offline   Reply With Quote
Old 05-16-2007, 11:45 AM   #6
I'm Miserable!

Join Date: Apr 2007
Location: Gettysburg, PA lol
Posts: 130
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
dang i wanna order one of those.
speedracerTD04 is offline   Reply With Quote
Old 05-16-2007, 12:02 PM   #7
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

So i gues i am stuck using an adapter of the compressor. i wanted something that was 2 inches to pop right onto the turbo itself the dimensions of that filter work, for me except for the flange being 2.5 inches. I dunno wont i need a bigger filter how many CFM per square inch restriction is there on those?
magnamx-5 is offline   Reply With Quote
Old 05-16-2007, 12:04 PM   #8
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

If i go with 2 inch i might as well go with a 9*6 oval ofsett 1.5 inches or so. and make it 4 inches deep. with a outside wall being 7 inches wide. lil help
magnamx-5 is offline   Reply With Quote
Old 05-16-2007, 12:07 PM   #9
Elite Member
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

Quote:
Originally Posted by Ben View Post
k ill take it ... and then i can ship er off to speedracer for practice before he tries to bang his neighbor again
akaryrye is offline   Reply With Quote
Old 05-16-2007, 12:10 PM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

Quote:
Originally Posted by magnamx-5 View Post
So i gues i am stuck using an adapter of the compressor. i wanted something that was 2 inches to pop right onto the turbo itself the dimensions of that filter work, for me except for the flange being 2.5 inches. I dunno wont i need a bigger filter how many CFM per square inch restriction is there on those?

isn't your inlet closer to 2.35"-2.5" or something?
Braineack is offline   Reply With Quote
Old 05-16-2007, 12:11 PM   #11
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

nope 2 inches exactly i used radiator hose to put the AFM assembly to my piping last time but, with the afm gone. The filter i had sits on the high spot and i realy dont want it back by the clutch master agian.
magnamx-5 is offline   Reply With Quote
Old 05-16-2007, 12:18 PM   #12
Elite Member
iTrader: (14)

Join Date: Mar 2006
Location: Edmonton, AB
Posts: 4,921
Total Cats: 0
Default

I think the greddy is 2 1/4.
jayc72 is offline   Reply With Quote
Old 05-16-2007, 12:20 PM   #13
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

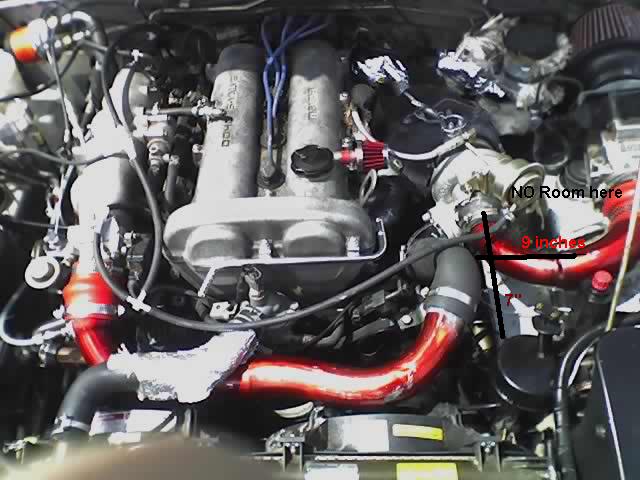

Check out this pic my crossover goes over the PS pump adjustment towards the drivers side making it a tight fit and the popup motor is on the other side along with the PS resevior.
Attached Thumbnails
magnamx-5 is offline   Reply With Quote
Old 05-16-2007, 12:44 PM   #14
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

damn well i gues i will have to find a way sorry for jacking your thread ben
magnamx-5 is offline   Reply With Quote
Old 05-16-2007, 01:02 PM   #15
Elite Member
iTrader: (5)

Atlanta93LE's Avatar

Join Date: Sep 2006
Location: Marietta, GA
Posts: 2,198
Total Cats: 1
Default

Quote:
Originally Posted by magnamx-5 View Post
nope 2 inches exactly i
Weird...my 16g is 2.25" inlet. Both of them, actually.
Atlanta93LE is offline   Reply With Quote
Old 05-16-2007, 01:12 PM   #16
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

why don't you take a filter with a 2.5" dia flange, and stick a 1" long, 2.25" piece in side, then a 2" piece inside of that. that way you'll reduce 2.5" to 2" without having to make it extra long. a good t-bolt clamp will hold it all together. I did this with my bosch bov to make it fit onto the stock cross over pipe
curly is offline   Reply With Quote
Old 05-16-2007, 01:20 PM   #17
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

not even a pipe...just a 2" 4-ply coupler; that will get you very close to 2.5", the filter can clamp down an top of both.

the filter is only under a bit of vacuum, doesn't need much.

or a 2" to 2.5" 45* silicone coupler...a small piece of 2.5" to clamp on...and that's it.

Ben; I suggest the same to you...that filter I suggest will get you pretty darn close...you'd just need a bit of girth to clamp the filter down on...
Braineack is offline   Reply With Quote
Old 05-16-2007, 01:23 PM   #18
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

Quote:
Originally Posted by Atlanta93LE View Post
Weird...my 16g is 2.25" inlet. Both of them, actually.
Ok upon actual measurement the 2 inch rad hose i was using went on a 2 1/4 inch port. A 2 1/2 unit still wont work though unless i adapter out right.?
magnamx-5 is offline   Reply With Quote
Old 05-16-2007, 02:15 PM   #19
Senior Member
iTrader: (12)

Join Date: Nov 2005
Location: Murfreesboro, TN
Posts: 596
Total Cats: 3
Default

My setup is:

KNN-RU-3560 - K&N filter from Summit
HED-12016 - 2 1/4" mandrel bend from Summit
2 1/4 silicone coupler

sbrian2 is offline   Reply With Quote
Old 05-16-2007, 09:05 PM   #20
Ben
Supporting Vendor
Thread Starter
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Brian, I likey I likey. But I don't want to deal with clocking the turbo and redoing the charge pipes again at this time. But that's definately the better looking solution.

Brainy, thanks for the filter link. That one will work.
Ben is offline   Reply With Quote
