DIY Turbo Discussion greddy on a 1.8? homebrew kit?

Reply



LinkBack Thread Tools
Old 05-16-2007, 10:03 PM   #21
Ben
Supporting Vendor
Thread Starter
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

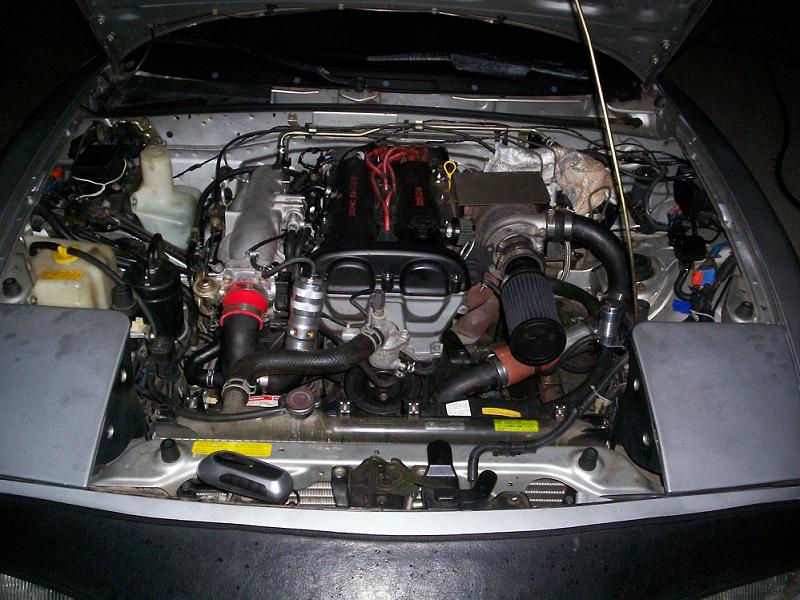

Here's a pic of the current set up, FWIW


I rerouted the hot side a little by cutting the U pipe, adding in a 7.5" straight pipe, and cut 4" off the L pipe. I didn't have time to spray the straight pipe, so it's silver and everything else is black.

The orange thing over the unpainted pipe (below the filter) is a hose insulator that I found laying around. I cut a small section of it and clamped it to the hot pipe that's directly under the airfilter.

Yes, I know the breather isn't hooked up properly. This is temporary only.
Attached Thumbnails
Ben is offline   Reply With Quote
Old 05-16-2007, 11:16 PM   #22
Junior Member
iTrader: (2)

Join Date: Nov 2005
Location: A2, MI
Posts: 475
Total Cats: 0
Default

I'll be using Fujita if that helps anyone. It's ~$35. It's a 4" air filter - to fit over the Sc-50s

(My build thread will come soon)
Dhaark is offline   Reply With Quote
Old 05-17-2007, 12:45 AM   #23
Senior Member
iTrader: (12)

Join Date: Nov 2005
Location: Murfreesboro, TN
Posts: 596
Total Cats: 3
Default

Quote:
Originally Posted by Ben View Post
Brian, I likey I likey. But I don't want to deal with clocking the turbo and redoing the charge pipes again at this time. But that's definately the better looking solution.
Ah yeah, I forgot that the charge piping would be in the way if you are not clocked. I guess mine has been that way ever since I intercooled it. :gay:
sbrian2 is offline   Reply With Quote
Old 05-18-2007, 10:11 PM   #24
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

I ended up ordering a rx-4860, and a 90 degree tight fitting thanks guys we'll see if that works.
magnamx-5 is offline   Reply With Quote
Old 05-24-2007, 03:33 PM   #25
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

well it got here but i mis calculated abit the flange is to long and the 90 i bought is tighter than i thought it would be so on comes the razor blade and duct tape time to make some mods. This is gonna fit dammit.
magnamx-5 is offline   Reply With Quote
Old 05-24-2007, 04:04 PM   #26
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

then add a bit of length of pipe to bolt the elbow to to move it out more....do you really need duct tape?



i dunno if you can tell but there is a 3"x4" pipe in there....
Braineack is offline   Reply With Quote
Old 05-24-2007, 06:08 PM   #27
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

^y8s take note
m2cupcar is offline   Reply With Quote
Old 05-24-2007, 06:14 PM   #28
Ben
Supporting Vendor
Thread Starter
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

When I was at the dyno, I stuck my hand around the filter and felt around during both power runs and steady state. I was amazed at how much cooler the air just behind the headlamp bucket is than the air next to the motor where my filter is.
Ben is offline   Reply With Quote
Old 05-24-2007, 06:41 PM   #29
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Quote:
Originally Posted by m2cupcar View Post
^y8s take note
punk!

i'm going on vacation. I dont have time to start projects!!

Seriously tho, I'd fix it now but my PS rez is in the way. I need 4" angled turbo hose and a short piece of pipe and THEN we'll deal with it. Oh and some aluminum to make a cold air box.
y8s is offline   Reply With Quote
Old 05-24-2007, 10:20 PM   #30
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

Dude my filter is 6 inches long before the mods the it is 5 inches across at the top 6 at the bottom, i needed it to be angled a hair so it would fit them i noticed that i had to trim the hood abit on the corner. I: have no room to move it further out it hits the fender as it is now.
magnamx-5 is offline   Reply With Quote
