Default Alejo_NIN's Version of Coolant Reroute

Well, after seeing hundredsupon hundreds of reroute, i came up with my own version.
sinc ei am very cheap, mine does not requiere the SPACER.

here you can notice what i did.
i opened up the hole where the temp sending sensor for the dash temperature gauge. this must be tapped to M12 1.5
then, a little higher, i drilled another hole for a NTP 27 Tap, where i relocated the temp sensor to.
since i don't have heater core, i didn't need the hoses, i got the kia neck whcih you sitll need. the thermostat fits perfectly still.
i cut down the bolt on the top right awhile removing the protruding metal elbow which feeds water to the oil cooler.
i then inserted a piece of copper pipe, in specific a cap and forced threated a pipe cap.
then i drilled a hole on the side for a barbed NTP 27 fitting to replace the one i just capped off.

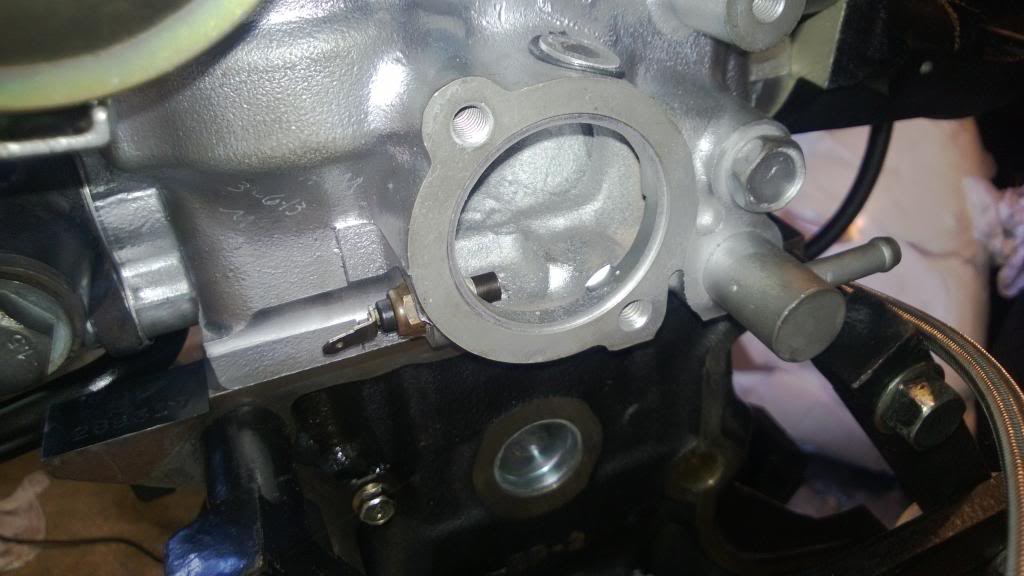

Before:

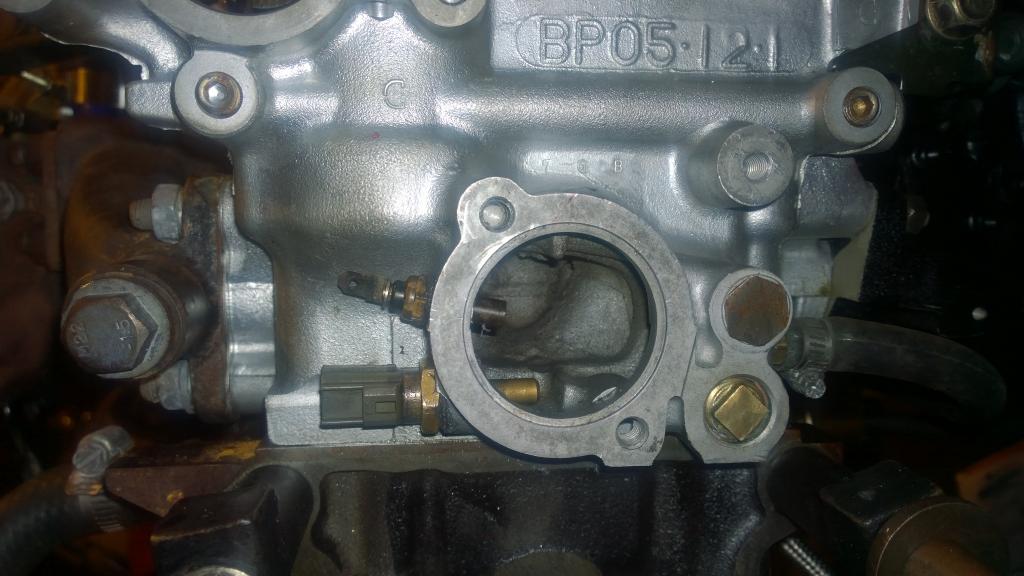

After:

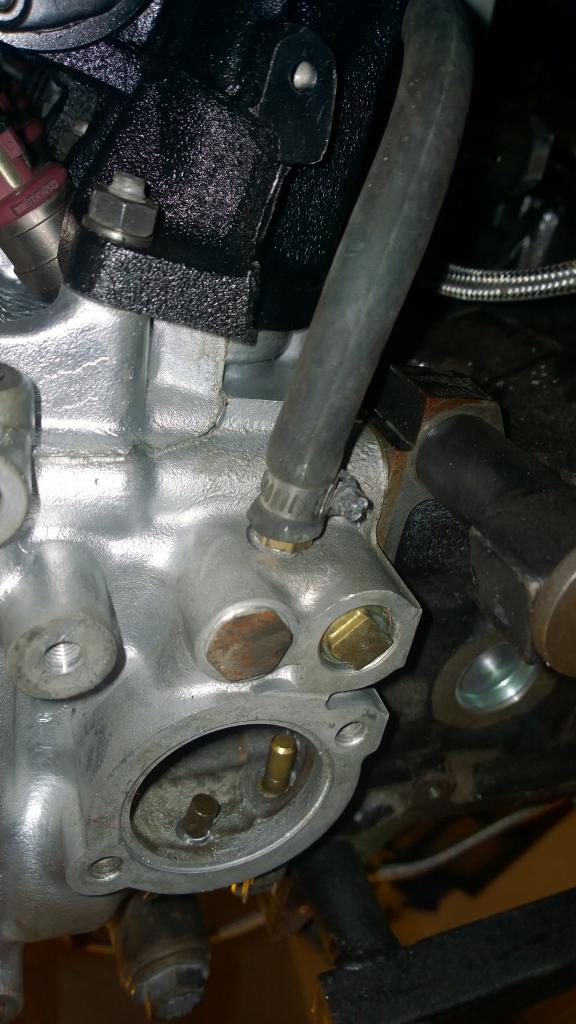

pipe that feeds the oil cooler

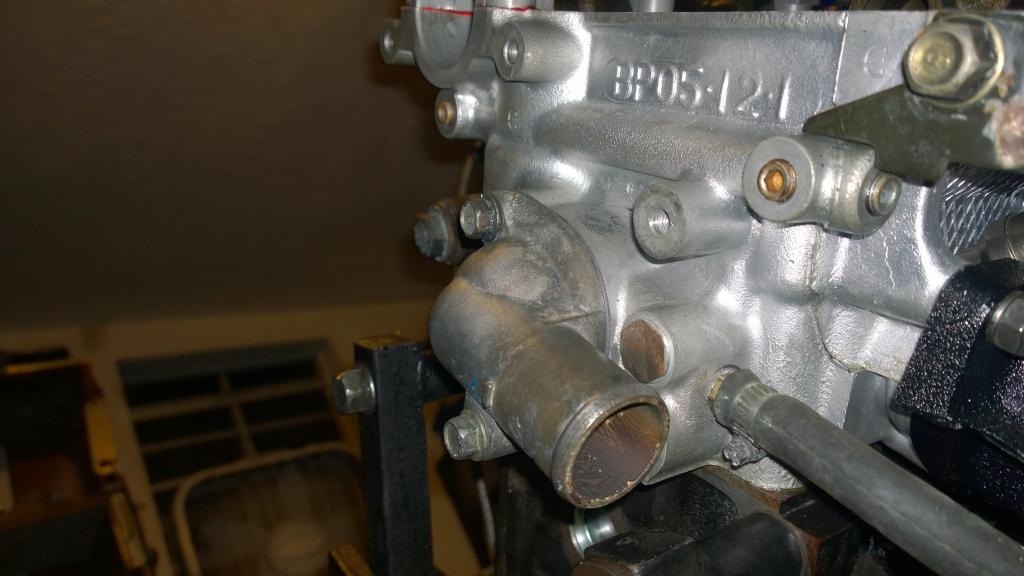

kia neck and why i shaved off those other pipes

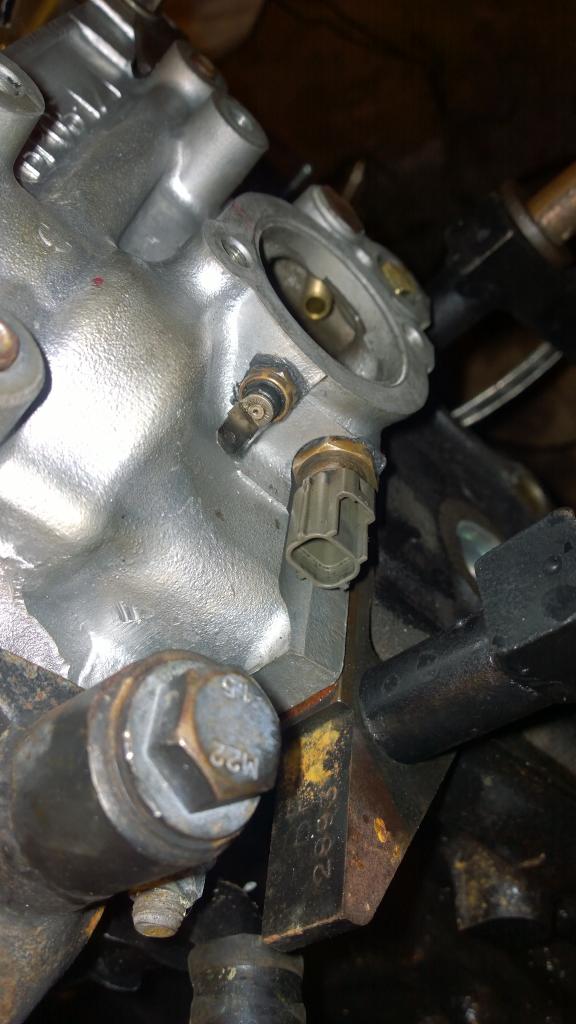

how the sensors sit now


i had to shim the sensor a bit to have it sit flush with the head. the connector just slides in with no problem.
i used teflon tape and also used RTV just to make sure.
the sensors sit just before the thermostat so you'll get the best temp reading possible.


well, i hope someone can benefit from this.
you still need the escape or explorer hose(i don't remember)
Attached Thumbnails
Alejo_NIN's Version of Coolant Reroute-wp_20130616_003_zps7f1c1c4e.jpg   Alejo_NIN's Version of Coolant Reroute-wp_20140627_004_zpscc94aa2c.jpg   Alejo_NIN's Version of Coolant Reroute-wp_20140627_009_zpsd1ed8769.jpg   Alejo_NIN's Version of Coolant Reroute-wp_20140627_011_zpsc4a3dd2f.jpg   Alejo_NIN's Version of Coolant Reroute-wp_20140627_006_zps29aee267.jpg

Alejo_NIN is offline   Reply With Quote
Old 06-28-2014, 01:55 AM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,192
Total Cats: 2,583
Default

Its not your own lol.

This has been done numerous times now. Since like 2007 lol

https://www.miataturbo.net/engine-pe...e-ideas-63883/
https://www.miataturbo.net/general-m...reroute-12027/

It works though, so good for you.
18psi is offline   Reply With Quote
Old 06-28-2014, 02:12 AM   #3
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Ha, you even did it right! Nice work.

He joined in '07, so it's fitting.
curly is offline   Reply With Quote
Old 06-28-2014, 07:59 AM   #4
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Posts: 329
Total Cats: 16
Default

Ha sorry. I never saw that one. That's on a 1.6 tho..im on a 1.8 so..still my reroute
I used a Kia neck..still my reroute. Lol. But I see your point. Well..add my post to the pile of reroutes. In hopes someone would benefit.
Alejo_NIN is offline   Reply With Quote
Old 06-28-2014, 11:36 AM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,886
Total Cats: 1,792
Default

at least you didn't go hyper on us.


but nothing new.
Braineack is online now   Reply With Quote
Old 06-28-2014, 12:09 PM   #6
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Posts: 329
Total Cats: 16
Default

Quote:
Originally Posted by Braineack View Post
at least you didn't go hyper on us.


but nothing new.
haha

nothing to see here...lol
Alejo_NIN is offline   Reply With Quote
Old 06-28-2014, 02:43 PM   #7
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,192
Total Cats: 2,583
Default

Since you took proper pics and documented it, definitely not a bad thing so congrats on that.

Just always remember: "there is nothing new under the sun"

18psi is offline   Reply With Quote
Old 06-28-2014, 10:49 PM   #8
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Posts: 329
Total Cats: 16
Default

Quote:
Originally Posted by 18psi View Post
Since you took proper pics and documented it, definitely not a bad thing so congrats on that.

Just always remember: "there is nothing new under the sun"

i figured the pics would help more than 1000 word write up..
